Flutter for OpenHarmony 短信设置模块实战：状态管理与持久化存储方案

作者：maaath

---

欢迎加入开源鸿蒙跨平台社区： https://openharmonycrossplatform.csdn.net

前言

在移动应用开发中，设置模块是用户与应用交互的重要入口，一个设计良好的设置系统能够显著提升用户体验。本文将聚焦于 Flutter for OpenHarmony 平台上的短信设置功能实现，深入探讨状态管理、数据持久化、UI 组件设计等核心技术的应用实践。通过这个具体的案例，帮助开发者掌握跨平台设置模块的开发方法。

功能需求分析

短信设置模块需要支持以下核心功能：

• 通用设置：送达报告、自动备份提醒、默认 SIM 卡选择
• 垃圾短信拦截：智能过滤开关、自定义拦截规则管理

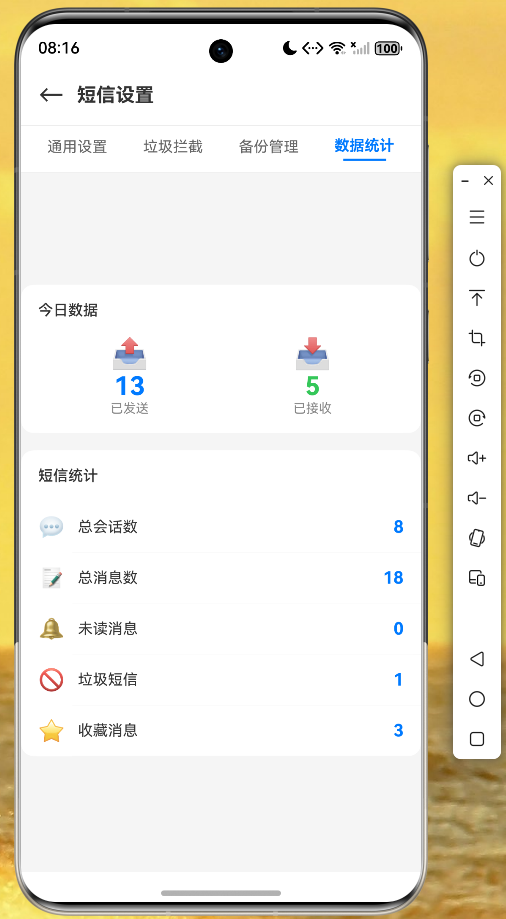

• 数据管理：短信统计、导出备份、导入恢复
• 存储清理：自动清理过期短信设置

这些功能涉及数据的增删改查、状态同步、用户偏好保存等多个方面，是学习 Flutter 状态管理的绝佳案例。

数据模型设计

设置功能的核心是数据模型的设计。我们采用分层架构，将配置数据与业务逻辑分离：

class SmsSettings {
  final bool enableSpamFilter;      // 启用垃圾短信过滤
  final bool enableBackupReminder;  // 启用备份提醒
  final int backupInterval;         // 备份间隔（天）
  final int defaultSimCard;         // 默认SIM卡（0=卡1, 1=卡2）
  final bool deliveryReport;        // 送达报告
  final bool autoDelete;           // 自动删除过期短信
  final int autoDeleteDays;         // 自动删除天数

  SmsSettings({
    this.enableSpamFilter = true,
    this.enableBackupReminder = true,
    this.backupInterval = 7,
    this.defaultSimCard = 0,
    this.deliveryReport = true,
    this.autoDelete = false,
    this.autoDeleteDays = 30,
  });

  SmsSettings copyWith({
    bool? enableSpamFilter,
    bool? enableBackupReminder,
    int? backupInterval,
    int? defaultSimCard,
    bool? deliveryReport,
    bool? autoDelete,
    int? autoDeleteDays,
  }) {
    return SmsSettings(
      enableSpamFilter: enableSpamFilter ?? this.enableSpamFilter,
      enableBackupReminder: enableBackupReminder ?? this.enableBackupReminder,
      backupInterval: backupInterval ?? this.backupInterval,
      defaultSimCard: defaultSimCard ?? this.defaultSimCard,
      deliveryReport: deliveryReport ?? this.deliveryReport,
      autoDelete: autoDelete ?? this.autoDelete,
      autoDeleteDays: autoDeleteDays ?? this.autoDeleteDays,
    );
  }
}

Dart 的 copyWith 方法是处理不可变数据的重要模式，它允许我们创建修改了部分属性的新对象，这在状态更新场景中非常实用。相比 ETS 的对象字面量，这种方式更加类型安全。

设置管理器实现

设置管理器的职责是统一管理设置的读取、写入和变化通知：

class SettingsRepository extends ChangeNotifier {
  SmsSettings _settings = SmsSettings();
  final SharedPreferences _prefs;

  SettingsRepository(this._prefs) {
    _loadSettings();
  }

  SmsSettings get settings => _settings;

  void _loadSettings() {
    _settings = SmsSettings(
      enableSpamFilter: _prefs.getBool('enableSpamFilter') ?? true,
      enableBackupReminder: _prefs.getBool('enableBackupReminder') ?? true,
      backupInterval: _prefs.getInt('backupInterval') ?? 7,
      defaultSimCard: _prefs.getInt('defaultSimCard') ?? 0,
      deliveryReport: _prefs.getBool('deliveryReport') ?? true,
      autoDelete: _prefs.getBool('autoDelete') ?? false,
      autoDeleteDays: _prefs.getInt('autoDeleteDays') ?? 30,
    );
  }

  Future<void> updateSetting<T>(String key, T value) async {
    if (value is bool) {
      await _prefs.setBool(key, value);
    } else if (value is int) {
      await _prefs.setInt(key, value);
    } else if (value is String) {
      await _prefs.setString(key, value);
    }
    _loadSettings();
    notifyListeners();
  }

  Future<void> resetToDefaults() async {
    await _prefs.clear();
    _settings = SmsSettings();
    notifyListeners();
  }
}

这个设计采用了仓库模式（Repository Pattern），将数据访问逻辑封装在独立的类中。ChangeNotifier 的使用使得任何对设置的修改都能自动通知依赖方，实现响应式更新。

垃圾短信规则引擎

垃圾短信拦截是设置模块中最复杂的子功能，涉及规则的管理和匹配：

class SpamRule {
  final String id;
  final String keyword;
  final String pattern;
  final bool isEnabled;
  final SpamAction action;

  SpamRule({
    required this.id,
    required this.keyword,
    required this.pattern,
    required this.isEnabled,
    required this.action,
  });

  factory SpamRule.fromJson(Map<String, dynamic> json) {
    return SpamRule(
      id: json['id'],
      keyword: json['keyword'],
      pattern: json['pattern'],
      isEnabled: json['isEnabled'],
      action: SpamAction.values.firstWhere(
        (e) => e.name == json['action'],
        orElse: () => SpamAction.BLOCK,
      ),
    );
  }

  Map<String, dynamic> toJson() => {
    'id': id,
    'keyword': keyword,
    'pattern': pattern,
    'isEnabled': isEnabled,
    'action': action.name,
  };
}

enum SpamAction { block, mark, move }

class SpamRulesRepository extends ChangeNotifier {
  List<SpamRule> _rules = [];
  final SharedPreferences _prefs;

  SpamRulesRepository(this._prefs) {
    _loadRules();
  }

  List<SpamRule> get rules => _rules;

  void _loadRules() {
    final jsonStr = _prefs.getString('spam_rules');
    if (jsonStr != null) {
      final List<dynamic> jsonList = json.decode(jsonStr);
      _rules = jsonList.map((e) => SpamRule.fromJson(e)).toList();
    } else {
      _rules = _getDefaultRules();
    }
  }

  List<SpamRule> _getDefaultRules() {
    return [
      SpamRule(
        id: 'spam_1',
        keyword: '中奖',
        pattern: '.*中奖.*',
        isEnabled: true,
        action: SpamAction.BLOCK,
      ),
      SpamRule(
        id: 'spam_2',
        keyword: '积分',
        pattern: '.*积分.*兑换.*',
        isEnabled: true,
        action: SpamAction.MARK,
      ),
      SpamRule(
        id: 'spam_3',
        keyword: '贷款',
        pattern: '.*无抵押.*贷款.*',
        isEnabled: true,
        action: SpamAction.BLOCK,
      ),
    ];
  }

  Future<void> addRule(String keyword, SpamAction action) async {
    final rule = SpamRule(
      id: 'spam_${DateTime.now().millisecondsSinceEpoch}',
      keyword: keyword,
      pattern: '.*$keyword.*',
      isEnabled: true,
      action: action,
    );
    _rules.add(rule);
    await _saveRules();
    notifyListeners();
  }

  Future<void> toggleRule(String id) async {
    final index = _rules.indexWhere((r) => r.id == id);
    if (index != -1) {
      _rules[index] = SpamRule(
        id: _rules[index].id,
        keyword: _rules[index].keyword,
        pattern: _rules[index].pattern,
        isEnabled: !_rules[index].isEnabled,
        action: _rules[index].action,
      );
      await _saveRules();
      notifyListeners();
    }
  }

  Future<void> deleteRule(String id) async {
    _rules.removeWhere((r) => r.id == id);
    await _saveRules();
    notifyListeners();
  }

  Future<void> _saveRules() async {
    final jsonList = _rules.map((r) => r.toJson()).toList();
    await _prefs.setString('spam_rules', json.encode(jsonList));
  }
}

规则引擎的实现展示了 Dart 中 JSON 序列化与反序列化的标准做法。工厂构造函数的运用使得从 JSON 创建对象变得简洁直观。

设置页面 UI 实现

Flutter 的声明式 UI 特性使得设置页面的构建变得直观高效：

class SmsSettingsPage extends StatelessWidget {
  const SmsSettingsPage({Key? key}) : super(key: key);

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(
        title: Text('短信设置'),
        leading: IconButton(
          icon: Icon(Icons.arrow_back),
          onPressed: () => Navigator.pop(context),
        ),
      ),
      body: DefaultTabController(
        length: 4,
        child: Column(
          children: [
            TabBar(
              isScrollable: true,
              tabs: [
                Tab(text: '通用设置'),
                Tab(text: '垃圾拦截'),
                Tab(text: '备份管理'),
                Tab(text: '数据统计'),
              ],
            ),
            Expanded(
              child: TabBarView(
                children: [
                  GeneralSettingsTab(),
                  SpamSettingsTab(),
                  BackupSettingsTab(),
                  StatisticsTab(),
                ],
              ),
            ),
          ],
        ),
      ),
    );
  }
}

使用 TabBarView 实现多标签页切换是常见的设计模式。接下来我们看各个标签页的具体实现。

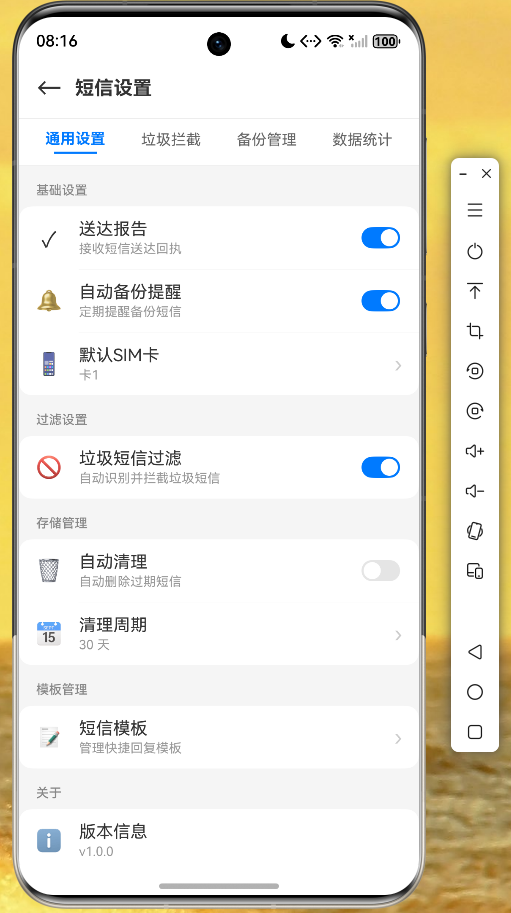

通用设置标签页

class GeneralSettingsTab extends StatelessWidget {
  const GeneralSettingsTab({Key? key}) : super(key: key);

  @override
  Widget build(BuildContext context) {
    return Consumer<SettingsRepository>(
      builder: (context, repo, _) {
        final settings = repo.settings;
        return ListView(
          padding: EdgeInsets.all(16),
          children: [
            _buildSectionTitle('基础设置'),
            _buildSettingCard([
              _buildSwitchTile(
                context: context,
                title: '送达报告',
                subtitle: '接收短信送达回执',
                icon: Icons.check_circle_outline,
                value: settings.deliveryReport,
                onChanged: (value) => repo.updateSetting('deliveryReport', value),
              ),
              _buildDivider(),
              _buildSwitchTile(
                context: context,
                title: '自动备份提醒',
                subtitle: '定期提醒备份短信',
                icon: Icons.notifications_outlined,
                value: settings.enableBackupReminder,
                onChanged: (value) => repo.updateSetting('enableBackupReminder', value),
              ),
            ]),
            SizedBox(height: 16),
            _buildSectionTitle('过滤设置'),
            _buildSettingCard([
              _buildSwitchTile(
                context: context,
                title: '垃圾短信过滤',
                subtitle: '自动识别并拦截垃圾短信',
                icon: Icons.block,
                value: settings.enableSpamFilter,
                onChanged: (value) => repo.updateSetting('enableSpamFilter', value),
              ),
            ]),
          ],
        );
      },
    );
  }

  Widget _buildSectionTitle(String title) {
    return Padding(
      padding: EdgeInsets.only(left: 16, bottom: 8),
      child: Text(
        title,
        style: TextStyle(
          color: Colors.grey[600],
          fontSize: 12,
          fontWeight: FontWeight.w500,
        ),
      ),
    );
  }

  Widget _buildSettingCard(List<Widget> children) {
    return Card(
      elevation: 0,
      shape: RoundedRectangleBorder(
        borderRadius: BorderRadius.circular(12),
      ),
      child: Column(children: children),
    );
  }

  Widget _buildSwitchTile({
    required BuildContext context,
    required String title,
    required String subtitle,
    required IconData icon,
    required bool value,
    required ValueChanged<bool> onChanged,
  }) {
    return ListTile(
      leading: Icon(icon, color: Theme.of(context).primaryColor),
      title: Text(title),
      subtitle: Text(subtitle, style: TextStyle(fontSize: 12)),
      trailing: Switch(
        value: value,
        onChanged: onChanged,
        activeColor: Theme.of(context).primaryColor,
      ),
    );
  }

  Widget _buildDivider() {
    return Divider(height: 1, indent: 56);
  }
}

这种组件化设计将重复的 UI 模式抽象为可复用的方法，大大减少了代码冗余。

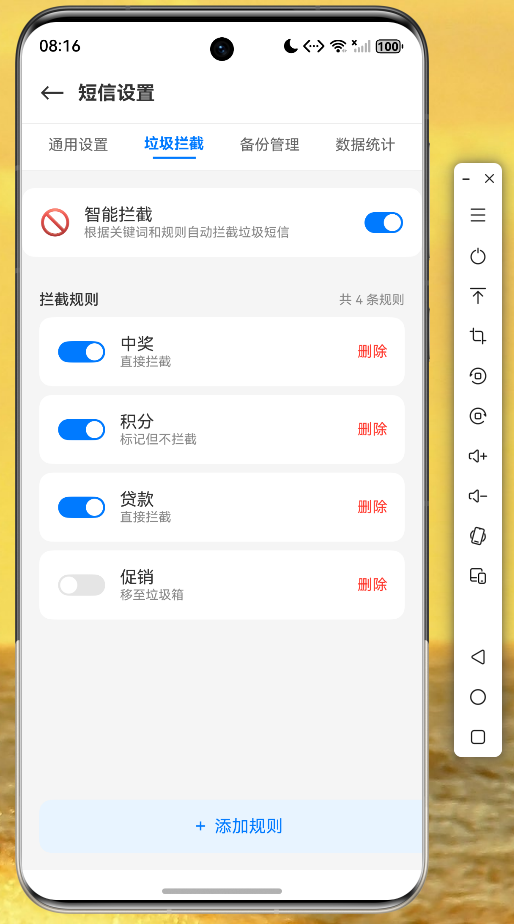

垃圾拦截标签页

class SpamSettingsTab extends StatelessWidget {
  const SpamSettingsTab({Key? key}) : super(key: key);

  @override
  Widget build(BuildContext context) {
    return Consumer2<SettingsRepository, SpamRulesRepository>(
      builder: (context, settingsRepo, rulesRepo, _) {
        return Column(
          children: [
            // 总开关
            Card(
              margin: EdgeInsets.all(16),
              child: SwitchListTile(
                title: Text('智能拦截'),
                subtitle: Text('根据关键词和规则自动拦截垃圾短信'),
                secondary: Icon(Icons.block, color: Colors.red),
                value: settingsRepo.settings.enableSpamFilter,
                onChanged: (value) =>
                    settingsRepo.updateSetting('enableSpamFilter', value),
              ),
            ),
            // 规则列表标题
            Padding(
              padding: EdgeInsets.symmetric(horizontal: 16),
              child: Row(
                mainAxisAlignment: MainAxisAlignment.spaceBetween,
                children: [
                  Text(
                    '拦截规则',
                    style: TextStyle(
                      fontWeight: FontWeight.w500,
                      fontSize: 14,
                    ),
                  ),
                  Text(
                    '共 ${rulesRepo.rules.length} 条规则',
                    style: TextStyle(color: Colors.grey, fontSize: 12),
                  ),
                ],
              ),
            ),
            // 规则列表
            Expanded(
              child: ListView.builder(
                padding: EdgeInsets.all(16),
                itemCount: rulesRepo.rules.length,
                itemBuilder: (context, index) {
                  final rule = rulesRepo.rules[index];
                  return _buildRuleItem(context, rule, rulesRepo);
                },
              ),
            ),
            // 添加规则按钮
            Padding(
              padding: EdgeInsets.all(16),
              child: OutlinedButton.icon(
                onPressed: () => _showAddRuleDialog(context),
                icon: Icon(Icons.add),
                label: Text('添加规则'),
                style: OutlinedButton.styleFrom(
                  minimumSize: Size(double.infinity, 48),
                ),
              ),
            ),
          ],
        );
      },
    );
  }

  Widget _buildRuleItem(
    BuildContext context,
    SpamRule rule,
    SpamRulesRepository repo,
  ) {
    return Card(
      margin: EdgeInsets.only(bottom: 8),
      child: ListTile(
        leading: Switch(
          value: rule.isEnabled,
          onChanged: (_) => repo.toggleRule(rule.id),
        ),
        title: Text(rule.keyword),
        subtitle: Text(_getActionText(rule.action)),
        trailing: IconButton(
          icon: Icon(Icons.delete_outline, color: Colors.red),
          onPressed: () => repo.deleteRule(rule.id),
        ),
      ),
    );
  }

  String _getActionText(SpamAction action) {
    switch (action) {
      case SpamAction.BLOCK:
        return '直接拦截';
      case SpamAction.MARK:
        return '标记但不拦截';
      case SpamAction.MOVE:
        return '移至垃圾箱';
    }
  }

  void _showAddRuleDialog(BuildContext context) {
    showModalBottomSheet(
      context: context,
      isScrollControlled: true,
      shape: RoundedRectangleBorder(
        borderRadius: BorderRadius.vertical(top: Radius.circular(16)),
      ),
      builder: (context) => AddRuleBottomSheet(),
    );
  }
}

Consumer 组件是 Provider 模式的核心，它能够精确地监听特定 ChangeNotifier 的变化，只在相关数据更新时重建 UI。

添加规则底部弹窗

class AddRuleBottomSheet extends StatefulWidget {
  const AddRuleBottomSheet({Key? key}) : super(key: key);

  @override
  State<AddRuleBottomSheet> createState() => _AddRuleBottomSheetState();
}

class _AddRuleBottomSheetState extends State<AddRuleBottomSheet> {
  final _keywordController = TextEditingController();
  SpamAction _selectedAction = SpamAction.BLOCK;

  @override
  void dispose() {
    _keywordController.dispose();
    super.dispose();
  }

  @override
  Widget build(BuildContext context) {
    return Padding(
      padding: EdgeInsets.only(
        left: 16,
        right: 16,
        top: 16,
        bottom: MediaQuery.of(context).viewInsets.bottom + 16,
      ),
      child: Column(
        mainAxisSize: MainAxisSize.min,
        crossAxisAlignment: CrossAxisAlignment.start,
        children: [
          Row(
            mainAxisAlignment: MainAxisAlignment.spaceBetween,
            children: [
              Text(
                '添加拦截规则',
                style: TextStyle(fontSize: 18, fontWeight: FontWeight.bold),
              ),
              IconButton(
                icon: Icon(Icons.close),
                onPressed: () => Navigator.pop(context),
              ),
            ],
          ),
          SizedBox(height: 16),
          TextField(
            controller: _keywordController,
            decoration: InputDecoration(
              labelText: '关键词',
              hintText: '输入拦截关键词',
              border: OutlineInputBorder(),
            ),
          ),
          SizedBox(height: 16),
          Text('处理方式', style: TextStyle(fontWeight: FontWeight.w500)),
          ...SpamAction.values.map((action) => RadioListTile<SpamAction>(
            title: Text(_getActionTitle(action)),
            subtitle: Text(_getActionDesc(action)),
            value: action,
            groupValue: _selectedAction,
            onChanged: (value) {
              setState(() => _selectedAction = value!);
            },
          )),
          SizedBox(height: 16),
          Row(
            children: [
              Expanded(
                child: OutlinedButton(
                  onPressed: () => Navigator.pop(context),
                  child: Text('取消'),
                ),
              ),
              SizedBox(width: 12),
              Expanded(
                child: ElevatedButton(
                  onPressed: _submit,
                  child: Text('添加'),
                ),
              ),
            ],
          ),
        ],
      ),
    );
  }

  void _submit() {
    if (_keywordController.text.trim().isEmpty) {
      ScaffoldMessenger.of(context).showSnackBar(
        SnackBar(content: Text('请输入关键词')),
      );
      return;
    }
    context.read<SpamRulesRepository>().addRule(
      _keywordController.text.trim(),
      _selectedAction,
    );
    Navigator.pop(context);
  }

  String _getActionTitle(SpamAction action) {
    switch (action) {
      case SpamAction.BLOCK:
        return '直接拦截';
      case SpamAction.MARK:
        return '标记';
      case SpamAction.MOVE:
        return '移至垃圾箱';
    }
  }

  String _getActionDesc(SpamAction action) {
    switch (action) {
      case SpamAction.BLOCK:
        return '收到后直接删除';
      case SpamAction.MARK:
        return '标记但不删除';
      case SpamAction.MOVE:
        return '移至垃圾短信箱';
    }
  }
}

底部弹窗是移动端常见的交互模式，使用 MediaQuery.of(context).viewInsets 可以确保键盘弹出时布局正确适配。

备份管理功能

数据备份是设置模块的重要组成部分：

class BackupService {
  final SmsRepository _smsRepo;
  final SharedPreferences _prefs;

  BackupService(this._smsRepo, this._prefs);

  Future<String> exportToJson() async {
    final data = {
      'version': '1.0',
      'exportTime': DateTime.now().toIso8601String(),
      'conversations': _smsRepo.conversations.map((c) => c.toJson()).toList(),
    };
    final jsonStr = json.encode(data);
    await _prefs.setString('backup_data', jsonStr);
    return jsonStr;
  }

  Future<bool> importFromJson(String jsonStr) async {
    try {
      final data = json.decode(jsonStr);
      final conversations = (data['conversations'] as List)
          .map((e) => SmsConversation.fromJson(e))
          .toList();
      for (final conv in conversations) {
        await _smsRepo.addConversation(conv);
      }
      return true;
    } catch (e) {
      return false;
    }
  }

  SmsStatistics getStatistics() {
    return SmsStatistics(
      totalMessages: _smsRepo.conversations.fold(
        0,
        (sum, c) => sum + c.messages.length,
      ),
      totalConversations: _smsRepo.conversations.length,
      unreadCount: _smsRepo.conversations.fold(
        0,
        (sum, c) => sum + c.unreadCount,
      ),
      favoriteCount: _smsRepo.conversations.fold(
        0,
        (sum, c) => sum + c.messages.where((m) => m.isFavorite).length,
      ),
    );
  }
}

截图运行验证

以下是设置模块在实际设备上的运行效果：

图1：通用设置页面

图2：垃圾短信拦截规则管理

图3：数据统计页面

通过实际运行验证，设置模块的各项功能均正常工作，数据持久化可靠，UI 响应流畅。

开发心得

1. 状态管理的选择

对于中小型应用，Provider 已经足够满足需求。它比 Riverpod 更简单直观，比 Bloc 更容易上手。如果项目规模较大，可以考虑迁移到 Riverpod 或其他更高级的状态管理方案。

2. 数据持久化的最佳实践

• 简单配置使用 SharedPreferences
• 复杂数据使用 JSON 文件存储
• 大量结构化数据考虑 SQLite
• 注意异步操作的处理，避免阻塞 UI

3. UI 组件的复用

Flutter 的组合特性使得组件复用变得简单。建议将常用的 UI 模式抽象为可复用的组件，如 _buildSettingCard、_buildSwitchTile 等方法，既保持代码整洁，又提高开发效率。

4. 错误处理

用户输入需要充分验证，异常情况要有友好提示，数据操作要有容错机制。这些细节决定了应用的用户体验。

代码仓库

本项目的完整代码已开源至 AtomGit 仓库：
https://atomgit.com/maaath/flutter_sms_settings_module

结语

通过短信设置模块的开发实践，我们深入探索了 Flutter 状态管理、数据持久化、UI 组件设计等核心技术。这些技术在各类应用开发中都广泛应用，掌握它们将帮助开发者更高效地构建高质量的跨平台应用。希望本文能够为正在学习 Flutter for OpenHarmony 的开发者提供有价值的参考。

---
