08_flutter中如何优雅的提前获取child的宽高

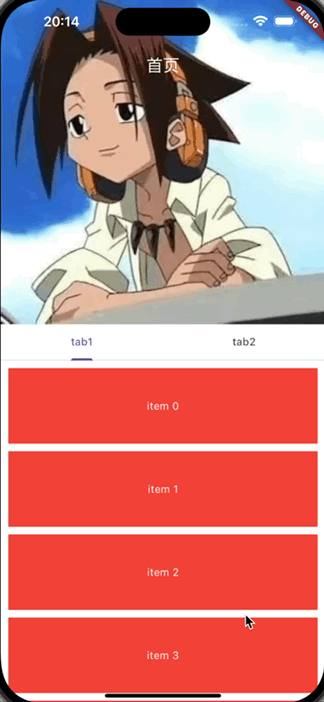

一. 先上效果

在这里插入图片描述

最近在使用SliverAppBar实现可以折叠的标题栏时发现，在设置子SliverAppBar的展开高度时，需要显式的指定展开的高度，显得不够灵活，以下面代码为例：

CustomScrollView(
  slivers: [
    SliverAppBar(
      pinned: true,
      collapsedHeight: kToolbarHeight,
      expandedHeight: 300 - MediaQuery.paddingOf(context).top,
      centerTitle: true,
      title: Builder(builder: (context) {
        final FlexibleSpaceBarSettings? settings = context.dependOnInheritedWidgetOfExactType<FlexibleSpaceBarSettings>();
        bool isScrolledUnder = settings?.isScrolledUnder ?? false;
        Color? titleColor = isScrolledUnder ? Theme.of(context).appBarTheme.foregroundColor:Colors.white;
        return Text(
          "首页",
          style: TextStyle(
            color: titleColor
          ),
        );
      }),
      backgroundColor: MaterialStateColor.resolveWith((states) {
        if(states.contains(MaterialState.scrolledUnder)) {
          return Theme.of(context).appBarTheme.backgroundColor ?? Colors.white;
        }
        return Colors.transparent;
      }),
      flexibleSpace: FlexibleSpaceBar(
        collapseMode: CollapseMode.pin,
        background: InkResponse(
          onTap: () {
            debugPrint("click");
          },
          child: Padding(
            padding: const EdgeInsets.only(bottom: 48),
            child: Image.asset(
              "assets/user.jpeg",
              fit: BoxFit.fitWidth,
            ),
          ),
        ),
      ),
      bottom: const TabBar(
        tabs: [
          Tab(
            text: "tab1",
          ),
          Tab(
            text: "tab2",
          )
        ],
      )
    ),

    SliverPadding(
      padding: const EdgeInsets.all(5),
      sliver: SliverList.list(
        children: List<Widget>.generate(10, (index) {
          return Container(
            height: 100,
            color: Colors.red,
            margin: const EdgeInsets.all(5),
            alignment: Alignment.center,
            child: Text(
              "item $index",
              style: const TextStyle(
                color: Colors.white
              ),
            ),
          );
        })
      ),
    )
  ],
)

我希望通过指定expandedHeight的值，保证标题栏能够完全显示出Image的内容，同时Image不会被裁剪。这个时候我们就需要提前知道flexibleSpace中的background以及bottom的高度flexibleHeight，然后设置expandedHeight的值为flexibleHeight - MediaQuery.paddingOf(context).top，那么，怎么样才能提前获取到background以及bottom的高度呢?

二.实现思路

方案一

自己计算，适用于当折叠内容的布局比较简单时，比如只用到了文本以及padding和margin，那么可以先借助TextPainter计算文本的高度，再叠加上padding和margin，这样做不能重用，且有局限性，还容易计算错误，所以不推荐。
方案二

重新实现一个SliverPersistentHeader和SliverAppBar，在SliverPersistentHeader对应的RenderObject中，重写performLayout来提前调整SliverPersistentHeader的maxExtent，这样做呢，貌似没什么问题，也能复用。但是假如Flutter SDK对SliverPersistentHeader和SliverAppBar做了调整，那么咱们自己实现的组件也得跟着变，而且要变的东西很多，牵一发而动全身了，所以也不推荐。
方案三

参考了内置组件SliverPrototypeExtentList的实现，自定义RenderObjectWidget、RenderObjectElement和RenderObject，在RenderObject中额外挂载一个原型widget，原型widget只参与layout，不参与paint，相当于原型widget只是为了layout之后计算宽高，并不会显示到屏幕上去，所以也就不会有性能的损耗。

然后重写RenderObject的performLayout，先layout原型widget，再根据原型widget的尺寸，去构建实际需要渲染的child。

最后使用如下:
```
SliverPrototypeBuilder(
  prototype: Container(
    height: 200,
    color: Colors.red,
  ),
  sliverBuilder: (context, mainAxisChildExtent, crossAxisChildExtent) {
    return SliverToBoxAdapter(
      child: Container(
        height: mainAxisChildExtent,
        color: Colors.red,
      ),
    );
  }
)
```
这种方式易扩展，支持复用，我们可以将这个组件作用于任何的Sliver组件，同样也可以配套实现一个普通RenderBox的版本，作用于普通的widget，同时使用简单也足够优雅，不需要重写sdk提供的widget，推荐使用这种方式，本文也将采用这种方式实现。

三.`RenderObjectWidget`、`RenderObjectElement`、`RenderObject`各自负责什么。

RenderObjectWidget

定义组件的尺寸约束、颜色等配置信息，负责创建RenderObjectElement 和RenderObject 对象，是一个不可变对象，要改变配置，只能重新去创建对象，由RenderObjectElement控制重建。
RenderObjectElement

Flutter中随处可见的BuildContext就是一个RenderObjectElement对象，负责创建RenderObjectWidget对象，从而递归创建子组件的RenderObjectWidget、RenderObjectElement、RenderObject，以及挂载子组件child对应的RenderObject到当前RenderObject上，同时控制RenderObjectWidget的重新创建以及指挥当前RenderObject去更新和干活(layout、paint…)，Flutter中的三棵树就是这样形成的，RenderObjectElement是连接RenderObjectWidget和RenderObject的桥梁。
RenderObject

RenderObject才是真正负责干活的大冤种，负责确定widget的宽高(layout)，以及调用渲染引擎把结果显示到屏幕上(paint)，此过程同样是递归，layout过程遵循向下传递布局约束，向上传递child尺寸，父级根据子组件传递的尺寸以及自身的布局约束，确定自身的尺寸。

四.自定义`RenderObjectElement`类

创建_SliverPrototypeBuilderElement类继承RenderObjectElement

class _SliverPrototypeBuilderElement extends RenderObjectElement {
  _SliverPrototypeBuilderElement(SliverPrototypeBuilder super.widget);
}

重写visitChildren、forgetChild、mount、update、insertRenderObjectChild、moveRenderObjectChild、removeRenderObjectChild方法，把自身引用传递给RenderObject，RenderObject可以通过这个应用通知构建真正需要渲染的child对应的RenderObjectWidget，读取RenderObjectWidget的配置，通知RenderObjectWidget创建prototype对应的RenderObjectWidget以及挂载prototype原型widget对应的RenderBox。

class _SliverPrototypeBuilderElement extends RenderObjectElement {
  _SliverPrototypeBuilderElement(SliverPrototypeBuilder super.widget);

  @override
  _RenderSliverPrototypeBuilder get renderObject => super.renderObject as _RenderSliverPrototypeBuilder;

  Element? _prototype;
  static final Object _prototypeSlot = Object();
  Element? _child;

  @override
  void visitChildren(ElementVisitor visitor) {
    // 暂时不知道是什么意思，依葫芦画了个瓢
    if (_prototype != null) {
      visitor(_prototype!);
    }
    if (_child != null) {
      visitor(_child!);
    }
  }

  @override
  void forgetChild(Element child) {
    if(_prototype == child) {
      // 卸载prototype
      _prototype = null;
    } else {
      // 卸载真实渲染的child
      _child = null;
    }
    super.forgetChild(child);
  }

  @override
  void mount(Element? parent, Object? newSlot) {
    super.mount(parent, newSlot);
    // 创建prototype对应的RenderObjectWidget、RenderObject、RenderObjectElement
    _prototype = updateChild(_prototype, (widget as SliverPrototypeBuilder).prototype, _prototypeSlot);
    // 由于真正需要渲染的child依赖prototype的尺寸，所以我们先不自动创建它，等到RenderObject中prototype的尺寸确定了，再通知创建
    // 把自身引用传递给RenderObject，RenderObject可以通过这个引用通知RenderObjectElement构建真正需要渲染的child对应的RenderObjectWidget
    renderObject._element = this;
  }

  @override
  void update(SliverPrototypeBuilder newWidget) {
    super.update(newWidget);
    assert(widget == newWidget);
    // 重建prototype
    _prototype = updateChild(_prototype, newWidget.prototype, _prototypeSlot);
    // 通知renderObject，prototype对应的RenderObjectWidget被重建了，请您重新执行layout过程更新
    renderObject.markNeedsLayout();
  }

  @override
  void insertRenderObjectChild(RenderObject child, Object? slot) {
    if (slot == _prototypeSlot) {
      // 将prototype对应的RenderBox挂载到renderObject
      assert(child is RenderBox);
      renderObject.prototype = child as RenderBox;
    } else {
      // 将真正需要渲染的child对应的RenderBox挂载到renderObject
      final RenderObjectWithChildMixin<RenderObject> renderObject = this.renderObject;
      assert(renderObject.debugValidateChild(child));
      renderObject.child = child;
    }
  }

  @override
  void moveRenderObjectChild(RenderObject child, Object? oldSlot, Object? newSlot) {
    // 单子容器组件无需实现。
    assert(false);
  }

  @override
  void removeRenderObjectChild(RenderObject child, Object? slot) {
    if (slot == _prototypeSlot) {
      // 将prototype对应的RenderBox从renderObject移除
      renderObject.prototype = null;
    } else {
      // 将真正需要渲染的child对应的RenderBox从renderObject移除
      renderObject.child = null;
    }
  }
}

提供一个_build方法，当计算出prototype的尺寸后，创建和更新真正需要渲染的child对应的RenderObjectWidget、RenderObject、RenderObjectElement。

// mainAxisChildExtent：prototype在主轴方向的尺寸
// crossAxisChildExtent：prototype在交叉轴方向的尺寸
// 注：上下滚动时，主轴为垂直方向，mainAxisChildExtent代表height，crossAxisChildExtent代表width
void _build(double mainAxisChildExtent, double crossAxisChildExtent) {
  owner!.buildScope(this, () {
    final SliverPrototypeBuilder renderObjectWidget = widget as SliverPrototypeBuilder;
    _child = updateChild(
      _child,
      renderObjectWidget.sliverBuilder(this, mainAxisChildExtent, crossAxisChildExtent),
      null,
    );
  });
}

五.自定义`RenderObject`类

创建_RenderSliverPrototypeBuilder继承RenderProxySliver，通过继承RenderProxySliver后，我们只用重写performLayout的实现，其他的沿用系统的实现即可。
```
class _RenderSliverPrototypeBuilder extends RenderProxySliver {}
```

定义prototype对应的RenderBox

class _RenderSliverPrototypeBuilder extends RenderProxySliver {
 	RenderBox? _prototype;
  RenderBox? get prototype => _prototype;
  set prototype(RenderBox? value) {
    // 先卸载
    if (_prototype != null) {
      dropChild(_prototype!);
    }
    _prototype = value;
    // 再挂载
    if (_prototype != null) {
      adoptChild(_prototype!);
    }
    // 重新layout
    markNeedsLayout();
  }

    @override
  void attach(PipelineOwner owner) {
    super.attach(owner);
    if (_prototype != null) {
      _prototype!.attach(owner);
    }
  }

  @override
  void detach() {
    super.detach();
    if (_prototype != null) {
      _prototype!.detach();
    }
  }

  @override
  void redepthChildren() {
    if (_prototype != null) {
      redepthChild(_prototype!);
    }
    super.redepthChildren();
  }

  @override
  void visitChildren(RenderObjectVisitor visitor) {
    if (_prototype != null) {
      visitor(_prototype!);
    }
    super.visitChildren(visitor);
  }
}

重写performLayout，计算prototype的尺寸。

class _RenderSliverPrototypeBuilder extends RenderProxySliver {

  ...

  Size _computePrototypeSize({required ChildLayouter layoutChild, required BoxConstraints constraints}) {
    if (prototype != null) {
      if (!constraints.hasTightHeight) {
        final double height = prototype!.getMaxIntrinsicHeight(constraints.maxWidth);
        assert(height.isFinite);
        constraints = constraints.tighten(height: height);
      }

      if(!constraints.hasTightWidth) {
        final double width = prototype!.getMaxIntrinsicWidth(constraints.maxHeight);
        assert(width.isFinite);
        constraints = constraints.tighten(width: width);
      }

      return layoutChild(prototype!, constraints);
    } else {
      return constraints.smallest;
    }
  }

 	@override
  void performLayout() {
    // layout prototype...
    final SliverConstraints constraints = this.constraints;
    Size prototypeSize = _computePrototypeSize(
      layoutChild: ChildLayoutHelper.layoutChild,
      constraints: constraints.asBoxConstraints(),
    );

    ...

    super.performLayout();
  }
}

prototype尺寸确定后，通知RenderObjectElement去创建实际需要渲染的child对应的RenderObjectWidget、RenderObjectElement、RenderObject，并把尺寸信息传递出去。

class _RenderSliverPrototypeBuilder extends RenderProxySliver {

  ...

  bool _needsUpdateChild = true;
  double? _lastMainAxisChildExtent;
  double? _lastCrossAxisChildExtent;
  _SliverPrototypeBuilderElement? _element;

  @override
  void markNeedsLayout() {
    _needsUpdateChild = true;
    super.markNeedsLayout();
  }

  void updateChild(Size size) {
    double mainAxisChildExtent = 0;
    double crossAxisChildExtent = 0;
    if(constraints.axis == Axis.vertical) {
      mainAxisChildExtent = size.height;
      crossAxisChildExtent = size.width;
    } else {
      mainAxisChildExtent = size.width;
      crossAxisChildExtent = size.height;
    }

    if (_needsUpdateChild || _lastMainAxisChildExtent != mainAxisChildExtent || _lastCrossAxisChildExtent != crossAxisChildExtent) {
      invokeLayoutCallback<SliverConstraints>((SliverConstraints constraints) {
        assert(constraints == this.constraints);
        assert(_element != null);
        _element!._build(mainAxisChildExtent, crossAxisChildExtent);
      });
      _lastMainAxisChildExtent = mainAxisChildExtent;
      _lastCrossAxisChildExtent = crossAxisChildExtent;
      _needsUpdateChild = false;
    }
  }

  @override
  void performLayout() {
    // layout prototype...
    final SliverConstraints constraints = this.constraints;
    Size prototypeSize = _computePrototypeSize(
      layoutChild: ChildLayoutHelper.layoutChild,
      constraints: constraints.asBoxConstraints(),
    );

    updateChild(prototypeSize);

    super.performLayout();
  }
}

六.自定义`RenderObjectWidget`类

比较简单，直接上代码了就。

typedef SliverPrototypeWidgetBuilder = Widget Function(BuildContext context, double mainAxisChildExtent, double crossAxisChildExtent);

class SliverPrototypeBuilder extends RenderObjectWidget {

  final Widget? prototype;
  final SliverPrototypeWidgetBuilder sliverBuilder;

  const SliverPrototypeBuilder({
    super.key,
    this.prototype,
    required this.sliverBuilder
  });

  @override
  RenderObjectElement createElement() => _SliverPrototypeBuilderElement(this);

  @override
  RenderObject createRenderObject(BuildContext context) => _RenderSliverPrototypeBuilder();
}

七.组件源码

import 'package:flutter/material.dart';
import 'package:flutter/rendering.dart';

typedef SliverPrototypeWidgetBuilder = Widget Function(BuildContext context, double mainAxisChildExtent, double crossAxisChildExtent);

class SliverPrototypeBuilder extends RenderObjectWidget {

  final Widget? prototype;
  final SliverPrototypeWidgetBuilder sliverBuilder;

  const SliverPrototypeBuilder({
    super.key,
    this.prototype,
    required this.sliverBuilder
  });

  @override
  RenderObjectElement createElement() => _SliverPrototypeBuilderElement(this);

  @override
  RenderObject createRenderObject(BuildContext context) => _RenderSliverPrototypeBuilder();
}

class _SliverPrototypeBuilderElement extends RenderObjectElement {
  _SliverPrototypeBuilderElement(SliverPrototypeBuilder super.widget);

  @override
  _RenderSliverPrototypeBuilder get renderObject => super.renderObject as _RenderSliverPrototypeBuilder;

  Element? _prototype;
  static final Object _prototypeSlot = Object();
  Element? _child;

  @override
  void visitChildren(ElementVisitor visitor) {
    /// 暂时不知道是什么意思，依葫芦画的瓢
    if (_prototype != null) {
      visitor(_prototype!);
    }
    if (_child != null) {
      visitor(_child!);
    }
  }

  @override
  void forgetChild(Element child) {
    /// 卸载prototype
    if(_prototype == child) {
      _prototype = null;
    } else {
      _child = null;
    }
    super.forgetChild(child);
  }

  @override
  void mount(Element? parent, Object? newSlot) {
    super.mount(parent, newSlot);
    /// 创建prototype对应的RenderObjectWidget
    _prototype = updateChild(_prototype, (widget as SliverPrototypeBuilder).prototype, _prototypeSlot);
    /// 由于真正需要渲染的child依赖prototype的尺寸，所以我们先不自动创建它，等到prototype的尺寸确定了，在通知创建
    /// 把自身引用传递给RenderObject，RenderObject可以通过这个应用通知构建真正需要渲染的child对应的RenderObjectWidget
    renderObject._element = this;
  }

  @override
  void update(SliverPrototypeBuilder newWidget) {
    super.update(newWidget);
    assert(widget == newWidget);
    /// 重建prototype
    _prototype = updateChild(_prototype, newWidget.prototype, _prototypeSlot);
    /// 通知renderObject，prototype对应的RenderObjectWidget被重建了，重写执行layout过程更新
    renderObject.markNeedsLayout();
  }

  @override
  void insertRenderObjectChild(RenderObject child, Object? slot) {
    if (slot == _prototypeSlot) {
      /// 将prototype对应的RenderBox挂载到renderObject
      assert(child is RenderBox);
      renderObject.prototype = child as RenderBox;
    } else {
      /// 将真正需要渲染的child对应的RenderBox挂载到renderObject
      final RenderObjectWithChildMixin<RenderObject> renderObject = this.renderObject;
      assert(renderObject.debugValidateChild(child));
      renderObject.child = child;
    }
  }

  @override
  void moveRenderObjectChild(RenderObject child, Object? oldSlot, Object? newSlot) {
    /// 单子容器组件无需实现。
    assert(false);
  }

  @override
  void removeRenderObjectChild(RenderObject child, Object? slot) {
    if (slot == _prototypeSlot) {
      /// 将prototype对应的RenderBox从renderObject移除
      renderObject.prototype = null;
    } else {
      /// 将真正需要渲染的child对应的RenderBox从renderObject移除
      renderObject.child = null;
    }
  }

  /// mainAxisChildExtent：prototype在主轴方向的尺寸
  /// crossAxisChildExtent：prototype在交叉轴方向的尺寸
  /// 注：上下滚动时，主轴为垂直方向，mainAxisChildExtent代表height，crossAxisChildExtent代表width
  void _build(double mainAxisChildExtent, double crossAxisChildExtent) {
    owner!.buildScope(this, () {
      final SliverPrototypeBuilder renderObjectWidget = widget as SliverPrototypeBuilder;
      _child = updateChild(
        _child,
        renderObjectWidget.sliverBuilder(this, mainAxisChildExtent, crossAxisChildExtent),
        null,
      );
    });
  }
}

class _RenderSliverPrototypeBuilder extends RenderProxySliver {

  bool _needsUpdateChild = true;
  double? _lastMainAxisChildExtent;
  double? _lastCrossAxisChildExtent;
  _SliverPrototypeBuilderElement? _element;

  RenderBox? _prototype;
  RenderBox? get prototype => _prototype;
  set prototype(RenderBox? value) {
    if (_prototype != null) {
      dropChild(_prototype!);
    }
    _prototype = value;
    if (_prototype != null) {
      adoptChild(_prototype!);
    }
    markNeedsLayout();
  }

  @override
  void attach(PipelineOwner owner) {
    super.attach(owner);
    if (_prototype != null) {
      _prototype!.attach(owner);
    }
  }

  @override
  void detach() {
    super.detach();
    if (_prototype != null) {
      _prototype!.detach();
    }
  }

  @override
  void redepthChildren() {
    if (_prototype != null) {
      redepthChild(_prototype!);
    }
    super.redepthChildren();
  }

  @override
  void visitChildren(RenderObjectVisitor visitor) {
    if (_prototype != null) {
      visitor(_prototype!);
    }
    super.visitChildren(visitor);
  }

  /// prototype尺寸确定后，
  /// 通知RenderObjectElement去创建实际需要渲染的child对应的
  /// RenderObjectWidget、RenderObjectElement、RenderObject，并把prototype的尺寸信息传递出去。
  void updateChild(Size size) {
    double mainAxisChildExtent = 0;
    double crossAxisChildExtent = 0;
    if(constraints.axis == Axis.vertical) {
      mainAxisChildExtent = size.height;
      crossAxisChildExtent = size.width;
    } else {
      mainAxisChildExtent = size.width;
      crossAxisChildExtent = size.height;
    }

    if (_needsUpdateChild || _lastMainAxisChildExtent != mainAxisChildExtent || _lastCrossAxisChildExtent != crossAxisChildExtent) {
      invokeLayoutCallback<SliverConstraints>((SliverConstraints constraints) {
        assert(constraints == this.constraints);
        assert(_element != null);
        _element!._build(mainAxisChildExtent, crossAxisChildExtent);
      });
      _lastMainAxisChildExtent = mainAxisChildExtent;
      _lastCrossAxisChildExtent = crossAxisChildExtent;
      _needsUpdateChild = false;
    }
  }

  @override
  void markNeedsLayout() {
    _needsUpdateChild = true;
    super.markNeedsLayout();
  }

  /// 计算prototype的尺寸信息
  Size _computePrototypeSize({required ChildLayouter layoutChild, required BoxConstraints constraints}) {
    if (prototype != null) {
      if (!constraints.hasTightHeight) {
        final double height = prototype!.getMaxIntrinsicHeight(constraints.maxWidth);
        assert(height.isFinite);
        constraints = constraints.tighten(height: height);
      }

      if(!constraints.hasTightWidth) {
        final double width = prototype!.getMaxIntrinsicWidth(constraints.maxHeight);
        assert(width.isFinite);
        constraints = constraints.tighten(width: width);
      }

      return layoutChild(prototype!, constraints);
    } else {
      return constraints.smallest;
    }
  }

  @override
  void performLayout() {
    /// layout prototype...
    final SliverConstraints constraints = this.constraints;
    Size prototypeSize = _computePrototypeSize(
      layoutChild: ChildLayoutHelper.layoutChild,
      constraints: constraints.asBoxConstraints(),
    );

    updateChild(prototypeSize);

    super.performLayout();
  }
}

八.例子

@override
Widget build(BuildContext context) {
  return Scaffold(
    body: DefaultTabController(
      initialIndex: 0,
      length: 2,
      child: CustomScrollView(
        slivers: [
          SliverPrototypeBuilder(
            prototype: Padding(
              padding: const EdgeInsets.only(bottom: 48),
              child: Image.asset(
                "assets/user.jpeg",
                fit: BoxFit.fitWidth,
              ),
            ),
            sliverBuilder: (context, mainAxisChildExtent, crossAxisChildExtent) {
              return SliverAppBar(
                pinned: true,
                collapsedHeight: kToolbarHeight,
                expandedHeight: mainAxisChildExtent - MediaQuery.paddingOf(context).top,
                centerTitle: true,
                title: Builder(builder: (context) {
                  final FlexibleSpaceBarSettings? settings = context.dependOnInheritedWidgetOfExactType<FlexibleSpaceBarSettings>();
                  bool isScrolledUnder = settings?.isScrolledUnder ?? false;
                  Color? titleColor = isScrolledUnder ? Theme.of(context).appBarTheme.foregroundColor:Colors.white;
                  return Text(
                    "首页",
                    style: TextStyle(
                      color: titleColor
                    ),
                  );
                }),
                backgroundColor: MaterialStateColor.resolveWith((states) {
                  if(states.contains(MaterialState.scrolledUnder)) {
                    return Theme.of(context).appBarTheme.backgroundColor ?? Colors.white;
                  }
                  return Colors.transparent;
                }),
                flexibleSpace: FlexibleSpaceBar(
                  collapseMode: CollapseMode.pin,
                  background: InkResponse(
                    onTap: () {
                      debugPrint("click");
                    },
                    child: Padding(
                      padding: const EdgeInsets.only(bottom: 48),
                      child: Image.asset(
                        "assets/user.jpeg",
                        fit: BoxFit.fitWidth,
                      ),
                    ),
                  ),
                ),
                bottom: const TabBar(
                  tabs: [
                    Tab(
                      text: "tab1",
                    ),
                    Tab(
                      text: "tab2",
                    )
                  ],
                )
              );
            }
          ),

          SliverPadding(
            padding: const EdgeInsets.all(5),
            sliver: SliverList.list(
              children: List<Widget>.generate(10, (index) {
                return Container(
                  height: 100,
                  color: Colors.red,
                  margin: const EdgeInsets.all(5),
                  alignment: Alignment.center,
                  child: Text(
                    "item $index",
                    style: const TextStyle(
                      color: Colors.white
                    ),
                  ),
                );
              })
            ),
          )
        ],
      ),
    ),
  );
}

九.附上普通`RenderBox`版本源码

import 'package:flutter/material.dart';
import 'package:flutter/rendering.dart';

typedef PrototypeWidgetBuilder = Widget Function(BuildContext context, double width, double height);

class PrototypeBuilder extends RenderObjectWidget {

  final Widget? prototype;
  final PrototypeWidgetBuilder builder;

  const PrototypeBuilder({
    super.key,
    this.prototype,
    required this.builder
  });

  @override
  RenderObjectElement createElement() => _PrototypeBuilderElement(this);

  @override
  RenderObject createRenderObject(BuildContext context) => _RenderPrototypeBuilder();
}

class _PrototypeBuilderElement extends RenderObjectElement {
  _PrototypeBuilderElement(PrototypeBuilder super.widget);

  @override
  _RenderPrototypeBuilder get renderObject => super.renderObject as _RenderPrototypeBuilder;

  Element? _prototype;
  static final Object _prototypeSlot = Object();
  Element? _child;

  @override
  void visitChildren(ElementVisitor visitor) {
    if (_prototype != null) {
      visitor(_prototype!);
    }
    if (_child != null) {
      visitor(_child!);
    }
  }

  @override
  void forgetChild(Element child) {
    if(_prototype == child) {
      _prototype = null;
    } else {
      _child = null;
    }
    super.forgetChild(child);
  }

  @override
  void mount(Element? parent, Object? newSlot) {
    super.mount(parent, newSlot);
    _prototype = updateChild(_prototype, (widget as PrototypeBuilder).prototype, _prototypeSlot);
    renderObject._element = this;
  }

  @override
  void update(PrototypeBuilder newWidget) {
    super.update(newWidget);
    assert(widget == newWidget);
    _prototype = updateChild(_prototype, newWidget.prototype, _prototypeSlot);
    renderObject.markNeedsLayout();
  }

  @override
  void insertRenderObjectChild(RenderObject child, Object? slot) {
    if (slot == _prototypeSlot) {
      assert(child is RenderBox);
      renderObject.prototype = child as RenderBox;
    } else {
      final RenderObjectWithChildMixin<RenderObject> renderObject = this.renderObject;
      assert(renderObject.debugValidateChild(child));
      renderObject.child = child;
    }
  }

  @override
  void moveRenderObjectChild(RenderObject child, Object? oldSlot, Object? newSlot) {
    assert(false);
  }

  @override
  void removeRenderObjectChild(RenderObject child, Object? slot) {
    if (slot == _prototypeSlot) {
      renderObject.prototype = null;
    } else {
      renderObject.child = null;
    }
  }

  void _build(double width, double height) {
    owner!.buildScope(this, () {
      final PrototypeBuilder renderObjectWidget = widget as PrototypeBuilder;
      _child = updateChild(
        _child,
        renderObjectWidget.builder(this, width, height),
        null,
      );
    });
  }
}

class _RenderPrototypeBuilder extends RenderProxyBox {

  bool _needsUpdateChild = true;
  double? _lastWidth;
  double? _lastHeight;
  _PrototypeBuilderElement? _element;

  RenderBox? _prototype;
  RenderBox? get prototype => _prototype;
  set prototype(RenderBox? value) {
    if (_prototype != null) {
      dropChild(_prototype!);
    }
    _prototype = value;
    if (_prototype != null) {
      adoptChild(_prototype!);
    }
    markNeedsLayout();
  }

  @override
  void attach(PipelineOwner owner) {
    super.attach(owner);
    if (_prototype != null) {
      _prototype!.attach(owner);
    }
  }

  @override
  void detach() {
    super.detach();
    if (_prototype != null) {
      _prototype!.detach();
    }
  }

  @override
  void redepthChildren() {
    if (_prototype != null) {
      redepthChild(_prototype!);
    }
    super.redepthChildren();
  }

  @override
  void visitChildren(RenderObjectVisitor visitor) {
    if (_prototype != null) {
      visitor(_prototype!);
    }
    super.visitChildren(visitor);
  }

  void updateChild(Size size) {
    double width = size.width;
    double height = size.height;

    if (_needsUpdateChild || _lastWidth != width || _lastHeight != height) {
      invokeLayoutCallback<BoxConstraints>((BoxConstraints constraints) {
        assert(constraints == this.constraints);
        assert(_element != null);
        _element!._build(width, height);
      });
      _lastWidth = width;
      _lastHeight = height;
      _needsUpdateChild = false;
    }
  }

  @override
  void markNeedsLayout() {
    _needsUpdateChild = true;
    super.markNeedsLayout();
  }

  Size _computePrototypeSize({required ChildLayouter layoutChild, required BoxConstraints constraints}) {
    if (prototype != null) {
      if (!constraints.hasTightHeight) {
        final double height = prototype!.getMaxIntrinsicHeight(constraints.maxWidth);
        assert(height.isFinite);
        constraints = constraints.tighten(height: height);
      }

      if(!constraints.hasTightWidth) {
        final double width = prototype!.getMaxIntrinsicWidth(constraints.maxHeight);
        assert(width.isFinite);
        constraints = constraints.tighten(width: width);
      }

      return layoutChild(prototype!, constraints);
    } else {
      return constraints.smallest;
    }
  }

  @override
  void performLayout() {
    // layout prototype...
    Size prototypeSize = _computePrototypeSize(
      layoutChild: ChildLayoutHelper.layoutChild,
      constraints: constraints,
    );

    updateChild(prototypeSize);

    super.performLayout();
  }
}
