编写定义多个服务的 Compose 文件
·
1.定义项目组件
1.创建一个空的 Compose 项目目录
[root@host1 ~]# mkdir django-pg && cd django-pg
2.创建并编辑 Dockerfile
[root@host1 django-pg]# vi Dockerfile
[root@host1 django-pg]# cat Dockerfile
# syntax=docker/dockerfile:1
# 从Python 3.10官方镜像开始构建（基于Debian，稳定且包含常用工具）
FROM python:3.10
# 设置环境变量：
# - 防止Python写入.pyc文件（减少镜像体积）
# - 确保Python输出实时打印到控制台（便于容器日志查看）
ENV PYTHONDONTWRITEBYTECODE=1
ENV PYTHONUNBUFFERED=1
# 在镜像中指定工作目录（后续命令默认在此目录执行）
WORKDIR /code
# 先复制依赖清单（利用Docker层缓存，避免每次代码变动都重新安装依赖）
COPY requirements.txt /code/
# 安装Python依赖：
# - --no-cache-dir：不缓存安装包，减小镜像体积
# - 可选：添加国内镜像源加速安装（如阿里云：-i https://mirrors.aliyun.com/pypi/simple/）
RUN pip install --no-cache-dir -r requirements.txt
# 复制当前目录所有文件到工作目录（代码变动频繁，放在依赖安装后可复用缓存）
COPY . /code/
3.创建并编辑 requirements.txt
[root@host1 django-pg]# vi requirements.txt
[root@host1 django-pg]# cat requirements.txt
Django>=3.0,<4.0
psycopg2>=2.8
4.创建并编辑 compose.yaml
[root@host1 django-pg]# vi compose.yaml
[root@host1 django-pg]# cat compose.yaml
services:
db:
# 使用PostgreSQL官方镜像（适配Web应用的数据库需求）
image: postgres:14
container_name: postgres_db
volumes:
# 数据库数据持久化（修正路径乱码，使用规范卷名）
- postgres_data:/var/lib/postgresql/data/
environment:
# PostgreSQL环境变量（修正命名规范，替换乱码）
- POSTGRES_DB=postgres # 数据库名
- POSTGRES_USER=postgres # 用户名
- POSTGRES_PASSWORD=postgres # 密码（生产环境需修改为强密码）
restart: always # 容器异常时自动重启
web:
build: . # 从当前目录的Dockerfile构建Web应用镜像
command: python manage.py runserver 0.0.0.0:8000 # 启动Web服务（修正空格）
volumes:
- .:/code # 本地代码挂载到容器（开发时实时同步代码）
ports:
- "8000:8000" # 端口映射（主机:容器，修正列表格式）
environment:
# Web应用连接数据库的环境变量（需与db服务的配置一致）
- POSTGRES_NAME=postgres
- POSTGRES_USER=postgres
- POSTGRES_PASSWORD=postgres
- DB_HOST=db # 数据库服务名（与db服务名一致）
depends_on:
- db # 确保db服务启动后再启动web（修正拼写：depends on→depends_on）
restart: always
# 定义持久化卷（存储数据库数据）
volumes:
postgres_data:
2.创建 Django 项目
1.将当前目录切换到项目目录的根目录
[root@host1 django-pg]# cd
[root@host1 ~]# cd django-pg
2.创建 Djiango 项目
[root@host1 django-pg]# docker compose run web django-admin startproject myexample .
[+] Running 15/15
✔ db Pulled 42.8s
✔ ce1261c6d567 Already exists 0.0s
✔ 9595d6df1702 Pull complete 1.9s
✔ f61679df62ff Pull complete 4.1s
✔ b6b19fc5a897 Pull complete 4.2s
✔ 6063eca40075 Pull complete 6.5s
✔ ea9be19a833d Pull complete 6.7s
✔ 09099ebea9b7 Pull complete 6.7s
✔ c7cb4c22443b Pull complete 7.1s
✔ 7a5f93555331 Pull complete 38.5s
✔ 771dc539e4b4 Pull complete 38.5s
✔ 3a1f45b72d96 Pull complete 38.6s
✔ 14d8c3633343 Pull complete 38.6s
✔ 359af5c70b5d Pull complete 38.6s
✔ c992fcc7ef58 Pull complete 38.6s
[+] Creating 3/3
✔ Network django-pg_default Created 0.1s
✔ Volume "django-pg_postgres_data" Created 0.0s
✔ Container postgres_db Created 30.5s
[+] Running 1/1
✔ Container postgres_db Started 0.5s
[+] Building 471.4s (14/14) FINISHED
=> [internal] load local bake definitions 0.0s
=> => reading from stdin 475B 0.0s
=> [internal] load build definition from Dockerfile 0.0s
=> => transferring dockerfile: 1.04kB 0.0s
=> resolve image config for docker-image://docker.io/docker/dockerfile:1 4.5s
=> docker-image://docker.io/docker/dockerfile:1@sha256:dabfc0969b935b2080555ace70ee69a5261af8 3.9s
=> => resolve docker.io/docker/dockerfile:1@sha256:dabfc0969b935b2080555ace70ee69a5261af8a8f1 0.0s
=> => sha256:dabfc0969b935b2080555ace70ee69a5261af8a8f1b4df97b9e7fbcf6722eddf 8.40kB / 8.40kB 0.0s
=> => sha256:6ce6616ec35021075551c55e604374e8b47a66d157bc55ec2f2d2326450a9ae1 850B / 850B 0.0s
=> => sha256:7b1f115048803b89291c08409139f1390862db2244afc3f74e634bbbbe78129c 1.33kB / 1.33kB 0.0s
=> => sha256:981cf2e35385187cc01dcd144cd31e3ce126a4fffcb9ac2c0b7f43280ecff3 14.12MB / 14.12MB 3.4s
=> => extracting sha256:981cf2e35385187cc01dcd144cd31e3ce126a4fffcb9ac2c0b7f43280ecff33c 0.4s
=> [internal] load metadata for docker.io/library/python:3.10 4.3s
=> [internal] load .dockerignore 0.0s
=> => transferring context: 2B 0.0s
=> [1/5] FROM docker.io/library/python:3.10@sha256:b568817037b2e14fb0d5d0deb972556ac15a915eb 98.2s
=> => resolve docker.io/library/python:3.10@sha256:b568817037b2e14fb0d5d0deb972556ac15a915eb8 0.0s
=> => sha256:b568817037b2e14fb0d5d0deb972556ac15a915eb85e254bbc66e4eae446aa 10.32kB / 10.32kB 0.0s
=> => sha256:54bada88d26fa0a6abcef5071c3c704c0aedb1ed1416bc97e0d553a91c691a3e 2.32kB / 2.32kB 0.0s
=> => sha256:58f749fd06477329ce1055757be6537c941fd3e881fe98ddb49b37607d9427f9 6.22kB / 6.22kB 0.0s
=> => sha256:22718812f617084a0c5e539e02723b75bf79ea2a589430f820efcbb07f45b 25.61MB / 25.61MB 11.4s
=> => sha256:15b1d8a5ff03aeb0f14c8d39a60a73ef22f656550bfa1bb90d1850f25a0ac 49.28MB / 49.28MB 18.2s
=> => sha256:401a98f7495bee3e8e6943da9f52f0ab1043c43eb1d107a3817fc2a4b916b 67.78MB / 67.78MB 42.1s
=> => sha256:ad446e7df19acd39290d995e6d78ccbfde171596237968a140518b183d9 235.91MB / 235.91MB 57.4s
=> => sha256:4625bf671d83bae0935aa6c18c716385109ace8fe91c3f53947d9964f7349cc 6.08MB / 6.08MB 21.9s
=> => extracting sha256:15b1d8a5ff03aeb0f14c8d39a60a73ef22f656550bfa1bb90d1850f25a0ac0fa 8.8s
=> => sha256:01a4049d5c192f012564963ff0656cad76e6cd53814f7b8a2de0414e3c7f8 21.41MB / 21.41MB 29.5s
=> => extracting sha256:22718812f617084a0c5e539e02723b75bf79ea2a589430f820efcbb07f45b91b 3.2s
=> => sha256:425125122f215c1afe88401eb75a87fc10817b438761e7381b808ea28d2bccb7 249B / 249B 30.2s
=> => extracting sha256:401a98f7495bee3e8e6943da9f52f0ab1043c43eb1d107a3817fc2a4b916be97 12.3s
=> => extracting sha256:ad446e7df19acd39290d995e6d78ccbfde171596237968a140518b183d94c04f 35.2s
=> => extracting sha256:4625bf671d83bae0935aa6c18c716385109ace8fe91c3f53947d9964f7349cc5 1.2s
=> => extracting sha256:01a4049d5c192f012564963ff0656cad76e6cd53814f7b8a2de0414e3c7f85b7 3.6s
=> => extracting sha256:425125122f215c1afe88401eb75a87fc10817b438761e7381b808ea28d2bccb7 0.0s
=> [internal] load build context 0.0s
=> => transferring context: 2.69kB 0.0s
=> [2/5] WORKDIR /code 25.7s
=> [3/5] COPY requirements.txt /code/ 0.0s
=> [4/5] RUN pip install --no-cache-dir -r requirements.txt 332.0s
=> [5/5] COPY . /code/ 0.0s
=> exporting to image 1.8s
=> => exporting layers 1.8s
=> => writing image sha256:c8267526e5b9c99391d540b1c5760b81d385e128164895f7d7809f2fbab661fe 0.0s
=> => naming to docker.io/library/django-pg-web 0.0s
=> resolving provenance for metadata file 0.0s
3.查看所创建的项目目录的内容
[root@host1 django-pg]# ls -l
总用量 16
-rw-r--r--. 1 root root 1409 9月 17 13:55 compose.yaml
-rw-r--r--. 1 root root 944 9月 17 13:05 Dockerfile
-rwxr-xr-x. 1 root root 665 9月 17 14:08 manage.py
drwxr-xr-x. 2 root root 89 9月 17 14:08 myexample
-rw-r--r--. 1 root root 31 9月 17 13:06 requirements.txt
3.为 Djiango 设置数据库连接
1.编辑项目目录中的 myexample/settings.py 文件
[root@host1 django-pg]# vi myexample/settings.py
[root@host1 django-pg]# cat myexample/settings.py
import os
"""
Django settings for myexample project.
Generated by 'django-admin startproject' using Django 3.2.25.
For more information on this file, see
https://docs.djangoproject.com/en/3.2/topics/settings/
For the full list of settings and their values, see
https://docs.djangoproject.com/en/3.2/ref/settings/
"""
from pathlib import Path
# Build paths inside the project like this: BASE_DIR / 'subdir'.
BASE_DIR = Path(__file__).resolve().parent.parent
# Quick-start development settings - unsuitable for production
# See https://docs.djangoproject.com/en/3.2/howto/deployment/checklist/
# SECURITY WARNING: keep the secret key used in production secret!
SECRET_KEY = 'django-insecure-ys^ye%in&@&k9p2v%)#=ic!s8=6#3q*blq*khq3f%bxjjuff2j'
# SECURITY WARNING: don't run with debug turned on in production!
DEBUG = True

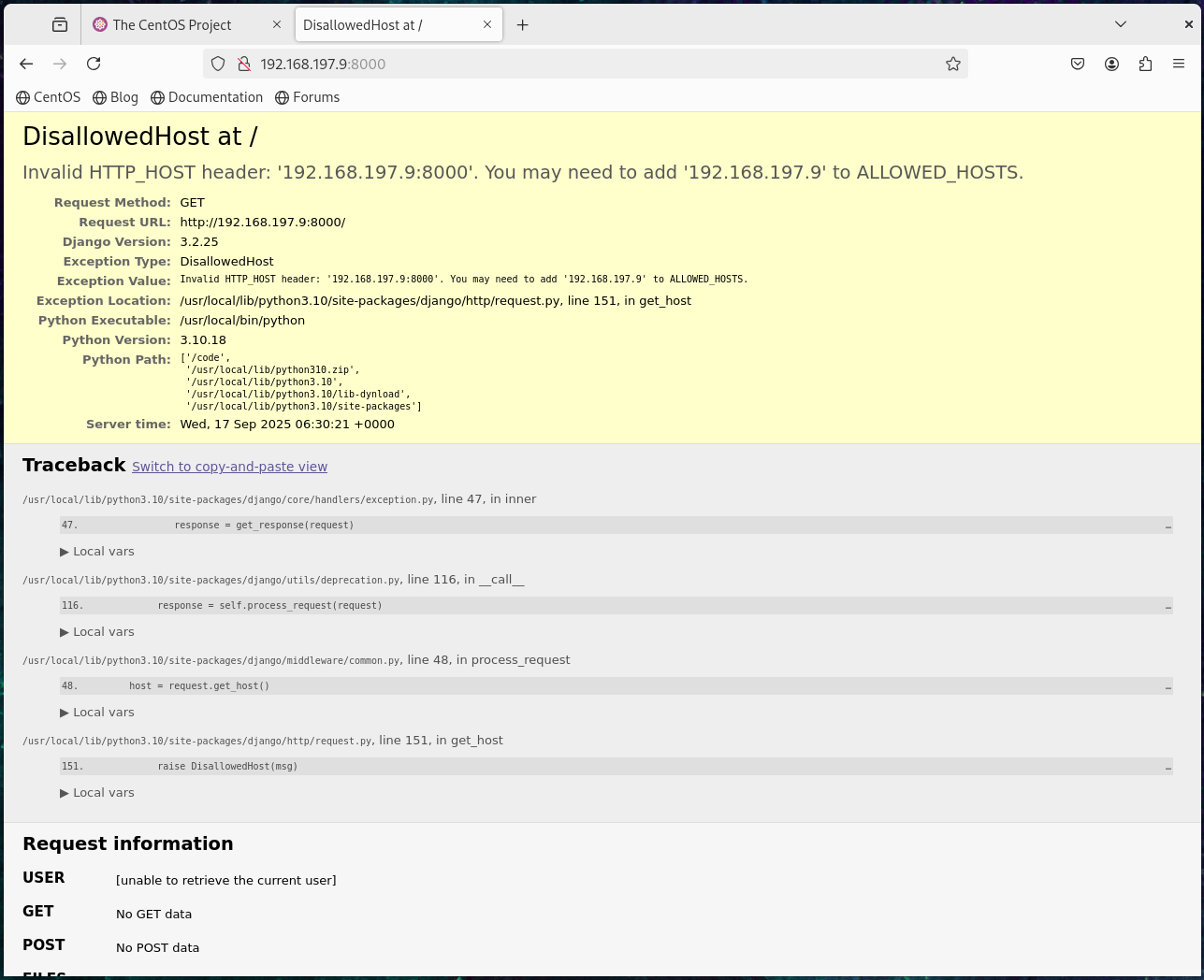

ALLOWED_HOSTS = []
# Application definition
INSTALLED_APPS = [
'django.contrib.admin',
'django.contrib.auth',
'django.contrib.contenttypes',
'django.contrib.sessions',
'django.contrib.messages',
'django.contrib.staticfiles',
]
MIDDLEWARE = [
'django.middleware.security.SecurityMiddleware',
'django.contrib.sessions.middleware.SessionMiddleware',
'django.middleware.common.CommonMiddleware',
'django.middleware.csrf.CsrfViewMiddleware',
'django.contrib.auth.middleware.AuthenticationMiddleware',
'django.contrib.messages.middleware.MessageMiddleware',
'django.middleware.clickjacking.XFrameOptionsMiddleware',
]
ROOT_URLCONF = 'myexample.urls'
TEMPLATES = [
{
'BACKEND': 'django.template.backends.django.DjangoTemplates',
'DIRS': [],
'APP_DIRS': True,
'OPTIONS': {
'context_processors': [
'django.template.context_processors.debug',
'django.template.context_processors.request',
'django.contrib.auth.context_processors.auth',
'django.contrib.messages.context_processors.messages',
],
},
},
]
WSGI_APPLICATION = 'myexample.wsgi.application'
# Database
# https://docs.djangoproject.com/en/3.2/ref/settings/#databases
DATABASES = {
'default': {
# 数据库引擎：指定使用 PostgreSQL
'ENGINE': 'django.db.backends.postgresql',
# 数据库名：从环境变量读取（对应 compose 中的 POSTGRES_NAME，默认值为 'postgres' 避免报错）
'NAME': os.environ.get('POSTGRES_NAME', 'postgres'),
# 数据库用户名：从环境变量读取（对应 compose 中的 POSTGRES_USER）
'USER': os.environ.get('POSTGRES_USER', 'postgres'),
# 数据库密码：从环境变量读取（对应 compose 中的 POSTGRES_PASSWORD）
'PASSWORD': os.environ.get('POSTGRES_PASSWORD', 'postgres'),
# 数据库主机：对应 compose 中的 db 服务名（必须与服务名一致，不可改）
'HOST': 'db',
# PostgreSQL 默认端口（固定为 5432，需用字符串或数字，推荐字符串）
'PORT': '5432',
}
}
# Password validation
# https://docs.djangoproject.com/en/3.2/ref/settings/#auth-password-validators
AUTH_PASSWORD_VALIDATORS = [
{
'NAME': 'django.contrib.auth.password_validation.UserAttributeSimilarityValidator',
},
{
'NAME': 'django.contrib.auth.password_validation.MinimumLengthValidator',
},
{
'NAME': 'django.contrib.auth.password_validation.CommonPasswordValidator',
},
{
'NAME': 'django.contrib.auth.password_validation.NumericPasswordValidator',
},
]
# Internationalization
# https://docs.djangoproject.com/en/3.2/topics/i18n/
LANGUAGE_CODE = 'en-us'
TIME_ZONE = 'UTC'
USE_I18N = True
USE_L10N = True
USE_TZ = True
# Static files (CSS, JavaScript, Images)
# https://docs.djangoproject.com/en/3.2/howto/static-files/
STATIC_URL = '/static/'
# Default primary key field type
# https://docs.djangoproject.com/en/3.2/ref/settings/#default-auto-field
DEFAULT_AUTO_FIELD = 'django.db.models.BigAutoField'
2.在项目目录的根目录下执行 docker compose up 命令
[root@host1 django-pg]# docker compose up
WARN[0000] Found orphan containers ([django-pg-web-run-c425952a13d2]) for this project. If you removed or renamed this service in your compose file, you can run this command with the --remove-orphans flag to clean it up.
[+] Running 2/2
✔ Container postgres_db Running 0.0s
✔ Container django-pg-web-1 Created 0.1s
Attaching to web-1, postgres_db
web-1 | Watching for file changes with StatReloader
web-1 | Performing system checks...
web-1 |
web-1 | System check identified no issues (0 silenced).
web-1 |
web-1 | You have 18 unapplied migration(s). Your project may not work properly until you apply the migrations for app(s): admin, auth, contenttypes, sessions.
web-1 | Run 'python manage.py migrate' to apply them.
web-1 | September 17, 2025 - 06:20:08
web-1 | Django version 3.2.25, using settings 'myexample.settings'
web-1 | Starting development server at http://0.0.0.0:8000/
web-1 | Quit the server with CONTROL-C.
3.停止并清理上述服务
Step 1：清理孤儿容器 + 后台启动服务（一步到位）
“孤儿容器” 是之前测试残留的旧容器，用 --remove-orphans 清理；同时用 -d 让服务后台启动（避免占用终端，方便后续执行迁移）：
root@host1 django-pg]# docker compose up -d --remove-orphans
[+] Running 3/3
✔ Container django-pg-web-run-c425952a13d2 Remo... 0.0s
✔ Container postgres_db Started 0.4s
✔ Container django-pg-web-1 Started 0.5s
执行后验证：
[root@host1 django-pg]# docker compose ps
NAME IMAGE COMMAND SERVICE CREATED STATUS PORTS
django-pg-web-1 django-pg-web "python manage.py ru…" web 3 minutes ago Up 10 seconds 0.0.0.0:8000->8000/tcp, [::]:8000->8000/tcp
postgres_db postgres:14 "docker-entrypoint.s…" db 22 minutes ago Up 10 seconds 5432/tcp
预期输出（无警告，状态均为 Up）：
NAME IMAGE COMMAND SERVICE CREATED STATUS PORTS
django-pg-web-1 django-pg-web "python manage.py ru…" web 3 minutes ago Up 10 seconds 0.0.0.0:8000->8000/tcp, [::]:8000->8000/tcp
postgres_db postgres:14 "docker-entrypoint.s…" db 22 minutes ago Up 10 seconds 5432/tcp
Step 2：应用 Django 数据库迁移（必需！）
Django 提示的 “18 unapplied migration (s)” 是系统自带模块（admin/auth等）需要创建数据库表，必须执行迁移才能正常使用（比如登录后台、用户认证）：
[root@host1 django-pg]# docker compose exec web python manage.py migrate
Operations to perform:
Apply all migrations: admin, auth, contenttypes, sessions
Running migrations:
Applying contenttypes.0001_initial... OK
Applying auth.0001_initial... OK
Applying admin.0001_initial... OK
Applying admin.0002_logentry_remove_auto_add... OK
Applying admin.0003_logentry_add_action_flag_choices... OK
Applying contenttypes.0002_remove_content_type_name... OK
Applying auth.0002_alter_permission_name_max_length... OK
Applying auth.0003_alter_user_email_max_length... OK
Applying auth.0004_alter_user_username_opts... OK
Applying auth.0005_alter_user_last_login_null... OK
Applying auth.0006_require_contenttypes_0002... OK
Applying auth.0007_alter_validators_add_error_messages... OK
Applying auth.0008_alter_user_username_max_length... OK
Applying auth.0009_alter_user_last_name_max_length... OK
Applying auth.0010_alter_group_name_max_length... OK
Applying auth.0011_update_proxy_permissions... OK
Applying auth.0012_alter_user_first_name_max_length... OK
Applying sessions.0001_initial... OK
Step 3：验证服务可用性
1. 查看 Web 服务日志（确认无报错）
[root@host1 django-pg]# docker compose logs -f web
web-1 | Watching for file changes with StatReloader
web-1 | Performing system checks...
web-1 |
web-1 | System check identified no issues (0 silenced).
web-1 |
web-1 | You have 18 unapplied migration(s). Your project may not work properly until you apply the migrations for app(s): admin, auth, contenttypes, sessions.
web-1 | Run 'python manage.py migrate' to apply them.
web-1 | September 17, 2025 - 06:20:08
web-1 | Django version 3.2.25, using settings 'myexample.settings'
web-1 | Starting development server at http://0.0.0.0:8000/
web-1 | Quit the server with CONTROL-C.
web-1 | Watching for file changes with StatReloader
web-1 | Performing system checks...
web-1 |
web-1 | System check identified no issues (0 silenced).
web-1 |
web-1 | You have 18 unapplied migration(s). Your project may not work properly until you apply the migrations for app(s): admin, auth, contenttypes, sessions.
web-1 | Run 'python manage.py migrate' to apply them.
web-1 | September 17, 2025 - 06:22:57
web-1 | Django version 3.2.25, using settings 'myexample.settings'
web-1 | Starting development server at http://0.0.0.0:8000/
web-1 | Quit the server with CONTROL-C.
2. 浏览器访问 Django 服务
打开浏览器输入：http://你的主机IP:8000
- 若看到 Django 默认页面（或你的项目页面），说明服务正常；
- 访问
http://主机IP:8000/admin，用刚创建的超级用户登录，可进入后台管理界面。
Step 4：
方法 1：停止并清除容器和网络（保留数据卷，推荐）
此方法会停止并删除服务相关的容器和网络，但保留数据库数据卷（postgres_data），下次启动服务时数据不会丢失：
[root@host1 django-pg]# docker compose down
[+] Running 3/3
✔ Container django-pg-web-1 Removed 0.4s
✔ Container postgres_db Removed 0.2s
✔ Network django-pg_default Removed 0.2s
执行后效果：
- 停止并删除
postgres_db和django-pg-web-1容器； - 删除服务创建的默认网络；
- 数据卷
postgres_data保留（数据库数据不会丢失）。
方法 2：彻底清除（包括数据卷，数据会丢失）
若需要完全清理（比如测试环境，不需要保留数据），可添加 -v 参数删除数据卷：
# 停止并删除容器、网络、数据卷（数据会永久丢失！）
docker compose down -v
执行后效果：
- 除了方法 1 的操作外，还会删除
postgres_data数据卷； - 下次启动服务时，数据库会重新初始化（之前的数据全部丢失）。
验证清除结果
执行以下命令确认服务相关资源已被清除：
# 查看容器（应无 django-pg 相关容器）
docker ps -a | grep django-pg
# 查看网络（应无 django-pg_default 网络）
docker network ls | grep django-pg
# 查看数据卷（若用了 -v，应无 django-pg_postgres_data 卷）
docker volume ls | grep django-pg
若以上命令均无输出，说明清除成功。
说明
- 推荐日常开发使用方法 1（保留数据卷），避免重复创建数据；
- 仅在确认数据无用时使用方法 2（加
-v），操作前务必备份重要数据。
开源鸿蒙跨平台开发社区汇聚开发者与厂商，共建“一次开发，多端部署”的开源生态，致力于降低跨端开发门槛，推动万物智联创新。
更多推荐
23
0- 0
已为社区贡献3条内容
所有评论(0)
