📊 一、Lissajous 曲线：数学与艺术的交汇

📚 1.1 Lissajous 曲线的历史

Lissajous 曲线（Lissajous Curve），又称利萨茹图形或鲍迪奇曲线，是由美国数学家纳撒尼尔·鲍迪奇（Nathaniel Bowditch）在 1815 年首次研究，后由法国物理学家朱尔·安托万·利萨茹（Jules Antoine Lissajous）在 1857 年独立发现并详细研究。

历史里程碑：

年份	人物	贡献
1815	纳撒尼尔·鲍迪奇	首次数学研究
1857	朱尔·利萨茹	实验研究、声学应用
19世纪	示波器发明	成为经典显示模式
现代	音乐可视化	节奏与图形的完美结合

---

📐 1.2 Lissajous 曲线的数学定义

Lissajous 曲线由两个相互垂直的简谐振动合成：

参数方程：

x(t) = A × sin(a × t + δ)
y(t) = B × sin(b × t)

参数	含义	说明
A	X 轴振幅	水平方向最大偏移
B	Y 轴振幅	垂直方向最大偏移
a	X 轴频率	水平振动频率
b	Y 轴频率	垂直振动频率
δ	相位差	两振动的相位偏移
t	时间参数	变化范围 [0, 2π]

---

🔬 1.3 频率比与图形形状

频率比 a:b 决定了曲线的基本形状：

频率比 a:b	图形形状	特点
1:1	圆/椭圆	最基本形式
1:2	抛物线形	单环交叉
1:3	三叶形	三个环
2:3	"8"字形	五个交叉点
3:4	复杂环	七个交叉点
5:6	花形	十一个交叉点

频率比示意：

1:1      1:2      1:3      2:3
 ○       ∞       ๑       ๘

3:4      3:5      4:5      5:6
 ❂       ❁       ✿       ❀

相位差的影响：

• δ = 0：图形对称
• δ = π/4：图形倾斜
• δ = π/2：图形旋转 90°

---

🎯 1.4 Lissajous 曲线的应用

领域	应用	效果
📺 示波器	信号分析	测量频率比和相位差
🎵 音乐可视化	节奏显示	动态轨迹效果
🔬 物理学	振动研究	简谐运动合成
🎨 艺术设计	几何图案	动态生成艺术
🎮 游戏开发	粒子轨迹	特效路径

---

🔧 二、Lissajous 曲线的 Dart 实现

🧮 2.1 基础 Lissajous 类

import 'dart:math';
import 'dart:typed_data';

/// Lissajous 曲线参数
class LissajousParams {
  double amplitudeX;
  double amplitudeY;
  double frequencyX;
  double frequencyY;
  double phase;

  LissajousParams({
    this.amplitudeX = 100,
    this.amplitudeY = 100,
    this.frequencyX = 1,
    this.frequencyY = 1,
    this.phase = 0,
  });

  /// 计算曲线上的点
  Point2D getPoint(double t) {
    return Point2D(
      amplitudeX * sin(frequencyX * t + phase),
      amplitudeY * sin(frequencyY * t),
    );
  }

  /// 获取频率比字符串
  String get frequencyRatio => '${frequencyX.toInt()}:${frequencyY.toInt()}';

  /// 复制并修改
  LissajousParams copyWith({
    double? amplitudeX,
    double? amplitudeY,
    double? frequencyX,
    double? frequencyY,
    double? phase,
  }) {
    return LissajousParams(
      amplitudeX: amplitudeX ?? this.amplitudeX,
      amplitudeY: amplitudeY ?? this.amplitudeY,
      frequencyX: frequencyX ?? this.frequencyX,
      frequencyY: frequencyY ?? this.frequencyY,
      phase: phase ?? this.phase,
    );
  }
}

/// Lissajous 曲线生成器
class LissajousCurve {
  final LissajousParams params;
  final int pointCount;

  LissajousCurve({
    required this.params,
    this.pointCount = 500,
  });

  /// 生成完整曲线点集
  List<Point2D> generatePoints() {
    final points = <Point2D>[];
    final step = 2 * pi / pointCount;

    for (int i = 0; i <= pointCount; i++) {
      final t = i * step;
      points.add(params.getPoint(t));
    }

    return points;
  }

  /// 生成部分曲线（动画用）
  List<Point2D> generatePartialPoints(double progress) {
    final points = <Point2D>[];
    final totalSteps = (pointCount * progress).toInt();
    final step = 2 * pi / pointCount;

    for (int i = 0; i <= totalSteps; i++) {
      final t = i * step;
      points.add(params.getPoint(t));
    }

    return points;
  }

  /// 获取当前点
  Point2D getCurrentPoint(double t) {
    return params.getPoint(t);
  }
}

/// 二维点
class Point2D {
  final double x;
  final double y;

  const Point2D(this.x, this.y);

  Point2D operator +(Point2D other) => Point2D(x + other.x, y + other.y);
  Point2D operator -(Point2D other) => Point2D(x - other.x, y - other.y);
  Point2D operator *(double scalar) => Point2D(x * scalar, y * scalar);

  double get magnitude => sqrt(x * x + y * y);

  Point2D get normalized {
    final mag = magnitude;
    return mag > 0 ? Point2D(x / mag, y / mag) : const Point2D(0, 0);
  }

  Offset toOffset() => Offset(x, y);
}

---

⚡ 2.2 多层 Lissajous 系统

/// 多层 Lissajous 系统
class MultiLissajousSystem {
  final List<LissajousCurve> curves;
  final List<Color> colors;
  final List<double> speeds;
  final List<double> phases;

  MultiLissajousSystem({
    required this.curves,
    required this.colors,
    required this.speeds,
    required this.phases,
  });

  factory MultiLissajousSystem.create({
    required int layerCount,
    required double baseAmplitude,
    required Random random,
  }) {
    final curves = <LissajousCurve>[];
    final colors = <Color>[];
    final speeds = <double>[];
    final phases = <double>[];

    for (int i = 0; i < layerCount; i++) {
      final freqX = random.nextInt(5) + 1;
      final freqY = random.nextInt(5) + 1;

      curves.add(LissajousCurve(
        params: LissajousParams(
          amplitudeX: baseAmplitude * (0.5 + random.nextDouble() * 0.5),
          amplitudeY: baseAmplitude * (0.5 + random.nextDouble() * 0.5),
          frequencyX: freqX.toDouble(),
          frequencyY: freqY.toDouble(),
          phase: random.nextDouble() * 2 * pi,
        ),
      ));

      colors.add(HSVColor.fromAHSV(
        1,
        i * 360 / layerCount,
        0.7,
        0.9,
      ).toColor());

      speeds.add(0.5 + random.nextDouble() * 1.5);
      phases.add(random.nextDouble() * 2 * pi);
    }

    return MultiLissajousSystem(
      curves: curves,
      colors: colors,
      speeds: speeds,
      phases: phases,
    );
  }

  /// 更新相位
  void update(double dt) {
    for (int i = 0; i < phases.length; i++) {
      phases[i] += speeds[i] * dt;
    }
  }

  /// 获取所有曲线的当前点
  List<Point2D> getCurrentPoints(double time) {
    return curves.asMap().entries.map((entry) {
      final i = entry.key;
      final curve = entry.value;
      return curve.params.getPoint(time + phases[i]);
    }).toList();
  }
}

/// Lissajous 轨迹系统
class LissajousTrail {
  final List<Point2D> trail;
  final int maxLength;
  final Color color;
  final double width;

  LissajousTrail({
    required this.maxLength,
    required this.color,
    this.width = 2,
  }) : trail = [];

  void addPoint(Point2D point) {
    trail.add(point);
    if (trail.length > maxLength) {
      trail.removeAt(0);
    }
  }

  void clear() {
    trail.clear();
  }

  Path toPath() {
    if (trail.isEmpty) return Path();

    final path = Path();
    path.moveTo(trail.first.x, trail.first.y);

    for (int i = 1; i < trail.length; i++) {
      path.lineTo(trail[i].x, trail[i].y);
    }

    return path;
  }

  /// 绘制渐变轨迹
  void draw(Canvas canvas, Offset center) {
    if (trail.length < 2) return;

    for (int i = 1; i < trail.length; i++) {
      final progress = i / trail.length;
      final alpha = progress * 0.8;
      final strokeWidth = width * progress;

      final paint = Paint()
        ..color = color.withOpacity(alpha)
        ..strokeWidth = strokeWidth
        ..strokeCap = StrokeCap.round
        ..style = PaintingStyle.stroke;

      canvas.drawLine(
        Offset(center.dx + trail[i - 1].x, center.dy + trail[i - 1].y),
        Offset(center.dx + trail[i].x, center.dy + trail[i].y),
        paint,
      );
    }
  }
}

---

🎨 2.3 音频响应的 Lissajous 控制器

import 'package:flutter/material.dart';
import 'package:just_audio_ohos/just_audio_ohos.dart';
import 'package:audio_session/audio_session.dart';

/// 音频驱动的 Lissajous 控制器
class AudioLissajousController extends ChangeNotifier {
  final AudioPlayer _player = AudioPlayer();
  final Random _random = Random();

  late MultiLissajousSystem _system;
  final List<LissajousTrail> _trails = [];

  bool _isPlaying = false;
  Duration _position = Duration.zero;
  Duration _duration = Duration.zero;

  Float32List _audioData = Float32List(128);
  double _energy = 0;
  double _bass = 0;
  double _mid = 0;
  double _treble = 0;

  double _time = 0;
  int _layerCount = 5;

  bool get isPlaying => _isPlaying;
  Duration get position => _position;
  Duration get duration => _duration;
  MultiLissajousSystem get system => _system;
  List<LissajousTrail> get trails => _trails;
  Float32List get audioData => _audioData;
  double get energy => _energy;
  double get bass => _bass;
  double get mid => _mid;
  double get treble => _treble;
  AudioPlayer get player => _player;

  /// 初始化
  Future<void> initialize(Size size) async {
    final session = await AudioSession.instance;
    await session.configure(const AudioSessionConfiguration.music());

    _player.playerStateStream.listen((state) {
      _isPlaying = state.playing;
      notifyListeners();
    });

    _player.positionStream.listen((position) {
      _position = position;
      notifyListeners();
    });

    _player.durationStream.listen((duration) {
      _duration = duration ?? Duration.zero;
      notifyListeners();
    });

    _initializeSystem(size);
  }

  /// 初始化系统
  void _initializeSystem(Size size) {
    final baseAmplitude = min(size.width, size.height) * 0.35;

    _system = MultiLissajousSystem.create(
      layerCount: _layerCount,
      baseAmplitude: baseAmplitude,
      random: _random,
    );

    _trails.clear();
    for (int i = 0; i < _layerCount; i++) {
      _trails.add(LissajousTrail(
        maxLength: 200,
        color: _system.colors[i],
        width: 2 + _random.nextDouble() * 2,
      ));
    }
  }

  /// 加载网络音频
  Future<void> loadAudio(String url) async {
    try {
      await _player.setUrl(url);
    } catch (e) {
      debugPrint('加载音频失败: $e');
    }
  }

  /// 更新
  void update(double dt, Size size) {
    _time += dt;

    // 更新音频数据
    _updateAudioData();

    // 计算音频特征
    _calculateAudioFeatures();

    // 更新系统
    _updateSystem(dt, size);

    // 更新轨迹
    _updateTrails();

    notifyListeners();
  }

  void _updateAudioData() {
    for (int i = 0; i < 128; i++) {
      if (_isPlaying) {
        final freq = (i / 128) * 8 + 1;
        final wave1 = sin(_time * freq) * 0.4;
        final wave2 = sin(_time * freq * 1.5 + pi / 3) * 0.3;
        final noise = (_random.nextDouble() - 0.5) * 0.15;
        final bassBoost = i < 32 ? 0.3 : 0;

        _audioData[i] = _audioData[i] * 0.85 +
            (wave1 + wave2 + noise + bassBoost) * 0.15;
      } else {
        _audioData[i] *= 0.95;
      }
    }
  }

  void _calculateAudioFeatures() {
    double totalEnergy = 0;
    double bassEnergy = 0;
    double midEnergy = 0;
    double trebleEnergy = 0;

    for (int i = 0; i < 128; i++) {
      final value = _audioData[i].abs();
      totalEnergy += value;

      if (i < 32) {
        bassEnergy += value;
      } else if (i < 96) {
        midEnergy += value;
      } else {
        trebleEnergy += value;
      }
    }

    _energy = totalEnergy / 128;
    _bass = bassEnergy / 32;
    _mid = midEnergy / 64;
    _treble = trebleEnergy / 32;
  }

  void _updateSystem(double dt, Size size) {
    _system.update(dt);

    // 根据音频调整参数
    for (int i = 0; i < _system.curves.length; i++) {
      final curve = _system.curves[i];

      // 低音影响振幅
      final ampScale = 1 + _bass * 0.5;
      curve.params.amplitudeX = min(size.width, size.height) * 0.35 * ampScale;
      curve.params.amplitudeY = min(size.width, size.height) * 0.35 * ampScale;

      // 中频影响相位
      curve.params.phase += _mid * 0.1;
    }
  }

  void _updateTrails() {
    final points = _system.getCurrentPoints(_time);

    for (int i = 0; i < min(points.length, _trails.length); i++) {
      _trails[i].addPoint(points[i]);
    }
  }

  /// 设置频率比
  void setFrequencyRatio(int index, int freqX, int freqY) {
    if (index < _system.curves.length) {
      _system.curves[index].params.frequencyX = freqX.toDouble();
      _system.curves[index].params.frequencyY = freqY.toDouble();
    }
  }

  /// 播放/暂停
  Future<void> togglePlay() async {
    if (_isPlaying) {
      await _player.pause();
    } else {
      await _player.play();
    }
  }

  /// 跳转
  Future<void> seek(Duration position) async {
    await _player.seek(position);
  }

  @override
  void dispose() {
    _player.dispose();
    super.dispose();
  }
}

---

📦 三、完整示例代码

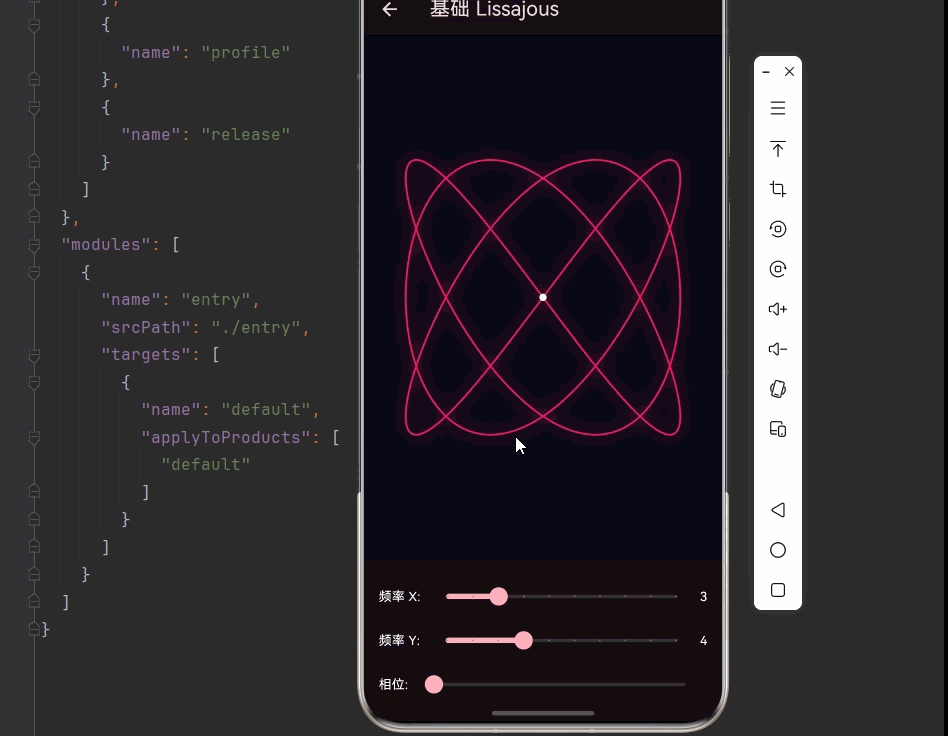

以下是完整的 Lissajous 曲线音乐可视化示例代码：

import 'package:flutter/material.dart';
import 'package:just_audio_ohos/just_audio_ohos.dart';
import 'package:audio_session/audio_session.dart';
import 'dart:math';
import 'dart:typed_data';

void main() {
  runApp(const LissajousApp());
}

class LissajousApp extends StatelessWidget {
  const LissajousApp({super.key});

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      title: 'Lissajous 利萨茹曲线',
      theme: ThemeData(
        colorScheme: ColorScheme.fromSeed(
          seedColor: Colors.pink,
          brightness: Brightness.dark,
        ),
        useMaterial3: true,
      ),
      home: const LissajousHomePage(),
      debugShowCheckedModeBanner: false,
    );
  }
}

class LissajousHomePage extends StatelessWidget {
  const LissajousHomePage({super.key});

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(
        title: const Text('📊 Lissajous 利萨茹曲线'),
        backgroundColor: Theme.of(context).colorScheme.inversePrimary,
      ),
      body: ListView(
        padding: const EdgeInsets.all(16),
        children: [
          _buildCard(context, title: '基础曲线', description: '静态 Lissajous 图形',
              icon: Icons.show_chart, color: Colors.pink,
              onTap: () => Navigator.push(context, MaterialPageRoute(builder: (_) => const BasicLissajousDemo()))),
          _buildCard(context, title: '动态曲线', description: '动画演化效果',
              icon: Icons.motion_photos_on, color: Colors.purple,
              onTap: () => Navigator.push(context, MaterialPageRoute(builder: (_) => const DynamicLissajousDemo()))),
          _buildCard(context, title: '多层系统', description: '多曲线叠加',
              icon: Icons.layers, color: Colors.indigo,
              onTap: () => Navigator.push(context, MaterialPageRoute(builder: (_) => const MultiLayerDemo()))),
          _buildCard(context, title: '音乐曲线', description: '音频驱动的轨迹',
              icon: Icons.music_note, color: Colors.orange,
              onTap: () => Navigator.push(context, MaterialPageRoute(builder: (_) => const MusicLissajousDemo()))),
          _buildCard(context, title: '示波器', description: '经典示波器效果',
              icon: Icons.monitor, color: Colors.cyan,
              onTap: () => Navigator.push(context, MaterialPageRoute(builder: (_) => const OscilloscopeDemo()))),
        ],
      ),
    );
  }

  Widget _buildCard(BuildContext context, {required String title, required String description,
      required IconData icon, required Color color, required VoidCallback onTap}) {
    return Card(
      margin: const EdgeInsets.only(bottom: 12),
      shape: RoundedRectangleBorder(borderRadius: BorderRadius.circular(16)),
      child: InkWell(
        onTap: onTap,
        borderRadius: BorderRadius.circular(16),
        child: Padding(
          padding: const EdgeInsets.all(16),
          child: Row(
            children: [
              Container(width: 56, height: 56,
                decoration: BoxDecoration(color: color.withOpacity(0.1), borderRadius: BorderRadius.circular(12)),
                child: Icon(icon, color: color, size: 28)),
              const SizedBox(width: 16),
              Expanded(child: Column(crossAxisAlignment: CrossAxisAlignment.start, children: [
                Text(title, style: const TextStyle(fontSize: 16, fontWeight: FontWeight.bold)),
                const SizedBox(height: 4),
                Text(description, style: TextStyle(color: Colors.grey[600], fontSize: 14)),
              ])),
              Icon(Icons.chevron_right, color: Colors.grey[400]),
            ],
          ),
        ),
      ),
    );
  }
}

/// 点类
class Point2D {
  final double x, y;
  const Point2D(this.x, this.y);
  Point2D operator +(Point2D o) => Point2D(x + o.x, y + o.y);
  Point2D operator -(Point2D o) => Point2D(x - o.x, y - o.y);
  Point2D operator *(double s) => Point2D(x * s, y * s);
  Offset toOffset() => Offset(x, y);
}

/// 基础 Lissajous 演示
class BasicLissajousDemo extends StatefulWidget {
  const BasicLissajousDemo({super.key});
  @override
  State<BasicLissajousDemo> createState() => _BasicLissajousDemoState();
}

class _BasicLissajousDemoState extends State<BasicLissajousDemo> {
  int _freqX = 3, _freqY = 4;
  double _phase = 0;
  double _amplitude = 150;

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('基础 Lissajous')),
      body: Column(
        children: [
          Expanded(child: CustomPaint(painter: BasicLissajousPainter(_freqX, _freqY, _phase, _amplitude), size: Size.infinite)),
          _buildControls(),
        ],
      ),
    );
  }

  Widget _buildControls() {
    return Container(
      padding: const EdgeInsets.all(16),
      color: Colors.black12,
      child: Column(
        children: [
          Row(children: [
            const Text('频率 X: ', style: TextStyle(color: Colors.white)),
            Expanded(child: Slider(value: _freqX.toDouble(), min: 1, max: 10, divisions: 9,
                onChanged: (v) => setState(() => _freqX = v.toInt()))),
            Text('$_freqX', style: const TextStyle(color: Colors.white)),
          ]),
          Row(children: [
            const Text('频率 Y: ', style: TextStyle(color: Colors.white)),
            Expanded(child: Slider(value: _freqY.toDouble(), min: 1, max: 10, divisions: 9,
                onChanged: (v) => setState(() => _freqY = v.toInt()))),
            Text('$_freqY', style: const TextStyle(color: Colors.white)),
          ]),
          Row(children: [
            const Text('相位: ', style: TextStyle(color: Colors.white)),
            Expanded(child: Slider(value: _phase, min: 0, max: pi * 2,
                onChanged: (v) => setState(() => _phase = v))),
          ]),
        ],
      ),
    );
  }
}

class BasicLissajousPainter extends CustomPainter {
  final int freqX, freqY;
  final double phase, amplitude;

  BasicLissajousPainter(this.freqX, this.freqY, this.phase, this.amplitude);

  @override
  void paint(Canvas canvas, Size size) {
    canvas.drawRect(Rect.fromLTWH(0, 0, size.width, size.height), Paint()..color = const Color(0xFF0a0a15));

    final center = Offset(size.width / 2, size.height / 2);
    final path = Path();
    final points = 500;

    for (int i = 0; i <= points; i++) {
      final t = i / points * 2 * pi;
      final x = amplitude * sin(freqX * t + phase);
      final y = amplitude * sin(freqY * t);

      if (i == 0) {
        path.moveTo(center.dx + x, center.dy + y);
      } else {
        path.lineTo(center.dx + x, center.dy + y);
      }
    }

    // 发光效果
    final glowPaint = Paint()
      ..color = Colors.pink.withOpacity(0.3)
      ..strokeWidth = 6
      ..style = PaintingStyle.stroke
      ..maskFilter = const MaskFilter.blur(BlurStyle.normal, 8);
    canvas.drawPath(path, glowPaint);

    // 主线
    final mainPaint = Paint()
      ..color = Colors.pink
      ..strokeWidth = 2
      ..style = PaintingStyle.stroke;
    canvas.drawPath(path, mainPaint);

    // 中心点
    canvas.drawCircle(center, 4, Paint()..color = Colors.white);
  }

  @override
  bool shouldRepaint(covariant BasicLissajousPainter old) =>
      freqX != old.freqX || freqY != old.freqY || phase != old.phase;
}

/// 动态 Lissajous 演示
class DynamicLissajousDemo extends StatefulWidget {
  const DynamicLissajousDemo({super.key});
  @override
  State<DynamicLissajousDemo> createState() => _DynamicLissajousDemoState();
}

class _DynamicLissajousDemoState extends State<DynamicLissajousDemo> with SingleTickerProviderStateMixin {
  late AnimationController _controller;
  double _time = 0;
  final List<Point2D> _trail = [];
  int _trailLength = 100;

  @override
  void initState() {
    super.initState();
    _controller = AnimationController(vsync: this, duration: const Duration(seconds: 1))..repeat();
    _controller.addListener(_update);
  }

  void _update() {
    _time += 0.02;
    final point = Point2D(150 * sin(3 * _time), 150 * sin(4 * _time + _time * 0.5));
    _trail.add(point);
    if (_trail.length > _trailLength) _trail.removeAt(0);
    setState(() {});
  }

  @override
  void dispose() {
    _controller.dispose();
    super.dispose();
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('动态 Lissajous')),
      body: CustomPaint(painter: DynamicLissajousPainter(_trail, _time), size: Size.infinite),
    );
  }
}

class DynamicLissajousPainter extends CustomPainter {
  final List<Point2D> trail;
  final double time;

  DynamicLissajousPainter(this.trail, this.time);

  @override
  void paint(Canvas canvas, Size size) {
    canvas.drawRect(Rect.fromLTWH(0, 0, size.width, size.height), Paint()..color = const Color(0xFF0a0a15));

    final center = Offset(size.width / 2, size.height / 2);

    // 绘制轨迹
    for (int i = 1; i < trail.length; i++) {
      final progress = i / trail.length;
      final hue = (time * 50 + progress * 180) % 360;
      final paint = Paint()
        ..color = HSVColor.fromAHSV(progress * 0.8, hue, 0.8, 1).toColor()
        ..strokeWidth = 1 + progress * 3
        ..strokeCap = StrokeCap.round;

      canvas.drawLine(
        Offset(center.dx + trail[i - 1].x, center.dy + trail[i - 1].y),
        Offset(center.dx + trail[i].x, center.dy + trail[i].y),
        paint,
      );
    }

    // 当前点
    if (trail.isNotEmpty) {
      final lastPoint = trail.last;
      canvas.drawCircle(Offset(center.dx + lastPoint.x, center.dy + lastPoint.y), 6,
          Paint()..color = Colors.white);
    }
  }

  @override
  bool shouldRepaint(covariant DynamicLissajousPainter old) => true;
}

/// 多层演示
class MultiLayerDemo extends StatefulWidget {
  const MultiLayerDemo({super.key});
  @override
  State<MultiLayerDemo> createState() => _MultiLayerDemoState();
}

class _MultiLayerDemoState extends State<MultiLayerDemo> with SingleTickerProviderStateMixin {
  late AnimationController _controller;
  final List<_CurveLayer> _layers = [];
  double _time = 0;

  @override
  void initState() {
    super.initState();
    _controller = AnimationController(vsync: this, duration: const Duration(seconds: 1))..repeat();
    _controller.addListener(_update);

    final random = Random();
    for (int i = 0; i < 5; i++) {
      _layers.add(_CurveLayer(
        freqX: random.nextInt(5) + 1,
        freqY: random.nextInt(5) + 1,
        amplitude: 100 + random.nextDouble() * 50,
        speed: 0.5 + random.nextDouble() * 1.5,
        color: HSVColor.fromAHSV(0.6, i * 72, 0.7, 0.9).toColor(),
      ));
    }
  }

  void _update() {
    _time += 0.016;
    setState(() {});
  }

  @override
  void dispose() {
    _controller.dispose();
    super.dispose();
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('多层 Lissajous')),
      body: CustomPaint(painter: MultiLayerPainter(_layers, _time), size: Size.infinite),
    );
  }
}

class _CurveLayer {
  final int freqX, freqY;
  final double amplitude, speed;
  final Color color;

  _CurveLayer({required this.freqX, required this.freqY, required this.amplitude,
      required this.speed, required this.color});
}

class MultiLayerPainter extends CustomPainter {
  final List<_CurveLayer> layers;
  final double time;

  MultiLayerPainter(this.layers, this.time);

  @override
  void paint(Canvas canvas, Size size) {
    canvas.drawRect(Rect.fromLTWH(0, 0, size.width, size.height), Paint()..color = const Color(0xFF0a0a15));

    final center = Offset(size.width / 2, size.height / 2);

    for (final layer in layers) {
      final path = Path();
      final points = 300;
      final phase = time * layer.speed;

      for (int i = 0; i <= points; i++) {
        final t = i / points * 2 * pi;
        final x = layer.amplitude * sin(layer.freqX * t + phase);
        final y = layer.amplitude * sin(layer.freqY * t);

        if (i == 0) path.moveTo(center.dx + x, center.dy + y);
        else path.lineTo(center.dx + x, center.dy + y);
      }

      canvas.drawPath(path, Paint()
        ..color = layer.color
        ..strokeWidth = 1.5
        ..style = PaintingStyle.stroke);
    }
  }

  @override
  bool shouldRepaint(covariant MultiLayerPainter old) => true;
}

/// 音乐 Lissajous 演示
class MusicLissajousDemo extends StatefulWidget {
  const MusicLissajousDemo({super.key});
  @override
  State<MusicLissajousDemo> createState() => _MusicLissajousDemoState();
}

class _MusicLissajousDemoState extends State<MusicLissajousDemo> with TickerProviderStateMixin {
  late AnimationController _animController;
  late AudioPlayer _audioPlayer;
  final List<Point2D> _trail = [];
  Float32List _audioData = Float32List(128);
  bool _isPlaying = false;
  Duration _position = Duration.zero;
  Duration _duration = Duration.zero;
  double _energy = 0, _bass = 0;
  double _time = 0;

  static const String _audioUrl = 'https://www.soundhelix.com/examples/mp3/SoundHelix-Song-1.mp3';

  @override
  void initState() {
    super.initState();
    _initAudio();
    _animController = AnimationController(vsync: this, duration: const Duration(milliseconds: 16))..repeat();
    _animController.addListener(_update);
  }

  Future<void> _initAudio() async {
    _audioPlayer = AudioPlayer();
    final session = await AudioSession.instance;
    await session.configure(const AudioSessionConfiguration.music());

    _audioPlayer.playerStateStream.listen((s) => setState(() => _isPlaying = s.playing));
    _audioPlayer.positionStream.listen((p) => setState(() => _position = p));
    _audioPlayer.durationStream.listen((d) => setState(() => _duration = d ?? Duration.zero));

    try { await _audioPlayer.setUrl(_audioUrl); } catch (e) { debugPrint('加载失败: $e'); }
  }

  void _update() {
    _time += 0.016;

    for (int i = 0; i < 128; i++) {
      if (_isPlaying) {
        final freq = (i / 128) * 8 + 1;
        final wave = sin(_time * freq) * 0.4 + sin(_time * freq * 1.5) * 0.3;
        final bass = i < 32 ? 0.3 : 0;
        _audioData[i] = _audioData[i] * 0.85 + (wave + bass) * 0.15;
      } else {
        _audioData[i] *= 0.95;
      }
    }

    double total = 0, bassE = 0;
    for (int i = 0; i < 128; i++) {
      total += _audioData[i].abs();
      if (i < 32) bassE += _audioData[i].abs();
    }
    _energy = total / 128;
    _bass = bassE / 32;

    final amp = 120 + _energy * 80;
    final point = Point2D(amp * sin((3 + _bass * 2) * _time), amp * sin((4 + _energy) * _time + _time * 0.3));
    _trail.add(point);
    if (_trail.length > 150) _trail.removeAt(0);

    setState(() {});
  }

  @override
  void dispose() {
    _animController.dispose();
    _audioPlayer.dispose();
    super.dispose();
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('音乐 Lissajous')),
      body: Stack(
        children: [
          CustomPaint(painter: MusicLissajousPainter(_trail, _energy, _isPlaying), size: Size.infinite),
          Positioned(bottom: 30, left: 20, right: 20, child: _buildControls()),
        ],
      ),
    );
  }

  Widget _buildControls() {
    return Container(
      padding: const EdgeInsets.all(16),
      decoration: BoxDecoration(color: Colors.black.withOpacity(0.7), borderRadius: BorderRadius.circular(16)),
      child: Column(
        mainAxisSize: MainAxisSize.min,
        children: [
          const Text('🎵 SoundHelix - Song 1', style: TextStyle(color: Colors.white, fontSize: 14)),
          const SizedBox(height: 12),
          Slider(value: _duration.inMilliseconds > 0 ? _position.inMilliseconds.toDouble().clamp(0, _duration.inMilliseconds.toDouble()) : 0,
              max: _duration.inMilliseconds > 0 ? _duration.inMilliseconds.toDouble() : 1,
              onChanged: (v) => _audioPlayer.seek(Duration(milliseconds: v.toInt()))),
          IconButton(icon: Icon(_isPlaying ? Icons.pause : Icons.play_arrow, color: Colors.pink, size: 40),
              onPressed: () => _isPlaying ? _audioPlayer.pause() : _audioPlayer.play()),
        ],
      ),
    );
  }
}

class MusicLissajousPainter extends CustomPainter {
  final List<Point2D> trail;
  final double energy;
  final bool isPlaying;

  MusicLissajousPainter(this.trail, this.energy, this.isPlaying);

  @override
  void paint(Canvas canvas, Size size) {
    canvas.drawRect(Rect.fromLTWH(0, 0, size.width, size.height),
        Paint()..color = Color.lerp(const Color(0xFF0a0a15), const Color(0xFF150a20), energy)!);

    final center = Offset(size.width / 2, size.height / 2);

    for (int i = 1; i < trail.length; i++) {
      final progress = i / trail.length;
      final hue = (energy * 200 + progress * 160) % 360;
      final paint = Paint()
        ..color = HSVColor.fromAHSV(progress * 0.9, hue, 0.8, 1).toColor()
        ..strokeWidth = 1 + progress * 3 + energy * 2
        ..strokeCap = StrokeCap.round;

      if (isPlaying) paint.maskFilter = MaskFilter.blur(BlurStyle.normal, 1 + energy * 2);

      canvas.drawLine(
        Offset(center.dx + trail[i - 1].x, center.dy + trail[i - 1].y),
        Offset(center.dx + trail[i].x, center.dy + trail[i].y),
        paint,
      );
    }

    if (trail.isNotEmpty) {
      canvas.drawCircle(Offset(center.dx + trail.last.x, center.dy + trail.last.y), 5 + energy * 3,
          Paint()..color = Colors.white);
    }
  }

  @override
  bool shouldRepaint(covariant MusicLissajousPainter old) => true;
}

/// 示波器演示
class OscilloscopeDemo extends StatefulWidget {
  const OscilloscopeDemo({super.key});
  @override
  State<OscilloscopeDemo> createState() => _OscilloscopeDemoState();
}

class _OscilloscopeDemoState extends State<OscilloscopeDemo> with SingleTickerProviderStateMixin {
  late AnimationController _controller;
  double _time = 0;
  final List<double> _waveformX = [];
  final List<double> _waveformY = [];
  int _sampleCount = 200;

  @override
  void initState() {
    super.initState();
    _controller = AnimationController(vsync: this, duration: const Duration(seconds: 1))..repeat();
    _controller.addListener(_update);
  }

  void _update() {
    _time += 0.02;
    _waveformX.add(sin(_time * 3) * 100);
    _waveformY.add(sin(_time * 4 + pi / 4) * 100);

    if (_waveformX.length > _sampleCount) _waveformX.removeAt(0);
    if (_waveformY.length > _sampleCount) _waveformY.removeAt(0);

    setState(() {});
  }

  @override
  void dispose() {
    _controller.dispose();
    super.dispose();
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('示波器')),
      body: CustomPaint(painter: OscilloscopePainter(_waveformX, _waveformY, _time), size: Size.infinite),
    );
  }
}

class OscilloscopePainter extends CustomPainter {
  final List<double> waveformX;
  final List<double> waveformY;
  final double time;

  OscilloscopePainter(this.waveformX, this.waveformY, this.time);

  @override
  void paint(Canvas canvas, Size size) {
    // 背景
    canvas.drawRect(Rect.fromLTWH(0, 0, size.width, size.height), Paint()..color = const Color(0xFF001a00));

    // 网格
    final gridPaint = Paint()
      ..color = Colors.green.withOpacity(0.2)
      ..strokeWidth = 0.5;

    for (int i = 0; i <= 10; i++) {
      final x = i * size.width / 10;
      final y = i * size.height / 10;
      canvas.drawLine(Offset(x, 0), Offset(x, size.height), gridPaint);
      canvas.drawLine(Offset(0, y), Offset(size.width, y), gridPaint);
    }

    final center = Offset(size.width / 2, size.height / 2);

    // X-Y 模式
    if (waveformX.length == waveformY.length && waveformX.isNotEmpty) {
      final path = Path();
      for (int i = 0; i < waveformX.length; i++) {
        final x = center.dx + waveformX[i];
        final y = center.dy + waveformY[i];
        if (i == 0) path.moveTo(x, y);
        else path.lineTo(x, y);
      }

      final glowPaint = Paint()
        ..color = Colors.green.withOpacity(0.3)
        ..strokeWidth = 4
        ..style = PaintingStyle.stroke
        ..maskFilter = const MaskFilter.blur(BlurStyle.normal, 4);
      canvas.drawPath(path, glowPaint);

      canvas.drawPath(path, Paint()
        ..color = const Color(0xFF00ff00)
        ..strokeWidth = 1.5
        ..style = PaintingStyle.stroke);
    }

    // 信息显示
    final textPainter = TextPainter(
      text: TextSpan(text: 'X-Y Mode | ${waveformX.length} samples',
          style: const TextStyle(color: Color(0xFF00ff00), fontSize: 12, fontFamily: 'monospace')),
      textDirection: TextDirection.ltr,
    )..layout();
    textPainter.paint(canvas, const Offset(10, 10));
  }

  @override
  bool shouldRepaint(covariant OscilloscopePainter old) => true;
}

---

📝 四、总结

本篇文章深入探讨了 Lissajous 曲线在音乐可视化中的应用，从参数方程到频率耦合，构建了具有"示波器感"的轨迹动画效果。

✅ 核心知识点回顾

知识点	说明
📊 Lissajous 曲线	参数方程、频率比、相位差
🔢 频率比	决定图形形状
📐 相位差	影响图形旋转
🎵 音频驱动	能量控制振幅和频率
🔊 网络音乐	just_audio_ohos 在线播放

⭐ 最佳实践要点

• ✅ 使用轨迹渐变增强视觉效果
• ✅ 多层叠加创造丰富图案
• ✅ 音频特征映射曲线参数
• ✅ 示波器风格网格背景

🚀 进阶方向

• 🔮 3D Lissajous 曲线
• ✨ 粒子沿曲线运动
• 👆 触摸交互调整参数
• ⚡ GPU 着色器渲染

---
