Flutter for OpenHarmony 实战之基础组件:第一篇 Container 容器组件完全指南

前言

在 Flutter for OpenHarmony 开发中,Container 是构建 UI 界面的基石组件。它类似于 Web 开发中的 <div> 标签,可以控制子组件的尺寸、位置、装饰等。

本文你将学到

  • Container 的核心属性与用法
  • BoxDecoration 装饰器详解(渐变、圆角、阴影)
  • margin 与 padding 的区别
  • 响应式尺寸适配技巧
  • OpenHarmony 多分辨率适配最佳实践

一、Container 基础概念

1.1 什么是 Container

Container 是 Flutter 中一个组合型 Widget,它将多个单一功能的 Widget 封装在一起,提供了便捷的一站式布局解决方案。

首先在项目根路径下,创建 lib/widgets/basic_container_example.dart

将 widgets 为组件目录,该目录下防止我们编写可复用的组件,当然你也可以将其更改为 components 或者其他的名称亦可。

import 'package:flutter/material.dart';

/// 最简单的 Container 示例
class BasicContainerExample extends StatelessWidget {
  const BasicContainerExample({super.key});


  Widget build(BuildContext context) {
    return Container(
      width: 200,            // 宽度
      height: 100,           // 高度
      color: Colors.blue,    // 背景色
      child: const Center(
        child: Text(
          'Hello Container',
          style: TextStyle(color: Colors.white),
        ),
      ),
    );
  }
}

编辑 lib/main.dart,内容如下:

import 'package:flutter/material.dart';
import 'widgets/basic_container_example.dart';

/// 应用入口函数
void main() {
  // 运行 Flutter 应用
  runApp(const MyApp());
}

/// 根 Widget - 应用程序的顶层组件
class MyApp extends StatelessWidget {
  const MyApp({super.key});


  Widget build(BuildContext context) {
    return MaterialApp(
      title: 'Flutter for OpenHarmony',  // 应用标题
      debugShowCheckedModeBanner: false, // 隐藏调试标签
      theme: ThemeData(
        // 主题配置
        colorScheme: ColorScheme.fromSeed(seedColor: Colors.blue),
        useMaterial3: true, // 使用 Material 3 设计
      ),
      // 使用命名路由管理页面
      initialRoute: '/',
      home: const HomePage(),
    );
  }
}

/// 首页 Widget
class HomePage extends StatelessWidget {
  const HomePage({super.key});


  Widget build(BuildContext context) {
    return Scaffold(
      // 应用栏
      appBar: AppBar(
        title: const Text('基础 Container 示例'),
        backgroundColor: Theme.of(context).colorScheme.inversePrimary,
      ),
      // 页面主体
      body: Center(
        child: Column(
          mainAxisAlignment: MainAxisAlignment.center,
          children: [
            const BasicContainerExample(),
          ],
        ),
      ),
      // 悬浮按钮
      floatingActionButton: FloatingActionButton(
        onPressed: () {
          // 显示提示
          ScaffoldMessenger.of(context).showSnackBar(
            const SnackBar(content: Text('Flutter + OpenHarmony = ❤️')),
          );
        },
        child: const Icon(Icons.favorite),
      ),
    );
  }
}

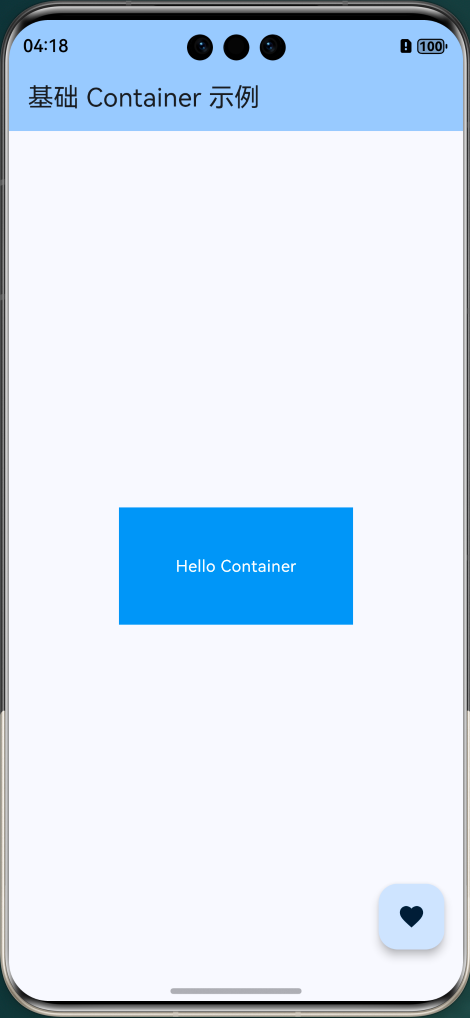

基础Container效果图

1.2 Container 的内部组成

Container 实际上是多个基础 Widget 的组合,理解这一点有助于优化性能:

这块设计起到其他一些组件,类似 CSS 中的属性,不必着急,后续我们会陆续讲到。

// Container 内部实现原理(简化版)
// 等价于以下 Widget 的嵌套组合:

Widget buildContainer() {
  Widget current = child;

  // 1. 对齐
  if (alignment != null) {
    current = Align(alignment: alignment, child: current);
  }

  // 2. 内填充
  if (padding != null) {
    current = Padding(padding: padding, child: current);
  }

  // 3. 装饰(背景、边框、阴影等)
  if (decoration != null) {
    current = DecoratedBox(decoration: decoration, child: current);
  }

  // 4. 尺寸约束
  if (constraints != null) {
    current = ConstrainedBox(constraints: constraints, child: current);
  }

  // 5. 外边距
  if (margin != null) {
    current = Padding(padding: margin, child: current);
  }

  // 6. 变换
  if (transform != null) {
    current = Transform(transform: transform, child: current);
  }

  return current;
}

💡 性能提示:如果只需要单一功能(如仅需要内边距),建议直接使用 Padding 而非 Container,这样可以减少 Widget 树的深度。


二、核心属性详解

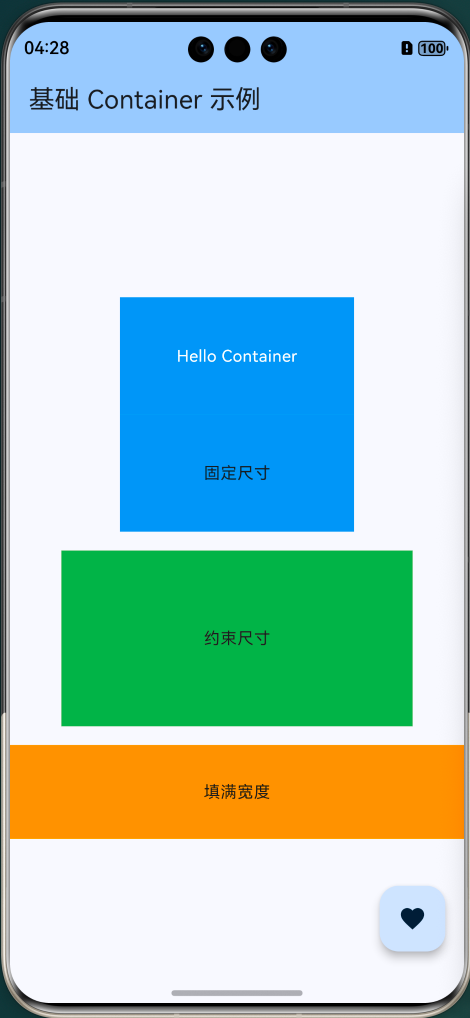

2.1 尺寸控制

Container 提供了多种控制尺寸的方式:

widgets/size_control_example.dart

import 'package:flutter/material.dart';

/// 尺寸控制示例
class SizeControlExample extends StatelessWidget {
  const SizeControlExample({super.key});


  Widget build(BuildContext context) {
    return Column(
      children: [
        // 方式一:固定宽高
        Container(
          width: 200,    // 固定宽度 200 像素
          height: 100,   // 固定高度 100 像素
          color: Colors.blue,
          child: const Center(child: Text('固定尺寸')),
        ),

        const SizedBox(height: 16),

        // 方式二:使用约束(更灵活)
        Container(
          constraints: const BoxConstraints(
            minWidth: 100,   // 最小宽度
            maxWidth: 300,   // 最大宽度
            minHeight: 50,   // 最小高度
            maxHeight: 150,  // 最大高度
          ),
          color: Colors.green,
          child: const Center(child: Text('约束尺寸')),
        ),

        const SizedBox(height: 16),

        // 方式三:填满父容器
        Container(
          width: double.infinity,  // 填满可用宽度
          height: 80,
          color: Colors.orange,
          child: const Center(child: Text('填满宽度')),
        ),
      ],
    );
  }
}

在这里插入图片描述

2.2 边距与填充

理解 margin(外边距)和 padding(内填充)的区别是掌握布局的关键:

widgets/margin_padding_example.dart

/// 边距与填充示例
class MarginPaddingExample extends StatelessWidget {
  const MarginPaddingExample({super.key});


  Widget build(BuildContext context) {
    return Container(
      color: Colors.grey[300],  // 外层背景(用于显示 margin 效果)
      child: Container(
        // 外边距:影响与周围元素的间距
        margin: const EdgeInsets.all(20),

        // 内填充:影响子组件的位置
        padding: const EdgeInsets.symmetric(
          horizontal: 24,  // 水平方向 24 像素
          vertical: 16,    // 垂直方向 16 像素
        ),

        decoration: BoxDecoration(
          color: Colors.blue,
          borderRadius: BorderRadius.circular(12),
        ),

        child: const Text(
          '这是内容区域',
          style: TextStyle(color: Colors.white, fontSize: 16),
        ),
      ),
    );
  }
}

在这里插入图片描述

EdgeInsets 常用构造方法

// 四周相同边距
EdgeInsets.all(16)

// 分别指定上下左右
EdgeInsets.only(top: 8, left: 16, right: 16, bottom: 8)

// 对称边距(水平/垂直)
EdgeInsets.symmetric(horizontal: 24, vertical: 12)

// 从左上右下顺序指定(类似 CSS)
EdgeInsets.fromLTRB(16, 8, 16, 8)

⚠️ 注意margin 是外边距,控制 Container 与外部元素的间距;padding 是内填充,控制 Container 内部内容与边框的间距。

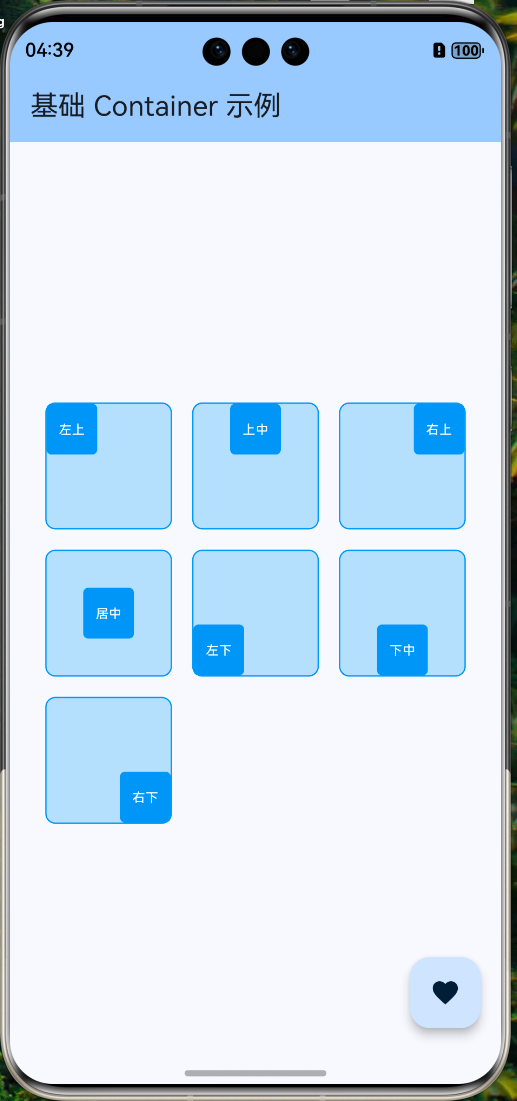

2.3 对齐方式

使用 alignment 属性控制子组件在 Container 内的对齐位置:

widgets/alignment_example.dart

/// 对齐方式示例
class AlignmentExample extends StatelessWidget {
  const AlignmentExample({super.key});


  Widget build(BuildContext context) {
    return Wrap(
      spacing: 16,
      runSpacing: 16,
      children: [
        // 左上角对齐
        _buildAlignedContainer(Alignment.topLeft, '左上'),
        // 顶部居中
        _buildAlignedContainer(Alignment.topCenter, '上中'),
        // 右上角对齐
        _buildAlignedContainer(Alignment.topRight, '右上'),
        // 居中对齐
        _buildAlignedContainer(Alignment.center, '居中'),
        // 左下角对齐
        _buildAlignedContainer(Alignment.bottomLeft, '左下'),
        // 底部居中
        _buildAlignedContainer(Alignment.bottomCenter, '下中'),
        // 右下角对齐
        _buildAlignedContainer(Alignment.bottomRight, '右下'),
      ],
    );
  }

  Widget _buildAlignedContainer(Alignment alignment, String label) {
    return Container(
      width: 100,
      height: 100,
      alignment: alignment,  // 设置对齐方式
      decoration: BoxDecoration(
        color: Colors.blue[100],
        border: Border.all(color: Colors.blue),
        borderRadius: BorderRadius.circular(8),
      ),
      child: Container(
        width: 40,
        height: 40,
        decoration: BoxDecoration(
          color: Colors.blue,
          borderRadius: BorderRadius.circular(4),
        ),
        child: Center(
          child: Text(
            label,
            style: const TextStyle(color: Colors.white, fontSize: 10),
          ),
        ),
      ),
    );
  }
}

在这里插入图片描述


三、BoxDecoration 装饰器

BoxDecoration 是 Container 最强大的特性之一,可以实现丰富的视觉效果。

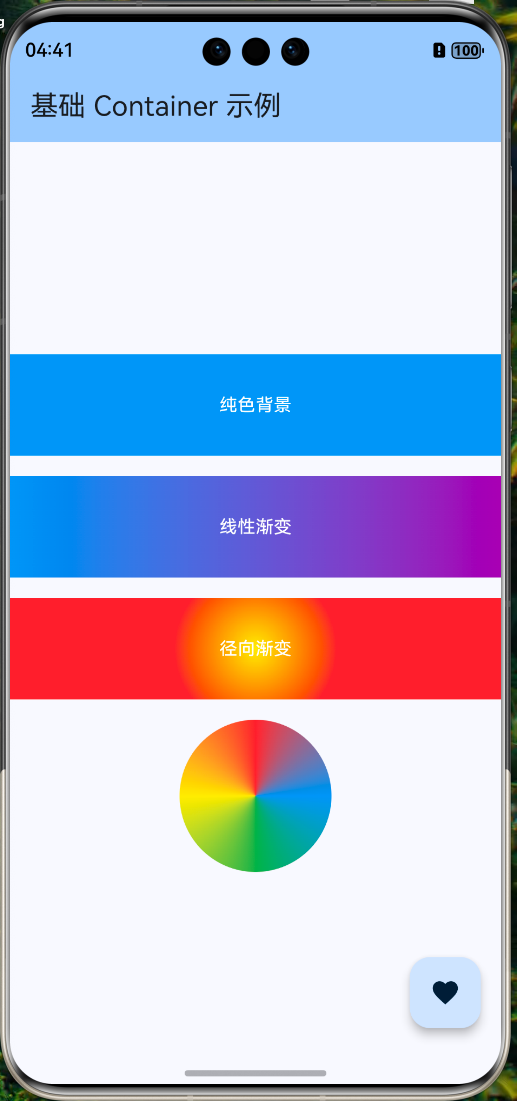

3.1 背景色与渐变

widgets/background_example.dart

/// 背景色与渐变示例
class BackgroundExample extends StatelessWidget {
  const BackgroundExample({super.key});


  Widget build(BuildContext context) {
    return Column(
      children: [
        // 纯色背景
        Container(
          width: double.infinity,
          height: 80,
          decoration: const BoxDecoration(
            color: Colors.blue,
          ),
          child: const Center(
            child: Text('纯色背景', style: TextStyle(color: Colors.white)),
          ),
        ),

        const SizedBox(height: 16),

        // 线性渐变
        Container(
          width: double.infinity,
          height: 80,
          decoration: const BoxDecoration(
            gradient: LinearGradient(
              colors: [Colors.blue, Colors.purple],
              begin: Alignment.centerLeft,
              end: Alignment.centerRight,
            ),
          ),
          child: const Center(
            child: Text('线性渐变', style: TextStyle(color: Colors.white)),
          ),
        ),

        const SizedBox(height: 16),

        // 径向渐变
        Container(
          width: double.infinity,
          height: 80,
          decoration: const BoxDecoration(
            gradient: RadialGradient(
              colors: [Colors.yellow, Colors.orange, Colors.red],
              center: Alignment.center,
              radius: 0.8,
            ),
          ),
          child: const Center(
            child: Text('径向渐变', style: TextStyle(color: Colors.white)),
          ),
        ),

        const SizedBox(height: 16),

        // 扫描渐变(类似雷达扫描效果)
        Container(
          width: 120,
          height: 120,
          decoration: const BoxDecoration(
            shape: BoxShape.circle,
            gradient: SweepGradient(
              colors: [Colors.blue, Colors.green, Colors.yellow, Colors.red, Colors.blue],
            ),
          ),
        ),
      ],
    );
  }
}

在这里插入图片描述

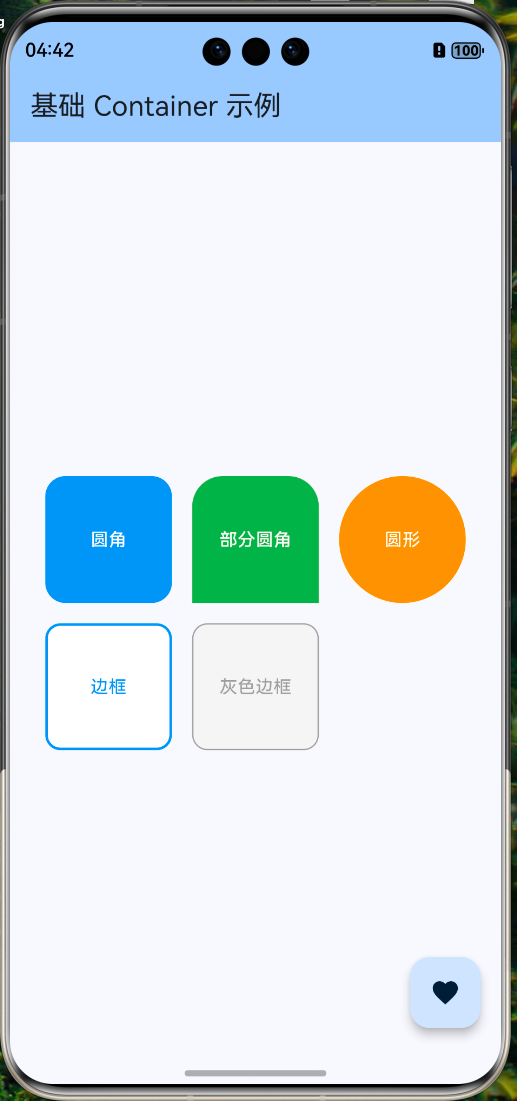

3.2 圆角与边框

widgets/border_radius_example.dart

/// 圆角与边框示例
class BorderRadiusExample extends StatelessWidget {
  const BorderRadiusExample({super.key});


  Widget build(BuildContext context) {
    return Wrap(
      spacing: 16,
      runSpacing: 16,
      children: [
        // 统一圆角
        Container(
          width: 100,
          height: 100,
          decoration: BoxDecoration(
            color: Colors.blue,
            borderRadius: BorderRadius.circular(16),  // 四角统一圆角
          ),
          child: const Center(
            child: Text('圆角', style: TextStyle(color: Colors.white)),
          ),
        ),

        // 不同方向的圆角
        Container(
          width: 100,
          height: 100,
          decoration: const BoxDecoration(
            color: Colors.green,
            borderRadius: BorderRadius.only(
              topLeft: Radius.circular(24),      // 左上大圆角
              topRight: Radius.circular(24),     // 右上大圆角
              bottomLeft: Radius.circular(0),    // 左下直角
              bottomRight: Radius.circular(0),   // 右下直角
            ),
          ),
          child: const Center(
            child: Text('部分圆角', style: TextStyle(color: Colors.white)),
          ),
        ),

        // 圆形
        Container(
          width: 100,
          height: 100,
          decoration: const BoxDecoration(
            color: Colors.orange,
            shape: BoxShape.circle,  // 圆形
          ),
          child: const Center(
            child: Text('圆形', style: TextStyle(color: Colors.white)),
          ),
        ),

        // 边框
        Container(
          width: 100,
          height: 100,
          decoration: BoxDecoration(
            color: Colors.white,
            borderRadius: BorderRadius.circular(12),
            border: Border.all(
              color: Colors.blue,
              width: 2,
            ),
          ),
          child: const Center(
            child: Text('边框', style: TextStyle(color: Colors.blue)),
          ),
        ),

        // 虚线边框效果(使用多层边框模拟)
        Container(
          width: 100,
          height: 100,
          decoration: BoxDecoration(
            color: Colors.grey[100],
            borderRadius: BorderRadius.circular(12),
            border: Border.all(
              color: Colors.grey,
              width: 1,
            ),
          ),
          child: const Center(
            child: Text('灰色边框', style: TextStyle(color: Colors.grey)),
          ),
        ),
      ],
    );
  }
}

在这里插入图片描述

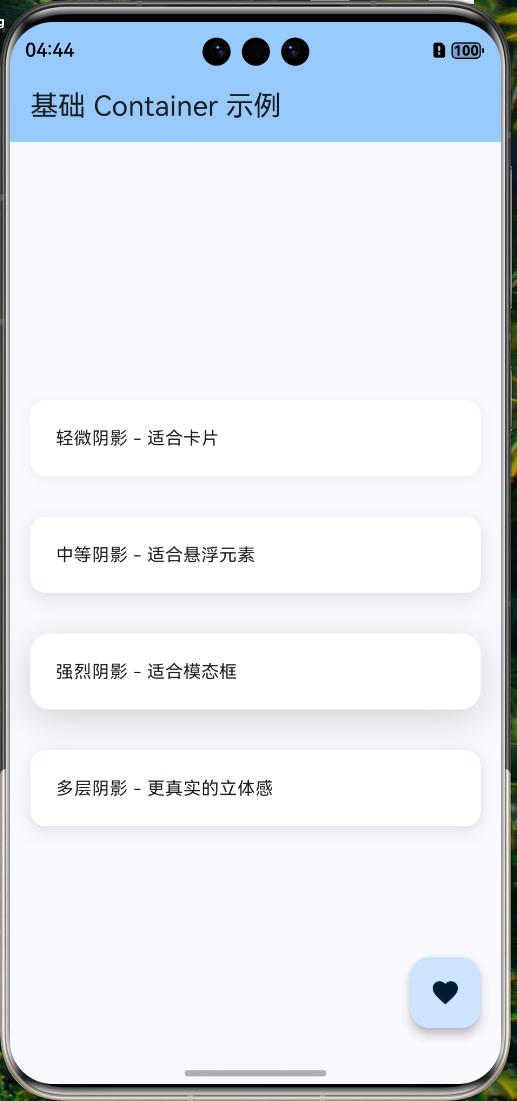

3.3 阴影效果

阴影是提升 UI 层次感的重要手段:

widgets/shadow_example.dart

/// 阴影效果示例
class ShadowExample extends StatelessWidget {
  const ShadowExample({super.key});


  Widget build(BuildContext context) {
    return Column(
      children: [
        // 轻微阴影(适合卡片)
        Container(
          width: double.infinity,
          padding: const EdgeInsets.all(20),
          margin: const EdgeInsets.all(16),
          decoration: BoxDecoration(
            color: Colors.white,
            borderRadius: BorderRadius.circular(12),
            boxShadow: [
              BoxShadow(
                color: Colors.black.withOpacity(0.05),  // 阴影颜色
                offset: const Offset(0, 2),             // 偏移量
                blurRadius: 8,                          // 模糊半径
                spreadRadius: 0,                        // 扩散半径
              ),
            ],
          ),
          child: const Text('轻微阴影 - 适合卡片'),
        ),

        // 中等阴影(适合悬浮元素)
        Container(
          width: double.infinity,
          padding: const EdgeInsets.all(20),
          margin: const EdgeInsets.all(16),
          decoration: BoxDecoration(
            color: Colors.white,
            borderRadius: BorderRadius.circular(12),
            boxShadow: [
              BoxShadow(
                color: Colors.black.withOpacity(0.1),
                offset: const Offset(0, 4),
                blurRadius: 12,
                spreadRadius: 0,
              ),
            ],
          ),
          child: const Text('中等阴影 - 适合悬浮元素'),
        ),

        // 强烈阴影(适合模态框)
        Container(
          width: double.infinity,
          padding: const EdgeInsets.all(20),
          margin: const EdgeInsets.all(16),
          decoration: BoxDecoration(
            color: Colors.white,
            borderRadius: BorderRadius.circular(16),
            boxShadow: [
              BoxShadow(
                color: Colors.black.withOpacity(0.15),
                offset: const Offset(0, 8),
                blurRadius: 24,
                spreadRadius: 0,
              ),
            ],
          ),
          child: const Text('强烈阴影 - 适合模态框'),
        ),

        // 多层阴影(更真实的立体感)
        Container(
          width: double.infinity,
          padding: const EdgeInsets.all(20),
          margin: const EdgeInsets.all(16),
          decoration: BoxDecoration(
            color: Colors.white,
            borderRadius: BorderRadius.circular(12),
            boxShadow: [
              // 第一层:轻微扩散
              BoxShadow(
                color: Colors.black.withOpacity(0.04),
                offset: const Offset(0, 1),
                blurRadius: 3,
                spreadRadius: 0,
              ),
              // 第二层:主阴影
              BoxShadow(
                color: Colors.black.withOpacity(0.08),
                offset: const Offset(0, 4),
                blurRadius: 12,
                spreadRadius: 0,
              ),
            ],
          ),
          child: const Text('多层阴影 - 更真实的立体感'),
        ),
      ],
    );
  }
}

在这里插入图片描述


四、OpenHarmony 平台适配

4.1 多分辨率适配

OpenHarmony 设备分辨率跨度极大(720×1280 ~ 3840×2160),直接使用硬编码像素值会导致:

  • 小屏设备:元素重叠、文字截断
  • 大屏设备:元素间距过大、布局稀疏
  • 折叠屏/分屏:定位坐标失效

反面示例

// 硬编码像素值,在不同设备上效果差异大
Container(
  width: 300,   // 在小屏设备可能溢出
  height: 200,  // 在大屏设备显得太小
  child: YourWidget(),
)

正确做法

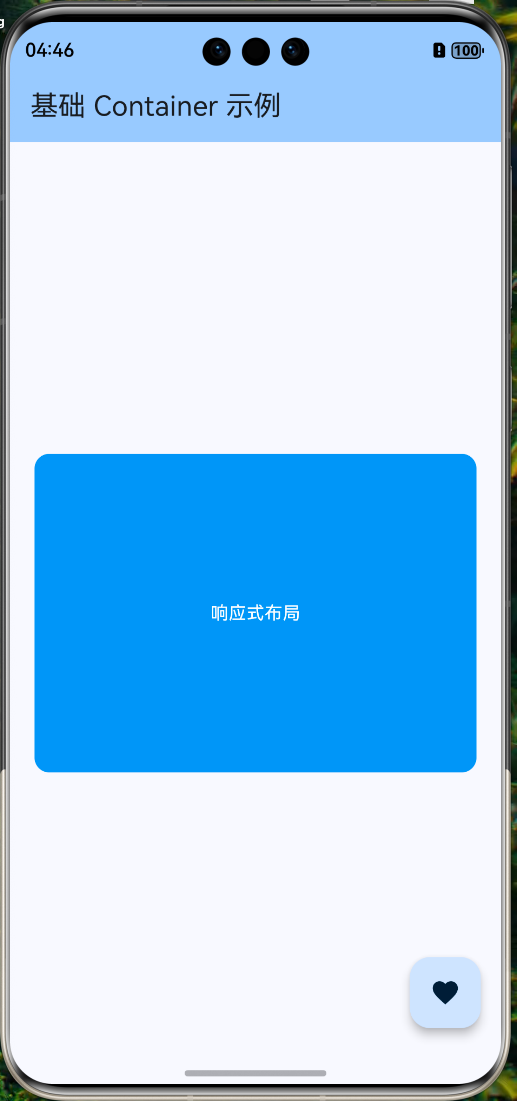

/// 响应式尺寸适配示例
class ResponsiveSizeExample extends StatelessWidget {
  const ResponsiveSizeExample({super.key});


  Widget build(BuildContext context) {
    // 获取屏幕尺寸
    final screenWidth = MediaQuery.of(context).size.width;
    final screenHeight = MediaQuery.of(context).size.height;

    return Container(
      // 使用屏幕比例计算尺寸
      width: screenWidth * 0.9,    // 屏幕宽度的 90%
      height: screenHeight * 0.3,  // 屏幕高度的 30%

      // 动态计算内边距
      padding: EdgeInsets.symmetric(
        horizontal: screenWidth * 0.05,  // 水平边距为屏幕宽度的 5%
        vertical: 16,
      ),

      decoration: BoxDecoration(
        color: Colors.blue,
        borderRadius: BorderRadius.circular(
          screenWidth * 0.03,  // 圆角也可以根据屏幕动态计算
        ),
      ),

      child: const Center(
        child: Text(
          '响应式布局',
          style: TextStyle(color: Colors.white),
        ),
      ),
    );
  }
}

在这里插入图片描述

4.2 使用 LayoutBuilder 动态布局

/// 使用 LayoutBuilder 实现自适应布局
class AdaptiveLayoutExample extends StatelessWidget {
  const AdaptiveLayoutExample({super.key});


  Widget build(BuildContext context) {
    return LayoutBuilder(
      builder: (context, constraints) {
        // 根据可用宽度判断设备类型
        final isTablet = constraints.maxWidth > 600;
        final isDesktop = constraints.maxWidth > 1024;

        return Container(
          // 根据设备类型调整宽度
          width: isDesktop
              ? 800
              : isTablet
                  ? constraints.maxWidth * 0.8
                  : constraints.maxWidth,

          // 根据设备类型调整边距
          padding: EdgeInsets.all(isTablet ? 32 : 16),

          // 根据设备类型调整圆角
          decoration: BoxDecoration(
            color: Colors.white,
            borderRadius: BorderRadius.circular(isTablet ? 24 : 12),
            boxShadow: [
              BoxShadow(
                color: Colors.black.withOpacity(0.1),
                blurRadius: isTablet ? 24 : 12,
                offset: Offset(0, isTablet ? 8 : 4),
              ),
            ],
          ),

          child: Column(
            crossAxisAlignment: CrossAxisAlignment.start,
            children: [
              Text(
                '自适应卡片',
                style: TextStyle(
                  fontSize: isTablet ? 24 : 18,
                  fontWeight: FontWeight.bold,
                ),
              ),
              const SizedBox(height: 8),
              Text(
                '设备类型:${isDesktop ? "桌面" : isTablet ? "平板" : "手机"}',
                style: TextStyle(
                  fontSize: isTablet ? 16 : 14,
                  color: Colors.grey[600],
                ),
              ),
              Text(
                '可用宽度:${constraints.maxWidth.toStringAsFixed(0)}px',
                style: TextStyle(
                  fontSize: isTablet ? 16 : 14,
                  color: Colors.grey[600],
                ),
              ),
            ],
          ),
        );
      },
    );
  }
}

在这里插入图片描述

4.3 刘海屏适配

/// 刘海屏安全区域适配
class SafeAreaExample extends StatelessWidget {
  const SafeAreaExample({super.key});


  Widget build(BuildContext context) {
    // 获取安全区域边距
    final padding = MediaQuery.of(context).padding;

    return Container(
      // 考虑安全区域的顶部边距
      margin: EdgeInsets.only(
        top: padding.top + 16,     // 刘海区域 + 额外边距
        left: 16,
        right: 16,
        bottom: padding.bottom + 16,  // 底部安全区域 + 额外边距
      ),
      padding: const EdgeInsets.all(20),
      decoration: BoxDecoration(
        color: Colors.white,
        borderRadius: BorderRadius.circular(16),
        boxShadow: [
          BoxShadow(
            color: Colors.black.withOpacity(0.1),
            blurRadius: 12,
            offset: const Offset(0, 4),
          ),
        ],
      ),
      child: Column(
        crossAxisAlignment: CrossAxisAlignment.start,
        children: [
          const Text(
            '安全区域适配',
            style: TextStyle(fontSize: 20, fontWeight: FontWeight.bold),
          ),
          const SizedBox(height: 8),
          Text('顶部安全区域:${padding.top.toStringAsFixed(1)}px'),
          Text('底部安全区域:${padding.bottom.toStringAsFixed(1)}px'),
          Text('左侧安全区域:${padding.left.toStringAsFixed(1)}px'),
          Text('右侧安全区域:${padding.right.toStringAsFixed(1)}px'),
        ],
      ),
    );
  }
}

📌 提示:在 OpenHarmony 设备测试时,建议使用多种分辨率验证布局效果。


五、实战案例:精美卡片组件

综合运用以上知识,构建一个精美的卡片组件:

import 'package:flutter/material.dart';

/// 精美卡片组件
class BeautifulCard extends StatelessWidget {
  final String title;
  final String subtitle;
  final String imageUrl;
  final VoidCallback? onTap;

  const BeautifulCard({
    super.key,
    required this.title,
    required this.subtitle,
    required this.imageUrl,
    this.onTap,
  });


  Widget build(BuildContext context) {
    return GestureDetector(
      onTap: onTap,
      child: Container(
        margin: const EdgeInsets.symmetric(horizontal: 16, vertical: 8),
        decoration: BoxDecoration(
          color: Colors.white,
          borderRadius: BorderRadius.circular(16),
          boxShadow: [
            // 多层阴影,营造立体感
            BoxShadow(
              color: Colors.black.withOpacity(0.04),
              offset: const Offset(0, 1),
              blurRadius: 3,
            ),
            BoxShadow(
              color: Colors.black.withOpacity(0.08),
              offset: const Offset(0, 4),
              blurRadius: 12,
            ),
          ],
        ),
        child: ClipRRect(
          borderRadius: BorderRadius.circular(16),
          child: Column(
            crossAxisAlignment: CrossAxisAlignment.start,
            children: [
              // 图片区域
              Container(
                height: 160,
                width: double.infinity,
                decoration: BoxDecoration(
                  gradient: LinearGradient(
                    colors: [Colors.blue.shade400, Colors.purple.shade400],
                    begin: Alignment.topLeft,
                    end: Alignment.bottomRight,
                  ),
                ),
                child: const Center(
                  child: Icon(
                    Icons.image,
                    size: 48,
                    color: Colors.white54,
                  ),
                ),
              ),

              // 内容区域
              Container(
                padding: const EdgeInsets.all(16),
                child: Column(
                  crossAxisAlignment: CrossAxisAlignment.start,
                  children: [
                    // 标题
                    Text(
                      title,
                      style: const TextStyle(
                        fontSize: 18,
                        fontWeight: FontWeight.bold,
                        color: Color(0xFF1E293B),
                      ),
                    ),
                    const SizedBox(height: 8),

                    // 副标题
                    Text(
                      subtitle,
                      style: TextStyle(
                        fontSize: 14,
                        color: Colors.grey[600],
                        height: 1.5,
                      ),
                      maxLines: 2,
                      overflow: TextOverflow.ellipsis,
                    ),
                    const SizedBox(height: 16),

                    // 底部操作区
                    Row(
                      children: [
                        // 标签
                        Container(
                          padding: const EdgeInsets.symmetric(
                            horizontal: 12,
                            vertical: 6,
                          ),
                          decoration: BoxDecoration(
                            color: Colors.blue.withOpacity(0.1),
                            borderRadius: BorderRadius.circular(20),
                          ),
                          child: const Text(
                            'Flutter',
                            style: TextStyle(
                              fontSize: 12,
                              color: Colors.blue,
                              fontWeight: FontWeight.w500,
                            ),
                          ),
                        ),
                        const SizedBox(width: 8),
                        Container(
                          padding: const EdgeInsets.symmetric(
                            horizontal: 12,
                            vertical: 6,
                          ),
                          decoration: BoxDecoration(
                            color: Colors.orange.withOpacity(0.1),
                            borderRadius: BorderRadius.circular(20),
                          ),
                          child: const Text(
                            'OpenHarmony',
                            style: TextStyle(
                              fontSize: 12,
                              color: Colors.orange,
                              fontWeight: FontWeight.w500,
                            ),
                          ),
                        ),
                        const Spacer(),
                        // 箭头图标
                        Icon(
                          Icons.arrow_forward_ios,
                          size: 16,
                          color: Colors.grey[400],
                        ),
                      ],
                    ),
                  ],
                ),
              ),
            ],
          ),
        ),
      ),
    );
  }
}

/// 使用示例
class CardDemoPage extends StatelessWidget {
  const CardDemoPage({super.key});


  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(
        title: const Text('卡片组件示例'),
        backgroundColor: Theme.of(context).colorScheme.inversePrimary,
      ),
      backgroundColor: const Color(0xFFF8FAFC),
      body: ListView(
        padding: const EdgeInsets.symmetric(vertical: 16),
        children: [
          BeautifulCard(
            title: 'Flutter for OpenHarmony',
            subtitle: '使用 Flutter 开发鸿蒙应用,一套代码多端运行,享受高效开发体验。',
            imageUrl: '',
            onTap: () {
              // 处理点击事件
            },
          ),
          BeautifulCard(
            title: 'Container 组件详解',
            subtitle: '深入学习 Container 的尺寸控制、装饰样式和响应式适配技巧。',
            imageUrl: '',
            onTap: () {},
          ),
          BeautifulCard(
            title: '多分辨率适配实战',
            subtitle: '针对 OpenHarmony 设备的多分辨率特性,实现完美的响应式布局。',
            imageUrl: '',
            onTap: () {},
          ),
        ],
      ),
    );
  }
}

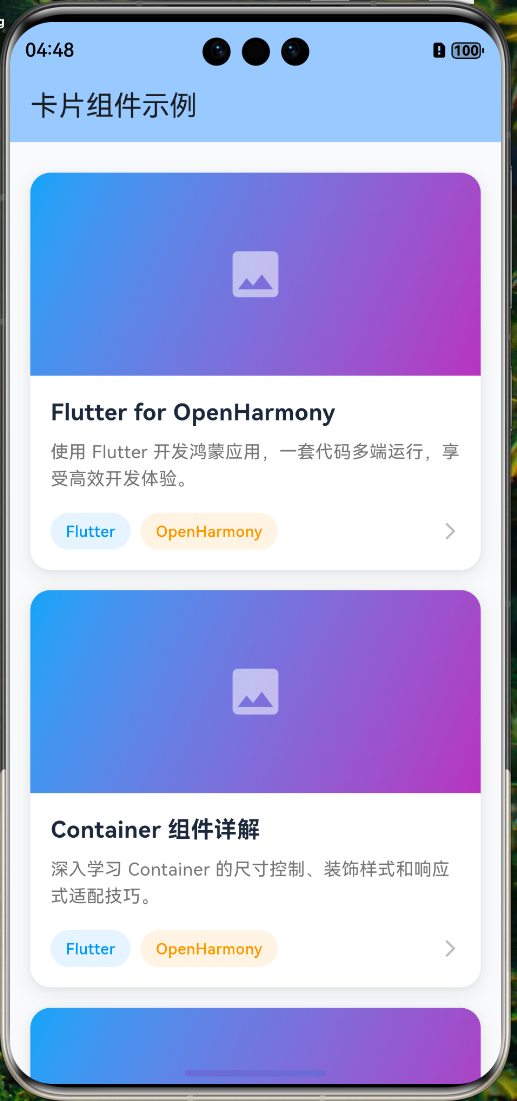

card


六、常见问题与最佳实践

6.1 color 与 decoration 冲突

// ❌ 错误:同时使用 color 和 decoration
Container(
  color: Colors.blue,          // ❌ 这会报错!
  decoration: BoxDecoration(
    borderRadius: BorderRadius.circular(12),
  ),
)

// ✅ 正确:将颜色放入 decoration 中
Container(
  decoration: BoxDecoration(
    color: Colors.blue,        // ✅ 颜色放在 decoration 中
    borderRadius: BorderRadius.circular(12),
  ),
)

6.2 性能优化建议

// ❌ 过度使用 Container
Container(
  padding: const EdgeInsets.all(16),
  child: Container(
    margin: const EdgeInsets.all(8),
    child: Text('内容'),
  ),
)

// ✅ 简化 Widget 树
Padding(
  padding: const EdgeInsets.all(16),
  child: Container(
    margin: const EdgeInsets.all(8),
    child: Text('内容'),
  ),
)

// 或者合并为一个 Container
Container(
  padding: const EdgeInsets.all(16),
  margin: const EdgeInsets.all(8),
  child: Text('内容'),
)

6.3 阴影性能问题

// ⚠️ 复杂阴影可能影响性能
// 在列表中使用时要注意

// 推荐:使用 Card 组件(内置优化)
Card(
  elevation: 4,
  shadowColor: Colors.black26,
  shape: RoundedRectangleBorder(
    borderRadius: BorderRadius.circular(12),
  ),
  child: YourContent(),
)

七、总结

本文详细介绍了 Container 组件的核心用法:

  • 尺寸控制:width/height、constraints、double.infinity
  • 边距设置:margin(外边距)和 padding(内填充)
  • 对齐方式:alignment 属性控制子组件位置
  • 装饰样式:BoxDecoration 实现渐变、圆角、边框、阴影
  • 平台适配:MediaQuery、LayoutBuilder 实现响应式布局

关键要点

  1. 理解组成:Container 是多个基础 Widget 的组合
  2. 善用装饰:BoxDecoration 可实现丰富的视觉效果
  3. 响应式设计:避免硬编码尺寸,使用比例计算
  4. 性能优化:简化 Widget 树,避免不必要的嵌套

下一步学习

  • Row 与 Column 弹性布局
  • Stack 层叠定位
  • ListView 列表组件

📦 完整代码已上传至 AtomGitopen-harmony-example

🌐 欢迎加入开源鸿蒙跨平台社区开源鸿蒙跨平台开发者社区

Logo

开源鸿蒙跨平台开发社区汇聚开发者与厂商,共建“一次开发,多端部署”的开源生态,致力于降低跨端开发门槛,推动万物智联创新。

更多推荐
