flutter_for_openharmony小区门禁管理app实战+物业总览实现
·

物业总览是小区管理系统中的重要功能,它为住户提供了了解物业服务、费用缴纳、报修服务、联系方式等综合信息的便捷渠道。
在实际项目中,物业总览页面需要解决几个关键问题:
- 如何集中展示物业的各项服务功能
- 如何支持费用查询和在线缴纳
- 如何提供报修服务的快速入口
- 如何展示物业公告和重要通知
这篇讲物业总览页面的实现,重点是如何让物业服务展示既全面又易于使用。
对应源码

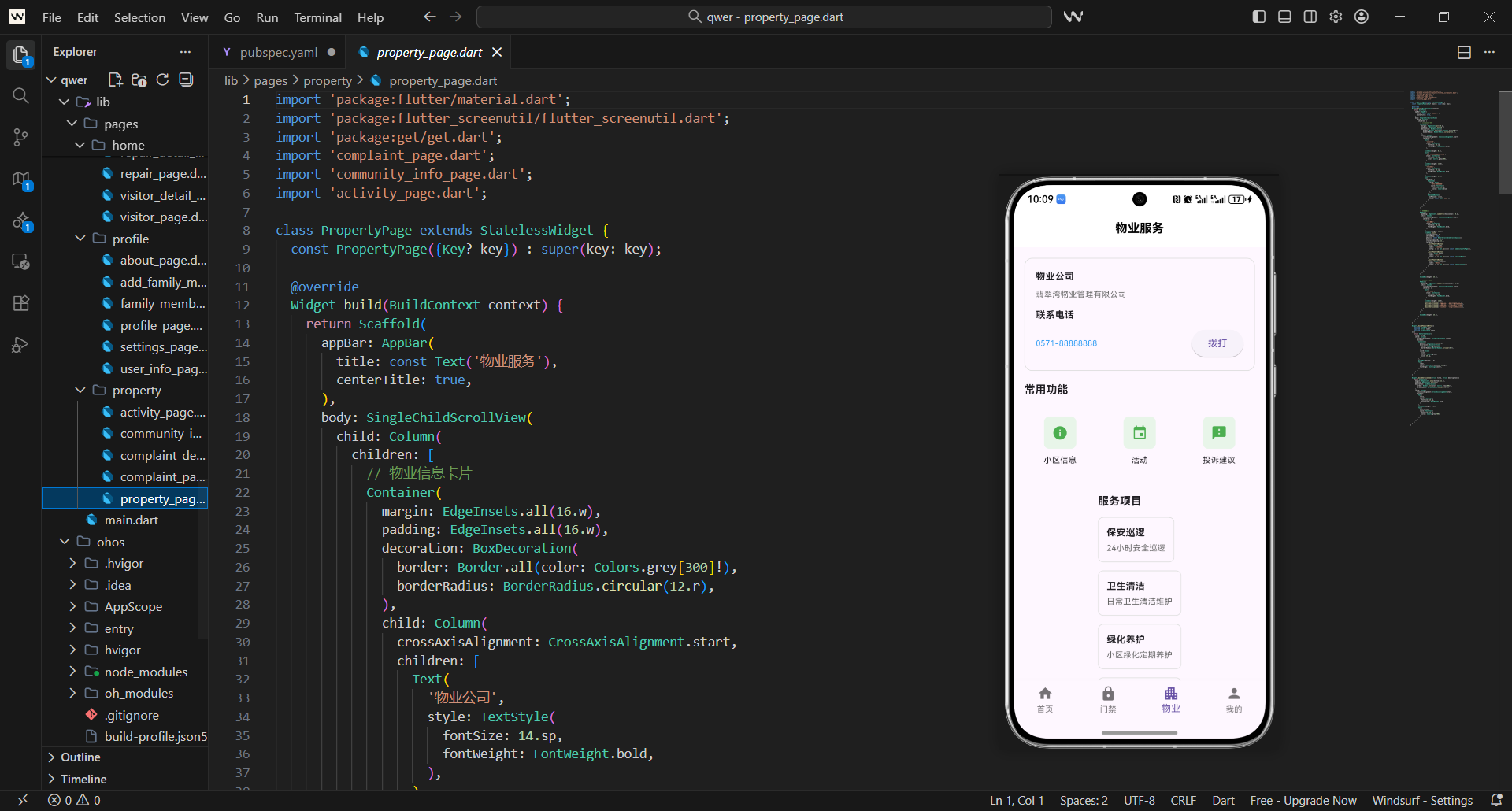

lib/pages/property/property_page.dart
物业总览页面的设计思路是:功能集中 + 服务便捷 + 信息完整。
import 'package:flutter/material.dart';
import 'package:flutter_screenutil/flutter_screenutil.dart';
import 'package:get/get.dart';
import 'payment_page.dart';
import 'complaint_page.dart';
import 'community_info_page.dart';
import 'activity_page.dart';
class PropertyPage extends StatefulWidget {
const PropertyPage({Key? key}) : super(key: key);
State<PropertyPage> createState() => _PropertyPageState();
}
class _PropertyPageState extends State<PropertyPage> {
Map<String, dynamic> _propertyInfo = {};
List<Map<String, dynamic>> _announcements = [];
List<Map<String, dynamic>> _services = [];
bool _isLoading = false;
基础结构说明:
- 物业总览页面需要维护多种数据状态,所以用
StatefulWidget。 - 导入相关页面:缴费、投诉、社区信息、社区活动。
_propertyInfo存储物业基本信息。_announcements和_services存储公告和服务信息。
void initState() {
super.initState();
_loadPropertyData();
}
Widget build(BuildContext context) {
return Scaffold(
appBar: AppBar(
title: const Text('物业服务'),
centerTitle: true,
),
body: _isLoading
? const Center(child: CircularProgressIndicator())
: SingleChildScrollView(
padding: EdgeInsets.all(16.w),
child: Column(
children: [
// 物业信息卡片
_buildPropertyInfoCard(),
SizedBox(height: 24.h),
// 快捷服务
_buildQuickServices(),
SizedBox(height: 24.h),
// 最新公告
_buildAnnouncementsSection(),
SizedBox(height: 24.h),
// 服务入口
_buildServiceEntries(),
],
),
),
);
}
页面布局设计:
- 使用
SingleChildScrollView确保内容可滚动。 - 页面分为四个主要部分:物业信息、快捷服务、最新公告、服务入口。
- 加载状态显示进度器,提升用户体验。
- 各部分之间有适当间距,布局清晰。
Widget _buildPropertyInfoCard() {
return Container(
width: double.infinity,
padding: EdgeInsets.all(20.w),
decoration: BoxDecoration(
gradient: const LinearGradient(
colors: [Color(0xFF6366F1), Color(0xFF8B5CF6)],
begin: Alignment.topLeft,
end: Alignment.bottomRight,
),
borderRadius: BorderRadius.circular(16.r),
boxShadow: [
BoxShadow(
color: Colors.indigo.withOpacity(0.3),
blurRadius: 12.r,
offset: Offset(0, 6.h),
),
],
),
child: Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
Row(
children: [
Icon(
Icons.apartment,
color: Colors.white70,
size: 24.sp,
),
SizedBox(width: 8.w),
Text(
'物业服务',
style: TextStyle(
color: Colors.white70,
fontSize: 12.sp,
),
),
],
),
SizedBox(height: 16.h),
Text(
_propertyInfo['name'] ?? '翡翠湾物业',
style: TextStyle(
color: Colors.white,
fontSize: 24.sp,
fontWeight: FontWeight.bold,
),
),
SizedBox(height: 8.h),
Text(
'24小时服务热线:${_propertyInfo['hotline'] ?? '400-123-4567}',
style: TextStyle(
color: Colors.white70,
fontSize: 14.sp,
),
),
SizedBox(height: 12.h),
Row(
children: [
_buildInfoItem(
icon: Icons.phone,
label: '电话',
value: _propertyInfo['phone'] ?? '400-123-4567',
),
SizedBox(width: 24.w),
_buildInfoItem(
icon: Icons.email,
label: '邮箱',
value: _propertyInfo['email'] ?? 'property@example.com',
),
],
),
],
),
);
}
物业信息卡片:
- 靛蓝色渐变背景突出物业品牌。
- 显示物业公司名称、服务热线、电话、邮箱等信息。
- 使用
_buildInfoItem统一信息项样式。 - 信息层次清晰,便于快速联系。
Widget _buildInfoItem({
required IconData icon,
required String label,
required String value,
}) {
return Expanded(
child: Row(
children: [
Icon(
icon,
color: Colors.white70,
size: 16.sp,
),
SizedBox(width: 4.w),
Expanded(
child: Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
Text(
label,
style: TextStyle(
color: Colors.white70,
fontSize: 10.sp,
),
),
Text(
value,
style: TextStyle(
color: Colors.white,
fontSize: 12.sp,
fontWeight: FontWeight.w500,
),
),
],
),
),
],
),
);
}
信息项组件:
- 统一的信息项样式和布局。
- 图标、标签、值的标准排列。
- 标签使用半透明白色,值使用纯白色。
- 值使用
Expanded确保完整显示。
Widget _buildQuickServices() {
return Container(
width: double.infinity,
padding: EdgeInsets.all(20.w),
decoration: BoxDecoration(
color: Colors.white,
borderRadius: BorderRadius.circular(12.r),
boxShadow: [
BoxShadow(
color: Colors.grey.withOpacity(0.1),
blurRadius: 8.r,
offset: Offset(0, 2.h),
),
],
),
child: Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
Text(
'快捷服务',
style: TextStyle(
fontSize: 16.sp,
fontWeight: FontWeight.bold,
),
),
SizedBox(height: 16.h),
GridView.count(
shrinkWrap: true,
physics: const NeverScrollableScrollPhysics(),
crossAxisCount: 4,
crossAxisSpacing: 12.w,
mainAxisSpacing: 12.h,
childAspectRatio: 1,
children: [
_buildServiceCard(
icon: Icons.payment,
title: '物业缴费',
color: Colors.green,
onTap: () => Get.to(() => const PaymentPage()),
),
_buildServiceCard(
icon: Icons.build,
title: '在线报修',
color: Colors.orange,
onTap: () => Get.to(() => const ComplaintPage()),
),
_buildServiceCard(
icon: Icons.announcement,
title: '社区公告',
color: Colors.blue,
onTap: () => Get.to(() => const CommunityInfoPage()),
),
_buildServiceCard(
icon: Icons.event,
title: '社区活动',
color: Colors.purple,
onTap: () => Get.to(() => const ActivityPage()),
),
],
),
],
),
);
}
快捷服务区域:
- 4列网格布局展示常用服务。
- 包含物业缴费、在线报修、社区公告、社区活动。
- 使用
_buildServiceCard统一服务卡片样式。 - 网格布局充分利用屏幕空间。
Widget _buildServiceCard({
required IconData icon,
required String title,
required Color color,
required VoidCallback onTap,
}) {
return GestureDetector(
onTap: onTap,
child: Container(
decoration: BoxDecoration(
color: color.withOpacity(0.1),
borderRadius: BorderRadius.circular(8.r),
border: Border.all(color: color.withOpacity(0.3)),
),
child: Column(
mainAxisAlignment: MainAxisAlignment.center,
children: [
Icon(
icon,
color: color,
size: 24.sp,
),
SizedBox(height: 8.h),
Text(
title,
style: TextStyle(
fontSize: 12.sp,
color: color,
fontWeight: FontWeight.w500,
),
textAlign: TextAlign.center,
),
],
),
),
);
}
服务卡片组件:
- 彩色背景和边框的服务卡片设计。
- 图标、标题的垂直布局,居中对齐。
- 不同服务使用不同颜色区分。
- 点击触发相应的页面跳转。
Widget _buildAnnouncementsSection() {
return Container(
width: double.infinity,
padding: EdgeInsets.all(20.w),
decoration: BoxDecoration(
color: Colors.white,
borderRadius: BorderRadius.circular(12.r),
boxShadow: [
BoxShadow(
color: Colors.grey.withOpacity(0.1),
blurRadius: 8.r,
offset: Offset(0, 2.h),
),
],
),
child: Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
Row(
mainAxisAlignment: MainAxisAlignment.spaceBetween,
children: [
Text(
'最新公告',
style: TextStyle(
fontSize: 16.sp,
fontWeight: FontWeight.bold,
),
),
TextButton(
onPressed: () => _viewAllAnnouncements(),
child: const Text('查看全部'),
),
],
),
SizedBox(height: 16.h),
if (_announcements.isEmpty)
Container(
width: double.infinity,
padding: EdgeInsets.all(16.w),
decoration: BoxDecoration(
color: Colors.grey[50],
borderRadius: BorderRadius.circular(8.r),
),
child: Text(
'暂无公告信息',
style: TextStyle(
fontSize: 12.sp,
color: Colors.grey[600],
),
textAlign: TextAlign.center,
),
)
else
..._announcements.take(3).map((announcement) => _buildAnnouncementItem(announcement)).toList(),
],
),
);
}
最新公告区域:
- 显示最新的3条公告信息。
- 右侧查看全部按钮,便于查看更多。
- 空状态显示暂无公告的提示。
- 使用
_buildAnnouncementItem构建公告项。
Widget _buildAnnouncementItem(Map<String, dynamic> announcement) {
return Container(
margin: EdgeInsets.only(bottom: 12.h),
padding: EdgeInsets.all(16.w),
decoration: BoxDecoration(
color: Colors.blue[50],
borderRadius: BorderRadius.circular(8.r),
border: Border.all(color: Colors.blue[200]!),
),
child: Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
Row(
mainAxisAlignment: MainAxisAlignment.spaceBetween,
children: [
Expanded(
child: Text(
announcement['title'],
style: TextStyle(
fontSize: 14.sp,
fontWeight: FontWeight.bold,
color: Colors.blue[700],
),
maxLines: 1,
overflow: TextOverflow.ellipsis,
),
),
Container(
padding: EdgeInsets.symmetric(
horizontal: 6.w,
vertical: 2.h,
),
decoration: BoxDecoration(
color: _getAnnouncementTypeColor(announcement['type']),
borderRadius: BorderRadius.circular(8.r),
),
child: Text(
_getAnnouncementTypeText(announcement['type']),
style: TextStyle(
fontSize: 10.sp,
color: Colors.white,
),
),
),
],
),
SizedBox(height: 8.h),
Text(
announcement['content'],
style: TextStyle(
fontSize: 12.sp,
color: Colors.grey[700],
),
maxLines: 2,
overflow: TextOverflow.ellipsis,
),
SizedBox(height: 8.h),
Text(
announcement['publishTime'],
style: TextStyle(
fontSize: 10.sp,
color: Colors.grey[500],
),
),
],
),
);
}
公告项组件:
- 蓝色背景的公告卡片,与快捷服务区分。
- 显示公告标题、类型标签、内容、发布时间。
- 类型标签使用不同颜色区分公告重要性。
- 内容最多显示2行,超出部分省略。
Color _getAnnouncementTypeColor(String type) {
switch (type) {
case 'important':
return Colors.red;
case 'notice':
return Colors.blue;
case 'activity':
return Colors.green;
default:
return Colors.grey;
}
}
String _getAnnouncementTypeText(String type) {
switch (type) {
case 'important':
return '重要';
case 'notice':
return '通知';
case 'activity':
return '活动';
default:
return '其他';
}
}
公告类型处理:
_getAnnouncementTypeColor获取类型对应的颜色。_getAnnouncementTypeText获取类型的中文文本。- 重要(红色)、通知(蓝色)、活动(绿色)。
Widget _buildServiceEntries() {
return Container(
width: double.infinity,
padding: EdgeInsets.all(20.w),
decoration: BoxDecoration(
color: Colors.white,
borderRadius: BorderRadius.circular(12.r),
boxShadow: [
BoxShadow(
color: Colors.grey.withOpacity(0.1),
blurRadius: 8.r,
offset: Offset(0, 2.h),
),
],
),
child: Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
Text(
'服务入口',
style: TextStyle(
fontSize: 16.sp,
fontWeight: FontWeight.bold,
),
),
SizedBox(height: 16.h),
..._services.map((service) => _buildServiceEntry(service)).toList(),
],
),
);
}
服务入口区域:
- 显示更多物业服务的入口。
- 使用
_buildServiceEntry构建服务入口项。 - 垂直排列,信息展示清晰。
- 为用户提供全面的服务访问渠道。
Widget _buildServiceEntry(Map<String, dynamic> service) {
return Container(
margin: EdgeInsets.only(bottom: 16.h),
padding: EdgeInsets.all(16.w),
decoration: BoxDecoration(
color: Colors.grey[50],
borderRadius: BorderRadius.circular(8.r),
border: Border.all(color: Colors.grey[200]!),
),
child: Row(
children: [
Container(
width: 40.w,
height: 40.w,
decoration: BoxDecoration(
color: Colors.white,
borderRadius: BorderRadius.circular(8.r),
),
child: Icon(
_getServiceIcon(service['type']),
color: Colors.blue,
size: 20.sp,
),
),
SizedBox(width: 12.w),
Expanded(
child: Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
Text(
service['name'],
style: TextStyle(
fontSize: 14.sp,
fontWeight: FontWeight.w500,
),
),
SizedBox(height: 4.h),
Text(
service['description'],
style: TextStyle(
fontSize: 12.sp,
color: Colors.grey[600],
),
),
],
),
),
Icon(
Icons.chevron_right,
color: Colors.grey[400],
size: 20.sp,
),
],
),
);
}
服务入口组件:
- 灰色背景的服务入口项设计。
- 图标、名称、描述的标准布局。
- 右侧箭头指示可点击进入。
- 整体设计简洁专业。
IconData _getServiceIcon(String type) {
switch (type) {
case 'repair':
return Icons.build;
case 'cleaning':
return Icons.cleaning_services;
case 'security':
return Icons.security;
case 'delivery':
return Icons.local_shipping;
case 'parking':
return Icons.local_parking;
case 'mailbox':
return Icons.mail;
default:
return Icons.miscellaneous_services;
}
}
服务图标映射:
- 根据服务类型返回对应图标。
- 支持多种服务类型:维修、清洁、安保等。
- 图标选择符合服务特征。
- 默认图标为通用服务图标。
Future<void> _loadPropertyData() async {
setState(() {
_isLoading = true;
});
// 模拟加载物业数据
await Future.delayed(const Duration(seconds: 1));
final mockPropertyInfo = {
'name': '翡翠湾物业服务有限公司',
'hotline': '400-123-4567',
'phone': '400-123-4567',
'email': 'property@example.com',
};
final mockAnnouncements = [
{
'id': '1',
'title': '春节期间物业服务安排通知',
'type': 'important',
'content': '春节期间,物业服务时间调整,请各位住户留意。2月10日至2月17日,客服热线服务时间为9:00-17:00。',
'publishTime': '2024-01-20 10:00',
},
{
'id': '2',
'title': '电梯维护保养通知',
'type': 'notice',
'content': '为保障电梯安全运行,物业将于1月25日对3号楼电梯进行维护保养,届时将暂停使用。',
'publishTime': '2024-01-18 14:30',
},
{
'id': '3',
'title': '社区春节联欢活动报名',
'type': 'activity',
'content': '春节联欢晚会将于2月8日举行,现在开始接受报名,欢迎各位住户踊跃参与。',
'publishTime': '2024-01-15 09:00',
},
];
final mockServices = [
{
'type': 'repair',
'name': '维修服务',
'description': '24小时维修响应,专业团队上门服务',
},
{
'type': 'cleaning',
'name': '清洁服务',
'description': '定期公共区域清洁,保持环境整洁',
},
{
'type': 'security',
'name': '安保服务',
'description': '24小时安保巡逻,确保小区安全',
},
{
'type': 'parking',
'name': '停车管理',
'description': '智能停车系统,便捷停车体验',
},
];
setState(() {
_propertyInfo = mockPropertyInfo;
_announcements = mockAnnouncements;
_services = mockServices;
_isLoading = false;
});
}
数据加载逻辑:
- 模拟异步加载物业数据。
- 包含完整的物业信息、公告列表、服务列表。
- 不同类型的公告:重要、通知、活动。
- 不同类型的服务:维修、清洁、安保、停车。
void _viewAllAnnouncements() {
ScaffoldMessenger.of(context).showSnackBar(
const SnackBar(content: Text('查看全部公告功能开发中...')),
);
}
}
页面操作逻辑:
_viewAllAnnouncements查看全部公告(预留接口)。- 使用
SnackBar提供操作反馈。 - 实际项目中会跳转到公告详情页面。
用户体验设计
物业总览页面的用户体验重点:
- 功能集中:常用服务集中在快捷服务区域
- 信息完整:展示物业的全面联系信息
- 视觉层次:重要信息突出,次要信息弱化
- 操作便捷:一键访问各项服务功能
这些设计让物业服务获取变得简单高效。
服务整合策略
物业服务的整合考虑:
- 分类管理:按功能类型组织服务入口
- 优先级排序:常用服务放在显眼位置
- 统一入口:所有服务从物业总览进入
- 状态同步:服务状态实时更新
这些策略确保物业服务的有序管理。
欢迎加入开源鸿蒙跨平台社区:https://openharmonycrossplatform.csdn.net
更多推荐


所有评论(0)
