Qt网络编程基础——tcp简易通讯
首先列出Qt中Tcp通信的流程图:1.QT下的服务端1).socket函数变为QTcpServer2).bind ,listen 统一为listen同时没有accept,当有一个链接过来的时候,会产生一个信号:newconnection,可以从对应的槽函数中取出建立好的套接字(对方的)QTcpSocket如果成功和对方建立好链接,通信套接字会自动触发connected信号...
·

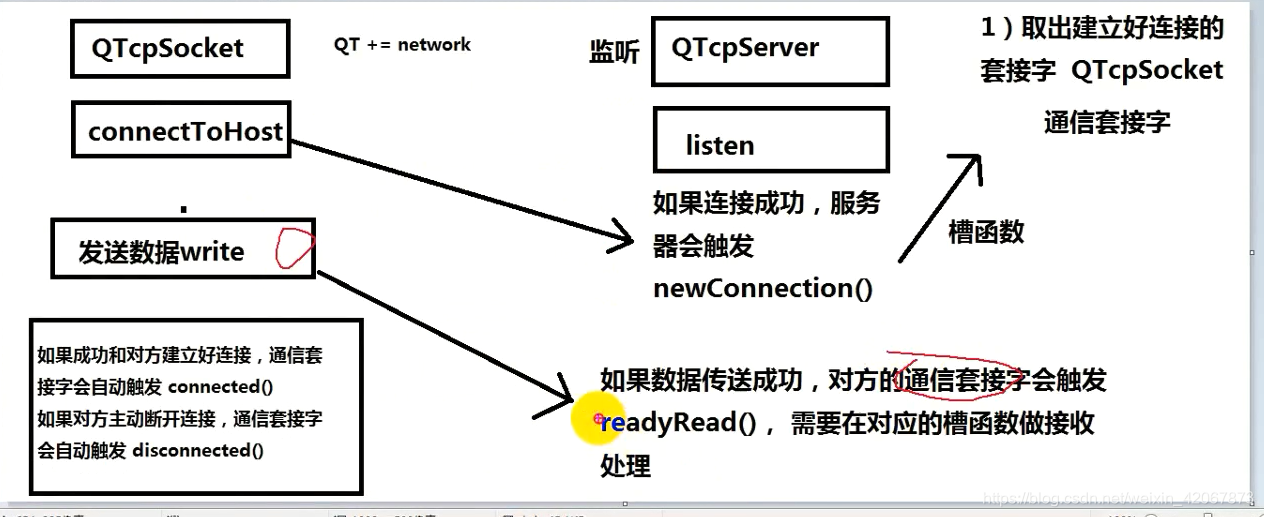

首先列出Qt中Tcp通信的流程图:

1.QT下的服务端
1).socket函数变为QTcpServer
2).bind ,listen 统一为listen
同时没有accept,当有一个链接过来的时候,会产生一个信号:newconnection,可以从对应的槽函数中取出建立好的套接字(对方的)QTcpSocket
如果成功和对方建立好链接,通信套接字会自动触发connected信号
3).read :
对方发送数据过来,链接的套接字(通信套接字)就会触发(本机的)readyRead信号,需要在对应的槽函数中接收数据
4).write,
发送数据,对方的(客户端的)套接字(通信套接字)就会触发readyRead信号,需要在对应的槽函数中接收数据
如果对方主动断开连接,对方的(客户端的)套接字(通信套接字)会自动触发disconnected信号
2.QT下的客户端:
1).socket函数变为 QTcpSocket
2).connect变为connetToHost()
如果成功和对方建立好链接,就会自动触发connected信号
3).read :
对方发送数据过来,链接的套接字(通信套接字)就会触发(本机的)readyRead信号,需要在对应的槽函数中接收数据
4).write,
发送数据,对方的(服务器的)套接字(通信套接字)就会触发readyRead信号,需要在对应的槽函数中接收数据
如果对方主动断开连接,就会自动触发disconnected信号
*************************************************************************************************************************************************
下面列出具体实现
server端:
头文件:
#ifndef SERVERWIDGET_H
#define SERVERWIDGET_H
#include <QWidget>
#include <QTcpServer>
#include <QTcpSocket>
namespace Ui {
class ServerWidget;
}
class ServerWidget : public QWidget
{
Q_OBJECT
public:
explicit ServerWidget(QWidget *parent = 0);
~ServerWidget();
private slots:
void on_pb_send_clicked();
void on_pushButton_2_clicked();
private:
Ui::ServerWidget *ui;
QTcpServer *tcpServer;
QTcpSocket *tcpSocket;
};
#endif // SERVERWIDGET_H
具体实现:
#include "serverwidget.h"
#include "ui_serverwidget.h"
#include <QString>
#include <QIODevice>
ServerWidget::ServerWidget(QWidget *parent) :
QWidget(parent),
ui(new Ui::ServerWidget)
{
ui->setupUi(this);
tcpServer = NULL;
tcpSocket = NULL;
setWindowTitle("服务器: 8888");
//建立监听套接字,并指定父对象
tcpServer = new QTcpServer(this);
//监听
tcpServer->listen(QHostAddress::Any, 8888);
connect(tcpServer, &QTcpServer::newConnection,
[=]()
{
//取出建立好的套接字
tcpSocket = tcpServer->nextPendingConnection();
//获取对方的IP和端口
QString ip = tcpSocket->peerAddress().toString();
qint16 port = tcpSocket->peerPort();
QString tmp = QString("[%1:%2]: 成功链接").arg(ip).arg(port);
ui->te_read->setText(tmp.toUtf8().data());
connect(tcpSocket, &QTcpSocket::readyRead,
[=]()
{
//从套接字里面取出内容
QByteArray array = tcpSocket->readAll();
ui->te_read->append(array);
}
);
}
);
}
ServerWidget::~ServerWidget()
{
delete ui;
}
void ServerWidget::on_pb_send_clicked()
{
if(tcpSocket == NULL)
{
return;
}
//获取编辑区内容
QString str = ui->te_write->toPlainText();
//给对方发数据,使用套接字tcpSocket
tcpSocket->write(str.toUtf8().data());
}
void ServerWidget::on_pushButton_2_clicked()
{
//做出错处理
if(tcpSocket == NULL)
{
return;
}
//主动和客户端断开连接
tcpSocket->disconnectFromHost();
tcpSocket->close();
tcpSocket = NULL;
}
client端:
头文件:
#ifndef CLIENTWIDGET_H
#define CLIENTWIDGET_H
#include <QWidget>
#include <QTcpSocket>
namespace Ui {
class clientWidget;
}
class clientWidget : public QWidget
{
Q_OBJECT
public:
explicit clientWidget(QWidget *parent = 0);
~clientWidget();
private slots:
void on_pb_send_clicked();
void on_pb_close_clicked();
void on_pb_connect_clicked();
private:
Ui::clientWidget *ui;
QTcpSocket *tcpSocket;
};
#endif // CLIENTWIDGET_H
具体实现:
#include "clientwidget.h"
#include "ui_clientwidget.h"
#include <QHostAddress>
clientWidget::clientWidget(QWidget *parent) :
QWidget(parent),
ui(new Ui::clientWidget)
{
ui->setupUi(this);
setWindowTitle("客户端");
//显示为通信套接字开辟空间和指定父对象
tcpSocket = new QTcpSocket(this);
connect(tcpSocket, &QTcpSocket::connected,
[=]()
{
ui->te_read->setText("成功和服务器连接");
}
);
connect(tcpSocket, &QTcpSocket::readyRead,
[=]()
{
//读取对方发送的数据
QByteArray array = tcpSocket->readAll();
//把数据追加到阅读区
ui->te_read->append(array);
}
);
}
clientWidget::~clientWidget()
{
delete ui;
}
void clientWidget::on_pb_send_clicked()
{
// 获取编辑区内容
QString str = ui->te_write->toPlainText();
//发送数据
tcpSocket->write(str.toUtf8().data());
}
void clientWidget::on_pb_close_clicked()
{
tcpSocket->disconnectFromHost();
tcpSocket->close();
}
void clientWidget::on_pb_connect_clicked()
{
//获取服务器ip和port
QString ip = ui->le_ip->text();
qint16 port = ui->le_port->text().toInt();
//主动链接服务器
tcpSocket->connectToHost(QHostAddress(ip), port);
}
