openharmony pc 之路: (2) openharmony 镜像预置hap应用和默认系统应用替换

九流下半

20人浏览 · 2026-08-04 23:11:12

九流下半 · 2026-08-04 23:11:12 发布

1.镜像预置hap应用

1.1 首先，应用需要是已签名应用，如果需要系统权限，要用系统签名。

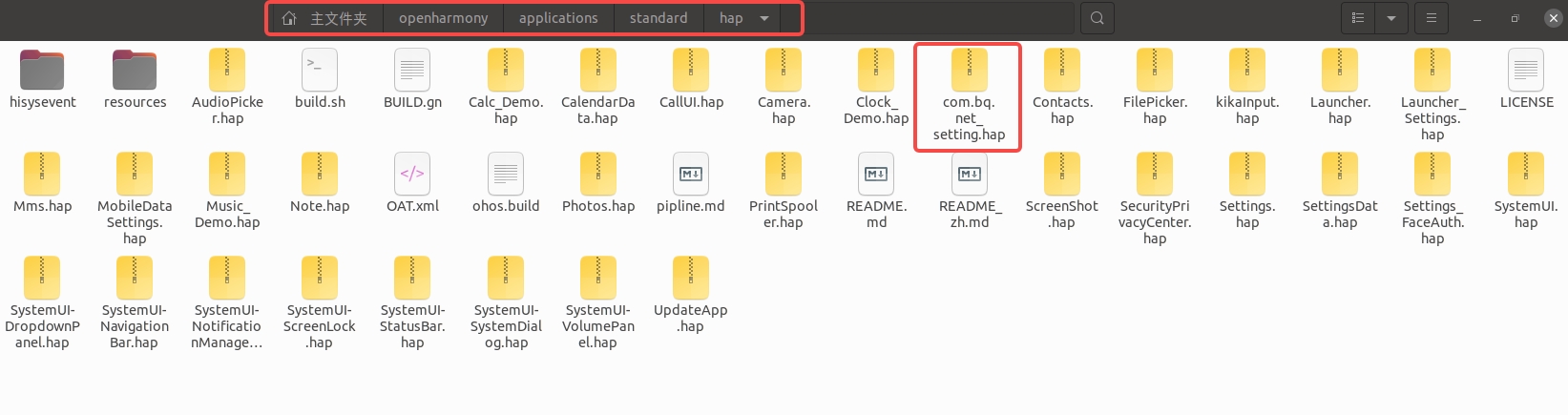

1.2 路径

/home/zzj/openharmony/applications/standard/hap/ 此为预置hap应用路径

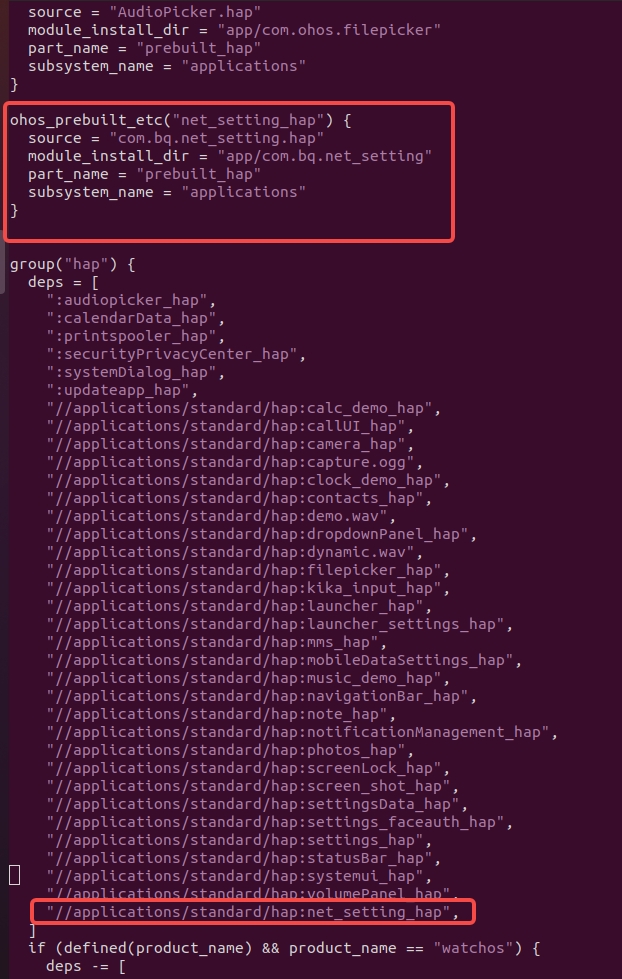

1.3 修改配置文件

/home/zzj/openharmony/applications/standard/hap/BUILD.gn

添加如下配置

ohos_prebuilt_etc("net_setting_hap") {
  source = "com.bq.net_setting.hap"
  module_install_dir = "app/com.bq.net_setting"
  part_name = "prebuilt_hap"
  subsystem_name = "applications"
}

net_setting_hap 自定义，下边一致即可

com.bq.net_setting.hap 预置的文件名

app/com.bq.net_setting 放置路径，需要和应用 bundleName 一致

group("hap") {
  deps = [
    ":audiopicker_hap",
    ":calendarData_hap",
    ":printspooler_hap",
    ":securityPrivacyCenter_hap",
    ":systemDialog_hap",
    ":updateapp_hap",
    "//applications/standard/hap:calc_demo_hap",
    ......
    "//applications/standard/hap:net_setting_hap",
  ]

/home/zzj/openharmony/vendor/hihope/rk3568/preinstall-config/install_list.json

{
    "app_dir": "/system/app/com.bq.net_setting",
    "removable": false
}

/system/app/com.bq.net_setting 板子实际路径

removable 是否可以被删除

以下是两个其他配置，一般不用改

/home/zzj/openharmony/vendor/hihope/rk3568/preinstall-config/install_list_capability.json 是否一直运行

/home/zzj/openharmony/vendor/hihope/rk3568/preinstall-config/install_list_permissions.json 权限

1.4 重新编译

./build.sh --product-name rk3568

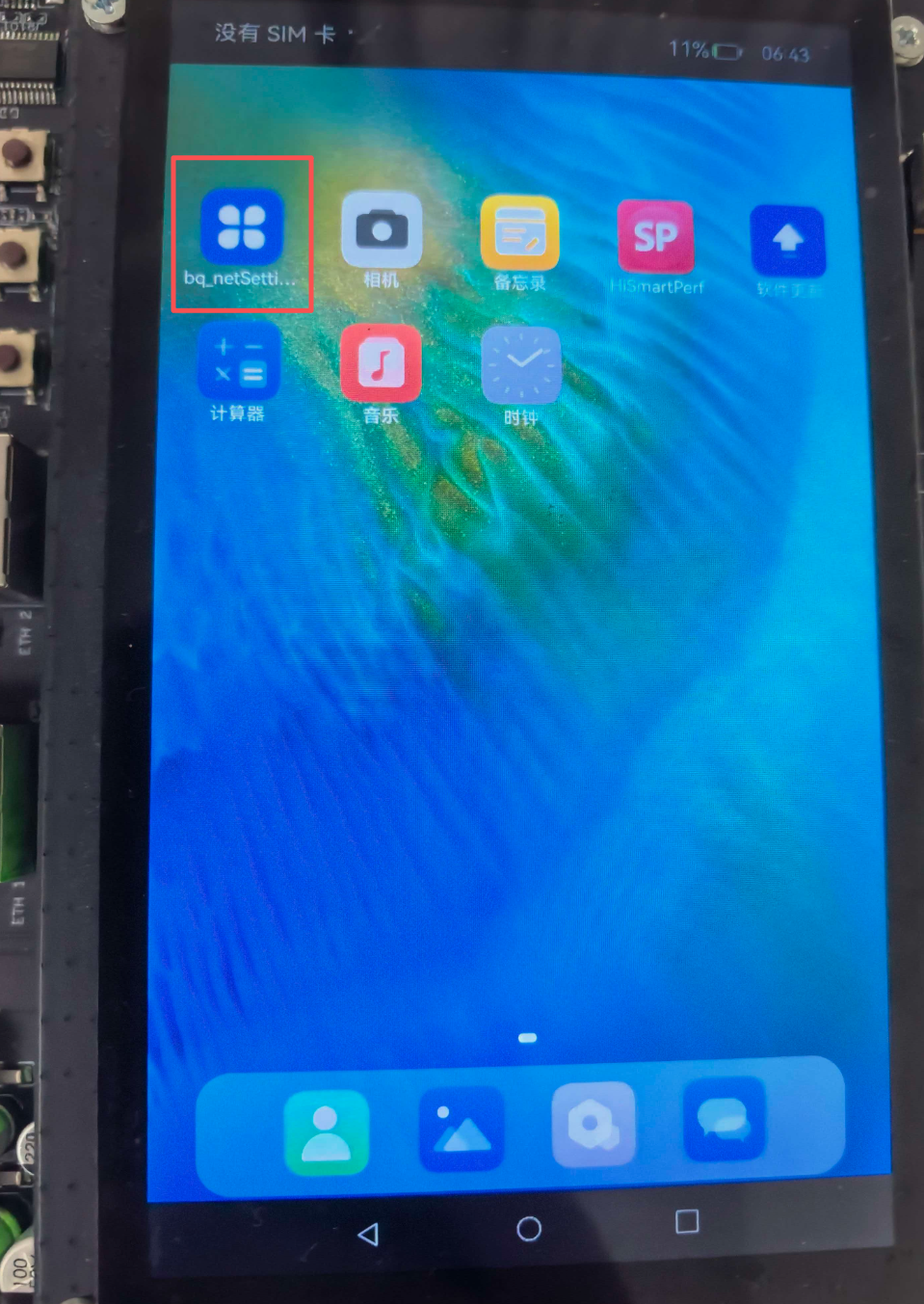

1.5 显示效果

2.默认系统应用替换

2.1 launcher （拷贝自己编译的6.1 hap 到相应目录）

一般只拷贝到/home/zzj/openharmony/applications/standard/hap/即可

Launcher.hap

cp -arf Launcher.hap /home/zzj/openharmony/applications/standard/hap/Launcher.hap

cp -arf Launcher.hap /home/zzj/openharmony/out/rk3568/obj/applications/standard/hap/Launcher.hap

cp -arf Launcher.hap /home/zzj/openharmony/out/rk3568/packages/phone/system/app/com.ohos.launcher/Launcher.hap

Launcher_Settings.hap

cp -arf Launcher_Settings.hap /home/zzj/openharmony/applications/standard/hap/Launcher_Settings.hap

cp -arf Launcher_Settings.hap /home/zzj/openharmony/out/rk3568/obj/applications/standard/hap/Launcher_Settings.hap

cp -arf Launcher_Settings.hap /home/zzj/openharmony/out/rk3568/packages/phone/system/app/com.ohos.launcher/Launcher_Settings.hap

launcher相关可以直接用签名后的替换，不会造成卡住进步不去系统的情况

2.1 settings 替换

cp -arf Settings.hap /home/zzj/openharmony/applications/standard/hap/Settings.hap

cp -arf Settings.hap /home/zzj/openharmony/out/rk3568/obj/applications/standard/hap/Settings.hap

cp -arf Settings.hap /home/zzj/openharmony/out/rk3568/packages/phone/system/app/com.ohos.settings/Settings.hap

2.3 SystemUI 相关替换

cp -arf SystemUI-DropdownPanel.hap /home/zzj/openharmony/applications/standard/hap/SystemUI-DropdownPanel.hap

cp -arf SystemUI-DropdownPanel.hap /home/zzj/openharmony/out/rk3568/obj/applications/standard/hap/SystemUI-DropdownPanel.hap

cp -arf SystemUI-DropdownPanel.hap /home/zzj/openharmony/out/rk3568/packages/phone/system/app/com.ohos.systemui/SystemUI-DropdownPanel.hap

cp -arf SystemUI-NavigationBar.hap /home/zzj/openharmony/applications/standard/hap/SystemUI-NavigationBar.hap

cp -arf SystemUI-NavigationBar.hap /home/zzj/openharmony/out/rk3568/obj/applications/standard/hap/SystemUI-NavigationBar.hap

cp -arf SystemUI-NavigationBar.hap /home/zzj/openharmony/out/rk3568/packages/phone/system/app/com.ohos.systemui/SystemUI-NavigationBar.hap

cp -arf SystemUI-NotificationManagement.hap /home/zzj/openharmony/applications/standard/hap/SystemUI-NotificationManagement.hap

cp -arf SystemUI-NotificationManagement.hap /home/zzj/openharmony/out/rk3568/obj/applications/standard/hap/SystemUI-NotificationManagement.hap

cp -arf SystemUI-NotificationManagement.hap /home/zzj/openharmony/out/rk3568/packages/phone/system/app/com.ohos.systemui/SystemUI-NotificationManagement.hap

cp -arf SystemUI-ScreenLock.hap /home/zzj/openharmony/applications/standard/hap/SystemUI-ScreenLock.hap

cp -arf SystemUI-ScreenLock.hap /home/zzj/openharmony/out/rk3568/obj/applications/standard/hap/SystemUI-ScreenLock.hap

cp -arf SystemUI-ScreenLock.hap /home/zzj/openharmony/out/rk3568/packages/phone/system/app/com.ohos.systemui/SystemUI-ScreenLock.hap

cp -arf SystemUI-StatusBar.hap /home/zzj/openharmony/applications/standard/hap/SystemUI-StatusBar.hap

cp -arf SystemUI-StatusBar.hap /home/zzj/openharmony/out/rk3568/obj/applications/standard/hap/SystemUI-StatusBar.hap

cp -arf SystemUI-StatusBar.hap /home/zzj/openharmony/out/rk3568/packages/phone/system/app/com.ohos.systemui/SystemUI-StatusBar.hap

cp -arf SystemUI-SystemDialog.hap /home/zzj/openharmony/applications/standard/hap/SystemUI-SystemDialog.hap

cp -arf SystemUI-SystemDialog.hap /home/zzj/openharmony/out/rk3568/obj/applications/standard/hap/SystemUI-SystemDialog.hap

cp -arf SystemUI-SystemDialog.hap /home/zzj/openharmony/out/rk3568/packages/phone/system/app/com.ohos.systemui/SystemUI-SystemDialog.hap

cp -arf SystemUI-VolumePanel.hap /home/zzj/openharmony/applications/standard/hap/SystemUI-VolumePanel.hap

cp -arf SystemUI-VolumePanel.hap /home/zzj/openharmony/out/rk3568/obj/applications/standard/hap/SystemUI-VolumePanel.hap

cp -arf SystemUI-VolumePanel.hap /home/zzj/openharmony/out/rk3568/packages/phone/system/app/com.ohos.systemui/SystemUI-VolumePanel.hap

cp -arf SystemUI.hap /home/zzj/openharmony/applications/standard/hap/SystemUI.hap

cp -arf SystemUI.hap /home/zzj/openharmony/out/rk3568/obj/applications/standard/hap/SystemUI.hap

cp -arf SystemUI.hap /home/zzj/openharmony/out/rk3568/packages/phone/system/app/com.ohos.systemui/SystemUI.hap

除锁屏页hap外（applications_screenlock），其他hap包都在 applications_systemui 包

  "SystemUI-DropdownPanel.hap"
  "SystemUI-StatusBar.hap"
  "SystemUI-NavigationBar.hap"
  "SystemUI-SystemDialog.hap"
  "SystemUI-NotificationManagement.hap"
  "SystemUI-VolumePanel.hap"
  "SystemUI.hap"
  "SystemUI-ScreenLock.hap"

"applications_systemui/product/phone/dropdownpanel/build/default/outputs/default/phone_dropdownpanel-phone_entry-default-unsigned.hap"
"applications_systemui/product/phone/statusbar/build/default/outputs/default/phone_statusbar-phone_entry-default-unsigned.hap"
"applications_systemui/product/default/navigationBar/build/default/outputs/default/default_navigationBar-phone_entry-default-unsigned.hap"
"applications_systemui/product/default/dialog/build/default/outputs/default/default_dialog-phone_entry-default-unsigned.hap"
"applications_systemui/product/default/notificationmanagement/build/default/outputs/default/default_notificationmanagement-phone_entry-default-unsigned.hap"
"applications_systemui/product/default/volumepanel/build/default/outputs/default/default_volumepanel-phone_entry-default-unsigned.hap"
"applications_systemui/entry/phone/build/default/outputs/default/phone_entry-default-unsigned.hap"
"applications_screenlock/product/phone/build/default/outputs/default/phone-entry-default-unsigned.hap"

SystemUI相关 hap 需要用统一的签名，且用镜像签名，不然不能进入系统，会卡在开机界面

2.4 重新编译

./build.sh --product-name rk3568

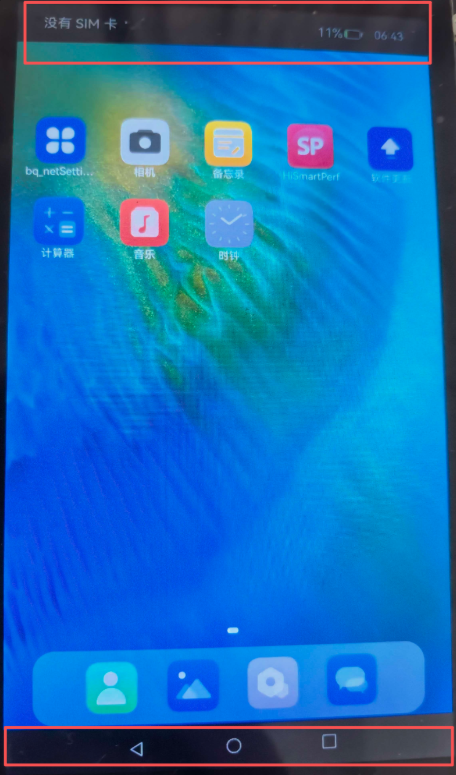

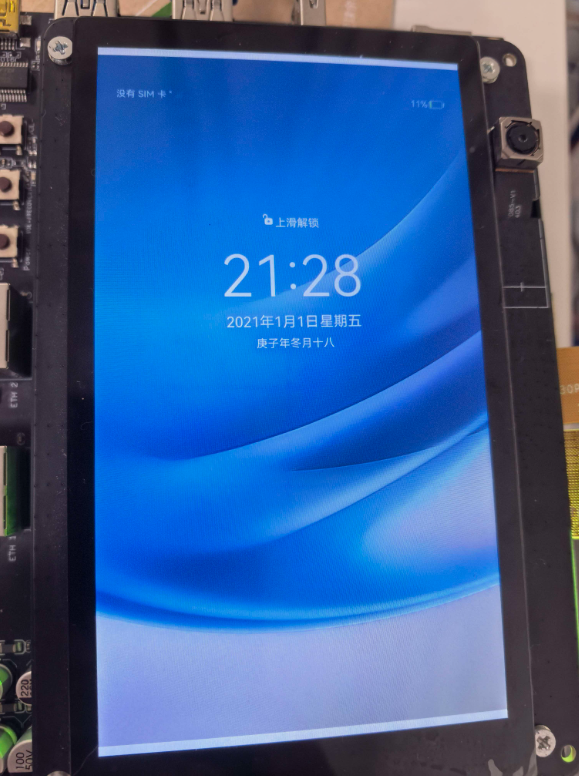

2.5 显示效果（新编译的ScreenLock和launcher 会出先白边和黑边，下篇文章给出思路）
