编译背景

JULIA目前版本不支持除x86_64-w64-mingw32之外的交叉编译，要么在OHOS系统环境下直接进行编译（目前这种方案还没有找到可用的环境，所以暂时不考虑），要么修改Makefile进行交叉编译。

目前可用的方案是通过OHOS自带的CLANG和GCC编译器进行交叉编译，但是JULIA编译过程中要用到gFortran编译器，而OHOS-CLANG不支持gFortran语言，所以只能通过OHOS-GCC进行交叉编译，但是又由于OHOS-GCC不支持MUSL-C，最后剩下唯一的解决方案是通过自编译的MUSL-GCC在LINUX下进行交叉编译。

使用MUSL-GCC进行交叉编译，就需要用到MUSL-C库，并且MUSL-C库需要与OHOS保持版本一致。目前OH5.0的MUSL-C版本是1.2.5，OH5.0源码中MUSL-C版本是经过改动的，所以如果用标准版本的MUSL-C，则需要将OH5.0中的改动打PATCH，比较麻烦，最简单的方式是直接使用OH5.0自带的MUSL-C库。

编译步骤

在X86_64平台的LINUX系统上编译出MUSL-GCC的AARCH64交叉编译版本MUSL-GCC-AARCH64，然后使用MUSL-GCC-AARCH64去交叉编译JULIA源码。

编译JULIA分为两部分：JULIA的C代码主程序以及依赖库，JULIA语言的运行时库（也叫系统镜像）。

JULIA主程序通过MUSL-GCC-AARCH64编译，然后使用编译出来julia可执行程序来编译JULIA语言的运行时库。因为julia可执行程序是AARCH64平台指令，所以在X86_64平台LINUX系统上还需要安装QEMU AARCH64翻译程序(qemu,qemu-user-static)，才能将JULIA语言的运行时库编译出来。

最后将JULIA源码目录usr目录中的二进制程序复制到OH系统上，执行julia主程序就可以跑起来了。

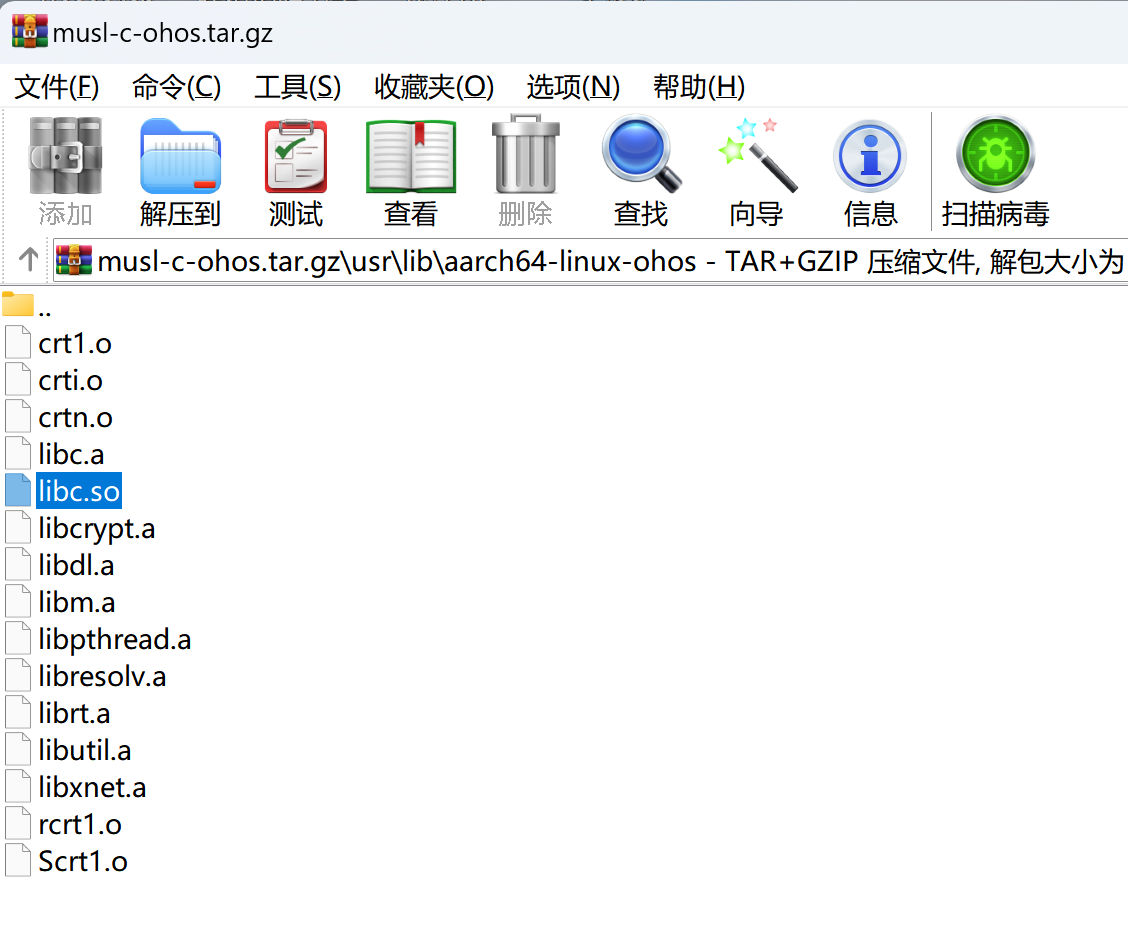

准备OHOS-MUSL-C库

tar cvzf musl-c-ohos.tar.gz /S11/wanghh/hisense7885/ohr41-uis7885-240513/out/sdk/obj/third_party/musl/usr

编译MUSL-GCC工程

git clone https://github.com/richfelker/musl-cross-make.git

cd /opt/git/musl-cross-make

cp config.mak.dist config.mak

vim config.mak:

TARGET = aarch64-linux-musleabi

MUSL_VER = 1.2.5

GCC_CONFIG += --enable-languages=c,c++,fortran

make && make install

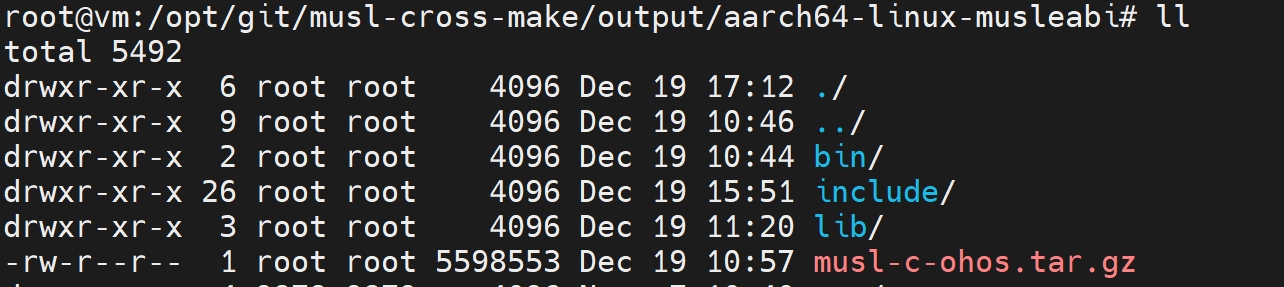

cd output/aarch64-linux-musleabi

将第一步中生成的musl-c-ohos.tar.gz拷到这个目录：

tar xvzf musl-c-ohos.tar.gz

cp -rf usr/include/aarch64-linux-ohos/* include/

cp -rf usr/lib/aarch64-linux-ohos/* lib/

删除无用目录：

rm -rf usr

复制MUSL-C库到系统根lib目录，编译julia时qmeu会用到该库：

cp lib/libc.so /lib

ln -sf /lib/libc.so /lib/ld-musl-aarch64.so.1

准备julia编译环境

将以下内容保存为prepare_musl.sh，然后：source prepare_musl.sh

#!/bin/bash

NDK="/opt/git/musl-cross-make/output/bin"

target_host=aarch64-linux-musleabi

export AR=$NDK/$target_host-ar

export AS=$NDK/$target_host-as

export CC=$NDK/$target_host-gcc

export CXX=$NDK/$target_host-g++

export FORTRAN=$NDK/$target_host-gfortran

export LD=$NDK/$target_host-ld

export RANLIB=$NDK/$target_host-ranlib

export STRIP=$NDK/$target_host-strip

export OBJDUMP=$NDK/$target_host-objdump

export OBJCOPY=$NDK/$target_host-objcopy

export NM=$NDK/$target_host-nm

export CPPFLAGS="-I/opt/julia/julia-1.10.6/usr/include"

export CFLAGS="-fPIC -D__MUSL__=1 -I/opt/julia/julia-1.10.6/usr/include"

export CXXFLAGS="-fPIC -D__MUSL__=1 -I/opt/julia/julia-1.10.6/usr/include"

export LDFLAGS="-L/opt/julia/julia-1.10.6/usr/lib"

export LD_LIBRARY_PATH=$LD_LIBRARY_PATH:/opt/julia/julia-1.10.6/usr/lib

sysctl -w vm.max_map_count=262144

编译julia源码

下载julia源码，进入源码目录执行vim Make.user，添加如下内容：

ARCH = aarch64

JULIA_CPU_TARGET = generic;cortex-a57

JULIA_PRECOMPILE = 0

USECLANG = 0

USEGCC = 1

USE_PERF_JITEVENTS = 0

USE_INTEL_JITEVENTS = 0

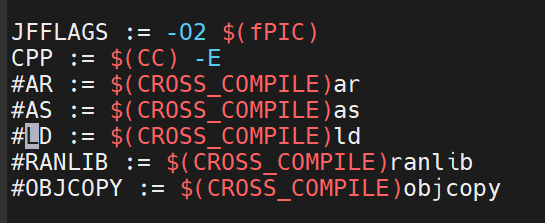

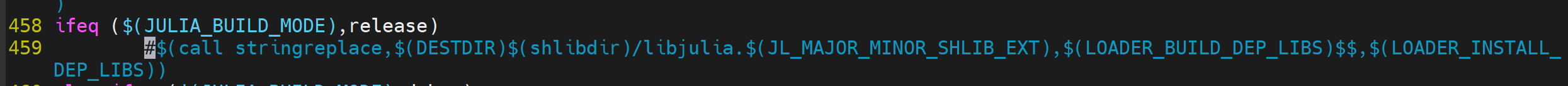

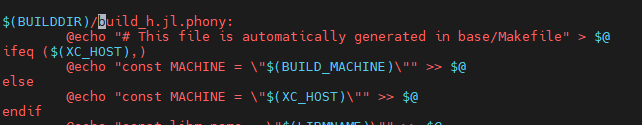

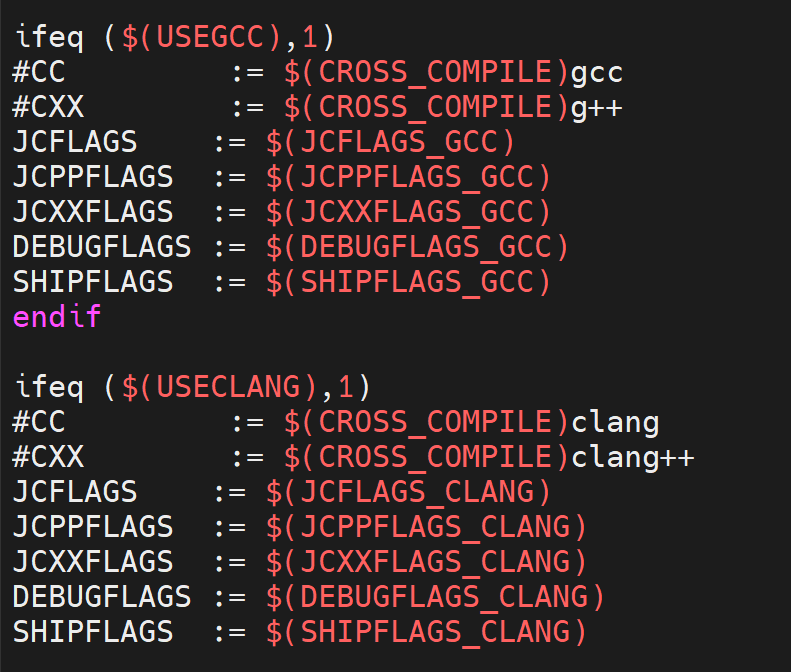

vim Make.inc, 修改内容如下：

最后在源码目录执行make&& make install DESTDIR=`pwd`/install开始编译，编译结果输出到usr目录。

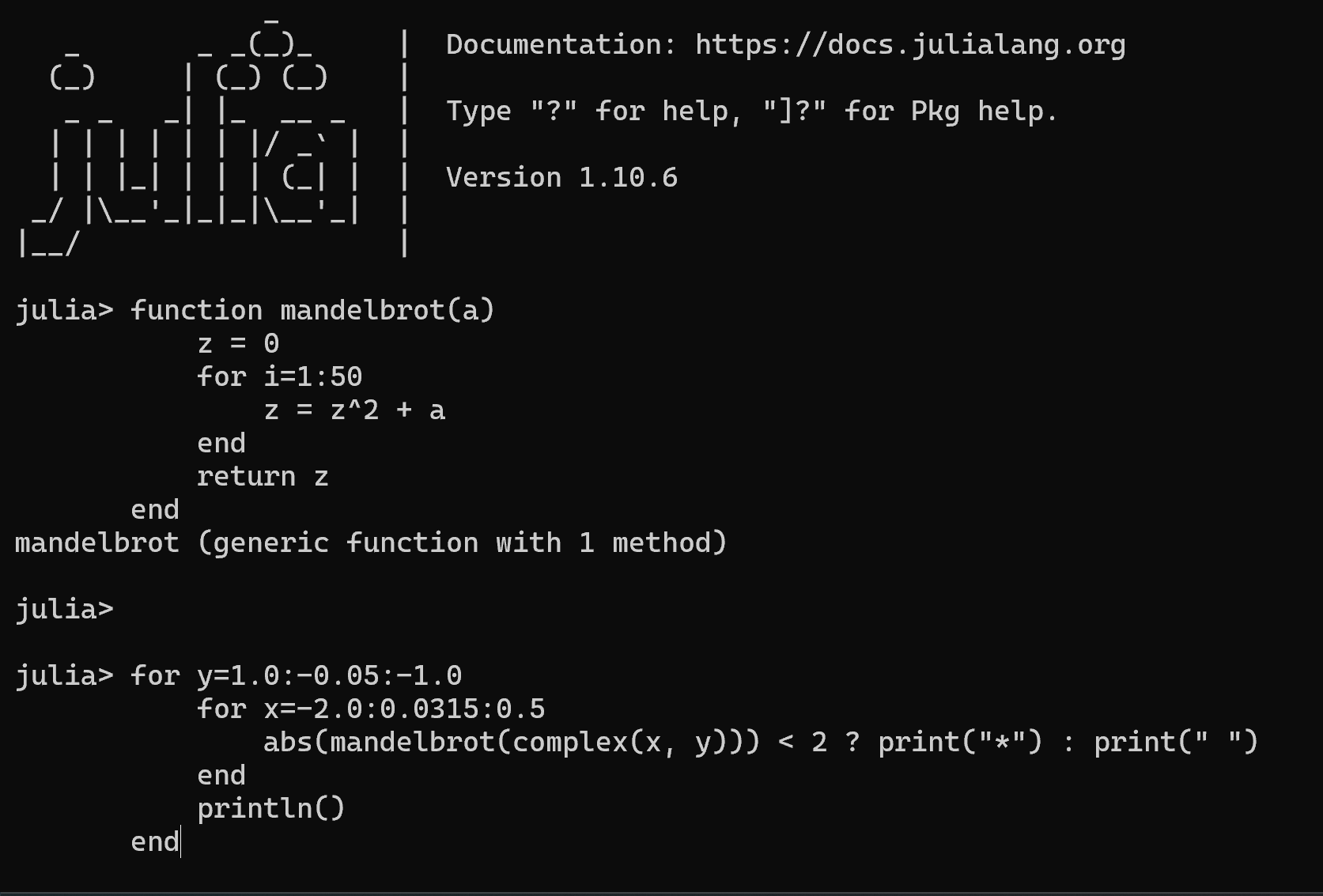

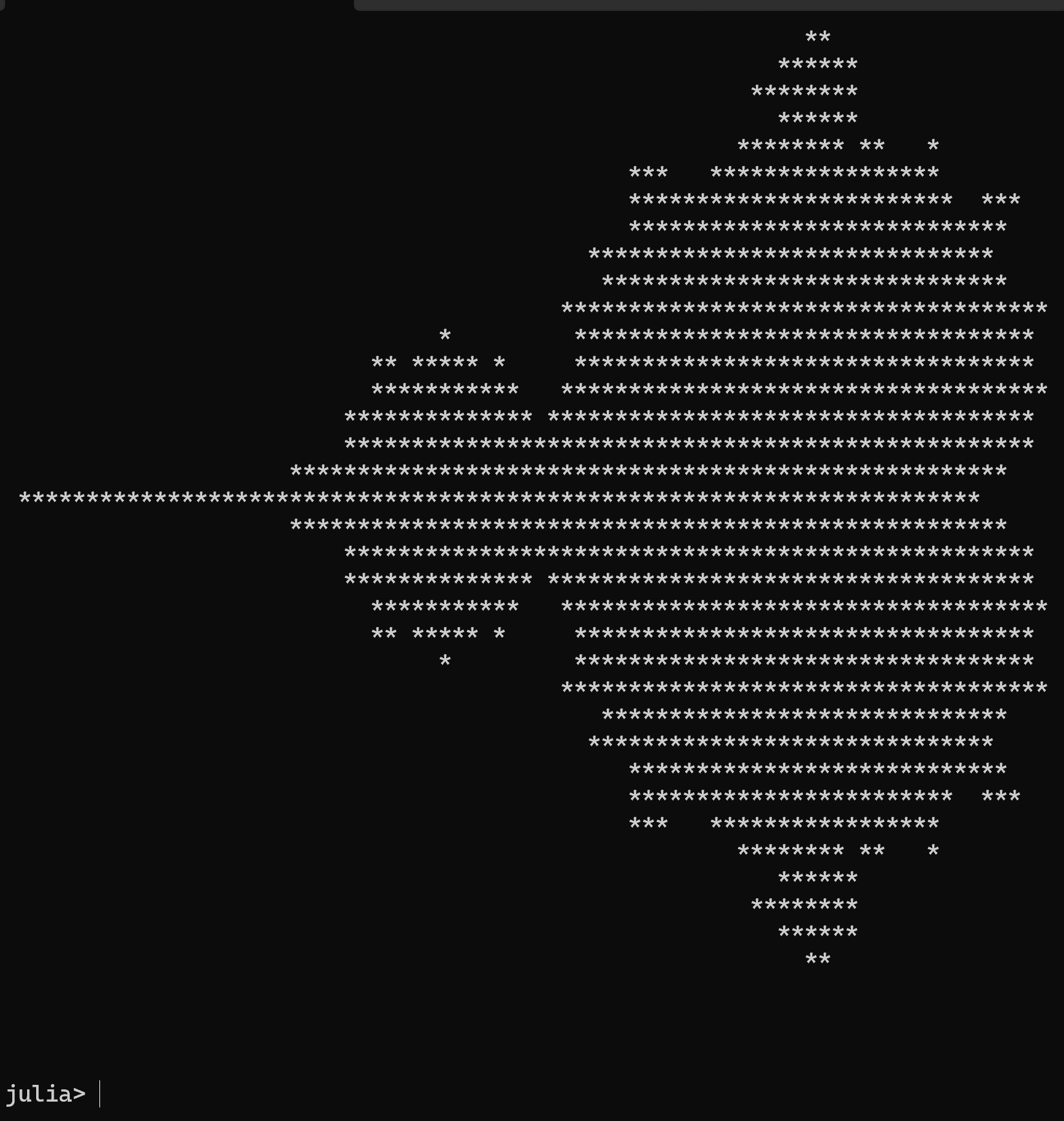

运行julia确保以下代码可以运行成功：

function mandelbrot(a)

z = 0

for i=1:50

z = z\^2 + a

end

return z

end

for y=1.0:-0.05:-1.0

for x=-2.0:0.0315:0.5

abs(mandelbrot(complex(x, y))) < 2 ? print("*") : print(" ")

end

println()

end

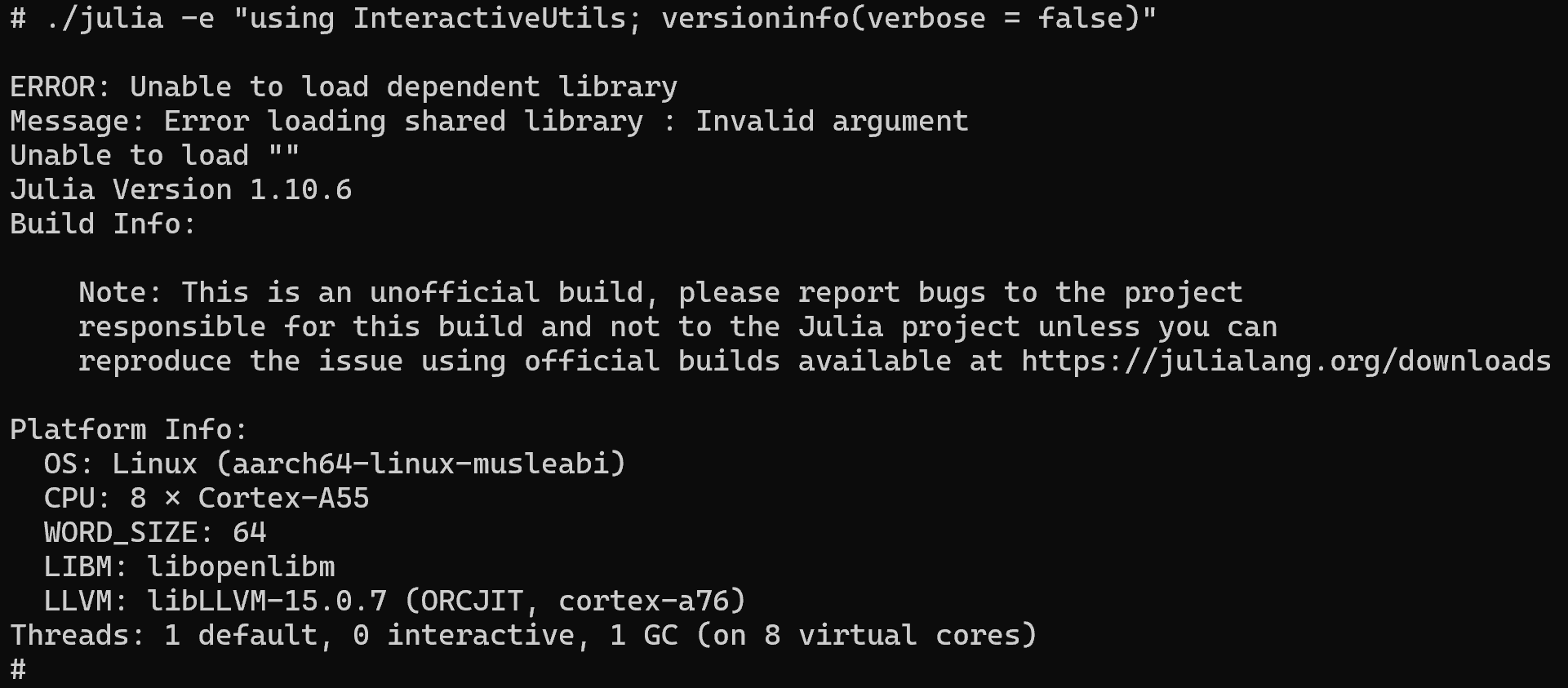

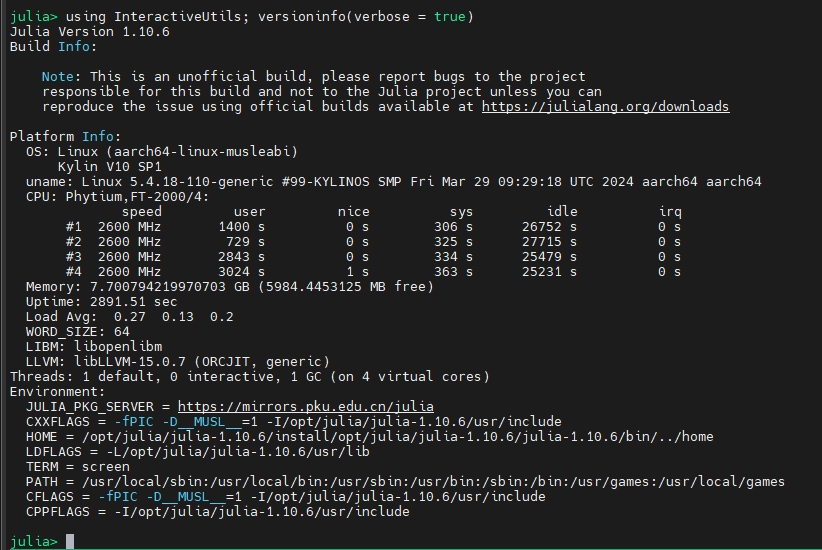

或运行： ./julia -e "using InteractiveUtils; versioninfo(verbose = false)"

编译问题解决方法

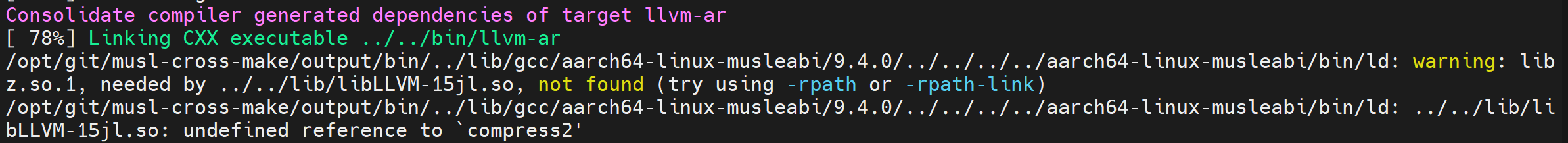

链接llvm-ar时找不到compress2函数，其实是libz.so.1没有找到

cp -rf /opt/julia/julia-1.10.6/usr/lib/libz* /opt/julia/julia-1.10.6/deps/scratch/llvm-julia-15.0.7-10/build_Release/lib/

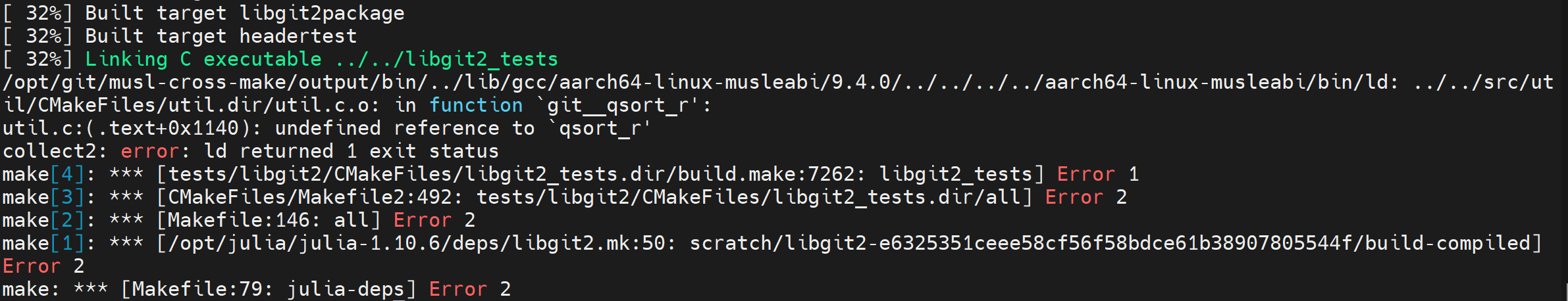

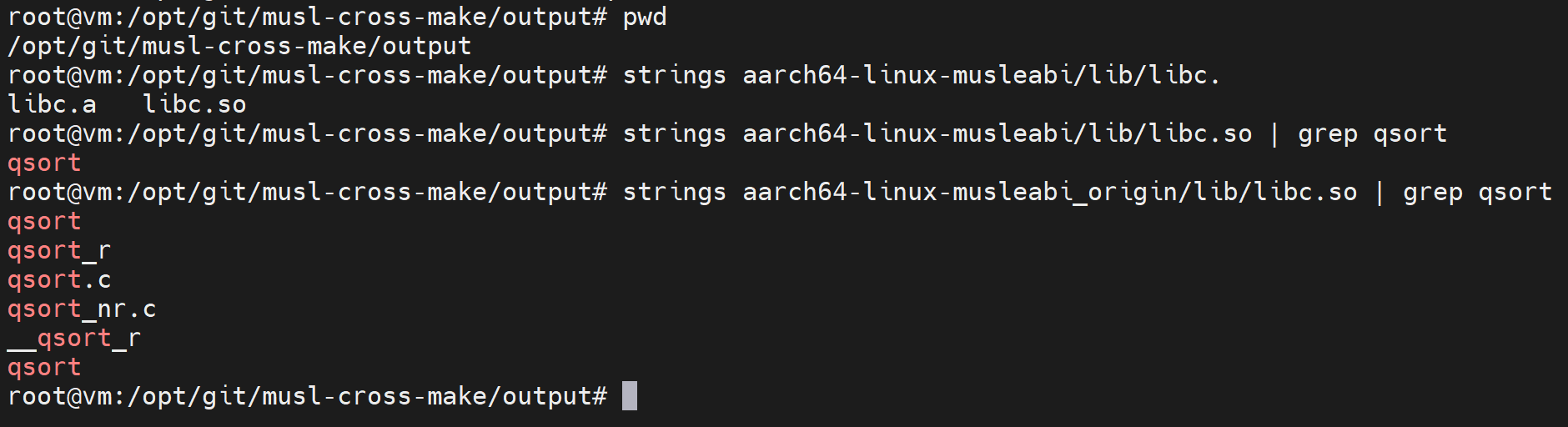

编译libgit2时找不到函数qsort_r，其实是OHOS-MUSL-C没有实现该函数

在/opt/julia/julia-1.10.6/deps/srccache/libgit2-e6325351ceee58cf56f58bdce61b38907805544f/src/util/util.c文件头部添加qsort_r()函数代码如下，并将util.c中的qsort_r()换成qsort_r_wanghh()：

#ifndef a_ctz_32

#define a_ctz_32 a_ctz_32

static int a_ctz_32(uint32_t x)

{

#ifdef a_clz_32

return 31-a_clz_32(x&-x);

#else

static const char debruijn32\[32\] = {

0, 1, 23, 2, 29, 24, 19, 3, 30, 27, 25, 11, 20, 8, 4, 13,

31, 22, 28, 18, 26, 10, 7, 12, 21, 17, 9, 6, 16, 5, 15, 14

};

return debruijn32\[(x&-x)\*0x076be629 \>\> 27\];

#endif

}

#endif

#ifndef a_ctz_64

#define a_ctz_64 a_ctz_64

static int a_ctz_64(uint64_t x)

{

static const char debruijn64\[64\] = {

0, 1, 2, 53, 3, 7, 54, 27, 4, 38, 41, 8, 34, 55, 48, 28,

62, 5, 39, 46, 44, 42, 22, 9, 24, 35, 59, 56, 49, 18, 29, 11,

63, 52, 6, 26, 37, 40, 33, 47, 61, 45, 43, 21, 23, 58, 17, 10,

51, 25, 36, 32, 60, 20, 57, 16, 50, 31, 19, 15, 30, 14, 13, 12

};

if (sizeof(long) \< 8) {

uint32_t y = x;

if (!y) {

y = x\>\>32;

return 32 + a_ctz_32(y);

}

return a_ctz_32(y);

}

return debruijn64\[(x&-x)\*0x022fdd63cc95386dull \>\> 58\];

}

#endif

static int a_ctz_l(unsigned long x)

{

return (sizeof(long) \< 8) ? a_ctz_32(x) : a_ctz_64(x);

}

#define ntz(x) a_ctz_l((x))

static int pntz(size_t p\[2\]) {

int r = ntz(p\[0\] - 1);

if(r != 0 \|\| (r = 8\*sizeof(size_t) + ntz(p\[1\])) !=
8\*sizeof(size_t)) {

return r;

}

return 0;

}

static void cycle(size_t width, unsigned char\* ar\[\], int n)

{

unsigned char tmp\[256\];

size_t l;

int i;

if(n \< 2) {

return;

}

ar\[n\] = tmp;

while(width) {

l = sizeof(tmp) \< width ? sizeof(tmp) : width;

memcpy(ar\[n\], ar\[0\], l);

for(i = 0; i \< n; i++) {

memcpy(ar\[i\], ar\[i + 1\], l);

ar\[i\] += l;

}

width -= l;

}

}

/\* shl() and shr() need n \> 0 \*/

static void shl(size_t p\[2\], int n)

{

if(n \>= 8 \* sizeof(size_t)) {

n -= 8 \* sizeof(size_t);

p\[1\] = p\[0\];

p\[0\] = 0;

}

p\[1\] \<\<= n;

p\[1\] \|= p\[0\] \>\> (sizeof(size_t) \* 8 - n);

p\[0\] \<\<= n;

}

static void shr(size_t p\[2\], int n)

{

if(n \>= 8 \* sizeof(size_t)) {

n -= 8 \* sizeof(size_t);

p\[0\] = p\[1\];

p\[1\] = 0;

}

p\[0\] \>\>= n;

p\[0\] \|= p\[1\] \<\< (sizeof(size_t) \* 8 - n);

p\[1\] \>\>= n;

}

static void sift(unsigned char \*head, size_t width, git\_\_sort_r_cmp
cmp, void \*arg, int pshift, size_t lp\[\])

{

unsigned char \*rt, \*lf;

unsigned char \*ar\[14 \* sizeof(size_t) + 1\];

int i = 1;

ar\[0\] = head;

while(pshift \> 1) {

rt = head - width;

lf = head - width - lp\[pshift - 2\];

if(cmp(ar\[0\], lf, arg) \>= 0 && cmp(ar\[0\], rt, arg) \>= 0) {

break;

}

if(cmp(lf, rt, arg) \>= 0) {

ar\[i++\] = lf;

head = lf;

pshift -= 1;

} else {

ar\[i++\] = rt;

head = rt;

pshift -= 2;

}

}

cycle(width, ar, i);

}

static void trinkle(unsigned char \*head, size_t width,
git\_\_sort_r_cmp cmp, void \*arg, size_t pp\[2\], int pshift, int
trusty, size_t lp\[\])

{

unsigned char \*stepson,

\*rt, \*lf;

size_t p\[2\];

unsigned char \*ar\[14 \* sizeof(size_t) + 1\];

int i = 1;

int trail;

p\[0\] = pp\[0\];

p\[1\] = pp\[1\];

ar\[0\] = head;

while(p\[0\] != 1 \|\| p\[1\] != 0) {

stepson = head - lp\[pshift\];

if(cmp(stepson, ar\[0\], arg) \<= 0) {

break;

}

if(!trusty && pshift \> 1) {

rt = head - width;

lf = head - width - lp\[pshift - 2\];

if(cmp(rt, stepson, arg) \>= 0 \|\| cmp(lf, stepson, arg) \>= 0) {

break;

}

}

ar\[i++\] = stepson;

head = stepson;

trail = pntz(p);

shr(p, trail);

pshift += trail;

trusty = 0;

}

if(!trusty) {

cycle(width, ar, i);

sift(head, width, cmp, arg, pshift, lp);

}

}

/\*\*将代码中qsort_r() 替换为 qsort_r_wanghh() 的\*\*/

static void qsort_r_wanghh(void \*base, size_t nel, size_t width,
git\_\_sort_r_cmp cmp, void \*arg)

{

size_t lp\[12\*sizeof(size_t)\];

size_t i, size = width \* nel;

unsigned char \*head, \*high;

size_t p\[2\] = {1, 0};

int pshift = 1;

int trail;

if (!size) return;

head = base;

high = head + size - width;

/\* Precompute Leonardo numbers, scaled by element width \*/

for(lp\[0\]=lp\[1\]=width, i=2; (lp\[i\]=lp\[i-2\]+lp\[i-1\]+width) \<
size; i++);

while(head \< high) {

if((p\[0\] & 3) == 3) {

sift(head, width, cmp, arg, pshift, lp);

shr(p, 2);

pshift += 2;

} else {

if(lp\[pshift - 1\] \>= high - head) {

trinkle(head, width, cmp, arg, p, pshift, 0, lp);

} else {

sift(head, width, cmp, arg, pshift, lp);

}

if(pshift == 1) {

shl(p, 1);

pshift = 0;

} else {

shl(p, pshift - 1);

pshift = 1;

}

}

p\[0\] \|= 1;

head += width;

}

trinkle(head, width, cmp, arg, p, pshift, 0, lp);

while(pshift != 1 \|\| p\[0\] != 1 \|\| p\[1\] != 0) {

if(pshift \<= 1) {

trail = pntz(p);

shr(p, trail);

pshift += trail;

} else {

shl(p, 2);

pshift -= 2;

p\[0\] \^= 7;

shr(p, 1);

trinkle(head - lp\[pshift\] - width, width, cmp, arg, p, pshift + 1, 1,
lp);

shl(p, 1);

p\[0\] \|= 1;

trinkle(head - width, width, cmp, arg, p, pshift, 1, lp);

}

head -= width;

}

}

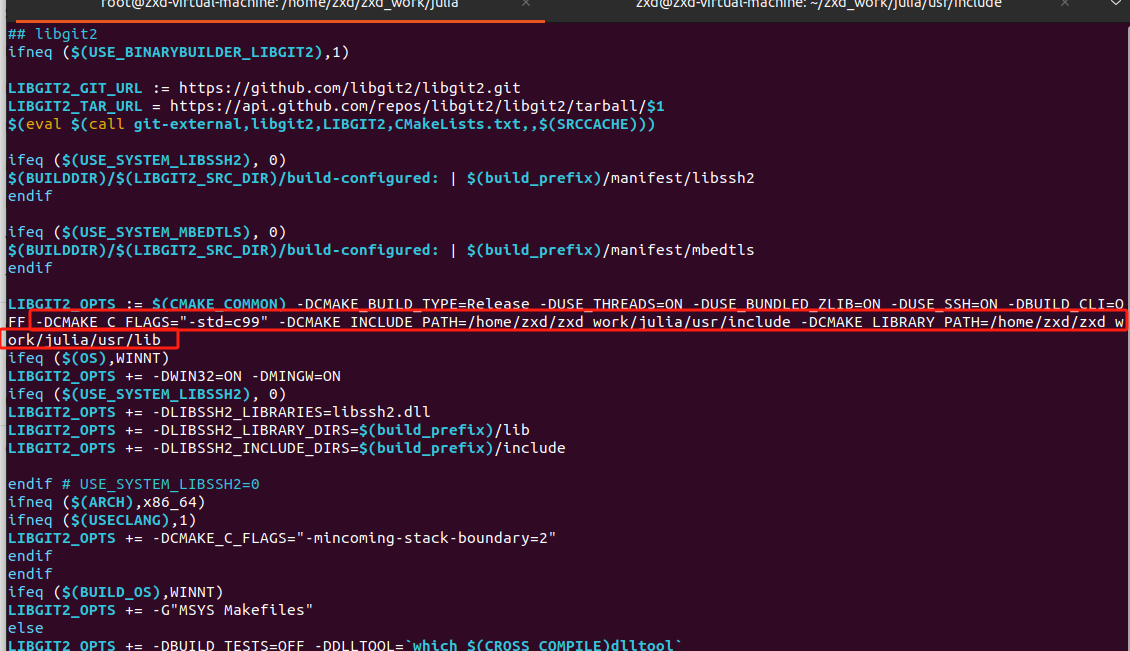

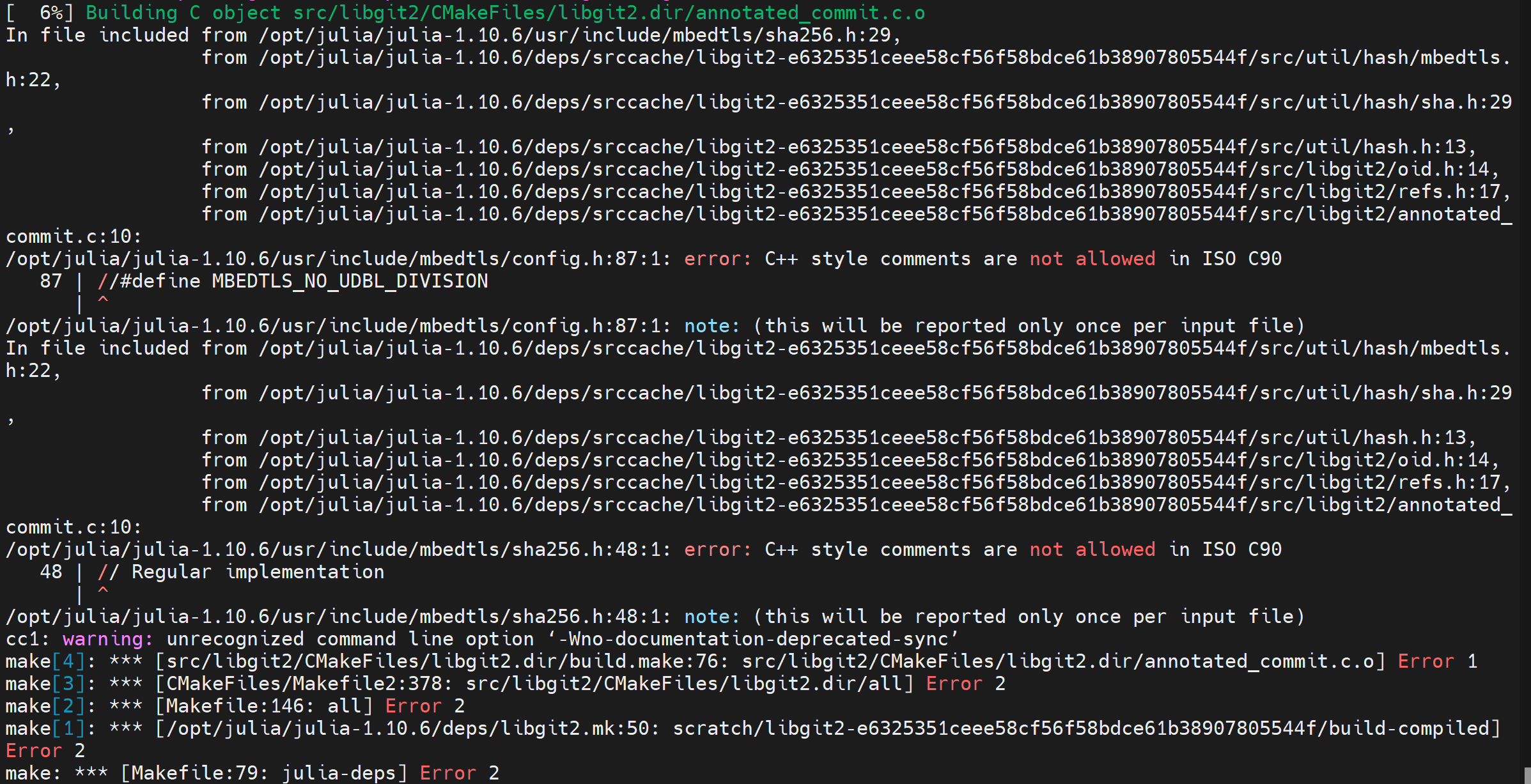

编译libgit2时报错：error: C++ style comments are not allowed in ISO C90

vim /opt/julia/julia-1.10.6/deps/libgit2.mk +16

LIBGIT2_OPTS := $(CMAKE_COMMON) -DCMAKE_BUILD_TYPE=Release -DUSE_THREADS=ON -DUSE_BUNDLED_ZLIB=ON -DUSE_SSH=ON -DBUILD_CLI=OFF -DCMAKE_C_FLAGS="-std=c99"

make -C deps clean-libgit2

编译libgit2时找不到头文件mbedtls/md.h

vim /opt/julia/julia-1.10.6/deps/libgit2.mk：

上面这一步貌似也可以不做，直接做下一步：

rm -rf deps/scratch/libgit2-a418d9d4ab87bae16b87d8f37143a4687ae0e4b2/

make

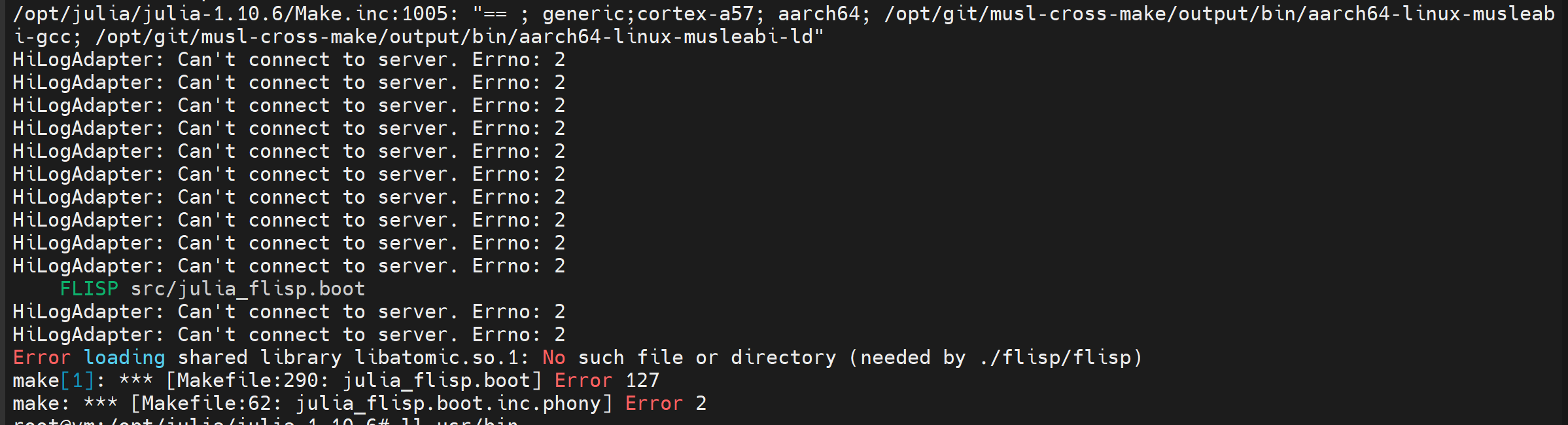

链接flisp时提示找不到libatomic.so.1库，加入环境变量即可：

export LD_LIBRARY_PATH=/opt/julia/julia-1.10.6/usr/lib

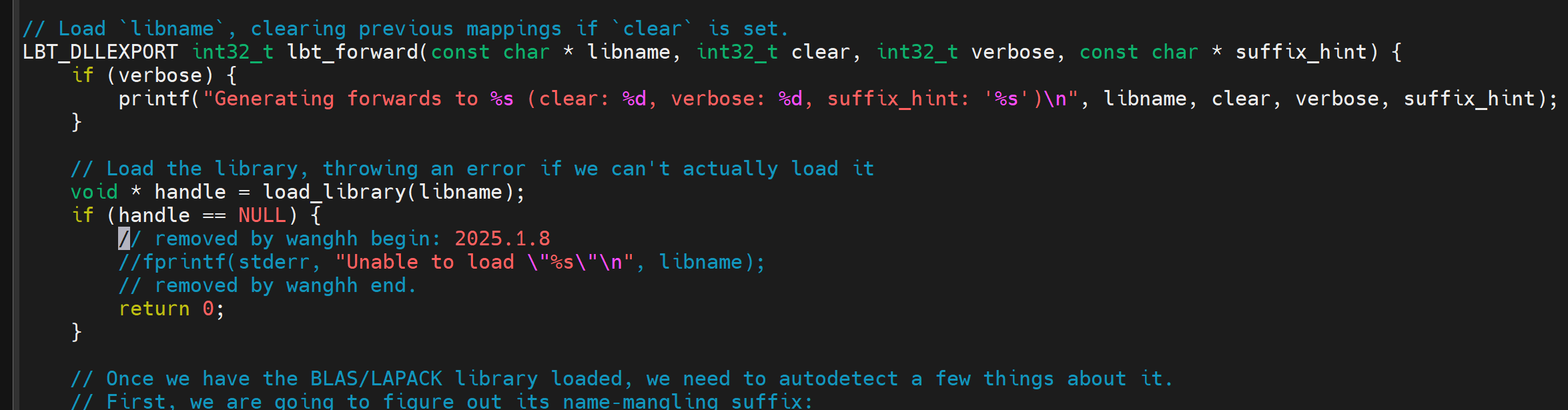

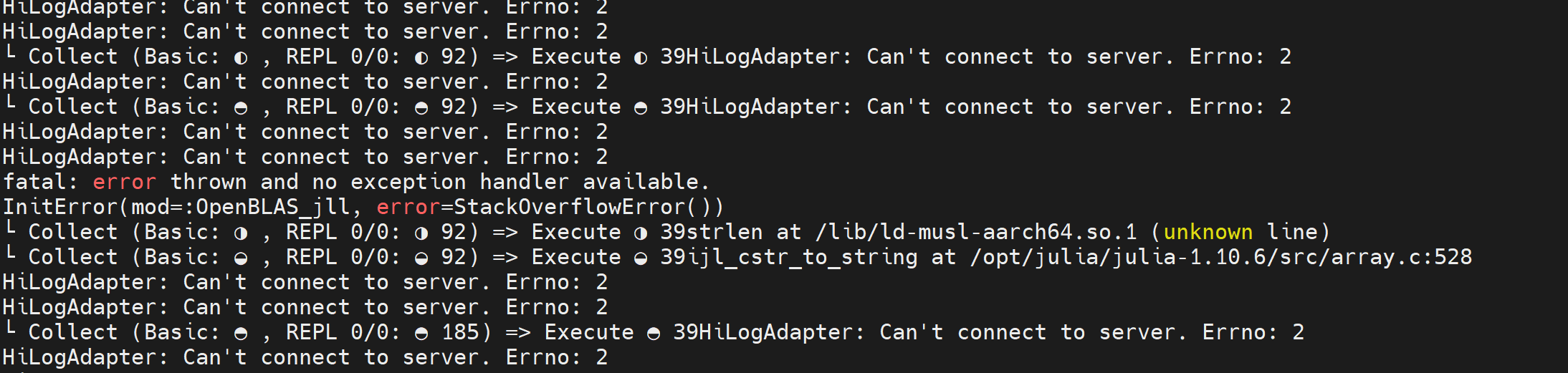

预编译0penBLAS jll时提示StackOverflowError：

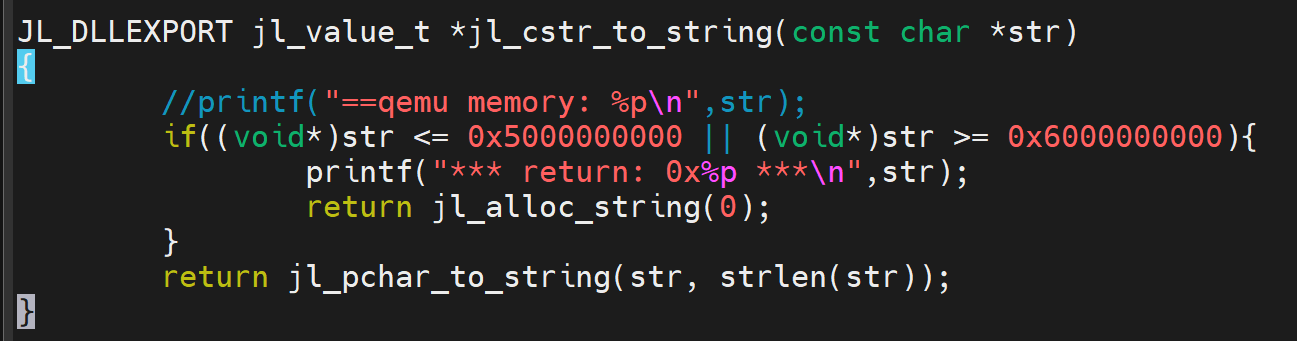

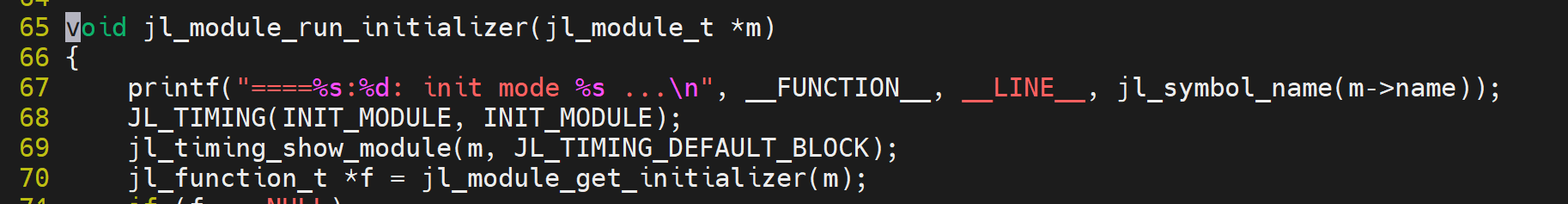

vim julia-1.10.6/src/array.c +528\

编译完后再复原这段代码，再编译一遍

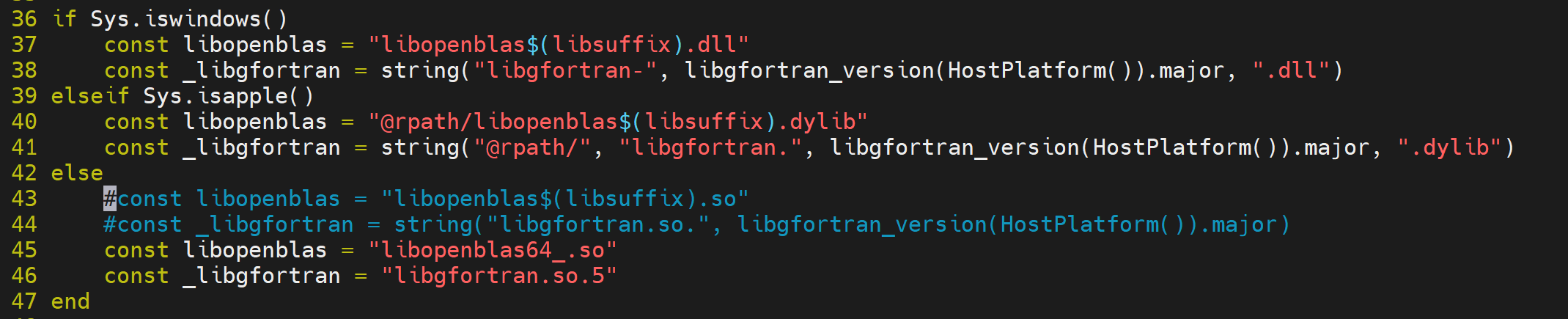

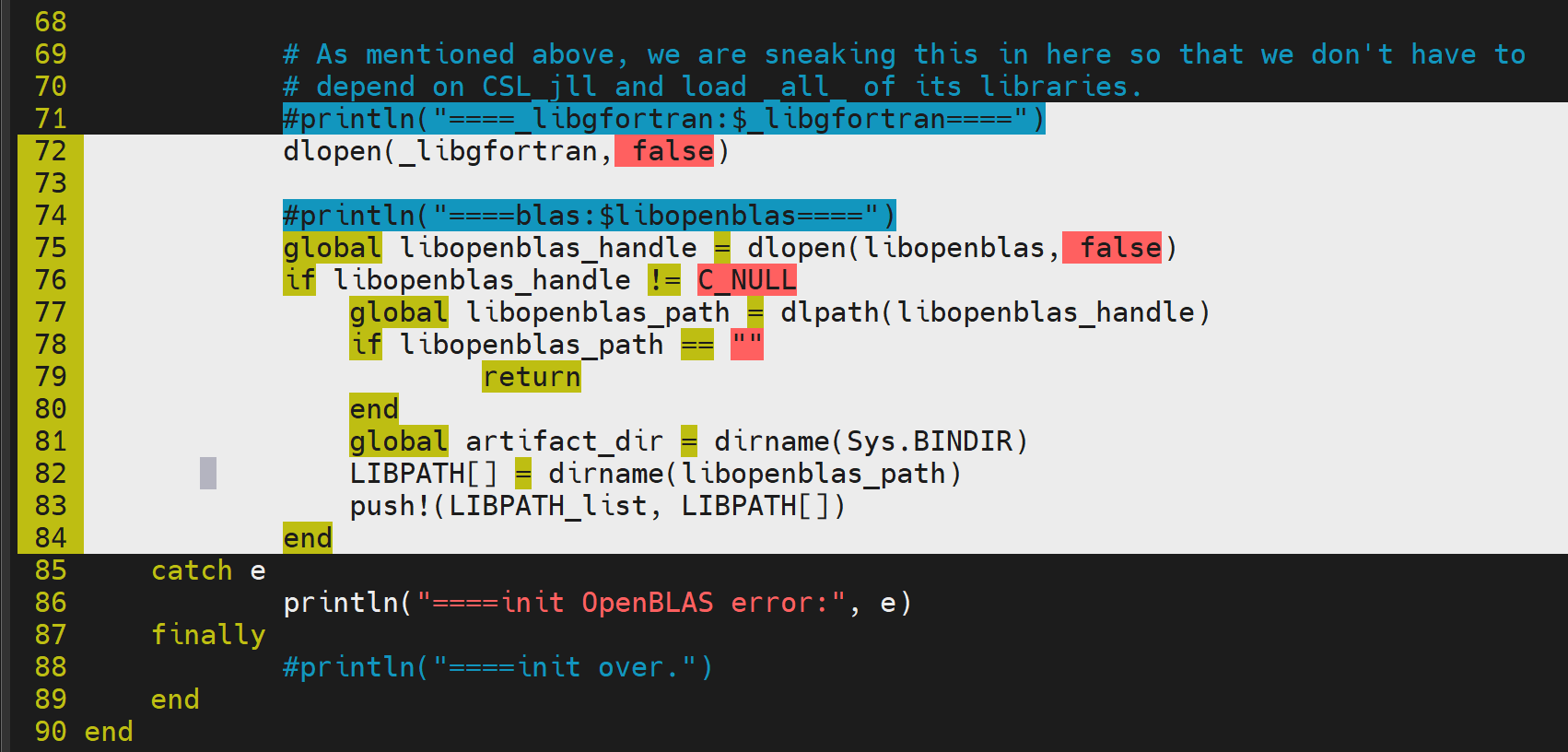

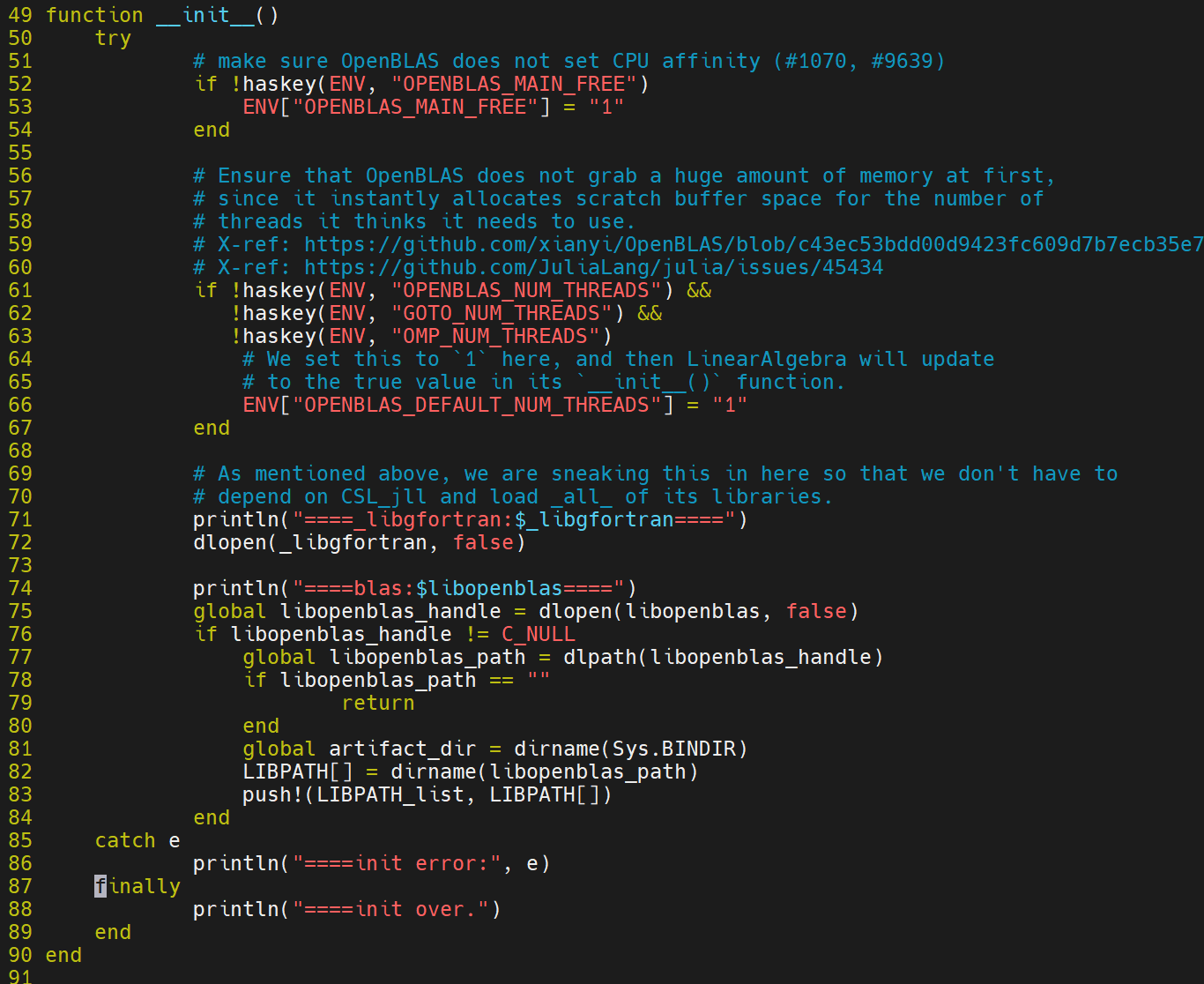

vim julia-1.10.6/stdlib/OpenBLAS_jll/src/OpenBLAS_jll.jl +50(C_NULL应改为nothing)

加上try...catch即可。

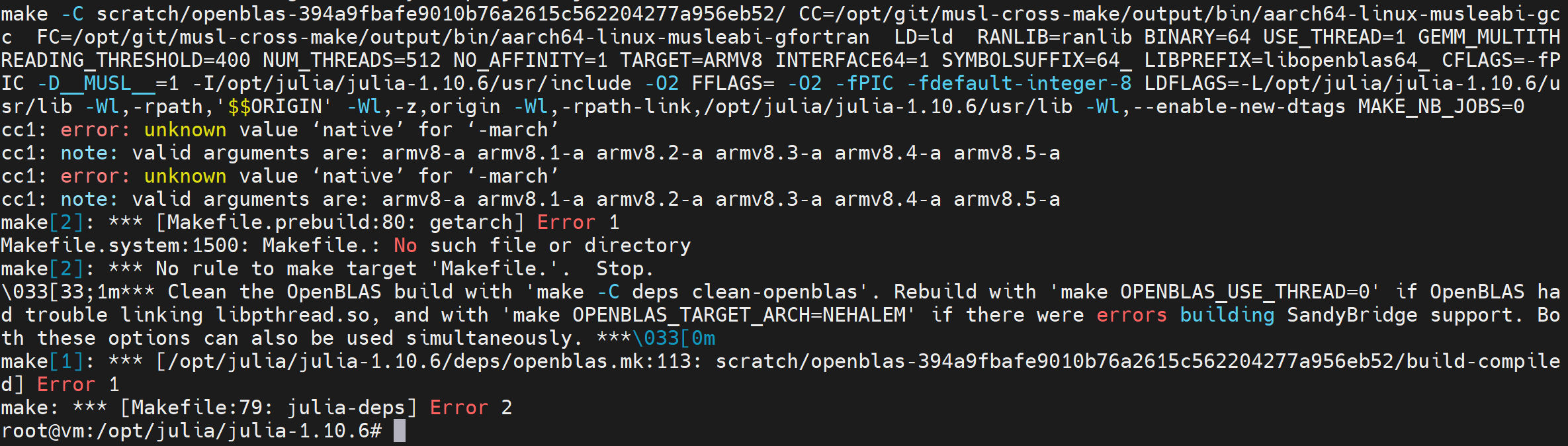

编译openblas时报：unknown value 'native' for '-march'

vim /opt/julia/julia-1.10.6/deps/openblas.mk +86

OPENBLAS_BUILD_OPTS += "MAKE_NB_JOBS=0 -march=armv8-a"

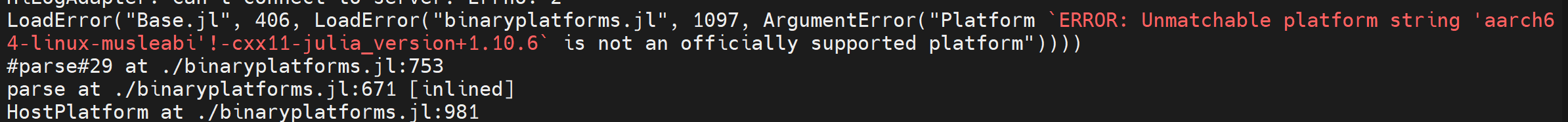

编译sys.so时报：Unmatchable platform string 'aarch64-linux-musleabi'!-cxx11-julia_version+1.10.6`

vim base/binaryplatforms.jl +693

#triplet = "aarch64-linux-musleabi-libgfortran5-cxx11-julia_version+1.10.6"

triplet = "aarch64-linux-musl-libgfortran5-cxx11-julia_version+1.10.6"

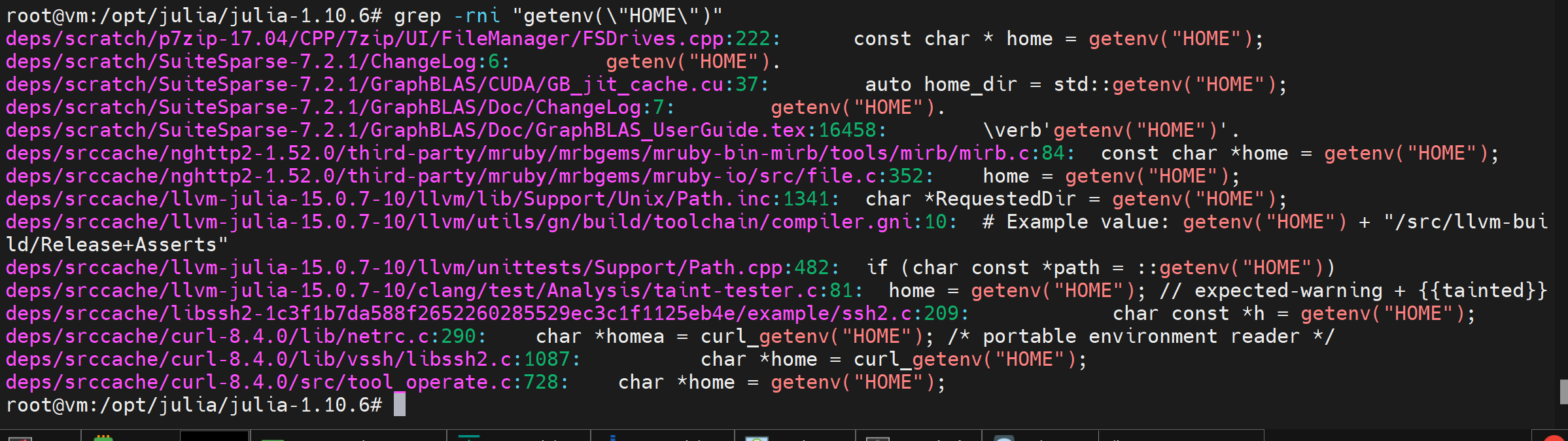

OHOS中没有HOME环境变量，以下代码需要修改：

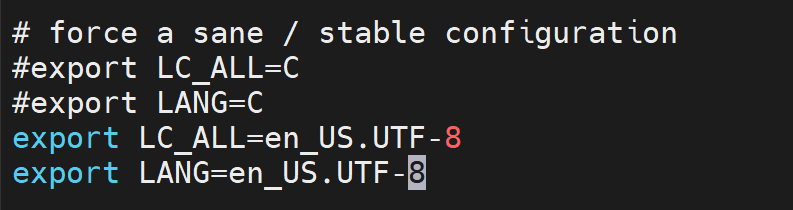

编译patchelf时automake版本报错

cd /opt/julia/julia-1.10.6/deps/srccache/patchelf-0.13\ aclocal\ automake --add-missing

autoconf

然后重新编译

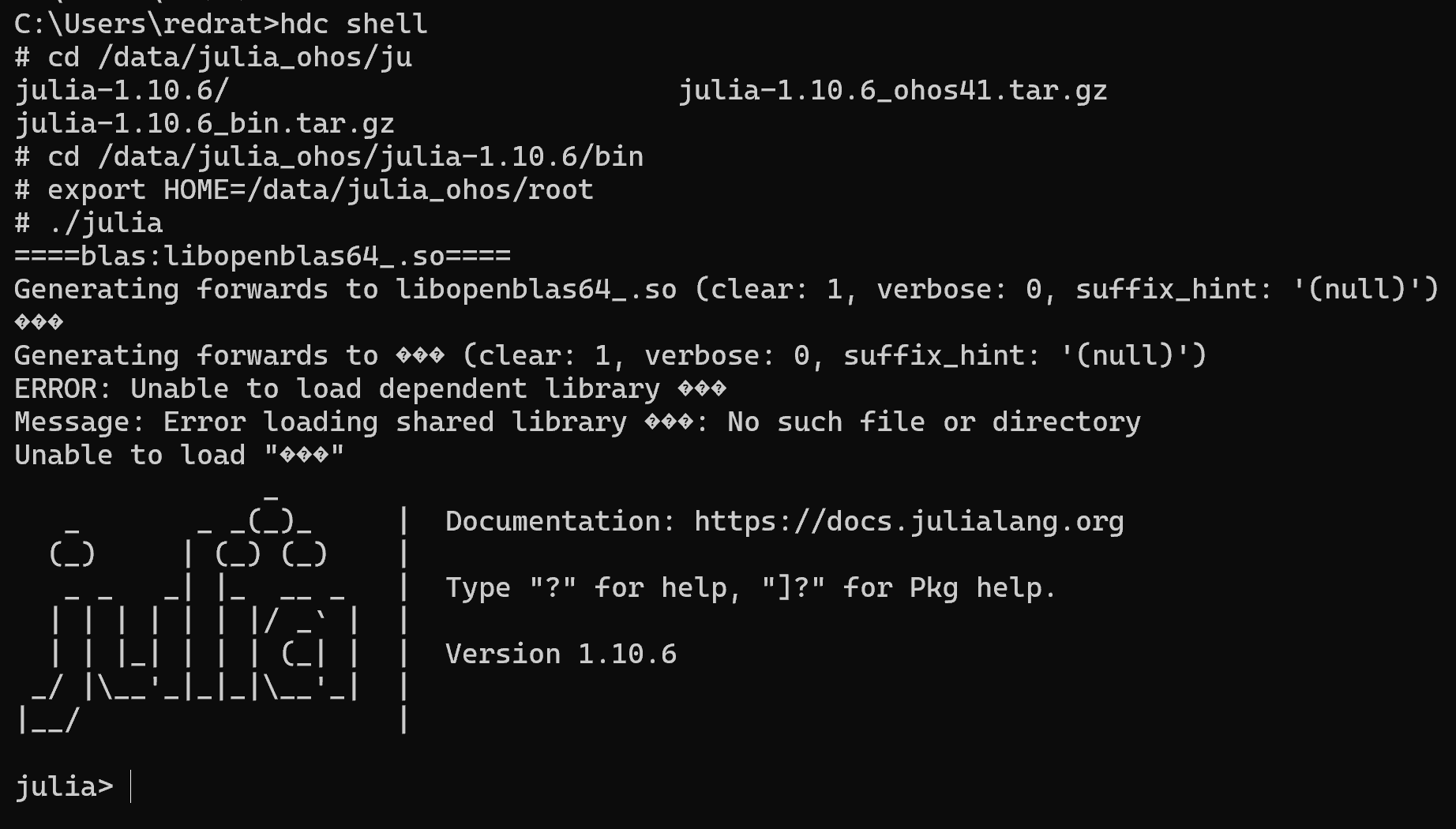

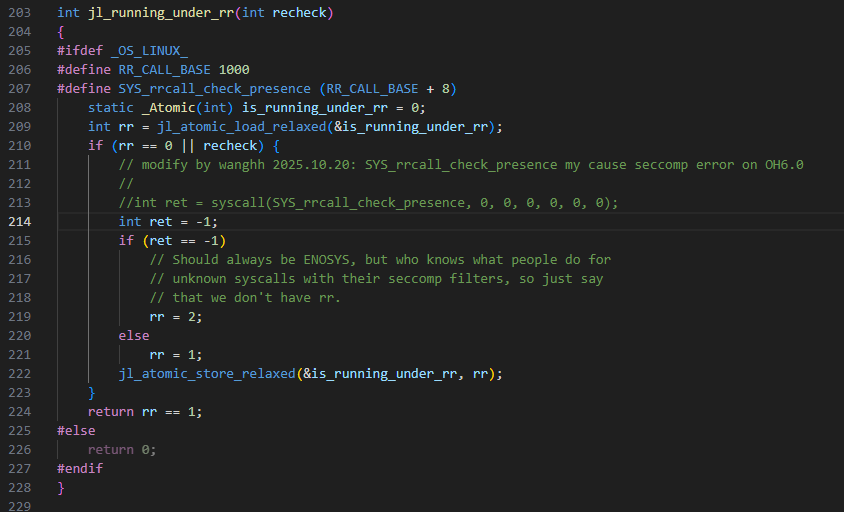

julia启动问题解决方法

启动脚本参考


#!/bin/sh

# package restored directory.

#export HOME=`pwd`/../home

# to find libjulia.so.

#export JULIA_LIB_DIR=`pwd`/../lib

# to find share directory relative to bin directory.

#export JULIA_BIN_DIR=`pwd`

export http_proxy=http://10.10.45.70:7897

export https_proxy=http://10.10.45.70:7897

#JULIA_PKG_SERVER=https://mirrors.pku.edu.cn/julia LD_LIBRARY_PATH=$JULIA_LIB_DIR ./julia -J $JULIA_LIB_DIR/sys.so -H $JULIA_BIN_DIR --color=yes

export JULIA_SSL_CA_ROOTS_PATH=/etc/ssl/certs/cacert.pem

HOME=`pwd`/../home JULIA_PKG_SERVER=https://mirrors.pku.edu.cn/julia ./julia --color=yes

禁用MUSL LOG

param set musl.log.enable=false

重新编译库

make -C deps clean-blastrampoline

make -C deps distclean-blastrampoline

make -C deps cleanall // distcleanall // uninstall

make cleanall //distcleanall

# 重新编译julia核心依赖库(libjulia-internal.so, libjulia-codegen.so)

make julia-src-release

# 强制所有deps目录所有库通过源码编译

vim Make.user:

USE_BINARYBUILDER := 0

重新编译julia镜像

make -s -C /opt/julia/julia-1.10.6 -f sysimage.mk sysimg-release

make -s -C /opt/julia/julia-1.10.6 -f pkgimage.mk release

其它相关

make -s -C /opt/julia/julia-1.10.6 -f sysimage.mk sysimg-release

/bin/sh -c printf ' %b %b\n' "\033[32;1m"JULIA"\033[0m" "\033[37;1m"usr/lib/julia/sys-o.a"\033[0m"; cd /opt/julia/julia-1.10.6/base && if ! JULIA_BINDIR=/opt/julia/julia-1.10.6/usr/bin WINEPATH="/opt/julia/julia-1.10.6/usr/bin;$WINEPATH" JULIA_LOAD_PATH='@stdlib' JULIA_PROJECT= JULIA_DEPOT_PATH=':' JULIA_NUM_THREADS=1 /opt/julia/julia-1.10.6/usr/bin/julia -O3 -C "generic;cortex-a57" --output-o /opt/julia/julia-1.10.6/usr/lib/julia/sys-o.a.tmp --startup-file=no --warn-overwrite=yes --sysimage /opt/julia/julia-1.10.6/usr/lib/julia/sys.ji /opt/julia/julia-1.10.6/contrib/generate_precompile.jl 1; then echo '*** This error is usually fixed by running `make clean`. If the error persists, try `make cleanall`. ***'; false; fi

/usr/libexec/qemu-binfmt/aarch64-binfmt-P /opt/julia/julia-1.10.6/usr/bin/julia /opt/julia/julia-1.10.6/usr/bin/julia -O3 -C generic;cortex-a57 --output-o /opt/julia/julia-1.10.6/usr/lib/julia/sys-o.a.tmp --startup-file=no --warn-overwrite=yes --sysimage /opt/julia/julia-1.10.6/usr/lib/julia/sys.ji /opt/julia/julia-1.10.6/contrib/generate_precompile.jl 1

JULIA_PRECOMPILE ?= 0 后

make -s -C /opt/julia/julia-1.10.6 -f sysimage.mk sysimg-ji JULIA_EXECUTABLE=/opt/julia/julia-1.10.6/usr/bin/julia

/bin/sh -c printf ' %b %b\n' "\033[32;1m"JULIA"\033[0m" "\033[37;1m"usr/lib/julia/sys.ji"\033[0m"; cd /opt/julia/julia-1.10.6/base && if ! JULIA_BINDIR=/opt/julia/julia-1.10.6/usr/bin WINEPATH="/opt/julia/julia-1.10.6/usr/bin;$WINEPATH" /opt/julia/julia-1.10.6/usr/bin/julia -g1 -O0 -C "generic;cortex-a57" --output-ji /opt/julia/julia-1.10.6/usr/lib/julia/sys.ji.tmp --startup-file=no --warn-overwrite=yes --sysimage /opt/julia/julia-1.10.6/usr/lib/julia/corecompiler.ji sysimg.jl ./ ; then echo '*** This error might be fixed by running `make clean`. If the error persists, try `make cleanall`. ***'; false; fi

/usr/libexec/qemu-binfmt/aarch64-binfmt-P /opt/julia/julia-1.10.6/usr/bin/julia /opt/julia/julia-1.10.6/usr/bin/julia -g1 -O0 -C generic;cortex-a57 --output-ji /opt/julia/julia-1.10.6/usr/lib/julia/sys.ji.tmp --startup-file=no --warn-overwrite=yes --sysimage /opt/julia/julia-1.10.6/usr/lib/julia/corecompiler.ji sysimg.jl ./

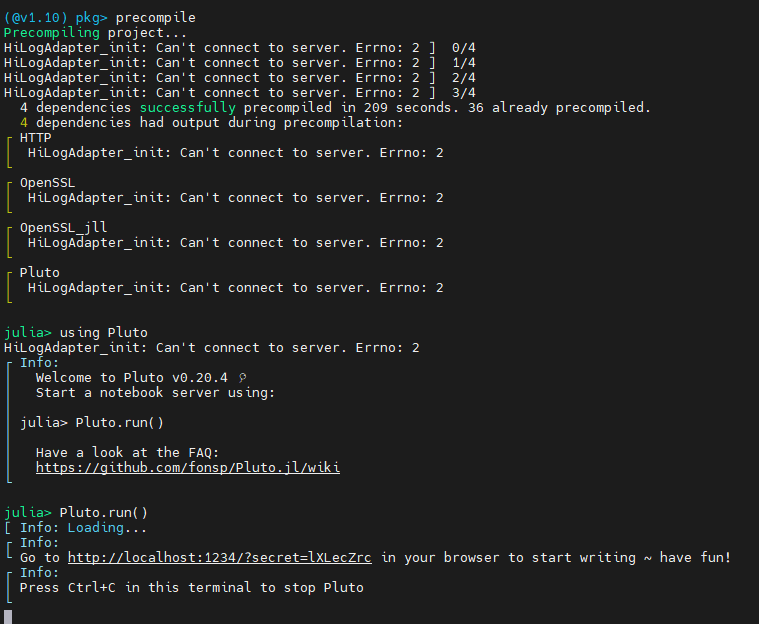

编译JULIA包

using Pkg

Pkg.build("IJulia")

启动时不加载预编译的包

julia --compiled-modules=no # 启动时不加载任何包的预编译缓存

此时导入包（如 using DataFrames）会重新编译该包，而非使用缓存的 .ji 文件。

启动时输出包加载调试信息

JULIA_DEBUG=loading ./julia

将stdlib下面的包编译进sys.so

vim /opt/julia/julia-1.10.6/base/sysimg.jl:

# Stdlibs sorted in dependency, then alphabetical, order by contrib/print_sorted_stdlibs.jl

# Run with the `--exclude-jlls` option to filter out all JLL packages

stdlibs = [

# No dependencies

:ArgTools,

:Artifacts,

:Base64,

:CRC32c,

:FileWatching,

:Libdl,

:Logging,

:Mmap,

:NetworkOptions,

:SHA,

:Serialization,

:Sockets,

:Unicode,

# 1-depth packages

:LinearAlgebra,

:Markdown,

:Printf,

:Random,

:Tar,

# 2-depth packages

:Dates,

:Future,

:InteractiveUtils,

:LibGit2,

:UUIDs,

# 3-depth packages

:REPL,

:TOML,

# 4-depth packages

:LibCURL,

# 5-depth packages

:Downloads,

# 6-depth packages

:Pkg,

:Test, #add by wanghh 2025.10.29

]

JULIA通过源码安装模块

通过命令安装：在RELP中输入：], dev 源码路径
通过脚本安装：

push!(LOAD_PATH, "/data/storage/el2/base/haps/entry/files/MyTest0918")
直接将源码MyTest0918放在LOAD_PATH路径下,然后加入到LOAD_PATH:

push!(LOAD_PATH,"/data/storage/el1/bundle/entry/resources/resfile/share/julia/stdlib/v1.10")

Julia源码修改

修改libjulia.so查找依赖库的路径从lib/julia到lib目录(所有的库都在libjulia.so同一目录)

vim Makefile +459:

无法加载BLAS库

export LBT_DEFAULT_LIBS=libopenblas64_.so

或vim deps/scratch/blastrampoline-05083d50611b5538df69706f0a952d8e642b0b4b/src/libblastrampoline_internal.h +45

#define LBT_FALLBACK_LIBS "libopenblas64_.so"

make -C deps clean-blastrampoline

make

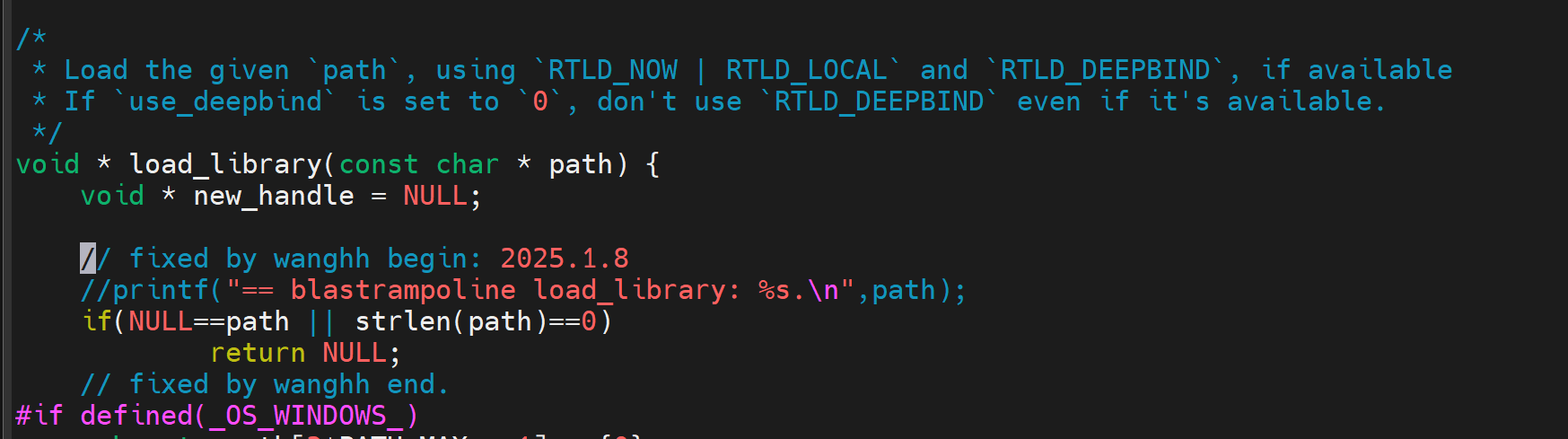

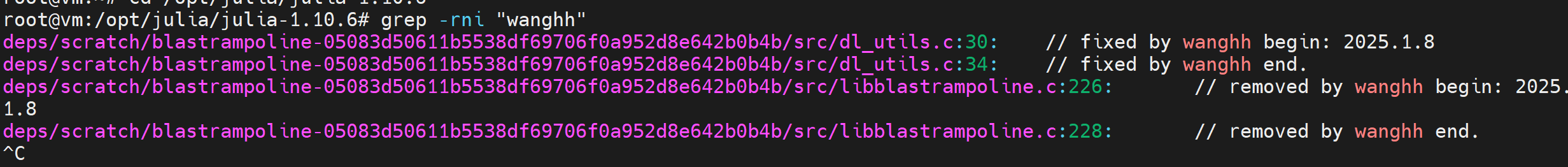

Julia启动时报加载库乱码错误

vim deps/scratch/blastrampoline-05083d50611b5538df69706f0a952d8e642b0b4b/src/dl_utils.c +30:

vim deps/scratch/blastrampoline-05083d50611b5538df69706f0a952d8e642b0b4b/src/libblastrampoline.c +226:

vim stdlib/OpenBLAS_jll/src/OpenBLAS_jll.jl +43

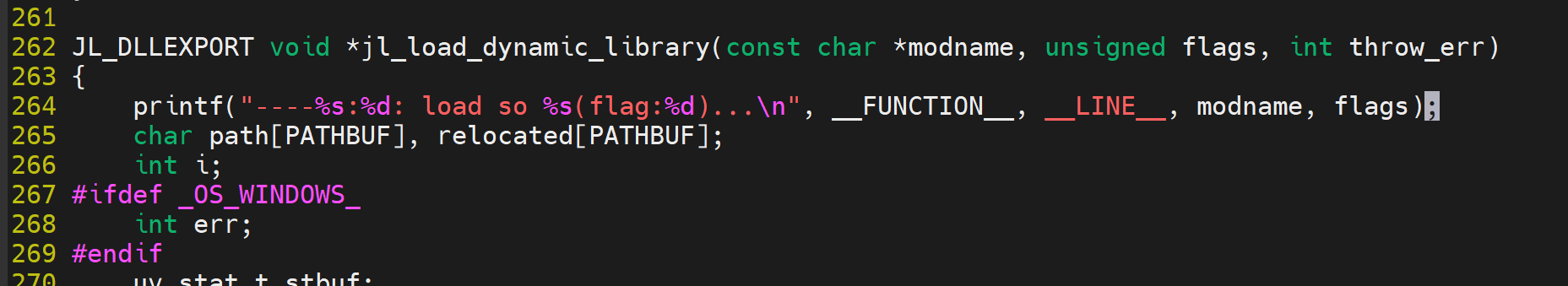

跟踪动态库的加载过程

vim src/dlload.c +262:

跟踪包的加载过程

vim src/toplevel.c +65：

修改/proc/cpuinfo文件读取路径

find . -type f \( -name "*.c" -o -name "*.cc" -o -name "*.cpp" -o -name "*.h" -o -name "*.jl" \) | xargs sed -i 's@/proc/cpuinfo@/data/storage/el2/base/haps/entry/files/cpuinfo@g'

签名precompile新生成的SO

修改/opt/julia/julia-1.10.6/base/linking.jl中的link_image()函数：

function link_image(path, out, internal_stderr::IO=stderr, internal_stdout::IO=stdout)

run(link_image_cmd(path, out), Base.DevNull(), internal_stderr, internal_stdout)

#add by wanghh 2026.3.31

SIGN_PATH = get(ENV, "JULIA_SIGN_PATH", "")

if !isempty(SIGN_PATH)

SIGN_OUT = string(out, ".sign")

SIGN_CMD = `$SIGN_PATH sign -inFile $out -outFile $SIGN_OUT -selfSign 1`

SIGN_CLEAN = `cp -rf $SIGN_OUT $out`

println("====> link_image(", \@__LINE__, "): ", SIGN_CMD)

run(SIGN_CMD, Base.DevNull(), internal_stderr, internal_stdout)

run(SIGN_CLEAN, Base.DevNull(), internal_stderr, internal_stdout)

end

end

以下修改废弃========================================================

修改/opt/julia/julia-1.10.6/src/staticdata.c中的jl_restore_package_image_from_file()函数：

// 只有设置了环境变量JULIA_SIGN_PATH签名机制才生效，如：JULIA_SIGN_PATH=/data/service/hnp/julia.org/julia_2.10.9/bin/binary-sign-tool

// 环境变量JULIA_SIGN_DIR_PATH用于匹配需要签名的SO路径，默认在沙箱路径下面新生成的SO都会被签名

//

JL_DLLEXPORT jl_value_t *jl_restore_package_image_from_file(const char *fname, jl_array_t *depmods, int completeinfo, const char *pkgname)

{

// add by wanghh 2025.9.24

// add sign for so.

//

char* fname_new = NULL;

char* sign_cmd = NULL;

const char* fname_switch = fname;

do

{

char* sign_path_env = getenv("JULIA_SIGN_PATH");

if(NULL == sign_path_env || 0 != file_exists(sign_path_env))

break;

printf("====%s:%d: fname:%s; pkgname: %s; sign tools path: %s;\n",__FUNCTION__,__LINE__, fname, pkgname, sign_path_env);

// enable sign tools.

char sign_dir_base[] = "/data/storage/el2/base/haps/entry/files";

char* sign_dir_env = getenv("JULIA_SIGN_DIR_PATH");

if(NULL != strstr(fname, sign_dir_base) || (NULL != sign_dir_env && (NULL != strstr(fname, sign_dir_env))))

{

// path matched.

int fname_new_size = strlen(fname) + 64;

fname_new = (char*)malloc(fname_new_size);

if(NULL == fname_new)

{

printf("====%s:%d: malloc(%d) failure.\n",__FUNCTION__,__LINE__, fname_new_size);

break;

}

snprintf(fname_new,fname_new_size,"%s.1", fname);

fname_new[fname_new_size-1] = 0;

// copy file if not exist.

if(0 != file_exists(fname_new))

{

printf("====%s:%d: copy %s to %s...\n",__FUNCTION__,__LINE__, fname, fname_new);

if(0 != copy_file_fopen(fname, fname_new))

{

printf("====%s:%d: copy(%s->%s) failure.\n",__FUNCTION__,__LINE__, fname, fname_new);

break;

}

// start sign at first time.

int sign_cmd_size = strlen(sign_path_env) + strlen(fname_new) + strlen(fname) + 128;

sign_cmd = (char*)malloc(sign_cmd_size);

if(NULL == sign_cmd)

{

printf("====%s:%d: malloc(%d) failure.\n",__FUNCTION__,__LINE__, sign_cmd_size);

break;

}

snprintf(sign_cmd, sign_cmd_size, "%s sign -inFile \"%s\" -outFile \"%s\" -selfSign \"1\"", sign_path_env, fname, fname_new);

sign_cmd[sign_cmd_size-1] = 0;

printf("====%s:%d: %s ...\n",__FUNCTION__,__LINE__, sign_cmd);

system(sign_cmd);

}

fname_switch = fname_new;

printf("====%s:%d: dlopen signed so: %s...\n",__FUNCTION__,__LINE__, fname_switch);

}

} while (false);

void *pkgimg_handle = jl_dlopen(fname_switch, JL_RTLD_LAZY);

if(NULL != fname_new)

{

free(fname_new);

fname_new = NULL;

}

if(NULL != sign_cmd)

{

free(sign_cmd);

sign_cmd = NULL;

}

fname_switch = NULL;

//void *pkgimg_handle = jl_dlopen(fname, JL_RTLD_LAZY);

if (!pkgimg_handle) {

#ifdef _OS_WINDOWS_

int err;

char reason[256];

err = GetLastError();

win32_formatmessage(err, reason, sizeof(reason));

#else

const char *reason = dlerror();

#endif

jl_errorf("Error opening package file %s: %s\n", fname, reason);

}

const char *pkgimg_data;

jl_dlsym(pkgimg_handle, "jl_system_image_data", (void **)&pkgimg_data, 1);

size_t *plen;

jl_dlsym(pkgimg_handle, "jl_system_image_size", (void **)&plen, 1);

jl_image_t pkgimage = jl_init_processor_pkgimg(pkgimg_handle);

jl_value_t* mod = jl_restore_incremental_from_buf(pkgimg_handle, pkgimg_data, &pkgimage, *plen, depmods, completeinfo, pkgname, false);

return mod;

}

SECCOMP错误：Signal:SIGSYS(SYS_SECCOMP) syscall number is 1008

vim /opt/julia/julia-1.10.6/src/partr.c +213

rrcall_check的作用：

用于判断当前Julia进程是否正在 rr调试器（Record and Replay Debugger）环境下运行。它主要服务于Julia的调试和故障复现机制，帮助开发者在调试场景中动态调整程序行为。

rr调试器仅支持Linux系统，因此rrcall_check在Windows或macOS上返回false。

修改aarch64-linux-musleabi去掉eabi

vim Make.inc:

BUILD_MACHINE := $(shell $(HOSTCC) -dumpmachine | sed 's/musleabi/musl/')

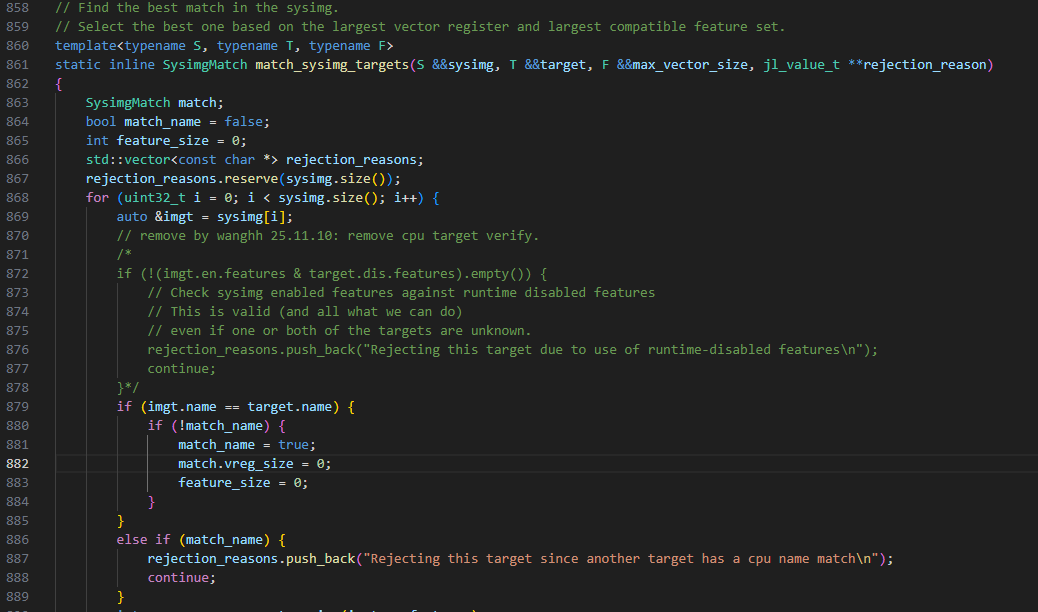

去掉加载预编译SO时的Target检查

vim src/processor.cpp + 870:

vim base/loading.jl +3041:

原生编译

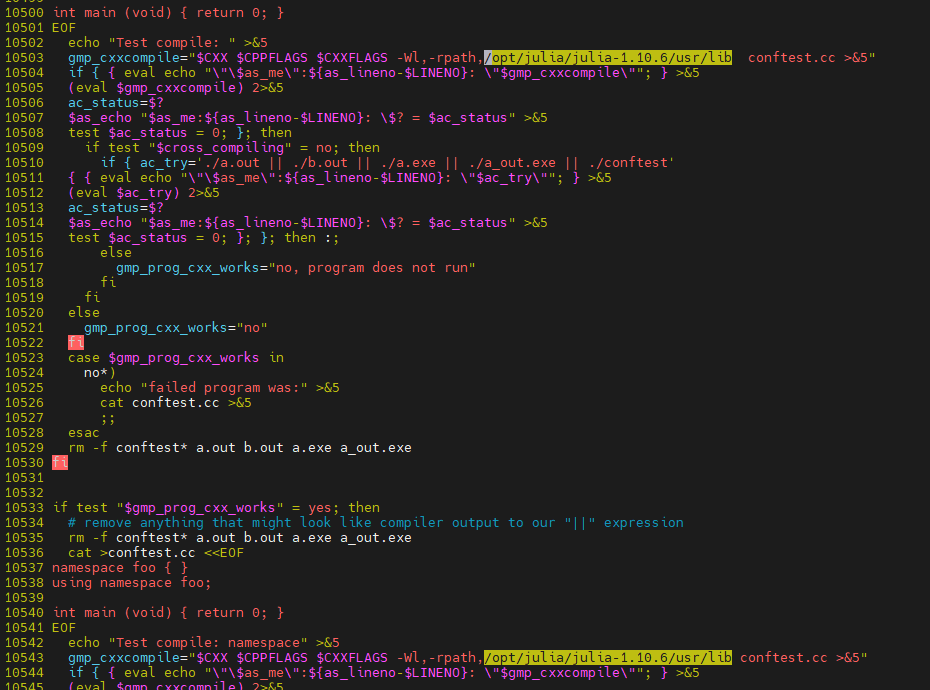

编译GMP时conftest找不到libstdc++.so.6

实际上是conftest在运行时没有设置rpath

vim deps/srccache/gmp-6.2.1/configure +10503:

需要修改以下三个地方

echo "Test compile: " >&5

echo "Test compile: namespace" >&5

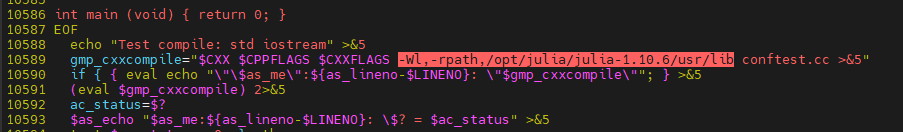

echo "Test compile: std iostream" >&5

对应的：

gmp_cxxcompile="$CXX $CPPFLAGS $CXXFLAGS -Wl,-rpath,/opt/julia/julia-1.10.6/usr/lib conftest.cc >&5"

flisp无法加载libatomic.so.1

patchelf --set-rpath \$ORIGIN:/opt/julia/julia-1.10.6/usr/lib src/flisp/flisp

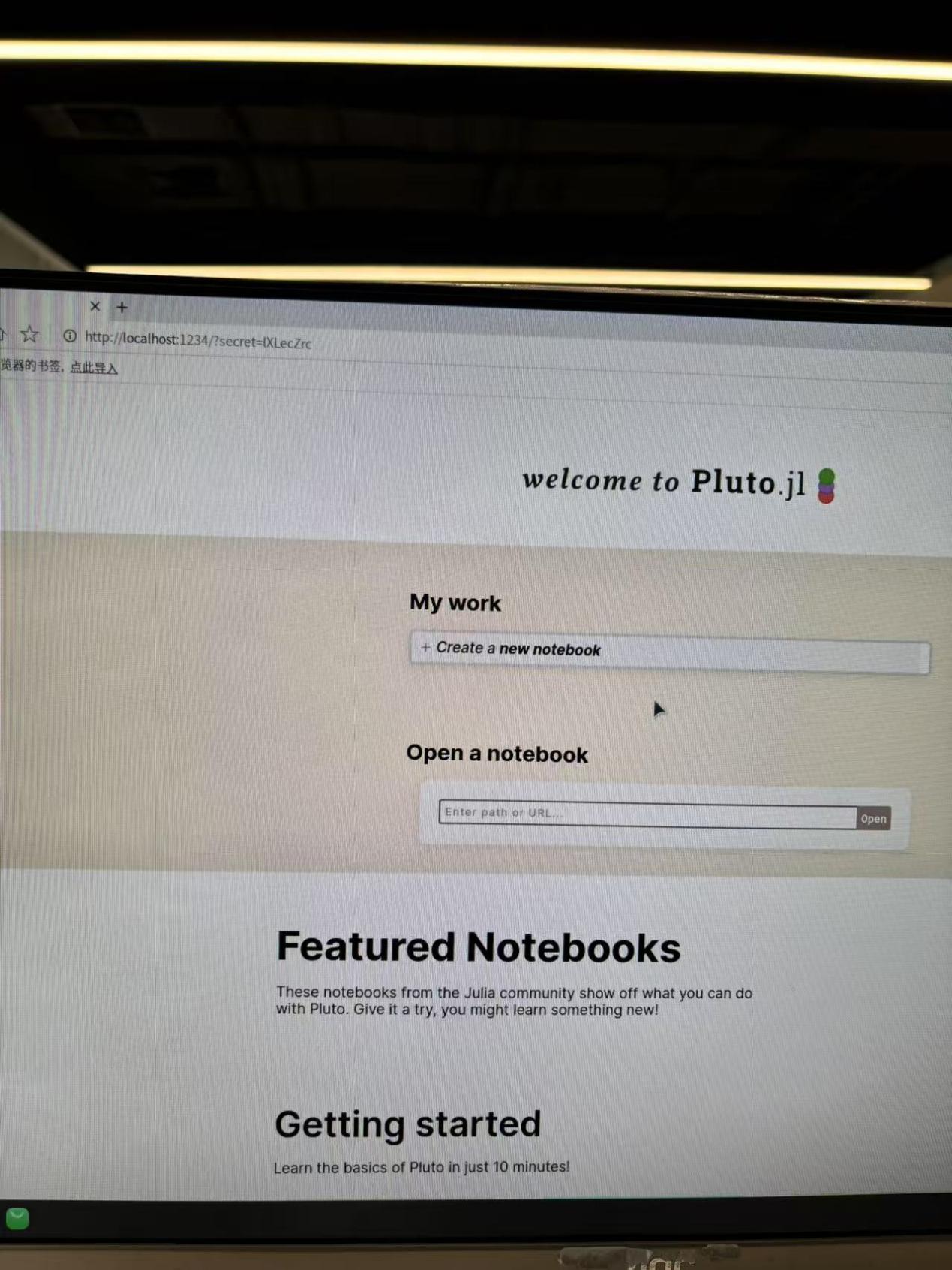

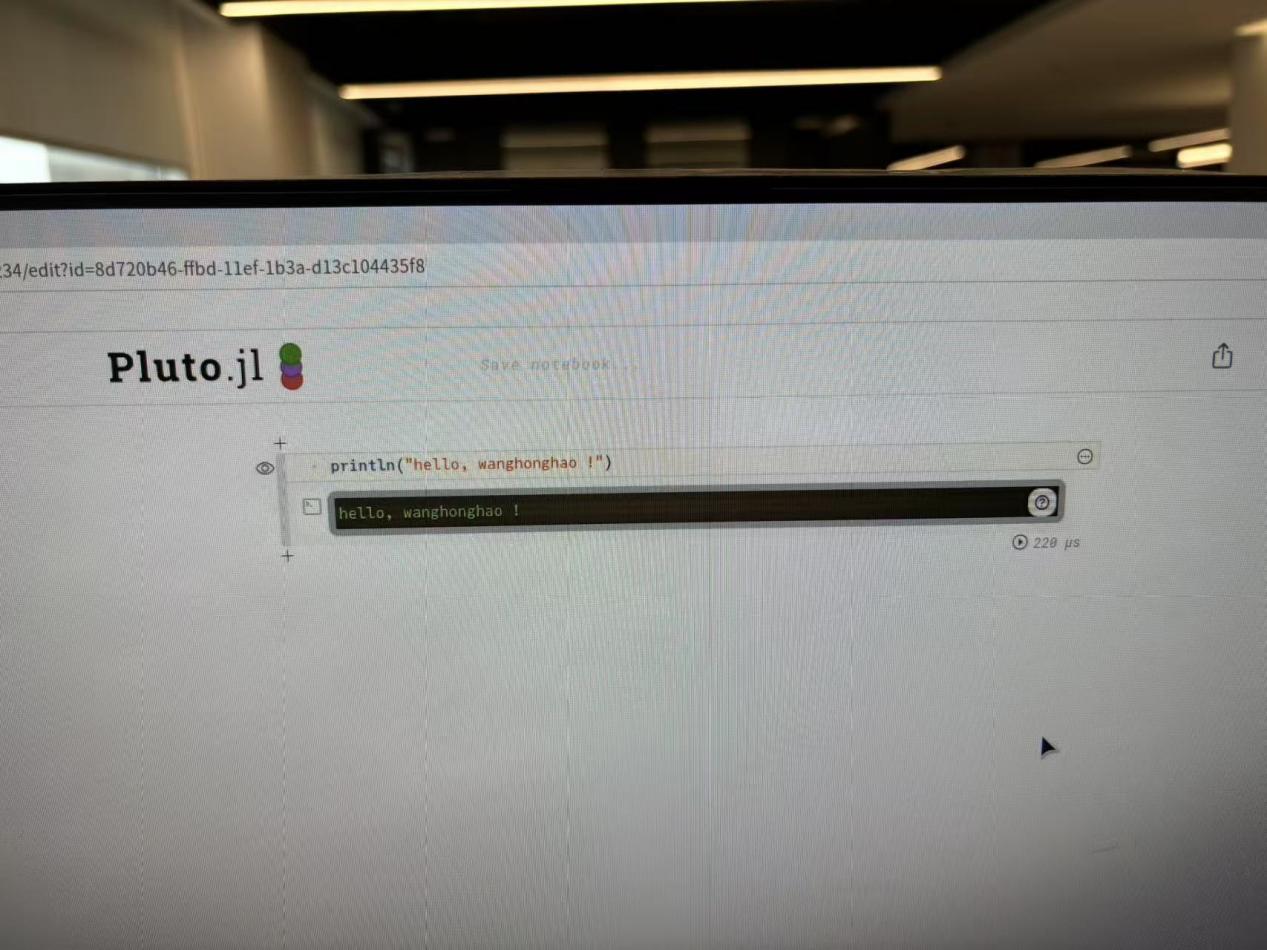

JULIA IDE启动

using Pkg; Pkg.add("Pluto")

using Pluto; Pluto.run()

修复Pluto编译错误（OpenSSL_jll不识别平台aarch64-linux-musleabi）：

cd /opt/julia/julia-1.10.6/install/opt/julia/julia-1.10.6/julia-1.10.6/home/.julia/packages/OpenSSL_jll/5e9Kp/src/wrappers

cp x86_64-w64-mingw32.jl x86_64-w64-mingw32.jl.bak

cp aarch64-linux-musl.jl x86_64-w64-mingw32.jl

重新编译：Pkg.precompile()

aarch64-linux-musleabi的来源：

Vim base/Makefile +47

vim Make.inc +809

开源鸿蒙跨平台开发者社区

开源鸿蒙跨平台开发社区汇聚开发者与厂商，共建“一次开发，多端部署”的开源生态，致力于降低跨端开发门槛，推动万物智联创新。

更多推荐

智慧医疗终端开发优选：RK3568高稳定、低功耗、全接口适配场景需求

开源鸿蒙跨平台开发者社区

鸿蒙跨平台框架2026年中总结：Flutter 发展进化之路

开源鸿蒙跨平台开发者社区

React Native 原理与桥接机制

通过 Bridge（桥接）机制，JavaScript 线程与原生线程异步通信，避免阻塞 UI 渲染。React Native 继承 React 的虚拟 DOM 机制，通过 Diff 算法计算最小化 UI 更新，减少不必要的原生渲染。React Native 采用多线程架构，主要包括 UI 线程、JavaScript 线程和原生模块线程。UI 线程负责渲染，JavaScript 线程执行业务逻辑，原

开源鸿蒙跨平台开发者社区

所有评论(0)

查看更多评论

betalife_1223

@betalife_1223

已为社区贡献1条内容

Julia 在 OpenHarmony 下的编译实战：从源码构建到运行全流程

betalife_1223

编译背景

编译步骤

准备OHOS-MUSL-C库

编译MUSL-GCC工程

准备julia编译环境

编译julia源码

编译问题解决方法

链接llvm-ar时找不到compress2函数，其实是libz.so.1没有找到

编译libgit2时找不到函数qsort_r，其实是OHOS-MUSL-C没有实现该函数

编译libgit2时报错：error: C++ style comments are not allowed in ISO C90

编译libgit2时找不到头文件mbedtls/md.h

链接flisp时提示找不到libatomic.so.1库，加入环境变量即可：

预编译0penBLAS jll时提示StackOverflowError：

编译openblas时报：unknown value 'native' for '-march'

编译sys.so时报：Unmatchable platform string 'aarch64-linux-musleabi'!-cxx11-julia_version+1.10.6`

OHOS中没有HOME环境变量，以下代码需要修改：

编译patchelf时automake版本报错

julia启动问题解决方法

启动脚本参考

禁用MUSL LOG

重新编译库

重新编译julia镜像

其它相关

编译JULIA包

启动时不加载预编译的包

启动时输出包加载调试信息

将stdlib下面的包编译进sys.so

JULIA通过源码安装模块

Julia源码修改

修改libjulia.so查找依赖库的路径从lib/julia到lib目录(所有的库都在libjulia.so同一目录)

无法加载BLAS库

Julia启动时报加载库乱码错误

跟踪动态库的加载过程

跟踪包的加载过程

修改/proc/cpuinfo文件读取路径

签名precompile新生成的SO

SECCOMP错误：Signal:SIGSYS(SYS_SECCOMP) syscall number is 1008

修改aarch64-linux-musleabi去掉eabi

去掉加载预编译SO时的Target检查

原生编译

编译GMP时conftest找不到libstdc++.so.6

flisp无法加载libatomic.so.1

JULIA IDE启动

所有评论(0)

温馨提示：您尚未绑定手机号

betalife_1223
