部署K8s
Centos二进制部署K8s
准备四台虚拟机k8s-master01 k8s-master02 k8s-node01 k8s-node02
1）在各个节点上配置主机名，并配置 Hosts 文件
[root@BASE ~]# hostnamectl set-hostname k8s-master01
[root@BASE ~]# bash
[root@k8s-master01 ~]# cat >> /etc/hosts << EOF
192.168.1.11 k8s-master01
192.168.1.20 k8s-master02
192.168.1.30 k8s-node01
192.168.1.40 k8s-node02
EOF
2）在k8s-master01 上配置 SSH 密钥对，并将公钥发送给其余主机
[root@k8s-master01 ~]# ssh-keygen -t rsa
[root@k8s-master01 ~]# ssh-copy-id root@192.168.1.11
[root@k8s-master01 ~]# ssh-copy-id root@192.168.1.20
[root@k8s-master01 ~]# ssh-copy-id root@192.168.1.30
[root@k8s-master01 ~]# ssh-copy-id root@192.168.1.40
3）编写 K8s 初始环境脚本
[root@k8s-master01 ~]# vim k8s-init.sh
#!/bin/bash
#****************************************************************#
# ScriptName: k8s-init.sh
# Initialize the machine. This needs to be executed on every machine.
# Mkdir k8s directory
yum -y install wget ntpdate && ntpdate ntp1.aliyun.com
wget -O /etc/yum.repos.d/CentOS-Base.repo https://mirrors.aliyun.com/repo/Centos-7.repo
yum -y install epel-release
mkdir -p /opt/k8s/bin/
mkdir -p /data/k8s/docker
mkdir -p /data/k8s/k8s
# Disable the SELinux.
swapoff -a
sed -i '/swap/s/^/#/' /etc/fstab
# Turn off and disable the firewalld.
systemctl stop firewalld
systemctl disable firewalld
# Modify related kernel parameters & Disable the swap.
cat > /etc/sysctl.d/k8s.conf << EOF
net.ipv4.ip_forward = 1
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables = 1
net.ipv4.tcp_tw_recycle = 0
vm.swappiness = 0
vm.overcommit_memory = 1
vm.panic_on_oom = 0
net.ipv6.conf.all.disable_ipv6 = 1
EOF
sysctl -p /etc/sysctl.d/k8s.conf >& /dev/null
# Add ipvs modules
cat > /etc/sysconfig/modules/ipvs.modules << EOF
#!/bin/bash
modprobe -- ip_vs
modprobe -- ip_vs_rr
modprobe -- ip_vs_wrr
modprobe -- ip_vs_sh
modprobe -- br_netfilter
modprobe -- nf_conntrack
modprobe -- nf_conntrack_ipv4
EOF
chmod 755 /etc/sysconfig/modules/ipvs.modules
source /etc/sysconfig/modules/ipvs.modules
# Install rpm
yum install -y conntrack ntpdate ntp ipvsadm ipset jq iptables curl sysstat libseccomp wget gcc gcc-c++ make libnl libnl-devel libnfnetlink-devel openssl-devel vim openssl-devel bash-completion
# ADD k8s bin to PATH
echo 'export PATH=/opt/k8s/bin:$PATH' >> /root/.bashrc && chmod +x /root/.bashrc && source /root/.bashrc
[root@k8s-master01 ~]# bash k8s-init.sh
[root@k8s-master01 ~]# scp k8s-init.sh root@192.168.1.20:/root/ && ssh root@192.168.1.20 "/bin/bash /root/k8s-init.sh"
[root@k8s-master01 ~]# scp k8s-init.sh root@192.168.1.30:/root/ && ssh root@192.168.1.30 "/bin/bash /root/k8s-init.sh"
[root@k8s-master01 ~]# scp k8s-init.sh root@192.168.1.40:/root/ && ssh root@192.168.1.40 "/bin/bash /root/k8s-init.sh"
4）配置环境变量
[root@k8s-master01 ~]# vim environment.sh
#!/bin/bash
# 生成 EncryptionConfig 所需的加密 Key
export ENCRYPTION_KEY=$(head -c 32 /dev/urandom | base64)
# 集群 Master 机器 IP 数组
export MASTER_IPS=(192.168.1.11 192.168.1.20)
# 集群 Master IP 对应的主机名数组
export MASTER_NAMES=(k8s-master01 k8s-master02)
# 集群 Node 机器 IP 数组
export NODE_IPS=(192.168.1.30 192.168.1.40)
# 集群 Node IP 对应的主机名数组
export NODE_NAMES=(k8s-node01 k8s-node02)
# 集群所有机器 IP 数组
export ALL_IPS=(192.168.1.11 192.168.1.20 192.168.1.30 192.168.1.40)
# 集群所有 IP 对应的主机名数组
export ALL_NAMES=(k8s-master01 k8s-master02 k8s-node01 k8s-node02)
# Etcd 集群服务地址列表
export ETCD_ENDPOINTS="https://192.168.8.100:2379,https://192.168.8.101:2379"
# Etcd 集群间通信的 IP 和端口
export ETCD_NODES="k8s-master01=https://192.168.8.100:2380,k8s-master02=https://192.168.8.101:2380"
# Kube-apiserver 的 IP 和端口
export KUBE_APISERVER="https://192.168.1.11:6443"
# 节点间互联网络接口名称
export IFACE="ens33"
# Etcd 数据目录
export ETCD_DATA_DIR="/data/k8s/etcd/data"
# Etcd WAL 目录. 建议是 SSD 磁盘分区. 或者和 ETCD_DATA_DIR 不同的磁盘分区
export ETCD_WAL_DIR="/data/k8s/etcd/wal"
# K8s 各组件数据目录
export K8S_DIR="/data/k8s/k8s"
# Docker 数据目录
export DOCKER_DIR="/data/k8s/docker"
## 以下参数一般不需要修改
# TLS Bootstrapping 使用的 Token. 可以使用命令 head -c 16 /dev/urandom | od -An -t x | tr -d ' ' 生成
BOOTSTRAP_TOKEN="41f7e4ba8b7be874fcff18bf5cf41a7c"
# 最好使用当前未用的网段来定义服务网段和 Pod 网段
# 服务网段. 部署前路由不可达. 部署后集群内路由可达(kube-proxy 保证)
SERVICE_CIDR="10.20.0.0/16"
# Pod 网段. 建议 /16 段地址. 部署前路由不可达. 部署后集群内路由可达(flanneld 保证)
CLUSTER_CIDR="10.10.0.0/16"
# 服务端口范围 (NodePort Range)
export NODE_PORT_RANGE="1-65535"
# Flanneld 网络配置前缀
export FLANNEL_ETCD_PREFIX="/kubernetes/network"
# Kubernetes 服务 IP (一般是 SERVICE_CIDR 中第一个 IP)
export CLUSTER_KUBERNETES_SVC_IP="10.20.0.1"
# 集群 DNS 服务 IP (从 SERVICE_CIDR 中预分配)
export CLUSTER_DNS_SVC_IP="10.20.0.254"
# 集群 DNS 域名(末尾不带点号)
export CLUSTER_DNS_DOMAIN="cluster.local"
# 将二进制目录 /opt/k8s/bin 加到 PATH 中
export PATH=/opt/k8s/bin:$PATH
上面那些 IP 地址和网卡啥的，你们要改成自己的。
[root@k8s-master01 ~]# chmod +x environment.sh && source environment.sh
下面的这些操作，我们只需要在 k8s-master01 主机上操作即可（因为下面我们会通过 for 循环来发送到其余主机上）
1.创建 CA 证书和密钥
因为Kubernetes 系统的各个组件需要使用 TLS 证书对其通信加密以及授权认证，所以我们需要在安装前先生成相关的 TLS 证书；我们可以使用 openssl cfssl easyrsa 来生成 Kubernetes 的相关证书，我们下面使用的是 cfssl 方式。
1）安装 cfssl 工具集
[root@k8s-master01 ~]# mkdir -p /opt/k8s/cert
[root@k8s-master01 ~]# curl -L https://pkg.cfssl.org/R1.2/cfssl_linux-amd64 -o /opt/k8s/bin/cfssl
[root@k8s-master01 ~]# curl -L https://pkg.cfssl.org/R1.2/cfssljson_linux-amd64 -o /opt/k8s/bin/cfssljson
[root@k8s-master01 ~]# curl -L https://pkg.cfssl.org/R1.2/cfssl-certinfo_linux-amd64 -o /opt/k8s/bin/cfssl-certinfo
[root@k8s-master01 ~]# chmod +x /opt/k8s/bin/*
2）创建根证书配置文件
[root@k8s-master01 ~]# mkdir -p /opt/k8s/work
[root@k8s-master01 ~]# cd /opt/k8s/work/
[root@k8s-master01 work]# cat > ca-config.json << EOF
{
"signing": {
"default": {
"expiry": "876000h"
},
"profiles": {
"kubernetes": {
"expiry": "876000h",
"usages": [
"signing",
"key encipherment",
"server auth",
"client auth"
]
}
}
}
}
EOF
- signing：表示当前证书可用于签名其它证书；
- server auth：表示 Client 可以用这个 CA 对 Server 提供的证书进行校验；
- client auth：表示 Server 可以用这个 CA 对 Client 提供的证书进行验证；
- "expiry": "876000h"：表示当前证书有效期为 100 年；
3）创建根证书签名请求文件
[root@k8s-master01 work]# cat > ca-csr.json << EOF
{
"CN": "kubernetes",
"key": {
"algo": "rsa",
"size": 2048
},
"names": [
{
"C": "CN",
"ST": "Shanghai",
"L": "Shanghai",
"O": "k8s",
"OU": "System"
}
],
"ca": {
"expiry": "876000h"
}
}
EOF
- CN：Kube-APIServer 将会把这个字段作为请求的用户名，来让浏览器验证网站是否合法。
- C：国家；ST：州，省；L：地区，城市；O：组织名称，公司名称；OU：组织单位名称，公司部门。
4）生成 CA 密钥 ca-key.pem 和证书 ca.pem
[root@k8s-master01 work]# cfssl gencert -initca ca-csr.json | cfssljson -bare ca
- 生成证书后，因为 Kubernetes 集群需要 双向 TLS 认证，所以我们可以将生成的文件传送到所有主机中。
5）使用 for 循环来遍历数组，将配置发送给所有主机
[root@k8s-master01 work]# for all_ip in ${ALL_IPS[@]}
do
echo ">>> ${all_ip}"
ssh root@${all_ip} "mkdir -p /etc/kubernetes/cert"
scp ca*.pem ca-config.json root@${all_ip}:/etc/kubernetes/cert
done
2.安装 ETCD 组件
ETCD 是基于 Raft 的分布式 key-value 存储系统，由 CoreOS 开发，常用于服务发现、共享配置以及并发控制（如 leader 选举、分布式锁等）；Kubernetes 主要就是用 ETCD 来存储所有的运行数据。
下载ETCD
[root@k8s-master01 work]# wget https://github.com/etcd-io/etcd/releases/download/v3.3.22/etcd-v3.3.22-linux-amd64.tar.gz
[root@k8s-master01 work]# tar -zxf etcd-v3.3.22-linux-amd64.tar.gz
[root@k8s-master01 work]# for master_ip in ${MASTER_IPS[@]}
do
echo ">>> ${master_ip}"
scp etcd-v3.3.22-linux-amd64/etcd* root@${master_ip}:/opt/k8s/bin
ssh root@${master_ip} "chmod +x /opt/k8s/bin/*"
done
1）创建 ETCD 证书和密钥
[root@k8s-master01 work]# cat > etcd-csr.json << EOF
{
"CN": "etcd",
"hosts": [
"127.0.0.1",
"192.168.1.11",
"192.168.1.20"
],
"key": {
"algo": "rsa",
"size": 2048
},
"names": [
{
"C": "CN",
"ST": "Shanghai",
"L": "Shanghai",
"O": "k8s",
"OU": "System"
}
]
}
EOF
hosts：用来指定给 ETCD 授权的 IP 地址或域名列表。
2）生成证书和密钥
[root@k8s-master01 work]# cfssl gencert -ca=/opt/k8s/work/ca.pem -ca-key=/opt/k8s/work/ca-key.pem -config=/opt/k8s/work/ca-config.json -profile=kubernetes etcd-csr.json | cfssljson -bare etcd
[root@k8s-master01 work]# for master_ip in ${MASTER_IPS[@]}
do
echo ">>> ${master_ip}"
ssh root@${master_ip} "mkdir -p /etc/etcd/cert"
scp etcd*.pem root@${master_ip}:/etc/etcd/cert/
done
3）创建启动脚本
[root@k8s-master01 work]# cat > etcd.service.template << EOF
[Unit]
Description=Etcd Server
After=network.target
After=network-online.target
Wants=network-online.target
Documentation=https://github.com/coreos
[Service]
Type=notify
WorkingDirectory=${ETCD_DATA_DIR}
ExecStart=/opt/k8s/bin/etcd \\
--enable-v2=true \\
--data-dir=${ETCD_DATA_DIR} \\
--wal-dir=${ETCD_WAL_DIR} \\
--name=##MASTER_NAME## \\
--cert-file=/etc/etcd/cert/etcd.pem \\
--key-file=/etc/etcd/cert/etcd-key.pem \\
--trusted-ca-file=/etc/kubernetes/cert/ca.pem \\
--peer-cert-file=/etc/etcd/cert/etcd.pem \\
--peer-key-file=/etc/etcd/cert/etcd-key.pem \\
--peer-trusted-ca-file=/etc/kubernetes/cert/ca.pem \\
--peer-client-cert-auth \\
--client-cert-auth \\
--listen-peer-urls=https://##MASTER_IP##:2380 \\
--initial-advertise-peer-urls=https://##MASTER_IP##:2380 \\
--listen-client-urls=https://##MASTER_IP##:2379,http://127.0.0.1:2379 \\
--advertise-client-urls=https://##MASTER_IP##:2379 \\
--initial-cluster-token=etcd-cluster-0 \\
--initial-cluster=${ETCD_NODES} \\
--initial-cluster-state=new \\
--auto-compaction-mode=periodic \\
--auto-compaction-retention=1 \\
--max-request-bytes=33554432 \\
--quota-backend-bytes=6442450944 \\
--heartbeat-interval=250 \\
--election-timeout=2000
Restart=on-failure
RestartSec=5
LimitNOFILE=65536
[Install]
WantedBy=multi-user.target
EOF
[root@k8s-master01 work]# for (( A=0; A < 2; A++ ))
do
sed -e "s/##MASTER_NAME##/${MASTER_NAMES[A]}/" -e "s/##MASTER_IP##/${MASTER_IPS[A]}/" etcd.service.template > etcd-${MASTER_IPS[A]}.service
done
4）启动 ETCD
[root@k8s-master01 work]# for master_ip in ${MASTER_IPS[@]}
do
echo ">>> ${master_ip}"
scp etcd-${master_ip}.service root@${master_ip}:/etc/systemd/system/etcd.service
ssh root@${master_ip} "mkdir -p ${ETCD_DATA_DIR} ${ETCD_WAL_DIR}"
ssh root@${master_ip} "systemctl daemon-reload && systemctl enable etcd && systemctl restart etcd"
done

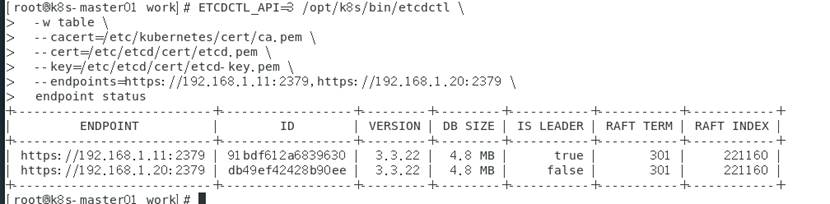

查看ETCD 当前的 Leader（领导）
[root@k8s-master01 work]# ETCDCTL_API=3 /opt/k8s/bin/etcdctl \
-w table --cacert=/etc/kubernetes/cert/ca.pem \
--cert=/etc/etcd/cert/etcd.pem \
--key=/etc/etcd/cert/etcd-key.pem \
--endpoints=${ETCD_ENDPOINTS} endpoint status
3.接着安装 Flannel 网络插件
Flannel 是一种基于 overlay 网络的跨主机容器网络解决方案，也就是将 TCP 数据封装在另一种网络包里面进行路由转发和通信。Flannel 是使用 Go 语言开发的，主要就是用来让不同主机内的容器实现互联。
下载Flannel
[root@k8s-master01 work]# mkdir flannel
[root@k8s-master01 work]# wget https://github.com/coreos/flannel/releases/download/v0.11.0/flannel-v0.11.0-linux-amd64.tar.gz
[root@k8s-master01 work]# tar -zxf flannel-v0.11.0-linux-amd64.tar.gz -C flannel
[root@k8s-master01 work]# for all_ip in ${ALL_IPS[@]}
do
echo ">>> ${all_ip}"
scp flannel/{flanneld,mk-docker-opts.sh} root@${all_ip}:/opt/k8s/bin/
ssh root@${all_ip} "chmod +x /opt/k8s/bin/*"
done
1）创建 Flannel 证书和密钥
[root@k8s-master01 work]# cat > flanneld-csr.json << EOF
{
"CN": "flanneld",
"hosts": [],
"key": {
"algo": "rsa",
"size": 2048
},
"names": [
{
"C": "CN",
"ST": "Shanghai",
"L": "Shanghai",
"O": "k8s",
"OU": "System"
}
]
}
EOF
2）生成证书和密钥
[root@k8s-master01 work]# cfssl gencert -ca=/opt/k8s/work/ca.pem -ca-key=/opt/k8s/work/ca-key.pem -config=/opt/k8s/work/ca-config.json -profile=kubernetes flanneld-csr.json | cfssljson -bare flanneld
[root@k8s-master01 work]# for all_ip in ${ALL_IPS[@]}
do
echo ">>> ${all_ip}"
ssh root@${all_ip} "mkdir -p /etc/flanneld/cert"
scp flanneld*.pem root@${all_ip}:/etc/flanneld/cert
done

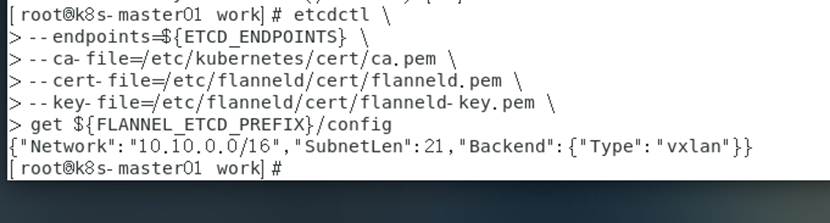

配置Pod 的网段信息
[root@k8s-master01 work]# etcdctl \
--endpoints=${ETCD_ENDPOINTS} \
--ca-file=/opt/k8s/work/ca.pem \
--cert-file=/opt/k8s/work/flanneld.pem \
--key-file=/opt/k8s/work/flanneld-key.pem \
mk ${FLANNEL_ETCD_PREFIX}/config '{"Network":"'${CLUSTER_CIDR}'", "SubnetLen": 21, "Backend": {"Type": "vxlan"}}'
3）编写启动脚本
[root@k8s-master01 work]# cat > flanneld.service << EOF
[Unit]
Description=Flanneld overlay address etcd agent
After=network.target
After=network-online.target
Wants=network-online.target
After=etcd.service
Before=docker.service
[Service]
Type=notify
ExecStart=/opt/k8s/bin/flanneld \\
-etcd-cafile=/etc/kubernetes/cert/ca.pem \\
-etcd-certfile=/etc/flanneld/cert/flanneld.pem \\
-etcd-keyfile=/etc/flanneld/cert/flanneld-key.pem \\
-etcd-endpoints=${ETCD_ENDPOINTS} \\
-etcd-prefix=${FLANNEL_ETCD_PREFIX} \\
-iface=${IFACE} \\
-ip-masq
ExecStartPost=/opt/k8s/bin/mk-docker-opts.sh -k DOCKER_NETWORK_OPTIONS -d /run/flannel/docker
Restart=always
RestartSec=5
StartLimitInterval=0
[Install]
WantedBy=multi-user.target
RequiredBy=docker.service
EOF
4）启动并验证
[root@k8s-master01 work]# for all_ip in ${ALL_IPS[@]}
do
echo ">>> ${all_ip}"
scp flanneld.service root@${all_ip}:/etc/systemd/system/
ssh root@${all_ip} "systemctl daemon-reload && systemctl enable flanneld --now"
done
1）查看 Pod 网段信息
[root@k8s-master01 work]# etcdctl \
--endpoints=${ETCD_ENDPOINTS} \
--ca-file=/etc/kubernetes/cert/ca.pem \
--cert-file=/etc/flanneld/cert/flanneld.pem \
--key-file=/etc/flanneld/cert/flanneld-key.pem \
get ${FLANNEL_ETCD_PREFIX}/config
2）查看已分配的 Pod 子网段列表
[root@k8s-master01 work]# etcdctl \
--endpoints=${ETCD_ENDPOINTS} \
--ca-file=/etc/kubernetes/cert/ca.pem \
--cert-file=/etc/flanneld/cert/flanneld.pem \
--key-file=/etc/flanneld/cert/flanneld-key.pem \
ls ${FLANNEL_ETCD_PREFIX}/subnets
3)查看某一 Pod 网段对应的节点 IP 和 Flannel 接口地址
[root@k8s-master01 work]# etcdctl \
--endpoints=${ETCD_ENDPOINTS} \
--ca-file=/etc/kubernetes/cert/ca.pem \
--cert-file=/etc/flanneld/cert/flanneld.pem \
--key-file=/etc/flanneld/cert/flanneld-key.pem \
get ${FLANNEL_ETCD_PREFIX}/subnets/10.10.184.0-21
4.安装 Docker 服务
Docker 运行和管理容器，Kubelet 通过 Container Runtime Interface (CRI) 与它进行交互。
下载Docker
[root@k8s-master01 work]# wget https://download.docker.com/linux/static/stable/x86_64/docker-19.03.12.tgz
[root@k8s-master01 work]# tar -zxf docker-19.03.12.tgz
安装Docker
[root@k8s-master01 work]# for all_ip in ${ALL_IPS[@]}
do
echo ">>> ${all_ip}"
scp docker/* root@${all_ip}:/opt/k8s/bin/
ssh root@${all_ip} "chmod +x /opt/k8s/bin/*"
done
1）创建启动脚本
[root@k8s-master01 work]# vim docker.service
[Unit]
Description=Docker Application Container Engine
Documentation=http://docs.docker.io
[Service]
WorkingDirectory=##DOCKER_DIR##
Environment="PATH=/opt/k8s/bin:/bin:/sbin:/usr/bin:/usr/sbin"
EnvironmentFile=-/run/flannel/docker
ExecStart=/opt/k8s/bin/dockerd $DOCKER_NETWORK_OPTIONS
ExecReload=/bin/kill -s HUP $MAINPID
Restart=on-failure
RestartSec=5
LimitNOFILE=infinity
LimitNPROC=infinity
LimitCORE=infinity
Delegate=yes
KillMode=process
[Install]
WantedBy=multi-user.target
[root@k8s-master01 work]# sed -i -e "s|##DOCKER_DIR##|${DOCKER_DIR}|" docker.service
[root@k8s-master01 work]# for all_ip in ${ALL_IPS[@]}
do
echo ">>> ${all_ip}"
scp docker.service root@${all_ip}:/etc/systemd/system/
done
配置daemon.json 文件
[root@k8s-master01 work]# cat > daemon.json <<EOF
{
"registry-mirrors": ["https://ipbtg5l0.mirror.aliyuncs.com"],
"exec-opts": ["native.cgroupdriver=cgroupfs"],
"data-root": "${DOCKER_DIR}/data",
"exec-root": "${DOCKER_DIR}/exec",
"log-driver": "json-file",
"log-opts": {
"max-size": "100m",
"max-file": "5"
},
"storage-driver": "overlay2",
"storage-opts": [
"overlay2.override_kernel_check=true"
]
}
EOF
[root@k8s-master01 work]# for all_ip in ${ALL_IPS[@]}
do
echo ">>> ${all_ip}"
ssh root@${all_ip} "mkdir -p /etc/docker/ ${DOCKER_DIR}/{data,exec}"
scp daemon.json root@${all_ip}:/etc/docker/daemon.json
done
2）启动 Docker
[root@k8s-master01 work]# for all_ip in ${ALL_IPS[@]}
do
echo ">>> ${all_ip}"
ssh root@${all_ip} "systemctl daemon-reload && systemctl enable docker --now"
done
5.安装 Kubectl 服务
下载Kubectl
[root@k8s-master01 work]# wget https://storage.googleapis.com/kubernetes-release/release/v1.18.3/kubernetes-client-linux-amd64.tar.gz
[root@k8s-master01 work]# tar -zxf kubernetes-client-linux-amd64.tar.gz
[root@k8s-master01 work]# for master_ip in ${MASTER_IPS[@]}
do
echo ">>> ${master_ip}"
scp kubernetes/client/bin/kubectl root@${master_ip}:/opt/k8s/bin/
ssh root@${master_ip} "chmod +x /opt/k8s/bin/*"
done
1）创建 Admin 证书和密钥
[root@k8s-master01 work]# cat > admin-csr.json << EOF
{
"CN": "admin",
"hosts": [],
"key": {
"algo": "rsa",
"size": 2048
},
"names": [
{
"C": "CN",
"ST": "Shanghai",
"L": "Shanghai",
"O": "system:masters",
"OU": "System"
}
]
}
EOF
3）生成证书和密钥
[root@k8s-master01 work]# cfssl gencert -ca=/opt/k8s/work/ca.pem -ca-key=/opt/k8s/work/ca-key.pem -config=/opt/k8s/work/ca-config.json -profile=kubernetes admin-csr.json | cfssljson -bare admin
4）创建 Kubeconfig 文件
配置集群参数
[root@k8s-master01 work]# kubectl config set-cluster kubernetes \
--certificate-authority=/opt/k8s/work/ca.pem \
--embed-certs=true \
--server=${KUBE_APISERVER} \
--kubeconfig=kubectl.kubeconfig
配置客户端认证参数
[root@k8s-master01 work]# kubectl config set-credentials admin \
--client-certificate=/opt/k8s/work/admin.pem \
--client-key=/opt/k8s/work/admin-key.pem \
--embed-certs=true \
--kubeconfig=kubectl.kubeconfig
配置上下文参数
[root@k8s-master01 work]# kubectl config set-context kubernetes \
--cluster=kubernetes \
--user=admin \
--kubeconfig=kubectl.kubeconfig
配置默认上下文
[root@k8s-master01 work]# kubectl config use-context kubernetes --kubeconfig=kubectl.kubeconfig
5）创建 Kubectl 配置文件，并配置命令补全工具
[root@k8s-master01 work]# for master_ip in ${MASTER_IPS[@]}
do
echo ">>> ${master_ip}"
ssh root@${master_ip} "mkdir -p ~/.kube"
scp kubectl.kubeconfig root@${master_ip}:~/.kube/config
ssh root@${master_ip} "echo 'export KUBECONFIG=\$HOME/.kube/config' >> ~/.bashrc"
ssh root@${master_ip} "echo 'source <(kubectl completion bash)' >> ~/.bashrc"
done
下面命令需要在 k8s-master01 和 k8s-master02 上配置：
[root@k8s-master01 work]# source /usr/share/bash-completion/bash_completion
[root@k8s-master01 work]# source <(kubectl completion bash)
[root@k8s-master01 work]# bash ~/.bashrc
三、安装 Kubenetes 相关组件
1.安装 Kube-APIServer 组件
下载Kubernetes 二进制文件
[root@k8s-master01 work]# wget https://storage.googleapis.com/kubernetes-release/release/v1.18.3/kubernetes-server-linux-amd64.tar.gz
[root@k8s-master01 work]# tar -zxf kubernetes-server-linux-amd64.tar.gz
[root@k8s-master01 work]# cd kubernetes
[root@k8s-master01 kubernetes]# tar -zxf kubernetes-src.tar.gz
[root@k8s-master01 kubernetes]# cd ..
[root@k8s-master01 work]# for master_ip in ${MASTER_IPS[@]}
do
echo ">>> ${master_ip}"
scp -rp kubernetes/server/bin/{apiextensions-apiserver,kube-apiserver,kube-controller-manager,kube-scheduler,kubeadm,kubectl,mounter} root@${master_ip}:/opt/k8s/bin/
ssh root@${master_ip} "chmod +x /opt/k8s/bin/*"
done
1）创建 Kubernetes 证书和密钥
[root@k8s-master01 work]# cat > kubernetes-csr.json << EOF
{
"CN": "kubernetes",
"hosts": [
"127.0.0.1",
"192.168.1.11",
"192.168.1.20",
"${CLUSTER_KUBERNETES_SVC_IP}",
"kubernetes",
"kubernetes.default",
"kubernetes.default.svc",
"kubernetes.default.svc.cluster",
"kubernetes.default.svc.cluster.local."
],
"key": {
"algo": "rsa",
"size": 2048
},
"names": [
{
"C": "CN",
"ST": "Shanghai",
"L": "Shanghai",
"O": "k8s",
"OU": "System"
}
]
}
EOF
2）生成证书和密钥
[root@k8s-master01 work]# cfssl gencert -ca=/opt/k8s/work/ca.pem -ca-key=/opt/k8s/work/ca-key.pem -config=/opt/k8s/work/ca-config.json -profile=kubernetes kubernetes-csr.json | cfssljson -bare kubernetes
[root@k8s-master01 work]# for master_ip in ${MASTER_IPS[@]}
do
echo ">>> ${master_ip}"
ssh root@${master_ip} "mkdir -p /etc/kubernetes/cert"
scp kubernetes*.pem root@${master_ip}:/etc/kubernetes/cert/
done
3）配置 Kube-APIServer 审计
创建加密配置文件
[root@k8s-master01 work]# cat > encryption-config.yaml << EOF
kind: EncryptionConfig
apiVersion: v1
resources:
- resources:
- secrets
providers:
- aescbc:
keys:
- name: zhangsan
secret: ${ENCRYPTION_KEY}
- identity: { }
EOF
[root@k8s-master01 work]# for master_ip in ${MASTER_IPS[@]}
do
echo ">>> ${master_ip}"
scp encryption-config.yaml root@${master_ip}:/etc/kubernetes/encryption-config.yaml
done
创建审计策略文件
[root@k8s-master01 work]# cat > audit-policy.yaml << EOF
apiVersion: audit.k8s.io/v1beta1
kind: Policy
rules:
# The following requests were manually identified as high-volume and low-risk, so drop them.
- level: None
resources:
- group: ""
resources:
- endpoints
- services
- services/status
users:
- 'system:kube-proxy'
verbs:
- watch
- level: None
resources:
- group: ""
resources:
- nodes
- nodes/status
userGroups:
- 'system:nodes'
verbs:
- get
- level: None
namespaces:
- kube-system
resources:
- group: ""
resources:
- endpoints
users:
- 'system:kube-controller-manager'
- 'system:kube-scheduler'
- 'system:serviceaccount:kube-system:endpoint-controller'
verbs:
- get
- update
- level: None
resources:
- group: ""
resources:
- namespaces
- namespaces/status
- namespaces/finalize
users:
- 'system:apiserver'
verbs:
- get
# Don't log HPA fetching metrics.
- level: None
resources:
- group: metrics.k8s.io
users:
- 'system:kube-controller-manager'
verbs:
- get
- list
# Don't log these read-only URLs.
- level: None
nonResourceURLs:
- '/healthz*'
- /version
- '/swagger*'
# Don't log events requests.
- level: None
resources:
- group: ""
resources:
- events
# node and pod status calls from nodes are high-volume and can be large, don't log responses for expected updates from nodes
- level: Request
omitStages:
- RequestReceived
resources:
- group: ""
resources:
- nodes/status
- pods/status
users:
- kubelet
- 'system:node-problem-detector'
- 'system:serviceaccount:kube-system:node-problem-detector'
verbs:
- update
- patch
- level: Request
omitStages:
- RequestReceived
resources:
- group: ""
resources:
- nodes/status
- pods/status
userGroups:
- 'system:nodes'
verbs:
- update
- patch
# deletecollection calls can be large, don't log responses for expected namespace deletions
- level: Request
omitStages:
- RequestReceived
users:
- 'system:serviceaccount:kube-system:namespace-controller'
verbs:
- deletecollection
# Secrets, ConfigMaps, and TokenReviews can contain sensitive & binary data,
# so only log at the Metadata level.
- level: Metadata
omitStages:
- RequestReceived
resources:
- group: ""
resources:
- secrets
- configmaps
- group: authentication.k8s.io
resources:
- tokenreviews
# Get repsonses can be large; skip them.
- level: Request
omitStages:
- RequestReceived
resources:
- group: ""
- group: admissionregistration.k8s.io
- group: apiextensions.k8s.io
- group: apiregistration.k8s.io
- group: apps
- group: authentication.k8s.io
- group: authorization.k8s.io
- group: autoscaling
- group: batch
- group: certificates.k8s.io
- group: extensions
- group: metrics.k8s.io
- group: networking.k8s.io
- group: policy
- group: rbac.authorization.k8s.io
- group: scheduling.k8s.io
- group: settings.k8s.io
- group: storage.k8s.io
verbs:
- get
- list
- watch
# Default level for known APIs
- level: RequestResponse
omitStages:
- RequestReceived
resources:
- group: ""
- group: admissionregistration.k8s.io
- group: apiextensions.k8s.io
- group: apiregistration.k8s.io
- group: apps
- group: authentication.k8s.io
- group: authorization.k8s.io
- group: autoscaling
- group: batch
- group: certificates.k8s.io
- group: extensions
- group: metrics.k8s.io
- group: networking.k8s.io
- group: policy
- group: rbac.authorization.k8s.io
- group: scheduling.k8s.io
- group: settings.k8s.io
- group: storage.k8s.io
# Default level for all other requests.
- level: Metadata
omitStages:
- RequestReceived
EOF
[root@k8s-master01 work]# for master_ip in ${MASTER_IPS[@]}
do
echo ">>> ${master_ip}"
scp audit-policy.yaml root@${master_ip}:/etc/kubernetes/audit-policy.yaml
done
4）配置 Metrics-Server
创建metrics-server 的 CA 证书请求文件
[root@k8s-master01 work]# cat > proxy-client-csr.json << EOF
{
"CN": "system:metrics-server",
"hosts": [],
"key": {
"algo": "rsa",
"size": 2048
},
"names": [
{
"C": "CN",
"ST": "Shanghai",
"L": "Shanghai",
"O": "k8s",
"OU": "System"
}
]
}
EOF
生成证书和密钥
[root@k8s-master01 work]# cfssl gencert -ca=/opt/k8s/work/ca.pem -ca-key=/opt/k8s/work/ca-key.pem -config=/opt/k8s/work/ca-config.json -profile=kubernetes proxy-client-csr.json | cfssljson -bare proxy-client
[root@k8s-master01 work]# for master_ip in ${MASTER_IPS[@]}
do
echo ">>> ${master_ip}"
scp proxy-client*.pem root@${master_ip}:/etc/kubernetes/cert/
done
5）创建启动脚本
[root@k8s-master01 work]# cat > kube-apiserver.service.template << EOF
[Unit]
Description=Kubernetes API Server
Documentation=https://github.com/GoogleCloudPlatform/kubernetes
After=network.target
[Service]
WorkingDirectory=${K8S_DIR}/kube-apiserver
ExecStart=/opt/k8s/bin/kube-apiserver \\
--insecure-port=0 \\
--secure-port=6443 \\
--bind-address=##MASTER_IP## \\
--advertise-address=##MASTER_IP## \\
--default-not-ready-toleration-seconds=360 \\
--default-unreachable-toleration-seconds=360 \\
--feature-gates=DynamicAuditing=true \\
--max-mutating-requests-inflight=2000 \\
--max-requests-inflight=4000 \\
--default-watch-cache-size=200 \\
--delete-collection-workers=2 \\
--encryption-provider-config=/etc/kubernetes/encryption-config.yaml \\
--etcd-cafile=/etc/kubernetes/cert/ca.pem \\
--etcd-certfile=/etc/kubernetes/cert/kubernetes.pem \\
--etcd-keyfile=/etc/kubernetes/cert/kubernetes-key.pem \\
--etcd-servers=${ETCD_ENDPOINTS} \\
--tls-cert-file=/etc/kubernetes/cert/kubernetes.pem \\
--tls-private-key-file=/etc/kubernetes/cert/kubernetes-key.pem \\
--audit-dynamic-configuration \\
--audit-log-maxage=30 \\
--audit-log-maxbackup=3 \\
--audit-log-maxsize=100 \\
--audit-log-truncate-enabled=true \\
--audit-log-path=${K8S_DIR}/kube-apiserver/audit.log \\
--audit-policy-file=/etc/kubernetes/audit-policy.yaml \\
--profiling \\
--anonymous-auth=false \\
--client-ca-file=/etc/kubernetes/cert/ca.pem \\
--enable-bootstrap-token-auth=true \\
--requestheader-allowed-names="system:metrics-server" \\
--requestheader-client-ca-file=/etc/kubernetes/cert/ca.pem \\
--requestheader-extra-headers-prefix=X-Remote-Extra- \\
--requestheader-group-headers=X-Remote-Group \\
--requestheader-username-headers=X-Remote-User \\
--service-account-key-file=/etc/kubernetes/cert/ca.pem \\
--authorization-mode=Node,RBAC \\
--runtime-config=api/all=true \\
--enable-admission-plugins=NamespaceLifecycle,LimitRanger,ServiceAccount,DefaultStorageClass,DefaultTolerationSeconds,MutatingAdmissionWebhook,ValidatingAdmissionWebhook,ResourceQuota,NodeRestriction \\
--allow-privileged=true \\
--apiserver-count=3 \\
--event-ttl=168h \\
--kubelet-certificate-authority=/etc/kubernetes/cert/ca.pem \\
--kubelet-client-certificate=/etc/kubernetes/cert/kubernetes.pem \\
--kubelet-client-key=/etc/kubernetes/cert/kubernetes-key.pem \\
--kubelet-https=true \\
--kubelet-timeout=10s \\
--proxy-client-cert-file=/etc/kubernetes/cert/proxy-client.pem \\
--proxy-client-key-file=/etc/kubernetes/cert/proxy-client-key.pem \\
--service-cluster-ip-range=${SERVICE_CIDR} \\
--service-node-port-range=${NODE_PORT_RANGE} \\
--logtostderr=true \\
--v=2
Restart=on-failure
RestartSec=10
Type=notify
LimitNOFILE=65535
[Install]
WantedBy=multi-user.target
EOF
6）启动 Kube-APIServer 并验证
[root@k8s-master01 work]# for (( A=0; A < 2; A++ ))
do
sed -e "s/##MASTER_NAME##/${MASTER_NAMES[A]}/" -e "s/##MASTER_IP##/${MASTER_IPS[A]}/" kube-apiserver.service.template > kube-apiserver-${MASTER_IPS[A]}.service
done
[root@k8s-master01 work]# for master_ip in ${MASTER_IPS[@]}
do
echo ">>> ${master_ip}"
scp kube-apiserver-${master_ip}.service root@${master_ip}:/etc/systemd/system/kube-apiserver.service
ssh root@${master_ip} "mkdir -p ${K8S_DIR}/kube-apiserver"
ssh root@${master_ip} "systemctl daemon-reload && systemctl enable kube-apiserver --now &&systemctl restart kube-apiserver "
done
查看Kube-APIServer 写入 ETCD 的数据
[root@k8s-master01 work]# ETCDCTL_API=3 etcdctl \
--endpoints=${ETCD_ENDPOINTS} \
--cacert=/opt/k8s/work/ca.pem \
--cert=/opt/k8s/work/etcd.pem \
--key=/opt/k8s/work/etcd-key.pem \
get /registry/ --prefix --keys-only
查看集群信息
[root@k8s-master01 work]# kubectl cluster-info
[root@k8s-master01 work]# kubectl get all --all-namespaces
[root@k8s-master01 work]# kubectl get componentstatuses
[root@k8s-master01 work]# netstat -anpt | grep 6443
授予kube-apiserver 访问 kubelet API 的权限
[root@k8s-master01 work]# kubectl create clusterrolebinding kube-apiserver:kubelet-apis --clusterrole=system:kubelet-api-admin --user kubernetes
2.安装 Controller Manager 组件
1）创建 Controller Manager 证书和密钥
[root@k8s-master01 work]# cat > kube-controller-manager-csr.json << EOF
{
"CN": "system:kube-controller-manager",
"hosts": [
"127.0.0.1",
"192.168.1.11",
"192.168.1.20"
],
"key": {
"algo": "rsa",
"size": 2048
},
"names": [
{
"C": "CN",
"ST": "Shanghai",
"L": "Shanghai",
"O": "system:kube-controller-manager",
"OU": "System"
}
]
}
EOF
2）生成证书和密钥
[root@k8s-master01 work]# cfssl gencert -ca=/opt/k8s/work/ca.pem -ca-key=/opt/k8s/work/ca-key.pem -config=/opt/k8s/work/ca-config.json -profile=kubernetes kube-controller-manager-csr.json | cfssljson -bare kube-controller-manager
[root@k8s-master01 work]# for master_ip in ${MASTER_IPS[@]}
do
echo ">>> ${master_ip}"
scp kube-controller-manager*.pem root@${master_ip}:/etc/kubernetes/cert/
done
3）创建 Kubeconfig 文件
[root@k8s-master01 work]# kubectl config set-cluster kubernetes \
--certificate-authority=/opt/k8s/work/ca.pem \
--embed-certs=true \
--server=${KUBE_APISERVER} \
--kubeconfig=kube-controller-manager.kubeconfig
[root@k8s-master01 work]# kubectl config set-credentials system:kube-controller-manager \
--client-certificate=kube-controller-manager.pem \
--client-key=kube-controller-manager-key.pem \
--embed-certs=true \
--kubeconfig=kube-controller-manager.kubeconfig
[root@k8s-master01 work]# kubectl config set-context system:kube-controller-manager \
--cluster=kubernetes \
--user=system:kube-controller-manager \
--kubeconfig=kube-controller-manager.kubeconfig
[root@k8s-master01 work]# kubectl config use-context system:kube-controller-manager --kubeconfig=kube-controller-manager.kubeconfig
[root@k8s-master01 work]# for master_ip in ${MASTER_IPS[@]}
do
echo ">>> ${master_ip}"
scp kube-controller-manager.kubeconfig root@${master_ip}:/etc/kubernetes/
done
4）创建启动脚本
[root@k8s-master01 work]# cat > kube-controller-manager.service.template << EOF
[Unit]
Description=Kubernetes Controller Manager
Documentation=https://github.com/GoogleCloudPlatform/kubernetes
[Service]
WorkingDirectory=${K8S_DIR}/kube-controller-manager
ExecStart=/opt/k8s/bin/kube-controller-manager \\
--secure-port=10257 \\
--bind-address=127.0.0.1 \\
--profiling \\
--cluster-name=kubernetes \\
--controllers=*,bootstrapsigner,tokencleaner \\
--kube-api-qps=1000 \\
--kube-api-burst=2000 \\
--leader-elect \\
--use-service-account-credentials\\
--concurrent-service-syncs=2 \\
--tls-cert-file=/etc/kubernetes/cert/kube-controller-manager.pem \\
--tls-private-key-file=/etc/kubernetes/cert/kube-controller-manager-key.pem \\
--authentication-kubeconfig=/etc/kubernetes/kube-controller-manager.kubeconfig \\
--client-ca-file=/etc/kubernetes/cert/ca.pem \\
--requestheader-allowed-names="system:metrics-server" \\
--requestheader-client-ca-file=/etc/kubernetes/cert/ca.pem \\
--requestheader-extra-headers-prefix="X-Remote-Extra-" \\
--requestheader-group-headers=X-Remote-Group \\
--requestheader-username-headers=X-Remote-User \\
--cluster-signing-cert-file=/etc/kubernetes/cert/ca.pem \\
--cluster-signing-key-file=/etc/kubernetes/cert/ca-key.pem \\
--experimental-cluster-signing-duration=87600h \\
--horizontal-pod-autoscaler-sync-period=10s \\
--concurrent-deployment-syncs=10 \\
--concurrent-gc-syncs=30 \\
--node-cidr-mask-size=24 \\
--service-cluster-ip-range=${SERVICE_CIDR} \\
--cluster-cidr=${CLUSTER_CIDR} \\
--pod-eviction-timeout=6m \\
--terminated-pod-gc-threshold=10000 \\
--root-ca-file=/etc/kubernetes/cert/ca.pem \\
--service-account-private-key-file=/etc/kubernetes/cert/ca-key.pem \\
--kubeconfig=/etc/kubernetes/kube-controller-manager.kubeconfig \\
--logtostderr=true \\
--v=2
Restart=on-failure
RestartSec=5
[Install]
WantedBy=multi-user.target
EOF
4）启动并验证
[root@k8s-master01 work]# for master_ip in ${MASTER_IPS[@]}
do
echo ">>> ${master_ip}"
scp kube-controller-manager.service.template root@${master_ip}:/etc/systemd/system/kube-controller-manager.service
ssh root@${master_ip} "mkdir -p ${K8S_DIR}/kube-controller-manager"
ssh root@${master_ip} "systemctl daemon-reload && systemctl enable kube-controller-manager --now"
done
查看输出的 Metrics
[root@k8s-master01 work]# curl -s --cacert /opt/k8s/work/ca.pem --cert /opt/k8s/work/admin.pem --key /opt/k8s/work/admin-key.pem https://127.0.0.1:10257/metrics | head
查看权限
[root@k8s-master01 work]# kubectl describe clusterrole system:kube-controller-manager
[root@k8s-master01 work]# kubectl get clusterrole | grep controller
[root@k8s-master01 work]# kubectl describe clusterrole system:controller:deployment-controller
查看当前的 Leader
[root@k8s-master01 work]# kubectl get endpoints kube-controller-manager --namespace=kube-system -o yaml
开源鸿蒙跨平台开发社区汇聚开发者与厂商，共建“一次开发，多端部署”的开源生态，致力于降低跨端开发门槛，推动万物智联创新。
更多推荐
4
0- 0
已为社区贡献1条内容
所有评论(0)
