关于传阅

WikeFlow官网：www.wikesoft.com

WikeFlow学习版演示地址：workflow.wikesoft.com

WikeFlow学习版源代码下载：https://gitee.com/wikesoft/WorkFlow

WikeFlow2.0演示地址：workflow2.wikesoft.com

WikeFlow2.0-Vue3演示地址：http://workflow2-vue3.wikesoft.com:8080/

WikeFlow2.0帮助文档：http://wikeflowhelp.wikesoft.com/你可以将某条流程传阅给某个人

---

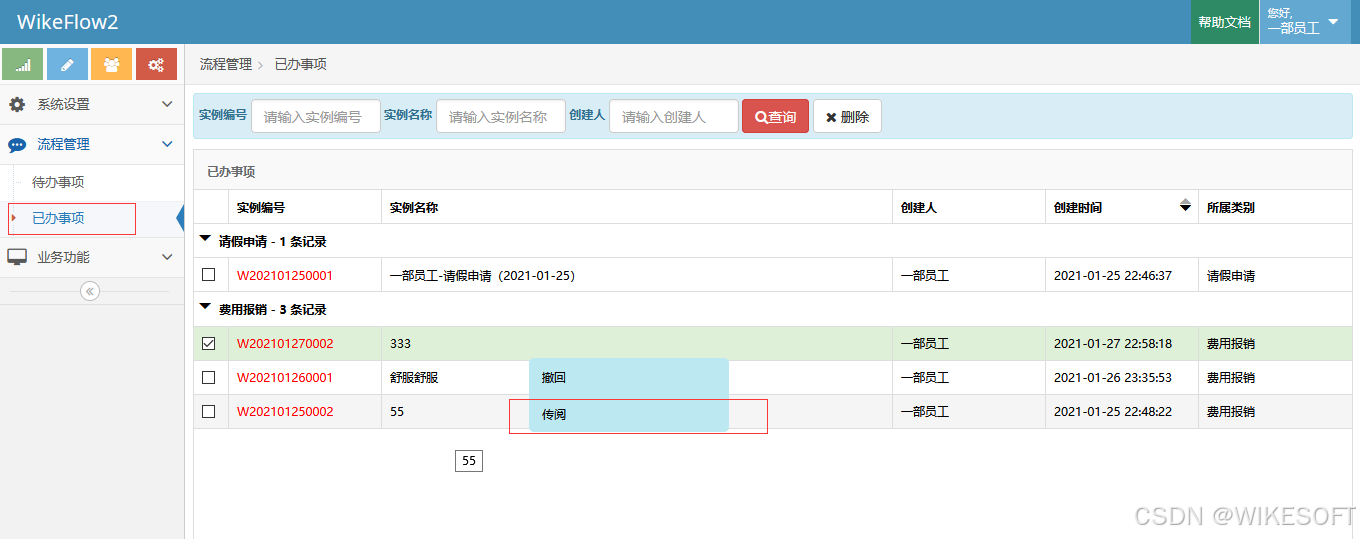

  WikeFlow2.0 传阅

---

  传阅代码

新建一个对象CirculateParms，设置对象的InstanceId（实例ID）、UserId（当前用户）、UserName(当前用户姓名)、TargetUsers（传阅人用户列表）；

其中InstanceId，UserId，TargetUsers这三个参数不能为空。

代码示例如下：

  List<ExecUser> users = _workFlowInstanceService.GetProcUsers(procName, instanceId, userId, query);

  parms.UserId = UserManager.CurrentUser.UserId.ToUpper();

  parms.UserName = UserManager.CurrentUser.TrueName;

  parms.InstanceId = instanceId;

  parms.TargetUsers = users;

  InstanceMessage message = _workFlowInstanceService.WorkflowCirculate(parms);

---

  CirculateParms

using System.Collections.Generic;

using WikeSoft.WorkFlowEngine.Models;

namespace WikeSoft.WorkFlowEngine.Parms

{

    /// <summary>

    /// 流程传阅参数

    /// </summary>

    public class CirculateParms

    {

        /// <summary>

        /// 流程实例ID

        /// </summary>

        public string InstanceId { get; set; }

        /// <summary>

        /// 转办目标用户列表

        /// </summary>

        public List<ExecUser> TargetUsers { get; set; }



        /// <summary>

        /// 当前处理用户Id

        /// </summary>

        public string UserId { get; set; }

        /// <summary>

        /// 当前处理用户名称

        /// </summary>

        public string UserName { get; set; }

    }

}

提示：待办事项页面、已办事项页面的传阅、转办调用的是存储过程Proc_AllUser，你需要定义该存储过程，该存储过程返回你业务系统的用户列表。

SQL Server

CREATE PROC Proc_AllUser

@instanceId VARCHAR(50),--实例Id

@userId VARCHAR(50),--当然用户ID

@query VARCHAR(50)--查询条件

AS

BEGIN



        SELECT Id AS UserId,TrueName AS  UserName FROM Sys_User WHERE  UserName LIKE @query

END

MySQL

CREATE PROCEDURE Proc_AllUser(in p_instanceId VARCHAR(50),in p_userId VARCHAR(50),in p_query VARCHAR(50))

BEGIN

SELECT Id AS UserId,TrueName as UserName FROM Sys_User where TrueName like p_query;

END

Oracle

CREATE OR REPLACE PROCEDURE PROC_ALLUSER

(

  P_INSTANCEID IN VARCHAR2

, P_USERID IN VARCHAR2

, P_QUERY IN VARCHAR2

,V_CUR out sys_refcursor

) AS

BEGIN

 open V_CUR for  SELECT Id AS UserId,TrueName AS  UserName FROM Sys_User WHERE  UserName LIKE P_QUERY;

END PROC_ALLUSER;
