【Kubernetes】Alertmanager 配置 DingTalk 告警
·
让我们一起来深入探讨如何高效配置钉钉告警，确保及时获取重要信息！
- 此处需部署 Prometheus 和 Alertmanager，且需要配置一定的告警规则
- 部署 Prometheus：【Kubernetes】在 K8s 上部署 Prometheus-CSDN博客
- 部署 Alertmanager：【Kubernetes】在 K8s 上部署 Alertmanager-CSDN博客
1、创建 DingTalk 机器人

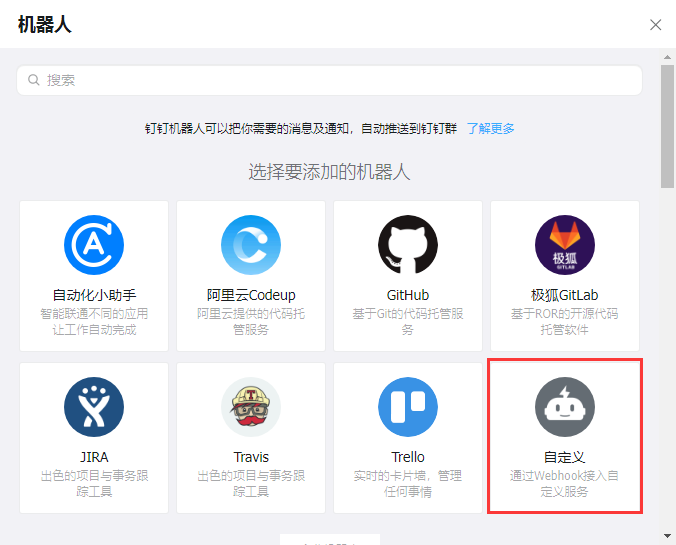

- 群聊 - 群设置 - 机器人 - 添加机器人 - 自定义

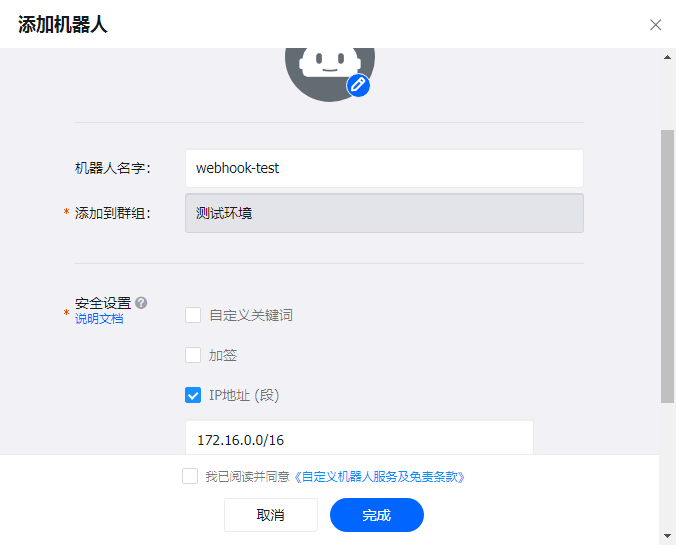

- 添加机器人 - 填写机器人名字 - 选择一项安全设置（结合实际）

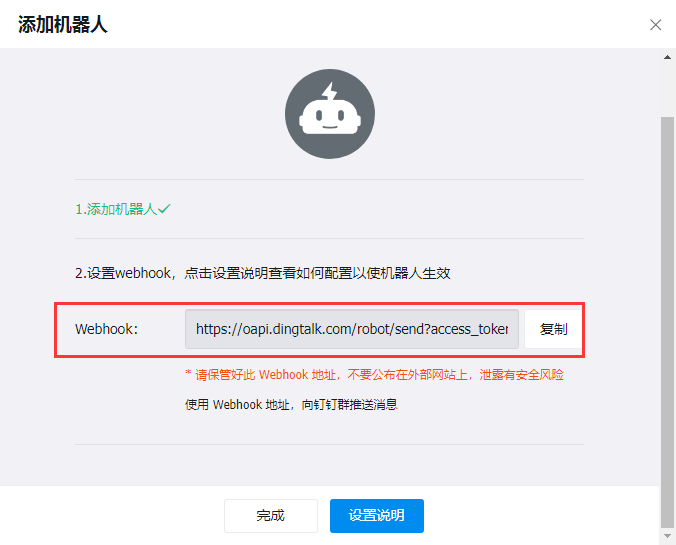

- 完成后获取到 webhook 地址（用于配置下方 webhook - ConfigMap）
2、部署 webhook
- 官网提供 webhook：https://github.com/timonwong/prometheus-webhook-dingtalk
- 若使用官网提供 webhook 可跳过步骤 2，直接访问上方 github 进行应用部署
- 此处为了实现自定义消息格式，自行编写了一个 webhook 代码
2.1、DingTalk 机器人消息请求格式
# 钉钉发送消息格式文档
https://open.dingtalk.com/document/robots/custom-robot-access#66407430cd5xr
# 文本示例
curl "https://oapi.dingtalk.com/robot/send?access_token=xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx" -H 'content-type: application/json' -d '{"text": {"content":"这是一条测试！"},"msgtype":"text"}'
# 下方 webhook 镜像同样适用企业微信的 "消息推送" 功能
# 请求文档：https://developer.work.weixin.qq.com/document/path/99110
# 文本示例
curl 'https://qyapi.weixin.qq.com/cgi-bin/webhook/send?key=xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx' -H 'Content-Type: application/json' -d '{ "msgtype": "text", "text": { "content": "hello world" } }'2.2、Alertmanager 告警请求格式
# github 地址
https://prometheus.io/docs/alerting/latest/configuration/#webhook_config
# 请求内容
{
"version": "4",
"groupKey": <string>, # 用于识别一组警报的关键信息（例如，去重）
"truncatedAlerts": <int>, # 由于 “max_alerts” 限制，有多少警报被截断
"status": "<resolved|firing>",
"receiver": <string>,
"groupLabels": <object>,
"commonLabels": <object>,
"commonAnnotations": <object>,
"externalURL": <string>, # 指向 Alertmanager 反向链接
"alerts": [
{
"status": "<resolved|firing>",
"labels": <object>,
"annotations": <object>,
"startsAt": "<rfc3339>",
"endsAt": "<rfc3339>",
"generatorURL": <string>, # 实际告警
"fingerprint": <string>
},
...
]
}2.3、具体实现
### 伪代码逻辑 ###
# 1. 读取配置文件 config.yml 定义的 dingding 机器人目标 target（可配置多个机器人）
# 2. 根据目录 target 创建对应的 POST 接口，监听 9090 端口使之能接收 Alertmanager 发送的告警
# 3. 解析收到的 Alertmanager 发送的告警，转换为 dingding 能识别的请求体格式
# 4. 转发到目标 target 对应机器人 url，然后机器人就接受到消息并发送到群中
# 具体代码可见下方步骤 4（使用 ubuntu24.04 作为基础镜像）
# 具体编排如下
---
kind: Namespace
apiVersion: v1
metadata:
name: monitoring
labels:
namespace: monitoring
---
apiVersion: v1
data:
config.yml: |
targets:
webhook_abc:
url: https://oapi.dingtalk.com/robot/send?access_token=xxxxxxxxxxxxxxxxxxx
webhook_test:
url: https://oapi.dingtalk.com/robot/send?access_token=xxxxxxxxxxxxxxxxxxx
webhook_wechat:
url: https://qyapi.weixin.qq.com/cgi-bin/webhook/send?key=xxxxxxxxxxxxxxxxxxx
kind: ConfigMap
metadata:
name: webhook-dingtalk-config
namespace: monitoring
---
apiVersion: v1
kind: Service
metadata:
name: webhook-dingtalk-svc
namespace: monitoring
labels:
app: webhook-dingtalk
spec:
ports:
- name: http
port: 9090
targetPort: 9090
selector:
app: webhook-dingtalk
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: webhook-dingtalk
namespace: monitoring
labels:
app: webhook-dingtalk
spec:
replicas: 1
selector:
matchLabels:
app: webhook-dingtalk
template:
metadata:
labels:
app: webhook-dingtalk
spec:
volumes:
- name: config
configMap:
name: webhook-dingtalk-config
defaultMode: 511
- name: timezone
hostPath:
path: /etc/localtime
containers:
- name: webhook-dingtalk
image: alert-webhook:v1
volumeMounts:
- name: config
mountPath: /data/config
- name: timezone
mountPath: /etc/localtime
- name: timezone
mountPath: /etc/timezone
resources:
requests:
cpu: 100m
memory: 100Mi
limits:
cpu: 200m
memory: 200Mi
ports:
- name: http
containerPort: 90903、配置 Alertmanager
- Prometheus 告警配置可参考下方文章步骤 3
- 【Kubernetes】在 K8s 上部署 Alertmanager-CSDN博客
# alertmanager-config.yaml
apiVersion: v1
kind: ConfigMap
metadata:
name: alertmanager-config
namespace: monitoring
data:
alertmanager.yml: |
global:
resolve_timeout: 5m
route:
group_by: ['alertname']
group_wait: 10s
group_interval: 10s
repeat_interval: 1h
receiver: 'web.hook'
routes:
- receiver: 'ding-webhook'
group_by: ['application_type']
repeat_interval: 10m
group_interval: 1d
match_re:
application_type: app-test # 根据实际 label 匹配
receivers:
- name: 'web.hook'
webhook_configs:
- url: 'http://example.com/webhook'
- name: 'ding-webhook'
webhook_configs:
- url: http://webhook-dingtalk-svc:9090/webhook

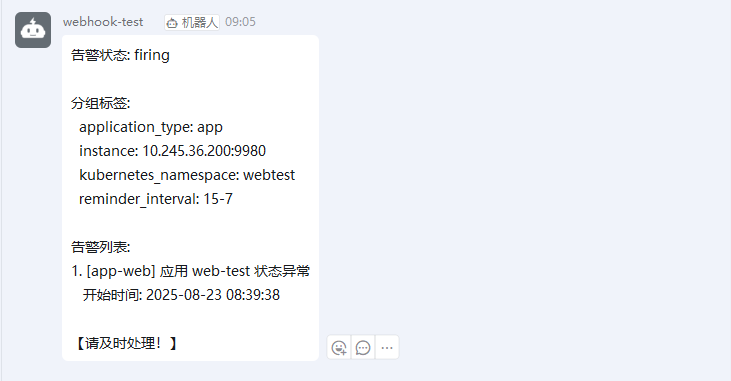

send_resolved: true- 部署完成后就可见到类似下方的告警信息
4、应用实现代码
package main
import (
"bytes"
"encoding/json"
"fmt"
"io"
"net/http"
"os"
"regexp"
"strings"
"time"
)
// AlertInfo 定义告警具体信息的结构体
type AlertInfo struct {
Status string `json:"status"`
Labels map[string]string `json:"labels"`
Annotations map[string]string `json:"annotations"`
StartsAt time.Time `json:"startsAt"`
EndsAt time.Time `json:"endsAt"`
GeneratorURL string `json:"generatorURL"`
Fingerprint string `json:"fingerprint"`
}
// AcceptAlert 定义接收告警完整请求的结构体
type AcceptAlert struct {
Version string `json:"version"`
GroupKey string `json:"groupKey"`
TruncatedAlerts int `json:"truncatedAlerts"`
Status string `json:"status"`
Receiver string `json:"receiver"`
GroupLabels map[string]string `json:"groupLabels"`
CommonLabels map[string]string `json:"commonLabels"`
CommonAnnotations map[string]string `json:"commonAnnotations"`
ExternalURL string `json:"externalURL"`
Alerts []AlertInfo `json:"alerts"`
}
// DingMsgInfo 定义发送 Dingding 请求的结构体
type DingMsgInfo struct {
MsgType string `json:"msgtype"`
Text struct {
Content string `json:"content"`
} `json:"text"`
}
var targets = map[string]string{"tmp": "tmp"}
func GetTargetsInfo(targets map[string]string) {
// 以只读方式打开配置文件
configF, err := os.Open("./config/config.yml")
if err != nil {
fmt.Println("[DEBUG] Failed to open config.yml: ", err)
return
}
// 读取配置文件
buf := make([]byte, 1024*2)
for {
n, err := configF.Read(buf)
if err != nil {
if err == io.EOF {
break
}
fmt.Println("[DEBUG] Failed to read config.yml: ", err)
}
configF.Write(buf[:n])
}
// 操作完毕关闭文件
defer configF.Close()
// 正则匹配 target -> name
regNames := regexp.MustCompile(`webhook_(.*):`)
if regNames == nil {
fmt.Println("[ERROR] Failed to read targets.name:", regNames)
return
}
resNames := regNames.FindAllStringSubmatch(string(buf), -1)
// 正则匹配 target -> url
regUrls := regexp.MustCompile(`url:\s*(http\S+)`)
if regUrls == nil {
fmt.Println("[ERROR] Failed to read targets.url:", regUrls)
return
}
resUrls := regUrls.FindAllStringSubmatch(string(buf), -1)
// 删除临时 targets
delete(targets, "tmp")
// 构建客户端配置结构体
for i, resUrl := range resUrls {
resUrl1 := strings.Trim(resUrl[1], "\x00") // 清理 url 的无效字符
targets[resNames[i][1]] = resUrl1
}
}
func handleWebhook(w http.ResponseWriter, r *http.Request) {
// 仅支持 POST 请求
if r.Method != http.MethodPost {
http.Error(w, "[ERROR] Invalid request method! ", http.StatusMethodNotAllowed)
return
}
// 读取请求体
body, err := io.ReadAll(r.Body)
if err != nil {
http.Error(w, "[ERROR] Incorrect request body! ", http.StatusInternalServerError)
return
}
defer r.Body.Close()
// 解析 Alert 告警消息
var acceptAlert AcceptAlert
err = json.Unmarshal(body, &acceptAlert)
if err != nil {
http.Error(w, "[ERROR] Incorrect request body! ", http.StatusBadRequest)
return
}
// 处理告警信息并转发到钉钉
err = SendToDingTalk(acceptAlert, r.URL.Path)
if err != nil {
fmt.Println(err)
http.Error(w, "[ERROR] Error in forwarding to DingTalk! ", http.StatusInternalServerError)
return
}
w.WriteHeader(http.StatusOK)
w.Write([]byte("OK"))
}
func SendToDingTalk(acceptAlert AcceptAlert, path string) error {
regPath := regexp.MustCompile(`/webhook/(.*)`)
if regPath == nil {
return fmt.Errorf("[ERROR] Failed to read path: %v", regPath)
}
resPath := regPath.FindAllStringSubmatch(path, -1)
DingdingWebhook := targets[resPath[0][1]]
// 处理告警信息（这里可以根据需要修改告警内容）
message := formatAlertMessage(acceptAlert)
// 构建钉钉消息
dingdingMsg := DingMsgInfo{}
dingdingMsg.MsgType = "text"
dingdingMsg.Text.Content = message
// 转换为 JSON
jsonData, err := json.Marshal(dingdingMsg)
if err != nil {
return fmt.Errorf("[ERROR] Error marshaling DingTalk message: %v", err)
}
// 发送到钉钉
resp, err := http.Post(DingdingWebhook, "application/json", bytes.NewBuffer(jsonData))
if err != nil {
return fmt.Errorf("[ERROR] Error sending to DingTalk: %v", err)
}
defer resp.Body.Close()
// 检查响应
if resp.StatusCode != http.StatusOK {
body, _ := io.ReadAll(resp.Body)
return fmt.Errorf("[ERROR] DingTalk API error: %s, %s", resp.Status, string(body))
}
fmt.Printf("[INFO] Alert forwarded to Dingding successfully: %v, %v\n", path, DingdingWebhook)
return nil
}
func formatAlertMessage(acceptAlert AcceptAlert) string {
// 根据 Alertmanager 通知构建自定义消息
var message string
message += fmt.Sprintf("告警状态: %s\n", acceptAlert.Status)
if len(acceptAlert.GroupLabels) > 0 {
message += "\n分组标签:\n"
for k, v := range acceptAlert.GroupLabels {
message += fmt.Sprintf(" %s: %s\n", k, v)
}
}
message += "\n告警列表:\n"
for i, alert := range acceptAlert.Alerts {
message += fmt.Sprintf("%d. [%s] %s\n", i+1, alert.Labels["alertname"], alert.Annotations["summary"])
message += fmt.Sprintf(" 开始时间: %s\n", alert.StartsAt.Format("2006-01-02 15:04:05"))
if val, ok := alert.Annotations["description"]; ok {
message += fmt.Sprintf(" 描述: %s\n", val)
}
}
// 添加自定义内容
message += "\n【请及时处理！】"
return message
}
func main() {
GetTargetsInfo(targets)
// fmt.Println("targets = ", targets)
for key, _ := range targets {
// 设置 HTTP 路由
http.HandleFunc("/webhook/"+key, handleWebhook)
}
// 启动 HTTP 服务器
port := ":9090"
fmt.Printf("[INFO] Listening on localhost%v\n", port)
http.ListenAndServe(port, nil)
}
