1、bundle更新到1.0.1g【bundle不打patch rk3576-v1.0.1g-to-v1.0.1h.7z】

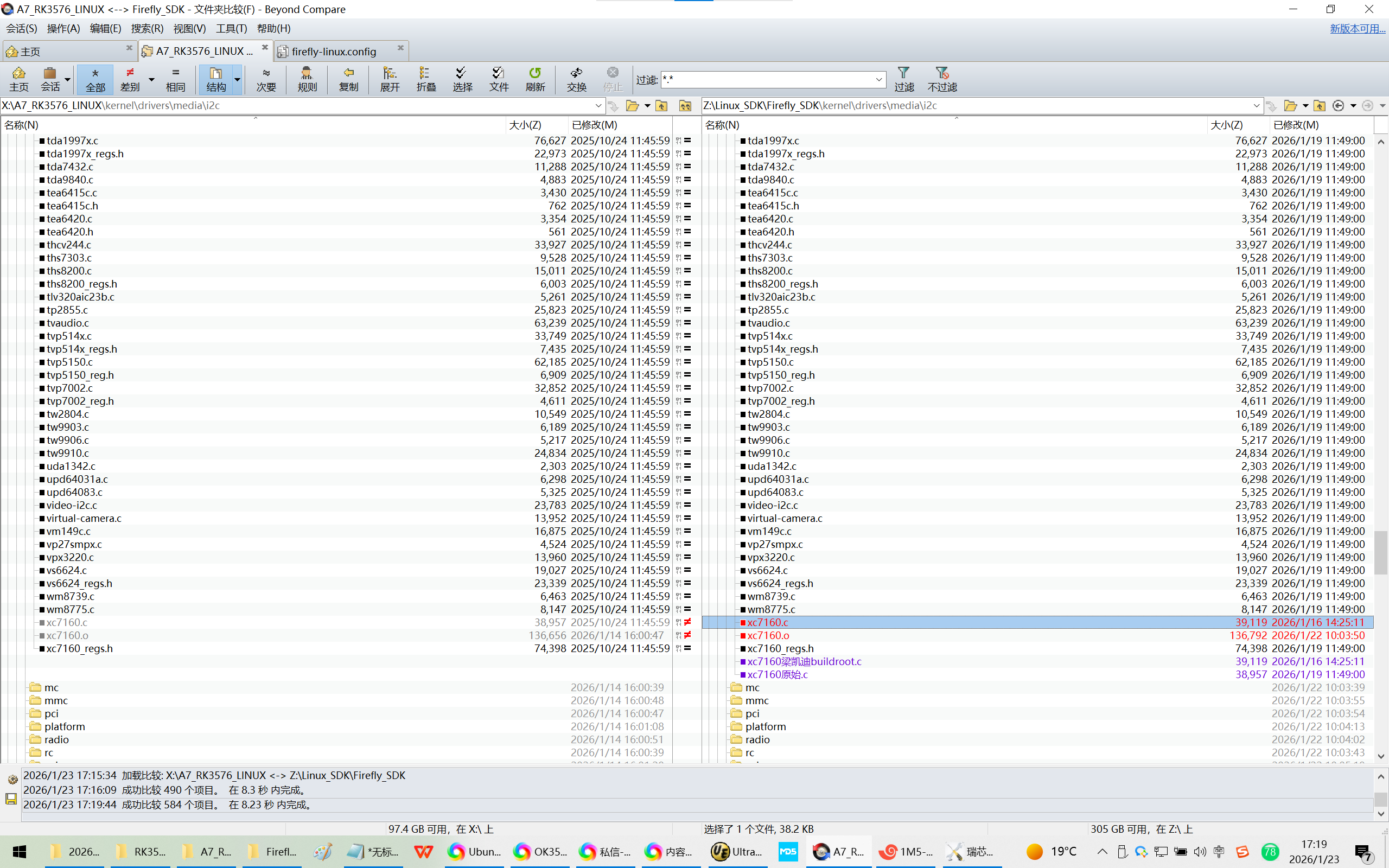

2、替换xc7160.c
Z:\Linux_SDK\Firefly_SDK\kernel\drivers\media\i2c\xc7160.c
3、【编译问题】
Z:\Linux_SDK\Firefly_SDK\buildroot\configs\rockchip\firefly-linux.config
--- a/configs/rockchip/firefly-linux.config
+++ b/configs/rockchip/firefly-linux.config
@@ -1,5 +1,4 @@
 #include "qt5/qt5.config"
-#include "qt5/qt5webengine.config"

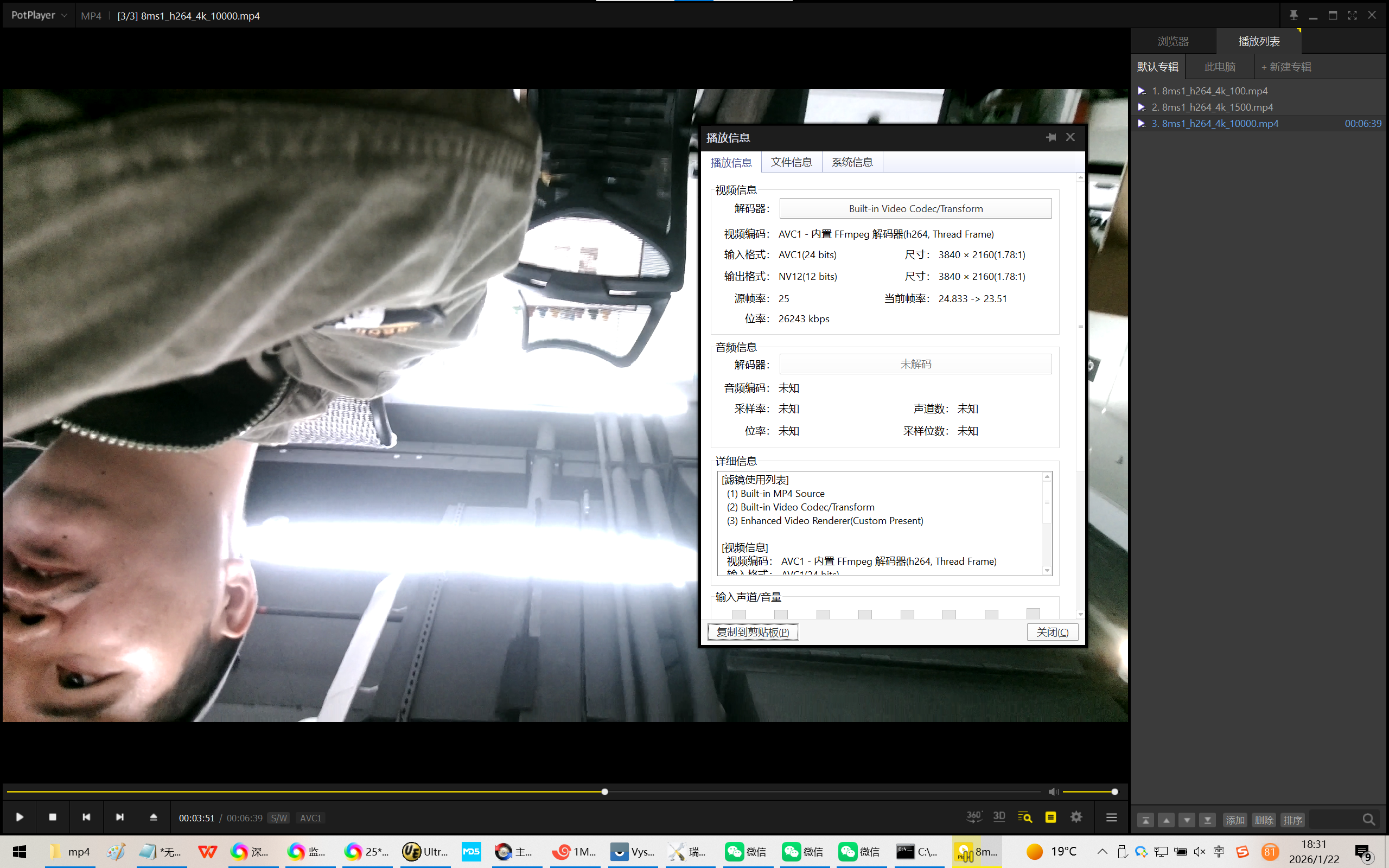

20260123让天启AIO-3576Q38开发板在天启Buildroot下适配摄像头模块8ms1m使用4K录像+预览
2026/1/23 16:26

https://blog.csdn.net/wb4916/article/details/154075701?spm=1011.2415.3001.5331
20251028在Ubuntu20.04.6上编译AIO-3576Q38开发板的Buildroot系统

rootroot@rootroot-X99-Turbo:~/Linux_SDK/Firefly_SDK$ sudo apt-get install libassimp-dev
rootroot@rootroot-X99-Turbo:~$ cd Linux_SDK/
rootroot@rootroot-X99-Turbo:~/Linux_SDK$ cd base-v1.0.1c/
rootroot@rootroot-X99-Turbo:~/Linux_SDK/base-v1.0.1c$ chmod 777 sdk_tools.sh
rootroot@rootroot-X99-Turbo:~/Linux_SDK/base-v1.0.1c$ mkdir ../Firefly_SDK
rootroot@rootroot-X99-Turbo:~/Linux_SDK/base-v1.0.1c$ ./sdk_tools.sh --unpack -C ../Firefly_SDK
rootroot@rootroot-X99-Turbo:~/Linux_SDK/base-v1.0.1c$ ./sdk_tools.sh --sync -C ../Firefly_SDK
rootroot@rootroot-X99-Turbo:~/Linux_SDK/base-v1.0.1c$ cd ..
rootroot@rootroot-X99-Turbo:~/Linux_SDK$ cd Firefly_SDK
rootroot@rootroot-X99-Turbo:~/Linux_SDK/Firefly_SDK$ ll *.7z
-rwx------ 1 rootroot rootroot     25506 10月 22 14:06 rk3576-v1.0.1c-to-v1.0.1d.7z*
-rwx------ 1 rootroot rootroot 179405810 10月 22 14:08 rk3576-v1.0.1d-to-v1.0.1g.7z*
-rwx------ 1 rootroot rootroot 607340352 10月 22 14:13 rk3576-v1.0.1g-to-v1.0.1h.7z*
rootroot@rootroot-X99-Turbo:~/Linux_SDK/Firefly_SDK$
rootroot@rootroot-X99-Turbo:~/Linux_SDK/Firefly_SDK$ 7z x rk3576-v1.0.1c-to-v1.0.1d.7z
rootroot@rootroot-X99-Turbo:~/Linux_SDK/Firefly_SDK$ 7z x rk3576-v1.0.1d-to-v1.0.1g.7z
rootroot@rootroot-X99-Turbo:~/Linux_SDK/Firefly_SDK$ 7z x rk3576-v1.0.1g-to-v1.0.1h.7z
rootroot@rootroot-X99-Turbo:~/Linux_SDK/Firefly_SDK$ ll
rootroot@rootroot-X99-Turbo:~/Linux_SDK/Firefly_SDK$ ./rk3576-v1.0.1c-to-v1.0.1d/bundle_update.sh
rootroot@rootroot-X99-Turbo:~/Linux_SDK/Firefly_SDK$ ./rk3576-v1.0.1d-to-v1.0.1g/bundle_update.sh
【不要打这个patch】
rootroot@rootroot-X99-Turbo:~/Linux_SDK/Firefly_SDK$ ./rk3576-v1.0.1g-to-v1.0.1h/bundle_update.sh

rootroot@rootroot-X99-Turbo:~/Linux_SDK/Firefly_SDK$ ln -s .chips/rk3576/ .chip

rootroot@rootroot-X99-Turbo:~/Linux_SDK/Firefly_SDK$ ./build.sh lunch
8. firefly_rk3576_aio-3576q38_buildroot_defconfig
Which would you like? [1]: 8
rootroot@rootroot-X99-Turbo:~/Linux_SDK/Firefly_SDK$ ./build.sh all

【编译打包后的IMG固件！】
rootroot@rootroot-X99-Turbo:~/Linux_SDK/Firefly_SDK$ cd output/update/
-rw-rw-r--  1 rootroot rootroot 1968349827 10月 28 15:10 AIO-3576Q38_Buildroot_251028.img
rootroot@rootroot-X99-Turbo:~/Linux_SDK/Firefly_SDK/output/update$

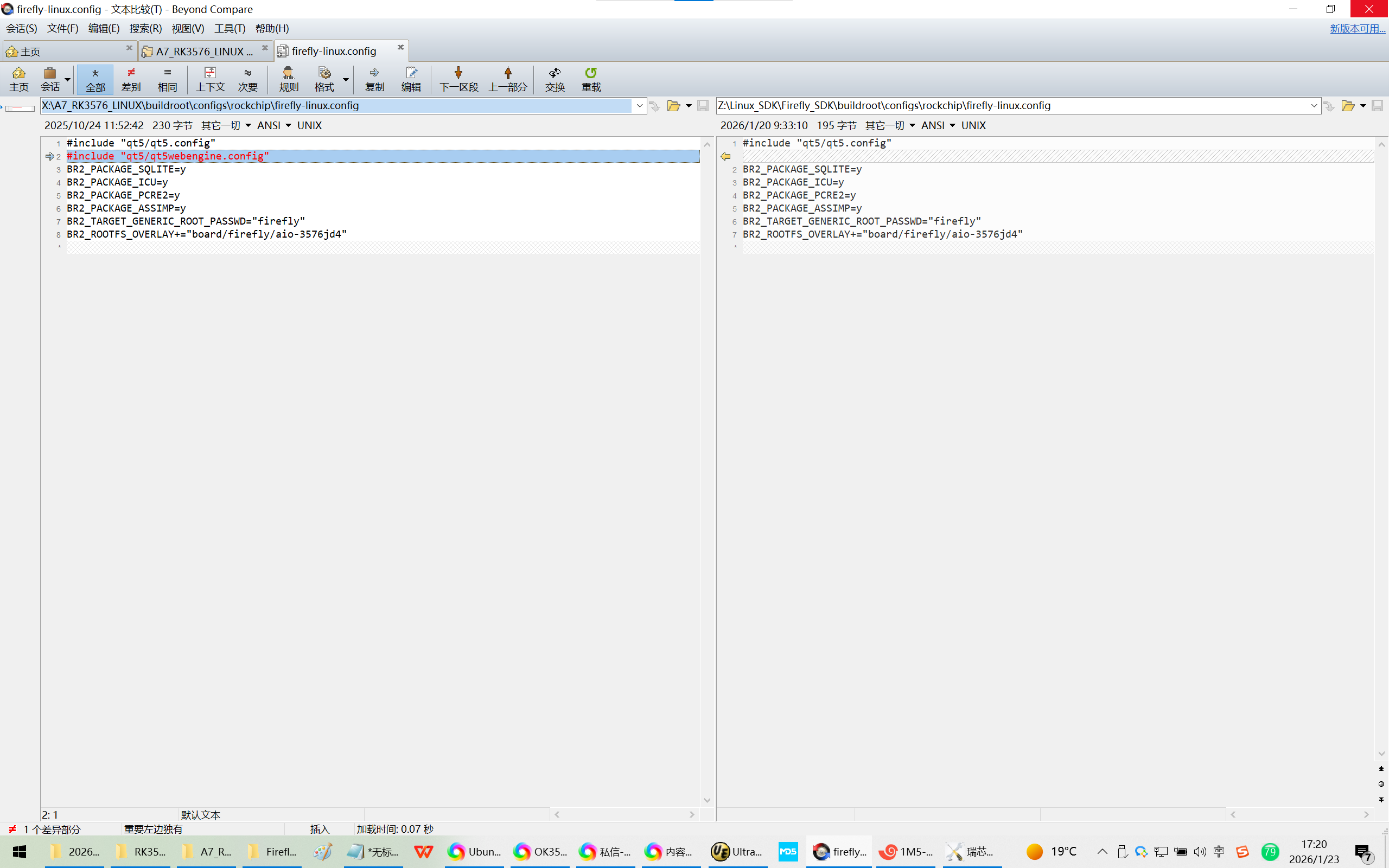

1、编译问题
--- a/configs/rockchip/firefly-linux.config
+++ b/configs/rockchip/firefly-linux.config
@@ -1,5 +1,4 @@
 #include "qt5/qt5.config"
-#include "qt5/qt5webengine.config"
 BR2_PACKAGE_SQLITE=y
 BR2_PACKAGE_ICU=y
 BR2_PACKAGE_PCRE2=y

Z:\Linux_SDK\Firefly_SDK\buildroot\configs\rockchip\firefly-linux.config
#include "qt5/qt5.config"
#include "qt5/qt5webengine.config"
BR2_PACKAGE_SQLITE=y
BR2_PACKAGE_ICU=y
BR2_PACKAGE_PCRE2=y
BR2_PACKAGE_ASSIMP=y
BR2_TARGET_GENERIC_ROOT_PASSWD="firefly"
BR2_ROOTFS_OVERLAY+="board/firefly/aio-3576jd4"

./kconfig/lexer.lex.o
./kconfig/menu.o
./kconfig/expr.o
./kconfig/util.o
./sorttable
./selinux/genheaders/genheaders
./selinux/mdp/mdp
./resource_tool
./lz4
Debian control file:
Package: linux-headers-6.1-arm64
Source: linux-rockchip (6.1)
Version: 6.1-rockchip
Architecture: arm64
Section: kernel
Priority: optional
Multi-Arch: foreign
Depends: make, gcc
Maintainer: Tao Huang <huangtao@rock-chips.com>
Homepage: https://www.kernel.org/
Description: Kbuild and headers for Rockchip Linux 6.1 arm64 configuration
Packing linux-headers-6.1-arm64_arm64.deb...
Running mk-kernel.sh - linux-headers-aarch64 succeeded.
Running mk-kernel.sh - build_extboot succeeded.
==========================================
          Start building rootfs(buildroot)
==========================================
==========================================
          Start building buildroot(2024.02)
==========================================
make: Entering directory '/home/rootroot/Linux_SDK/Firefly_SDK/buildroot'
  GEN     /home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/Makefile
Parsing defconfig: /home/rootroot/Linux_SDK/Firefly_SDK/buildroot/configs/rockchip_rk3576_defconfig
Using configs/rockchip/base/kernel.config as base
Merging configs/rockchip/fs/e2fs.config
Merging configs/rockchip/base/common.config
Merging configs/rockchip/base/base.config
Merging configs/rockchip/bus/can.config
Merging configs/rockchip/bus/pci.config
Merging configs/rockchip/chips/rk3576.config
Value of BR2_ROOTFS_OVERLAY is redefined by configs/rockchip/chips/rk3576.config:
Previous value:    BR2_ROOTFS_OVERLAY="board/rockchip/common/base"
Modify value:    BR2_ROOTFS_OVERLAY+="board/rockchip/rk3576/fs-overlay/"
New value:    BR2_ROOTFS_OVERLAY="board/rockchip/common/base board/rockchip/rk3576/fs-overlay/"

Merging configs/rockchip/chips/rk3576_aarch64.config
Merging configs/rockchip/font/font.config
Merging configs/rockchip/font/chinese.config
Merging configs/rockchip/fs/exfat.config
Merging configs/rockchip/fs/ntfs.config
Merging configs/rockchip/fs/vfat.config
Merging configs/rockchip/gpu/gpu.config
Merging configs/rockchip/multimedia/audio.config
Merging configs/rockchip/multimedia/camera.config
Merging configs/rockchip/multimedia/gst/audio.config
Merging configs/rockchip/multimedia/gst/camera.config
Merging configs/rockchip/multimedia/gst/rtsp.config
Merging configs/rockchip/multimedia/gst/video.config
Merging configs/rockchip/multimedia/mpp.config
Merging configs/rockchip/wifibt/bt.config
Merging configs/rockchip/network/network.config
Merging configs/rockchip/wifibt/wireless.config
Merging configs/rockchip/tools/benchmark.config
Merging configs/rockchip/tools/common.config
Merging configs/rockchip/tools/test.config
Merging configs/rockchip/network/chromium.config
Merging configs/rockchip/npu2.config
Merging configs/rockchip/powermanager.config
Merging configs/rockchip/weston.config
Merging configs/rockchip/font/font.config
Merging configs/rockchip/qt5/qt5.config
Merging configs/rockchip/qt5/qt5webengine.config
Merging configs/rockchip/firefly-linux.config
Value of BR2_TARGET_GENERIC_ROOT_PASSWD is redefined by configs/rockchip/firefly-linux.config:
Previous value:    BR2_TARGET_GENERIC_ROOT_PASSWD="rockchip"
New value:    BR2_TARGET_GENERIC_ROOT_PASSWD="firefly"

Value of BR2_ROOTFS_OVERLAY is redefined by configs/rockchip/firefly-linux.config:
Previous value:    BR2_ROOTFS_OVERLAY="board/rockchip/common/base board/rockchip/rk3576/fs-overlay/"
Modify value:    BR2_ROOTFS_OVERLAY+="board/firefly/aio-3576jd4"
New value:    BR2_ROOTFS_OVERLAY="board/rockchip/common/base board/rockchip/rk3576/fs-overlay/ board/firefly/aio-3576jd4"

Merging /home/rootroot/Linux_SDK/Firefly_SDK/buildroot/configs/rockchip_rk3576_defconfig
#
# merged configuration written to /home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/.config.in (needs make)
#
#
# configuration written to /home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/.config
#
make: Leaving directory '/home/rootroot/Linux_SDK/Firefly_SDK/buildroot'
2026-01-19T15:58:08 >>> qt5webengine 5.15.14 Building
Done in 33s  (error code: 2)
Failed to build rockchip_rk3576:
# 2026-01-19 15:57:57
2026-01-19T15:57:57 make: Entering directory '/home/rootroot/Linux_SDK/Firefly_SDK/buildroot'
2026-01-19T15:58:04 RKPARTYBOX_CONF_OPTS is
2026-01-19T15:58:07 /usr/bin/make -j1  O=/home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576 HOSTCC="/usr/bin/gcc" HOSTCXX="/usr/bin/g++" syncconfig
2026-01-19T15:58:07 GEN     /home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/Makefile
2026-01-19T15:58:08 >>> qt5webengine 5.15.14 Building
2026-01-19T15:58:08 GIT_DIR=. PATH="/home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/host/bin:/home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/host/sbin:/home/rootroot/.local/bin:/opt/FriendlyARM/toolchain/4.9.3/bin:/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin:/usr/games:/usr/local/games:/snap/bin" FORCE_UNSAFE_CONFIGURE=1 PATH=/home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/build/qt5webengine-5.15.14/host-bin:"/home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/host/bin:/home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/host/sbin:/home/rootroot/.local/bin:/opt/FriendlyARM/toolchain/4.9.3/bin:/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin:/usr/games:/usr/local/games:/snap/bin" PKG_CONFIG_SYSROOT_DIR="/" NINJAFLAGS="-j25" GN_PKG_CONFIG_HOST=/home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/build/qt5webengine-5.15.14/host-bin/host-pkg-config GN_HOST_TOOLCHAIN_EXTRA_CPPFLAGS="-I/home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/host/include" /usr/bin/make -j25 -C /home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/build/qt5webengine-5.15.14/
2026-01-19T15:58:08 cd src/ && ( test -e Makefile || /home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/host/bin/qmake -o Makefile /home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/build/qt5webengine-5.15.14/src/src.pro -spec devices/linux-buildroot-g++ ) && /usr/bin/make -f Makefile
2026-01-19T15:58:08 cd buildtools/ && ( test -e Makefile || /home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/host/bin/qmake -o Makefile /home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/build/qt5webengine-5.15.14/src/buildtools/buildtools.pro -spec devices/linux-buildroot-g++ ) && /usr/bin/make -f Makefile
2026-01-19T15:58:08 ( test -e Makefile.configure_host || /home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/host/bin/qmake -o Makefile.configure_host /home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/build/qt5webengine-5.15.14/src/buildtools/configure_host.pro -spec devices/linux-buildroot-g++ ) && /usr/bin/make -f Makefile.configure_host
2026-01-19T15:58:08 ( test -e Makefile.ninja || /home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/host/bin/qmake -o Makefile.ninja /home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/build/qt5webengine-5.15.14/src/buildtools/ninja.pro -spec devices/linux-buildroot-g++ ) && /usr/bin/make -f Makefile.ninja
2026-01-19T15:58:08 make[5]: Nothing to be done for 'first'.
2026-01-19T15:58:08 ( test -e Makefile.configure_target || /home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/host/bin/qmake -o Makefile.configure_target /home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/build/qt5webengine-5.15.14/src/buildtools/configure_target.pro -spec devices/linux-buildroot-g++ ) && /usr/bin/make -f Makefile.configure_target
2026-01-19T15:58:08 make[5]: Nothing to be done for 'first'.
2026-01-19T15:58:08 ( test -e Makefile.gn || /home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/host/bin/qmake -o Makefile.gn /home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/build/qt5webengine-5.15.14/src/buildtools/gn.pro -spec devices/linux-buildroot-g++ ) && /usr/bin/make -f Makefile.gn
2026-01-19T15:58:08 make[5]: Nothing to be done for 'first'.
2026-01-19T15:58:08 make[5]: Nothing to be done for 'first'.
2026-01-19T15:58:08 cd core/ && ( test -e Makefile || /home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/host/bin/qmake -o Makefile /home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/build/qt5webengine-5.15.14/src/core/core.pro -spec devices/linux-buildroot-g++ ) && /usr/bin/make -f Makefile
2026-01-19T15:58:08 ( test -e Makefile.core_headers || /home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/host/bin/qmake -o Makefile.core_headers /home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/build/qt5webengine-5.15.14/src/core/core_headers.pro -spec devices/linux-buildroot-g++ ) && /usr/bin/make -f Makefile.core_headers
2026-01-19T15:58:08 make[5]: Nothing to be done for 'first'.
2026-01-19T15:58:08 ( test -e Makefile.core_generator || /home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/host/bin/qmake -o Makefile.core_generator /home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/build/qt5webengine-5.15.14/src/core/core_generator.pro -spec devices/linux-buildroot-g++ ) && /usr/bin/make -f Makefile.core_generator
2026-01-19T15:58:08 make[5]: Nothing to be done for 'first'.
2026-01-19T15:58:08 ( test -e Makefile.gn_run || /home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/host/bin/qmake -o Makefile.gn_run /home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/build/qt5webengine-5.15.14/src/core/gn_run.pro -spec devices/linux-buildroot-g++ ) && /usr/bin/make -f Makefile.gn_run
2026-01-19T15:58:08 ninja -j25  -C /home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/build/qt5webengine-5.15.14/src/core/release QtWebEngineCore
2026-01-19T15:58:08 ninja: Entering directory `/home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/build/qt5webengine-5.15.14/src/core/release'
2026-01-19T15:58:13 ninja: no work to do.
2026-01-19T15:58:13 cd api/ && ( test -e Makefile.core_api || /home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/host/bin/qmake -o Makefile.core_api /home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/build/qt5webengine-5.15.14/src/core/api/core_api.pro -spec devices/linux-buildroot-g++ ) && /usr/bin/make -f Makefile.core_api
2026-01-19T15:58:13 make[5]: Nothing to be done for 'first'.
2026-01-19T15:58:13 ( test -e Makefile.core_module || /home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/host/bin/qmake -o Makefile.core_module /home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/build/qt5webengine-5.15.14/src/core/core_module.pro -spec devices/linux-buildroot-g++ ) && /usr/bin/make -f Makefile.core_module
2026-01-19T15:58:13 rm -f libQt5WebEngineCore.so.5.15.14 libQt5WebEngineCore.so libQt5WebEngineCore.so.5 libQt5WebEngineCore.so.5.15
2026-01-19T15:58:13 ulimit -n 4096 && /home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/host/bin/aarch64-buildroot-linux-gnu-g++ --sysroot=/home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/host/aarch64-buildroot-linux-gnu/sysroot @/home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/build/qt5webengine-5.15.14/src/core/release/QtWebEngineCore_o.rsp -Wl,--start-group @/home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/build/qt5webengine-5.15.14/src/core/release/QtWebEngineCore_a.rsp -Wl,--end-group -Wl,--fatal-warnings -Wl,--build-id=sha1 -fPIC -Wl,-z,relro -Wl,-z,now -Wl,-z,defs -Wl,-O2 -Wl,--gc-sections --sysroot=/home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/host/aarch64-buildroot-linux-gnu/sysroot --sysroot=/home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/host/aarch64-buildroot-linux-gnu/sysroot -Wl,-O1 -Wl,--enable-new-dtags -Wl,-whole-archive -lqtwebenginecoreapi -Wl,-no-whole-archive -Wl,--no-undefined -Wl,--version-script,QtWebEngineCore.version -Wl,-O1 -Wl,--enable-new-dtags -shared -Wl,-soname,libQt5WebEngineCore.so.5 -o libQt5WebEngineCore.so.5.15.14   -latomic /home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/host/aarch64-buildroot-linux-gnu/sysroot/usr/lib/libQt5Quick.so /home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/host/aarch64-buildroot-linux-gnu/sysroot/usr/lib/libQt5Gui.so /home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/host/aarch64-buildroot-linux-gnu/sysroot/usr/lib/libQt5QmlModels.so /home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/host/aarch64-buildroot-linux-gnu/sysroot/usr/lib/libQt5WebChannel.so /home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/host/aarch64-buildroot-linux-gnu/sysroot/usr/lib/libQt5Qml.so /home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/host/aarch64-buildroot-linux-gnu/sysroot/usr/lib/libQt5Network.so /home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/host/aarch64-buildroot-linux-gnu/sysroot/usr/lib/libQt5Core.so -lpthread -L/home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/host/aarch64-buildroot-linux-gnu/sysroot/usr/lib -latomic -lmali-hook -lmali-hook-injector -lmali -ldrm -lwayland-client -lwayland-server -lpthread -ldl -lrt -lnss3 -lnssutil3 -lsmime3 -lplds4 -lplc4 -lnspr4 -levent -lresolv -ljpeg -lm -lopus -lz -lvpx -lpng16 -lwebp -lwebpmux -lwebpdemux -lfreetype -lexpat -lfontconfig -lharfbuzz-subset -lharfbuzz -lpci -lasound -lsnappy -lxml2 -lxslt -ldbus-1 -L/home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/build/qt5webengine-5.15.14/src/core/api/release -lmali-hook -lmali-hook-injector -lmali -ldrm -lwayland-client -lwayland-server -lrt -lpthread -ldl
2026-01-19T15:58:18 /home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/host/lib/gcc/aarch64-buildroot-linux-gnu/12.4.0/../../../../aarch64-buildroot-linux-gnu/bin/ld: /home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/host/aarch64-buildroot-linux-gnu/sysroot/usr/lib/libmali.so: .dynsym local symbol at index 3 (>= sh_info of 3)
2026-01-19T15:58:18 /home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/host/lib/gcc/aarch64-buildroot-linux-gnu/12.4.0/../../../../aarch64-buildroot-linux-gnu/bin/ld: /home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/host/aarch64-buildroot-linux-gnu/sysroot/usr/lib/libmali.so: .dynsym local symbol at index 4 (>= sh_info of 3)
2026-01-19T15:58:18 /home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/host/lib/gcc/aarch64-buildroot-linux-gnu/12.4.0/../../../../aarch64-buildroot-linux-gnu/bin/ld: /home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/host/aarch64-buildroot-linux-gnu/sysroot/usr/lib/libmali.so: .dynsym local symbol at index 5 (>= sh_info of 3)
2026-01-19T15:58:18 /home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/host/lib/gcc/aarch64-buildroot-linux-gnu/12.4.0/../../../../aarch64-buildroot-linux-gnu/bin/ld: /home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/host/aarch64-buildroot-linux-gnu/sysroot/usr/lib/libmali.so: .dynsym local symbol at index 6 (>= sh_info of 3)
2026-01-19T15:58:18 /home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/host/lib/gcc/aarch64-buildroot-linux-gnu/12.4.0/../../../../aarch64-buildroot-linux-gnu/bin/ld: /home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/host/aarch64-buildroot-linux-gnu/sysroot/usr/lib/libmali.so: .dynsym local symbol at index 7 (>= sh_info of 3)
2026-01-19T15:58:18 /home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/host/lib/gcc/aarch64-buildroot-linux-gnu/12.4.0/../../../../aarch64-buildroot-linux-gnu/bin/ld: /home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/host/aarch64-buildroot-linux-gnu/sysroot/usr/lib/libmali.so: .dynsym local symbol at index 8 (>= sh_info of 3)
2026-01-19T15:58:18 /home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/host/lib/gcc/aarch64-buildroot-linux-gnu/12.4.0/../../../../aarch64-buildroot-linux-gnu/bin/ld: /home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/host/aarch64-buildroot-linux-gnu/sysroot/usr/lib/libmali.so: .dynsym local symbol at index 9 (>= sh_info of 3)
2026-01-19T15:58:30 collect2: error: ld returned 1 exit status
2026-01-19T15:58:30 make[5]: *** [Makefile.core_module:90: ../../lib/libQt5WebEngineCore.so.5.15.14] Error 1
2026-01-19T15:58:30 make[4]: *** [Makefile:124: sub-core_module-pro-make_first] Error 2
2026-01-19T15:58:30 make[3]: *** [Makefile:79: sub-core-make_first] Error 2
2026-01-19T15:58:30 make[2]: *** [Makefile:49: sub-src-make_first] Error 2
2026-01-19T15:58:30 make[1]: *** [package/pkg-generic.mk:303: /home/rootroot/Linux_SDK/Firefly_SDK/buildroot/output/rockchip_rk3576/build/qt5webengine-5.15.14/.stamp_built] Error 2
2026-01-19T15:58:30 make: *** [Makefile:112: _all] Error 2
2026-01-19T15:58:30 make: Leaving directory '/home/rootroot/Linux_SDK/Firefly_SDK/buildroot'
Please check details in /home/rootroot/Linux_SDK/Firefly_SDK/output/sessions/2026-01-19_15-56-27/br-rockchip_rk3576_2026-01-19_15-57-57.log
ERROR: Running /home/rootroot/Linux_SDK/Firefly_SDK/device/rockchip/common/scripts/mk-rootfs.sh - build_buildroot failed!
ERROR: exit code 1 from line 16:
    "$RK_SCRIPTS_DIR/mk-buildroot.sh" $RK_BUILDROOT_CFG "$IMAGE_DIR"
ERROR: call stack:
    mk-rootfs.sh: build_buildroot(16)
    mk-rootfs.sh: build_hook(322)
    mk-rootfs.sh: main(352)
ERROR: Running /home/rootroot/Linux_SDK/Firefly_SDK/device/rockchip/common/build-hooks/99-all.sh - build_all failed!
ERROR: exit code 1 from line 23:
    "$RK_SCRIPTS_DIR/mk-rootfs.sh"
ERROR: call stack:
    99-all.sh: build_all(23)
    99-all.sh: build_hook(169)
    build-helper: try_func(63)
    build-helper: try_hook(96)
    build-helper: source(174)
    99-all.sh: main(180)
ERROR: Running /home/rootroot/Linux_SDK/Firefly_SDK/device/rockchip/common/build-hooks/99-all.sh - try_func build_hook all failed!
ERROR: exit code 1 from line 67:
    build_hook
ERROR: call stack:
    build-helper: try_func(67)
    build-helper: try_hook(96)
    build-helper: source(174)
    99-all.sh: main(180)
rootroot@rootroot-X99-Turbo:~/Linux_SDK/Firefly_SDK$

2、

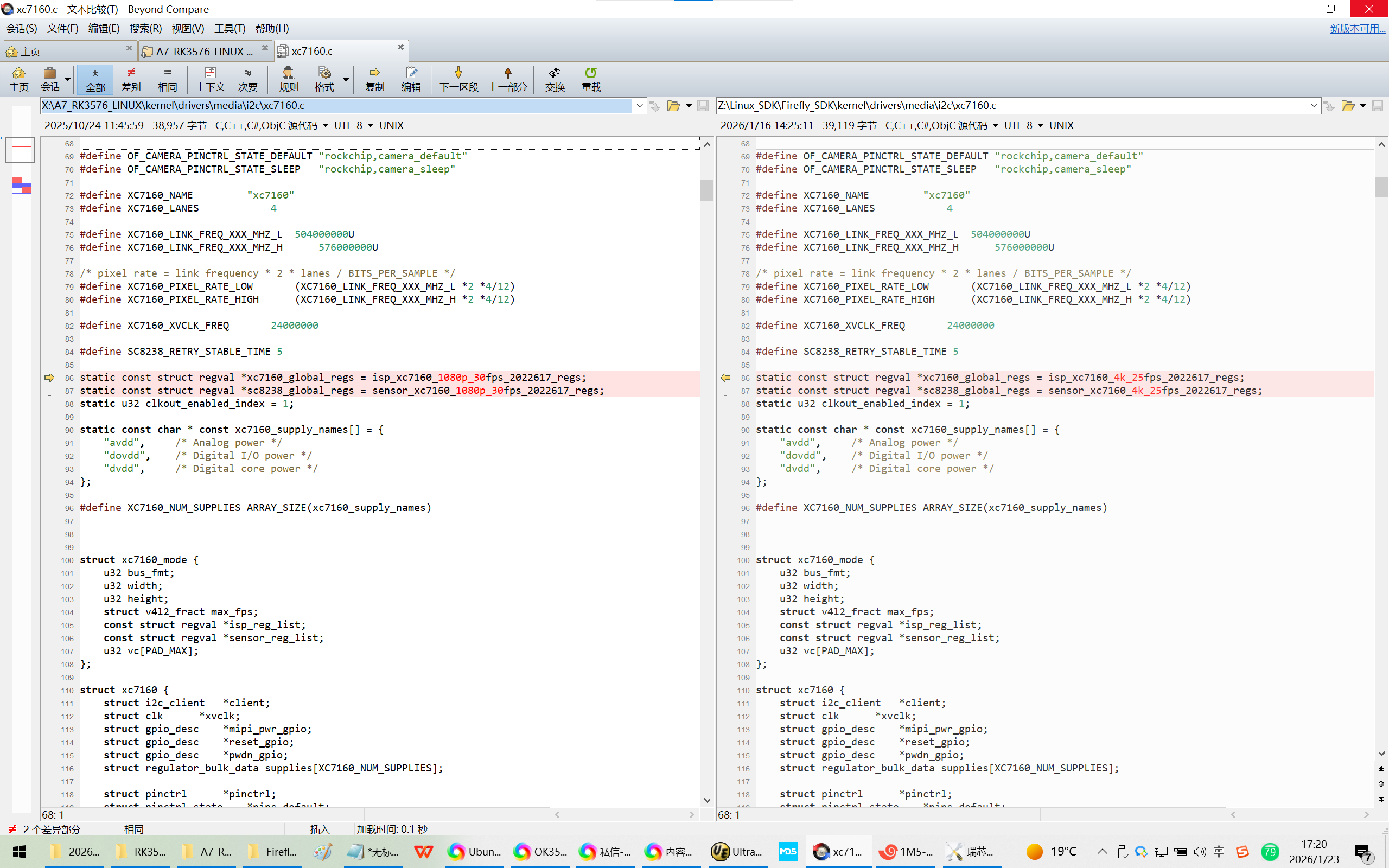

Z:\Linux_SDK\Firefly_SDK\kernel\drivers\media\i2c\xc7160.c

static const struct regval *xc7160_global_regs = isp_xc7160_1080p_30fps_2022617_regs;
static const struct regval *sc8238_global_regs = sensor_xc7160_1080p_30fps_2022617_regs;
static u32 clkout_enabled_index = 1;

修改为：

static const struct regval *xc7160_global_regs = isp_xc7160_4k_25fps_2022617_regs;
static const struct regval *sc8238_global_regs = sensor_xc7160_4k_25fps_2022617_regs;
static u32 clkout_enabled_index = 1;

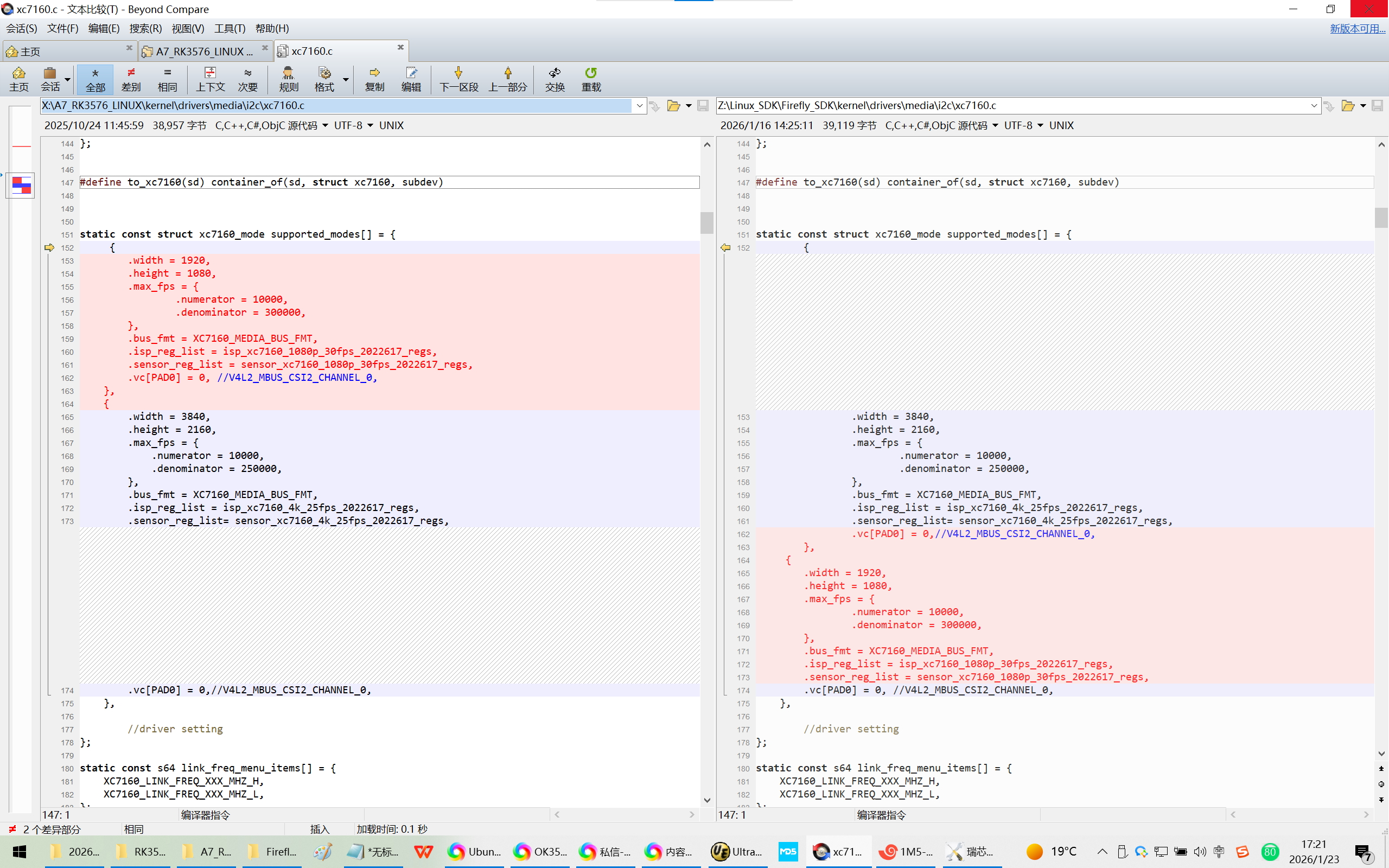

static const struct xc7160_mode supported_modes[] = {
     {
        .width = 1920,
        .height = 1080,
        .max_fps = {
                .numerator = 10000,
                .denominator = 300000,
        },
        .bus_fmt = XC7160_MEDIA_BUS_FMT,
        .isp_reg_list = isp_xc7160_1080p_30fps_2022617_regs,
        .sensor_reg_list = sensor_xc7160_1080p_30fps_2022617_regs,
        .vc[PAD0] = 0, //V4L2_MBUS_CSI2_CHANNEL_0,
    },
    {
        .width = 3840,
        .height = 2160,
        .max_fps = {
            .numerator = 10000,
            .denominator = 250000,
        },
        .bus_fmt = XC7160_MEDIA_BUS_FMT,
        .isp_reg_list = isp_xc7160_4k_25fps_2022617_regs,
        .sensor_reg_list= sensor_xc7160_4k_25fps_2022617_regs,
        .vc[PAD0] = 0,//V4L2_MBUS_CSI2_CHANNEL_0,
    },

        //driver setting
};

修改为：

static const struct xc7160_mode supported_modes[] = {
        {
                .width = 3840,
                .height = 2160,
                .max_fps = {
                        .numerator = 10000,
                        .denominator = 250000,
                },
                .bus_fmt = XC7160_MEDIA_BUS_FMT,
                .isp_reg_list = isp_xc7160_4k_25fps_2022617_regs,
                .sensor_reg_list= sensor_xc7160_4k_25fps_2022617_regs,
                .vc[PAD0] = 0,//V4L2_MBUS_CSI2_CHANNEL_0,
        },
     {
        .width = 1920,
        .height = 1080,
        .max_fps = {
                .numerator = 10000,
                .denominator = 300000,
        },
        .bus_fmt = XC7160_MEDIA_BUS_FMT,
        .isp_reg_list = isp_xc7160_1080p_30fps_2022617_regs,
        .sensor_reg_list = sensor_xc7160_1080p_30fps_2022617_regs,
        .vc[PAD0] = 0, //V4L2_MBUS_CSI2_CHANNEL_0,
    },

        //driver setting
};

3、效果图：

4K
gst-launch-1.0 v4l2src device=/dev/video11 num-buffers=100 ! video/x-raw,format=NV12, width=3840,height=2160 ! tee name=t ! queue ! mpph264enc ! queue ! h264parse ! qtmux ! filesink location=8ms1_h264_4k_100.mp4 t. ! queue ! waylandsink

gst-launch-1.0 v4l2src device=/dev/video11 num-buffers=10000 ! video/x-raw,format=NV12, width=3840,height=2160 ! tee name=t ! queue ! mpph264enc ! queue ! h264parse ! qtmux ! filesink location=8ms1_h264_4k_10000.mp4 t. ! queue ! waylandsink

1080p
gst-launch-1.0 v4l2src device=/dev/video11 num-buffers=10000 ! video/x-raw,format=NV12, width=1920,height=1080 ! tee name=t ! queue ! mpph264enc ! queue ! h264parse ! qtmux ! filesink location=8ms1_h264_1080p_100.mp4 t. ! queue ! waylandsink

25*60=1500【1分钟的4K录像】
gst-launch-1.0 v4l2src device=/dev/video11 num-buffers=1500 ! video/x-raw,format=NV12, width=3840,height=2160 ! tee name=t ! queue ! mpph264enc ! queue ! h264parse ! qtmux ! filesink location=8ms1_h264_4k_1500.mp4 t. ! queue ! waylandsink

buildroot用命令进行4k录像
gst-launch-1.0 -e v4l2src device=/dev/video11 io-mode=4 ! \
  video/x-raw,format=NV12,width=3840,height=2160,framerate=30/1 ! \
  mpph265enc ! h265parse ! video/x-h265,stream-format=hev1,alignment=au ! \
  mp4mux -e ! filesink location=hw265.mp4

gst-launch-1.0 v4l2src device=/dev/video11 num-buffers=10000 ! video/x-raw,format=NV12, width=1920,height=1080 ! tee name=t ! queue ! mpph264enc ! queue ! h264parse ! qtmux ! filesink location=13855_h264_1080p_100.mp4 t. ! queue ! waylandsink
gst-launch-1.0 v4l2src device=/dev/video11 num-buffers=100 ! video/x-raw,format=NV12, width=1920,height=1080 ! tee name=t ! queue ! mpph264enc ! queue ! h264parse ! qtmux ! filesink location=13855_h264_1080p_100.mp4 t. ! queue ! waylandsink

4、替换xc7160.c
Z:\Linux_SDK\Firefly_SDK\kernel\drivers\media\i2c\xc7160.c

// SPDX-License-Identifier: GPL-2.0
/*
 * xc7160 driver
 * V0.0X01.0X02
 * 1. fix compile error in kernel5.10
 * V0.0X01.0X03
 * 1.add cmd to get channel info and ioctl
 * 2.adjust bus format to UYVY for hal3 to get media device without isp
 * V0.0X01.0X04
 * 1.v4l2_fwnode_endpoint_parse get resource failed, so ignore it
 * 2.adjust init reg to power on interface, fix up preview and recording failed.
 *
 */

#include <linux/delay.h>
#include <linux/clk.h>
#include <linux/device.h>
#include <linux/delay.h>
#include <linux/gpio/consumer.h>
#include <linux/i2c.h>
#include <linux/module.h>
#include <linux/pm_runtime.h>
#include <linux/regulator/consumer.h>
#include <linux/sysfs.h>
#include <linux/slab.h>
#include <linux/uaccess.h>
#include <linux/videodev2.h>
#include <linux/version.h>
#include <linux/rk-camera-module.h>
#include <media/media-entity.h>
#include <media/v4l2-async.h>
#include <media/v4l2-ctrls.h>
#include <media/v4l2-device.h>
#include <media/v4l2-event.h>
#include <media/v4l2-fwnode.h>
#include <media/v4l2-image-sizes.h>
#include <media/v4l2-mediabus.h>
#include <media/v4l2-subdev.h>
#include <linux/pinctrl/consumer.h>
#include <linux/of_gpio.h>
#include "xc7160_regs.h"

//#define         FIREFLY_DEBUG 0
#define DRIVER_VERSION            KERNEL_VERSION(0, 0x01, 0x04)
#define XC7160_MEDIA_BUS_FMT MEDIA_BUS_FMT_UYVY8_2X8 //MEDIA_BUS_FMT_YUYV8_2X8

#define XC7160_REG_HIGH_SELECT 0xfffd
#define XC7160_REG_PAGE_SELECT  0xfffe

#define XC7160_CHIP_REG_ID1_ZYK        0xfffb
#define XC7160_CHIP_REG_ID2_ZYK        0xfffc

#define XC7160_CHIP_ID1_ZYK            0x71
#define XC7160_CHIP_ID2_ZYK            0x60

#define SC8238_CHIP_REG_ID1_ZYK        0x3107
#define SC8238_CHIP_REG_ID2_ZYK        0x3108

#define SC8238_CHIP_ID1_ZYK            0x82
#define SC8238_CHIP_ID2_ZYK            0x35

#define XC7160_REG_VALUE_08BIT        1
#define XC7160_REG_VALUE_16BIT        2
#define XC7160_REG_VALUE_24BIT        3

static DEFINE_MUTEX(xc7160_power_mutex);

#define OF_CAMERA_PINCTRL_STATE_DEFAULT    "rockchip,camera_default"
#define OF_CAMERA_PINCTRL_STATE_SLEEP    "rockchip,camera_sleep"

#define XC7160_NAME            "xc7160"
#define XC7160_LANES             4

#define XC7160_LINK_FREQ_XXX_MHZ_L    504000000U
#define XC7160_LINK_FREQ_XXX_MHZ_H      576000000U

/* pixel rate = link frequency * 2 * lanes / BITS_PER_SAMPLE */
#define XC7160_PIXEL_RATE_LOW        (XC7160_LINK_FREQ_XXX_MHZ_L *2 *4/12)
#define XC7160_PIXEL_RATE_HIGH        (XC7160_LINK_FREQ_XXX_MHZ_H *2 *4/12)

#define XC7160_XVCLK_FREQ        24000000

#define SC8238_RETRY_STABLE_TIME 5

static const struct regval *xc7160_global_regs = isp_xc7160_4k_25fps_2022617_regs;
static const struct regval *sc8238_global_regs = sensor_xc7160_4k_25fps_2022617_regs;
static u32 clkout_enabled_index = 1;

static const char * const xc7160_supply_names[] = {
    "avdd",        /* Analog power */
    "dovdd",    /* Digital I/O power */
    "dvdd",        /* Digital core power */
};

#define XC7160_NUM_SUPPLIES ARRAY_SIZE(xc7160_supply_names)

struct xc7160_mode {
    u32 bus_fmt;
    u32 width;
    u32 height;
    struct v4l2_fract max_fps;
    const struct regval *isp_reg_list;
    const struct regval *sensor_reg_list;
    u32 vc[PAD_MAX];
};

struct xc7160 {
    struct i2c_client    *client;
    struct clk        *xvclk;
    struct gpio_desc    *mipi_pwr_gpio;
    struct gpio_desc    *reset_gpio;
    struct gpio_desc    *pwdn_gpio;
    struct regulator_bulk_data supplies[XC7160_NUM_SUPPLIES];

    struct pinctrl        *pinctrl;
    struct pinctrl_state    *pins_default;
    struct pinctrl_state    *pins_sleep;

    struct v4l2_subdev    subdev;
    struct media_pad    pad;
    struct v4l2_ctrl_handler ctrl_handler;
    struct v4l2_ctrl    *link_freq;
    struct v4l2_ctrl    *pixel_rate;
    struct v4l2_ctrl    *exposure;
    struct v4l2_ctrl    *anal_gain;
    struct v4l2_ctrl    *digi_gain;
    struct v4l2_ctrl    *hblank;
    struct v4l2_ctrl    *vblank;
    struct v4l2_ctrl    *test_pattern;
    struct mutex        mutex;
    bool            streaming;
    bool            power_on;
    bool            isp_out_colorbar;    //Mark whether the color bar should be output
    bool            initial_status;  //Whether the isp has been initialized
    const struct xc7160_mode *cur_mode;
    u32            module_index;
    const char        *module_facing;
    const char        *module_name;
    const char        *len_name;
    u32 lane_data_num;
};

#define to_xc7160(sd) container_of(sd, struct xc7160, subdev)

static const struct xc7160_mode supported_modes[] = {
        {
                .width = 3840,
                .height = 2160,
                .max_fps = {
                        .numerator = 10000,
                        .denominator = 250000,
                },
                .bus_fmt = XC7160_MEDIA_BUS_FMT,
                .isp_reg_list = isp_xc7160_4k_25fps_2022617_regs,
                .sensor_reg_list= sensor_xc7160_4k_25fps_2022617_regs,
                .vc[PAD0] = 0,//V4L2_MBUS_CSI2_CHANNEL_0,
        },
     {
        .width = 1920,
        .height = 1080,
        .max_fps = {
                .numerator = 10000,
                .denominator = 300000,
        },
        .bus_fmt = XC7160_MEDIA_BUS_FMT,
        .isp_reg_list = isp_xc7160_1080p_30fps_2022617_regs,
        .sensor_reg_list = sensor_xc7160_1080p_30fps_2022617_regs,
        .vc[PAD0] = 0, //V4L2_MBUS_CSI2_CHANNEL_0,
    },

        //driver setting
};

static const s64 link_freq_menu_items[] = {
    XC7160_LINK_FREQ_XXX_MHZ_H,
    XC7160_LINK_FREQ_XXX_MHZ_L,
};

static const char * const xc7160_test_pattern_menu[] = {
    "Disabled",
    "Vertical Color Bar Type 1",
    "Vertical Color Bar Type 2",
    "Vertical Color Bar Type 3",
    "Vertical Color Bar Type 4"
};

/* Write registers up to 4 at a time */
static int xc7160_write_reg(struct i2c_client *client, u16 reg,
                 u32 len, u32 val)
{
    u32 buf_i, val_i;
    u8 buf[6];
    u8 *val_p;
    __be32 val_be;

    if (len > 4)
        return -EINVAL;

    buf[0] = reg >> 8;
    buf[1] = reg & 0xff;

    val_be = cpu_to_be32(val);
    val_p = (u8 *)&val_be;
    buf_i = 2;
    val_i = 4 - len;

    while (val_i < 4)
        buf[buf_i++] = val_p[val_i++];

    if (i2c_master_send(client, buf, len + 2) != len + 2)
        return -EIO;

    return 0;
}

static int xc7160_write_array(struct i2c_client * client,
                   const struct regval *regs)
{
    u32 i = 0;
    int ret = 0;
    u8 value = 0;
    struct xc7160* xc7160 = NULL;

    xc7160 = to_xc7160(dev_get_drvdata(&client->dev));

    while(true) {
        if (regs[i].addr == REG_NULL) {
            if (regs[i].val == REG_DL)
                msleep(5);
            else
                break;

        }
        value = regs[i].val;
        if(regs[i].addr == 0x2023 && xc7160 != NULL){
            if(xc7160->lane_data_num == 2 )
                value = 0x03; //isp mipi data uses 2 lanes
            else
                value = 0x0f; //isp mipi data uses 4 lanes
        }
        ret = xc7160_write_reg(client, regs[i].addr, XC7160_REG_VALUE_08BIT, value);
        if(ret){
            dev_err(&client->dev,"%s: write xc7160 array reg 0x%02x failed\n",__func__,regs[i].addr);
            return ret;
        }
        i++;
    }
    return ret;
}

/* Read registers up to 4 at a time */
static int xc7160_read_reg(struct i2c_client *client, u16 reg,
                unsigned int len, u32 *val)
{
    struct i2c_msg msgs[2];
    u8 *data_be_p;
    __be32 data_be = 0;
    __be16 reg_addr_be = cpu_to_be16(reg);
    int ret;

    if (len > 4 || !len)
        return -EINVAL;

    data_be_p = (u8 *)&data_be;
    /* Write register address */
    msgs[0].addr = client->addr;
    msgs[0].flags = 0;
    msgs[0].len = 2;
    msgs[0].buf = (u8 *)&reg_addr_be;

    /* Read data from register */
    msgs[1].addr = client->addr;
    msgs[1].flags = I2C_M_RD;
    msgs[1].len = len;
    msgs[1].buf = &data_be_p[4 - len];

    ret = i2c_transfer(client->adapter, msgs, ARRAY_SIZE(msgs));
    if (ret != ARRAY_SIZE(msgs))
        return -EIO;

    *val = be32_to_cpu(data_be);

    return 0;
}

static int sc8238_write_reg(struct i2c_client *client, u16 reg,
                 u32 len, u32 val)
{
    struct i2c_msg msg;
    u8 sc8238_buf[4];
    int ret;
    u32 buf_i, val_i;
    u8 *val_p;
    __be32 val_be;

    if (len > 4)
        return -EINVAL;

    val_be = cpu_to_be32(val);
    val_p = (u8 *)&val_be;
    buf_i = 2;
    val_i = 4 - len;

    sc8238_buf[0]= reg >> 8;
    sc8238_buf[1]= reg & 0xff;

    while (val_i < 4)
        sc8238_buf[buf_i++] = val_p[val_i++];

    /* Write register address */
    msg.addr = 0x30;
    msg.flags = 0;
    msg.len =3;
    msg.buf = sc8238_buf;

    ret = i2c_transfer(client->adapter, &msg, 1);
    if (ret != 1){
        dev_err(&client->dev,"%s: xc7160_8238 i2c transfer failed\n",__func__);
        return -EIO;
    }

    return 0;
}

static int sc8238_read_reg(struct i2c_client *client, u16 reg,
                unsigned int len, u32 *val)
{
    struct i2c_msg msgs[2];
    u8 *data_be_p;
    __be32 data_be = 0;
    __be16 reg_addr_be = cpu_to_be16(reg);
    int ret;

    if (len > 4 || !len)
        return -EINVAL;

    data_be_p = (u8 *)&data_be;
    /* Write register address */
    msgs[0].addr = 0x30;
    msgs[0].flags = 0;
    msgs[0].len = 2;
    msgs[0].buf = (u8 *)&reg_addr_be;

    /* Read data from register */
    msgs[1].addr = 0x30;
    msgs[1].flags = I2C_M_RD;
    msgs[1].len = len;
    msgs[1].buf = &data_be_p[4 - len];

    ret = i2c_transfer(client->adapter, msgs, ARRAY_SIZE(msgs));
    if (ret != ARRAY_SIZE(msgs))
        return -EIO;

    *val = be32_to_cpu(data_be);

    return 0;
}

static int sc8238_write_array(struct i2c_client *client,
                   const struct regval *regs)
{
    u32 i,j;
    u32 value;
    struct device* dev = &client->dev;
    int ret = 0;

    value =0;
    for (i = 0; ret == 0 && regs[i].addr != REG_NULL; i++){
        for(j = 0 ; j < SC8238_RETRY_STABLE_TIME ; j++){
            ret = sc8238_write_reg(client, regs[i].addr,
                    XC7160_REG_VALUE_08BIT,
                    regs[i].val);

            if(ret && j == SC8238_RETRY_STABLE_TIME){
                dev_err(dev,"xc7160_8238 write sc8238 regs array get failed, 0x%02x\n",regs[i].addr);
                return ret;
            }else if(ret){
                dev_err(dev,"xc7160_8238 write sc8238 regs array retry 0x%02x, %d\n",regs[i].addr,j+1);
                msleep(1);
                continue;
            }else
                break;
        }
#ifdef         FIREFLY_DEBUG
        sc8238_read_reg(client,regs[i].addr,XC7160_REG_VALUE_08BIT, &value);
        if(regs[i].val != value){
            dev_info(dev,"firefly->debug: xc7160_8238 reg0x%02x write and read are different\n",regs[i].addr);
        }
#endif
    }
    return ret;
}

static int sc8238_check_sensor_id(struct xc7160 *xc7160,
                   struct i2c_client *client)
{
    struct device *dev = &xc7160->client->dev;
    u32 id_H = 0,id_L=0;
    int ret,i=0;

    ret = xc7160_write_array(xc7160->client, xc7160_i2c_bypass_on_regs);
    if (ret) {
        dev_err(dev, "%s: could not set bypass on registers\n",__func__);
        return ret;
    }

    do{
            i++;
            ret = sc8238_read_reg(client, SC8238_CHIP_REG_ID1_ZYK    ,
                        XC7160_REG_VALUE_08BIT, &id_H);
            if (id_H == SC8238_CHIP_ID1_ZYK && !ret ) {
                //dev_info(dev, "sensor chip is SC8238, id_H is 0x%02x\n",id);
                ret = sc8238_read_reg(client, SC8238_CHIP_REG_ID2_ZYK    ,
                    XC7160_REG_VALUE_08BIT, &id_L);
                if (id_L != SC8238_CHIP_ID2_ZYK || ret) {
                    dev_err(dev, "Unexpected SC8238_CHIP_ID_REG2, id(%06x), ret(%d), but SC8238_CHIP_ID_REG1 success\n", id_L, ret);
                }else{
                    xc7160->isp_out_colorbar = false;
                    dev_info(dev, "sensor chip is SC8238\n");
                    break;
                }
            }else
                dev_err(dev, "Unexpected sensor of SC8238_CHIP_ID_REG1, id(%06x), ret(%d)\n", id_H, ret);

            if(i == SC8238_RETRY_STABLE_TIME){
                dev_err(dev, "cannot check sc8238 sensor id\n");
                xc7160->isp_out_colorbar = true;
                break;
            }
            dev_info(dev, "check sensor of SC8238_CHIP_ID retry %d\n",i );
            msleep(1);
    }while((id_H != SC8238_CHIP_ID1_ZYK)||(id_L != SC8238_CHIP_ID2_ZYK));

    ret = xc7160_write_array(client, xc7160_i2c_bypass_off_regs);
    if (ret)
        dev_err(dev, "%s: could not set bypass off registers\n", __func__);

    return ret;

}

static int camera_isp_sensor_initial(struct xc7160 *xc7160)
{
    struct device *dev = &xc7160->client->dev;
    int ret,i=0;

    dev_info(dev,"xc7160 res wxh: %dx%d@%dfps\n",
                 xc7160->cur_mode->width,xc7160->cur_mode->height,(xc7160->cur_mode->max_fps.denominator/xc7160->cur_mode->max_fps.numerator));

    ret = xc7160_write_array(xc7160->client, xc7160_global_regs);
    if(ret){
        dev_err(dev, "could not set init registers\n");
        return ret;
    }

    xc7160->initial_status = true;
    ret=sc8238_check_sensor_id(xc7160,xc7160->client);
    if(ret)
        return ret;

    if( xc7160->isp_out_colorbar != true ){
        xc7160_write_array(xc7160->client, xc7160_stream_off_regs);
        ret = xc7160_write_array(xc7160->client, xc7160_i2c_bypass_on_regs);
        if (ret) {
            dev_err(dev, "could not set bypass on registers\n");
            return ret;
        }
        msleep(1);
        i = sc8238_write_array(xc7160->client, sc8238_global_regs);
        if (i){
            dev_err(dev,  "could not set sensor_initial_regs\n");
            xc7160->isp_out_colorbar = true;
        }
        ret = xc7160_write_array(xc7160->client, xc7160_i2c_bypass_off_regs);
        if (ret) {
            dev_err(dev, "could not set bypass off registers\n");
            i = ret;
        }
    }
    return i;
}

static int xc7160_get_reso_dist(const struct xc7160_mode *mode,
                 struct v4l2_mbus_framefmt *framefmt)
{
    return abs(mode->width - framefmt->width) +
           abs(mode->height - framefmt->height);
}

static const struct xc7160_mode *
xc7160_find_best_fit(struct v4l2_subdev_format *fmt)
{
    struct v4l2_mbus_framefmt *framefmt = &fmt->format;
    int dist;
    int cur_best_fit = 0;
    int cur_best_fit_dist = -1;
    unsigned int i;

    for (i = 0; i < ARRAY_SIZE(supported_modes); i++) {
        dist = xc7160_get_reso_dist(&supported_modes[i], framefmt);
        if (cur_best_fit_dist == -1 || dist < cur_best_fit_dist) {
            cur_best_fit_dist = dist;
            cur_best_fit = i;
        }
    }

    return &supported_modes[cur_best_fit];
}

static int xc7160_set_fmt(struct v4l2_subdev *sd,
              struct v4l2_subdev_state *sd_state,
              struct v4l2_subdev_format *fmt)
{
    struct xc7160 *xc7160 = to_xc7160(sd);
    const struct xc7160_mode *mode;

    mutex_lock(&xc7160->mutex);

    mode = xc7160_find_best_fit(fmt);
    fmt->format.code = XC7160_MEDIA_BUS_FMT;
    fmt->format.width = mode->width;
    fmt->format.height = mode->height;
    fmt->format.field = V4L2_FIELD_NONE;

    if((fmt->format.width == 3840)&&(fmt->format.height == 2160)){
        __v4l2_ctrl_s_ctrl(xc7160->link_freq, 1);
        __v4l2_ctrl_s_ctrl_int64(xc7160->pixel_rate, XC7160_PIXEL_RATE_LOW);
    }else{
        __v4l2_ctrl_s_ctrl(xc7160->link_freq, 0);
        __v4l2_ctrl_s_ctrl_int64(xc7160->pixel_rate, XC7160_PIXEL_RATE_HIGH);
    }
    xc7160_global_regs = mode->isp_reg_list;
    sc8238_global_regs = mode->sensor_reg_list;

    if (fmt->which == V4L2_SUBDEV_FORMAT_TRY) {
#ifdef CONFIG_VIDEO_V4L2_SUBDEV_API
        *v4l2_subdev_get_try_format(sd, sd_state, fmt->pad) = fmt->format;
#else
        mutex_unlock(&xc7160->mutex);
        return -ENOTTY;
#endif
    } else {
        xc7160->cur_mode = mode;
        if (xc7160->streaming){
            mutex_unlock(&xc7160->mutex);
            return -EBUSY;
        }

    }
    //camera_isp_sensor_initial(xc7160);
    mutex_unlock(&xc7160->mutex);

    return 0;
}

static int xc7160_get_fmt(struct v4l2_subdev *sd,
               struct v4l2_subdev_state *sd_state,
               struct v4l2_subdev_format *fmt)
{
    struct xc7160 *xc7160 = to_xc7160(sd);
    const struct xc7160_mode *mode = xc7160->cur_mode;

    mutex_lock(&xc7160->mutex);
    if (fmt->which == V4L2_SUBDEV_FORMAT_TRY) {
#ifdef CONFIG_VIDEO_V4L2_SUBDEV_API
        fmt->format = *v4l2_subdev_get_try_format(sd, sd_state, fmt->pad);
#else
        mutex_unlock(&xc7160->mutex);
        return -ENOTTY;
#endif
    } else {
        fmt->format.width = mode->width;
        fmt->format.height = mode->height;
        fmt->format.code = XC7160_MEDIA_BUS_FMT;
        fmt->format.field = V4L2_FIELD_NONE;
    }
    mutex_unlock(&xc7160->mutex);

    return 0;
}

static int xc7160_enum_mbus_code(struct v4l2_subdev *sd,
                                 struct v4l2_subdev_state *sd_state,
                 struct v4l2_subdev_mbus_code_enum *code)
{
    if (code->index != 0)
        return -EINVAL;
    code->code = XC7160_MEDIA_BUS_FMT;

    return 0;
}

static int xc7160_enum_frame_sizes(struct v4l2_subdev *sd,
                                   struct v4l2_subdev_state *sd_state,
                   struct v4l2_subdev_frame_size_enum *fse)
{
    if (fse->index >= ARRAY_SIZE(supported_modes))
        return -EINVAL;

    if (fse->code != XC7160_MEDIA_BUS_FMT/*MEDIA_BUS_FMT_YUYV8_2X8*/)
        return -EINVAL;

    fse->min_width  = supported_modes[fse->index].width;
    fse->max_width  = supported_modes[fse->index].width;
    fse->max_height = supported_modes[fse->index].height;
    fse->min_height = supported_modes[fse->index].height;

    return 0;
}

//static int xc7160_enable_test_pattern(struct xc7160 *xc7160, u32 pattern)
//{
//    return 0;
//}

static int xc7160_g_frame_interval(struct v4l2_subdev *sd,
                                   struct v4l2_subdev_frame_interval *fi)
{
    struct xc7160 *xc7160 = to_xc7160(sd);
    const struct xc7160_mode *mode = xc7160->cur_mode;

    mutex_lock(&xc7160->mutex);
    fi->interval = mode->max_fps;
    mutex_unlock(&xc7160->mutex);

    return 0;
}

static void xc7160_get_module_inf(struct xc7160 *xc7160,
                   struct rkmodule_inf *inf)
{
    memset(inf, 0, sizeof(*inf));
    strlcpy(inf->base.sensor, XC7160_NAME, sizeof(inf->base.sensor));
    strlcpy(inf->base.module, xc7160->module_name,
        sizeof(inf->base.module));
    strlcpy(inf->base.lens, xc7160->len_name, sizeof(inf->base.lens));
}

static int xc7160_get_channel_info(struct xc7160 *xc7160, struct rkmodule_channel_info *ch_info)
{
       if (ch_info->index < PAD0 || ch_info->index >= PAD_MAX)
               return -EINVAL;
       ch_info->vc = xc7160->cur_mode->vc[ch_info->index];
       ch_info->width = xc7160->cur_mode->width;
       ch_info->height = xc7160->cur_mode->height;
       ch_info->bus_fmt = xc7160->cur_mode->bus_fmt;
       return 0;
}

static long xc7160_ioctl(struct v4l2_subdev *sd, unsigned int cmd, void *arg)
{
    struct xc7160 *xc7160 = to_xc7160(sd);
    struct rkmodule_channel_info *ch_info;
    long ret = 0;

    switch (cmd) {
    case RKMODULE_GET_MODULE_INFO:
        xc7160_get_module_inf(xc7160, (struct rkmodule_inf *)arg);
        break;
    case RKMODULE_GET_CHANNEL_INFO:
        ch_info = (struct rkmodule_channel_info *)arg;
        ret = xc7160_get_channel_info(xc7160, ch_info);
        break;
    default:
        ret = -ENOIOCTLCMD;
        break;
    }

    return ret;
}

#ifdef CONFIG_COMPAT
static long xc7160_compat_ioctl32(struct v4l2_subdev *sd,
                   unsigned int cmd, unsigned long arg)
{
    void __user *up = compat_ptr(arg);
    struct rkmodule_inf *inf;
    struct rkmodule_channel_info *ch_info;
    long ret;

    switch (cmd) {
    case RKMODULE_GET_MODULE_INFO:
        inf = kzalloc(sizeof(*inf), GFP_KERNEL);
        if (!inf) {
            ret = -ENOMEM;
            return ret;
        }

        ret = xc7160_ioctl(sd, cmd, inf);
        if (!ret)
            ret = copy_to_user(up, inf, sizeof(*inf));
                       if (ret)
                               ret = -EFAULT;
        kfree(inf);
        break;
    case RKMODULE_GET_CHANNEL_INFO:
        ch_info = kzalloc(sizeof(*ch_info), GFP_KERNEL);
        if (!ch_info) {
            ret = -ENOMEM;
            return ret;
        }
        ret = xc7160_ioctl(sd, cmd, ch_info);
        if (!ret) {
            ret = copy_to_user(up, ch_info, sizeof(*ch_info));
            if (ret)
                ret = -EFAULT;
        }
        kfree(ch_info);
        break;
    default:
        ret = -ENOIOCTLCMD;
        break;
    }

    return ret;
}
#endif

#ifdef FIREFLY_DEBUG
static int xc7160_check_isp_reg(struct xc7160 *xc7160)
{
    u32 val;
    int ret;
    struct device *dev = &xc7160->client->dev;

    ret = xc7160_write_reg(xc7160->client, 0xfffd, XC7160_REG_VALUE_08BIT, 0x80);
    if (ret){
        dev_err(dev, "write reg0xfffd failed\n");
        return ret;
    }

    ret = xc7160_write_reg(xc7160->client, 0xfffe, XC7160_REG_VALUE_08BIT, 0x26);
    if (ret){
        dev_err(dev, "write reg0xfffe failed\n");
        return ret;
    }
    ret = xc7160_read_reg(xc7160->client, 0x8012, XC7160_REG_VALUE_08BIT, &val);
    dev_info(dev, "reg0x8012=0x%02x\n", val);
    ret = xc7160_read_reg(xc7160->client, 0x8013, XC7160_REG_VALUE_08BIT, &val);
    dev_info(dev, "reg0x8013=0x%02x\n", val);
    ret = xc7160_read_reg(xc7160->client, 0x8014, XC7160_REG_VALUE_08BIT, &val);
    dev_info(dev, "reg0x8014=0x%02x\n", val);
    ret = xc7160_read_reg(xc7160->client, 0x8015, XC7160_REG_VALUE_08BIT, &val);
    dev_info(dev, "reg0x8015=0x%02x\n", val);
    ret = xc7160_read_reg(xc7160->client, 0x8010, XC7160_REG_VALUE_08BIT, &val);
    dev_info(dev, "reg0x8010=0x%02x\n", val);

    ret = xc7160_write_reg(xc7160->client, 0xfffe, XC7160_REG_VALUE_08BIT, 0x50);
    if (ret){
        dev_err(dev, "write reg0xfffe failed\n");
        return ret;
    }
    ret = xc7160_read_reg(xc7160->client, 0x0090, XC7160_REG_VALUE_08BIT, &val);
    dev_info(dev, "reg0x0090=0x%02x\n", val);
    ret = xc7160_read_reg(xc7160->client, 0x0033, XC7160_REG_VALUE_08BIT, &val);
    dev_info(dev, "reg0x0033=0x%02x\n", val);
    ret = xc7160_read_reg(xc7160->client, 0x0058, XC7160_REG_VALUE_08BIT, &val);
    dev_info(dev, "reg0x0058=0x%02x\n", val);

    ret = xc7160_write_reg(xc7160->client, 0xfffe, XC7160_REG_VALUE_08BIT, 0x30);
    if (ret){
        dev_err(dev, "write reg0xfffe failed\n");
        return ret;
    }
    ret = xc7160_read_reg(xc7160->client, 0x2f06, XC7160_REG_VALUE_08BIT, &val);
    dev_info(dev, "reg0x2f06=0x%02x\n", val);
    ret = xc7160_read_reg(xc7160->client, 0x2f07, XC7160_REG_VALUE_08BIT, &val);
    dev_info(dev, "reg0x2f07=0x%02x\n", val);
    ret = xc7160_read_reg(xc7160->client, 0x2f08, XC7160_REG_VALUE_08BIT, &val);
    dev_info(dev, "reg0x2f08=0x%02x\n", val);
    ret = xc7160_read_reg(xc7160->client, 0x2f09, XC7160_REG_VALUE_08BIT, &val);
    dev_info(dev, "reg0x2f09=0x%02x\n", val);

    ret = xc7160_read_reg(xc7160->client, 0x0028, XC7160_REG_VALUE_08BIT, &val);
    dev_info(dev, "reg0x0028=0x%02x\n", val);
    ret = xc7160_read_reg(xc7160->client, 0x0029, XC7160_REG_VALUE_08BIT, &val);
    dev_info(dev, "reg0x0029=0x%02x\n", val);
    ret = xc7160_read_reg(xc7160->client, 0x002a, XC7160_REG_VALUE_08BIT, &val);
    dev_info(dev, "reg0x002a=0x%02x\n", val);
    ret = xc7160_read_reg(xc7160->client, 0x002b, XC7160_REG_VALUE_08BIT, &val);
    dev_info(dev, "reg0x002b=0x%02x\n", val);

    return ret;

}
#endif // DEBUG

static int __xc7160_start_stream(struct xc7160 *xc7160)
{
    int ret;
    struct device *dev = &xc7160->client->dev;

    //xc7160->isp_out_colorbar = true;
    if(xc7160->isp_out_colorbar == true){
        dev_info(dev, "colorbar on !!!\n");
        ret = xc7160_write_array(xc7160->client, xc7160_colorbar_on_regs);
    }else
        ret = xc7160_write_array(xc7160->client, xc7160_stream_on_regs);

#ifdef FIREFLY_DEBUG
        xc7160_check_isp_reg(xc7160);
#endif // DEBUG

    if(ret)
        dev_err(dev, "xc7160 write stream or colorbar regs failed\n");

    /* In case these controls are set before streaming */
    mutex_unlock(&xc7160->mutex);
    ret = v4l2_ctrl_handler_setup(&xc7160->ctrl_handler);
    mutex_lock(&xc7160->mutex);
    if (ret)
        return ret;

    return 0;
}

static int __xc7160_stop_stream(struct xc7160 *xc7160)
{
    int ret;

    ret = xc7160_write_array(xc7160->client, xc7160_stream_off_regs);
    if(ret)
        printk("%s: write stream off failed\n",__func__);

    return ret;
}

static int xc7160_check_isp_id(struct xc7160 *xc7160,
                   struct i2c_client *client)
{
    struct device *dev = &xc7160->client->dev;
    u32 id = 0;
    int ret;

    ret = xc7160_write_reg(client, XC7160_REG_HIGH_SELECT,XC7160_REG_VALUE_08BIT, 0x80);
    if (ret){
        dev_err(dev, "write XC7160_REG_HIGH_SELECT failed\n");
        return ret;
    }

    ret = xc7160_read_reg(client, XC7160_CHIP_REG_ID1_ZYK    ,
                   XC7160_REG_VALUE_08BIT, &id);
    if (id == XC7160_CHIP_ID1_ZYK    ) {
        dev_info(dev, "isp chip is xc7160\n");
        ret = xc7160_read_reg(client, XC7160_CHIP_REG_ID2_ZYK    ,
               XC7160_REG_VALUE_08BIT, &id);
        if (id != XC7160_CHIP_ID2_ZYK    ) {
            dev_err(dev, "Unexpected sensor of XC7160_CHIP_ID_REG2, id(%06x), ret(%d)\n", id, ret);
            return ret;
        }
    }

    return 0;

}

static int __xc7160_power_on(struct xc7160 *xc7160);
static void __xc7160_power_off(struct xc7160 *xc7160);
static int xc7160_s_power(struct v4l2_subdev *sd, int on)
{
    struct xc7160 *xc7160 = to_xc7160(sd);
    struct i2c_client *client = xc7160->client;
    struct device *dev = &xc7160->client->dev;
    int ret = 0;
    //dump_stack();
    mutex_lock(&xc7160->mutex);
    /* If the power state is not modified - no work to do. */
    if (xc7160->power_on == !!on)
        goto unlock_and_return;

    if (on) {
        ret = pm_runtime_get_sync(&client->dev);
        if (ret < 0) {
            pm_runtime_put_noidle(&client->dev);
            goto unlock_and_return;
        }

        ret = __xc7160_power_on(xc7160);
        if(ret){
            dev_err(dev, "xc7160 power on failed\n");
        }
        xc7160->power_on = true;

        //if(xc7160->initial_status != true){
        //    ret = camera_isp_sensor_initial(xc7160);
        //}

        ret = xc7160_check_isp_id(xc7160,xc7160->client);
        if (ret){
            dev_err(dev, "write XC7160_REG_HIGH_SELECT failed\n");
            goto unlock_and_return;
        }

        // if(xc7160->initial_status != true){
        //     xc7160_global_regs = xc7160->cur_mode->isp_reg_list;
        //     sc8238_global_regs = xc7160->cur_mode->sensor_reg_list;
        //     camera_isp_sensor_initial(xc7160);
        // }

        // /* export gpio */
        // if (!IS_ERR(xc7160->reset_gpio))
        //     gpiod_export(xc7160->reset_gpio, false);
        // if (!IS_ERR(xc7160->pwdn_gpio))
        //     gpiod_export(xc7160->pwdn_gpio, false);
    } else {
        pm_runtime_put(&client->dev);
        __xc7160_power_off(xc7160);
        xc7160->power_on = false;
        /* unexport gpio */
        if (!IS_ERR(xc7160->reset_gpio))
            gpiod_unexport(xc7160->reset_gpio);
        if (!IS_ERR(xc7160->pwdn_gpio))
            gpiod_unexport(xc7160->pwdn_gpio);

    }

unlock_and_return:
    ret = xc7160_write_array(xc7160->client, xc7160_i2c_bypass_off_regs);
    mutex_unlock(&xc7160->mutex);

    return ret;
}

static int xc7160_s_stream(struct v4l2_subdev *sd, int on)
{
    struct xc7160 *xc7160 = to_xc7160(sd);
    struct i2c_client *client = xc7160->client;
    int ret = 0;

    if(xc7160->initial_status != true){
            xc7160_global_regs = xc7160->cur_mode->isp_reg_list;
            sc8238_global_regs = xc7160->cur_mode->sensor_reg_list;
            camera_isp_sensor_initial(xc7160);
        }

    /* export gpio */
    if (!IS_ERR(xc7160->reset_gpio))
        gpiod_export(xc7160->reset_gpio, false);
    if (!IS_ERR(xc7160->pwdn_gpio))
        gpiod_export(xc7160->pwdn_gpio, false);

    mutex_lock(&xc7160->mutex);
    on = !!on;
    if (on == xc7160->streaming){
        goto unlock_and_return;
    }
    if (on) {
        ret = pm_runtime_get_sync(&client->dev);
        if (ret < 0) {
            pm_runtime_put_noidle(&client->dev);
            goto unlock_and_return;
        }

        ret = __xc7160_start_stream(xc7160);
        if (ret) {
            v4l2_err(sd, "start stream failed while write regs\n");
            pm_runtime_put(&client->dev);
            goto unlock_and_return;
        }
    } else {
        __xc7160_stop_stream(xc7160);
        pm_runtime_put(&client->dev);
    }

    xc7160->streaming = on;

unlock_and_return:
    mutex_unlock(&xc7160->mutex);

    return ret;
}

/* Calculate the delay in us by clock rate and clock cycles */
static inline u32 xc7160_cal_delay(u32 cycles)
{
    return DIV_ROUND_UP(cycles, XC7160_XVCLK_FREQ / 1000 / 1000);
}

static int __xc7160_power_on(struct xc7160 *xc7160)
{
    int ret;
    u32 delay_us;
    struct device *dev = &xc7160->client->dev;


    if (!IS_ERR_OR_NULL(xc7160->pins_default)) {
        ret = pinctrl_select_state(xc7160->pinctrl,
                       xc7160->pins_default);
        if (ret < 0)
            dev_err(dev, "could not set pins\n");
    }

    if (!IS_ERR(xc7160->reset_gpio))
        gpiod_set_value_cansleep(xc7160->reset_gpio, 0);

    if (!IS_ERR(xc7160->pwdn_gpio))
        gpiod_set_value_cansleep(xc7160->pwdn_gpio, 0);

    msleep(4);

    if (clkout_enabled_index){
        ret = clk_prepare_enable(xc7160->xvclk);
        if (ret < 0) {
            dev_err(dev, "Failed to enable xvclk\n");
            return ret;
        }
    }

    ret = regulator_bulk_enable(XC7160_NUM_SUPPLIES, xc7160->supplies);
    if (ret < 0) {
        dev_err(dev, "Failed to enable regulators\n");
        goto disable_clk;
    }

    if (!IS_ERR(xc7160->mipi_pwr_gpio))
        gpiod_set_value_cansleep(xc7160->mipi_pwr_gpio, 1);

    usleep_range(500, 1000);
    if (!IS_ERR(xc7160->reset_gpio))
        gpiod_set_value_cansleep(xc7160->reset_gpio, 1);

    usleep_range(500, 1000);
    if (!IS_ERR(xc7160->pwdn_gpio))
        gpiod_set_value_cansleep(xc7160->pwdn_gpio, 1);

    //  msleep(25);
    // /* 8192 cycles prior to first SCCB transaction */
    delay_us = xc7160_cal_delay(8192);
    usleep_range(delay_us, delay_us * 2);
    // xc7160->power_on = true;

    return 0;

disable_clk:
    if (clkout_enabled_index)
        clk_disable_unprepare(xc7160->xvclk);

    return ret;
}

static void __xc7160_power_off(struct xc7160 *xc7160)
{
    int ret;
    struct device *dev = &xc7160->client->dev;
    xc7160->initial_status = false;

    if (!IS_ERR(xc7160->reset_gpio))
        gpiod_set_value_cansleep(xc7160->reset_gpio, 1);
    if (!IS_ERR(xc7160->pwdn_gpio))
        gpiod_set_value_cansleep(xc7160->pwdn_gpio,1);
    if (!IS_ERR(xc7160->mipi_pwr_gpio))
        gpiod_set_value_cansleep(xc7160->mipi_pwr_gpio,1);
    if (clkout_enabled_index)
        clk_disable_unprepare(xc7160->xvclk);
    if (!IS_ERR_OR_NULL(xc7160->pins_sleep)) {
        ret = pinctrl_select_state(xc7160->pinctrl,
                       xc7160->pins_sleep);
        if (ret < 0)
            dev_dbg(dev, "could not set pins\n");
    }
    regulator_bulk_disable(XC7160_NUM_SUPPLIES, xc7160->supplies);

}
static int xc7160_runtime_resume(struct device *dev)
{
    struct i2c_client *client = to_i2c_client(dev);
    struct v4l2_subdev *sd = i2c_get_clientdata(client);
    struct xc7160 *xc7160 = to_xc7160(sd);

    if(xc7160->power_on == false)
        return __xc7160_power_on(xc7160);
    else
        printk("xc7160 is power on, nothing to do\n");

    return 0;
}

static int xc7160_runtime_suspend(struct device *dev)
{
    struct i2c_client *client = to_i2c_client(dev);
    struct v4l2_subdev *sd = i2c_get_clientdata(client);
    struct xc7160 *xc7160 = to_xc7160(sd);

    if(xc7160->power_on == true){
        __xc7160_power_off(xc7160);
        xc7160->power_on = false;
    }
    return 0;
}

static int xc7160_enum_frame_interval(struct v4l2_subdev *sd,
                                      struct v4l2_subdev_state *sd_state,
                      struct v4l2_subdev_frame_interval_enum *fie)
{
    if (fie->index >= ARRAY_SIZE(supported_modes))
        return -EINVAL;

    fie->width = supported_modes[fie->index].width;
    fie->height = supported_modes[fie->index].height;
    fie->interval = supported_modes[fie->index].max_fps;
    return 0;
}

#ifdef CONFIG_VIDEO_V4L2_SUBDEV_API
static int xc7160_open(struct v4l2_subdev *sd, struct v4l2_subdev_fh *fh)
{
    struct xc7160 *xc7160 = to_xc7160(sd);
    struct v4l2_mbus_framefmt *try_fmt =
                v4l2_subdev_get_try_format(sd, fh->state, 0);
    const struct xc7160_mode *def_mode = &supported_modes[0];

    mutex_lock(&xc7160->mutex);
    /* Initialize try_fmt */
    try_fmt->width = def_mode->width;
    try_fmt->height = def_mode->height;
    try_fmt->code = XC7160_MEDIA_BUS_FMT;
    try_fmt->field = V4L2_FIELD_NONE;

    mutex_unlock(&xc7160->mutex);
    /* No crop or compose */

    return 0;
}
#endif

static int xc7160_g_mbus_config(struct v4l2_subdev *sd, unsigned int pad_id,
                                struct v4l2_mbus_config *config)
{
        config->type = V4L2_MBUS_CSI2_DPHY;
        config->bus.mipi_csi2.num_data_lanes = XC7160_LANES;

        return 0;
}

static const struct dev_pm_ops xc7160_pm_ops = {
    SET_RUNTIME_PM_OPS(xc7160_runtime_suspend,
               xc7160_runtime_resume, NULL)
};

#ifdef CONFIG_VIDEO_V4L2_SUBDEV_API
static const struct v4l2_subdev_internal_ops xc7160_internal_ops = {
    .open = xc7160_open,
};
#endif

static const struct v4l2_subdev_core_ops xc7160_core_ops = {
        .log_status = v4l2_ctrl_subdev_log_status,
        .subscribe_event = v4l2_ctrl_subdev_subscribe_event,
        .unsubscribe_event = v4l2_event_subdev_unsubscribe,
    .s_power = xc7160_s_power,
    .ioctl = xc7160_ioctl,
#ifdef CONFIG_COMPAT
    .compat_ioctl32 = xc7160_compat_ioctl32,
#endif
};

static const struct v4l2_subdev_video_ops xc7160_video_ops = {
    .s_stream = xc7160_s_stream,
    .g_frame_interval = xc7160_g_frame_interval,
};

static const struct v4l2_subdev_pad_ops xc7160_pad_ops = {
    .enum_mbus_code = xc7160_enum_mbus_code,
    .enum_frame_size = xc7160_enum_frame_sizes,
    .enum_frame_interval = xc7160_enum_frame_interval,
    .get_fmt = xc7160_get_fmt,
    .set_fmt = xc7160_set_fmt,
    .get_mbus_config = xc7160_g_mbus_config,
};

static const struct v4l2_subdev_ops xc7160_subdev_ops = {
    .core    = &xc7160_core_ops,
    .video    = &xc7160_video_ops,
    .pad    = &xc7160_pad_ops,
};

static int xc7160_initialize_controls(struct xc7160 *xc7160)
{
    const struct xc7160_mode *mode;
    struct v4l2_ctrl_handler *handler;
    int ret;

    handler = &xc7160->ctrl_handler;
    mode = xc7160->cur_mode;
    ret = v4l2_ctrl_handler_init(handler, 8);
    if (ret)
        return ret;
    handler->lock = &xc7160->mutex;

    xc7160->link_freq = v4l2_ctrl_new_int_menu(handler, NULL, V4L2_CID_LINK_FREQ,
                      ARRAY_SIZE(link_freq_menu_items) - 1, 0, link_freq_menu_items);
    if (xc7160->link_freq)
        xc7160->link_freq->flags |= V4L2_CTRL_FLAG_READ_ONLY;

    xc7160->pixel_rate = v4l2_ctrl_new_std(handler, NULL, V4L2_CID_PIXEL_RATE,
              0, XC7160_PIXEL_RATE_HIGH, 1, XC7160_PIXEL_RATE_HIGH);

    if (handler->error) {
        ret = handler->error;
        dev_err(&xc7160->client->dev,
            "Failed to init controls(%d)\n", ret);
        goto err_free_handler;
    }

    xc7160->subdev.ctrl_handler = handler;

    return 0;

err_free_handler:
    v4l2_ctrl_handler_free(handler);

    return ret;
}

static int xc7160_configure_regulators(struct xc7160 *xc7160)
{
    unsigned int i;

    for (i = 0; i < XC7160_NUM_SUPPLIES; i++)
        xc7160->supplies[i].supply = xc7160_supply_names[i];

    return devm_regulator_bulk_get(&xc7160->client->dev,
                       XC7160_NUM_SUPPLIES,
                       xc7160->supplies);
}

static void free_gpio(struct xc7160 *xc7160)
{
    if (!IS_ERR(xc7160->pwdn_gpio))
        gpio_free(desc_to_gpio(xc7160->pwdn_gpio));
        if (!IS_ERR(xc7160->reset_gpio))
                gpio_free(desc_to_gpio(xc7160->reset_gpio));
        if (!IS_ERR(xc7160->mipi_pwr_gpio))
        gpio_free(desc_to_gpio(xc7160->mipi_pwr_gpio));
}

static int xc7160_probe(struct i2c_client *client,
        const struct i2c_device_id *id)
{
    struct device *dev = &client->dev;
    struct device_node *node = dev->of_node;
    struct device_node *endpoint_node = NULL;
    struct v4l2_fwnode_endpoint vep = {0};
    struct xc7160 *xc7160;
    struct v4l2_subdev *sd;
    char facing[2];
    int ret;

    dev_info(dev, "T-chip firefly camera driver version: %02x.%02x.%02x",
            DRIVER_VERSION >> 16,
            (DRIVER_VERSION & 0xff00) >> 8,
            DRIVER_VERSION & 0x00ff);

    xc7160 = devm_kzalloc(dev, sizeof(*xc7160), GFP_KERNEL);
    if (!xc7160)
        return -ENOMEM;

/* Model info */
    ret = of_property_read_u32(node, RKMODULE_CAMERA_MODULE_INDEX,
            &xc7160->module_index);
    ret |= of_property_read_string(node, RKMODULE_CAMERA_MODULE_FACING,
            &xc7160->module_facing);
    ret |= of_property_read_string(node, RKMODULE_CAMERA_MODULE_NAME,
            &xc7160->module_name);
    ret |= of_property_read_string(node, RKMODULE_CAMERA_LENS_NAME,
            &xc7160->len_name);
    if (ret) {
        dev_err(dev, "could not get module information!\n");
        return -EINVAL;
    }

/* Parse dts Clk、Pwr、PDN、Rest */
    xc7160->client = client;
    xc7160->cur_mode = &supported_modes[0];

    if (clkout_enabled_index){
        xc7160->xvclk = devm_clk_get(dev, "xvclk");
        if (IS_ERR(xc7160->xvclk)) {
            dev_err(dev, "Failed to get xvclk\n");
            return -EINVAL;
        }
        ret = clk_set_rate(xc7160->xvclk, XC7160_XVCLK_FREQ);
        if (ret < 0) {
            dev_err(dev, "Failed to set xvclk rate (24MHz)\n");
            return ret;
        }
        if (clk_get_rate(xc7160->xvclk) != XC7160_XVCLK_FREQ)
            dev_warn(dev, "xvclk mismatched, modes are based on 24MHz\n");
    }

    xc7160->mipi_pwr_gpio = devm_gpiod_get(dev, "power", GPIOD_OUT_LOW);
    if (IS_ERR(xc7160->mipi_pwr_gpio))
        dev_warn(dev, "Failed to get power-gpios, maybe no use\n");

    xc7160->reset_gpio = devm_gpiod_get(dev, "reset", GPIOD_OUT_LOW);
    if (IS_ERR(xc7160->reset_gpio)) {
        dev_info(dev, "Failed to get reset-gpios, maybe no use\n");
    }

    xc7160->pwdn_gpio = devm_gpiod_get(dev, "pwdn", GPIOD_OUT_LOW);
    if (IS_ERR(xc7160->pwdn_gpio)) {
        dev_info(dev, "Failed to get pwdn-gpios, maybe no use\n");
    }

    ret = xc7160_configure_regulators(xc7160);
    if (ret) {
        dev_err(dev, "Failed to get power regulators\n");
        return ret;
    }

    xc7160->pinctrl = devm_pinctrl_get(dev);
    if (!IS_ERR(xc7160->pinctrl)) {
        xc7160->pins_default =
            pinctrl_lookup_state(xc7160->pinctrl,
                    OF_CAMERA_PINCTRL_STATE_DEFAULT);
        if (IS_ERR(xc7160->pins_default))
            dev_err(dev, "could not get default pinstate\n");

        xc7160->pins_sleep =
            pinctrl_lookup_state(xc7160->pinctrl,
                    OF_CAMERA_PINCTRL_STATE_SLEEP);
        if (IS_ERR(xc7160->pins_sleep))
            dev_err(dev, "could not get sleep pinstate\n");
    }

/* Parse lane number */
    endpoint_node = of_find_node_by_name(node,"endpoint");
    if(endpoint_node != NULL){
        //printk("xc7160 get endpoint node success\n");
        ret=v4l2_fwnode_endpoint_parse(&endpoint_node->fwnode, &vep);
        if(ret){
            dev_info(dev, "Failed to get xc7160 endpoint data lanes, set a default value\n");
            xc7160->lane_data_num = 4;
        }else{
            dev_info(dev, "Success to get xc7160 endpoint data lanes, dts uses %d lanes\n", vep.bus.mipi_csi2.num_data_lanes);
            xc7160->lane_data_num = vep.bus.mipi_csi2.num_data_lanes;
        }
    }else{
        dev_info(dev,"xc7160 get endpoint node failed\n");
        return -ENOENT;
    }

    mutex_init(&xc7160->mutex);

/* Init v4l2 subdev */
    sd = &xc7160->subdev;
    v4l2_i2c_subdev_init(sd, client, &xc7160_subdev_ops);

    ret = xc7160_initialize_controls(xc7160);
    if (ret)
        goto err_destroy_mutex;

/* Check chip id */
    ret = __xc7160_power_on(xc7160);
    if (ret) {
        dev_err(dev, "--xc--__xc7160_power_on failed\n");
        goto err_power_off;
    }

    ret = xc7160_check_isp_id(xc7160, client);
    if (ret)
        goto err_power_off;

#ifdef CONFIG_VIDEO_V4L2_SUBDEV_API
    sd->internal_ops = &xc7160_internal_ops;
    sd->flags |= V4L2_SUBDEV_FL_HAS_DEVNODE;
#endif
#if defined(CONFIG_MEDIA_CONTROLLER)
    xc7160->pad.flags = MEDIA_PAD_FL_SOURCE;
    sd->entity.function = MEDIA_ENT_F_CAM_SENSOR;
    ret = media_entity_pads_init(&sd->entity, 1, &xc7160->pad);
    if (ret < 0)
        goto err_power_off;

#endif

    memset(facing, 0, sizeof(facing));
    if (strcmp(xc7160->module_facing, "back") == 0)
        facing[0] = 'b';
    else
        facing[0] = 'f';

    snprintf(sd->name, sizeof(sd->name), "m%02d_%s_%s %s",
            xc7160->module_index, facing,
            XC7160_NAME, dev_name(sd->dev));
        ret = v4l2_async_register_subdev_sensor(sd);
        if (ret) {
                dev_err(dev, "Failed to register v4l2 async subdev\n");
                goto err_clean_entity;
        }

    pm_runtime_set_active(dev);
    pm_runtime_enable(dev);
    pm_runtime_idle(dev);

    return 0;

err_clean_entity:
#if defined(CONFIG_MEDIA_CONTROLLER)
    media_entity_cleanup(&sd->entity);
#endif
err_power_off:
    __xc7160_power_off(xc7160);
    free_gpio(xc7160);
    //err_free_handler:
    v4l2_ctrl_handler_free(&xc7160->ctrl_handler);
err_destroy_mutex:
    mutex_destroy(&xc7160->mutex);

    return ret;
}

static void xc7160_remove(struct i2c_client *client)
{
    struct v4l2_subdev *sd = i2c_get_clientdata(client);
    struct xc7160 *xc7160 = to_xc7160(sd);

    v4l2_async_unregister_subdev(sd);
#if defined(CONFIG_MEDIA_CONTROLLER)
    media_entity_cleanup(&sd->entity);
#endif
    v4l2_ctrl_handler_free(&xc7160->ctrl_handler);
    mutex_destroy(&xc7160->mutex);

    pm_runtime_disable(&client->dev);
    if (!pm_runtime_status_suspended(&client->dev))
        __xc7160_power_off(xc7160);
    pm_runtime_set_suspended(&client->dev);
}

#if IS_ENABLED(CONFIG_OF)
static const struct of_device_id xc7160_of_match[] = {
    { .compatible = "firefly,xc7160" },
    {},
};
MODULE_DEVICE_TABLE(of, xc7160_of_match);
#endif

static const struct i2c_device_id xc7160_match_id[] = {
    { "firefly,xc7160", 0 },
    { },
};

static struct i2c_driver xc7160_i2c_driver = {
    .driver = {
        .name = "xc7160",
        .pm = &xc7160_pm_ops,
        .of_match_table = of_match_ptr(xc7160_of_match),
    },
    .probe        = &xc7160_probe,
    .remove        = &xc7160_remove,
    .id_table    = xc7160_match_id,
};

static int __init sensor_mod_init(void)
{
    return i2c_add_driver(&xc7160_i2c_driver);
}

static void __exit sensor_mod_exit(void)
{
    i2c_del_driver(&xc7160_i2c_driver);
}

device_initcall_sync(sensor_mod_init);
module_exit(sensor_mod_exit);

MODULE_DESCRIPTION("OmniVision xc7160 sensor driver");
MODULE_LICENSE("GPL v2");
