🎯 欢迎来到 Flutter for OpenHarmony 第三方库实战系列！本文将带你构建一个完整的智能图片应用，通过组合 power_image 和 palette_generator 两个库，实现高性能图片加载与智能色彩提取的完整方案。

🚀 项目概述：我们要构建什么？

想象一下这样的场景：用户打开你的应用，浏览精美的图片列表，点击图片后自动提取主色调，界面根据图片颜色动态调整主题。这个流程涵盖了现代图片应用的核心体验。

图片列表加载

高性能渲染

选择图片

色彩提取

动态主题

🎯 核心功能一览

功能模块 实现库 核心能力
🖼️ 图片加载 power_image 高性能Texture渲染、智能缓存
🎨 色彩提取 palette_generator 智能提取主色调、配色方案生成

💡 为什么选择这两个库？

1️⃣ power_image - 高性能图片加载引擎

  • 使用 Texture 渲染，性能提升 3-5 倍
  • 智能缓存机制，自动管理内存和磁盘
  • 支持多种图片源（网络、本地、资源）
  • 内存优化，避免 OOM 崩溃

2️⃣ palette_generator - 智能配色方案生成

  • 自动从图片中提取突出颜色
  • 提供多种预定义调色板类型
  • 支持明暗主题自动适配
  • API 简洁，几行代码即可生成配色

📦 第一步：环境配置

1.1 添加依赖

打开 pubspec.yaml，添加两个库的依赖：

dependencies:
  flutter:
    sdk: flutter

  # 高性能图片加载
  power_image:
    git:
      url: https://atomgit.com/openharmony-sig/flutter_power_image.git

  # 调色板生成
  palette_generator:
    git:
      url: "https://atomgit.com/openharmony-tpc/flutter_packages.git"
      path: "packages/palette_generator"

  # 网络请求（用于下载图片数据）
  http: ^1.0.0

  # 图片选择（用于演示）
  image_picker:
    git:
      url: https://atomgit.com/openharmony-tpc/flutter_packages.git
      path: packages/image_picker

1.2 权限配置

在 OpenHarmony 平台上，需要配置相关权限：

📄 ohos/entry/src/main/module.json5：

{
  "module": {
    "requestPermissions": [
      {
        "name": "ohos.permission.INTERNET",
        "reason": "$string:network_reason",
        "usedScene": {
          "abilities": ["EntryAbility"],
          "when": "inuse"
        }
      },
      {
        "name": "ohos.permission.READ_MEDIA",
        "reason": "$string:read_media_reason",
        "usedScene": {
          "abilities": ["EntryAbility"],
          "when": "inuse"
        }
      }
    ]
  }
}

📄 ohos/entry/src/main/resources/base/element/string.json：

{
  "string": [
    {
      "name": "network_reason",
      "value": "加载网络图片资源"
    },
    {
      "name": "read_media_reason",
      "value": "读取本地图片进行色彩分析"
    }
  ]
}

1.3 执行依赖安装

flutter pub get

🖼️ 第二步：PowerImage 高性能加载

2.1 理解 PowerImage 的核心概念

PowerImage 是一款高性能图片加载库，它的核心优势在于使用 Texture 渲染技术，将图片解码和渲染放在 GPU 层面处理，大幅提升性能。

// 传统 Image.network 的问题
Image.network('https://example.com/image.jpg')
// ❌ 图片解码阻塞 UI 线程
// ❌ 内存占用高
// ❌ 大量图片时卡顿

// PowerImage 的解决方案
PowerImage.network(
  'https://example.com/image.jpg',
  width: 200,
  height: 200,
)
// ✅ GPU 加速渲染
// ✅ 智能缓存管理
// ✅ 流畅滚动体验

2.2 初始化 PowerImage

在应用启动时进行初始化：

import 'package:flutter/material.dart';
import 'package:power_image/power_image.dart';

void main() {
  // 初始化 PowerImage 绑定
  PowerImageBinding();

  // 配置 PowerImage 选项
  PowerImageLoader.instance.setup(
    PowerImageSetupOptions(
      renderingTypeTexture,  // 使用 Texture 渲染（推荐）
      errorCallback: (PowerImageLoadException exception) {
        debugPrint('图片加载失败: ${exception.message}');
      },
    ),
  );

  runApp(const ColorPaletteApp());
}

初始化参数说明：

参数 说明
renderingTypeTexture 使用 Texture 渲染，性能最高（推荐）
renderingTypeExternal 使用 External 渲染，兼容性好
errorCallback 全局错误回调，用于监控图片加载失败

2.3 加载不同来源的图片

// 网络图片
PowerImage.network(
  'https://picsum.photos/400/300',
  width: 200,
  height: 150,
  fit: BoxFit.cover,
  placeholderBuilder: (context) => Container(
    color: Colors.grey[200],
    child: const Center(child: CircularProgressIndicator()),
  ),
)

// 本地文件
PowerImage.file(
  File('/path/to/image.jpg'),
  width: 200,
  height: 150,
)

// Asset 资源
PowerImage.asset(
  'assets/images/sample.jpg',
  width: 200,
  height: 150,
)

2.4 图片预加载

对于图片列表场景，预加载可以提升用户体验：

class ImagePreloader {
  static Future<void> preloadImages(List<String> urls) async {
    for (final url in urls) {
      await PowerImageLoader.instance.preload(
        PowerImageLoadRequest(
          'network',
          uri: url,
          imageWidth: 200,
          imageHeight: 150,
        ),
      );
    }
  }
}

// 在列表显示前预加载
await ImagePreloader.preloadImages(imageUrls);

🎨 第三步：PaletteGenerator 色彩提取

3.1 理解 PaletteGenerator 的核心概念

PaletteGenerator 从图片中智能提取颜色，生成完整的配色方案。它基于 Android Palette 库实现，支持多种调色板类型。

支持的调色板类型：

调色板类型 说明 适用场景
dominant 主色调 背景色、主题色
vibrant 鲜艳色调 强调色、按钮色
lightVibrant 明亮鲜艳色调 高亮背景
darkVibrant 暗色鲜艳色调 深色主题
muted 柔和色调 次要元素
lightMuted 明亮柔和色调 卡片背景
darkMuted 暗色柔和色调 文字背景

3.2 从不同来源生成调色板

import 'dart:ui' as ui;
import 'dart:typed_data';
import 'package:flutter/services.dart' show rootBundle;
import 'package:http/http.dart' as http;

class PaletteService {
  // 从网络图片生成调色板
  static Future<PaletteGenerator> fromNetwork(String url) async {
    final response = await http.get(Uri.parse(url));
    final bytes = response.bodyBytes;
    return _generateFromBytes(bytes);
  }

  // 从 Asset 生成调色板
  static Future<PaletteGenerator> fromAsset(String assetPath) async {
    final data = await rootBundle.load(assetPath);
    final bytes = data.buffer.asUint8List();
    return _generateFromBytes(bytes);
  }

  // 从文件生成调色板
  static Future<PaletteGenerator> fromFile(String filePath) async {
    final file = File(filePath);
    final bytes = await file.readAsBytes();
    return _generateFromBytes(bytes);
  }

  // 核心方法：从字节数据生成调色板
  static Future<PaletteGenerator> _generateFromBytes(Uint8List bytes) async {
    final codec = await ui.instantiateImageCodec(bytes);
    final frame = await codec.getNextFrame();
    final image = frame.image;

    return await PaletteGenerator.fromImage(
      image,
      maximumColorCount: 16,  // 最大颜色数量
    );
  }
}

3.3 获取和使用调色板颜色

Future<ColorScheme> extractColorScheme(String imageUrl) async {
  final palette = await PaletteService.fromNetwork(imageUrl);

  // 获取主色调
  final dominantColor = palette.dominantColor?.color ?? Colors.blue;

  // 获取鲜艳色调（用于强调）
  final vibrantColor = palette.vibrantColor?.color ?? Colors.blueAccent;

  // 获取柔和色调（用于背景）
  final mutedColor = palette.mutedColor?.color ?? Colors.grey;

  // 获取文字颜色
  final textColor = palette.dominantColor?.bodyTextColor ?? Colors.white;

  return ColorScheme(
    primary: vibrantColor,
    secondary: mutedColor,
    surface: dominantColor,
    onPrimary: textColor,
    onSecondary: textColor,
    onSurface: textColor,
    brightness: _getBrightness(dominantColor),
  );
}

Brightness _getBrightness(Color color) {
  // 计算亮度
  final luminance = color.computeLuminance();
  return luminance > 0.5 ? Brightness.light : Brightness.dark;
}

🔧 第四步：完整实战应用

4.1 应用架构设计

// 主应用
class ColorPaletteApp extends StatelessWidget {
  const ColorPaletteApp({super.key});

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      title: '色彩提取工具',
      theme: ThemeData(
        colorSchemeSeed: Colors.blue,
        useMaterial3: true,
      ),
      home: const ImageColorPage(),
    );
  }
}

4.2 图片列表页面

class ImageColorPage extends StatefulWidget {
  const ImageColorPage({super.key});

  @override
  State<ImageColorPage> createState() => _ImageColorPageState();
}

class _ImageColorPageState extends State<ImageColorPage> {
  final List<String> _imageUrls = [
    'https://picsum.photos/seed/1/400/300',
    'https://picsum.photos/seed/2/400/300',
    'https://picsum.photos/seed/3/400/300',
    'https://picsum.photos/seed/4/400/300',
    'https://picsum.photos/seed/5/400/300',
    'https://picsum.photos/seed/6/400/300',
  ];

  String? _selectedImageUrl;
  PaletteGenerator? _palette;
  bool _isExtracting = false;

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(
        title: const Text('色彩提取工具'),
        elevation: 0,
      ),
      body: Column(
        children: [
          _buildImageList(),
          const Divider(),
          Expanded(child: _buildColorPanel()),
        ],
      ),
    );
  }

  Widget _buildImageList() {
    return SizedBox(
      height: 120,
      child: ListView.builder(
        scrollDirection: Axis.horizontal,
        padding: const EdgeInsets.all(8),
        itemCount: _imageUrls.length,
        itemBuilder: (context, index) {
          final url = _imageUrls[index];
          final isSelected = url == _selectedImageUrl;

          return GestureDetector(
            onTap: () => _selectImage(url),
            child: Container(
              margin: const EdgeInsets.symmetric(horizontal: 4),
              decoration: BoxDecoration(
                borderRadius: BorderRadius.circular(8),
                border: Border.all(
                  color: isSelected ? Colors.blue : Colors.transparent,
                  width: 3,
                ),
              ),
              child: ClipRRect(
                borderRadius: BorderRadius.circular(6),
                child: PowerImage.network(
                  url,
                  width: 100,
                  height: 100,
                  fit: BoxFit.cover,
                ),
              ),
            ),
          );
        },
      ),
    );
  }

  Widget _buildColorPanel() {
    if (_selectedImageUrl == null) {
      return const Center(
        child: Text('请选择一张图片'),
      );
    }

    if (_isExtracting) {
      return const Center(
        child: Column(
          mainAxisAlignment: MainAxisAlignment.center,
          children: [
            CircularProgressIndicator(),
            SizedBox(height: 16),
            Text('正在提取色彩...'),
          ],
        ),
      );
    }

    if (_palette == null) {
      return const Center(
        child: Text('色彩提取失败'),
      );
    }

    return SingleChildScrollView(
      padding: const EdgeInsets.all(16),
      child: Column(
        crossAxisAlignment: CrossAxisAlignment.start,
        children: [
          _buildSelectedImage(),
          const SizedBox(height: 24),
          _buildPaletteColors(),
          const SizedBox(height: 24),
          _buildColorSwatches(),
        ],
      ),
    );
  }

  Widget _buildSelectedImage() {
    return Center(
      child: ClipRRect(
        borderRadius: BorderRadius.circular(12),
        child: PowerImage.network(
          _selectedImageUrl!,
          width: 200,
          height: 150,
          fit: BoxFit.cover,
        ),
      ),
    );
  }

  Widget _buildPaletteColors() {
    final colors = [
      ('主色调', _palette!.dominantColor),
      ('鲜艳色', _palette!.vibrantColor),
      ('明亮鲜艳', _palette!.lightVibrantColor),
      ('暗色鲜艳', _palette!.darkVibrantColor),
      ('柔和色', _palette!.mutedColor),
      ('明亮柔和', _palette!.lightMutedColor),
      ('暗色柔和', _palette!.darkMutedColor),
    ];

    return Column(
      crossAxisAlignment: CrossAxisAlignment.start,
      children: [
        Text(
          '提取的颜色',
          style: Theme.of(context).textTheme.titleMedium,
        ),
        const SizedBox(height: 12),
        Wrap(
          spacing: 8,
          runSpacing: 8,
          children: colors.map((item) {
            final name = item.$1;
            final color = item.$2;
            return _buildColorChip(name, color);
          }).toList(),
        ),
      ],
    );
  }

  Widget _buildColorChip(String name, PaletteColor? paletteColor) {
    final color = paletteColor?.color ?? Colors.grey;
    final textColor = paletteColor?.bodyTextColor ?? Colors.black;

    return Container(
      width: 100,
      height: 60,
      decoration: BoxDecoration(
        color: color,
        borderRadius: BorderRadius.circular(8),
        boxShadow: [
          BoxShadow(
            color: color.withOpacity(0.4),
            blurRadius: 8,
            offset: const Offset(0, 2),
          ),
        ],
      ),
      child: Column(
        mainAxisAlignment: MainAxisAlignment.center,
        children: [
          Text(
            name,
            style: TextStyle(
              color: textColor,
              fontSize: 12,
              fontWeight: FontWeight.bold,
            ),
          ),
          const SizedBox(height: 4),
          Text(
            '#${color.value.toRadixString(16).substring(2).toUpperCase()}',
            style: TextStyle(
              color: textColor,
              fontSize: 10,
            ),
          ),
        ],
      ),
    );
  }

  Widget _buildColorSwatches() {
    return Column(
      crossAxisAlignment: CrossAxisAlignment.start,
      children: [
        Text(
          '完整色板',
          style: Theme.of(context).textTheme.titleMedium,
        ),
        const SizedBox(height: 12),
        Container(
          height: 60,
          decoration: BoxDecoration(
            borderRadius: BorderRadius.circular(8),
            gradient: LinearGradient(
              colors: _getGradientColors(),
            ),
          ),
        ),
      ],
    );
  }

  List<Color> _getGradientColors() {
    final colors = <Color>[];

    final paletteColors = [
      _palette!.dominantColor,
      _palette!.vibrantColor,
      _palette!.mutedColor,
      _palette!.lightVibrantColor,
      _palette!.darkVibrantColor,
      _palette!.lightMutedColor,
      _palette!.darkMutedColor,
    ];

    for (final pc in paletteColors) {
      if (pc != null) {
        colors.add(pc.color);
      }
    }

    return colors.isEmpty ? [Colors.grey] : colors;
  }

  Future<void> _selectImage(String url) async {
    setState(() {
      _selectedImageUrl = url;
      _isExtracting = true;
      _palette = null;
    });

    try {
      final palette = await PaletteService.fromNetwork(url);
      setState(() {
        _palette = palette;
        _isExtracting = false;
      });
    } catch (e) {
      setState(() {
        _isExtracting = false;
      });
      if (mounted) {
        ScaffoldMessenger.of(context).showSnackBar(
          SnackBar(content: Text('色彩提取失败: $e')),
        );
      }
    }
  }
}

4.3 动态主题应用

class DynamicThemePage extends StatefulWidget {
  const DynamicThemePage({super.key});

  @override
  State<DynamicThemePage> createState() => _DynamicThemePageState();
}

class _DynamicThemePageState extends State<DynamicThemePage> {
  ColorScheme? _dynamicColorScheme;
  String? _currentImageUrl;

  Future<void> _updateThemeFromImage(String imageUrl) async {
    final colorScheme = await extractColorScheme(imageUrl);
    setState(() {
      _dynamicColorScheme = colorScheme;
      _currentImageUrl = imageUrl;
    });
  }

  @override
  Widget build(BuildContext context) {
    return Theme(
      data: Theme.of(context).copyWith(
        colorScheme: _dynamicColorScheme ?? Theme.of(context).colorScheme,
      ),
      child: Scaffold(
        appBar: AppBar(
          title: const Text('动态主题'),
          backgroundColor: _dynamicColorScheme?.primary,
          foregroundColor: _dynamicColorScheme?.onPrimary,
        ),
        body: Center(
          child: Column(
            mainAxisAlignment: MainAxisAlignment.center,
            children: [
              if (_currentImageUrl != null)
                PowerImage.network(
                  _currentImageUrl!,
                  width: 200,
                  height: 150,
                ),
              const SizedBox(height: 24),
              ElevatedButton(
                onPressed: () => _updateThemeFromImage(
                  'https://picsum.photos/seed/${DateTime.now().second}/400/300',
                ),
                child: const Text('随机更换主题'),
              ),
            ],
          ),
        ),
      ),
    );
  }
}

📊 第五步：性能优化实践

5.1 图片加载优化

class OptimizedImageList extends StatelessWidget {
  final List<String> imageUrls;

  const OptimizedImageList({super.key, required this.imageUrls});

  @override
  Widget build(BuildContext context) {
    return ListView.builder(
      itemCount: imageUrls.length,
      cacheExtent: 500,  // 预缓存区域
      itemBuilder: (context, index) {
        return PowerImage.network(
          imageUrls[index],
          width: double.infinity,
          height: 200,
          fit: BoxFit.cover,
          imageWidth: MediaQuery.of(context).size.width.toInt(),
          imageHeight: 200,
          placeholderBuilder: (context) => Container(
            color: Colors.grey[200],
            child: const Center(child: CircularProgressIndicator()),
          ),
          errorBuilder: (context, error) => Container(
            color: Colors.grey[200],
            child: const Icon(Icons.error),
          ),
        );
      },
    );
  }
}

5.2 色彩提取优化

class CachedPaletteService {
  static final _cache = <String, PaletteGenerator>{};

  static Future<PaletteGenerator> getPalette(String url) async {
    if (_cache.containsKey(url)) {
      return _cache[url]!;
    }

    final palette = await PaletteService.fromNetwork(url);
    _cache[url] = palette;
    return palette;
  }

  static void clearCache() {
    _cache.clear();
  }
}

5.3 内存管理

class ImageMemoryManager {
  static const maxCacheSize = 100 * 1024 * 1024;  // 100MB

  static void optimizeMemory() {
    // 清理 PowerImage 缓存
    PowerImageLoader.instance.clearMemoryCache();

    // 触发 GC
    WidgetsBinding.instance.handleMemoryPressure(() {
      PowerImageLoader.instance.clearMemoryCache();
    });
  }
}

🎯 第六步：高级应用场景

6.1 音乐播放器专辑封面

class AlbumCoverWithTheme extends StatefulWidget {
  final String albumArtUrl;
  final String title;

  const AlbumCoverWithTheme({
    super.key,
    required this.albumArtUrl,
    required this.title,
  });

  @override
  State<AlbumCoverWithTheme> createState() => _AlbumCoverWithThemeState();
}

class _AlbumCoverWithThemeState extends State<AlbumCoverWithTheme> {
  PaletteGenerator? _palette;

  @override
  void initState() {
    super.initState();
    _extractColors();
  }

  Future<void> _extractColors() async {
    final palette = await PaletteService.fromNetwork(widget.albumArtUrl);
    setState(() {
      _palette = palette;
    });
  }

  @override
  Widget build(BuildContext context) {
    final backgroundColor = _palette?.darkMutedColor?.color ?? Colors.black;
    final accentColor = _palette?.vibrantColor?.color ?? Colors.blue;
    final textColor = _palette?.lightVibrantColor?.color ?? Colors.white;

    return Container(
      decoration: BoxDecoration(
        gradient: LinearGradient(
          begin: Alignment.topCenter,
          end: Alignment.bottomCenter,
          colors: [
            backgroundColor,
            backgroundColor.withOpacity(0.8),
            Colors.black,
          ],
        ),
      ),
      child: Column(
        mainAxisAlignment: MainAxisAlignment.center,
        children: [
          Container(
            width: 200,
            height: 200,
            decoration: BoxDecoration(
              borderRadius: BorderRadius.circular(12),
              boxShadow: [
                BoxShadow(
                  color: accentColor.withOpacity(0.5),
                  blurRadius: 30,
                  spreadRadius: 5,
                ),
              ],
            ),
            child: ClipRRect(
              borderRadius: BorderRadius.circular(12),
              child: PowerImage.network(
                widget.albumArtUrl,
                width: 200,
                height: 200,
                fit: BoxFit.cover,
              ),
            ),
          ),
          const SizedBox(height: 24),
          Text(
            widget.title,
            style: TextStyle(
              color: textColor,
              fontSize: 24,
              fontWeight: FontWeight.bold,
            ),
          ),
          const SizedBox(height: 16),
          Container(
            height: 4,
            width: 200,
            decoration: BoxDecoration(
              color: Colors.grey[800],
              borderRadius: BorderRadius.circular(2),
            ),
            child: FractionallySizedBox(
              alignment: Alignment.centerLeft,
              widthFactor: 0.3,
              child: Container(
                decoration: BoxDecoration(
                  color: accentColor,
                  borderRadius: BorderRadius.circular(2),
                ),
              ),
            ),
          ),
        ],
      ),
    );
  }
}

6.2 图片浏览器

class ImageBrowser extends StatefulWidget {
  final List<String> imageUrls;
  final int initialIndex;

  const ImageBrowser({
    super.key,
    required this.imageUrls,
    this.initialIndex = 0,
  });

  @override
  State<ImageBrowser> createState() => _ImageBrowserState();
}

class _ImageBrowserState extends State<ImageBrowser> {
  late PageController _pageController;
  int _currentIndex = 0;
  Color _backgroundColor = Colors.black;

  @override
  void initState() {
    super.initState();
    _currentIndex = widget.initialIndex;
    _pageController = PageController(initialPage: widget.initialIndex);
    _updateBackgroundColor();
  }

  Future<void> _updateBackgroundColor() async {
    final url = widget.imageUrls[_currentIndex];
    try {
      final palette = await PaletteService.fromNetwork(url);
      setState(() {
        _backgroundColor = palette.darkMutedColor?.color ?? Colors.black;
      });
    } catch (e) {
      // 保持当前背景色
    }
  }

  @override
  Widget build(BuildContext context) {
    return AnimatedContainer(
      duration: const Duration(milliseconds: 500),
      color: _backgroundColor,
      child: PageView.builder(
        controller: _pageController,
        itemCount: widget.imageUrls.length,
        onPageChanged: (index) {
          _currentIndex = index;
          _updateBackgroundColor();
        },
        itemBuilder: (context, index) {
          return InteractiveViewer(
            child: Center(
              child: PowerImage.network(
                widget.imageUrls[index],
                fit: BoxFit.contain,
              ),
            ),
          );
        },
      ),
    );
  }

  @override
  void dispose() {
    _pageController.dispose();
    super.dispose();
  }
}

🔍 常见问题与解决方案

7.1 图片加载失败

问题：图片显示不出来或加载很慢。

解决方案：

PowerImage.network(
  url,
  errorBuilder: (context, error) => Container(
    color: Colors.grey[200],
    child: Column(
      mainAxisAlignment: MainAxisAlignment.center,
      children: [
        const Icon(Icons.error_outline, color: Colors.red),
        const SizedBox(height: 8),
        Text('加载失败: $error'),
      ],
    ),
  ),
)

7.2 色彩提取不准确

问题：提取的颜色与图片不符。

解决方案：

// 增加颜色数量
final palette = await PaletteGenerator.fromImage(
  image,
  maximumColorCount: 32,  // 增加到32
);

// 使用 region 指定区域
final palette = await PaletteGenerator.fromImage(
  image,
  region: Rect.fromLTWH(0, 0, image.width / 2, image.height),
);

7.3 内存占用过高

问题：加载大量图片后内存飙升。

解决方案：

// 1. 设置合适的图片尺寸
PowerImage.network(
  url,
  imageWidth: 200,  // 限制解码尺寸
  imageHeight: 200,
)

// 2. 及时清理缓存
void onLowMemory() {
  PowerImageLoader.instance.clearMemoryCache();
}

// 3. 使用缓存策略
PowerImage.network(
  url,
  cacheWidth: 200,  // 缓存尺寸
)

📋 最佳实践总结

8.1 图片加载最佳实践

场景 推荐配置
列表缩略图 imageWidth: 100, Texture渲染
全屏大图 预加载 + 渐进式加载
头像 圆形裁剪 + 占位图
背景图 fit: BoxFit.cover + 模糊效果

8.2 色彩提取最佳实践

场景 推荐调色板
主题色 dominantColor
强调色/按钮 vibrantColor
背景色 darkMutedColor
文字色 bodyTextColor
卡片背景 lightMutedColor

🎉 总结

本文详细介绍了 power_image 和 palette_generator 两个库的组合应用，包括：

  • ✅ PowerImage 高性能图片加载与渲染
  • ✅ PaletteGenerator 智能色彩提取
  • ✅ 动态主题实现方案
  • ✅ 完整的实战示例代码
  • ✅ 性能优化技巧
  • ✅ 高级应用场景
  • ✅ 常见问题解决方案

通过本文的学习，你应该能够在 Flutter for OpenHarmony 项目中实现高性能图片加载和智能色彩提取功能，打造出色的视觉体验应用。

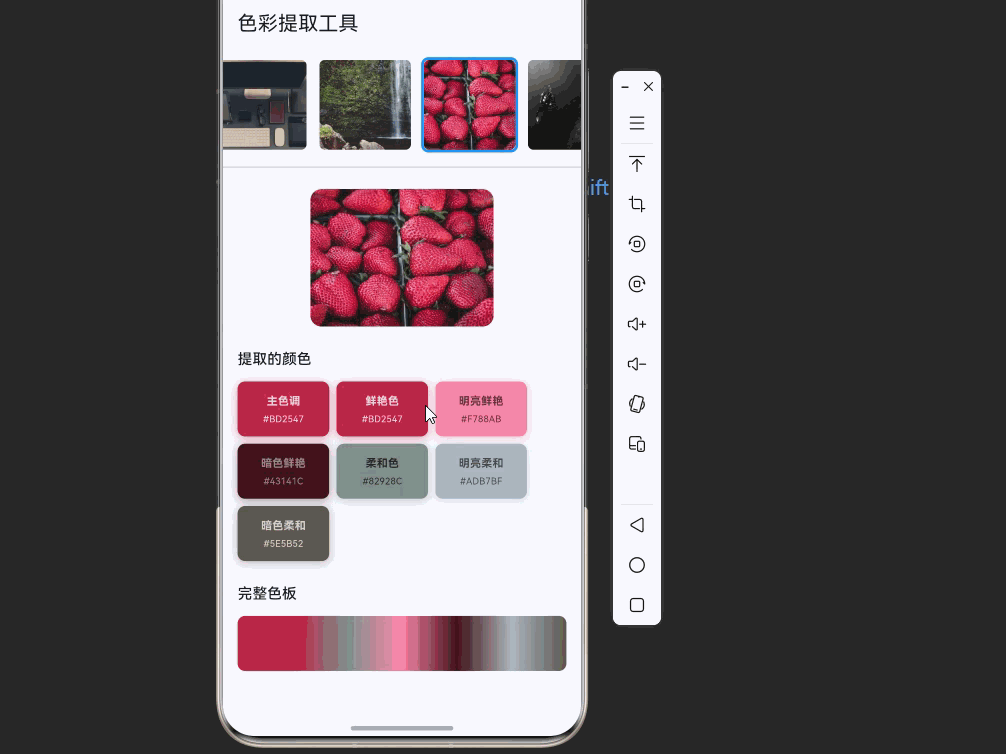

📝 完整示例代码

以下是完整的 main.dart 示例代码，可以直接复制运行：

import 'dart:io';
import 'dart:ui' as ui;
import 'dart:typed_data';
import 'package:flutter/material.dart';
import 'package:flutter/services.dart' show rootBundle;
import 'package:palette_generator/palette_generator.dart';
import 'package:http/http.dart' as http;

void main() {
  runApp(const ColorPaletteApp());
}

class ColorPaletteApp extends StatelessWidget {
  const ColorPaletteApp({super.key});

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      title: '色彩提取工具',
      debugShowCheckedModeBanner: false,
      theme: ThemeData(
        colorSchemeSeed: Colors.blue,
        useMaterial3: true,
      ),
      home: const ImageColorPage(),
    );
  }
}

class PaletteService {
  static Future<PaletteGenerator> fromNetwork(String url) async {
    final response = await http.get(Uri.parse(url));
    final bytes = response.bodyBytes;
    return _generateFromBytes(bytes);
  }

  static Future<PaletteGenerator> fromAsset(String assetPath) async {
    final data = await rootBundle.load(assetPath);
    final bytes = data.buffer.asUint8List();
    return _generateFromBytes(bytes);
  }

  static Future<PaletteGenerator> fromFile(String filePath) async {
    final file = File(filePath);
    final bytes = await file.readAsBytes();
    return _generateFromBytes(bytes);
  }

  static Future<PaletteGenerator> _generateFromBytes(Uint8List bytes) async {
    final codec = await ui.instantiateImageCodec(bytes);
    final frame = await codec.getNextFrame();
    final image = frame.image;
    return await PaletteGenerator.fromImage(image, maximumColorCount: 16);
  }
}

class ImageColorPage extends StatefulWidget {
  const ImageColorPage({super.key});

  @override
  State<ImageColorPage> createState() => _ImageColorPageState();
}

class _ImageColorPageState extends State<ImageColorPage> {
  final List<String> _imageUrls = [
    'https://picsum.photos/seed/1/400/300',
    'https://picsum.photos/seed/2/400/300',
    'https://picsum.photos/seed/3/400/300',
    'https://picsum.photos/seed/4/400/300',
    'https://picsum.photos/seed/5/400/300',
    'https://picsum.photos/seed/6/400/300',
  ];

  String? _selectedImageUrl;
  PaletteGenerator? _palette;
  bool _isExtracting = false;

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(
        title: const Text('色彩提取工具'),
        elevation: 0,
      ),
      body: Column(
        children: [
          _buildImageList(),
          const Divider(),
          Expanded(child: _buildColorPanel()),
        ],
      ),
    );
  }

  Widget _buildImageList() {
    return SizedBox(
      height: 120,
      child: ListView.builder(
        scrollDirection: Axis.horizontal,
        padding: const EdgeInsets.all(8),
        itemCount: _imageUrls.length,
        itemBuilder: (context, index) {
          final url = _imageUrls[index];
          final isSelected = url == _selectedImageUrl;
          return GestureDetector(
            onTap: () => _selectImage(url),
            child: Container(
              margin: const EdgeInsets.symmetric(horizontal: 4),
              decoration: BoxDecoration(
                borderRadius: BorderRadius.circular(8),
                border: Border.all(
                  color: isSelected ? Colors.blue : Colors.transparent,
                  width: 3,
                ),
              ),
              child: ClipRRect(
                borderRadius: BorderRadius.circular(6),
                child: Image.network(
                  url,
                  width: 100,
                  height: 100,
                  fit: BoxFit.cover,
                  loadingBuilder: (context, child, loadingProgress) {
                    if (loadingProgress == null) return child;
                    return Container(
                      color: Colors.grey[200],
                      child: const Center(child: CircularProgressIndicator()),
                    );
                  },
                  errorBuilder: (context, error, stackTrace) {
                    return Container(
                      color: Colors.grey[200],
                      child: const Icon(Icons.error),
                    );
                  },
                ),
              ),
            ),
          );
        },
      ),
    );
  }

  Widget _buildColorPanel() {
    if (_selectedImageUrl == null) {
      return const Center(child: Text('请选择一张图片'));
    }
    if (_isExtracting) {
      return const Center(
        child: Column(
          mainAxisAlignment: MainAxisAlignment.center,
          children: [
            CircularProgressIndicator(),
            SizedBox(height: 16),
            Text('正在提取色彩...'),
          ],
        ),
      );
    }
    if (_palette == null) {
      return const Center(child: Text('色彩提取失败'));
    }
    return SingleChildScrollView(
      padding: const EdgeInsets.all(16),
      child: Column(
        crossAxisAlignment: CrossAxisAlignment.start,
        children: [
          _buildSelectedImage(),
          const SizedBox(height: 24),
          _buildPaletteColors(),
          const SizedBox(height: 24),
          _buildColorSwatches(),
        ],
      ),
    );
  }

  Widget _buildSelectedImage() {
    return Center(
      child: ClipRRect(
        borderRadius: BorderRadius.circular(12),
        child: Image.network(
          _selectedImageUrl!,
          width: 200,
          height: 150,
          fit: BoxFit.cover,
        ),
      ),
    );
  }

  Widget _buildPaletteColors() {
    final colors = [
      ('主色调', _palette!.dominantColor),
      ('鲜艳色', _palette!.vibrantColor),
      ('明亮鲜艳', _palette!.lightVibrantColor),
      ('暗色鲜艳', _palette!.darkVibrantColor),
      ('柔和色', _palette!.mutedColor),
      ('明亮柔和', _palette!.lightMutedColor),
      ('暗色柔和', _palette!.darkMutedColor),
    ];
    return Column(
      crossAxisAlignment: CrossAxisAlignment.start,
      children: [
        Text('提取的颜色', style: Theme.of(context).textTheme.titleMedium),
        const SizedBox(height: 12),
        Wrap(
          spacing: 8,
          runSpacing: 8,
          children: colors.map((item) => _buildColorChip(item.$1, item.$2)).toList(),
        ),
      ],
    );
  }

  Widget _buildColorChip(String name, PaletteColor? paletteColor) {
    final color = paletteColor?.color ?? Colors.grey;
    final textColor = paletteColor?.bodyTextColor ?? Colors.black;
    return Container(
      width: 100,
      height: 60,
      decoration: BoxDecoration(
        color: color,
        borderRadius: BorderRadius.circular(8),
        boxShadow: [
          BoxShadow(color: color.withOpacity(0.4), blurRadius: 8, offset: const Offset(0, 2)),
        ],
      ),
      child: Column(
        mainAxisAlignment: MainAxisAlignment.center,
        children: [
          Text(name, style: TextStyle(color: textColor, fontSize: 12, fontWeight: FontWeight.bold)),
          const SizedBox(height: 4),
          Text(
            '#${color.value.toRadixString(16).substring(2).toUpperCase()}',
            style: TextStyle(color: textColor, fontSize: 10),
          ),
        ],
      ),
    );
  }

  Widget _buildColorSwatches() {
    return Column(
      crossAxisAlignment: CrossAxisAlignment.start,
      children: [
        Text('完整色板', style: Theme.of(context).textTheme.titleMedium),
        const SizedBox(height: 12),
        Container(
          height: 60,
          decoration: BoxDecoration(
            borderRadius: BorderRadius.circular(8),
            gradient: LinearGradient(colors: _getGradientColors()),
          ),
        ),
      ],
    );
  }

  List<Color> _getGradientColors() {
    final colors = <Color>[];
    final paletteColors = [
      _palette!.dominantColor,
      _palette!.vibrantColor,
      _palette!.mutedColor,
      _palette!.lightVibrantColor,
      _palette!.darkVibrantColor,
      _palette!.lightMutedColor,
      _palette!.darkMutedColor,
    ];
    for (final pc in paletteColors) {
      if (pc != null) colors.add(pc.color);
    }
    return colors.isEmpty ? [Colors.grey] : colors;
  }

  Future<void> _selectImage(String url) async {
    setState(() {
      _selectedImageUrl = url;
      _isExtracting = true;
      _palette = null;
    });
    try {
      final palette = await PaletteService.fromNetwork(url);
      setState(() {
        _palette = palette;
        _isExtracting = false;
      });
    } catch (e) {
      setState(() => _isExtracting = false);
      if (mounted) {
        ScaffoldMessenger.of(context).showSnackBar(SnackBar(content: Text('色彩提取失败: $e')));
      }
    }
  }
}

📌 参考资源：

# flutter
Logo
开源鸿蒙跨平台开发者社区

开源鸿蒙跨平台开发社区汇聚开发者与厂商，共建“一次开发，多端部署”的开源生态，致力于降低跨端开发门槛，推动万物智联创新。

更多推荐

cover

触觉智能Purple Pi OH开发板已适配OpenHarmony6.1，将作为LTS长期支持版，附API参考说明

avatar 开源鸿蒙跨平台开发者社区
cover

Flutter for OpenHarmony三方库适配实战：camera 相机功能详解

avatar 开源鸿蒙跨平台开发者社区
cover

Flutter for OpenHarmony三方库适配实战：local_auth 本地认证详解

avatar 开源鸿蒙跨平台开发者社区
