核心任务

扩展开源鸿蒙跨平台应用核心功能，通过新增底部选项卡及完善对应页面实现，丰富应用交互维度与服务能力，并完成开源鸿蒙设备运行验证。

一、创建Flutter 项目

打开 VS Code，新建终端，依次执行以下命令

cd Desktop

flutter create shanghai_scenic

cd shanghai_scenic

二、配置依赖

在 VS Code 中找到项目根目录的 pubspec.yaml 文件，替换为以下代码

name: shanghai_scenic
description: A new Flutter project.
publish_to: 'none'
version: 1.0.0+1

environment:
  sdk: '>=3.2.3 <4.0.0'

dependencies:
  flutter:
    sdk: flutter
  cupertino_icons: ^1.0.8
  http: ^1.6.0
  pull_to_refresh: ^2.0.0
  provider: ^6.1.1
  cached_network_image: ^3.4.1

dev_dependencies:
  flutter_test:
    sdk: flutter
  flutter_lints: ^2.0.0

flutter:
  uses-material-design: true

保存文件。

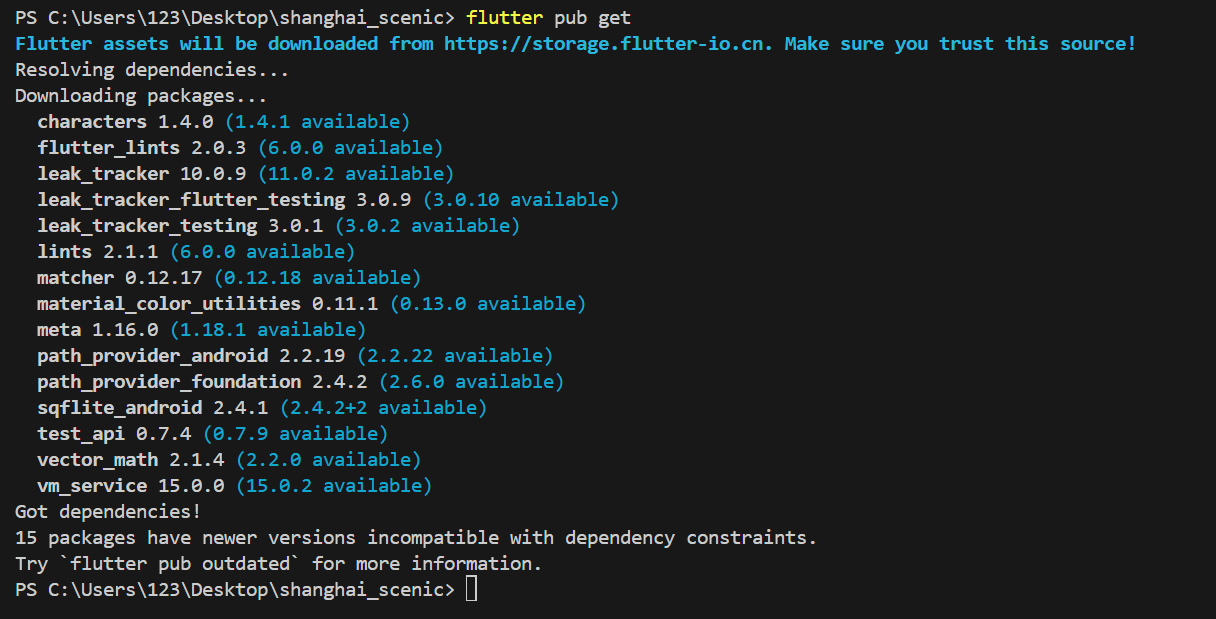

打开 VS Code 终端，输入 flutter pub get 按回车，等待依赖安装完成

如下则成功

三、创建文件夹和文件

在左侧找到 lib 文件夹→新建文件夹，依次创建：

• pages

• models

• utils

进入 pages 文件夹 →新建文件夹，依次创建：

• home

• scenic

• mine

• setting

进入每个子文件夹→新建文件，创建对应的.dart文件：

• home 文件夹 → 新建 home_page.dart

• scenic 文件夹 → 新建 scenic_list_page.dart

• mine 文件夹 → 新建 mine_page.dart

• setting 文件夹 → 新建 setting_page.dart

进入 models 文件夹 → 新建 scenic_model.dart

进入 utils 文件夹 → 新建 mock_data.dart

最终文件结构：

lib/
├── main.dart
├── pages/
│   ├── home/
│   │   └── home_page.dart
│   ├── scenic/
│   │   └── scenic_list_page.dart
│   ├── mine/
│   │   └── mine_page.dart
│   └── setting/
│       └── setting_page.dart
├── models/
│   └── scenic_model.dart
└── utils/
    └── mock_data.dart

四、编写代码

打开 models/scenic_model.dart，替换为以下代码：

// 景点数据模型
class ScenicModel {
  // 景点属性：ID、名称、简介、图片、评分
  final int id;
  final String name;
  final String desc;
  final String imageUrl;
  final double score;

  // 构造函数（初始化属性）
  ScenicModel({
    required this.id,
    required this.name,
    required this.desc,
    required this.imageUrl,
    required this.score,
  });
}

打开 utils/mock_data.dart，替换为以下代码：

import '../models/scenic_model.dart';

// 模拟上海景点数据（分批次，用于上拉加载）
class MockData {
  // 第一页数据（初始加载）
  static List<ScenicModel> getFirstPage() {
    return [
      ScenicModel(
        id: 1,
        name: "上海外滩",
        desc: "外滩是上海的象征，52幢风格各异的古典复兴大楼组成的外滩万国建筑博览群",
        imageUrl: "https://img0.baidu.com/it/u=123456789,0&fm=253&fmt=auto&app=138&f=JPEG?w=800&h=500",
        score: 4.8,
      ),
      ScenicModel(
        id: 2,
        name: "上海迪士尼乐园",
        desc: "中国内地首座迪士尼主题乐园，包含七大主题园区，适合亲子游玩",
        imageUrl: "https://img2.baidu.com/it/u=987654321,0&fm=253&fmt=auto&app=138&f=JPEG?w=800&h=500",
        score: 4.7,
      ),
      ScenicModel(
        id: 3,
        name: "豫园",
        desc: "江南古典园林，始建于明代，园内有江南三大名石之一的玉玲珑",
        imageUrl: "https://img1.baidu.com/it/u=112233445,0&fm=253&fmt=auto&app=138&f=JPEG?w=800&h=500",
        score: 4.6,
      ),
    ];
  }

  // 第二页数据（上拉加载）
  static List<ScenicModel> getSecondPage() {
    return [
      ScenicModel(
        id: 4,
        name: "东方明珠",
        desc: "上海标志性文化景观之一，塔高468米，可俯瞰上海全景",
        imageUrl: "https://img0.baidu.com/it/u=556677889,0&fm=253&fmt=auto&app=138&f=JPEG?w=800&h=500",
        score: 4.5,
      ),
      ScenicModel(
        id: 5,
        name: "上海城隍庙",
        desc: "道教宫观，与豫园相邻，是上海重要的民俗文化景点",
        imageUrl: "https://img3.baidu.com/it/u=998877665,0&fm=253&fmt=auto&app=138&f=JPEG?w=800&h=500",
        score: 4.4,
      ),
    ];
  }

  // 第三页数据（模拟无更多数据）
  static List<ScenicModel> getThirdPage() {
    return [];
  }
}

打开pages/home/home_page.dart，替换为以下代码：

import 'package:flutter/material.dart';

class HomePage extends StatelessWidget {
  const HomePage({super.key});

  @override
  Widget build(BuildContext context) {
    return const Scaffold(
      body: Center(
        child: Column(
          mainAxisAlignment: MainAxisAlignment.center,
          children: [
            Icon(Icons.home, size: 80, color: Colors.blue),
            SizedBox(height: 20),
            Text(
              "上海旅游指南",
              style: TextStyle(fontSize: 24, fontWeight: FontWeight.bold),
            ),
            SizedBox(height: 10),
            Text(
              "带你探索魔都的每一个角落",
              style: TextStyle(fontSize: 16, color: Colors.grey),
            ),
          ],
        ),
      ),
    );
  }
}

打开pages/mine/mine_page.dart，替换为以下代码：

import 'package:flutter/material.dart';

class MinePage extends StatelessWidget {
  const MinePage({super.key});

  @override
  Widget build(BuildContext context) {
    return const Scaffold(
      body: Center(
        child: Column(
          mainAxisAlignment: MainAxisAlignment.center,
          children: [
            Icon(Icons.person, size: 80, color: Colors.orange),
            SizedBox(height: 20),
            Text(
              "我的中心",
              style: TextStyle(fontSize: 24, fontWeight: FontWeight.bold),
            ),
            SizedBox(height: 10),
            Text(
              "收藏、足迹、个人信息",
              style: TextStyle(fontSize: 16, color: Colors.grey),
            ),
          ],
        ),
      ),
    );
  }
}

打开pages/setting/setting_page.dart，替换为以下代码：

import 'package:flutter/material.dart';

class SettingPage extends StatelessWidget {
  const SettingPage({super.key});

  @override
  Widget build(BuildContext context) {
    return const Scaffold(
      body: Center(
        child: Column(
          mainAxisAlignment: MainAxisAlignment.center,
          children: [
            Icon(Icons.settings, size: 80, color: Colors.grey),
            SizedBox(height: 20),
            Text(
              "设置中心",
              style: TextStyle(fontSize: 24, fontWeight: FontWeight.bold),
            ),
            SizedBox(height: 10),
            Text(
              "消息通知、缓存清理、关于我们",
              style: TextStyle(fontSize: 16, color: Colors.grey),
            ),
          ],
        ),
      ),
    );
  }
}

打开pages/scenic/scenic_list_page.dart，替换为以下代码：

import 'package:flutter/material.dart';
import 'package:pull_to_refresh/pull_to_refresh.dart';
// 移除图片加载相关依赖（无需再用）
// import 'package:cached_network_image/cached_network_image.dart';
import '../../../models/scenic_model.dart';
import '../../../utils/mock_data.dart';

class ScenicListPage extends StatefulWidget {
  const ScenicListPage({super.key});

  @override
  State<ScenicListPage> createState() => _ScenicListPageState();
}

class _ScenicListPageState extends State<ScenicListPage> {
  // 核心变量（完全保留你原有逻辑）
  List<ScenicModel> _scenicList = [];
  int _currentPage = 1;
  bool _isLoading = false;
  bool _hasMoreData = true;
  final RefreshController _refreshController = RefreshController();

  // 初始化加载第一页数据（完全保留）
  @override
  void initState() {
    super.initState();
    _loadData(isRefresh: true);
  }

  // 加载数据方法（完全保留）
  Future<void> _loadData({required bool isRefresh}) async {
    if (_isLoading) return;
    setState(() => _isLoading = true);

    try {
      await Future.delayed(const Duration(seconds: 1)); // 模拟网络延迟
      List<ScenicModel> newData = [];

      if (isRefresh) {
        _currentPage = 1;
        newData = MockData.getFirstPage();
      } else {
        _currentPage++;
        if (_currentPage == 2) newData = MockData.getSecondPage();
        if (_currentPage == 3) {
          newData = MockData.getThirdPage();
          _hasMoreData = false;
        }
      }

      setState(() {
        if (isRefresh) _scenicList = newData;
        else _scenicList.addAll(newData);
      });

      if (isRefresh) _refreshController.refreshCompleted();
      else _refreshController.loadComplete();
    } catch (e) {
      if (isRefresh) _refreshController.refreshFailed();
      else _refreshController.loadFailed();
      if (mounted) {
        ScaffoldMessenger.of(context).showSnackBar(
          SnackBar(content: Text("加载失败：$e")),
        );
      }
    } finally {
      setState(() => _isLoading = false);
    }
  }

  // 下拉刷新触发（完全保留）
  void _onRefresh() => _loadData(isRefresh: true);

  // 上拉加载触发（完全保留）
  void _onLoading() {
    if (_hasMoreData) _loadData(isRefresh: false);
    else _refreshController.loadNoData();
  }

  // 构建单个景点项（仅修改图片为蓝色地点图标）
  Widget _buildScenicItem(ScenicModel scenic) {
    return Card(
      margin: const EdgeInsets.symmetric(horizontal: 12, vertical: 8),
      elevation: 2,
      child: Padding(
        padding: const EdgeInsets.all(12),
        child: Row(
          crossAxisAlignment: CrossAxisAlignment.start,
          children: [
            // 核心修改：替换CachedNetworkImage为蓝色地点图标
            Icon(
              Icons.location_on, // 兼容所有Flutter版本的地点图标
              size: 90, // 和原图片尺寸一致
              color: Colors.blueAccent, // 蓝色（符合你的需求）
            ),
            const SizedBox(width: 15),
            Expanded(
              child: Column(
                crossAxisAlignment: CrossAxisAlignment.start,
                children: [
                  Text(scenic.name, style: const TextStyle(fontSize: 18, fontWeight: FontWeight.w600)),
                  const SizedBox(height: 6),
                  Text(
                    scenic.desc,
                    style: TextStyle(fontSize: 14, color: Colors.grey.shade600),
                    maxLines: 2,
                    overflow: TextOverflow.ellipsis,
                  ),
                  const SizedBox(height: 8),
                  Row(
                    children: [
                      const Icon(Icons.star, color: Colors.amber, size: 16),
                      const SizedBox(width: 4),
                      Text("${scenic.score}", style: const TextStyle(fontSize: 14, color: Colors.amber)),
                    ],
                  ),
                ],
              ),
            ),
          ],
        ),
      ),
    );
  }

  // 空数据页面（完全保留）
  Widget _buildEmptyWidget() {
    return const Center(
      child: Column(
        mainAxisAlignment: MainAxisAlignment.center,
        children: [
          Icon(Icons.location_off, size: 80, color: Colors.grey),
          SizedBox(height: 20),
          Text("暂无景点数据", style: TextStyle(fontSize: 20, color: Colors.grey)),
        ],
      ),
    );
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text("上海著名景点"), centerTitle: true),
      body: SmartRefresher(
        controller: _refreshController,
        onRefresh: _onRefresh,
        onLoading: _onLoading,
        enablePullUp: true,
        header: ClassicHeader(
          refreshingText: "正在刷新...",
          completeText: "刷新完成",
          failedText: "刷新失败",
          idleText: "下拉可刷新",
        ),
        footer: CustomFooter(
          builder: (context, mode) {
            Widget body;
            switch (mode) {
              case LoadStatus.idle: body = const Text("上拉加载更多"); break;
              case LoadStatus.loading: body = const CircularProgressIndicator(strokeWidth: 2); break;
              case LoadStatus.failed: body = const Text("加载失败，点击重试"); break;
              case LoadStatus.canLoading: body = const Text("松开加载更多"); break;
              case LoadStatus.noMore: body = const Text("已加载全部景点"); break;
              default: body = const Text(""); break;
            }
            return SizedBox(height: 55, child: Center(child: body));
          },
        ),
        child: _scenicList.isEmpty ? _buildEmptyWidget() : ListView.builder(
          key: const PageStorageKey<String>("scenic_list"),
          itemCount: _scenicList.length,
          itemBuilder: (context, index) => _buildScenicItem(_scenicList[index]),
        ),
      ),
    );
  }

  @override
  void dispose() {
    _refreshController.dispose();
    super.dispose();
  }
}

main.dart

import 'package:flutter/material.dart';
import 'pages/home/home_page.dart';
import 'pages/scenic/scenic_list_page.dart';
import 'pages/mine/mine_page.dart';
import 'pages/setting/setting_page.dart';

void main() => runApp(const MyApp());

class MyApp extends StatelessWidget {
  const MyApp({super.key});

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      title: '上海景点指南',
      theme: ThemeData(primarySwatch: Colors.blue),
      home: const MainTabPage(),
      debugShowCheckedModeBanner: false,
    );
  }
}

class MainTabPage extends StatefulWidget {
  const MainTabPage({super.key});

  @override
  State<MainTabPage> createState() => _MainTabPageState();
}

class _MainTabPageState extends State<MainTabPage> {
  int _currentIndex = 0;
  final List<Widget> _pages = [
    const HomePage(key: PageStorageKey<String>("home_page")),
    const ScenicListPage(key: PageStorageKey<String>("scenic_page")),
    const MinePage(key: PageStorageKey<String>("mine_page")),
    const SettingPage(key: PageStorageKey<String>("setting_page")),
  ];

  final List<BottomNavigationBarItem> _tabItems = [
    BottomNavigationBarItem(
      icon: const Icon(Icons.home_outlined),
      activeIcon: const Icon(Icons.home),
      label: "首页",
      backgroundColor: Colors.blue,
    ),
    BottomNavigationBarItem(
      icon: const Icon(Icons.location_on_outlined),
      activeIcon: const Icon(Icons.location_on),
      label: "景点列表",
      backgroundColor: Colors.green,
    ),
    BottomNavigationBarItem(
      icon: const Icon(Icons.person_outline),
      activeIcon: const Icon(Icons.person),
      label: "我的",
      backgroundColor: Colors.orange,
    ),
    BottomNavigationBarItem(
      icon: const Icon(Icons.settings_outlined),
      activeIcon: const Icon(Icons.settings),
      label: "设置",
      backgroundColor: Colors.grey,
    ),
  ];

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      body: PageStorage(bucket: PageStorageBucket(), child: _pages[_currentIndex]),
      bottomNavigationBar: BottomNavigationBar(
        currentIndex: _currentIndex,
        onTap: (index) => setState(() => _currentIndex = index),
        items: _tabItems,
        selectedItemColor: Colors.white,
        unselectedItemColor: Colors.grey[200],
        type: BottomNavigationBarType.fixed,
        backgroundColor: Colors.black87,
      ),
    );
  }
}

五、运行

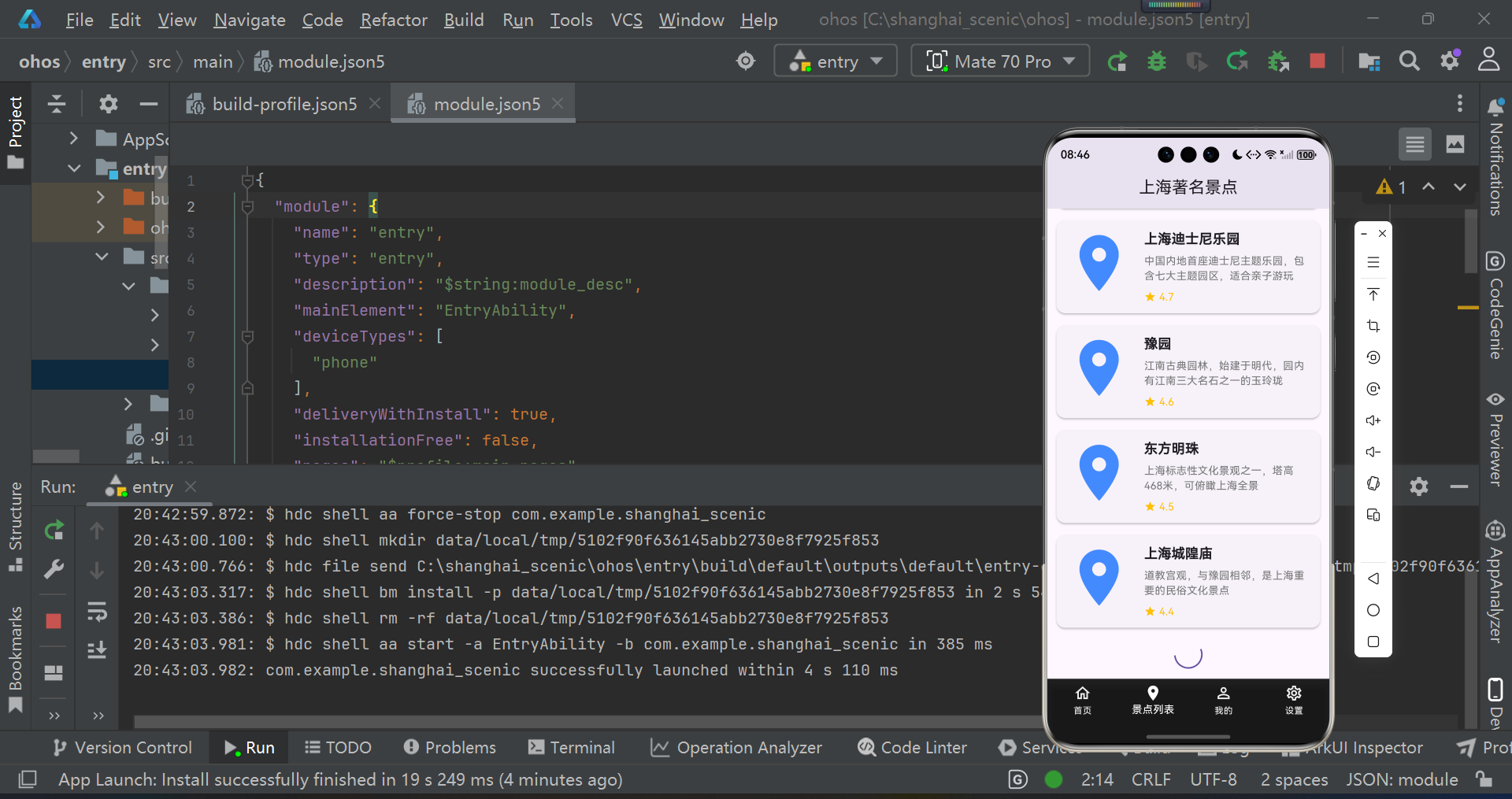

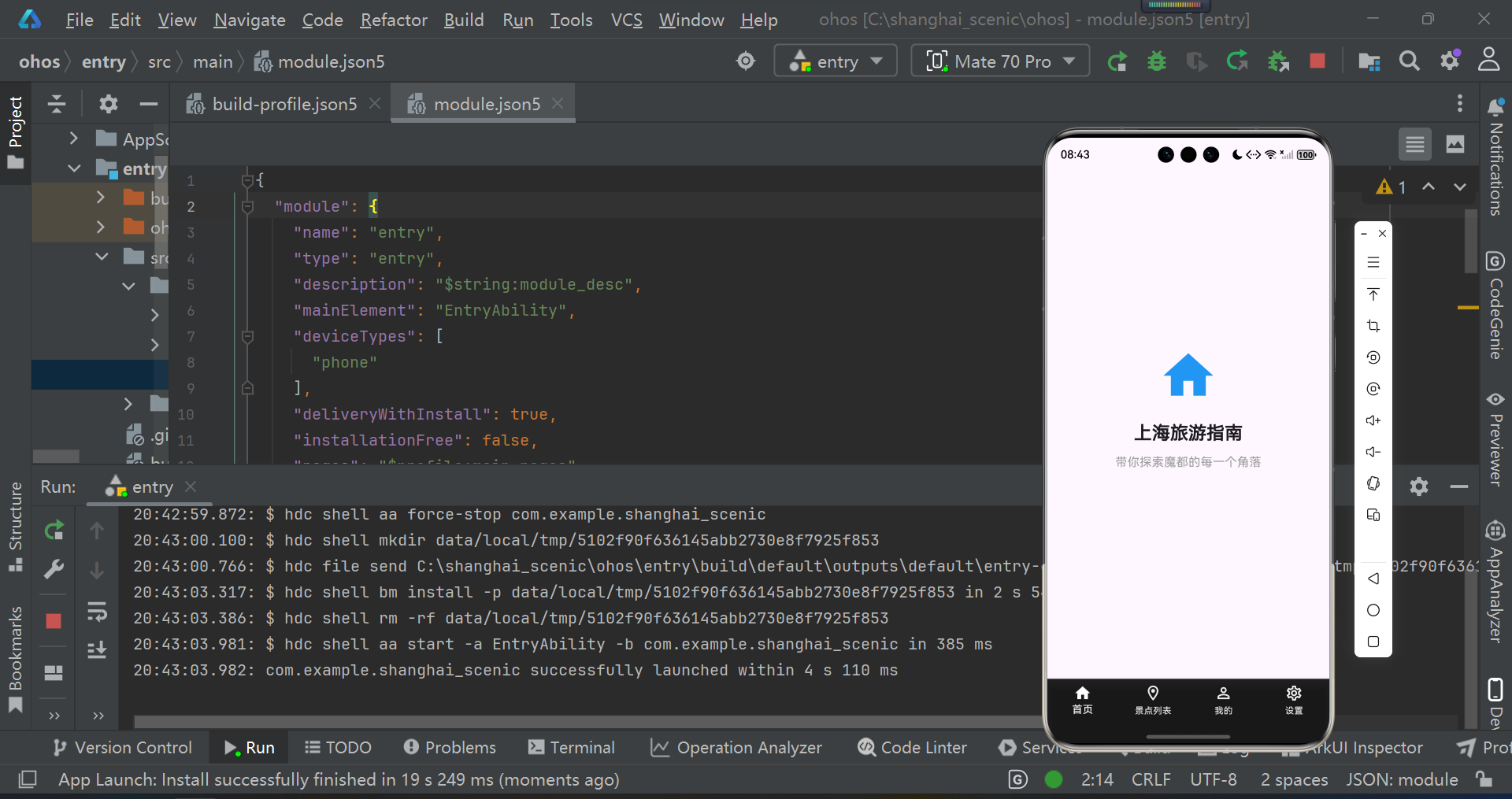

在DevEco Studio 中打开相应项目，启动模拟器，运行如下

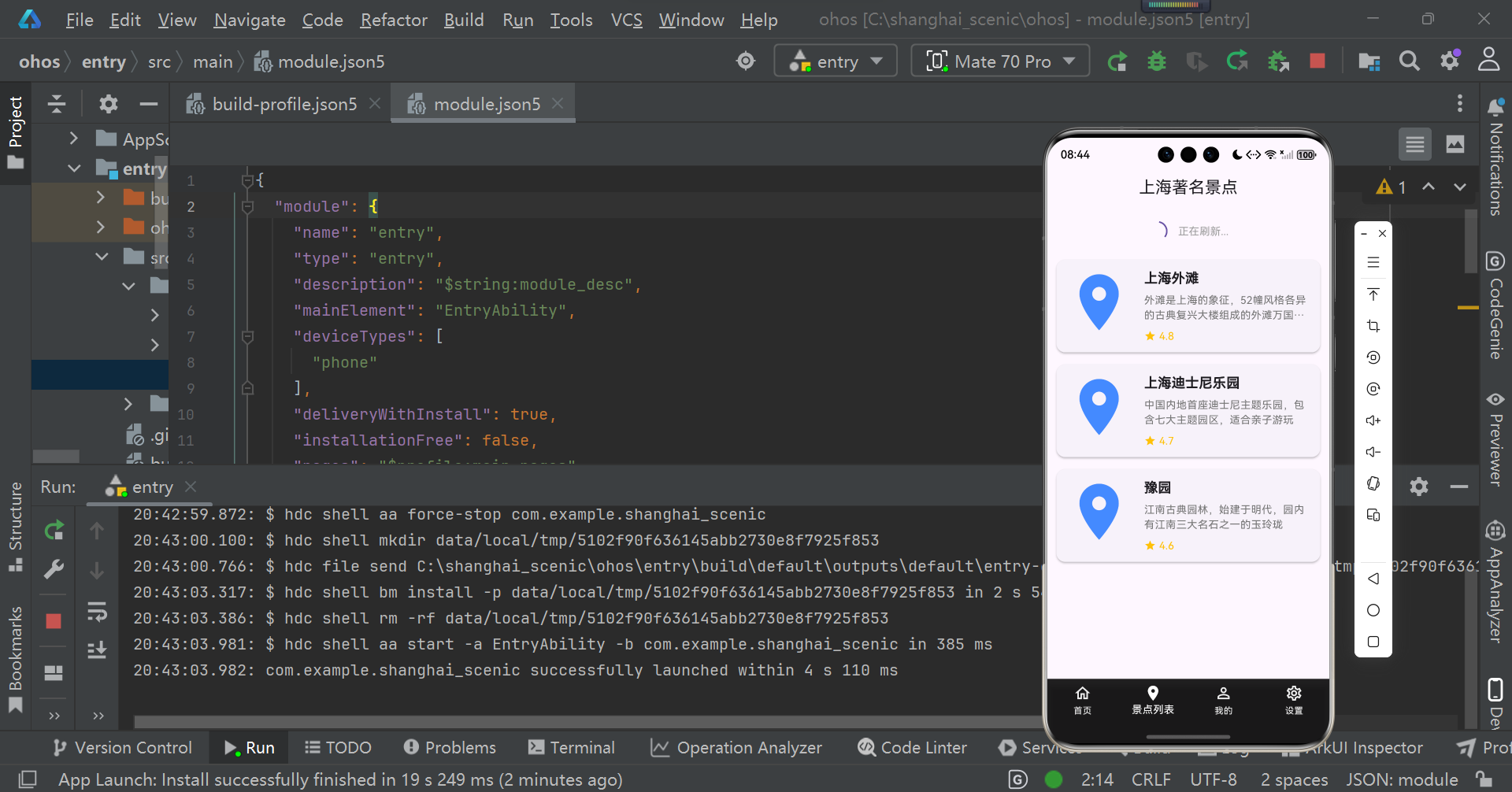

保留上拉刷新下拉加载功能

---

总结

---

欢迎加入开源鸿蒙跨平台社区 https://openharmonycrossplatform.csdn.net
