Flutter三方库适配OpenHarmony【apple_product_name】设备兼容性检测方案
本文介绍了OpenHarmony生态中设备兼容性检测的系统方案。主要内容包括:1)构建基于设备识别的多层级检测架构,利用apple_product_name库实现设备型号转换;2)设计三级支持分类体系(完全/部分/不支持),通过单例模式管理检测器;3)实现支持级别判定和性能等级评估机制,将设备划分为高/中/低三个性能层级。该方案采用宽容策略处理未知设备,支持远程配置更新,确保应用在不同OpenHa
前言
欢迎加入开源鸿蒙跨平台社区:https://openharmonycrossplatform.csdn.net
在OpenHarmony生态中,设备种类繁多、硬件规格差异显著——从旗舰折叠屏到中端直板机,从高性能平板到智能手表,设备兼容性检测是确保应用在不同设备上稳定运行的关键环节。apple_product_name库提供了精确的设备识别能力,可以将原始型号标识符(如ALN-AL00)转换为用户友好的产品名称(如HUAWEI Mate 60 Pro),为兼容性检测提供数据基础。
本文将系统讲解如何构建一套完整的设备兼容性检测方案,涵盖支持级别判定、性能等级评估、功能特性检测、批量设备扫描、功能开关控制、远程配置更新等核心模块,并提供一个完整的兼容性检测中心演示页面,展示从检测到报告的全流程。
一、兼容性检测架构设计
1.1 整体架构
一个完善的设备兼容性检测系统包含以下层次:
| 层次 | 职责 | 关键组件 |
|---|---|---|
| 设备识别层 | 获取设备型号和产品名称 | OhosProductName |
| 规则判定层 | 根据设备信息判定兼容性 | 支持列表、分类规则 |
| 功能控制层 | 根据判定结果控制功能开关 | FeatureGate |
| 展示反馈层 | 向用户展示兼容性状态 | 提示界面、检测报告 |
| 配置更新层 | 远程动态更新兼容性规则 | 远程配置服务 |
设计原则:兼容性检测应在应用启动时一次性完成,结果缓存供全局使用,避免重复的异步调用和跨平台通信开销。
1.2 核心API基础
兼容性检测依赖apple_product_name库的三个核心API:
import 'package:apple_product_name/apple_product_name_ohos.dart';
final ohos = OhosProductName();
// 获取当前设备型号标识符
final machineId = await ohos.getMachineId();
// 返回: "ALN-AL00"
// 获取当前设备产品名称
final productName = await ohos.getProductName();
// 返回: "HUAWEI Mate 60 Pro"
// 根据型号标识符查找产品名称(用于批量扫描)
final name = await ohos.lookup('CFR-AN00');
// 返回: "HUAWEI Mate 70"
其中:
getMachineId用于获取原始型号标识符,作为支持列表的匹配键getProductName用于获取产品名称,作为功能特性判断的依据lookup用于批量设备扫描,将服务端收集的型号批量转换
1.3 兼容性检测器单例
检测器采用单例模式,确保全局只有一个实例:
class CompatibilityChecker {
static final CompatibilityChecker _instance = CompatibilityChecker._();
factory CompatibilityChecker() => _instance;
CompatibilityChecker._();
String? _productName;
String? _machineId;
bool _initialized = false;
/// 应用启动时调用一次
Future<void> initialize() async {
if (_initialized) return;
final ohos = OhosProductName();
_productName = await ohos.getProductName();
_machineId = await ohos.getMachineId();
_initialized = true;
}
String get productName => _productName ?? 'Unknown';
String get machineId => _machineId ?? 'Unknown';
}
防重复初始化:通过
_initialized标志位确保initialize只执行一次,即使被多处调用也不会重复进行MethodChannel通信。
二、支持设备列表管理
2.1 三级支持分类
根据实际测试验证情况,将设备划分为三个支持级别:
class SupportedDevices {
/// 完全支持:经过全面测试,所有功能正常
static const fullSupport = [
'ALN-AL00', 'ALN-AL10', // HUAWEI Mate 60 Pro
'GGK-AL10', // HUAWEI Mate 60 Pro+
'CFR-AN00', 'CFR-AL00', // HUAWEI Mate 70
'CFS-AN00', 'CFS-AL00', // HUAWEI Mate 70 Pro
'CFT-AN00', // HUAWEI Mate 70 Pro+
'HBK-AL00', // HUAWEI Pura 70 Ultra
'DUA-AL00', // HUAWEI Pura 70 Pro
'HBN-AL00', // HUAWEI Pura 70
'GGK-W10', // HUAWEI Mate X5
'PGT-AN00', // Honor Magic6 Pro
'GROK-W09', // HUAWEI MatePad Pro 13.2
];
/// 部分支持:核心功能正常,部分高级特性受限
static const partialSupport = [
'BRA-AL00', // HUAWEI Mate 60
'CTR-AL00', // HUAWEI nova 12
'FOA-AL00', // HUAWEI nova 13
'BVL-AN00', // Honor Magic6
'GOT-W09', // HUAWEI MatePad Pro 12.6
'BAL-AL00', // HUAWEI Pocket 2
'FNA-AL00', // HUAWEI nova 13 Pro
];
/// 不支持:已知无法正常运行
static const notSupported = <String>[
// 旧设备或已知不兼容设备
];
}
2.2 支持级别对照表
| 支持级别 | 代表设备 | 功能范围 | 用户提示 |
|---|---|---|---|
| 完全支持 | Mate 60 Pro、Mate 70、Pura 70 | 全部功能可用 | 无需提示 |
| 部分支持 | Mate 60、nova 12、Pocket 2 | 核心功能可用,高级特性受限 | 温和提醒 |
| 未知设备 | 未收录的新设备 | 允许使用,可能有问题 | 建议反馈 |
| 不支持 | 旧设备 | 无法正常运行 | 明确告知 |
2.3 列表维护策略
支持设备列表的维护应遵循以下原则:
- 新设备发布时:第一时间获取型号标识符,进行兼容性测试后加入列表
- 用户反馈时:收到未知设备的兼容性报告后,验证并归类
- 版本更新时:每次应用更新前,重新验证所有已收录设备
- 远程配置:将列表托管到远程配置服务,支持动态更新
三、支持级别判定
3.1 支持级别枚举
enum SupportLevel {
full, // 完全支持
partial, // 部分支持
unknown, // 未知设备
notSupported, // 不支持
}
3.2 判定逻辑实现
class DeviceSupportChecker {
/// 检测当前设备的支持级别
static Future<SupportLevel> checkSupport() async {
final checker = CompatibilityChecker();
await checker.initialize();
final machineId = checker.machineId;
if (SupportedDevices.fullSupport.contains(machineId)) {
return SupportLevel.full;
}
if (SupportedDevices.partialSupport.contains(machineId)) {
return SupportLevel.partial;
}
if (SupportedDevices.notSupported.contains(machineId)) {
return SupportLevel.notSupported;
}
return SupportLevel.unknown;
}
/// 获取支持级别的中文描述
static String getLevelText(SupportLevel level) {
switch (level) {
case SupportLevel.full: return '完全支持';
case SupportLevel.partial: return '部分支持';
case SupportLevel.unknown: return '未知设备';
case SupportLevel.notSupported: return '不支持';
}
}
}
宽容策略:对于
unknown状态的设备,建议允许用户继续使用但显示温和提示,同时将设备信息上报服务端以便后续验证归类。
四、性能等级评估
4.1 三级性能分层
根据产品名称中的关键词判断设备性能等级:
enum PerformanceLevel {
high, // 高性能:旗舰级
medium, // 中等性能:高端级
low, // 基础性能:中端及以下
}
class PerformanceChecker {
static Future<PerformanceLevel> checkPerformance() async {
final checker = CompatibilityChecker();
await checker.initialize();
final name = checker.productName;
// 旗舰级:Pro+、Ultra、RS、Mate 70、Mate X5
if (name.contains('Pro+') || name.contains('Ultra') ||
name.contains('RS') || name.contains('Mate 70') ||
name.contains('Mate X5')) {
return PerformanceLevel.high;
}
// 高端级:Pro、Mate 60、Pura、Magic
if (name.contains('Pro') || name.contains('Mate 60') ||
name.contains('Pura') || name.contains('Magic')) {
return PerformanceLevel.medium;
}
// 其他设备
return PerformanceLevel.low;
}
}
4.2 性能等级与应用策略
| 性能等级 | 代表设备 | 渲染质量 | 动画帧率 | 图片加载 |
|---|---|---|---|---|
| 高性能 | Mate 70 Pro+、Pura 70 Ultra | 最高画质 | 120fps | 原图加载 |
| 中等性能 | Mate 60 Pro、Magic6 Pro | 高画质 | 90fps | 高清缩略图 |
| 基础性能 | nova 13、Honor 200 | 标准画质 | 60fps | 标准缩略图 |
优雅降级:性能等级决定的是视觉效果和流畅度的平衡点,不应影响核心功能的可用性。低端设备关闭的只是非必要的视觉特效。
五、功能特性兼容检测
5.1 特性检测器
不同设备在硬件能力上存在差异,需要逐项检测功能特性的兼容性:
class FeatureCompatibility {
static Future<Map<String, bool>> checkFeatures() async {
final checker = CompatibilityChecker();
await checker.initialize();
final name = checker.productName;
return {
'highResCamera': _checkHighResCamera(name),
'foldableScreen': _checkFoldable(name),
'aiFeatures': _checkAI(name),
'5G': _check5G(name),
'highRefreshRate': _checkHighRefresh(name),
'nfc': _checkNFC(name),
'multiWindow': _checkMultiWindow(name),
'satelliteComm': _checkSatellite(name),
};
}
static bool _checkHighResCamera(String name) =>
name.contains('Pro') || name.contains('Ultra') ||
name.contains('Pura');
static bool _checkFoldable(String name) =>
name.contains('Mate X') || name.contains('Pocket');
static bool _checkAI(String name) =>
name.contains('Mate 70') || name.contains('Mate 60') ||
name.contains('Pura 70');
static bool _check5G(String name) =>
!name.contains('MatePad') && !name.contains('WATCH');
static bool _checkHighRefresh(String name) =>
name.contains('Pro') || name.contains('Mate 7') ||
name.contains('Mate 6');
static bool _checkNFC(String name) =>
!name.contains('WATCH');
static bool _checkMultiWindow(String name) =>
name.contains('MatePad') || name.contains('Mate X');
static bool _checkSatellite(String name) =>
name.contains('Mate 60') || name.contains('Mate 70');
}
5.2 功能特性兼容矩阵
| 功能特性 | Mate 70 Pro | Mate 60 Pro | nova 13 | MatePad Pro | Mate X5 |
|---|---|---|---|---|---|
| 高分辨率相机 | ✅ | ✅ | ❌ | ❌ | ❌ |
| 折叠屏适配 | ❌ | ❌ | ❌ | ❌ | ✅ |
| AI 智能特性 | ✅ | ✅ | ❌ | ❌ | ❌ |
| 5G 网络 | ✅ | ✅ | ✅ | ❌ | ✅ |
| 高刷新率 | ✅ | ✅ | ❌ | ❌ | ❌ |
| NFC 支付 | ✅ | ✅ | ✅ | ✅ | ✅ |
| 大屏多窗口 | ❌ | ❌ | ❌ | ✅ | ✅ |
| 卫星通信 | ✅ | ✅ | ❌ | ❌ | ❌ |
这个矩阵清晰展示了不同设备的功能覆盖情况,开发者可以据此决定在特定设备上启用或禁用哪些功能入口。
六、兼容性结果聚合
6.1 结果数据模型
将所有检测结果聚合为一个统一的数据对象:
class CompatibilityResult {
final SupportLevel supportLevel;
final PerformanceLevel performanceLevel;
final Map<String, bool> features;
final String deviceName;
final String machineId;
CompatibilityResult({
required this.supportLevel,
required this.performanceLevel,
required this.features,
required this.deviceName,
required this.machineId,
});
/// 是否完全支持
bool get isFullySupported =>
supportLevel == SupportLevel.full;
/// 是否可以使用(非不支持即可)
bool get isUsable =>
supportLevel != SupportLevel.notSupported;
/// 支持的功能数量
int get supportedFeatureCount =>
features.values.where((v) => v).length;
}
6.2 统一检测服务
class CompatibilityService {
/// 一次性完成所有检测
static Future<CompatibilityResult> check() async {
final checker = CompatibilityChecker();
await checker.initialize();
return CompatibilityResult(
supportLevel: await DeviceSupportChecker.checkSupport(),
performanceLevel: await PerformanceChecker.checkPerformance(),
features: await FeatureCompatibility.checkFeatures(),
deviceName: checker.productName,
machineId: checker.machineId,
);
}
}
// 使用方式:一行代码获取全部检测结果
final result = await CompatibilityService.check();
print('设备: ${result.deviceName}');
print('支持: ${result.isFullySupported}');
print('性能: ${result.performanceLevel}');
print('特性: ${result.supportedFeatureCount}/${result.features.length}');
聚合优势:调用方只需一行代码即可获取完整的兼容性信息,无需关心内部的检测细节和调用顺序。
七、功能开关控制
7.1 FeatureGate 设计
功能开关将兼容性检测结果转化为实际的应用行为:
class FeatureGate {
static CompatibilityResult? _cachedResult;
/// 初始化功能开关(应用启动时调用)
static Future<void> initialize() async {
_cachedResult = await CompatibilityService.check();
}
/// 查询单个功能是否可用
static bool isEnabled(String featureName) {
return _cachedResult?.features[featureName] ?? false;
}
/// 获取性能等级
static PerformanceLevel get performanceLevel =>
_cachedResult?.performanceLevel ?? PerformanceLevel.low;
/// 根据性能等级获取配置
static Map<String, dynamic> getPerformanceConfig() {
switch (performanceLevel) {
case PerformanceLevel.high:
return {
'renderQuality': 'ultra',
'targetFps': 120,
'imageQuality': 100,
'enableParticles': true,
'enableBlur': true,
};
case PerformanceLevel.medium:
return {
'renderQuality': 'high',
'targetFps': 90,
'imageQuality': 85,
'enableParticles': true,
'enableBlur': false,
};
case PerformanceLevel.low:
return {
'renderQuality': 'standard',
'targetFps': 60,
'imageQuality': 70,
'enableParticles': false,
'enableBlur': false,
};
}
}
}
7.2 功能开关使用示例
在业务代码中使用功能开关:
// 条件渲染高级功能入口
if (FeatureGate.isEnabled('aiFeatures')) {
showAIAssistantButton();
}
// 根据性能等级调整动画
final config = FeatureGate.getPerformanceConfig();
final targetFps = config['targetFps'] as int;
final enableBlur = config['enableBlur'] as bool;
// 折叠屏适配
if (FeatureGate.isEnabled('foldableScreen')) {
enableSplitScreenLayout();
}
八、兼容性提示界面
8.1 分级提示策略
根据支持级别显示不同的提示内容:
class CompatibilityPrompt {
static void show(BuildContext context, CompatibilityResult result) {
// 完全支持:不显示任何提示
if (result.isFullySupported) return;
// 不支持:阻塞式提示
if (!result.isUsable) {
_showBlockingDialog(context, result);
return;
}
// 部分支持/未知设备:非阻塞提示
_showInfoSnackBar(context, result);
}
static void _showBlockingDialog(
BuildContext context, CompatibilityResult result,
) {
showDialog(
context: context,
barrierDismissible: false,
builder: (_) => AlertDialog(
title: const Text('设备不兼容'),
content: Text(
'您的设备 ${result.deviceName} 不支持本应用,'
'请使用受支持的设备。'),
actions: [
TextButton(
onPressed: () => Navigator.pop(context),
child: const Text('退出'),
),
],
),
);
}
static void _showInfoSnackBar(
BuildContext context, CompatibilityResult result,
) {
final msg = result.supportLevel == SupportLevel.partial
? '您的设备部分功能可能受限'
: '您的设备尚未经过兼容性验证';
ScaffoldMessenger.of(context).showSnackBar(
SnackBar(content: Text(msg), duration: const Duration(seconds: 5)),
);
}
}
8.2 提示策略对比
| 支持级别 | 提示方式 | 是否阻塞 | 提示内容 |
|---|---|---|---|
| 完全支持 | 无提示 | — | — |
| 部分支持 | SnackBar | 否 | “部分功能可能受限” |
| 未知设备 | SnackBar | 否 | “尚未经过兼容性验证” |
| 不支持 | 阻塞对话框 | 是 | “设备不兼容,请更换设备” |
用户体验原则:提示信息应清晰、简洁且具有建设性。避免每次启动都弹出相同警告,可以使用本地存储记录用户已确认的提示,不再重复显示。
九、启动时检测集成
9.1 应用启动流程
将兼容性检测集成到应用启动流程中:
class AppInitializer {
static Future<void> initialize(BuildContext context) async {
// 1. 执行兼容性检测
final result = await CompatibilityService.check();
// 2. 初始化功能开关
await FeatureGate.initialize();
// 3. 根据支持级别处理
if (!result.isUsable) {
// 不支持的设备:显示阻塞提示
CompatibilityPrompt.show(context, result);
return;
}
// 4. 部分支持/未知设备:显示非阻塞提示
if (!result.isFullySupported) {
CompatibilityPrompt.show(context, result);
}
// 5. 上报兼容性数据
await CompatibilityReport.send(result);
// 6. 继续正常启动流程
_continueAppStartup();
}
static void _continueAppStartup() {
// 正常的应用初始化逻辑
}
}
9.2 启动检测时序
完整的启动检测流程按以下顺序执行:
- 调用
CompatibilityChecker.initialize()获取设备信息 - 执行支持级别判定(匹配支持列表)
- 执行性能等级评估(分析产品名称)
- 执行功能特性检测(逐项检查)
- 聚合检测结果为
CompatibilityResult - 根据结果初始化功能开关
- 显示兼容性提示(如需要)
- 上报兼容性数据到服务端
性能考量:整个检测流程只涉及2次MethodChannel调用(
getMachineId和getProductName),其余都是内存中的字符串匹配,总耗时通常在50ms以内。
十、远程配置更新
10.1 远程配置方案
静态的支持列表需要发版才能更新,远程配置可以解决这个问题:
class RemoteCompatConfig {
static List<String> _remoteFullSupport = [];
static List<String> _remotePartialSupport = [];
/// 从服务端获取最新的兼容设备列表
static Future<void> fetchLatest() async {
try {
// 实际项目中使用 http 请求
final response = await _fetchFromServer(
'https://api.example.com/compat-config');
if (response != null) {
_remoteFullSupport =
List<String>.from(response['fullSupport'] ?? []);
_remotePartialSupport =
List<String>.from(response['partialSupport'] ?? []);
}
} catch (e) {
// 网络失败时使用本地默认配置
debugPrint('远程配置获取失败,使用本地配置: $e');
}
}
/// 合并远程和本地配置
static List<String> get fullSupport => [
...SupportedDevices.fullSupport,
..._remoteFullSupport,
];
static List<String> get partialSupport => [
...SupportedDevices.partialSupport,
..._remotePartialSupport,
];
static Future<Map<String, dynamic>?> _fetchFromServer(
String url,
) async {
// 实际HTTP请求实现
return null;
}
}
10.2 远程配置数据格式
服务端返回的配置JSON格式:
{
"version": "2.1.0",
"lastUpdated": "2025-03-15",
"fullSupport": [
"NEW-MODEL-01",
"NEW-MODEL-02"
],
"partialSupport": [
"NEW-MODEL-03"
],
"notSupported": [],
"featureOverrides": {
"NEW-MODEL-01": {
"aiFeatures": true,
"satelliteComm": false
}
}
}
远程配置的更新策略:
- 应用启动时异步拉取,不阻塞启动流程
- 使用版本号比对,只在配置更新时才下载
- 本地缓存远程配置,离线时使用缓存
- 配置数据进行签名校验,防止篡改
十一、兼容性报告上报
11.1 报告数据采集
将兼容性检测结果上报到服务端,用于持续改进兼容性方案:
class CompatibilityReport {
/// 上报兼容性检测结果
static Future<void> send(CompatibilityResult result) async {
final report = {
'deviceName': result.deviceName,
'machineId': result.machineId,
'supportLevel': result.supportLevel.name,
'performanceLevel': result.performanceLevel.name,
'features': result.features,
'supportedCount': result.supportedFeatureCount,
'totalFeatures': result.features.length,
'timestamp': DateTime.now().toIso8601String(),
'appVersion': '1.0.0',
};
try {
await _sendToServer(report);
} catch (e) {
debugPrint('兼容性报告上报失败: $e');
}
}
static Future<void> _sendToServer(
Map<String, dynamic> data,
) async {
debugPrint('[CompatReport] $data');
}
}
11.2 报告数据分析价值
收集的兼容性报告可以用于:
- 发现高频出现的未知设备,优先进行兼容性验证
- 统计各支持级别的用户占比,评估兼容性覆盖率
- 分析功能特性的设备覆盖情况,指导功能开发优先级
- 监控兼容性问题趋势,及时发现新增的不兼容设备
十二、批量设备兼容性扫描
12.1 批量扫描实现
在测试和运维场景中,需要对一批设备进行兼容性扫描:
class BatchCompatScanner {
/// 批量扫描设备兼容性
static Future<List<DeviceCompatResult>> scan(
List<String> machineIds,
) async {
final ohos = OhosProductName();
final results = <DeviceCompatResult>[];
for (final id in machineIds) {
final name = await ohos.lookup(id);
String level;
if (SupportedDevices.fullSupport.contains(id)) {
level = '完全支持';
} else if (SupportedDevices.partialSupport.contains(id)) {
level = '部分支持';
} else {
level = '未验证';
}
results.add(DeviceCompatResult(
machineId: id,
productName: name,
level: level,
));
}
return results;
}
}
class DeviceCompatResult {
final String machineId;
final String productName;
final String level;
DeviceCompatResult({
required this.machineId,
required this.productName,
required this.level,
});
}
12.2 扫描结果统计
批量扫描后可以生成统计摘要:
class ScanSummary {
static Map<String, int> summarize(
List<DeviceCompatResult> results,
) {
final summary = <String, int>{
'完全支持': 0,
'部分支持': 0,
'未验证': 0,
};
for (final r in results) {
summary[r.level] = (summary[r.level] ?? 0) + 1;
}
return summary;
}
}
十三、原生层支持机制
13.1 MethodChannel通信
兼容性检测的所有设备信息都通过MethodChannel从原生层获取:
// AppleProductNamePlugin.ets(鸿蒙原生层)
onMethodCall(call: MethodCall, result: MethodResult): void {
switch (call.method) {
case "getMachineId":
// 返回设备型号标识符
result.success(deviceInfo.productModel);
break;
case "getProductName":
// 优先查映射表,否则用系统 marketName
const model = deviceInfo.productModel;
let name = HUAWEI_DEVICE_MAP[model];
if (!name) {
name = deviceInfo.marketName || model;
}
result.success(name);
break;
case "lookup":
// 根据传入的machineId查映射表
const machineId = call.argument("machineId") as string;
result.success(HUAWEI_DEVICE_MAP[machineId]);
break;
}
}
13.2 映射表覆盖范围
HUAWEI_DEVICE_MAP映射表当前覆盖的设备系列:
| 系列 | 收录型号数 | 代表设备 |
|---|---|---|
| Mate 70 | 8 | Mate 70、70 Pro、70 Pro+、70 RS |
| Mate 60 | 8 | Mate 60、60 Pro、60 Pro+、60 RS |
| Mate X | 6 | Mate X5、Mate X3、Mate Xs 2 |
| Pura 70 | 7 | Pura 70、70 Pro、70 Pro+、70 Ultra |
| nova | 14 | nova 11/12/13 全系列 |
| MatePad | 10 | MatePad Pro 13.2/12.6/11、Air 11.5 |
| Honor | 14 | Magic5/6、Honor 100/200 系列 |
| 其他 | 13+ | Pocket 2、WATCH GT/4 系列 |
未收录设备处理:对于映射表中未收录的型号,
getProductName会回退到系统deviceInfo.marketName,lookup则返回null(Dart层回退到原始machineId)。
十四、完整演示页面

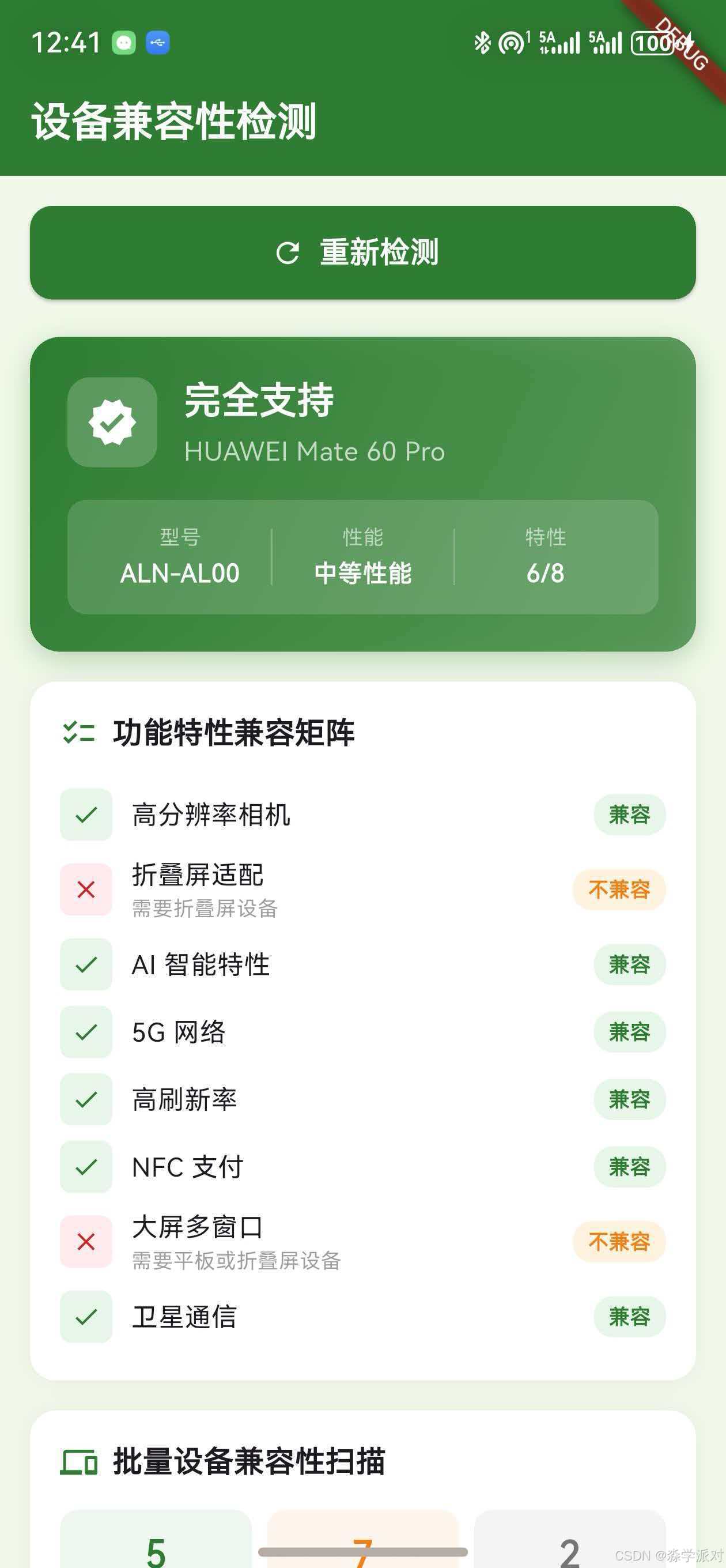

14.1 演示页面设计
本文提供一个完整的兼容性检测中心演示页面,采用绿色主题(Color(0xFF2E7D32)),包含以下模块:
- 当前设备识别与支持级别卡片(动态颜色渐变)
- 功能特性兼容矩阵(逐项✅/❌展示)
- 批量设备兼容性扫描(统计摘要 + 设备列表)

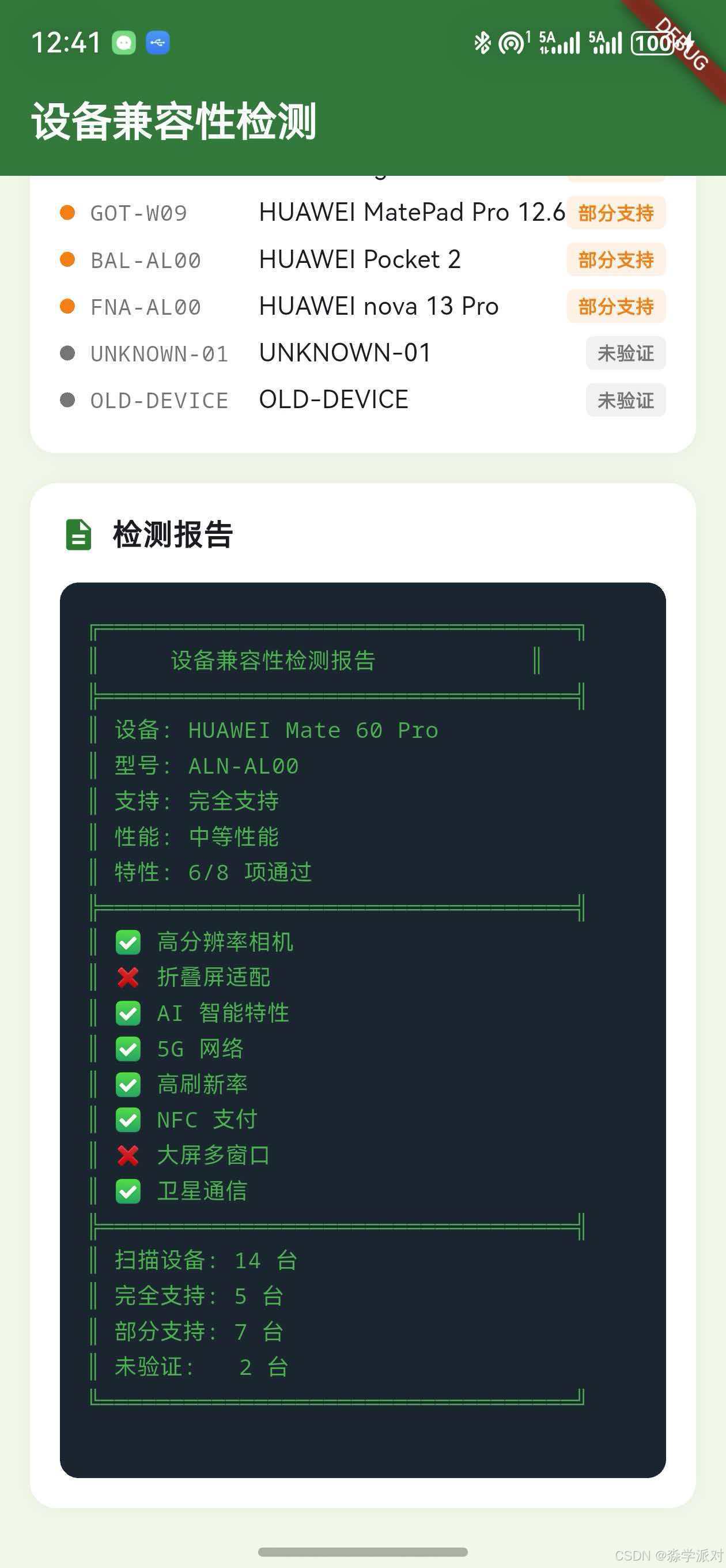

- 检测报告(终端风格深色代码块)
交互设计:所有检测操作需要用户点击"开始兼容性检测"按钮触发,不会在页面加载时自动执行。
14.2 页面入口与主题
import 'package:apple_product_name/apple_product_name_ohos.dart';
import 'package:flutter/material.dart';
void main() {
runApp(const MyApp());
}
class MyApp extends StatelessWidget {
const MyApp({Key? key}) : super(key: key);
Widget build(BuildContext context) {
return MaterialApp(
title: '设备兼容性检测',
theme: ThemeData(
primarySwatch: Colors.green,
scaffoldBackgroundColor: const Color(0xFFF1F8E9),
),
home: const Article26DemoPage(),
);
}
}
14.3 状态管理与数据模型
class _Article26DemoPageState extends State<Article26DemoPage> {
bool _isLoading = false;
bool _hasData = false;
String _deviceName = '';
String _machineId = '';
String _supportLevel = '';
String _perfLevel = '';
Color _supportColor = Colors.grey;
IconData _supportIcon = Icons.help_outline;
final List<_FeatureCheck> _features = [];
final List<_DeviceCompat> _batchResults = [];
String _report = '';
// 已验证的完全支持设备
static const _fullSupportIds = [
'ALN-AL00', 'ALN-AL10', 'GGK-AL10',
'CFR-AN00', 'CFS-AN00', 'CFT-AN00',
'HBK-AL00', 'DUA-AL00', 'HBN-AL00',
'GGK-W10', 'PGT-AN00', 'GROK-W09',
];
// 部分支持设备
static const _partialSupportIds = [
'BRA-AL00', 'CTR-AL00', 'FOA-AL00',
'BVL-AN00', 'GOT-W09', 'BAL-AL00', 'FNA-AL00',
];
// 批量扫描的设备池
static const _scanDevices = [
'CFR-AN00', 'ALN-AL00', 'GGK-AL10', 'HBK-AL00',
'DUA-AL00', 'BRA-AL00', 'CTR-AL00', 'FOA-AL00',
'BVL-AN00', 'GOT-W09', 'BAL-AL00', 'FNA-AL00',
'UNKNOWN-01', 'OLD-DEVICE',
];
// ...
}
14.4 核心检测逻辑
Future<void> _runCheck() async {
if (_isLoading) return;
setState(() {
_isLoading = true;
_features.clear();
_batchResults.clear();
_report = '';
});
final ohos = OhosProductName();
// 1. 当前设备识别
_machineId = await ohos.getMachineId();
_deviceName = await ohos.getProductName();
// 2. 支持级别判定
if (_fullSupportIds.contains(_machineId)) {
_supportLevel = '完全支持';
_supportColor = const Color(0xFF2E7D32);
_supportIcon = Icons.verified;
} else if (_partialSupportIds.contains(_machineId)) {
_supportLevel = '部分支持';
_supportColor = const Color(0xFFF57F17);
_supportIcon = Icons.warning_amber_rounded;
} else {
_supportLevel = '未知设备';
_supportColor = const Color(0xFF757575);
_supportIcon = Icons.help_outline;
}
// 3. 性能等级评估
if (_deviceName.contains('Pro+') ||
_deviceName.contains('Ultra') ||
_deviceName.contains('RS') ||
_deviceName.contains('Mate 70') ||
_deviceName.contains('Mate X5')) {
_perfLevel = '高性能';
} else if (_deviceName.contains('Pro') ||
_deviceName.contains('Mate 6') ||
_deviceName.contains('Pura') ||
_deviceName.contains('Magic')) {
_perfLevel = '中等性能';
} else {
_perfLevel = '基础性能';
}
// 4. 功能特性检测(8项)
_features.addAll([
_FeatureCheck('高分辨率相机',
_deviceName.contains('Pro') ||
_deviceName.contains('Ultra') ||
_deviceName.contains('Pura'),
'需要 Pro/Ultra/Pura 系列'),
_FeatureCheck('折叠屏适配',
_deviceName.contains('Mate X') ||
_deviceName.contains('Pocket'),
'需要折叠屏设备'),
_FeatureCheck('AI 智能特性',
_deviceName.contains('Mate 70') ||
_deviceName.contains('Mate 60') ||
_deviceName.contains('Pura 70'),
'需要 Mate 60+ / Pura 70 系列'),
// ... 更多特性检测
]);
// 5. 批量设备扫描
for (final id in _scanDevices) {
final name = await ohos.lookup(id);
String level;
Color color;
if (_fullSupportIds.contains(id)) {
level = '完全支持';
color = const Color(0xFF2E7D32);
} else if (_partialSupportIds.contains(id)) {
level = '部分支持';
color = const Color(0xFFF57F17);
} else {
level = '未验证';
color = const Color(0xFF757575);
}
_batchResults.add(_DeviceCompat(id, name, level, color));
}
// 6. 生成检测报告
final supported = _features.where((f) => f.supported).length;
final buf = StringBuffer();
buf.writeln('╔══════════════════════════════════╗');
buf.writeln('║ 设备兼容性检测报告 ║');
buf.writeln('╠══════════════════════════════════╣');
buf.writeln('║ 设备: $_deviceName');
buf.writeln('║ 型号: $_machineId');
buf.writeln('║ 支持: $_supportLevel');
buf.writeln('║ 性能: $_perfLevel');
buf.writeln('║ 特性: $supported/${_features.length} 项通过');
buf.writeln('╚══════════════════════════════════╝');
_report = buf.toString();
setState(() { _isLoading = false; _hasData = true; });
}
14.5 设备卡片(动态颜色)
设备卡片的背景色根据支持级别动态变化——完全支持为绿色、部分支持为橙色、未知设备为灰色:
Widget _buildDeviceCard() {
return Container(
width: double.infinity,
padding: const EdgeInsets.all(20),
decoration: BoxDecoration(
gradient: LinearGradient(
colors: [_supportColor, _supportColor.withOpacity(0.7)],
begin: Alignment.topLeft,
end: Alignment.bottomRight,
),
borderRadius: BorderRadius.circular(16),
boxShadow: [BoxShadow(
color: _supportColor.withOpacity(0.3),
blurRadius: 12,
offset: const Offset(0, 4))],
),
child: Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
Row(children: [
Container(
padding: const EdgeInsets.all(10),
decoration: BoxDecoration(
color: Colors.white.withOpacity(0.2),
borderRadius: BorderRadius.circular(12)),
child: Icon(_supportIcon,
color: Colors.white, size: 28),
),
const SizedBox(width: 14),
Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
Text(_supportLevel, style: const TextStyle(
color: Colors.white, fontSize: 20,
fontWeight: FontWeight.bold)),
Text(_deviceName, style: const TextStyle(
color: Colors.white70, fontSize: 14)),
],
),
]),
const SizedBox(height: 16),
// 型号 | 性能 | 特性 三栏信息
Container(
padding: const EdgeInsets.all(12),
decoration: BoxDecoration(
color: Colors.white.withOpacity(0.15),
borderRadius: BorderRadius.circular(10)),
child: Row(children: [
_infoChip('型号', _machineId),
_infoChip('性能', _perfLevel),
_infoChip('特性',
'${_features.where((f) => f.supported).length}'
'/${_features.length}'),
]),
),
],
),
);
}
14.6 数据模型
class _FeatureCheck {
final String name;
final bool supported;
final String requirement;
_FeatureCheck(this.name, this.supported, this.requirement);
}
class _DeviceCompat {
final String machineId;
final String name;
final String level;
final Color color;
_DeviceCompat(this.machineId, this.name, this.level, this.color);
}


十五、最佳实践总结
15.1 检测策略最佳实践
- 应用启动时执行一次完整检测并缓存结果,后续直接使用缓存
- 使用
_initialized标志位防止重复初始化 - 整个检测流程控制在50ms以内,不影响启动速度
- 对未知设备采用宽容策略,允许使用但上报信息
15.2 列表维护最佳实践
- 本地列表作为基础,远程配置作为增量补充
- 新设备发布后第一时间测试并更新列表
- 每个型号标注对应的产品名称,方便维护
- 使用版本号管理配置变更,支持回滚
15.3 用户体验最佳实践
- 完全支持的设备不显示任何提示
- 部分支持使用非阻塞的SnackBar提示
- 不支持的设备使用阻塞对话框明确告知
- 提示信息只显示一次,不重复打扰用户
总结
本文系统讲解了如何利用apple_product_name库构建完整的设备兼容性检测方案。通过支持级别判定确定设备的整体兼容状态,通过性能等级评估实现渲染质量的自适应调整,通过功能特性检测实现细粒度的功能开关控制,通过远程配置更新实现兼容性规则的动态维护,通过兼容性报告上报持续改进检测方案。最后提供了一个完整的兼容性检测中心演示页面,展示了从设备识别到报告生成的全流程。
下一篇文章将介绍性能优化与缓存策略,讲解如何优化设备信息获取的性能并实现高效的缓存机制。
如果这篇文章对你有帮助,欢迎点赞👍、收藏⭐、关注🔔,你的支持是我持续创作的动力!
相关资源:
更多推荐
所有评论(0)
