🌀 一、希尔伯特曲线：数学之美

📚 1.1 空间填充曲线的发现

1891年，德国数学家大卫·希尔伯特（David Hilbert）发现了一种能够填满整个平面的曲线，这就是著名的希尔伯特曲线。它是空间填充曲线家族中最具代表性的成员之一。

历史背景：

1879年：康托尔证明实数集与单位区间等势
1890年：皮亚诺首次发现空间填充曲线
1891年：希尔伯特提出更直观的希尔伯特曲线
1938年：Peano 曲线被证明连续但不可微
现代：广泛应用于计算机图形学、数据结构

核心悖论：

直觉：曲线是一维的（长度），平面是二维的（面积）
悖论：存在一条曲线可以"填满"整个平面

解决：
- 曲线的极限是平面
- 曲线本身无限长
- 维度在极限过程中"升维"

希尔伯特曲线示意：

第1阶：        第2阶：         第3阶：
┌──┐          ┌┐┌┐           ┌┐┌┐┌┐┌┐
│  │          ││││           ││││││││
└──┘          └┘└┘           └┘└┘└┘└┘
              ┌┐┌┐           ┌┐┌┐┌┐┌┐
              ││││           ││││││││
              └┘└┘           └┘└┘└┘└┘
                             ┌┐┌┐┌┐┌┐
                             ││││││││
                             └┘└┘└┘└┘
                             ┌┐┌┐┌┐┌┐
                             ││││││││
                             └┘└┘└┘└┘

每增加一阶，曲线覆盖更细密的网格

---

📐 1.2 递归构造原理

希尔伯特曲线通过递归方式构造，每一阶都是前一阶的变换组合：

递归规则：

H(n) 由 4 个 H(n-1) 组成，经过旋转和连接：

    ┌───┐       ┌─┐   ┌─┐
    │ 1 │       │A│   │B│
    │   │  →    │ └─┬─┘ │
    │ 2 │       │ ┌─┐  │
    └───┘       │D│ │C │
                └─┘ └──┘

A: H(n-1) 逆时针旋转90°
B: H(n-1) 不变
C: H(n-1) 不变
D: H(n-1) 顺时针旋转90°

数学描述：

设 H_n 为第 n 阶希尔伯特曲线，则：

H_1: 基本形状（U形）
H_n = L(H_{n-1}) + ─ + H_{n-1} + │ + H_{n-1} + ─ + R(H_{n-1})

其中：
- L: 逆时针旋转90°
- R: 顺时针旋转90°
- ─, │: 连接线段

坐标映射：

希尔伯特曲线建立了从 [0, 1] 到 [0,1]² 的连续映射

一维索引 d ∈ [0, 1] → 二维坐标 (x, y) ∈ [0,1]²

性质：
- 连续性：相邻的 d 映射到相邻的 (x, y)
- 局部性：空间上接近的点在曲线上也接近
- 稠密性：曲线经过单位正方形内的每一点

---

🔬 1.3 希尔伯特曲线的性质

数学性质：

性质	描述	意义
连续性	曲线无断点	可用一笔画完
不可微	处处不可导	无切线方向
自相似	各部分与整体相似	分形特征
无限长	长度 = 2ⁿ - 1/2ⁿ	n→∞ 时发散
零面积	极限前面积为0	曲线不"占"面积
满射	覆盖整个正方形	空间填充

分形维度：

Hausdorff 维度：D = 2

计算：
- 每阶分成 4 个自相似部分
- 每部分边长为 1/2
- D = log(4) / log(2) = 2

意义：希尔伯特曲线的"维度"是2
它"填满"了二维空间

局部性分析：

一维距离 d₁ 和 d₂
二维距离 √((x₁-x₂)² + (y₁-y₂)²)

局部性保证：
如果 |d₁ - d₂| < 1/4ⁿ
则 √((x₁-x₂)² + (y₁-y₂)²) < 1/2ⁿ

应用价值：
- 数据库索引优化
- 图像压缩
- 空间数据结构

---

🎯 1.4 空间填充曲线家族

希尔伯特曲线是空间填充曲线家族的重要成员：

曲线名称	发现者	特点
🌀 希尔伯特曲线	Hilbert (1891)	最直观，递归构造
📊 皮亚诺曲线	Peano (1890)	首个空间填充曲线
🔄 高斯帕曲线	Gosper (1970s)	六边形网格填充
⚡ Z阶曲线	Morton (1966)	计算简单，位操作
🔷 谢尔宾斯基曲线	Sierpiński (1915)	三角形填充
🌊 龙曲线	Heighway (1966)	折叠构造

曲线对比：

希尔伯特曲线：        Z阶曲线：         皮亚诺曲线：
┌┐┌┐┌┐┌┐            ┌┬┬┬┐           ┌─┬─┬─┐
││││││││            │││││           │ │ │ │
└┘└┘└┘└┘            ├┼┼┼┤           ├─┼─┼─┤
┌┐┌┐┌┐┌┐            │││││           │ │ │ │
││││││││            ├┼┼┼┤           ├─┼─┼─┤
└┘└┘└┘└┘            │││││           │ │ │ │
┌┐┌┐┌┐┌┐            ├┼┼┼┤           ├─┼─┼─┤
││││││││            │││││           │ │ │ │
└┘└┘└┘└┘            └┴┴┴┴┘           └─┴─┴─┘

连续性好            计算快            填充密度高
局部性优            局部性差          连续性好

---

🔧 二、希尔伯特曲线的 Dart 实现

🧮 2.1 递归生成算法

import 'dart:math';

/// 希尔伯特曲线生成器
class HilbertCurve {
  final int order;
  final int size;

  late List<Point<int>> _points;

  HilbertCurve({required this.order, this.size = 1}) {
    _points = _generate();
  }

  /// 生成曲线点序列
  List<Point<int>> _generate() {
    final points = <Point<int>>[];
    final n = pow(2, order).toInt();

    for (int i = 0; i < n * n; i++) {
      final point = _indexToPoint(i, n);
      points.add(Point(point.x * size, point.y * size));
    }

    return points;
  }

  /// 将一维索引映射到二维坐标
  Point<int> _indexToPoint(int index, int n) {
    int x = 0, y = 0;
    int s = 1;

    while (s < n) {
      final rx = (index >> 1) & 1;
      final ry = (index ^ rx) & 1;

      if (ry == 0) {
        if (rx == 1) {
          x = s - 1 - x;
          y = s - 1 - y;
        }
        final temp = x;
        x = y;
        y = temp;
      }

      x += s * rx;
      y += s * ry;

      index >>= 2;
      s <<= 1;
    }

    return Point(x, y);
  }

  /// 将二维坐标映射到一维索引
  int pointToIndex(int x, int y) {
    int index = 0;
    int n = pow(2, order).toInt();

    for (int s = n ~/ 2; s > 0; s ~/= 2) {
      int rx = (x & s) > 0 ? 1 : 0;
      int ry = (y & s) > 0 ? 1 : 0;

      index += s * s * ((3 * rx) ^ ry);

      if (ry == 0) {
        if (rx == 1) {
          x = s - 1 - x;
          y = s - 1 - y;
        }
        final temp = x;
        x = y;
        y = temp;
      }
    }

    return index;
  }

  /// 获取点序列
  List<Point<int>> get points => _points;

  /// 获取路径
  Path toPath(Offset origin, double scale) {
    final path = Path();

    for (int i = 0; i < _points.length; i++) {
      final x = origin.dx + _points[i].x * scale;
      final y = origin.dy + _points[i].y * scale;

      if (i == 0) {
        path.moveTo(x, y);
      } else {
        path.lineTo(x, y);
      }
    }

    return path;
  }

  /// 获取网格大小
  int get gridSize => pow(2, order).toInt();

  /// 获取曲线长度
  int get length => _points.length - 1;
}

/// 希尔伯特曲线方向
enum HilbertDirection {
  up,
  right,
  down,
  left,
}

/// 希尔伯特曲线绘制器
class HilbertCurvePainter {
  final int order;
  final double cellSize;

  HilbertCurvePainter({
    required this.order,
    this.cellSize = 10.0,
  });

  /// 递归生成路径
  Path generatePath(Offset start) {
    final path = Path();
    path.moveTo(start.dx, start.dy);

    _drawHilbert(path, order, start, cellSize, HilbertDirection.up);

    return path;
  }

  void _drawHilbert(
    Path path,
    int level,
    Offset pos,
    double size,
    HilbertDirection dir,
  ) {
    if (level == 0) return;

    final halfSize = size / 2;

    // 根据方向调整绘制顺序
    switch (dir) {
      case HilbertDirection.up:
        _drawHilbert(path, level - 1, pos, halfSize, HilbertDirection.right);
        _drawLine(path, pos, 0, halfSize);
        _drawHilbert(path, level - 1, Offset(pos.dx, pos.dy + halfSize), halfSize, HilbertDirection.up);
        _drawLine(path, Offset(pos.dx, pos.dy + halfSize), halfSize, 0);
        _drawHilbert(path, level - 1, Offset(pos.dx + halfSize, pos.dy + halfSize), halfSize, HilbertDirection.up);
        _drawLine(path, Offset(pos.dx + halfSize, pos.dy + halfSize), 0, -halfSize);
        _drawHilbert(path, level - 1, Offset(pos.dx + halfSize, pos.dy), halfSize, HilbertDirection.left);
        break;
      case HilbertDirection.right:
        _drawHilbert(path, level - 1, pos, halfSize, HilbertDirection.up);
        _drawLine(path, pos, halfSize, 0);
        _drawHilbert(path, level - 1, Offset(pos.dx + halfSize, pos.dy), halfSize, HilbertDirection.right);
        _drawLine(path, Offset(pos.dx + halfSize, pos.dy), 0, halfSize);
        _drawHilbert(path, level - 1, Offset(pos.dx + halfSize, pos.dy + halfSize), halfSize, HilbertDirection.right);
        _drawLine(path, Offset(pos.dx + halfSize, pos.dy + halfSize), -halfSize, 0);
        _drawHilbert(path, level - 1, Offset(pos.dx, pos.dy + halfSize), halfSize, HilbertDirection.down);
        break;
      case HilbertDirection.down:
        _drawHilbert(path, level - 1, pos, halfSize, HilbertDirection.left);
        _drawLine(path, pos, 0, -halfSize);
        _drawHilbert(path, level - 1, Offset(pos.dx, pos.dy - halfSize), halfSize, HilbertDirection.down);
        _drawLine(path, Offset(pos.dx, pos.dy - halfSize), -halfSize, 0);
        _drawHilbert(path, level - 1, Offset(pos.dx - halfSize, pos.dy - halfSize), halfSize, HilbertDirection.down);
        _drawLine(path, Offset(pos.dx - halfSize, pos.dy - halfSize), 0, halfSize);
        _drawHilbert(path, level - 1, Offset(pos.dx - halfSize, pos.dy), halfSize, HilbertDirection.right);
        break;
      case HilbertDirection.left:
        _drawHilbert(path, level - 1, pos, halfSize, HilbertDirection.down);
        _drawLine(path, pos, -halfSize, 0);
        _drawHilbert(path, level - 1, Offset(pos.dx - halfSize, pos.dy), halfSize, HilbertDirection.left);
        _drawLine(path, Offset(pos.dx - halfSize, pos.dy), 0, -halfSize);
        _drawHilbert(path, level - 1, Offset(pos.dx - halfSize, pos.dy - halfSize), halfSize, HilbertDirection.left);
        _drawLine(path, Offset(pos.dx - halfSize, pos.dy - halfSize), halfSize, 0);
        _drawHilbert(path, level - 1, Offset(pos.dx, pos.dy - halfSize), halfSize, HilbertDirection.up);
        break;
    }
  }

  void _drawLine(Path path, Offset start, double dx, double dy) {
    path.lineTo(start.dx + dx, start.dy + dy);
  }
}

---

⚡ 2.2 高效编码算法

/// 高效的希尔伯特编码器
class HilbertEncoder {
  /// 将二维坐标编码为希尔伯特索引
  static int encode(int x, int y, int order) {
    int index = 0;
    int s = 1 << (order - 1);

    for (int i = 0; i < order; i++) {
      int rx = (x & s) > 0 ? 1 : 0;
      int ry = (y & s) > 0 ? 1 : 0;

      index += s * s * ((3 * rx) ^ ry);

      _rotate(s, x, y, rx, ry);

      s >>= 1;
    }

    return index;
  }

  /// 将希尔伯特索引解码为二维坐标
  static Point<int> decode(int index, int order) {
    int x = 0, y = 0;
    int s = 1;

    for (int i = 0; i < order; i++) {
      int rx = (index >> 1) & 1;
      int ry = (index ^ rx) & 1;

      _rotate(s, x, y, rx, ry);

      x += s * rx;
      y += s * ry;

      index >>= 2;
      s <<= 1;
    }

    return Point(x, y);
  }

  /// 旋转坐标
  static void _rotate(int n, int x, int y, int rx, int ry) {
    if (ry == 0) {
      if (rx == 1) {
        x = n - 1 - x;
        y = n - 1 - y;
      }
      // 交换 x 和 y
      // 注意：这里需要返回修改后的值
    }
  }

  /// 批量编码
  static List<int> encodeBatch(List<Point<int>> points, int order) {
    return points.map((p) => encode(p.x, p.y, order)).toList();
  }

  /// 批量解码
  static List<Point<int>> decodeBatch(List<int> indices, int order) {
    return indices.map((i) => decode(i, order)).toList();
  }
}

/// 希尔伯特空间索引
class HilbertSpatialIndex {
  final int order;
  final int gridSize;
  final Map<int, List<dynamic>> _index = {};

  HilbertSpatialIndex(this.order) : gridSize = 1 << order;

  /// 插入数据
  void insert(int x, int y, dynamic data) {
    final index = HilbertEncoder.encode(x, y, order);
    _index.putIfAbsent(index, () => []).add(data);
  }

  /// 范围查询
  List<dynamic> rangeQuery(int x1, int y1, int x2, int y2) {
    final results = <dynamic>[];

    for (int x = x1; x <= x2; x++) {
      for (int y = y1; y <= y2; y++) {
        if (x >= 0 && x < gridSize && y >= 0 && y < gridSize) {
          final index = HilbertEncoder.encode(x, y, order);
          if (_index.containsKey(index)) {
            results.addAll(_index[index]!);
          }
        }
      }
    }

    return results;
  }

  /// 最近邻查询
  List<dynamic> nearestNeighbors(int x, int y, int k) {
    final centerIndex = HilbertEncoder.encode(x, y, order);
    final results = <dynamic>[];

    // 在希尔伯特曲线上向两边扩展
    for (int offset = 0; offset < gridSize * gridSize && results.length < k; offset++) {
      final left = centerIndex - offset;
      final right = centerIndex + offset;

      if (left >= 0 && _index.containsKey(left)) {
        results.addAll(_index[left]!);
      }
      if (right < gridSize * gridSize && _index.containsKey(right)) {
        results.addAll(_index[right]!);
      }
    }

    return results.take(k).toList();
  }
}

---

🎨 2.3 动画控制器

import 'package:flutter/material.dart';

/// 希尔伯特曲线动画控制器
class HilbertAnimationController extends ChangeNotifier {
  int _order = 4;
  double _progress = 0.0;
  double _animationSpeed = 1.0;
  bool _isAnimating = true;
  bool _showGrid = false;
  bool _showNumbers = false;
  Color _curveColor = Colors.cyan;
  double _lineWidth = 2.0;

  late HilbertCurve _curve;
  late List<Point<int>> _points;

  HilbertAnimationController() {
    _updateCurve();
  }

  int get order => _order;
  double get progress => _progress;
  double get animationSpeed => _animationSpeed;
  bool get isAnimating => _isAnimating;
  bool get showGrid => _showGrid;
  bool get showNumbers => _showNumbers;
  Color get curveColor => _curveColor;
  double get lineWidth => _lineWidth;
  HilbertCurve get curve => _curve;
  List<Point<int>> get points => _points;

  void _updateCurve() {
    _curve = HilbertCurve(order: _order);
    _points = _curve.points;
  }

  void update(double dt) {
    if (_isAnimating) {
      _progress += dt * _animationSpeed * 0.5;
      if (_progress > 1.0) _progress = 0.0;
      notifyListeners();
    }
  }

  void setOrder(int value) {
    _order = value.clamp(1, 8);
    _progress = 0.0;
    _updateCurve();
    notifyListeners();
  }

  void setProgress(double value) {
    _progress = value.clamp(0.0, 1.0);
    notifyListeners();
  }

  void setAnimationSpeed(double value) {
    _animationSpeed = value.clamp(0.1, 5.0);
    notifyListeners();
  }

  void toggleAnimation() {
    _isAnimating = !_isAnimating;
    notifyListeners();
  }

  void toggleGrid() {
    _showGrid = !_showGrid;
    notifyListeners();
  }

  void toggleNumbers() {
    _showNumbers = !_showNumbers;
    notifyListeners();
  }

  void setCurveColor(Color color) {
    _curveColor = color;
    notifyListeners();
  }

  void setLineWidth(double width) {
    _lineWidth = width.clamp(0.5, 5.0);
    notifyListeners();
  }

  void reset() {
    _progress = 0.0;
    notifyListeners();
  }
}

---

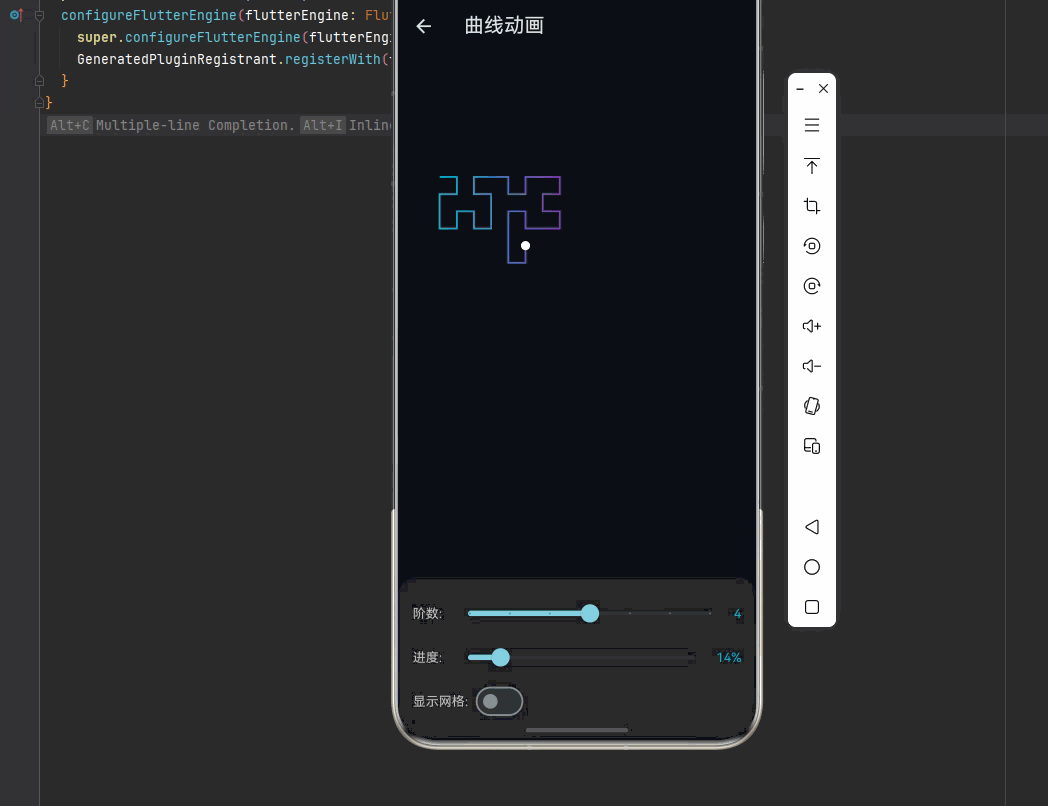

📦 三、完整示例代码

以下是完整的希尔伯特曲线可视化示例代码：

import 'package:flutter/material.dart';
import 'dart:math';

void main() {
  runApp(const HilbertApp());
}

class HilbertApp extends StatelessWidget {
  const HilbertApp({super.key});

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      title: '希尔伯特曲线',
      theme: ThemeData(
        colorScheme: ColorScheme.fromSeed(seedColor: Colors.cyan, brightness: Brightness.dark),
        useMaterial3: true,
      ),
      home: const HilbertHomePage(),
      debugShowCheckedModeBanner: false,
    );
  }
}

class HilbertHomePage extends StatelessWidget {
  const HilbertHomePage({super.key});

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(
        title: const Text('🌀 希尔伯特曲线'),
        backgroundColor: Theme.of(context).colorScheme.inversePrimary,
      ),
      body: ListView(
        padding: const EdgeInsets.all(16),
        children: [
          _buildCard(
            context,
            title: '曲线动画',
            description: '递归生成过程可视化',
            icon: Icons.animation,
            color: Colors.cyan,
            onTap: () => Navigator.push(
              context,
              MaterialPageRoute(builder: (_) => const HilbertAnimationDemo()),
            ),
          ),
          _buildCard(
            context,
            title: '阶数对比',
            description: '不同阶数的曲线形态',
            icon: Icons.compare,
            color: Colors.purple,
            onTap: () => Navigator.push(
              context,
              MaterialPageRoute(builder: (_) => const OrderComparisonDemo()),
            ),
          ),
          _buildCard(
            context,
            title: '空间映射',
            description: '一维到二维的映射演示',
            icon: Icons.map,
            color: Colors.orange,
            onTap: () => Navigator.push(
              context,
              MaterialPageRoute(builder: (_) => const SpatialMappingDemo()),
            ),
          ),
          _buildCard(
            context,
            title: '曲线家族',
            description: '多种空间填充曲线对比',
            icon: Icons.family_restroom,
            color: Colors.teal,
            onTap: () => Navigator.push(
              context,
              MaterialPageRoute(builder: (_) => const CurveFamilyDemo()),
            ),
          ),
        ],
      ),
    );
  }

  Widget _buildCard(
    BuildContext context, {
    required String title,
    required String description,
    required IconData icon,
    required Color color,
    required VoidCallback onTap,
  }) {
    return Card(
      margin: const EdgeInsets.only(bottom: 12),
      shape: RoundedRectangleBorder(borderRadius: BorderRadius.circular(16)),
      child: InkWell(
        onTap: onTap,
        borderRadius: BorderRadius.circular(16),
        child: Padding(
          padding: const EdgeInsets.all(16),
          child: Row(
            children: [
              Container(
                width: 56,
                height: 56,
                decoration: BoxDecoration(
                  color: color.withOpacity(0.1),
                  borderRadius: BorderRadius.circular(12),
                ),
                child: Icon(icon, color: color, size: 28),
              ),
              const SizedBox(width: 16),
              Expanded(
                child: Column(
                  crossAxisAlignment: CrossAxisAlignment.start,
                  children: [
                    Text(title, style: const TextStyle(fontSize: 16, fontWeight: FontWeight.bold)),
                    const SizedBox(height: 4),
                    Text(description, style: TextStyle(color: Colors.grey[600], fontSize: 14)),
                  ],
                ),
              ),
              Icon(Icons.chevron_right, color: Colors.grey[400]),
            ],
          ),
        ),
      ),
    );
  }
}

/// 希尔伯特曲线生成器
class HilbertGenerator {
  static List<Offset> generate(int order, double size) {
    final points = <Offset>[];
    final n = 1 << order;
    final cellSize = size / n;

    for (int i = 0; i < n * n; i++) {
      final point = _indexToPoint(i, n);
      points.add(Offset(point.dx * cellSize, point.dy * cellSize));
    }

    return points;
  }

  static Offset _indexToPoint(int index, int n) {
    double x = 0, y = 0;
    int s = 1;

    while (s < n) {
      final rx = (index >> 1) & 1;
      final ry = (index ^ rx) & 1;

      if (ry == 0) {
        if (rx == 1) {
          x = s - 1 - x;
          y = s - 1 - y;
        }
        final temp = x;
        x = y;
        y = temp;
      }

      x += s * rx;
      y += s * ry;

      index >>= 2;
      s <<= 1;
    }

    return Offset(x, y);
  }

  static int pointToIndex(int x, int y, int order) {
    int index = 0;
    int n = 1 << order;

    for (int s = n >> 1; s > 0; s >>= 1) {
      int rx = (x & s) > 0 ? 1 : 0;
      int ry = (y & s) > 0 ? 1 : 0;

      index += s * s * ((3 * rx) ^ ry);

      if (ry == 0) {
        if (rx == 1) {
          x = s - 1 - x;
          y = s - 1 - y;
        }
        final temp = x;
        x = y;
        y = temp;
      }
    }

    return index;
  }
}

/// 曲线动画演示
class HilbertAnimationDemo extends StatefulWidget {
  const HilbertAnimationDemo({super.key});
  @override
  State<HilbertAnimationDemo> createState() => _HilbertAnimationDemoState();
}

class _HilbertAnimationDemoState extends State<HilbertAnimationDemo> with SingleTickerProviderStateMixin {
  late AnimationController _ctrl;
  int _order = 4;
  double _progress = 0.0;
  bool _showGrid = false;
  double _time = 0;

  @override
  void initState() {
    super.initState();
    _ctrl = AnimationController(vsync: this, duration: const Duration(milliseconds: 16))..repeat();
    _ctrl.addListener(_update);
  }

  void _update() {
    _time += 0.016;
    _progress += 0.003;
    if (_progress > 1.0) _progress = 0.0;
    setState(() {});
  }

  @override
  void dispose() {
    _ctrl.removeListener(_update);
    _ctrl.dispose();
    super.dispose();
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('曲线动画')),
      body: Column(
        children: [
          Expanded(child: Center(child: CustomPaint(
            painter: HilbertPainter(_order, _progress, _showGrid, _time),
            size: const Size(300, 300),
          ))),
          _buildControls(),
        ],
      ),
    );
  }

  Widget _buildControls() {
    return Container(
      padding: const EdgeInsets.all(16),
      decoration: BoxDecoration(color: Colors.grey[900], borderRadius: const BorderRadius.vertical(top: Radius.circular(20))),
      child: Column(mainAxisSize: MainAxisSize.min, children: [
        Row(children: [
          const Text('阶数: ', style: TextStyle(color: Colors.white70)),
          Expanded(child: Slider(value: _order.toDouble(), min: 1, max: 7, divisions: 6, onChanged: (v) => setState(() { _order = v.toInt(); _progress = 0; }))),
          Text('$_order', style: const TextStyle(color: Colors.cyan)),
        ]),
        Row(children: [
          const Text('进度: ', style: TextStyle(color: Colors.white70)),
          Expanded(child: Slider(value: _progress, min: 0, max: 1, onChanged: (v) => setState(() => _progress = v))),
          Text('${(_progress * 100).toStringAsFixed(0)}%', style: const TextStyle(color: Colors.cyan)),
        ]),
        Row(children: [
          const Text('显示网格: ', style: TextStyle(color: Colors.white70)),
          Switch(value: _showGrid, onChanged: (v) => setState(() => _showGrid = v)),
        ]),
      ]),
    );
  }
}

class HilbertPainter extends CustomPainter {
  final int order;
  final double progress;
  final bool showGrid;
  final double time;

  HilbertPainter(this.order, this.progress, this.showGrid, this.time);

  @override
  void paint(Canvas canvas, Size size) {
    final points = HilbertGenerator.generate(order, size.width);

    canvas.drawRect(Rect.fromLTWH(0, 0, size.width, size.height), Paint()..color = const Color(0xFF0a0a15));

    if (showGrid) _drawGrid(canvas, size);

    final drawCount = (points.length * progress).toInt();

    if (drawCount > 1) {
      final path = Path();
      path.moveTo(points[0].dx, points[0].dy);

      for (int i = 1; i < drawCount; i++) {
        path.lineTo(points[i].dx, points[i].dy);
      }

      final paint = Paint()
        ..style = PaintingStyle.stroke
        ..strokeWidth = 2
        ..shader = LinearGradient(
          colors: [Colors.cyan, Colors.purple, Colors.pink],
        ).createShader(Rect.fromLTWH(0, 0, size.width, size.height));

      canvas.drawPath(path, paint);
    }

    // 绘制当前点
    if (drawCount > 0 && drawCount < points.length) {
      final currentPoint = points[drawCount - 1];
      canvas.drawCircle(currentPoint, 5, Paint()..color = Colors.white);
    }
  }

  void _drawGrid(Canvas canvas, Size size) {
    final n = 1 << order;
    final cellSize = size.width / n;
    final paint = Paint()..color = Colors.white10..style = PaintingStyle.stroke;

    for (int i = 0; i <= n; i++) {
      canvas.drawLine(Offset(i * cellSize, 0), Offset(i * cellSize, size.height), paint);
      canvas.drawLine(Offset(0, i * cellSize), Offset(size.width, i * cellSize), paint);
    }
  }

  @override
  bool shouldRepaint(covariant HilbertPainter old) => true;
}

/// 阶数对比演示
class OrderComparisonDemo extends StatelessWidget {
  const OrderComparisonDemo({super.key});

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('阶数对比')),
      body: GridView.builder(
        padding: const EdgeInsets.all(8),
        gridDelegate: const SliverGridDelegateWithFixedCrossAxisCount(crossAxisCount: 2, crossAxisSpacing: 8, mainAxisSpacing: 8),
        itemCount: 6,
        itemBuilder: (ctx, i) {
          final order = i + 1;
          return Column(children: [
            Expanded(child: CustomPaint(painter: StaticHilbertPainter(order), size: Size.infinite)),
            Padding(padding: const EdgeInsets.all(8), child: Text('第 $order 阶', style: const TextStyle(fontWeight: FontWeight.bold))),
          ]);
        },
      ),
    );
  }
}

class StaticHilbertPainter extends CustomPainter {
  final int order;
  StaticHilbertPainter(this.order);

  @override
  void paint(Canvas canvas, Size size) {
    final actualSize = min(size.width, size.height);
    final offset = Offset((size.width - actualSize) / 2, (size.height - actualSize) / 2);

    canvas.save();
    canvas.translate(offset.dx, offset.dy);

    final points = HilbertGenerator.generate(order, actualSize);

    canvas.drawRect(Rect.fromLTWH(0, 0, actualSize, actualSize), Paint()..color = const Color(0xFF0a0a15));

    if (points.length > 1) {
      final path = Path();
      path.moveTo(points[0].dx, points[0].dy);
      for (int i = 1; i < points.length; i++) {
        path.lineTo(points[i].dx, points[i].dy);
      }

      final hue = (order - 1) * 60.0;
      canvas.drawPath(path, Paint()..color = HSVColor.fromAHSV(1, hue, 0.8, 1).toColor()..style = PaintingStyle.stroke..strokeWidth = 1);
    }

    canvas.restore();
  }

  @override
  bool shouldRepaint(covariant StaticHilbertPainter old) => false;
}

/// 空间映射演示
class SpatialMappingDemo extends StatefulWidget {
  const SpatialMappingDemo({super.key});
  @override
  State<SpatialMappingDemo> createState() => _SpatialMappingDemoState();
}

class _SpatialMappingDemoState extends State<SpatialMappingDemo> with SingleTickerProviderStateMixin {
  late AnimationController _ctrl;
  int _order = 4;
  int _selectedIndex = 0;
  double _time = 0;

  @override
  void initState() {
    super.initState();
    _ctrl = AnimationController(vsync: this, duration: const Duration(milliseconds: 16))..repeat();
    _ctrl.addListener(_update);
  }

  void _update() {
    _time += 0.016;
    final n = (1 << _order) * (1 << _order);
    _selectedIndex = ((_time * 100) % n).toInt();
    setState(() {});
  }

  @override
  void dispose() {
    _ctrl.removeListener(_update);
    _ctrl.dispose();
    super.dispose();
  }

  @override
  Widget build(BuildContext context) {
    final n = 1 << _order;
    final point = HilbertGenerator._indexToPoint(_selectedIndex, n);

    return Scaffold(
      appBar: AppBar(title: const Text('空间映射')),
      body: Column(children: [
        Expanded(child: Row(children: [
          Expanded(child: _build1DView()),
          Expanded(child: CustomPaint(painter: MappingPainter(_order, _selectedIndex), size: Size.infinite)),
        ])),
        Padding(
          padding: const EdgeInsets.all(16),
          child: Text('索引: $_selectedIndex → 坐标: (${point.dx.toInt()}, ${point.dy.toInt()})', style: const TextStyle(fontSize: 16)),
        ),
      ]),
    );
  }

  Widget _build1DView() {
    return Container(
      color: Colors.grey[900],
      child: Center(child: Container(
        width: 50,
        height: 300,
        decoration: BoxDecoration(border: Border.all(color: Colors.white30)),
        child: CustomPaint(painter: IndexBarPainter(_order, _selectedIndex)),
      )),
    );
  }
}

class MappingPainter extends CustomPainter {
  final int order;
  final int selectedIndex;

  MappingPainter(this.order, this.selectedIndex);

  @override
  void paint(Canvas canvas, Size size) {
    final actualSize = min(size.width, size.height) - 20;
    final offset = Offset((size.width - actualSize) / 2, (size.height - actualSize) / 2);

    canvas.save();
    canvas.translate(offset.dx, offset.dy);

    final points = HilbertGenerator.generate(order, actualSize);
    final n = 1 << order;
    final cellSize = actualSize / n;

    canvas.drawRect(Rect.fromLTWH(0, 0, actualSize, actualSize), Paint()..color = const Color(0xFF0a0a15));

    // 绘制完整曲线
    if (points.length > 1) {
      final path = Path();
      path.moveTo(points[0].dx, points[0].dy);
      for (int i = 1; i < points.length; i++) {
        path.lineTo(points[i].dx, points[i].dy);
      }
      canvas.drawPath(path, Paint()..color = Colors.white24..style = PaintingStyle.stroke..strokeWidth = 1);
    }

    // 高亮选中点
    if (selectedIndex < points.length) {
      final point = points[selectedIndex];
      canvas.drawCircle(point, 8, Paint()..color = Colors.cyan);
      canvas.drawCircle(point, 5, Paint()..color = Colors.white);
    }

    canvas.restore();
  }

  @override
  bool shouldRepaint(covariant MappingPainter old) => true;
}

class IndexBarPainter extends CustomPainter {
  final int order;
  final int selectedIndex;

  IndexBarPainter(this.order, this.selectedIndex);

  @override
  void paint(Canvas canvas, Size size) {
    final total = (1 << order) * (1 << order);
    final barHeight = size.height / total;

    for (int i = 0; i < total; i++) {
      final y = i * barHeight;
      final hue = (i / total) * 360;
      canvas.drawRect(
        Rect.fromLTWH(0, y, size.width, barHeight + 0.5),
        Paint()..color = HSVColor.fromAHSV(i == selectedIndex ? 1 : 0.5, hue, 0.8, 1).toColor(),
      );
    }
  }

  @override
  bool shouldRepaint(covariant IndexBarPainter old) => true;
}

/// 曲线家族演示
class CurveFamilyDemo extends StatelessWidget {
  const CurveFamilyDemo({super.key});

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('曲线家族')),
      body: GridView.count(
        crossAxisCount: 2,
        padding: const EdgeInsets.all(8),
        childAspectRatio: 1,
        children: [
          _buildCurveCard(context, '希尔伯特', () => const HilbertCurvePage(), Colors.cyan),
          _buildCurveCard(context, 'Z阶曲线', () => const ZOrderCurvePage(), Colors.purple),
          _buildCurveCard(context, '皮亚诺', () => const PeanoCurvePage(), Colors.orange),
          _buildCurveCard(context, '龙曲线', () => const DragonCurvePage(), Colors.pink),
        ],
      ),
    );
  }

  Widget _buildCurveCard(BuildContext context, String title, Widget Function() page, Color color) {
    return Card(
      margin: const EdgeInsets.all(4),
      shape: RoundedRectangleBorder(borderRadius: BorderRadius.circular(12)),
      child: InkWell(
        onTap: () => Navigator.push(context, MaterialPageRoute(builder: (_) => page())),
        borderRadius: BorderRadius.circular(12),
        child: Column(
          mainAxisAlignment: MainAxisAlignment.center,
          children: [
            Container(
              width: 80, height: 80,
              decoration: BoxDecoration(color: color.withOpacity(0.1), borderRadius: BorderRadius.circular(12)),
              child: CustomPaint(painter: MiniCurvePainter(title, color), size: const Size(80, 80)),
            ),
            const SizedBox(height: 8),
            Text(title, style: const TextStyle(fontWeight: FontWeight.bold)),
          ],
        ),
      ),
    );
  }
}

class MiniCurvePainter extends CustomPainter {
  final String type;
  final Color color;
  MiniCurvePainter(this.type, this.color);

  @override
  void paint(Canvas canvas, Size size) {
    final paint = Paint()..color = color..strokeWidth = 1.5..style = PaintingStyle.stroke..strokeCap = StrokeCap.round;
    final cx = size.width / 2, cy = size.height / 2;
    final scale = size.width / 6;

    if (type == '希尔伯特') {
      final points = _hilbert(3);
      final path = Path();
      for (int i = 0; i < points.length; i++) {
        final x = cx + (points[i].dx - 3.5) * scale / 2;
        final y = cy + (points[i].dy - 3.5) * scale / 2;
        if (i == 0) path.moveTo(x, y);
        else path.lineTo(x, y);
      }
      canvas.drawPath(path, paint);
    } else if (type == 'Z阶曲线') {
      final points = _zOrder(3);
      final path = Path();
      for (int i = 0; i < points.length; i++) {
        final x = cx + (points[i].dx - 3.5) * scale / 2;
        final y = cy + (points[i].dy - 3.5) * scale / 2;
        if (i == 0) path.moveTo(x, y);
        else path.lineTo(x, y);
      }
      canvas.drawPath(path, paint);
    } else if (type == '皮亚诺') {
      final points = _peano(2);
      final path = Path();
      for (int i = 0; i < points.length; i++) {
        final x = cx + (points[i].dx - 4) * scale / 3;
        final y = cy + (points[i].dy - 4) * scale / 3;
        if (i == 0) path.moveTo(x, y);
        else path.lineTo(x, y);
      }
      canvas.drawPath(path, paint);
    } else if (type == '龙曲线') {
      final points = _dragon(8);
      final path = Path();
      for (int i = 0; i < points.length; i++) {
        final x = cx + points[i].dx * scale / 2;
        final y = cy + points[i].dy * scale / 2;
        if (i == 0) path.moveTo(x, y);
        else path.lineTo(x, y);
      }
      canvas.drawPath(path, paint);
    }
  }

  List<Offset> _hilbert(int n) {
    final points = <Offset>[];
    final size = 1 << n;
    for (int i = 0; i < size * size; i++) {
      points.add(_hilbertIndexToPoint(i, size));
    }
    return points;
  }

  Offset _hilbertIndexToPoint(int index, int n) {
    double x = 0, y = 0;
    int s = 1;
    while (s < n) {
      final rx = (index >> 1) & 1;
      final ry = (index ^ rx) & 1;
      if (ry == 0) {
        if (rx == 1) { x = s - 1 - x; y = s - 1 - y; }
        final temp = x; x = y; y = temp;
      }
      x += s * rx; y += s * ry;
      index >>= 2; s <<= 1;
    }
    return Offset(x, y);
  }

  List<Offset> _zOrder(int n) {
    final points = <Offset>[];
    final size = 1 << n;
    for (int i = 0; i < size * size; i++) {
      int x = 0, y = 0;
      for (int j = 0; j < n; j++) {
        x |= ((i >> (2 * j)) & 1) << j;
        y |= ((i >> (2 * j + 1)) & 1) << j;
      }
      points.add(Offset(x.toDouble(), y.toDouble()));
    }
    return points;
  }

  List<Offset> _peano(int n) {
    final points = <Offset>[];
    final size = pow(3, n).toInt();
    for (int i = 0; i < size * size; i++) {
      points.add(_peanoIndexToPoint(i, n));
    }
    return points;
  }

  Offset _peanoIndexToPoint(int index, int n) {
    double x = 0, y = 0;
    int s = 1;
    for (int i = 0; i < n; i++) {
      final digit = (index ~/ pow(9, i).toInt()) % 9;
      final dx = digit % 3;
      final dy = digit ~/ 3;
      x += s * dx;
      y += s * dy;
      s *= 3;
    }
    return Offset(x, y);
  }

  List<Offset> _dragon(int iterations) {
    var points = [Offset.zero, const Offset(1, 0)];
    for (int i = 0; i < iterations; i++) {
      final newPoints = <Offset>[];
      for (int j = 0; j < points.length - 1; j++) {
        final p1 = points[j];
        final p2 = points[j + 1];
        newPoints.add(p1);
        final mid = Offset((p1.dx + p2.dx) / 2, (p1.dy + p2.dy) / 2);
        final dx = p2.dx - p1.dx;
        final dy = p2.dy - p1.dy;
        newPoints.add(Offset(mid.dx - dy / 2, mid.dy + dx / 2));
      }
      newPoints.add(points.last);
      points = newPoints;
    }
    final minx = points.map((p) => p.dx).reduce(min);
    final miny = points.map((p) => p.dy).reduce(min);
    return points.map((p) => Offset(p.dx - minx - 2, p.dy - miny - 2)).toList();
  }

  @override
  bool shouldRepaint(covariant MiniCurvePainter old) => type != old.type || color != old.color;
}

class HilbertCurvePage extends StatefulWidget {
  const HilbertCurvePage({super.key});
  @override
  State<HilbertCurvePage> createState() => _HilbertCurvePageState();
}

class _HilbertCurvePageState extends State<HilbertCurvePage> {
  int _order = 4;
  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('希尔伯特曲线')),
      body: Column(children: [
        Expanded(child: CustomPaint(painter: CurveDetailPainter('hilbert', _order), size: Size.infinite)),
        _buildControls(),
      ]),
    );
  }
  Widget _buildControls() {
    return Container(
      padding: const EdgeInsets.all(16),
      decoration: BoxDecoration(color: Colors.grey[900], borderRadius: const BorderRadius.vertical(top: Radius.circular(20))),
      child: Row(children: [
        const Text('阶数: ', style: TextStyle(color: Colors.white70)),
        Expanded(child: Slider(value: _order.toDouble(), min: 1, max: 6, divisions: 5, onChanged: (v) => setState(() => _order = v.toInt()))),
        Text('$_order', style: const TextStyle(color: Colors.cyan)),
      ]),
    );
  }
}

class ZOrderCurvePage extends StatefulWidget {
  const ZOrderCurvePage({super.key});
  @override
  State<ZOrderCurvePage> createState() => _ZOrderCurvePageState();
}

class _ZOrderCurvePageState extends State<ZOrderCurvePage> {
  int _order = 4;
  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('Z阶曲线')),
      body: Column(children: [
        Expanded(child: CustomPaint(painter: CurveDetailPainter('zorder', _order), size: Size.infinite)),
        _buildControls(),
      ]),
    );
  }
  Widget _buildControls() {
    return Container(
      padding: const EdgeInsets.all(16),
      decoration: BoxDecoration(color: Colors.grey[900], borderRadius: const BorderRadius.vertical(top: Radius.circular(20))),
      child: Row(children: [
        const Text('阶数: ', style: TextStyle(color: Colors.white70)),
        Expanded(child: Slider(value: _order.toDouble(), min: 1, max: 6, divisions: 5, onChanged: (v) => setState(() => _order = v.toInt()))),
        Text('$_order', style: const TextStyle(color: Colors.purple)),
      ]),
    );
  }
}

class PeanoCurvePage extends StatefulWidget {
  const PeanoCurvePage({super.key});
  @override
  State<PeanoCurvePage> createState() => _PeanoCurvePageState();
}

class _PeanoCurvePageState extends State<PeanoCurvePage> {
  int _order = 2;
  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('皮亚诺曲线')),
      body: Column(children: [
        Expanded(child: CustomPaint(painter: CurveDetailPainter('peano', _order), size: Size.infinite)),
        _buildControls(),
      ]),
    );
  }
  Widget _buildControls() {
    return Container(
      padding: const EdgeInsets.all(16),
      decoration: BoxDecoration(color: Colors.grey[900], borderRadius: const BorderRadius.vertical(top: Radius.circular(20))),
      child: Row(children: [
        const Text('阶数: ', style: TextStyle(color: Colors.white70)),
        Expanded(child: Slider(value: _order.toDouble(), min: 1, max: 3, divisions: 2, onChanged: (v) => setState(() => _order = v.toInt()))),
        Text('$_order', style: const TextStyle(color: Colors.orange)),
      ]),
    );
  }
}

class DragonCurvePage extends StatefulWidget {
  const DragonCurvePage({super.key});
  @override
  State<DragonCurvePage> createState() => _DragonCurvePageState();
}

class _DragonCurvePageState extends State<DragonCurvePage> {
  int _iterations = 10;
  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('龙曲线')),
      body: Column(children: [
        Expanded(child: CustomPaint(painter: CurveDetailPainter('dragon', _iterations), size: Size.infinite)),
        _buildControls(),
      ]),
    );
  }
  Widget _buildControls() {
    return Container(
      padding: const EdgeInsets.all(16),
      decoration: BoxDecoration(color: Colors.grey[900], borderRadius: const BorderRadius.vertical(top: Radius.circular(20))),
      child: Row(children: [
        const Text('迭代: ', style: TextStyle(color: Colors.white70)),
        Expanded(child: Slider(value: _iterations.toDouble(), min: 1, max: 15, divisions: 14, onChanged: (v) => setState(() => _iterations = v.toInt()))),
        Text('$_iterations', style: const TextStyle(color: Colors.pink)),
      ]),
    );
  }
}

class CurveDetailPainter extends CustomPainter {
  final String type;
  final int param;
  CurveDetailPainter(this.type, this.param);

  @override
  void paint(Canvas canvas, Size size) {
    canvas.drawRect(Rect.fromLTWH(0, 0, size.width, size.height), Paint()..color = const Color(0xFF0a0a15));

    final cx = size.width / 2, cy = size.height / 2;
    final scale = min(size.width, size.height) * 0.8;

    Color color;
    List<Offset> points;

    if (type == 'hilbert') {
      color = Colors.cyan;
      points = _hilbert(param);
      final n = 1 << param;
      final path = Path();
      for (int i = 0; i < points.length; i++) {
        final x = cx + (points[i].dx - n / 2 + 0.5) * scale / n;
        final y = cy + (points[i].dy - n / 2 + 0.5) * scale / n;
        if (i == 0) path.moveTo(x, y);
        else path.lineTo(x, y);
      }
      canvas.drawPath(path, Paint()..color = color..strokeWidth = 2..style = PaintingStyle.stroke..strokeCap = StrokeCap.round);
    } else if (type == 'zorder') {
      color = Colors.purple;
      points = _zOrder(param);
      final n = 1 << param;
      final path = Path();
      for (int i = 0; i < points.length; i++) {
        final x = cx + (points[i].dx - n / 2 + 0.5) * scale / n;
        final y = cy + (points[i].dy - n / 2 + 0.5) * scale / n;
        if (i == 0) path.moveTo(x, y);
        else path.lineTo(x, y);
      }
      canvas.drawPath(path, Paint()..color = color..strokeWidth = 2..style = PaintingStyle.stroke..strokeCap = StrokeCap.round);
    } else if (type == 'peano') {
      color = Colors.orange;
      points = _peano(param);
      final n = pow(3, param).toInt();
      final path = Path();
      for (int i = 0; i < points.length; i++) {
        final x = cx + (points[i].dx - n / 2 + 0.5) * scale / n;
        final y = cy + (points[i].dy - n / 2 + 0.5) * scale / n;
        if (i == 0) path.moveTo(x, y);
        else path.lineTo(x, y);
      }
      canvas.drawPath(path, Paint()..color = color..strokeWidth = 1.5..style = PaintingStyle.stroke..strokeCap = StrokeCap.round);
    } else if (type == 'dragon') {
      color = Colors.pink;
      points = _dragon(param);
      final minx = points.map((p) => p.dx).reduce(min);
      final maxx = points.map((p) => p.dx).reduce(max);
      final miny = points.map((p) => p.dy).reduce(min);
      final maxy = points.map((p) => p.dy).reduce(max);
      final w = maxx - minx, h = maxy - miny;
      final path = Path();
      for (int i = 0; i < points.length; i++) {
        final x = cx + (points[i].dx - minx - w / 2) * scale / max(w, h);
        final y = cy + (points[i].dy - miny - h / 2) * scale / max(w, h);
        if (i == 0) path.moveTo(x, y);
        else path.lineTo(x, y);
      }
      canvas.drawPath(path, Paint()..color = color..strokeWidth = 1.5..style = PaintingStyle.stroke..strokeCap = StrokeCap.round);
    }
  }

  List<Offset> _hilbert(int n) {
    final points = <Offset>[];
    final size = 1 << n;
    for (int i = 0; i < size * size; i++) {
      points.add(_hilbertIndexToPoint(i, size));
    }
    return points;
  }

  Offset _hilbertIndexToPoint(int index, int n) {
    double x = 0, y = 0;
    int s = 1;
    while (s < n) {
      final rx = (index >> 1) & 1;
      final ry = (index ^ rx) & 1;
      if (ry == 0) {
        if (rx == 1) { x = s - 1 - x; y = s - 1 - y; }
        final temp = x; x = y; y = temp;
      }
      x += s * rx; y += s * ry;
      index >>= 2; s <<= 1;
    }
    return Offset(x, y);
  }

  List<Offset> _zOrder(int n) {
    final points = <Offset>[];
    final size = 1 << n;
    for (int i = 0; i < size * size; i++) {
      int x = 0, y = 0;
      for (int j = 0; j < n; j++) {
        x |= ((i >> (2 * j)) & 1) << j;
        y |= ((i >> (2 * j + 1)) & 1) << j;
      }
      points.add(Offset(x.toDouble(), y.toDouble()));
    }
    return points;
  }

  List<Offset> _peano(int n) {
    final points = <Offset>[];
    final size = pow(3, n).toInt();
    for (int i = 0; i < size * size; i++) {
      points.add(_peanoIndexToPoint(i, n));
    }
    return points;
  }

  Offset _peanoIndexToPoint(int index, int n) {
    double x = 0, y = 0;
    int s = 1;
    for (int i = 0; i < n; i++) {
      final digit = (index ~/ pow(9, i).toInt()) % 9;
      final dx = digit % 3;
      final dy = digit ~/ 3;
      x += s * dx;
      y += s * dy;
      s *= 3;
    }
    return Offset(x, y);
  }

  List<Offset> _dragon(int iterations) {
    var points = [Offset.zero, const Offset(1, 0)];
    for (int i = 0; i < iterations; i++) {
      final newPoints = <Offset>[];
      for (int j = 0; j < points.length - 1; j++) {
        final p1 = points[j];
        final p2 = points[j + 1];
        newPoints.add(p1);
        final mid = Offset((p1.dx + p2.dx) / 2, (p1.dy + p2.dy) / 2);
        final dx = p2.dx - p1.dx;
        final dy = p2.dy - p1.dy;
        newPoints.add(Offset(mid.dx - dy / 2, mid.dy + dx / 2));
      }
      newPoints.add(points.last);
      points = newPoints;
    }
    return points;
  }

  @override
  bool shouldRepaint(covariant CurveDetailPainter old) => type != old.type || param != old.param;
}

---

📝 四、数学原理深入解析

📐 4.1 维度与测度

豪斯多夫维度的计算：

豪斯多夫维度 D 的定义：

D = lim(r→0) log(N(r)) / log(1/r)

其中 N(r) 是覆盖所需的半径为 r 的球的数量

对于希尔伯特曲线：
- 每阶分成 4 个自相似部分
- 每部分边长为 1/2
- D = log(4) / log(2) = 2

意义：曲线的"维度"是 2

测度论视角：

勒贝格测度：
- 曲线的勒贝格测度为 0
- 正方形的勒贝格测度为 1

极限情况：
- n 阶曲线长度：L_n = 2ⁿ - 1/2ⁿ
- 当 n → ∞：L_n → ∞
- 但曲线仍"不占面积"

解释：
- 曲线无限长
- 但"宽度"为 0
- 测度 = 长度 × 宽度 = ∞ × 0 = ?

---

🔄 4.2 连续性与不可微性

连续性证明：

设 H: [0,1] → [0,1]² 为希尔伯特映射

证明 H 连续：
对于任意 ε > 0，存在 δ > 0
使得 |t₁ - t₂| < δ 时，|H(t₁) - H(t₂)| < ε

关键：
- 相邻索引映射到相邻网格
- 网格大小随阶数递减
- 极限过程中距离趋于 0

不可微性证明：

H 在任意点不可微

证明思路：
1. 假设 H 在 t₀ 可微
2. 则存在切线方向 v
3. 但在任意邻域内，曲线方向变化剧烈
4. 不存在固定的切线方向
5. 矛盾，故不可微

直观理解：
- 曲线在每个点都"转弯"
- 没有平滑的切线
- 类似魏尔斯特拉斯函数

---

🌸 4.3 编码算法详解

位操作编码：

希尔伯特索引的二进制表示：

对于 n 阶曲线，索引范围 [0, 2²ⁿ - 1]
用 2n 位二进制表示

每两位对应一阶：
索引 = b₂ₙ₋₁b₂ₙ₋₂...b₁b₀

编码过程：
for i = 0 to n-1:
    提取第 i 阶的两位 (b₂ᵢ₊₁, b₂ᵢ)
    根据这两位确定旋转和反射
    累加坐标

状态机模型：

希尔伯特编码可以看作状态机：

状态：当前的方向和朝向
输入：索引的二进制位
输出：坐标增量

状态转移表：
┌────────┬────┬────┬────┬────┐
│状态\输入│ 00 │ 01 │ 10 │ 11 │
├────────┼────┼────┼────┼────┤
│   A    │ B↓ │ A→ │ A→ │ D↑ │
│   B    │ A→ │ B↓ │ B↓ │ C← │
│   C    │ D← │ C↑ │ C↑ │ B↓ │
│   D    │ C↑ │ D← │ D← │ A→ │
└────────┴────┴────┴────┴────┘

箭头表示移动方向
字母表示新状态

---

🎯 4.4 局部性分析

局部性度量：

定义局部性系数：

L = max |H⁻¹(x₁) - H⁻¹(x₂)| / |x₁ - x₂|

对于希尔伯特曲线：
L = O(√N)

其中 N 是网格点数

比较：
- 希尔伯特曲线：O(√N)
- Z阶曲线：O(N)
- 行扫描：O(N)

希尔伯特曲线的局部性最优

聚类保持性：

空间上接近的点，在曲线上也接近

定理：
如果两点在平面上距离为 d
则它们在曲线上的距离不超过 O(d × √N)

应用：
- 数据库索引
- 图像压缩
- 空间数据结构

---

🔬 五、高级应用场景

🎨 5.1 数据库索引

空间数据库中的应用：

class HilbertIndex {
  final int order;

  HilbertIndex(this.order);

  /// 将地理坐标编码为希尔伯特索引
  int encodeGeo(double lat, double lon, double minLat, double maxLat, double minLon, double maxLon) {
    // 归一化到 [0, 2^n - 1]
    final n = 1 << order;
    final x = ((lon - minLon) / (maxLon - minLon) * (n - 1)).toInt().clamp(0, n - 1);
    final y = ((lat - minLat) / (maxLat - minLat) * (n - 1)).toInt().clamp(0, n - 1);

    return HilbertGenerator.pointToIndex(x, y, order);
  }

  /// 范围查询优化
  List<int> rangeToHilbertRanges(int x1, int y1, int x2, int y2) {
    // 将矩形范围转换为希尔伯特曲线上的区间
    // 利用局部性减少查询次数
    return _computeHilbertIntervals(x1, y1, x2, y2);
  }

  List<int> _computeHilbertIntervals(int x1, int y1, int x2, int y2) {
    // 简化实现：返回覆盖范围的所有索引
    final indices = <int>[];
    for (int x = x1; x <= x2; x++) {
      for (int y = y1; y <= y2; y++) {
        indices.add(HilbertGenerator.pointToIndex(x, y, order));
      }
    }
    indices.sort();
    return indices;
  }
}

---

🌐 5.2 图像处理

图像扫描优化：

class HilbertImageScanner {
  /// 按希尔伯特曲线顺序扫描图像
  List<int> scanImage(List<List<int>> image) {
    final height = image.length;
    final width = image[0].length;
    final order = (log(max(width, height)) / log(2)).ceil();

    final result = <int>[];
    final n = 1 << order;

    for (int i = 0; i < n * n; i++) {
      final point = HilbertGenerator._indexToPoint(i, n);
      final x = point.dx.toInt();
      final y = point.dy.toInt();

      if (x < width && y < height) {
        result.add(image[y][x]);
      }
    }

    return result;
  }

  /// 图像压缩应用
  List<int> compress(List<List<int>> image) {
    // 希尔伯特扫描后相邻像素更相似
    // 有利于行程编码等压缩算法
    final scanned = scanImage(image);
    return _runLengthEncode(scanned);
  }

  List<int> _runLengthEncode(List<int> data) {
    final result = <int>[];
    int count = 1;

    for (int i = 1; i < data.length; i++) {
      if (data[i] == data[i - 1]) {
        count++;
      } else {
        result.add(count);
        result.add(data[i - 1]);
        count = 1;
      }
    }

    result.add(count);
    result.add(data.last);

    return result;
  }
}

---

📱 5.3 鸿蒙多端适配

响应式曲线生成：

class AdaptiveHilbertCurve {
  static HilbertCurve create(BuildContext context) {
    final size = MediaQuery.of(context).size;
    final minDim = min(size.width, size.height);

    // 根据屏幕尺寸选择阶数
    int order;
    if (minDim < 400) {
      order = 4;
    } else if (minDim < 600) {
      order = 5;
    } else {
      order = 6;
    }

    return HilbertCurve(order: order);
  }

  static double getCellSize(BuildContext context, int order) {
    final size = MediaQuery.of(context).size;
    final minDim = min(size.width, size.height);
    final gridSize = 1 << order;
    return minDim / gridSize;
  }
}

---

📊 六、性能优化策略

⚡ 6.1 预计算与缓存

曲线缓存：

class HilbertCurveCache {
  static final Map<int, List<Offset>> _cache = {};

  static List<Offset> getCurve(int order, double size) {
    final key = (order << 16) | size.toInt();

    return _cache.putIfAbsent(key, () {
      return HilbertGenerator.generate(order, size);
    });
  }

  static void clearCache() {
    _cache.clear();
  }
}

---

💾 6.2 内存优化

惰性计算：

class LazyHilbertCurve {
  final int order;
  final double size;

  List<Offset>? _points;

  LazyHilbertCurve({required this.order, required this.size});

  List<Offset> get points {
    _points ??= HilbertGenerator.generate(order, size);
    return _points!;
  }

  Offset operator [](int index) {
    final n = 1 << order;
    final cellSize = size / n;
    final point = HilbertGenerator._indexToPoint(index, n);
    return Offset(point.dx * cellSize, point.dy * cellSize);
  }
}

---

🎓 七、学习资源与拓展

📚 推荐阅读

主题	资源	难度
空间填充曲线	《几何测度论》	⭐⭐⭐
分形几何	《分形几何：数学基础与应用》	⭐⭐
算法实现	《算法导论》	⭐⭐
数据库索引	《数据库系统概念》	⭐⭐⭐

🔗 相关项目

• Hilbert R-Tree：空间索引数据结构
• GeoHash：地理编码系统
• S2 Geometry：Google 的空间索引库

---

📝 八、总结

本篇文章深入探讨了希尔伯特曲线的数学原理及其在 Flutter 中的可视化实现。

✅ 核心知识点回顾

知识点	说明
🌀 空间填充	曲线可以填满整个平面
📐 递归构造	每阶由 4 个子曲线组成
🔢 编码算法	一维索引与二维坐标的映射
🎯 局部性	空间接近的点在曲线上也接近
⚡ 应用	数据库索引、图像处理

⭐ 最佳实践要点

• ✅ 使用位操作加速编码计算
• ✅ 缓存曲线点序列
• ✅ 根据设备性能选择阶数
• ✅ 利用局部性优化查询

🚀 进阶方向

• 🔮 三维希尔伯特曲线
• ✨ 动态曲线变形
• 📊 大规模空间索引
• 🎨 生成艺术应用

---

💡 提示：本文代码基于 Flutter for Harmony 开发，可在鸿蒙设备上流畅运行。
