🌊 一、流场可视化：数学之美

📚 1.1 矢量场基础

矢量场是空间中每一点都关联一个矢量的数学对象。在物理学中，矢量场用于描述流体流动、电磁场、引力场等不可见的力量。

矢量场定义：

二维矢量场：
V(x, y) = (Vx(x, y), Vy(x, y))

其中 Vx, Vy 是空间坐标的函数

三维矢量场：
V(x, y, z) = (Vx, Vy, Vz)

物理实例：
- 速度场：流体中每点的速度
- 电场：电荷周围的电场强度
- 磁场：磁体周围的磁场方向
- 引力场：质量周围的引力

矢量场示意：

均匀场：            涡旋场：            源场：
→ → → →            ↗ ↑ ↖              ↑ ↑ ↑
→ → → →            → ● ←              ↑ ● ↑
→ → → →            ↘ ↓ ↙              ↑ ↑ ↑

每点的箭头表示该点的矢量方向和大小

---

📐 1.2 流线与轨迹

流线是矢量场中的曲线，其切线方向处处与场矢量方向一致。

流线方程：

流线满足：
dy/dx = Vy(x, y) / Vx(x, y)

参数形式：
dx/dt = Vx(x, y)
dy/dt = Vy(x, y)

解这个微分方程组得到流线

流线性质：
- 流线不相交（除奇点外）
- 流线密度表示场强
- 流线方向表示流向

轨迹与流线：

轨迹（Pathline）：
单个粒子随时间运动的路径

流线（Streamline）：
某一时刻与速度场相切的曲线

区别：
- 定常场：轨迹 = 流线
- 非定常场：轨迹 ≠ 流线

其他相关概念：
- 条纹线（Streakline）：某点释放的所有粒子的连线
- 时间线（Timeline）：同时释放的一排粒子的连线

---

🔬 1.3 典型流场类型

基本流场：

类型	表达式	特点
均匀流	V = (U, 0)	平行直线
源/汇	V = (Q/r)·r̂	径向发散/汇聚
涡旋	V = (Γ/2πr)·θ̂	环形旋转
偶极子	V = (m/r²)·(2cosθ, sinθ)	源汇组合

组合流场：

源 + 涡旋 = 螺旋流：
V = (Q/r)·r̂ + (Γ/2πr)·θ̂

均匀流 + 源 = 绕流：
V = (U, 0) + (Q/r)·r̂

偶极子 + 均匀流 = 圆柱绕流：
V = (U, 0) + (m/r²)·(2cosθ, sinθ)

流场示意：

源场：              涡旋场：           偶极子场：
      ↑              ↗ → ↖            → → →
    ↑   ↑            ↑   ↓            → ● →
  ↑       ↑          ← ● →            → → →
    ↑   ↑            ↓   ↑
      ↓              ↙ ← ↘

源：向外发散        涡旋：环形旋转      偶极子：源汇组合

---

🎯 1.4 流场可视化方法

主要可视化技术：

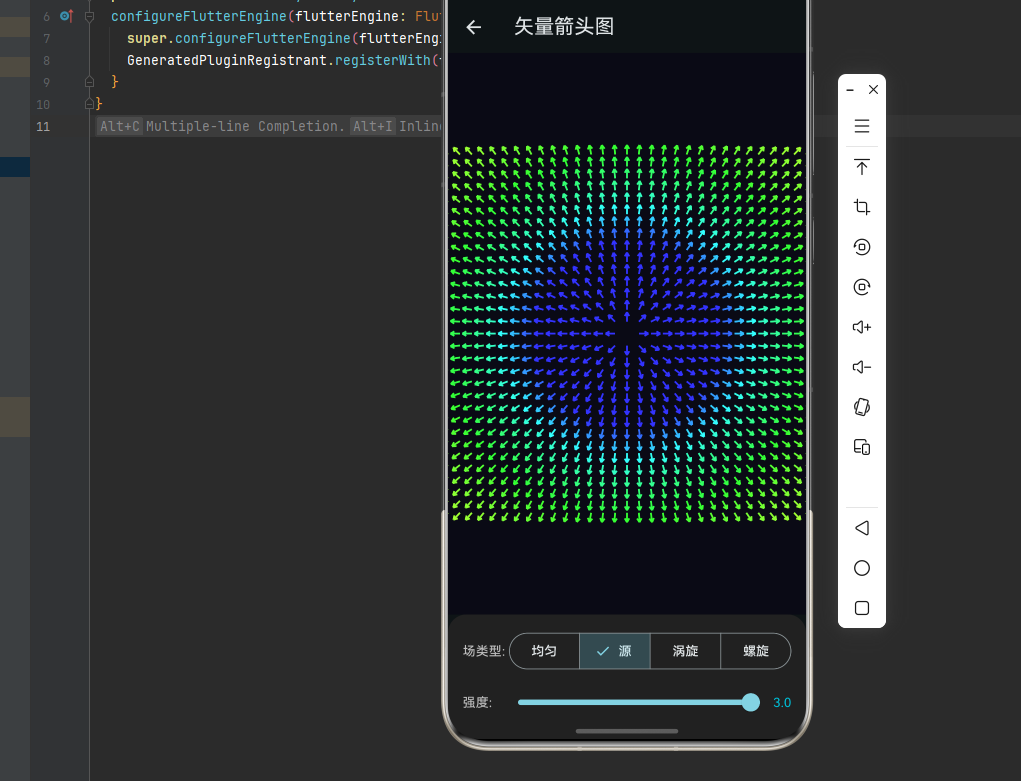

1. 箭头图（Vector Glyphs）：
   在采样点绘制箭头
   优点：直观
   缺点：采样点有限时信息丢失

2. 流线图（Streamlines）：
   绘制与场相切的曲线
   优点：显示流向
   缺点：可能遗漏区域

3. 流带图（Stream Ribbons）：
   宽度表示散度的流线
   优点：显示旋转
   缺点：计算复杂

4. 流管图（Stream Tubes）：
   三维流线的管道表示
   优点：显示强度
   缺点：遮挡问题

5. 线积分卷积（LIC）：
   基于纹理的方法
   优点：连续表示
   缺点：计算量大

---

🔧 二、流场可视化的 Dart 实现

🧮 2.1 矢量场类

import 'dart:math';

/// 二维矢量
class Vector2D {
  final double x;
  final double y;

  const Vector2D(this.x, this.y);

  factory Vector2D.zero() => const Vector2D(0, 0);
  factory Vector2D.fromAngle(double angle, double magnitude) =>
      Vector2D(magnitude * cos(angle), magnitude * sin(angle));

  double get magnitude => sqrt(x * x + y * y);
  double get angle => atan2(y, x);
  double get squaredMagnitude => x * x + y * y;

  Vector2D get normalized {
    final mag = magnitude;
    if (mag < 1e-10) return Vector2D.zero();
    return Vector2D(x / mag, y / mag);
  }

  Vector2D get perpendicular => Vector2D(-y, x);

  Vector2D operator +(Vector2D other) => Vector2D(x + other.x, y + other.y);
  Vector2D operator -(Vector2D other) => Vector2D(x - other.x, y - other.y);
  Vector2D operator *(double scalar) => Vector2D(x * scalar, y * scalar);
  Vector2D operator /(double scalar) => Vector2D(x / scalar, y / scalar);

  double dot(Vector2D other) => x * other.x + y * other.y;
  double cross(Vector2D other) => x * other.y - y * other.x;

  Offset toOffset() => Offset(x, y);
}

/// 矢量场
abstract class VectorField {
  Vector2D at(double x, double y);

  Vector2D atOffset(Offset p) => at(p.dx, p.dy);

  double divergence(double x, double y) {
    const h = 0.001;
    final dVx = (at(x + h, y).x - at(x - h, y).x) / (2 * h);
    final dVy = (at(x, y + h).y - at(x, y - h).y) / (2 * h);
    return dVx + dVy;
  }

  double curl(double x, double y) {
    const h = 0.001;
    final dVx = (at(x, y + h).x - at(x, y - h).x) / (2 * h);
    final dVy = (at(x + h, y).y - at(x - h, y).y) / (2 * h);
    return dVy - dVx;
  }

  List<Vector2D> sampleGrid(double xMin, double xMax, double yMin, double yMax, int nx, int ny) {
    final result = <Vector2D>[];
    final dx = (xMax - xMin) / (nx - 1);
    final dy = (yMax - yMin) / (ny - 1);

    for (int j = 0; j < ny; j++) {
      for (int i = 0; i < nx; i++) {
        final x = xMin + i * dx;
        final y = yMin + j * dy;
        result.add(at(x, y));
      }
    }

    return result;
  }
}

/// 均匀流场
class UniformField extends VectorField {
  final Vector2D velocity;

  UniformField(this.velocity);

  @override
  Vector2D at(double x, double y) => velocity;
}

/// 源/汇场
class SourceField extends VectorField {
  final double strength;
  final Offset center;

  SourceField({required this.strength, this.center = Offset.zero});

  @override
  Vector2D at(double x, double y) {
    final dx = x - center.dx;
    final dy = y - center.dy;
    final r = sqrt(dx * dx + dy * dy);

    if (r < 1e-10) return Vector2D.zero();

    return Vector2D(strength * dx / (r * r), strength * dy / (r * r));
  }
}

/// 涡旋场
class VortexField extends VectorField {
  final double circulation;
  final Offset center;

  VortexField({required this.circulation, this.center = Offset.zero});

  @override
  Vector2D at(double x, double y) {
    final dx = x - center.dx;
    final dy = y - center.dy;
    final r = sqrt(dx * dx + dy * dy);

    if (r < 1e-10) return Vector2D.zero();

    return Vector2D(-circulation * dy / (r * r), circulation * dx / (r * r));
  }
}

/// 组合场
class CompositeField extends VectorField {
  final List<VectorField> fields;

  CompositeField(this.fields);

  @override
  Vector2D at(double x, double y) {
    var result = Vector2D.zero();
    for (final field in fields) {
      result = result + field.at(x, y);
    }
    return result;
  }

  void addField(VectorField field) {
    fields.add(field);
  }
}

---

⚡ 2.2 流线追踪算法

/// 流线追踪器
class StreamlineTracer {
  final VectorField field;
  final double stepSize;
  final int maxSteps;
  final double tolerance;

  StreamlineTracer({
    required this.field,
    this.stepSize = 0.5,
    this.maxSteps = 1000,
    this.tolerance = 1e-6,
  });

  List<Offset> traceForward(Offset start, double xMin, double xMax, double yMin, double yMax) {
    return _trace(start, 1, xMin, xMax, yMin, yMax);
  }

  List<Offset> traceBackward(Offset start, double xMin, double xMax, double yMin, double yMax) {
    return _trace(start, -1, xMin, xMax, yMin, yMax);
  }

  List<Offset> traceBidirectional(Offset start, double xMin, double xMax, double yMin, double yMax) {
    final forward = traceForward(start, xMin, xMax, yMin, yMax);
    final backward = traceBackward(start, xMin, xMax, yMin, yMax);

    return [...backward.reversed.skip(1), ...forward];
  }

  List<Offset> _trace(Offset start, int direction, double xMin, double xMax, double yMin, double yMax) {
    final points = <Offset>[start];
    var current = start;

    for (int i = 0; i < maxSteps; i++) {
      final v = field.at(current.dx, current.dy);
      final mag = v.magnitude;

      if (mag < tolerance) break;

      final next = current + (v.normalized * stepSize * direction).toOffset();

      if (next.dx < xMin || next.dx > xMax || next.dy < yMin || next.dy > yMax) {
        break;
      }

      points.add(next);
      current = next;
    }

    return points;
  }

  List<List<Offset>> traceMultiple(List<Offset> seeds, double xMin, double xMax, double yMin, double yMax) {
    return seeds.map((seed) => traceBidirectional(seed, xMin, xMax, yMin, yMax)).toList();
  }
}

/// RK4 积分器
class RK4Tracer extends StreamlineTracer {
  RK4Tracer({
    required super.field,
    super.stepSize,
    super.maxSteps,
    super.tolerance,
  });

  @override
  List<Offset> _trace(Offset start, int direction, double xMin, double xMax, double yMin, double yMax) {
    final points = <Offset>[start];
    var current = start;
    final h = stepSize * direction;

    for (int i = 0; i < maxSteps; i++) {
      final k1 = field.at(current.dx, current.dy);
      final k2 = field.at(current.dx + h * k1.x / 2, current.dy + h * k1.y / 2);
      final k3 = field.at(current.dx + h * k2.x / 2, current.dy + h * k2.y / 2);
      final k4 = field.at(current.dx + h * k3.x, current.dy + h * k3.y);

      final dx = h * (k1.x + 2 * k2.x + 2 * k3.x + k4.x) / 6;
      final dy = h * (k1.y + 2 * k2.y + 2 * k3.y + k4.y) / 6;

      final next = Offset(current.dx + dx, current.dy + dy);

      if (next.dx < xMin || next.dx > xMax || next.dy < yMin || next.dy > yMax) {
        break;
      }

      final v = field.at(next.dx, next.dy);
      if (v.magnitude < tolerance) break;

      points.add(next);
      current = next;
    }

    return points;
  }
}

---

🎨 2.3 可视化组件

import 'package:flutter/material.dart';

/// 流场可视化绘制器
class FlowFieldPainter extends CustomPainter {
  final VectorField field;
  final double xMin, xMax, yMin, yMax;
  final int gridX, gridY;
  final double arrowScale;
  final Color arrowColor;

  FlowFieldPainter({
    required this.field,
    required this.xMin,
    required this.xMax,
    required this.yMin,
    required this.yMax,
    this.gridX = 20,
    this.gridY = 20,
    this.arrowScale = 15,
    this.arrowColor = Colors.cyan,
  });

  @override
  void paint(Canvas canvas, Size size) {
    final dx = (xMax - xMin) / gridX;
    final dy = (yMax - yMin) / gridY;

    final scaleX = size.width / (xMax - xMin);
    final scaleY = size.height / (yMax - yMin);

    for (int i = 0; i <= gridX; i++) {
      for (int j = 0; j <= gridY; j++) {
        final x = xMin + i * dx;
        final y = yMin + j * dy;

        final v = field.at(x, y);
        final mag = v.magnitude;

        if (mag < 1e-10) continue;

        final screenX = (x - xMin) * scaleX;
        final screenY = (y - yMin) * scaleY;

        final arrowLength = min(mag * arrowScale, dx * scaleX * 0.8);
        final endX = screenX + v.x / mag * arrowLength;
        final endY = screenY + v.y / mag * arrowLength;

        _drawArrow(canvas, Offset(screenX, screenY), Offset(endX, endY), mag);
      }
    }
  }

  void _drawArrow(Canvas canvas, Offset start, Offset end, double magnitude) {
    final paint = Paint()
      ..color = Color.lerp(Colors.blue, Colors.red, min(magnitude / 5, 1))!
      ..strokeWidth = 2
      ..style = PaintingStyle.stroke;

    canvas.drawLine(start, end, paint);

    final angle = atan2(end.dy - start.dy, end.dx - start.dx);
    final arrowSize = 6.0;

    final path = Path();
    path.moveTo(end.dx, end.dy);
    path.lineTo(
      end.dx - arrowSize * cos(angle - pi / 6),
      end.dy - arrowSize * sin(angle - pi / 6),
    );
    path.moveTo(end.dx, end.dy);
    path.lineTo(
      end.dx - arrowSize * cos(angle + pi / 6),
      end.dy - arrowSize * sin(angle + pi / 6),
    );

    canvas.drawPath(path, paint);
  }

  @override
  bool shouldRepaint(covariant FlowFieldPainter old) => field != old.field;
}

/// 流线绘制器
class StreamlinePainter extends CustomPainter {
  final List<List<Offset>> streamlines;
  final List<Color> colors;
  final double lineWidth;

  StreamlinePainter({
    required this.streamlines,
    required this.colors,
    this.lineWidth = 1.5,
  });

  @override
  void paint(Canvas canvas, Size size) {
    for (int i = 0; i < streamlines.length; i++) {
      final line = streamlines[i];
      if (line.length < 2) continue;

      final path = Path();
      path.moveTo(line[0].dx, line[0].dy);

      for (int j = 1; j < line.length; j++) {
        path.lineTo(line[j].dx, line[j].dy);
      }

      final paint = Paint()
        ..color = colors[i % colors.length]
        ..strokeWidth = lineWidth
        ..style = PaintingStyle.stroke
        ..strokeCap = StrokeCap.round;

      canvas.drawPath(path, paint);
    }
  }

  @override
  bool shouldRepaint(covariant StreamlinePainter old) =>
      streamlines.length != old.streamlines.length;
}

---

📦 三、完整示例代码

以下是完整的流场可视化示例代码：

import 'package:flutter/material.dart';
import 'dart:math';

void main() {
  runApp(const FlowFieldApp());
}

class FlowFieldApp extends StatelessWidget {
  const FlowFieldApp({super.key});

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      title: '流场可视化',
      theme: ThemeData(
        colorScheme: ColorScheme.fromSeed(seedColor: Colors.cyan, brightness: Brightness.dark),
        useMaterial3: true,
      ),
      home: const FlowFieldHomePage(),
      debugShowCheckedModeBanner: false,
    );
  }
}

class FlowFieldHomePage extends StatelessWidget {
  const FlowFieldHomePage({super.key});

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(
        title: const Text('🌊 流场可视化'),
        backgroundColor: Theme.of(context).colorScheme.inversePrimary,
      ),
      body: ListView(
        padding: const EdgeInsets.all(16),
        children: [
          _buildCard(context, title: '矢量箭头图', description: '网格采样显示场方向', icon: Icons.arrow_forward, color: Colors.cyan,
              onTap: () => Navigator.push(context, MaterialPageRoute(builder: (_) => const VectorGlyphDemo()))),
          _buildCard(context, title: '流线追踪', description: '追踪粒子运动轨迹', icon: Icons.show_chart, color: Colors.blue,
              onTap: () => Navigator.push(context, MaterialPageRoute(builder: (_) => const StreamlineDemo()))),
          _buildCard(context, title: '粒子系统', description: '动态粒子流动效果', icon: Icons.grain, color: Colors.purple,
              onTap: () => Navigator.push(context, MaterialPageRoute(builder: (_) => const ParticleDemo()))),
          _buildCard(context, title: '典型流场', description: '源、汇、涡旋组合', icon: Icons.bubble_chart, color: Colors.teal,
              onTap: () => Navigator.push(context, MaterialPageRoute(builder: (_) => const FlowTypesDemo()))),
        ],
      ),
    );
  }

  Widget _buildCard(BuildContext context, {required String title, required String description, required IconData icon, required Color color, required VoidCallback onTap}) {
    return Card(
      margin: const EdgeInsets.only(bottom: 12),
      shape: RoundedRectangleBorder(borderRadius: BorderRadius.circular(16)),
      child: InkWell(
        onTap: onTap,
        borderRadius: BorderRadius.circular(16),
        child: Padding(
          padding: const EdgeInsets.all(16),
          child: Row(children: [
            Container(width: 56, height: 56, decoration: BoxDecoration(color: color.withOpacity(0.1), borderRadius: BorderRadius.circular(12)),
                child: Icon(icon, color: color, size: 28)),
            const SizedBox(width: 16),
            Expanded(child: Column(crossAxisAlignment: CrossAxisAlignment.start, children: [
              Text(title, style: const TextStyle(fontSize: 16, fontWeight: FontWeight.bold)),
              const SizedBox(height: 4),
              Text(description, style: TextStyle(color: Colors.grey[600], fontSize: 14)),
            ])),
            Icon(Icons.chevron_right, color: Colors.grey[400]),
          ]),
        ),
      ),
    );
  }
}

/// 矢量类
class V {
  final double x, y;
  const V(this.x, this.y);
  double get mag => sqrt(x * x + y * y);
  double get ang => atan2(y, x);
  V get norm => mag < 1e-10 ? V(0, 0) : V(x / mag, y / mag);
  V operator +(V o) => V(x + o.x, y + o.y);
  V operator *(double s) => V(x * s, y * s);
}

/// 流场类型
typedef FlowField = V Function(double x, double y);

V uniformField(double x, double y) => V(1, 0);
V sourceField(double x, double y, double cx, double cy, double strength) {
  final dx = x - cx, dy = y - cy;
  final r = sqrt(dx * dx + dy * dy);
  return r < 0.1 ? V(0, 0) : V(strength * dx / (r * r), strength * dy / (r * r));
}
V vortexField(double x, double y, double cx, double cy, double strength) {
  final dx = x - cx, dy = y - cy;
  final r = sqrt(dx * dx + dy * dy);
  return r < 0.1 ? V(0, 0) : V(-strength * dy / (r * r), strength * dx / (r * r));
}
V spiralField(double x, double y, double cx, double cy, double source, double vortex) {
  final s = sourceField(x, y, cx, cy, source);
  final v = vortexField(x, y, cx, cy, vortex);
  return s + v;
}

/// 矢量箭头图演示
class VectorGlyphDemo extends StatefulWidget {
  const VectorGlyphDemo({super.key});
  @override
  State<VectorGlyphDemo> createState() => _VectorGlyphDemoState();
}

class _VectorGlyphDemoState extends State<VectorGlyphDemo> {
  int _fieldType = 0;
  double _strength = 1.0;
  final double _cx = 0, _cy = 0;

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('矢量箭头图')),
      body: Column(children: [
        Expanded(child: CustomPaint(painter: GlyphPainter(_getField(), _strength), size: Size.infinite)),
        _buildControls(),
      ]),
    );
  }

  FlowField _getField() {
    switch (_fieldType) {
      case 0: return uniformField;
      case 1: return (x, y) => sourceField(x, y, _cx, _cy, _strength);
      case 2: return (x, y) => vortexField(x, y, _cx, _cy, _strength);
      case 3: return (x, y) => spiralField(x, y, _cx, _cy, _strength, _strength);
      default: return uniformField;
    }
  }

  Widget _buildControls() {
    return Container(
      padding: const EdgeInsets.all(16),
      decoration: BoxDecoration(color: Colors.grey[900], borderRadius: const BorderRadius.vertical(top: Radius.circular(20))),
      child: Column(mainAxisSize: MainAxisSize.min, children: [
        Row(children: [
          const Text('场类型: ', style: TextStyle(color: Colors.white70)),
          Expanded(child: SegmentedButton(selected: {_fieldType}, segments: const [
            ButtonSegment(value: 0, label: Text('均匀')),
            ButtonSegment(value: 1, label: Text('源')),
            ButtonSegment(value: 2, label: Text('涡旋')),
            ButtonSegment(value: 3, label: Text('螺旋')),
          ], onSelectionChanged: (s) => setState(() => _fieldType = s.first))),
        ]),
        const SizedBox(height: 8),
        Row(children: [
          const Text('强度: ', style: TextStyle(color: Colors.white70)),
          Expanded(child: Slider(value: _strength, min: 0.1, max: 3, onChanged: (v) => setState(() => _strength = v))),
          Text(_strength.toStringAsFixed(1), style: const TextStyle(color: Colors.cyan)),
        ]),
      ]),
    );
  }
}

class GlyphPainter extends CustomPainter {
  final FlowField field;
  final double strength;
  GlyphPainter(this.field, this.strength);

  @override
  void paint(Canvas canvas, Size size) {
    canvas.drawRect(Rect.fromLTWH(0, 0, size.width, size.height), Paint()..color = const Color(0xFF0a0a15));

    final cx = size.width / 2, cy = size.height / 2;
    final scale = min(size.width, size.height) / 4;
    final gridN = 15;
    final step = scale * 2 / gridN;

    for (int i = -gridN; i <= gridN; i++) {
      for (int j = -gridN; j <= gridN; j++) {
        final x = i * step / scale;
        final y = j * step / scale;

        final v = field(x, y);
        final mag = v.mag;
        if (mag < 0.01) continue;

        final screenX = cx + i * step;
        final screenY = cy + j * step;

        final arrowLen = min(mag * 15, step * 0.8);
        final endX = screenX + v.norm.x * arrowLen;
        final endY = screenY + v.norm.y * arrowLen;

        final hue = (min(mag / 3, 1) * 240).toDouble();
        final paint = Paint()..color = HSVColor.fromAHSV(1, hue, 0.8, 1).toColor()..strokeWidth = 2..style = PaintingStyle.stroke;

        canvas.drawLine(Offset(screenX, screenY), Offset(endX, endY), paint);

        final angle = v.ang;
        final arrowSize = 5.0;
        final path = Path()
          ..moveTo(endX, endY)
          ..lineTo(endX - arrowSize * cos(angle - pi / 6), endY - arrowSize * sin(angle - pi / 6))
          ..moveTo(endX, endY)
          ..lineTo(endX - arrowSize * cos(angle + pi / 6), endY - arrowSize * sin(angle + pi / 6));
        canvas.drawPath(path, paint);
      }
    }
  }

  @override
  bool shouldRepaint(covariant GlyphPainter old) => true;
}

/// 流线追踪演示
class StreamlineDemo extends StatefulWidget {
  const StreamlineDemo({super.key});
  @override
  State<StreamlineDemo> createState() => _StreamlineDemoState();
}

class _StreamlineDemoState extends State<StreamlineDemo> {
  int _fieldType = 3;
  double _strength = 1.0;
  int _lineCount = 20;
  List<List<Offset>> _streamlines = [];

  @override
  void initState() {
    super.initState();
    _computeStreamlines();
  }

  void _computeStreamlines() {
    _streamlines.clear();
    final field = _getField();

    for (int i = 0; i < _lineCount; i++) {
      final angle = 2 * pi * i / _lineCount;
      final startR = 0.5;
      final start = Offset(cos(angle) * startR, sin(angle) * startR);

      final line = _traceStreamline(start, field);
      if (line.length > 1) _streamlines.add(line);
    }
  }

  List<Offset> _traceStreamline(Offset start, FlowField field) {
    final points = <Offset>[start];
    var current = start;
    const stepSize = 0.02;
    const maxSteps = 500;

    for (int i = 0; i < maxSteps; i++) {
      final v = field(current.dx, current.dy);
      if (v.mag < 0.01) break;

      current = Offset(current.dx + v.norm.x * stepSize, current.dy + v.norm.y * stepSize);

      if (current.dx.abs() > 2 || current.dy.abs() > 2) break;

      points.add(current);
    }

    return points;
  }

  FlowField _getField() {
    switch (_fieldType) {
      case 0: return uniformField;
      case 1: return (x, y) => sourceField(x, y, 0, 0, _strength);
      case 2: return (x, y) => vortexField(x, y, 0, 0, _strength);
      case 3: return (x, y) => spiralField(x, y, 0, 0, _strength, _strength);
      default: return uniformField;
    }
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('流线追踪')),
      body: Column(children: [
        Expanded(child: CustomPaint(painter: StreamPainter(_streamlines), size: Size.infinite)),
        _buildControls(),
      ]),
    );
  }

  Widget _buildControls() {
    return Container(
      padding: const EdgeInsets.all(16),
      decoration: BoxDecoration(color: Colors.grey[900], borderRadius: const BorderRadius.vertical(top: Radius.circular(20))),
      child: Column(mainAxisSize: MainAxisSize.min, children: [
        Row(children: [
          const Text('场类型: ', style: TextStyle(color: Colors.white70)),
          Expanded(child: SegmentedButton(selected: {_fieldType}, segments: const [
            ButtonSegment(value: 0, label: Text('均匀')),
            ButtonSegment(value: 1, label: Text('源')),
            ButtonSegment(value: 2, label: Text('涡旋')),
            ButtonSegment(value: 3, label: Text('螺旋')),
          ], onSelectionChanged: (s) => setState(() { _fieldType = s.first; _computeStreamlines(); }))),
        ]),
        Row(children: [
          const Text('流线数: ', style: TextStyle(color: Colors.white70)),
          Expanded(child: Slider(value: _lineCount.toDouble(), min: 5, max: 50, divisions: 45, onChanged: (v) => setState(() { _lineCount = v.toInt(); _computeStreamlines(); }))),
          Text('$_lineCount', style: const TextStyle(color: Colors.blue)),
        ]),
      ]),
    );
  }
}

class StreamPainter extends CustomPainter {
  final List<List<Offset>> lines;
  StreamPainter(this.lines);

  @override
  void paint(Canvas canvas, Size size) {
    final cx = size.width / 2, cy = size.height / 2;
    final scale = min(size.width, size.height) / 4;

    canvas.drawRect(Rect.fromLTWH(0, 0, size.width, size.height), Paint()..color = const Color(0xFF0a0a15));

    final colors = [Colors.cyan, Colors.blue, Colors.purple, Colors.pink, Colors.teal];

    for (int i = 0; i < lines.length; i++) {
      final line = lines[i];
      if (line.length < 2) continue;

      final path = Path();
      for (int j = 0; j < line.length; j++) {
        final x = cx + line[j].dx * scale;
        final y = cy + line[j].dy * scale;
        if (j == 0) path.moveTo(x, y);
        else path.lineTo(x, y);
      }

      canvas.drawPath(path, Paint()..color = colors[i % colors.length]..style = PaintingStyle.stroke..strokeWidth = 2..strokeCap = StrokeCap.round);
    }
  }

  @override
  bool shouldRepaint(covariant StreamPainter old) => true;
}

/// 粒子系统演示
class ParticleDemo extends StatefulWidget {
  const ParticleDemo({super.key});
  @override
  State<ParticleDemo> createState() => _ParticleDemoState();
}

class _ParticleDemoState extends State<ParticleDemo> with SingleTickerProviderStateMixin {
  late AnimationController _ctrl;
  final List<_Particle> _particles = [];
  int _fieldType = 3;
  double _strength = 1.0;
  double _time = 0;

  @override
  void initState() {
    super.initState();
    for (int i = 0; i < 200; i++) {
      _particles.add(_Particle(Random().nextDouble() * 4 - 2, Random().nextDouble() * 4 - 2));
    }
    _ctrl = AnimationController(vsync: this, duration: const Duration(milliseconds: 16))..repeat();
    _ctrl.addListener(_update);
  }

  void _update() {
    _time += 0.016;
    final field = _getField();

    for (final p in _particles) {
      final v = field(p.x, p.y);
      p.x += v.norm.x * 0.02;
      p.y += v.norm.y * 0.02;
      p.age += 0.005;

      if (p.x.abs() > 2 || p.y.abs() > 2 || p.age > 1) {
        p.x = Random().nextDouble() * 4 - 2;
        p.y = Random().nextDouble() * 4 - 2;
        p.age = 0;
      }
    }
    setState(() {});
  }

  FlowField _getField() {
    switch (_fieldType) {
      case 0: return uniformField;
      case 1: return (x, y) => sourceField(x, y, 0, 0, _strength);
      case 2: return (x, y) => vortexField(x, y, 0, 0, _strength);
      case 3: return (x, y) => spiralField(x, y, 0, 0, _strength, _strength);
      default: return uniformField;
    }
  }

  @override
  void dispose() { _ctrl.removeListener(_update); _ctrl.dispose(); super.dispose(); }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('粒子系统')),
      body: Column(children: [
        Expanded(child: CustomPaint(painter: ParticlePainter(_particles), size: Size.infinite)),
        _buildControls(),
      ]),
    );
  }

  Widget _buildControls() {
    return Container(
      padding: const EdgeInsets.all(16),
      decoration: BoxDecoration(color: Colors.grey[900], borderRadius: const BorderRadius.vertical(top: Radius.circular(20))),
      child: Row(children: [
        const Text('场类型: ', style: TextStyle(color: Colors.white70)),
        Expanded(child: SegmentedButton(selected: {_fieldType}, segments: const [
          ButtonSegment(value: 0, label: Text('均匀')),
          ButtonSegment(value: 1, label: Text('源')),
          ButtonSegment(value: 2, label: Text('涡旋')),
          ButtonSegment(value: 3, label: Text('螺旋')),
        ], onSelectionChanged: (s) => setState(() => _fieldType = s.first))),
      ]),
    );
  }
}

class _Particle {
  double x, y, age;
  _Particle(this.x, this.y) : age = 0;
}

class ParticlePainter extends CustomPainter {
  final List<_Particle> particles;
  ParticlePainter(this.particles);

  @override
  void paint(Canvas canvas, Size size) {
    final cx = size.width / 2, cy = size.height / 2;
    final scale = min(size.width, size.height) / 4;

    canvas.drawRect(Rect.fromLTWH(0, 0, size.width, size.height), Paint()..color = const Color(0xFF0a0a15));

    for (final p in particles) {
      final x = cx + p.x * scale;
      final y = cy + p.y * scale;
      final alpha = 1 - p.age;
      final hue = (p.age * 360) % 360;

      canvas.drawCircle(Offset(x, y), 3, Paint()..color = HSVColor.fromAHSV(alpha, hue, 0.8, 1).toColor());
    }
  }

  @override
  bool shouldRepaint(covariant ParticlePainter old) => true;
}

/// 典型流场演示
class FlowTypesDemo extends StatelessWidget {
  const FlowTypesDemo({super.key});

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('典型流场')),
      body: GridView.count(
        crossAxisCount: 2,
        padding: const EdgeInsets.all(8),
        children: [
          _buildFlowCard(context, '均匀流', (x, y) => V(1, 0)),
          _buildFlowCard(context, '源', (x, y) => sourceField(x, y, 0, 0, 1)),
          _buildFlowCard(context, '汇', (x, y) => sourceField(x, y, 0, 0, -1)),
          _buildFlowCard(context, '涡旋', (x, y) => vortexField(x, y, 0, 0, 1)),
          _buildFlowCard(context, '螺旋', (x, y) => spiralField(x, y, 0, 0, 1, 1)),
          _buildFlowCard(context, '偶极子', (x, y) {
            final s1 = sourceField(x, y, -0.3, 0, 1);
            final s2 = sourceField(x, y, 0.3, 0, -1);
            return s1 + s2;
          }),
        ],
      ),
    );
  }

  Widget _buildFlowCard(BuildContext context, String name, FlowField field) {
    return Card(
      child: Column(children: [
        Expanded(child: CustomPaint(painter: MiniFlowPainter(field), size: Size.infinite)),
        Padding(padding: const EdgeInsets.all(8), child: Text(name, style: const TextStyle(fontWeight: FontWeight.bold))),
      ]),
    );
  }
}

class MiniFlowPainter extends CustomPainter {
  final FlowField field;
  MiniFlowPainter(this.field);

  @override
  void paint(Canvas canvas, Size size) {
    canvas.drawRect(Rect.fromLTWH(0, 0, size.width, size.height), Paint()..color = const Color(0xFF0a0a15));

    final cx = size.width / 2, cy = size.height / 2;
    final scale = min(size.width, size.height) / 2;
    final gridN = 8;
    final step = scale / gridN;

    for (int i = -gridN; i <= gridN; i++) {
      for (int j = -gridN; j <= gridN; j++) {
        final x = i.toDouble() / gridN;
        final y = j.toDouble() / gridN;

        final v = field(x, y);
        final mag = v.mag;
        if (mag < 0.01) continue;

        final screenX = cx + i * step;
        final screenY = cy + j * step;

        final arrowLen = min(mag * 8, step * 0.7);
        final endX = screenX + v.norm.x * arrowLen;
        final endY = screenY + v.norm.y * arrowLen;

        canvas.drawLine(Offset(screenX, screenY), Offset(endX, endY), Paint()..color = Colors.cyan..strokeWidth = 1);
      }
    }
  }

  @override
  bool shouldRepaint(covariant MiniFlowPainter old) => false;
}

---

📝 四、数学原理深入解析

📐 4.1 散度与旋度

散度（Divergence）：

散度定义：
div V = ∂Vx/∂x + ∂Vy/∂y

物理意义：
- 正散度：源（向外发散）
- 负散度：汇（向内汇聚）
- 零散度：不可压缩

散度定理：
∫∫_S div V dA = ∮_C V · n ds

高斯定理在二维的推广

旋度（Curl）：

二维旋度：
curl V = ∂Vy/∂x - ∂Vx/∂y

物理意义：
- 正旋度：逆时针旋转
- 负旋度：顺时针旋转
- 零旋度：无旋场

斯托克斯定理：
∫∫_S curl V dA = ∮_C V · dr

---

🔄 4.2 势函数与流函数

势函数：

对于无旋场（curl V = 0）：
存在势函数 φ 使得：
V = ∇φ

即：
Vx = ∂φ/∂x
Vy = ∂φ/∂y

等势线：φ = 常数
等势线与流线正交

流函数：

对于不可压缩场（div V = 0）：
存在流函数 ψ 使得：
Vx = ∂ψ/∂y
Vy = -∂ψ/∂x

流线：ψ = 常数
流线切线方向 = 速度方向

---

🌸 4.3 数值积分方法

欧拉法：

一阶欧拉法：
x_{n+1} = x_n + h · Vx(x_n, y_n)
y_{n+1} = y_n + h · Vy(x_n, y_n)

优点：简单快速
缺点：精度低，误差累积

龙格-库塔法（RK4）：

四阶龙格-库塔：
k1 = V(x_n, y_n)
k2 = V(x_n + h·k1_x/2, y_n + h·k1_y/2)
k3 = V(x_n + h·k2_x/2, y_n + h·k2_y/2)
k4 = V(x_n + h·k3_x, y_n + h·k3_y)

x_{n+1} = x_n + h·(k1_x + 2k2_x + 2k3_x + k4_x)/6
y_{n+1} = y_n + h·(k1_y + 2k2_y + 2k3_y + k4_y)/6

优点：精度高
缺点：计算量大

---

🎯 4.4 奇点分析

奇点类型：

奇点：V = 0 的点

分类：
1. 节点（Node）：
   特征值同号
   流线汇聚或发散

2. 鞍点（Saddle）：
   特征值异号
   流线呈双曲形状

3. 焦点（Focus）：
   复特征值
   流线螺旋

4. 中心（Center）：
   纯虚特征值
   流线闭合

雅可比矩阵分析：
J = [∂Vx/∂x  ∂Vx/∂y]
    [∂Vy/∂x  ∂Vy/∂y]

特征值决定奇点类型

---

🔬 五、高级应用场景

🎨 5.1 流体模拟

Navier-Stokes 简化：

class FluidSimulation {
  final int gridSize;
  late List<List<double>> velocityX;
  late List<List<double>> velocityY;
  late List<List<double>> pressure;

  double viscosity = 0.1;
  double dt = 0.01;

  FluidSimulation(this.gridSize) {
    velocityX = List.generate(gridSize, (_) => List.filled(gridSize, 0.0));
    velocityY = List.generate(gridSize, (_) => List.filled(gridSize, 0.0));
    pressure = List.generate(gridSize, (_) => List.filled(gridSize, 0.0));
  }

  void step() {
    diffuse();
    project();
    advect();
    project();
  }

  void diffuse() {
    // 扩散步骤
  }

  void project() {
    // 投影步骤（保持不可压缩）
  }

  void advect() {
    // 平流步骤
  }
}

---

🌐 5.2 气象数据可视化

风场可视化：

class WindFieldVisualizer {
  final List<WindData> data;

  WindFieldVisualizer(this.data);

  Vector2D interpolate(double lat, double lon) {
    // 空间插值
    return Vector2D(0, 0);
  }

  List<List<Offset>> generateStreamlines() {
    // 生成风场流线
    return [];
  }
}

---

📱 5.3 鸿蒙多端适配

性能优化配置：

class FlowFieldConfig {
  static int getOptimalGridSize(BuildContext context) {
    final performance = DevicePerformance.getLevel();
    switch (performance) {
      case PerformanceLevel.high: return 30;
      case PerformanceLevel.medium: return 20;
      case PerformanceLevel.low: return 10;
    }
  }

  static int getOptimalParticleCount(BuildContext context) {
    final performance = DevicePerformance.getLevel();
    switch (performance) {
      case PerformanceLevel.high: return 500;
      case PerformanceLevel.medium: return 200;
      case PerformanceLevel.low: return 100;
    }
  }
}

---

📊 六、性能优化策略

⚡ 6.1 空间索引

网格索引：

class SpatialGrid {
  final double cellSize;
  final Map<(int, int), List<Vector2D>> grid = {};

  void insert(Vector2D v, double x, double y) {
    final key = (x ~/ cellSize, y ~/ cellSize);
    grid.putIfAbsent(key, () => []).add(v);
  }

  List<Vector2D> query(double x, double y, double radius) {
    // 范围查询
    return [];
  }
}

---

💾 6.2 流线缓存

预计算优化：

class StreamlineCache {
  static final Map<String, List<List<Offset>>> _cache = {};

  static List<List<Offset>> getStreamlines(String key, FlowField field, int count) {
    return _cache.putIfAbsent(key, () {
      // 计算流线
      return [];
    });
  }
}

---

🎓 七、学习资源与拓展

📚 推荐阅读

主题	资源	难度
流体力学	《流体力学基础》	⭐⭐
矢量分析	《矢量分析》	⭐⭐
可视化	《科学可视化》	⭐⭐⭐
数值方法	《数值分析》	⭐⭐⭐

🔗 相关项目

• D3.js：数据可视化库
• ParaView：科学可视化软件
• VisIt：并行可视化工具

---

📝 八、总结

本篇文章深入探讨了流场与矢量可视化的数学原理及其在 Flutter 中的实现。

✅ 核心知识点回顾

知识点	说明
🌊 矢量场	空间中矢量的分布
📈 流线追踪	RK4 数值积分
🔍 散度与旋度	场的源与旋特性
🎨 可视化方法	箭头、流线、粒子
⚡ 性能优化	空间索引与缓存

⭐ 最佳实践要点

• ✅ 使用 RK4 提高追踪精度
• ✅ 合理设置网格密度
• ✅ 使用空间索引加速查询
• ✅ 缓存预计算结果

🚀 进阶方向

• 🔮 三维流场可视化
• ✨ 实时流体模拟
• 📊 大数据可视化
• 🎨 交互式探索

---

💡 提示：本文代码基于 Flutter for Harmony 开发，可在鸿蒙设备上流畅运行。
