欢迎加入开源鸿蒙跨平台社区：https://openharmonycrossplatform.csdn.net

一、PageView 系统架构深度解析

在现代移动应用中，轮播图是展示内容的重要方式。从简单的图片轮播到复杂的 3D 效果，Flutter 提供了 PageView 组件来实现各种轮播效果。理解这套架构的底层原理，是构建高性能轮播系统的基础。

📱 1.1 Flutter PageView 架构

Flutter 的 PageView 系统由多个核心层次组成，每一层都有其特定的职责：

┌─────────────────────────────────────────────────────────────────┐
│                      应用层 (Application Layer)                  │
│  ┌─────────────────────────────────────────────────────────┐    │
│  │  PageView, PageView.builder, PageView.custom...         │    │
│  └─────────────────────────────────────────────────────────┘    │
│                              │                                   │
│                              ▼                                   │
│  ┌─────────────────────────────────────────────────────────┐    │
│  │              控制层 (Controller Layer)                    │    │
│  │  PageController, ScrollController, Viewport...          │    │
│  └─────────────────────────────────────────────────────────┘    │
│                              │                                   │
│                              ▼                                   │
│  ┌─────────────────────────────────────────────────────────┐    │
│  │              动画层 (Animation Layer)                     │    │
│  │  AnimationController, CurvedAnimation, Tween...         │    │
│  └─────────────────────────────────────────────────────────┘    │
│                              │                                   │
│                              ▼                                   │
│  ┌─────────────────────────────────────────────────────────┐    │
│  │              指示器层 (Indicator Layer)                   │    │
│  │  DotsIndicator, CustomIndicator, ProgressIndicator...   │    │
│  └─────────────────────────────────────────────────────────┘    │
└─────────────────────────────────────────────────────────────────┘

🔬 1.2 PageView 核心组件详解

Flutter PageView 系统的核心组件包括以下几个部分：

PageView（页面视图）

PageView 是显示可滑动页面的组件，支持水平和垂直滑动。

PageView(
  controller: pageController,
  scrollDirection: Axis.horizontal,
  pageSnapping: true,
  onPageChanged: (index) {
    print('当前页面: $index');
  },
  children: [
    Container(color: Colors.red),
    Container(color: Colors.green),
    Container(color: Colors.blue),
  ],
)

PageController（页面控制器）

PageController 用于控制页面切换和监听页面变化。

final pageController = PageController(
  initialPage: 0,
  viewportFraction: 0.8,
  keepPage: true,
);

pageController.animateToPage(
  1,
  duration: Duration(milliseconds: 300),
  curve: Curves.easeInOut,
);

pageController.nextPage(
  duration: Duration(milliseconds: 300),
  curve: Curves.easeInOut,
);

PageView.builder（构建器模式）

PageView.builder 适用于大量页面或动态内容的场景。

PageView.builder(
  controller: pageController,
  itemCount: items.length,
  itemBuilder: (context, index) {
    return ItemWidget(item: items[index]);
  },
)

🎯 1.3 轮播设计原则

设计优秀的轮播组件需要遵循以下原则：

┌─────────────────────────────────────────────────────────────┐
│                    轮播设计原则                              │
├─────────────────────────────────────────────────────────────┤
│  ┌─────────────────────────────────────────────────────┐   │
│  │  1. 视觉吸引力 - 图片清晰，动画流畅                  │   │
│  └─────────────────────────────────────────────────────┘   │
│  ┌─────────────────────────────────────────────────────┐   │
│  │  2. 交互友好 - 支持手势滑动，指示清晰                │   │
│  └─────────────────────────────────────────────────────┘   │
│  ┌─────────────────────────────────────────────────────┐   │
│  │  3. 性能优化 - 图片缓存，预加载                      │   │
│  └─────────────────────────────────────────────────────┘   │
│  ┌─────────────────────────────────────────────────────┐   │
│  │  4. 自动播放 - 可控制，可暂停                        │   │
│  └─────────────────────────────────────────────────────┘   │
│  ┌─────────────────────────────────────────────────────┐   │
│  │  5. 无限循环 - 首尾衔接自然                          │   │
│  └─────────────────────────────────────────────────────┘   │
└─────────────────────────────────────────────────────────────┘

轮播类型对比：

类型 特点 适用场景
基础轮播 简单滑动切换 图片展示
无限轮播 首尾循环 首页 Banner
自动轮播 定时自动切换 广告展示
3D 轮播 立体翻转效果 特色展示
卡片轮播 缩放透视效果 商品展示

二、基础轮播实现

基础轮播包括简单轮播、无限轮播和自动播放轮播。这些是构建复杂轮播系统的基础。

👆 2.1 简单轮播

简单轮播是最基础的轮播形式，支持手势滑动切换。

import 'package:flutter/material.dart';

/// 简单轮播示例
class SimpleBannerDemo extends StatefulWidget {
  const SimpleBannerDemo({super.key});

  @override
  State<SimpleBannerDemo> createState() => _SimpleBannerDemoState();
}

class _SimpleBannerDemoState extends State<SimpleBannerDemo> {
  final PageController _controller = PageController();
  int _currentPage = 0;

  final List<Color> _colors = [
    Colors.red,
    Colors.green,
    Colors.blue,
    Colors.orange,
    Colors.purple,
  ];

  @override
  void dispose() {
    _controller.dispose();
    super.dispose();
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('简单轮播')),
      body: Column(
        children: [
          SizedBox(
            height: 200,
            child: PageView.builder(
              controller: _controller,
              itemCount: _colors.length,
              onPageChanged: (index) {
                setState(() => _currentPage = index);
              },
              itemBuilder: (context, index) {
                return Container(
                  margin: const EdgeInsets.symmetric(horizontal: 8),
                  decoration: BoxDecoration(
                    color: _colors[index],
                    borderRadius: BorderRadius.circular(12),
                  ),
                  child: Center(
                    child: Text(
                      '页面 ${index + 1}',
                      style: const TextStyle(
                        color: Colors.white,
                        fontSize: 24,
                        fontWeight: FontWeight.bold,
                      ),
                    ),
                  ),
                );
              },
            ),
          ),
          const SizedBox(height: 16),
          Row(
            mainAxisAlignment: MainAxisAlignment.center,
            children: List.generate(_colors.length, (index) {
              return Container(
                margin: const EdgeInsets.symmetric(horizontal: 4),
                width: _currentPage == index ? 24 : 8,
                height: 8,
                decoration: BoxDecoration(
                  color: _currentPage == index
                      ? _colors[index]
                      : Colors.grey.withOpacity(0.3),
                  borderRadius: BorderRadius.circular(4),
                ),
              );
            }),
          ),
        ],
      ),
    );
  }
}

🔄 2.2 无限轮播

无限轮播通过在首尾添加额外页面实现循环效果。

/// 无限轮播示例
class InfiniteBannerDemo extends StatefulWidget {
  const InfiniteBannerDemo({super.key});

  @override
  State<InfiniteBannerDemo> createState() => _InfiniteBannerDemoState();
}

class _InfiniteBannerDemoState extends State<InfiniteBannerDemo> {
  final PageController _controller = PageController();
  int _currentPage = 0;

  final List<Map<String, dynamic>> _items = [
    {'color': Colors.red, 'title': '活动一'},
    {'color': Colors.green, 'title': '活动二'},
    {'color': Colors.blue, 'title': '活动三'},
    {'color': Colors.orange, 'title': '活动四'},
    {'color': Colors.purple, 'title': '活动五'},
  ];

  int get _realCount => _items.length;
  int get _displayCount => _items.length + 2;

  @override
  void initState() {
    super.initState();
    WidgetsBinding.instance.addPostFrameCallback((_) {
      _controller.jumpToPage(1);
    });
  }

  @override
  void dispose() {
    _controller.dispose();
    super.dispose();
  }

  void _onPageChanged(int index) {
    if (index == 0) {
      _controller.jumpToPage(_realCount);
      setState(() => _currentPage = _realCount - 1);
    } else if (index == _displayCount - 1) {
      _controller.jumpToPage(1);
      setState(() => _currentPage = 0);
    } else {
      setState(() => _currentPage = index - 1);
    }
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('无限轮播')),
      body: Column(
        children: [
          SizedBox(
            height: 200,
            child: PageView.builder(
              controller: _controller,
              onPageChanged: _onPageChanged,
              itemBuilder: (context, index) {
                int realIndex;
                if (index == 0) {
                  realIndex = _realCount - 1;
                } else if (index == _displayCount - 1) {
                  realIndex = 0;
                } else {
                  realIndex = index - 1;
                }

                return Container(
                  margin: const EdgeInsets.symmetric(horizontal: 8),
                  decoration: BoxDecoration(
                    color: _items[realIndex]['color'],
                    borderRadius: BorderRadius.circular(12),
                  ),
                  child: Center(
                    child: Text(
                      _items[realIndex]['title'],
                      style: const TextStyle(
                        color: Colors.white,
                        fontSize: 24,
                        fontWeight: FontWeight.bold,
                      ),
                    ),
                  ),
                );
              },
            ),
          ),
          const SizedBox(height: 16),
          Row(
            mainAxisAlignment: MainAxisAlignment.center,
            children: List.generate(_realCount, (index) {
              return AnimatedContainer(
                duration: const Duration(milliseconds: 200),
                margin: const EdgeInsets.symmetric(horizontal: 4),
                width: _currentPage == index ? 24 : 8,
                height: 8,
                decoration: BoxDecoration(
                  color: _currentPage == index
                      ? Colors.blue
                      : Colors.grey.withOpacity(0.3),
                  borderRadius: BorderRadius.circular(4),
                ),
              );
            }),
          ),
        ],
      ),
    );
  }
}

🌊 2.3 自动播放轮播

自动播放轮播通过定时器实现自动切换。

import 'dart:async';

/// 自动播放轮播示例
class AutoPlayBannerDemo extends StatefulWidget {
  const AutoPlayBannerDemo({super.key});

  @override
  State<AutoPlayBannerDemo> createState() => _AutoPlayBannerDemoState();
}

class _AutoPlayBannerDemoState extends State<AutoPlayBannerDemo> {
  final PageController _controller = PageController();
  Timer? _timer;
  int _currentPage = 0;

  final List<Color> _colors = [
    Colors.red,
    Colors.green,
    Colors.blue,
    Colors.orange,
    Colors.purple,
  ];

  @override
  void initState() {
    super.initState();
    _startAutoPlay();
  }

  void _startAutoPlay() {
    _timer?.cancel();
    _timer = Timer.periodic(const Duration(seconds: 3), (timer) {
      if (_controller.hasClients) {
        _controller.nextPage(
          duration: const Duration(milliseconds: 300),
          curve: Curves.easeInOut,
        );
      }
    });
  }

  void _stopAutoPlay() {
    _timer?.cancel();
  }

  @override
  void dispose() {
    _stopAutoPlay();
    _controller.dispose();
    super.dispose();
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('自动播放轮播')),
      body: Column(
        children: [
          GestureDetector(
            onPanDown: (_) => _stopAutoPlay(),
            onPanEnd: (_) => _startAutoPlay(),
            child: SizedBox(
              height: 200,
              child: PageView.builder(
                controller: _controller,
                onPageChanged: (index) {
                  setState(() => _currentPage = index % _colors.length);
                },
                itemBuilder: (context, index) {
                  final colorIndex = index % _colors.length;
                  return Container(
                    margin: const EdgeInsets.symmetric(horizontal: 8),
                    decoration: BoxDecoration(
                      color: _colors[colorIndex],
                      borderRadius: BorderRadius.circular(12),
                    ),
                    child: Center(
                      child: Text(
                        '页面 ${colorIndex + 1}',
                        style: const TextStyle(
                          color: Colors.white,
                          fontSize: 24,
                          fontWeight: FontWeight.bold,
                        ),
                      ),
                    ),
                  );
                },
              ),
            ),
          ),
          const SizedBox(height: 16),
          Row(
            mainAxisAlignment: MainAxisAlignment.center,
            children: List.generate(_colors.length, (index) {
              return AnimatedContainer(
                duration: const Duration(milliseconds: 200),
                margin: const EdgeInsets.symmetric(horizontal: 4),
                width: _currentPage == index ? 24 : 8,
                height: 8,
                decoration: BoxDecoration(
                  color: _currentPage == index
                      ? _colors[index]
                      : Colors.grey.withOpacity(0.3),
                  borderRadius: BorderRadius.circular(4),
                ),
              );
            }),
          ),
        ],
      ),
    );
  }
}

三、高级轮播实现

高级轮播包括 3D 翻转效果、卡片缩放效果、自定义指示器和垂直轮播。

📊 3.1 卡片缩放轮播

卡片缩放轮播通过 viewportFraction 和 Transform 实现透视效果。

/// 卡片缩放轮播示例
class CardScaleBannerDemo extends StatefulWidget {
  const CardScaleBannerDemo({super.key});

  @override
  State<CardScaleBannerDemo> createState() => _CardScaleBannerDemoState();
}

class _CardScaleBannerDemoState extends State<CardScaleBannerDemo> {
  final PageController _controller = PageController(viewportFraction: 0.8);
  double _currentPage = 0;

  final List<Map<String, dynamic>> _items = [
    {'color': Colors.red, 'icon': Icons.star},
    {'color': Colors.green, 'icon': Icons.favorite},
    {'color': Colors.blue, 'icon': Icons.thumb_up},
    {'color': Colors.orange, 'icon': Icons.lightbulb},
    {'color': Colors.purple, 'icon': Icons.diamond},
  ];

  @override
  void initState() {
    super.initState();
    _controller.addListener(() {
      setState(() => _currentPage = _controller.page ?? 0);
    });
  }

  @override
  void dispose() {
    _controller.dispose();
    super.dispose();
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('卡片缩放轮播')),
      body: SizedBox(
        height: 250,
        child: PageView.builder(
          controller: _controller,
          itemCount: _items.length,
          itemBuilder: (context, index) {
            final double scale = (1 - ((_currentPage - index).abs() * 0.2)).clamp(0.8, 1.0);
            final double opacity = (1 - ((_currentPage - index).abs() * 0.3)).clamp(0.5, 1.0);

            return Center(
              child: SizedBox(
                height: 200 * scale,
                child: Opacity(
                  opacity: opacity,
                  child: Container(
                    margin: const EdgeInsets.symmetric(horizontal: 8),
                    decoration: BoxDecoration(
                      color: _items[index]['color'],
                      borderRadius: BorderRadius.circular(16),
                      boxShadow: [
                        BoxShadow(
                          color: _items[index]['color'].withOpacity(0.4),
                          blurRadius: 20,
                          offset: const Offset(0, 10),
                        ),
                      ],
                    ),
                    child: Center(
                      child: Icon(
                        _items[index]['icon'],
                        size: 60,
                        color: Colors.white,
                      ),
                    ),
                  ),
                ),
              ),
            );
          },
        ),
      ),
    );
  }
}

📝 3.2 3D 翻转轮播

3D 翻转轮播通过 Transform 实现立体翻转效果。

/// 3D 翻转轮播示例
class FlipBannerDemo extends StatefulWidget {
  const FlipBannerDemo({super.key});

  @override
  State<FlipBannerDemo> createState() => _FlipBannerDemoState();
}

class _FlipBannerDemoState extends State<FlipBannerDemo> {
  final PageController _controller = PageController(viewportFraction: 0.7);
  double _currentPage = 0;

  final List<Color> _colors = [
    Colors.red,
    Colors.green,
    Colors.blue,
    Colors.orange,
    Colors.purple,
  ];

  @override
  void initState() {
    super.initState();
    _controller.addListener(() {
      setState(() => _currentPage = _controller.page ?? 0);
    });
  }

  @override
  void dispose() {
    _controller.dispose();
    super.dispose();
  }

  Matrix4 _getTransform(int index) {
    final double diff = index - _currentPage;
    final double angle = diff * 0.3;

    return Matrix4.identity()
      ..setEntry(3, 2, 0.001)
      ..rotateY(angle);
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('3D 翻转轮播')),
      body: SizedBox(
        height: 250,
        child: PageView.builder(
          controller: _controller,
          itemCount: _colors.length,
          itemBuilder: (context, index) {
            return Center(
              child: Transform(
                transform: _getTransform(index),
                alignment: Alignment.center,
                child: Container(
                  margin: const EdgeInsets.symmetric(horizontal: 8),
                  decoration: BoxDecoration(
                    color: _colors[index],
                    borderRadius: BorderRadius.circular(16),
                    boxShadow: [
                      BoxShadow(
                        color: Colors.black.withOpacity(0.2),
                        blurRadius: 10,
                        offset: const Offset(0, 5),
                      ),
                    ],
                  ),
                  child: Center(
                    child: Text(
                      '页面 ${index + 1}',
                      style: const TextStyle(
                        color: Colors.white,
                        fontSize: 24,
                        fontWeight: FontWeight.bold,
                      ),
                    ),
                  ),
                ),
              ),
            );
          },
        ),
      ),
    );
  }
}

🔄 3.3 自定义指示器

自定义指示器可以创建独特的轮播指示效果。

/// 自定义指示器示例
class CustomIndicatorDemo extends StatefulWidget {
  const CustomIndicatorDemo({super.key});

  @override
  State<CustomIndicatorDemo> createState() => _CustomIndicatorDemoState();
}

class _CustomIndicatorDemoState extends State<CustomIndicatorDemo> {
  final PageController _controller = PageController();
  int _currentPage = 0;

  final List<String> _titles = ['推荐', '热门', '最新', '精选'];

  @override
  void dispose() {
    _controller.dispose();
    super.dispose();
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('自定义指示器')),
      body: Column(
        children: [
          _buildTextIndicator(),
          Expanded(
            child: PageView.builder(
              controller: _controller,
              itemCount: _titles.length,
              onPageChanged: (index) {
                setState(() => _currentPage = index);
              },
              itemBuilder: (context, index) {
                return Container(
                  margin: const EdgeInsets.all(16),
                  decoration: BoxDecoration(
                    color: Colors.primaries[index % Colors.primaries.length],
                    borderRadius: BorderRadius.circular(16),
                  ),
                  child: Center(
                    child: Text(
                      _titles[index],
                      style: const TextStyle(
                        color: Colors.white,
                        fontSize: 32,
                        fontWeight: FontWeight.bold,
                      ),
                    ),
                  ),
                );
              },
            ),
          ),
        ],
      ),
    );
  }

  Widget _buildTextIndicator() {
    return Container(
      height: 50,
      padding: const EdgeInsets.symmetric(horizontal: 16),
      child: Row(
        mainAxisAlignment: MainAxisAlignment.center,
        children: List.generate(_titles.length, (index) {
          final isSelected = index == _currentPage;
          return GestureDetector(
            onTap: () {
              _controller.animateToPage(
                index,
                duration: const Duration(milliseconds: 300),
                curve: Curves.easeInOut,
              );
            },
            child: AnimatedContainer(
              duration: const Duration(milliseconds: 200),
              margin: const EdgeInsets.symmetric(horizontal: 8),
              padding: const EdgeInsets.symmetric(horizontal: 16, vertical: 8),
              decoration: BoxDecoration(
                color: isSelected ? Colors.blue : Colors.transparent,
                borderRadius: BorderRadius.circular(20),
              ),
              child: Text(
                _titles[index],
                style: TextStyle(
                  color: isSelected ? Colors.white : Colors.grey,
                  fontWeight: isSelected ? FontWeight.bold : FontWeight.normal,
                ),
              ),
            ),
          );
        }),
      ),
    );
  }
}

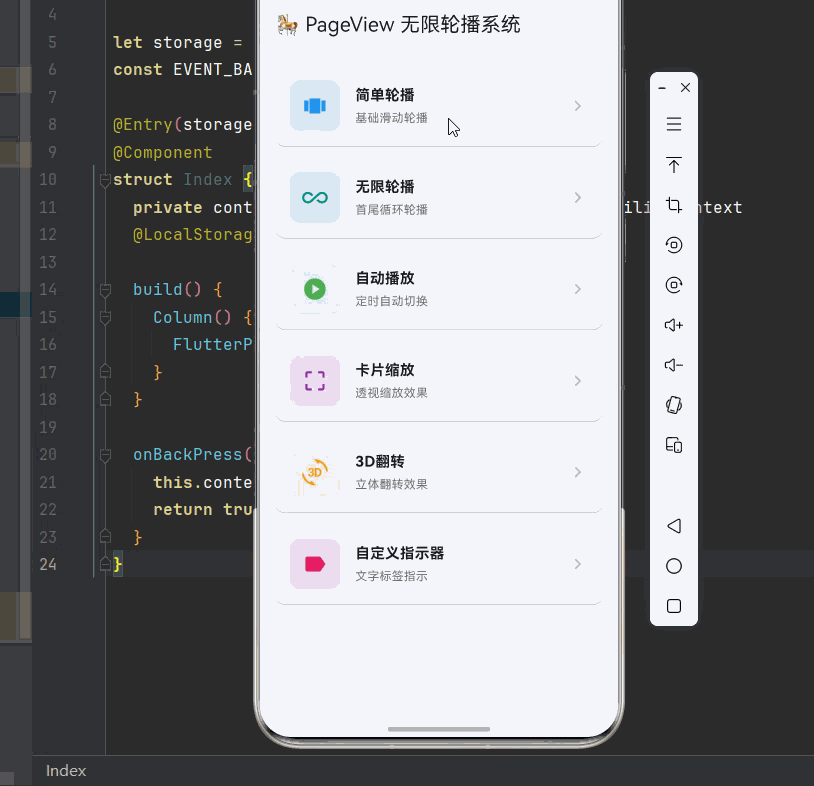

四、完整示例：PageView 无限轮播系统

下面是一个完整的 PageView 无限轮播系统示例：

import 'dart:async';
import 'package:flutter/material.dart';

void main() {
  runApp(const MyApp());
}

class MyApp extends StatelessWidget {
  const MyApp({super.key});

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      debugShowCheckedModeBanner: false,
      theme: ThemeData(
        colorScheme: ColorScheme.fromSeed(seedColor: Colors.blue),
        useMaterial3: true,
      ),
      home: const PageViewHomePage(),
    );
  }
}

class PageViewHomePage extends StatelessWidget {
  const PageViewHomePage({super.key});

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('🎠 PageView 无限轮播系统')),
      body: ListView(
        padding: const EdgeInsets.all(16),
        children: [
          _buildSectionCard(context, title: '简单轮播', description: '基础滑动轮播', icon: Icons.view_carousel, color: Colors.blue, onTap: () => Navigator.push(context, MaterialPageRoute(builder: (_) => const SimpleBannerDemo()))),
          _buildSectionCard(context, title: '无限轮播', description: '首尾循环轮播', icon: Icons.all_inclusive, color: Colors.teal, onTap: () => Navigator.push(context, MaterialPageRoute(builder: (_) => const InfiniteBannerDemo()))),
          _buildSectionCard(context, title: '自动播放', description: '定时自动切换', icon: Icons.play_circle, color: Colors.green, onTap: () => Navigator.push(context, MaterialPageRoute(builder: (_) => const AutoPlayBannerDemo()))),
          _buildSectionCard(context, title: '卡片缩放', description: '透视缩放效果', icon: Icons.crop_free, color: Colors.purple, onTap: () => Navigator.push(context, MaterialPageRoute(builder: (_) => const CardScaleBannerDemo()))),
          _buildSectionCard(context, title: '3D翻转', description: '立体翻转效果', icon: Icons.threed_rotation, color: Colors.orange, onTap: () => Navigator.push(context, MaterialPageRoute(builder: (_) => const FlipBannerDemo()))),
          _buildSectionCard(context, title: '自定义指示器', description: '文字标签指示', icon: Icons.label, color: Colors.pink, onTap: () => Navigator.push(context, MaterialPageRoute(builder: (_) => const CustomIndicatorDemo()))),
        ],
      ),
    );
  }

  Widget _buildSectionCard(BuildContext context, {required String title, required String description, required IconData icon, required Color color, required VoidCallback onTap}) {
    return Card(
      margin: const EdgeInsets.only(bottom: 12),
      child: InkWell(
        onTap: onTap,
        borderRadius: BorderRadius.circular(12),
        child: Padding(
          padding: const EdgeInsets.all(16),
          child: Row(
            children: [
              Container(width: 56, height: 56, decoration: BoxDecoration(color: color.withOpacity(0.1), borderRadius: BorderRadius.circular(12)), child: Icon(icon, color: color, size: 28)),
              const SizedBox(width: 16),
              Expanded(child: Column(crossAxisAlignment: CrossAxisAlignment.start, children: [Text(title, style: const TextStyle(fontSize: 16, fontWeight: FontWeight.bold)), const SizedBox(height: 4), Text(description, style: TextStyle(fontSize: 13, color: Colors.grey[600]))])),
              Icon(Icons.chevron_right, color: Colors.grey[400]),
            ],
          ),
        ),
      ),
    );
  }
}

class SimpleBannerDemo extends StatefulWidget {
  const SimpleBannerDemo({super.key});
  @override
  State<SimpleBannerDemo> createState() => _SimpleBannerDemoState();
}

class _SimpleBannerDemoState extends State<SimpleBannerDemo> {
  final PageController _controller = PageController();
  int _currentPage = 0;
  final List<Color> _colors = [Colors.red, Colors.green, Colors.blue, Colors.orange, Colors.purple];

  @override
  void dispose() { _controller.dispose(); super.dispose(); }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('简单轮播')),
      body: Column(
        children: [
          SizedBox(
            height: 200,
            child: PageView.builder(
              controller: _controller,
              itemCount: _colors.length,
              onPageChanged: (index) => setState(() => _currentPage = index),
              itemBuilder: (context, index) => Container(
                margin: const EdgeInsets.symmetric(horizontal: 8),
                decoration: BoxDecoration(color: _colors[index], borderRadius: BorderRadius.circular(12)),
                child: Center(child: Text('页面 ${index + 1}', style: const TextStyle(color: Colors.white, fontSize: 24, fontWeight: FontWeight.bold))),
              ),
            ),
          ),
          const SizedBox(height: 16),
          Row(
            mainAxisAlignment: MainAxisAlignment.center,
            children: List.generate(_colors.length, (index) => AnimatedContainer(
              duration: const Duration(milliseconds: 200),
              margin: const EdgeInsets.symmetric(horizontal: 4),
              width: _currentPage == index ? 24 : 8,
              height: 8,
              decoration: BoxDecoration(color: _currentPage == index ? _colors[index] : Colors.grey.withOpacity(0.3), borderRadius: BorderRadius.circular(4)),
            )),
          ),
        ],
      ),
    );
  }
}

class InfiniteBannerDemo extends StatefulWidget {
  const InfiniteBannerDemo({super.key});
  @override
  State<InfiniteBannerDemo> createState() => _InfiniteBannerDemoState();
}

class _InfiniteBannerDemoState extends State<InfiniteBannerDemo> {
  final PageController _controller = PageController();
  int _currentPage = 0;
  final List<Map<String, dynamic>> _items = [
    {'color': Colors.red, 'title': '活动一'},
    {'color': Colors.green, 'title': '活动二'},
    {'color': Colors.blue, 'title': '活动三'},
    {'color': Colors.orange, 'title': '活动四'},
    {'color': Colors.purple, 'title': '活动五'},
  ];
  int get _realCount => _items.length;
  int get _displayCount => _items.length + 2;

  @override
  void initState() {
    super.initState();
    WidgetsBinding.instance.addPostFrameCallback((_) => _controller.jumpToPage(1));
  }

  @override
  void dispose() { _controller.dispose(); super.dispose(); }

  void _onPageChanged(int index) {
    if (index == 0) {
      _controller.jumpToPage(_realCount);
      setState(() => _currentPage = _realCount - 1);
    } else if (index == _displayCount - 1) {
      _controller.jumpToPage(1);
      setState(() => _currentPage = 0);
    } else {
      setState(() => _currentPage = index - 1);
    }
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('无限轮播')),
      body: Column(
        children: [
          SizedBox(
            height: 200,
            child: PageView.builder(
              controller: _controller,
              onPageChanged: _onPageChanged,
              itemBuilder: (context, index) {
                int realIndex;
                if (index == 0) {
                  realIndex = _realCount - 1;
                } else if (index == _displayCount - 1) {
                  realIndex = 0;
                } else {
                  realIndex = index - 1;
                }
                return Container(
                  margin: const EdgeInsets.symmetric(horizontal: 8),
                  decoration: BoxDecoration(color: _items[realIndex]['color'], borderRadius: BorderRadius.circular(12)),
                  child: Center(child: Text(_items[realIndex]['title'], style: const TextStyle(color: Colors.white, fontSize: 24, fontWeight: FontWeight.bold))),
                );
              },
            ),
          ),
          const SizedBox(height: 16),
          Row(
            mainAxisAlignment: MainAxisAlignment.center,
            children: List.generate(_realCount, (index) => AnimatedContainer(
              duration: const Duration(milliseconds: 200),
              margin: const EdgeInsets.symmetric(horizontal: 4),
              width: _currentPage == index ? 24 : 8,
              height: 8,
              decoration: BoxDecoration(color: _currentPage == index ? Colors.teal : Colors.grey.withOpacity(0.3), borderRadius: BorderRadius.circular(4)),
            )),
          ),
        ],
      ),
    );
  }
}

class AutoPlayBannerDemo extends StatefulWidget {
  const AutoPlayBannerDemo({super.key});
  @override
  State<AutoPlayBannerDemo> createState() => _AutoPlayBannerDemoState();
}

class _AutoPlayBannerDemoState extends State<AutoPlayBannerDemo> {
  final PageController _controller = PageController();
  Timer? _timer;
  int _currentPage = 0;
  final List<Color> _colors = [Colors.red, Colors.green, Colors.blue, Colors.orange, Colors.purple];

  @override
  void initState() {
    super.initState();
    _startAutoPlay();
  }

  void _startAutoPlay() {
    _timer?.cancel();
    _timer = Timer.periodic(const Duration(seconds: 3), (timer) {
      if (_controller.hasClients) {
        _controller.nextPage(duration: const Duration(milliseconds: 300), curve: Curves.easeInOut);
      }
    });
  }

  void _stopAutoPlay() => _timer?.cancel();

  @override
  void dispose() { _stopAutoPlay(); _controller.dispose(); super.dispose(); }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('自动播放轮播')),
      body: Column(
        children: [
          GestureDetector(
            onPanDown: (_) => _stopAutoPlay(),
            onPanEnd: (_) => _startAutoPlay(),
            child: SizedBox(
              height: 200,
              child: PageView.builder(
                controller: _controller,
                onPageChanged: (index) => setState(() => _currentPage = index % _colors.length),
                itemBuilder: (context, index) {
                  final colorIndex = index % _colors.length;
                  return Container(
                    margin: const EdgeInsets.symmetric(horizontal: 8),
                    decoration: BoxDecoration(color: _colors[colorIndex], borderRadius: BorderRadius.circular(12)),
                    child: Center(child: Text('页面 ${colorIndex + 1}', style: const TextStyle(color: Colors.white, fontSize: 24, fontWeight: FontWeight.bold))),
                  );
                },
              ),
            ),
          ),
          const SizedBox(height: 16),
          Row(
            mainAxisAlignment: MainAxisAlignment.center,
            children: List.generate(_colors.length, (index) => AnimatedContainer(
              duration: const Duration(milliseconds: 200),
              margin: const EdgeInsets.symmetric(horizontal: 4),
              width: _currentPage == index ? 24 : 8,
              height: 8,
              decoration: BoxDecoration(color: _currentPage == index ? _colors[index] : Colors.grey.withOpacity(0.3), borderRadius: BorderRadius.circular(4)),
            )),
          ),
        ],
      ),
    );
  }
}

class CardScaleBannerDemo extends StatefulWidget {
  const CardScaleBannerDemo({super.key});
  @override
  State<CardScaleBannerDemo> createState() => _CardScaleBannerDemoState();
}

class _CardScaleBannerDemoState extends State<CardScaleBannerDemo> {
  final PageController _controller = PageController(viewportFraction: 0.8);
  double _currentPage = 0;
  final List<Map<String, dynamic>> _items = [
    {'color': Colors.red, 'icon': Icons.star},
    {'color': Colors.green, 'icon': Icons.favorite},
    {'color': Colors.blue, 'icon': Icons.thumb_up},
    {'color': Colors.orange, 'icon': Icons.lightbulb},
    {'color': Colors.purple, 'icon': Icons.diamond},
  ];

  @override
  void initState() {
    super.initState();
    _controller.addListener(() => setState(() => _currentPage = _controller.page ?? 0));
  }

  @override
  void dispose() { _controller.dispose(); super.dispose(); }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('卡片缩放轮播')),
      body: SizedBox(
        height: 250,
        child: PageView.builder(
          controller: _controller,
          itemCount: _items.length,
          itemBuilder: (context, index) {
            final double scale = (1 - ((_currentPage - index).abs() * 0.2)).clamp(0.8, 1.0);
            final double opacity = (1 - ((_currentPage - index).abs() * 0.3)).clamp(0.5, 1.0);
            return Center(
              child: SizedBox(
                height: 200 * scale,
                child: Opacity(
                  opacity: opacity,
                  child: Container(
                    margin: const EdgeInsets.symmetric(horizontal: 8),
                    decoration: BoxDecoration(color: _items[index]['color'], borderRadius: BorderRadius.circular(16), boxShadow: [BoxShadow(color: _items[index]['color'].withOpacity(0.4), blurRadius: 20, offset: const Offset(0, 10))]),
                    child: Center(child: Icon(_items[index]['icon'], size: 60, color: Colors.white)),
                  ),
                ),
              ),
            );
          },
        ),
      ),
    );
  }
}

class FlipBannerDemo extends StatefulWidget {
  const FlipBannerDemo({super.key});
  @override
  State<FlipBannerDemo> createState() => _FlipBannerDemoState();
}

class _FlipBannerDemoState extends State<FlipBannerDemo> {
  final PageController _controller = PageController(viewportFraction: 0.7);
  double _currentPage = 0;
  final List<Color> _colors = [Colors.red, Colors.green, Colors.blue, Colors.orange, Colors.purple];

  @override
  void initState() {
    super.initState();
    _controller.addListener(() => setState(() => _currentPage = _controller.page ?? 0));
  }

  @override
  void dispose() { _controller.dispose(); super.dispose(); }

  Matrix4 _getTransform(int index) {
    final double diff = index - _currentPage;
    return Matrix4.identity()..setEntry(3, 2, 0.001)..rotateY(diff * 0.3);
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('3D 翻转轮播')),
      body: SizedBox(
        height: 250,
        child: PageView.builder(
          controller: _controller,
          itemCount: _colors.length,
          itemBuilder: (context, index) => Center(
            child: Transform(
              transform: _getTransform(index),
              alignment: Alignment.center,
              child: Container(
                margin: const EdgeInsets.symmetric(horizontal: 8),
                decoration: BoxDecoration(color: _colors[index], borderRadius: BorderRadius.circular(16), boxShadow: [BoxShadow(color: Colors.black.withOpacity(0.2), blurRadius: 10, offset: const Offset(0, 5))]),
                child: Center(child: Text('页面 ${index + 1}', style: const TextStyle(color: Colors.white, fontSize: 24, fontWeight: FontWeight.bold))),
              ),
            ),
          ),
        ),
      ),
    );
  }
}

class CustomIndicatorDemo extends StatefulWidget {
  const CustomIndicatorDemo({super.key});
  @override
  State<CustomIndicatorDemo> createState() => _CustomIndicatorDemoState();
}

class _CustomIndicatorDemoState extends State<CustomIndicatorDemo> {
  final PageController _controller = PageController();
  int _currentPage = 0;
  final List<String> _titles = ['推荐', '热门', '最新', '精选'];

  @override
  void dispose() { _controller.dispose(); super.dispose(); }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('自定义指示器')),
      body: Column(
        children: [
          Container(
            height: 50,
            padding: const EdgeInsets.symmetric(horizontal: 16),
            child: Row(
              mainAxisAlignment: MainAxisAlignment.center,
              children: List.generate(_titles.length, (index) {
                final isSelected = index == _currentPage;
                return GestureDetector(
                  onTap: () => _controller.animateToPage(index, duration: const Duration(milliseconds: 300), curve: Curves.easeInOut),
                  child: AnimatedContainer(
                    duration: const Duration(milliseconds: 200),
                    margin: const EdgeInsets.symmetric(horizontal: 8),
                    padding: const EdgeInsets.symmetric(horizontal: 16, vertical: 8),
                    decoration: BoxDecoration(color: isSelected ? Colors.pink : Colors.transparent, borderRadius: BorderRadius.circular(20)),
                    child: Text(_titles[index], style: TextStyle(color: isSelected ? Colors.white : Colors.grey, fontWeight: isSelected ? FontWeight.bold : FontWeight.normal)),
                  ),
                );
              }),
            ),
          ),
          Expanded(
            child: PageView.builder(
              controller: _controller,
              itemCount: _titles.length,
              onPageChanged: (index) => setState(() => _currentPage = index),
              itemBuilder: (context, index) => Container(
                margin: const EdgeInsets.all(16),
                decoration: BoxDecoration(color: Colors.primaries[index % Colors.primaries.length], borderRadius: BorderRadius.circular(16)),
                child: Center(child: Text(_titles[index], style: const TextStyle(color: Colors.white, fontSize: 32, fontWeight: FontWeight.bold))),
              ),
            ),
          ),
        ],
      ),
    );
  }
}

五、最佳实践与性能优化

🎨 5.1 性能优化建议

  1. 使用 PageView.builder：适用于大量页面
  2. 图片缓存：使用 CachedNetworkImage 缓存网络图片
  3. 预加载：设置适当的 cacheExtent
  4. 避免过度重建：使用 const 构造函数

🔧 5.2 自动播放优化

// 暂停自动播放当用户交互时
GestureDetector(
  onPanDown: (_) => _stopAutoPlay(),
  onPanEnd: (_) => _startAutoPlay(),
  child: PageView(...),
)

📱 5.3 OpenHarmony 适配

在 OpenHarmony 平台上，需要注意：

  • 处理手势冲突
  • 优化图片加载
  • 适配不同屏幕尺寸

六、总结

本文详细介绍了 Flutter for OpenHarmony 的 PageView 无限轮播系统，包括：

组件类型 核心技术 应用场景
简单轮播 PageView + PageController 基础展示
无限轮播 首尾添加额外页面 首页 Banner
自动播放 Timer + PageController 广告轮播
卡片缩放 viewportFraction + Transform 商品展示
3D 翻转 Matrix4.rotateY 特色展示
自定义指示器 AnimatedContainer 品牌定制

参考资料

💡 提示：轮播组件是移动应用的重要展示方式，合理设计可以显著提升用户体验。建议根据具体场景选择合适的轮播类型，并注意性能优化和自动播放控制。

# flutter # 交互
Logo
开源鸿蒙跨平台开发者社区

开源鸿蒙跨平台开发社区汇聚开发者与厂商，共建“一次开发，多端部署”的开源生态，致力于降低跨端开发门槛，推动万物智联创新。

更多推荐

Flutter三方库适配OpenHarmony【doc_text】— OpenHarmony 插件工程搭建与配置文件详解

欢迎加入开源鸿蒙跨平台社区：https://openharmonycrossplatform.csdn.net零外部依赖。oh-package.json5 的 dependencies 是空的，所有解析逻辑都用系统自带的 API 实现。这篇把工程结构和每个配置文件都过一遍。零外部依赖：oh-package.json5 的 dependencies 为空零宿主配置：不需要改 EntryAbility

avatar 开源鸿蒙跨平台开发者社区

Flutter三方库适配OpenHarmony【doc_text】— Word 文档解析插件功能全景与适配价值

欢迎加入开源鸿蒙跨平台社区：https://openharmonycrossplatform.csdn.net做移动端开发这些年，碰到过不少需要读取 Word 文档内容的需求——简历解析、合同预览、文档搜索。在 Android 上有 Apache POI 这种成熟的 Java 库可以用，但到了上，情况完全不一样：没有现成的 Word 解析库，连一个能用的第三方包都找不到。doc_text这个 Fl

avatar 开源鸿蒙跨平台开发者社区

Flutter三方库适配OpenHarmony【flutter_web_auth】— OAuth 认证插件功能全景与适配价值

欢迎加入开源鸿蒙跨平台社区：https://openharmonycrossplatform.csdn.net做移动端开发，绑定第三方登录几乎是标配——Google、GitHub、微信、微博，用户不想注册新账号，开发者也不想自己维护一套密码体系。就是干这个的：打开一个浏览器页面让用户登录，登录完了把结果通过深度链接回传给 App。听起来简单，但跨平台实现起来每个平台都不一样。

avatar 开源鸿蒙跨平台开发者社区
