🎯 欢迎来到 Flutter for OpenHarmony 社区！本文将深入讲解 Flutter 中 RefreshIndicator 下拉刷新组件的使用方法，带你从基础到精通，掌握这一常用的刷新交互组件。

一、RefreshIndicator 组件概述

在 Flutter for OpenHarmony 应用开发中，RefreshIndicator（下拉刷新）是一种用于实现下拉刷新效果的 Material Design 组件。用户通过下拉操作触发刷新，组件会显示一个圆形进度指示器，刷新完成后自动收起。这种交互模式在移动应用中非常常见，用户已经形成了习惯性的操作预期。

📋 RefreshIndicator 组件特点

特点 说明
Material Design 遵循 Material Design 规范的刷新样式
手势友好 支持自然的手势下拉操作
自动动画 刷新时显示加载动画
可定制 支持自定义颜色、位移等属性
回调机制 通过 onRefresh 回调处理刷新逻辑

💡 使用场景：RefreshIndicator 常用于列表数据刷新、新闻列表更新、商品列表刷新、消息列表同步等需要更新数据的场景。

二、RefreshIndicator 基础用法

RefreshIndicator 需要包裹一个可滚动的组件（如 ListView、GridView、SingleChildScrollView 等）。

2.1 最简单的下拉刷新

class RefreshIndicatorExample extends StatefulWidget {
  const RefreshIndicatorExample({super.key});

  @override
  State<RefreshIndicatorExample> createState() => _RefreshIndicatorExampleState();
}

class _RefreshIndicatorExampleState extends State<RefreshIndicatorExample> {
  List<String> _items = List.generate(10, (index) => '项目 ${index + 1}');

  Future<void> _refresh() async {
    await Future.delayed(const Duration(seconds: 2));
    setState(() {
      _items = List.generate(10, (index) => '新项目 ${index + 1}');
    });
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('下拉刷新')),
      body: RefreshIndicator(
        onRefresh: _refresh,
        child: ListView.builder(
          itemCount: _items.length,
          itemBuilder: (context, index) {
            return ListTile(
              title: Text(_items[index]),
            );
          },
        ),
      ),
    );
  }
}

代码解析：

  • onRefresh：下拉刷新时触发的回调，必须返回一个 Future
  • child：可滚动的子组件，必须是可滚动的 Widget
  • 刷新过程中会显示圆形进度指示器
  • Future 完成后，刷新指示器自动收起

⚠️ 注意：child 必须是可滚动的组件，否则下拉刷新无法正常工作。

2.2 完整示例

下面是一个完整的可运行示例，展示 RefreshIndicator 的基本使用：

class RefreshDemo extends StatefulWidget {
  const RefreshDemo({super.key});

  @override
  State<RefreshDemo> createState() => _RefreshDemoState();
}

class _RefreshDemoState extends State<RefreshDemo> {
  final List<int> _items = [];
  int _count = 0;

  @override
  void initState() {
    super.initState();
    _loadData();
  }

  void _loadData() {
    for (int i = 0; i < 15; i++) {
      _items.add(++_count);
    }
  }

  Future<void> _refresh() async {
    await Future.delayed(const Duration(seconds: 2));
    setState(() {
      _items.clear();
      _count = 0;
      _loadData();
    });
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('下拉刷新示例')),
      body: RefreshIndicator(
        onRefresh: _refresh,
        child: ListView.builder(
          itemCount: _items.length,
          itemBuilder: (context, index) {
            return Card(
              margin: const EdgeInsets.symmetric(horizontal: 16, vertical: 8),
              child: ListTile(
                leading: CircleAvatar(child: Text('${_items[index]}')),
                title: Text('数据项 ${_items[index]}'),
              ),
            );
          },
        ),
      ),
    );
  }
}

三、RefreshIndicator 常用属性

3.1 onRefresh - 刷新回调

下拉刷新时触发的回调函数，必须返回一个 Future。

RefreshIndicator(
  onRefresh: () async {
    await fetchData();
  },
  child: ListView(),
)

最佳实践：

Future<void> _refresh() async {
  try {
    final data = await apiService.fetchData();
    setState(() {
      _items = data;
    });
  } catch (e) {
    ScaffoldMessenger.of(context).showSnackBar(
      SnackBar(content: Text('刷新失败: $e')),
    );
  }
}

3.2 color - 进度指示器颜色

设置刷新时圆形进度指示器的颜色。

RefreshIndicator(
  color: Colors.blue,
  onRefresh: _refresh,
  child: ListView(),
)

3.3 backgroundColor - 背景颜色

设置刷新指示器的背景颜色。

RefreshIndicator(
  color: Colors.white,
  backgroundColor: Colors.blue,
  onRefresh: _refresh,
  child: ListView(),
)

3.4 displacement - 下拉位移

设置刷新指示器出现的位置距离顶部的距离。

RefreshIndicator(
  displacement: 80,
  onRefresh: _refresh,
  child: ListView(),
)

3.5 strokeWidth - 线条粗细

设置进度指示器的线条粗细。

RefreshIndicator(
  strokeWidth: 3,
  onRefresh: _refresh,
  child: ListView(),
)

3.6 triggerMode - 触发模式

设置刷新的触发方式。

RefreshIndicator(
  triggerMode: RefreshIndicatorTriggerMode.onEdge,
  onRefresh: _refresh,
  child: ListView(),
)
模式 说明
RefreshIndicatorTriggerMode.anywhere 任意位置下拉都可触发
RefreshIndicatorTriggerMode.onEdge 仅在边缘下拉触发（默认）

3.7 notificationPredicate - 通知谓词

控制哪些滚动通知可以触发刷新。

RefreshIndicator(
  notificationPredicate: (notification) {
    return notification.depth == 0;
  },
  onRefresh: _refresh,
  child: ListView(),
)

📊 RefreshIndicator 属性速查表

属性 类型 默认值 说明
onRefresh RefreshCallback - 刷新回调（必填）
child Widget - 可滚动子组件（必填）
color Color? - 进度指示器颜色
backgroundColor Color? - 背景颜色
displacement double 40 下拉位移
strokeWidth double? 2.0 线条粗细
triggerMode RefreshIndicatorTriggerMode onEdge 触发模式
notificationPredicate ScrollNotificationPredicate - 通知谓词
semanticsLabel String? - 语义标签
semanticsValue String? - 语义值

四、RefreshIndicator 与其他组件配合

4.1 与 ListView 配合

RefreshIndicator(
  onRefresh: _refresh,
  child: ListView.builder(
    itemCount: _items.length,
    itemBuilder: (context, index) => ListTile(title: Text(_items[index])),
  ),
)

4.2 与 GridView 配合

RefreshIndicator(
  onRefresh: _refresh,
  child: GridView.builder(
    gridDelegate: const SliverGridDelegateWithFixedCrossAxisCount(
      crossAxisCount: 2,
    ),
    itemCount: _items.length,
    itemBuilder: (context, index) => Card(child: Text(_items[index])),
  ),
)

4.3 与 SingleChildScrollView 配合

RefreshIndicator(
  onRefresh: _refresh,
  child: SingleChildScrollView(
    physics: const AlwaysScrollableScrollPhysics(),
    child: Column(
      children: [
        Container(height: 200, color: Colors.blue),
        Container(height: 200, color: Colors.green),
        Container(height: 200, color: Colors.orange),
      ],
    ),
  ),
)

⚠️ 注意：SingleChildScrollView 需要设置 physics: AlwaysScrollableScrollPhysics() 确保内容不足时也能滚动。

4.4 与 CustomScrollView 配合

RefreshIndicator(
  onRefresh: _refresh,
  child: CustomScrollView(
    slivers: [
      const SliverAppBar(
        title: Text('标题'),
        floating: true,
      ),
      SliverList(
        delegate: SliverChildBuilderDelegate(
          (context, index) => ListTile(title: Text('项目 $index')),
          childCount: _items.length,
        ),
      ),
    ],
  ),
)

五、下拉刷新 + 上拉加载更多

在实际应用中，下拉刷新通常与上拉加载更多配合使用。

5.1 实现方式

class RefreshAndLoadMore extends StatefulWidget {
  const RefreshAndLoadMore({super.key});

  @override
  State<RefreshAndLoadMore> createState() => _RefreshAndLoadMoreState();
}

class _RefreshAndLoadMoreState extends State<RefreshAndLoadMore> {
  final List<String> _items = [];
  int _page = 1;
  bool _hasMore = true;
  bool _isLoading = false;

  @override
  void initState() {
    super.initState();
    _loadData();
  }

  Future<void> _loadData() async {
    if (_isLoading) return;
    _isLoading = true;

    await Future.delayed(const Duration(seconds: 1));

    setState(() {
      for (int i = 0; i < 15; i++) {
        _items.add('项目 ${(_page - 1) * 15 + i + 1}');
      }
      _page++;
      _hasMore = _page <= 5;
      _isLoading = false;
    });
  }

  Future<void> _refresh() async {
    await Future.delayed(const Duration(seconds: 1));
    setState(() {
      _items.clear();
      _page = 1;
      _hasMore = true;
    });
    await _loadData();
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('刷新与加载')),
      body: RefreshIndicator(
        onRefresh: _refresh,
        child: ListView.builder(
          itemCount: _items.length + (_hasMore ? 1 : 0),
          itemBuilder: (context, index) {
            if (index == _items.length) {
              if (!_isLoading) {
                _loadData();
              }
              return const Padding(
                padding: EdgeInsets.all(16),
                child: Center(child: CircularProgressIndicator()),
              );
            }
            return ListTile(title: Text(_items[index]));
          },
        ),
      ),
    );
  }
}

5.2 使用 ScrollController 实现

class ScrollControllerLoadMore extends StatefulWidget {
  const ScrollControllerLoadMore({super.key});

  @override
  State<ScrollControllerLoadMore> createState() => _ScrollControllerLoadMoreState();
}

class _ScrollControllerLoadMoreState extends State<ScrollControllerLoadMore> {
  final ScrollController _scrollController = ScrollController();
  final List<String> _items = [];
  bool _isLoading = false;
  bool _hasMore = true;
  int _page = 1;

  @override
  void initState() {
    super.initState();
    _loadData();
    _scrollController.addListener(_onScroll);
  }

  @override
  void dispose() {
    _scrollController.dispose();
    super.dispose();
  }

  void _onScroll() {
    if (_scrollController.position.pixels >=
        _scrollController.position.maxScrollExtent - 200) {
      if (!_isLoading && _hasMore) {
        _loadData();
      }
    }
  }

  Future<void> _loadData() async {
    if (_isLoading) return;
    setState(() => _isLoading = true);

    await Future.delayed(const Duration(seconds: 1));

    setState(() {
      for (int i = 0; i < 15; i++) {
        _items.add('项目 ${(_page - 1) * 15 + i + 1}');
      }
      _page++;
      _hasMore = _page <= 5;
      _isLoading = false;
    });
  }

  Future<void> _refresh() async {
    await Future.delayed(const Duration(seconds: 1));
    setState(() {
      _items.clear();
      _page = 1;
      _hasMore = true;
    });
    await _loadData();
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('滚动加载')),
      body: RefreshIndicator(
        onRefresh: _refresh,
        child: ListView.builder(
          controller: _scrollController,
          itemCount: _items.length + (_hasMore ? 1 : 0),
          itemBuilder: (context, index) {
            if (index == _items.length) {
              return const Padding(
                padding: EdgeInsets.all(16),
                child: Center(child: CircularProgressIndicator()),
              );
            }
            return ListTile(title: Text(_items[index]));
          },
        ),
      ),
    );
  }
}

六、自定义刷新指示器

6.1 自定义样式

RefreshIndicator(
  color: Colors.white,
  backgroundColor: const Color(0xFF6366F1),
  strokeWidth: 3,
  displacement: 60,
  onRefresh: _refresh,
  child: ListView.builder(
    itemCount: _items.length,
    itemBuilder: (context, index) => ListTile(title: Text(_items[index])),
  ),
)

6.2 使用第三方刷新组件

如果需要更丰富的刷新效果，可以使用第三方库如 pull_to_refresh：

dependencies:
  pull_to_refresh: ^2.0.0

import 'package:pull_to_refresh/pull_to_refresh.dart';

class CustomRefreshDemo extends StatefulWidget {
  const CustomRefreshDemo({super.key});

  @override
  State<CustomRefreshDemo> createState() => _CustomRefreshDemoState();
}

class _CustomRefreshDemoState extends State<CustomRefreshDemo> {
  final RefreshController _refreshController = RefreshController();
  final List<String> _items = List.generate(20, (index) => '项目 ${index + 1}');

  void _onRefresh() async {
    await Future.delayed(const Duration(seconds: 1));
    _refreshController.refreshCompleted();
  }

  void _onLoading() async {
    await Future.delayed(const Duration(seconds: 1));
    setState(() {
      _items.addAll(List.generate(10, (index) => '新项目 ${_items.length + index + 1}'));
    });
    _refreshController.loadComplete();
  }

  @override
  void dispose() {
    _refreshController.dispose();
    super.dispose();
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('自定义刷新')),
      body: SmartRefresher(
        controller: _refreshController,
        enablePullDown: true,
        enablePullUp: true,
        onRefresh: _onRefresh,
        onLoading: _onLoading,
        header: const WaterDropHeader(),
        footer: CustomFooter(
          builder: (context, mode) {
            if (mode == LoadStatus.noMore) {
              return const Center(child: Text('没有更多数据了'));
            }
            return const Center(child: CircularProgressIndicator());
          },
        ),
        child: ListView.builder(
          itemCount: _items.length,
          itemBuilder: (context, index) => ListTile(title: Text(_items[index])),
        ),
      ),
    );
  }
}

七、实际应用场景

7.1 新闻列表刷新

class NewsListPage extends StatefulWidget {
  const NewsListPage({super.key});

  @override
  State<NewsListPage> createState() => _NewsListPageState();
}

class _NewsListPageState extends State<NewsListPage> {
  final List<Map<String, String>> _news = [];
  bool _isLoading = false;

  @override
  void initState() {
    super.initState();
    _loadNews();
  }

  Future<void> _loadNews() async {
    if (_isLoading) return;
    setState(() => _isLoading = true);

    await Future.delayed(const Duration(seconds: 1));

    setState(() {
      _news.addAll([
        {'title': 'Flutter 3.0 正式发布', 'source': '官方博客'},
        {'title': 'OpenHarmony 新版本更新', 'source': '开源社区'},
        {'title': '跨平台开发最佳实践', 'source': '技术专栏'},
      ]);
      _isLoading = false;
    });
  }

  Future<void> _refresh() async {
    await Future.delayed(const Duration(seconds: 1));
    setState(() {
      _news.clear();
    });
    await _loadNews();
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('新闻列表')),
      body: RefreshIndicator(
        onRefresh: _refresh,
        child: ListView.builder(
          itemCount: _news.length,
          itemBuilder: (context, index) {
            final item = _news[index];
            return Card(
              margin: const EdgeInsets.all(8),
              child: ListTile(
                title: Text(item['title']!),
                subtitle: Text(item['source']!),
                trailing: const Icon(Icons.arrow_forward_ios, size: 16),
              ),
            );
          },
        ),
      ),
    );
  }
}

7.2 商品列表刷新

class ProductListPage extends StatefulWidget {
  const ProductListPage({super.key});

  @override
  State<ProductListPage> createState() => _ProductListPageState();
}

class _ProductListPageState extends State<ProductListPage> {
  final List<Map<String, dynamic>> _products = [];
  int _page = 1;
  bool _hasMore = true;

  @override
  void initState() {
    super.initState();
    _loadProducts();
  }

  Future<void> _loadProducts() async {
    await Future.delayed(const Duration(seconds: 1));

    setState(() {
      for (int i = 0; i < 10; i++) {
        _products.add({
          'name': '商品 ${(_page - 1) * 10 + i + 1}',
          'price': (i + 1) * 100,
          'image': 'https://via.placeholder.com/100',
        });
      }
      _page++;
      _hasMore = _page <= 5;
    });
  }

  Future<void> _refresh() async {
    await Future.delayed(const Duration(seconds: 1));
    setState(() {
      _products.clear();
      _page = 1;
      _hasMore = true;
    });
    await _loadProducts();
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('商品列表')),
      body: RefreshIndicator(
        color: const Color(0xFF6366F1),
        onRefresh: _refresh,
        child: GridView.builder(
          gridDelegate: const SliverGridDelegateWithFixedCrossAxisCount(
            crossAxisCount: 2,
            childAspectRatio: 0.75,
          ),
          itemCount: _products.length + (_hasMore ? 1 : 0),
          itemBuilder: (context, index) {
            if (index == _products.length) {
              WidgetsBinding.instance.addPostFrameCallback((_) => _loadProducts());
              return const Center(child: CircularProgressIndicator());
            }
            final product = _products[index];
            return Card(
              child: Column(
                children: [
                  Expanded(
                    child: Container(
                      color: Colors.grey[200],
                      child: const Center(child: Icon(Icons.image, size: 48)),
                    ),
                  ),
                  Padding(
                    padding: const EdgeInsets.all(8),
                    child: Column(
                      crossAxisAlignment: CrossAxisAlignment.start,
                      children: [
                        Text(product['name']),
                        Text(
                          '¥${product['price']}',
                          style: const TextStyle(
                            color: Colors.red,
                            fontWeight: FontWeight.bold,
                          ),
                        ),
                      ],
                    ),
                  ),
                ],
              ),
            );
          },
        ),
      ),
    );
  }
}

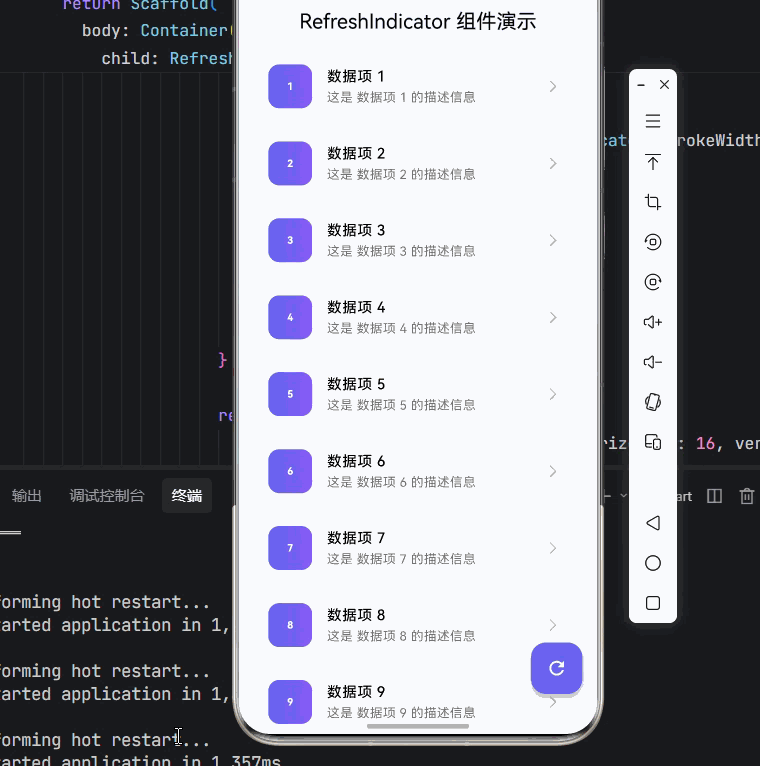

八、完整示例代码

下面是一个完整的 Flutter 应用示例，展示 RefreshIndicator 组件的各种用法。

import 'package:flutter/material.dart';

void main() {
  runApp(const RefreshIndicatorDemo());
}

class RefreshIndicatorDemo extends StatelessWidget {
  const RefreshIndicatorDemo({super.key});

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      title: 'RefreshIndicator 组件演示',
      debugShowCheckedModeBanner: false,
      theme: ThemeData(
        colorScheme: ColorScheme.light(
          primary: const Color(0xFF6366F1),
          secondary: const Color(0xFF8B5CF6),
          surface: const Color(0xFFE8EAF6),
          background: const Color(0xFFF8F9FF),
          brightness: Brightness.light,
        ),
        useMaterial3: true,
      ),
      home: const RefreshIndicatorPage(),
    );
  }
}

class RefreshIndicatorPage extends StatefulWidget {
  const RefreshIndicatorPage({super.key});

  @override
  State<RefreshIndicatorPage> createState() => _RefreshIndicatorPageState();
}

class _RefreshIndicatorPageState extends State<RefreshIndicatorPage> {
  final List<String> _items = [];
  int _count = 0;
  bool _hasMore = true;
  bool _isLoading = false;

  @override
  void initState() {
    super.initState();
    _loadData();
  }

  Future<void> _loadData() async {
    if (_isLoading) return;
    _isLoading = true;

    await Future.delayed(const Duration(seconds: 1));

    setState(() {
      for (int i = 0; i < 15; i++) {
        _items.add('数据项 ${++_count}');
      }
      _hasMore = _count < 60;
      _isLoading = false;
    });
  }

  Future<void> _refresh() async {
    await Future.delayed(const Duration(seconds: 2));
    setState(() {
      _items.clear();
      _count = 0;
      _hasMore = true;
    });
    await _loadData();
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(
        title: const Text('RefreshIndicator 组件演示'),
        centerTitle: true,
        elevation: 0,
      ),
      body: Container(
        decoration: const BoxDecoration(
          gradient: LinearGradient(
            begin: Alignment.topCenter,
            end: Alignment.bottomCenter,
            colors: [
              Color(0xFFE8F4FF),
              Color(0xFFF8F9FF),
            ],
          ),
        ),
        child: RefreshIndicator(
          color: const Color(0xFF6366F1),
          backgroundColor: Colors.white,
          strokeWidth: 3,
          displacement: 60,
          onRefresh: _refresh,
          child: _items.isEmpty
              ? const Center(
                  child: Text(
                    '下拉刷新加载数据',
                    style: TextStyle(color: Colors.grey),
                  ),
                )
              : ListView.builder(
                  physics: const AlwaysScrollableScrollPhysics(),
                  itemCount: _items.length + (_hasMore ? 1 : 0),
                  itemBuilder: (context, index) {
                    if (index == _items.length) {
                      if (!_isLoading) {
                        _loadData();
                      }
                      return Container(
                        padding: const EdgeInsets.all(16),
                        child: const Center(
                          child: Row(
                            mainAxisAlignment: MainAxisAlignment.center,
                            children: [
                              SizedBox(
                                width: 20,
                                height: 20,
                                child: CircularProgressIndicator(strokeWidth: 2),
                              ),
                              SizedBox(width: 12),
                              Text('加载中...'),
                            ],
                          ),
                        ),
                      );
                    }

                    return Container(
                      margin: const EdgeInsets.symmetric(horizontal: 16, vertical: 6),
                      decoration: BoxDecoration(
                        color: Colors.white,
                        borderRadius: BorderRadius.circular(12),
                        boxShadow: [
                          BoxShadow(
                            color: Colors.black.withOpacity(0.05),
                            blurRadius: 10,
                          ),
                        ],
                      ),
                      child: ListTile(
                        leading: Container(
                          width: 48,
                          height: 48,
                          decoration: BoxDecoration(
                            gradient: LinearGradient(
                              colors: [
                                const Color(0xFF6366F1),
                                const Color(0xFF8B5CF6),
                              ],
                            ),
                            borderRadius: BorderRadius.circular(12),
                          ),
                          child: Center(
                            child: Text(
                              '${index + 1}',
                              style: const TextStyle(
                                color: Colors.white,
                                fontWeight: FontWeight.bold,
                              ),
                            ),
                          ),
                        ),
                        title: Text(
                          _items[index],
                          style: const TextStyle(
                            fontWeight: FontWeight.w500,
                          ),
                        ),
                        subtitle: Text(
                          '这是 ${_items[index]} 的描述信息',
                          style: TextStyle(color: Colors.grey[600]),
                        ),
                        trailing: Icon(
                          Icons.arrow_forward_ios,
                          size: 16,
                          color: Colors.grey[400],
                        ),
                      ),
                    );
                  },
                ),
        ),
      ),
      floatingActionButton: FloatingActionButton(
        onPressed: _refresh,
        child: const Icon(Icons.refresh),
      ),
    );
  }
}

九、总结

RefreshIndicator 是 Flutter for OpenHarmony 应用开发中常用的刷新交互组件。通过本文的学习，我们掌握了：

  1. 基础用法：RefreshIndicator 的基本属性和使用方式
  2. 常用属性：color、backgroundColor、displacement、strokeWidth 等
  3. 配合组件：与 ListView、GridView、SingleChildScrollView 等配合使用
  4. 上拉加载：实现下拉刷新 + 上拉加载更多的组合
  5. 自定义样式：自定义刷新指示器的外观
  6. 实际应用：新闻列表、商品列表等场景

💡 开发建议：使用 RefreshIndicator 时应注意：

  • child 必须是可滚动的组件
  • onRefresh 必须返回 Future
  • 内容不足时设置 AlwaysScrollableScrollPhysics
  • 合理处理加载状态和错误情况
  • 避免重复触发刷新请求
# flutter # harmonyos
Logo
开源鸿蒙跨平台开发者社区

开源鸿蒙跨平台开发社区汇聚开发者与厂商，共建“一次开发，多端部署”的开源生态，致力于降低跨端开发门槛，推动万物智联创新。

更多推荐

cover

Flutter-OH 概述与未来发展全景分析

avatar 开源鸿蒙跨平台开发者社区
cover

【HarmonyOS】RN of HarmonyOS实战开发项目+TanStack缓存策略

avatar 开源鸿蒙跨平台开发者社区
cover

【HarmonyOS】RN of HarmonyOS实战开发项目+TanStack Query数据获取

avatar 开源鸿蒙跨平台开发者社区
