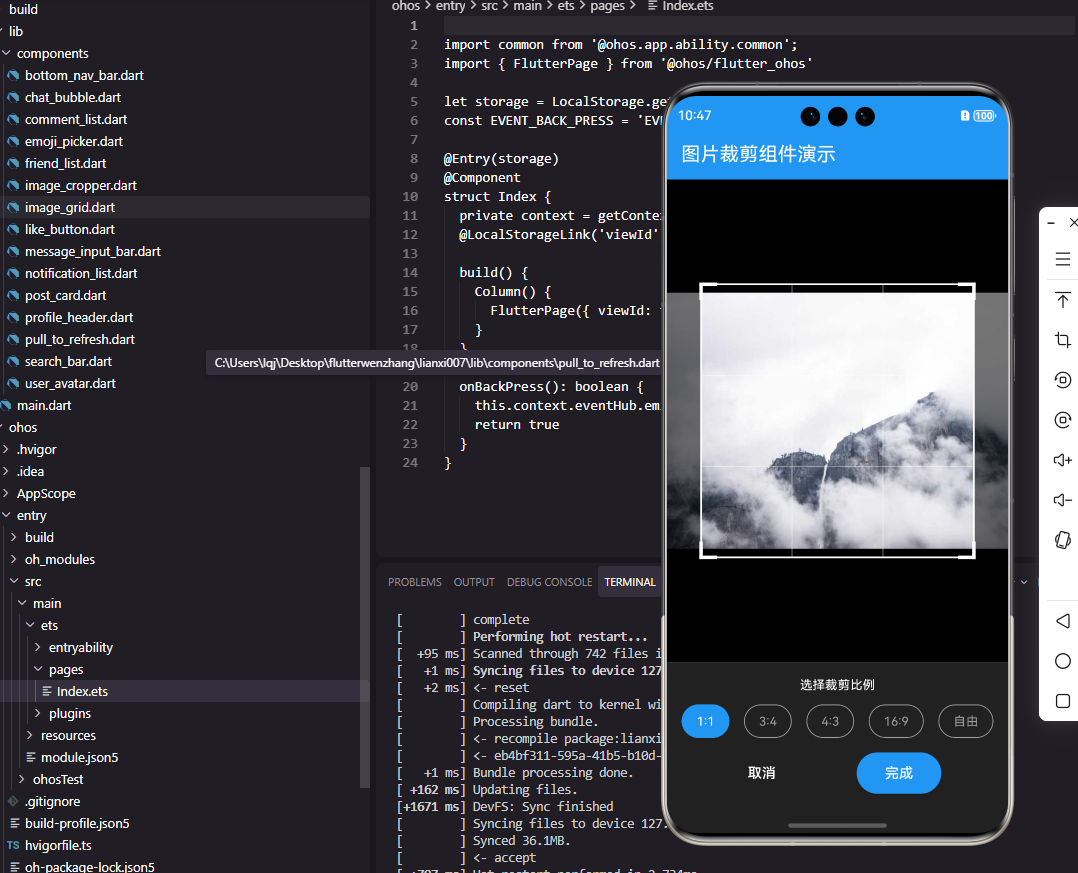

在这里插入图片描述

前言

图片裁剪是社交应用中上传头像和发布图片时的常用功能。一个优秀的图片裁剪组件需要支持自由裁剪、固定比例裁剪、手势缩放和旋转等功能。本文将详细讲解如何在Flutter和OpenHarmony平台上实现专业级的图片裁剪组件。

Flutter图片裁剪实现

首先实现基础的裁剪框组件。

class ImageCropper extends StatefulWidget {
  final ImageProvider image;
  final double aspectRatio;
  final Function(Rect) onCropChanged;

  const ImageCropper({
    Key? key,
    required this.image,
    this.aspectRatio = 1.0,
    required this.onCropChanged,
  }) : super(key: key);

  @override
  State<ImageCropper> createState() => _ImageCropperState();
}

ImageCropper接收图片源、裁剪比例和裁剪区域变化回调。aspectRatio默认为1.0表示正方形裁剪，适合头像场景。

class _ImageCropperState extends State<ImageCropper> {
  Rect _cropRect = Rect.zero;
  double _scale = 1.0;
  Offset _offset = Offset.zero;

  @override
  Widget build(BuildContext context) {
    return GestureDetector(
      onScaleStart: _onScaleStart,
      onScaleUpdate: _onScaleUpdate,
      child: Stack(
        children: [
          Positioned.fill(
            child: Image(
              image: widget.image,
              fit: BoxFit.contain,
            ),
          ),
          CustomPaint(
            painter: CropOverlayPainter(cropRect: _cropRect),
            size: Size.infinite,
          ),
        ],
      ),
    );
  }

State类管理裁剪框位置、缩放比例和偏移量。GestureDetector处理缩放和拖动手势。Stack叠加图片和裁剪遮罩层，CustomPaint绘制裁剪框和半透明遮罩。

  void _onScaleStart(ScaleStartDetails details) {
    // 记录初始状态
  }

  void _onScaleUpdate(ScaleUpdateDetails details) {
    setState(() {
      _scale = (_scale * details.scale).clamp(0.5, 3.0);
      _offset += details.focalPointDelta;
    });
    widget.onCropChanged(_cropRect);
  }
}

class CropOverlayPainter extends CustomPainter {
  final Rect cropRect;

  CropOverlayPainter({required this.cropRect});

  @override
  void paint(Canvas canvas, Size size) {
    final paint = Paint()
      ..color = Colors.black54
      ..style = PaintingStyle.fill;

    // 绘制四周遮罩
    canvas.drawPath(
      Path.combine(
        PathOperation.difference,
        Path()..addRect(Rect.fromLTWH(0, 0, size.width, size.height)),
        Path()..addRect(cropRect),
      ),
      paint,
    );

_onScaleUpdate处理缩放和拖动，clamp限制缩放范围。CropOverlayPainter使用Path.combine绘制裁剪区域外的半透明遮罩，让用户清楚看到裁剪范围。

    // 绘制裁剪框边框
    final borderPaint = Paint()
      ..color = Colors.white
      ..style = PaintingStyle.stroke
      ..strokeWidth = 2;

    canvas.drawRect(cropRect, borderPaint);

    // 绘制四角手柄
    final handlePaint = Paint()
      ..color = Colors.white
      ..style = PaintingStyle.fill;

    final handleSize = 20.0;
    canvas.drawRect(
      Rect.fromLTWH(cropRect.left - 2, cropRect.top - 2, handleSize, 4),
      handlePaint,
    );
    canvas.drawRect(
      Rect.fromLTWH(cropRect.left - 2, cropRect.top - 2, 4, handleSize),
      handlePaint,
    );
    // ... 其他三个角
  }

  @override
  bool shouldRepaint(covariant CropOverlayPainter oldDelegate) {
    return cropRect != oldDelegate.cropRect;
  }
}

绘制白色边框和四角手柄，让用户可以拖动调整裁剪区域。shouldRepaint优化重绘性能，只在裁剪框变化时重绘。

OpenHarmony ArkTS实现

鸿蒙系统上的图片裁剪实现。

@Component
struct ImageCropper {
  @Prop imageUrl: string = ''
  @Prop aspectRatio: number = 1
  @State cropRect: CropRect = { x: 50, y: 50, width: 200, height: 200 }
  @State scale: number = 1
  onCropChanged: (rect: CropRect) => void = () => {}

  build() {
    Stack() {
      Image(this.imageUrl)
        .width('100%')
        .height('100%')
        .objectFit(ImageFit.Contain)
        .scale({ x: this.scale, y: this.scale })

@State管理裁剪框和缩放状态。Stack叠加图片和裁剪遮罩。Image组件的scale属性实现缩放效果。

      Canvas(this.context)
        .width('100%')
        .height('100%')
        .onReady(() => {
          this.drawOverlay()
        })
    }
    .gesture(
      PinchGesture()
        .onActionUpdate((event: GestureEvent) => {
          this.scale = Math.max(0.5, Math.min(3, this.scale * event.scale))
        })
    )
  }

  private context: CanvasRenderingContext2D = new CanvasRenderingContext2D()

Canvas组件绘制裁剪遮罩。PinchGesture处理双指缩放手势，限制缩放范围在0.5到3倍之间。

  drawOverlay() {
    const ctx = this.context
    const width = ctx.width
    const height = ctx.height

    // 绘制半透明遮罩
    ctx.fillStyle = 'rgba(0, 0, 0, 0.5)'
    ctx.fillRect(0, 0, width, height)

    // 清除裁剪区域
    ctx.clearRect(
      this.cropRect.x,
      this.cropRect.y,
      this.cropRect.width,
      this.cropRect.height
    )

    // 绘制边框
    ctx.strokeStyle = '#FFFFFF'
    ctx.lineWidth = 2
    ctx.strokeRect(
      this.cropRect.x,
      this.cropRect.y,
      this.cropRect.width,
      this.cropRect.height
    )
  }
}

drawOverlay方法使用Canvas API绘制遮罩和边框。fillRect绘制全屏半透明遮罩，clearRect清除裁剪区域，strokeRect绘制白色边框。

裁剪结果处理

在Flutter中获取裁剪后的图片：

Future<Uint8List> cropImage(
  Uint8List imageBytes,
  Rect cropRect,
  Size imageSize,
) async {
  final codec = await ui.instantiateImageCodec(imageBytes);
  final frame = await codec.getNextFrame();
  final image = frame.image;

  final recorder = ui.PictureRecorder();
  final canvas = Canvas(recorder);

  final srcRect = Rect.fromLTWH(
    cropRect.left * image.width / imageSize.width,
    cropRect.top * image.height / imageSize.height,
    cropRect.width * image.width / imageSize.width,
    cropRect.height * image.height / imageSize.height,
  );

  canvas.drawImageRect(
    image,
    srcRect,
    Rect.fromLTWH(0, 0, cropRect.width, cropRect.height),
    Paint(),
  );

  final picture = recorder.endRecording();
  final croppedImage = await picture.toImage(
    cropRect.width.toInt(),
    cropRect.height.toInt(),
  );

  final byteData = await croppedImage.toByteData(
    format: ui.ImageByteFormat.png,
  );

  return byteData!.buffer.asUint8List();
}
