Container的clipBehavior属性提供了强大的裁剪功能，可以控制子组件超出容器边界时的显示方式。本文将深入探讨Container的裁剪效果，包括裁剪类型、圆角裁剪、路径裁剪、自定义裁剪以及实际应用场景。

一、裁剪基础

Flutter提供了多种裁剪方式，每种裁剪方式都有其特定的应用场景。

1.1 裁剪类型对比

1.2 裁剪特性对比

裁剪类型	边缘质量	性能	适用场景	内存消耗
none	无裁剪	最好	不需要裁剪	最低
hardEdge	锯齿	好	简单矩形	低
antiAlias	平滑	中等	圆角圆形	中
antiAliasWithSaveLayer	最佳	较差	复杂动画	高

二、圆角裁剪

2.1 基础圆角裁剪

class RoundedClipContainer extends StatelessWidget {
  const RoundedClipContainer({super.key});

  @override
  Widget build(BuildContext context) {
    return Wrap(
      spacing: 16,
      runSpacing: 16,
      children: [
        // 小圆角
        Container(
          width: 120,
          height: 100,
          decoration: BoxDecoration(
            color: Colors.blue,
            borderRadius: BorderRadius.circular(8),
            image: const DecorationImage(
              image: NetworkImage('https://via.placeholder.com/200'),
              fit: BoxFit.cover,
            ),
          ),
          clipBehavior: Clip.antiAlias,
          child: const Center(
            child: Text(
              '小圆角',
              style: TextStyle(color: Colors.white, fontWeight: FontWeight.bold),
            ),
          ),
        ),

        // 中圆角
        Container(
          width: 120,
          height: 100,
          decoration: BoxDecoration(
            color: Colors.green,
            borderRadius: BorderRadius.circular(16),
            image: const DecorationImage(
              image: NetworkImage('https://via.placeholder.com/200'),
              fit: BoxFit.cover,
            ),
          ),
          clipBehavior: Clip.antiAlias,
          child: const Center(
            child: Text(
              '中圆角',
              style: TextStyle(color: Colors.white, fontWeight: FontWeight.bold),
            ),
          ),
        ),

        // 大圆角
        Container(
          width: 120,
          height: 100,
          decoration: BoxDecoration(
            color: Colors.orange,
            borderRadius: BorderRadius.circular(24),
            image: const DecorationImage(
              image: NetworkImage('https://via.placeholder.com/200'),
              fit: BoxFit.cover,
            ),
          ),
          clipBehavior: Clip.antiAlias,
          child: const Center(
            child: Text(
              '大圆角',
              style: TextStyle(color: Colors.white, fontWeight: FontWeight.bold),
            ),
          ),
        ),
      ],
    );
  }
}

2.2 不规则圆角

class IrregularRoundedClip extends StatelessWidget {
  const IrregularRoundedClip({super.key});

  @override
  Widget build(BuildContext context) {
    return Row(
      mainAxisAlignment: MainAxisAlignment.spaceEvenly,
      children: [
        // 只有左上圆角
        Container(
          width: 100,
          height: 100,
          decoration: BoxDecoration(
            color: Colors.purple,
            borderRadius: const BorderRadius.only(
              topLeft: Radius.circular(20),
            ),
          ),
          clipBehavior: Clip.antiAlias,
          child: const Center(
            child: Text(
              '左上',
              style: TextStyle(color: Colors.white),
            ),
          ),
        ),

        // 对角圆角
        Container(
          width: 100,
          height: 100,
          decoration: BoxDecoration(
            color: Colors.teal,
            borderRadius: const BorderRadius.only(
              topLeft: Radius.circular(20),
              bottomRight: Radius.circular(20),
            ),
          ),
          clipBehavior: Clip.antiAlias,
          child: const Center(
            child: Text(
              '对角',
              style: TextStyle(color: Colors.white),
            ),
          ),
        ),

        // 顶部圆角
        Container(
          width: 100,
          height: 100,
          decoration: BoxDecoration(
            color: Colors.red,
            borderRadius: const BorderRadius.only(
              topLeft: Radius.circular(20),
              topRight: Radius.circular(20),
            ),
          ),
          clipBehavior: Clip.antiAlias,
          child: const Center(
            child: Text(
              '顶部',
              style: TextStyle(color: Colors.white),
            ),
          ),
        ),
      ],
    );
  }
}

2.3 椭圆和圆形裁剪

class EllipseClipContainer extends StatelessWidget {
  const EllipseClipContainer({super.key});

  @override
  Widget build(BuildContext context) {
    return Row(
      mainAxisAlignment: MainAxisAlignment.spaceEvenly,
      children: [
        // 椭圆
        Container(
          width: 120,
          height: 80,
          decoration: const BoxDecoration(
            color: Colors.blue,
            shape: BoxShape.circle,
          ),
          clipBehavior: Clip.antiAlias,
          child: const Center(
            child: Text(
              '椭圆',
              style: TextStyle(color: Colors.white, fontWeight: FontWeight.bold),
            ),
          ),
        ),

        // 圆形
        Container(
          width: 100,
          height: 100,
          decoration: const BoxDecoration(
            color: Colors.green,
            shape: BoxShape.circle,
          ),
          clipBehavior: Clip.antiAlias,
          child: const Center(
            child: Text(
              '圆形',
              style: TextStyle(color: Colors.white, fontWeight: FontWeight.bold),
            ),
          ),
        ),

        // 圆形头像
        Container(
          width: 80,
          height: 80,
          decoration: BoxDecoration(
            border: Border.all(color: Colors.white, width: 3),
            shape: BoxShape.circle,
          ),
          clipBehavior: Clip.antiAlias,
          child: const CircleAvatar(
            backgroundImage: NetworkImage('https://via.placeholder.com/150'),
            radius: 40,
          ),
        ),
      ],
    );
  }
}

三、Clip组件裁剪

3.1 ClipRRect矩形圆角

class ClipRRectExample extends StatelessWidget {
  const ClipRRectExample({super.key});

  @override
  Widget build(BuildContext context) {
    return Column(
      children: [
        // ClipRRect基础
        ClipRRect(
          borderRadius: BorderRadius.circular(20),
          child: Container(
            width: 200,
            height: 100,
            color: Colors.blue,
            child: const Center(
              child: Text(
                'ClipRRect',
                style: TextStyle(color: Colors.white, fontSize: 20),
              ),
            ),
          ),
        ),
        const SizedBox(height: 16),

        // 图片裁剪
        ClipRRect(
          borderRadius: BorderRadius.circular(16),
          child: Image.network(
            'https://via.placeholder.com/200x120',
            width: 200,
            height: 120,
            fit: BoxFit.cover,
          ),
        ),
      ],
    );
  }
}

3.2 ClipOval椭圆裁剪

class ClipOvalExample extends StatelessWidget {
  const ClipOvalExample({super.key});

  @override
  Widget build(BuildContext context) {
    return Row(
      mainAxisAlignment: MainAxisAlignment.spaceEvenly,
      children: [
        // 椭圆
        ClipOval(
          child: Container(
            width: 120,
            height: 80,
            color: Colors.orange,
            child: const Center(
              child: Text(
                '椭圆',
                style: TextStyle(color: Colors.white),
              ),
            ),
          ),
        ),

        // 圆形
        ClipOval(
          child: Container(
            width: 80,
            height: 80,
            color: Colors.purple,
            child: const Center(
              child: Text(
                '圆形',
                style: TextStyle(color: Colors.white, fontWeight: FontWeight.bold),
              ),
            ),
          ),
        ),

        // 图片圆形
        ClipOval(
          child: Image.network(
            'https://via.placeholder.com/100',
            width: 80,
            height: 80,
            fit: BoxFit.cover,
          ),
        ),
      ],
    );
  }
}

3.3 ClipRect矩形裁剪

class ClipRectExample extends StatelessWidget {
  const ClipRectExample({super.key});

  @override
  Widget build(BuildContext context) {
    return Container(
      width: 200,
      height: 150,
      color: Colors.grey.shade200,
      child: Stack(
        children: [
          Positioned(
            left: -50,
            top: 20,
            child: ClipRect(
              child: Container(
                width: 200,
                height: 80,
                color: Colors.blue,
                child: const Center(
                  child: Text(
                    '部分显示',
                    style: TextStyle(color: Colors.white),
                  ),
                ),
              ),
            ),
          ),
        ],
      ),
    );
  }
}

四、路径裁剪

4.1 ClipPath基础

class ClipPathExample extends StatelessWidget {
  const ClipPathExample({super.key});

  @override
  Widget build(BuildContext context) {
    return Row(
      mainAxisAlignment: MainAxisAlignment.spaceEvenly,
      children: [
        // 三角形
        ClipPath(
          clipper: const TriangleClipper(),
          child: Container(
            width: 100,
            height: 100,
            color: Colors.red,
            child: const Center(
              child: Text(
                '三角形',
                style: TextStyle(color: Colors.white),
              ),
            ),
          ),
        ),

        // 五边形
        ClipPath(
          clipper: const PentagonClipper(),
          child: Container(
            width: 100,
            height: 100,
            color: Colors.green,
            child: const Center(
              child: Text(
                '五边形',
                style: TextStyle(color: Colors.white),
              ),
            ),
          ),
        ),

        // 六边形
        ClipPath(
          clipper: const HexagonClipper(),
          child: Container(
            width: 100,
            height: 100,
            color: Colors.blue,
            child: const Center(
              child: Text(
                '六边形',
                style: TextStyle(color: Colors.white),
              ),
            ),
          ),
        ),
      ],
    );
  }
}

class TriangleClipper extends CustomClipper<Path> {
  const TriangleClipper();

  @override
  Path getClip(Size size) {
    final path = Path()
      ..moveTo(size.width / 2, 0)
      ..lineTo(size.width, size.height)
      ..lineTo(0, size.height)
      ..close();
    return path;
  }

  @override
  bool shouldReclip(covariant CustomClipper<Path> oldClipper) => false;
}

class PentagonClipper extends CustomClipper<Path> {
  const PentagonClipper();

  @override
  Path getClip(Size size) {
    final path = Path();
    final center = Offset(size.width / 2, size.height / 2);
    final radius = size.width / 2;

    for (int i = 0; i < 5; i++) {
      final angle = (i * 2 * 3.14159) / 5 - 3.14159 / 2;
      final x = center.dx + radius * cos(angle);
      final y = center.dy + radius * sin(angle);

      if (i == 0) {
        path.moveTo(x, y);
      } else {
        path.lineTo(x, y);
      }
    }
    path.close();
    return path;
  }

  @override
  bool shouldReclip(covariant CustomClipper<Path> oldClipper) => false;
}

class HexagonClipper extends CustomClipper<Path> {
  const HexagonClipper();

  @override
  Path getClip(Size size) {
    final path = Path();
    final center = Offset(size.width / 2, size.height / 2);
    final radius = size.width / 2;

    for (int i = 0; i < 6; i++) {
      final angle = (i * 2 * 3.14159) / 6;
      final x = center.dx + radius * cos(angle);
      final y = center.dy + radius * sin(angle);

      if (i == 0) {
        path.moveTo(x, y);
      } else {
        path.lineTo(x, y);
      }
    }
    path.close();
    return path;
  }

  @override
  bool shouldReclip(covariant CustomClipper<Path> oldClipper) => false;
}

4.2 波浪形裁剪

class WaveClipper extends CustomClipper<Path> {
  final double waveHeight;
  final double waveLength;

  const WaveClipper({
    this.waveHeight = 20,
    this.waveLength = 100,
  });

  @override
  Path getClip(Size size) {
    final path = Path()
      ..moveTo(0, size.height)
      ..lineTo(0, waveHeight);

    for (double x = 0; x <= size.width; x++) {
      final y = waveHeight +
          sin(x * 2 * 3.14159 / waveLength) * waveHeight;
      path.lineTo(x, y);
    }

    path.lineTo(size.width, size.height);
    path.close();
    return path;
  }

  @override
  bool shouldReclip(covariant WaveClipper oldClipper) =>
      waveHeight != oldClipper.waveHeight ||
      waveLength != oldClipper.waveLength;
}

4.3 星形裁剪

class StarClipper extends CustomClipper<Path> {
  final int points;
  final double innerRadiusRatio;

  const StarClipper({
    this.points = 5,
    this.innerRadiusRatio = 0.5,
  });

  @override
  Path getClip(Size size) {
    final path = Path();
    final center = Offset(size.width / 2, size.height / 2);
    final outerRadius = size.width / 2;
    final innerRadius = outerRadius * innerRadiusRatio;

    for (int i = 0; i < points * 2; i++) {
      final radius = i % 2 == 0 ? outerRadius : innerRadius;
      final angle = (i * 3.14159) / points - 3.14159 / 2;
      final x = center.dx + radius * cos(angle);
      final y = center.dy + radius * sin(angle);

      if (i == 0) {
        path.moveTo(x, y);
      } else {
        path.lineTo(x, y);
      }
    }
    path.close();
    return path;
  }

  @override
  bool shouldReclip(covariant StarClipper oldClipper) =>
      points != oldClipper.points ||
      innerRadiusRatio != oldClipper.innerRadiusRatio;
}

五、自定义裁剪

5.1 不规则形状裁剪

class CustomShapeClipper extends CustomClipper<Path> {
  @override
  Path getClip(Size size) {
    final path = Path()
      ..moveTo(0, size.height * 0.3)
      ..quadraticBezierTo(
        size.width * 0.3, 0,
        size.width * 0.5, size.height * 0.2,
      )
      ..quadraticBezierTo(
        size.width * 0.7, size.height * 0.4,
        size.width, size.height * 0.3,
      )
      ..lineTo(size.width, size.height)
      ..lineTo(0, size.height)
      ..close();
    return path;
  }

  @override
  bool shouldReclip(covariant CustomClipper<Path> oldClipper) => false;
}

class CustomShapeContainer extends StatelessWidget {
  const CustomShapeContainer({super.key});

  @override
  Widget build(BuildContext context) {
    return Container(
      width: 200,
      height: 150,
      color: Colors.grey.shade200,
      child: ClipPath(
        clipper: const CustomShapeClipper(),
        child: Container(
          width: 200,
          height: 150,
          decoration: BoxDecoration(
            gradient: LinearGradient(
              colors: [Colors.purple, Colors.blue],
            ),
          ),
          child: const Center(
            child: Text(
              '自定义形状',
              style: TextStyle(
                color: Colors.white,
                fontSize: 18,
                fontWeight: FontWeight.bold,
              ),
            ),
          ),
        ),
      ),
    );
  }
}

5.2 组合裁剪

class CompositeClipContainer extends StatelessWidget {
  const CompositeClipContainer({super.key});

  @override
  Widget build(BuildContext context) {
    return Container(
      width: 200,
      height: 200,
      color: Colors.grey.shade200,
      child: ClipPath(
        clipper: const StarClipper(points: 5),
        child: ClipRRect(
          borderRadius: BorderRadius.circular(10),
          child: Container(
            decoration: BoxDecoration(
              gradient: RadialGradient(
                colors: [Colors.orange, Colors.red],
              ),
            ),
            child: const Center(
              child: Text(
                '组合裁剪',
                style: TextStyle(
                  color: Colors.white,
                  fontWeight: FontWeight.bold,
                ),
              ),
            ),
          ),
        ),
      ),
    );
  }
}

六、裁剪动画

6.1 圆角动画

class AnimatedRoundedClipContainer extends StatefulWidget {
  const AnimatedRoundedClipContainer({super.key});

  @override
  State<AnimatedRoundedClipContainer> createState() => _AnimatedRoundedClipContainerState();
}

class _AnimatedRoundedClipContainerState extends State<AnimatedRoundedClipContainer>
    with SingleTickerProviderStateMixin {
  late AnimationController _controller;
  late Animation<double> _animation;

  @override
  void initState() {
    super.initState();
    _controller = AnimationController(
      duration: const Duration(seconds: 2),
      vsync: this,
    )..repeat(reverse: true);

    _animation = Tween<double>(begin: 0, end: 50).animate(
      CurvedAnimation(
        parent: _controller,
        curve: Curves.easeInOut,
      ),
    );
  }

  @override
  void dispose() {
    _controller.dispose();
    super.dispose();
  }

  @override
  Widget build(BuildContext context) {
    return AnimatedBuilder(
      animation: _animation,
      builder: (context, child) {
        return ClipRRect(
          borderRadius: BorderRadius.circular(_animation.value),
          child: Container(
            width: 200,
            height: 100,
            color: Colors.blue,
            child: const Center(
              child: Text(
                '圆角动画',
                style: TextStyle(
                  color: Colors.white,
                  fontSize: 18,
                  fontWeight: FontWeight.bold,
                ),
              ),
            ),
          ),
        );
      },
    );
  }
}

6.2 形状变换动画

class ShapeMorphContainer extends StatefulWidget {
  const ShapeMorphContainer({super.key});

  @override
  State<ShapeMorphContainer> createState() => _ShapeMorphContainerState();
}

class _ShapeMorphContainerState extends State<ShapeMorphContainer>
    with SingleTickerProviderStateMixin {
  late AnimationController _controller;
  late Animation<double> _animation;

  @override
  void initState() {
    super.initState();
    _controller = AnimationController(
      duration: const Duration(seconds: 4),
      vsync: this,
    )..repeat();

    _animation = Tween<double>(begin: 0, end: 1).animate(_controller);
  }

  @override
  void dispose() {
    _controller.dispose();
    super.dispose();
  }

  @override
  Widget build(BuildContext context) {
    return AnimatedBuilder(
      animation: _animation,
      builder: (context, child) {
        return Container(
          width: 150,
          height: 150,
          child: ClipPath(
            clipper: _MorphingClipper(animation.value),
            child: Container(
              decoration: BoxDecoration(
                gradient: LinearGradient(
                  colors: [
                    Colors.purple,
                    Colors.pink,
                  ],
                ),
              ),
              child: const Center(
                child: Text(
                  '形状变换',
                  style: TextStyle(
                    color: Colors.white,
                    fontWeight: FontWeight.bold,
                  ),
                ),
              ),
            ),
          ),
        );
      },
    );
  }
}

class _MorphingClipper extends CustomClipper<Path> {
  final double progress;

  _MorphingClipper(this.progress);

  @override
  Path getClip(Size size) {
    final path = Path();
    final center = Offset(size.width / 2, size.height / 2);
    final radius = size.width / 2;
    final sides = 3 + progress * 5; // 3到8边形

    final sideCount = sides.toInt();
    for (int i = 0; i < sideCount; i++) {
      final angle = (i * 2 * 3.14159) / sideCount - 3.14159 / 2;
      final x = center.dx + radius * cos(angle);
      final y = center.dy + radius * sin(angle);

      if (i == 0) {
        path.moveTo(x, y);
      } else {
        path.lineTo(x, y);
      }
    }
    path.close();
    return path;
  }

  @override
  bool shouldReclip(covariant _MorphingClipper oldClipper) =>
      progress != oldClipper.progress;
}

七、裁剪应用场景

7.1 头像裁剪

class AvatarClipContainer extends StatelessWidget {
  const AvatarClipContainer({super.key});

  @override
  Widget build(BuildContext context) {
    return Row(
      mainAxisAlignment: MainAxisAlignment.spaceEvenly,
      children: [
        // 圆形头像
        ClipOval(
          child: Image.network(
            'https://via.placeholder.com/80',
            width: 80,
            height: 80,
            fit: BoxFit.cover,
          ),
        ),

        // 圆角头像
        ClipRRect(
          borderRadius: BorderRadius.circular(12),
          child: Image.network(
            'https://via.placeholder.com/80x100',
            width: 80,
            height: 100,
            fit: BoxFit.cover,
          ),
        ),

        // 六边形头像
        ClipPath(
          clipper: const HexagonClipper(),
          child: Image.network(
            'https://via.placeholder.com/80',
            width: 80,
            height: 80,
            fit: BoxFit.cover,
          ),
        ),
      ],
    );
  }
}

7.2 卡片裁剪

class CardClipContainer extends StatelessWidget {
  const CardClipContainer({super.key});

  @override
  Widget build(BuildContext context) {
    return Container(
      width: 200,
      decoration: BoxDecoration(
        gradient: LinearGradient(
          colors: [Colors.blue.shade100, Colors.blue.shade300],
        ),
        borderRadius: BorderRadius.circular(16),
      ),
      child: ClipPath(
        clipper: const WaveClipper(waveHeight: 15),
        child: Container(
          height: 100,
          decoration: BoxDecoration(
            gradient: LinearGradient(
              colors: [Colors.blue, Colors.purple],
            ),
          ),
          child: const Center(
            child: Text(
              '波浪卡片',
              style: TextStyle(
                color: Colors.white,
                fontSize: 18,
                fontWeight: FontWeight.bold,
              ),
            ),
          ),
        ),
      ),
    );
  }
}

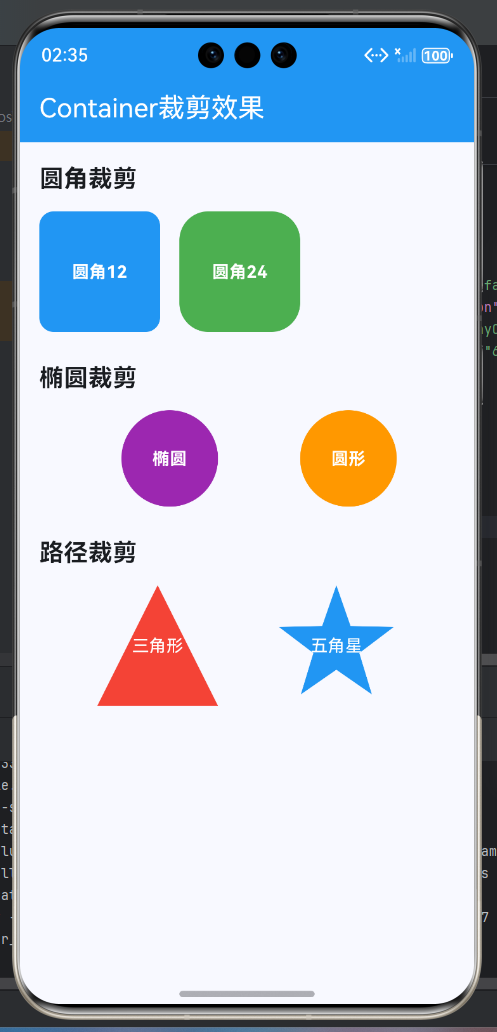

八、完整裁剪示例

class ContainerClipExample extends StatelessWidget {
  const ContainerClipExample({super.key});

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(
        title: const Text('Container裁剪效果'),
        backgroundColor: Colors.blue,
        foregroundColor: Colors.white,
      ),
      body: ListView(
        padding: const EdgeInsets.all(16),
        children: [
          const Text(
            '圆角裁剪',
            style: TextStyle(fontSize: 20, fontWeight: FontWeight.bold),
          ),
          const SizedBox(height: 12),
          const RoundedClipContainer(),
          const SizedBox(height: 16),
          const IrregularRoundedClip(),
          const SizedBox(height: 16),
          const EllipseClipContainer(),
          const SizedBox(height: 24),

          const Text(
            'Clip组件裁剪',
            style: TextStyle(fontSize: 20, fontWeight: FontWeight.bold),
          ),
          const SizedBox(height: 12),
          const ClipRRectExample(),
          const SizedBox(height: 16),
          const ClipOvalExample(),
          const SizedBox(height: 24),

          const Text(
            '路径裁剪',
            style: TextStyle(fontSize: 20, fontWeight: FontWeight.bold),
          ),
          const SizedBox(height: 12),
          const ClipPathExample(),
          const SizedBox(height: 16),
          const CustomShapeContainer(),
          const SizedBox(height: 16),
          const CompositeClipContainer(),
          const SizedBox(height: 24),

          const Text(
            '裁剪动画',
            style: TextStyle(fontSize: 20, fontWeight: FontWeight.bold),
          ),
          const SizedBox(height: 12),
          const AnimatedRoundedClipContainer(),
          const SizedBox(height: 16),
          const ShapeMorphContainer(),
          const SizedBox(height: 24),

          const Text(
            '应用场景',
            style: TextStyle(fontSize: 20, fontWeight: FontWeight.bold),
          ),
          const SizedBox(height: 12),
          const AvatarClipContainer(),
          const SizedBox(height: 16),
          const CardClipContainer(),
        ],
      ),
    );
  }
}

欢迎加入开源鸿蒙跨平台社区：https://openharmonycrossplatform.csdn.net

开源鸿蒙跨平台开发者社区

开源鸿蒙跨平台开发社区汇聚开发者与厂商，共建“一次开发，多端部署”的开源生态，致力于降低跨端开发门槛，推动万物智联创新。

更多推荐

博文八：Flutter for OpenHarmony 社区便民实战——水电燃气账单查询+线上一键缴费闭环模块

水电燃气缴费是社区居民每月高频刚需民生业务，也是智慧社区便民APP核心留存功能。传统线下营业厅排队缴费、多平台跳转操作、账单对账不透明、逾期突发停供、资金隐私有风险等问题，长期困扰居民与物业运维。本文基于轻量化开发一体化缴费便民模块，无需额外硬件改造，适配全系低配鸿蒙机型，集成户号绑定、实时账单查询、用量可视化分析、欠费预警、原生安全支付、缴费台账归档全闭环能力，适老化极简交互，轻松通过鸿蒙应用市

开源鸿蒙跨平台开发者社区

【maaath】Flutter for OpenHarmony 流量监控应用实战开发

开源鸿蒙跨平台开发者社区

Flutter 跨平台实战：OpenHarmony 健康管理应用 Day5｜全流程数据闭环与健康数据总览页面实现

大家好，本篇是我真实完成Flutter + OpenHarmony 健康管理应用的 Day5 开发笔记，基于 Day1-Day4 已完成的工程基础，继续实现用户信息录入 - 健康数据录入 - 数据总览展示全流程链路，完成多页面逐级数据传递、全表单校验、完整数据可视化展示，全程只用 DevEco Studio 开发，一步不漏、全部写细，新手照着做就能一次成功！
