Flutter手写签名生成器：打造专业电子签名工具

项目简介

手写签名生成器是一款支持手写绘制、保存和管理电子签名的应用。通过触摸屏幕绘制签名，支持多种画笔颜色和粗细调节，可以保存签名图片并随时查看和管理，适用于电子文档签署、合同签名等场景。

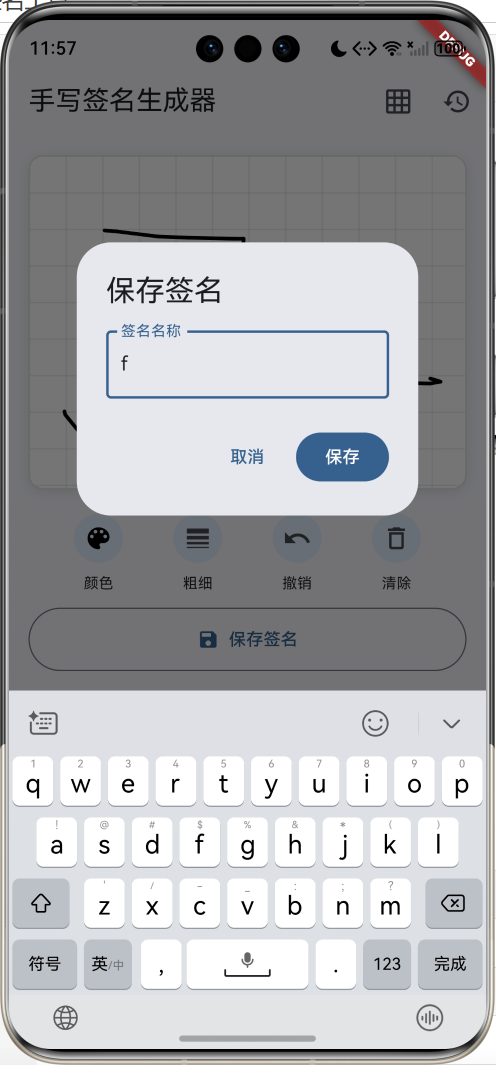

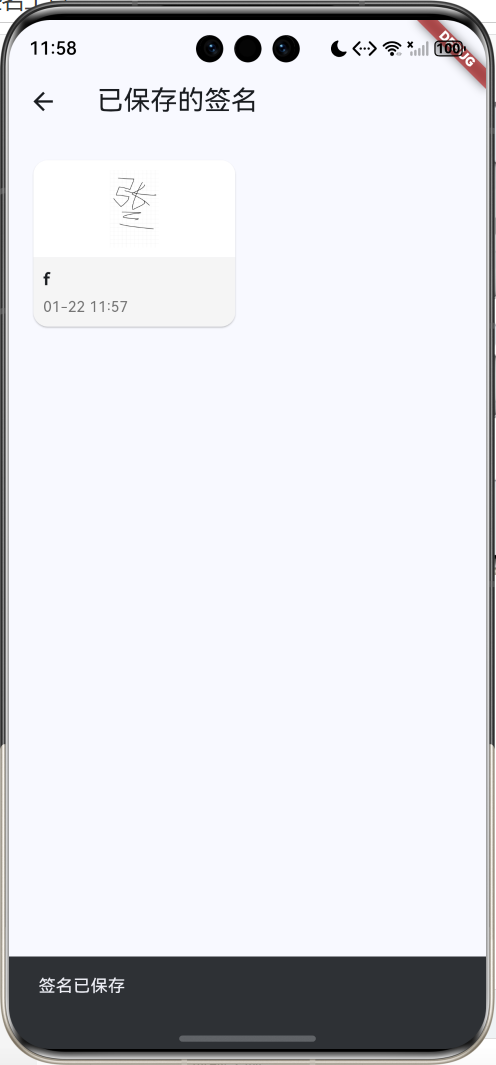

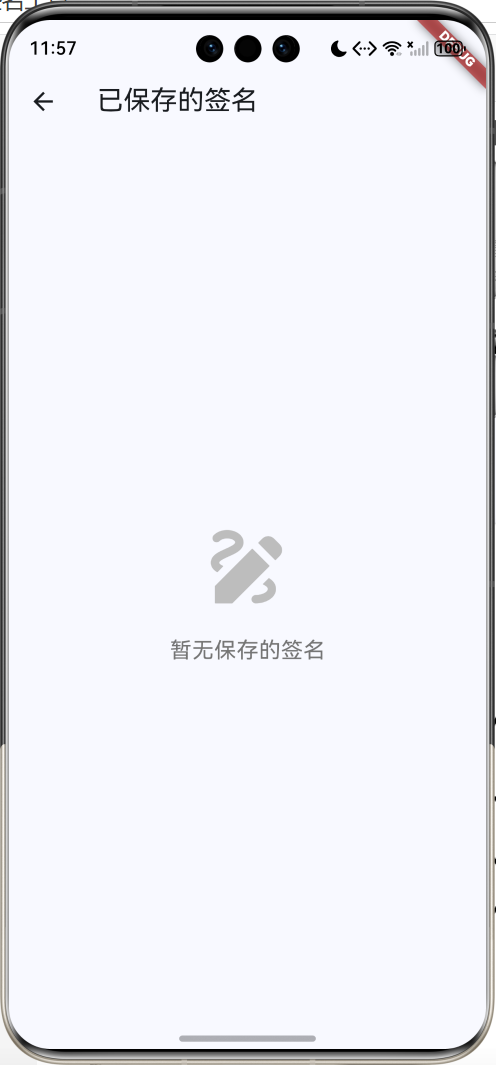

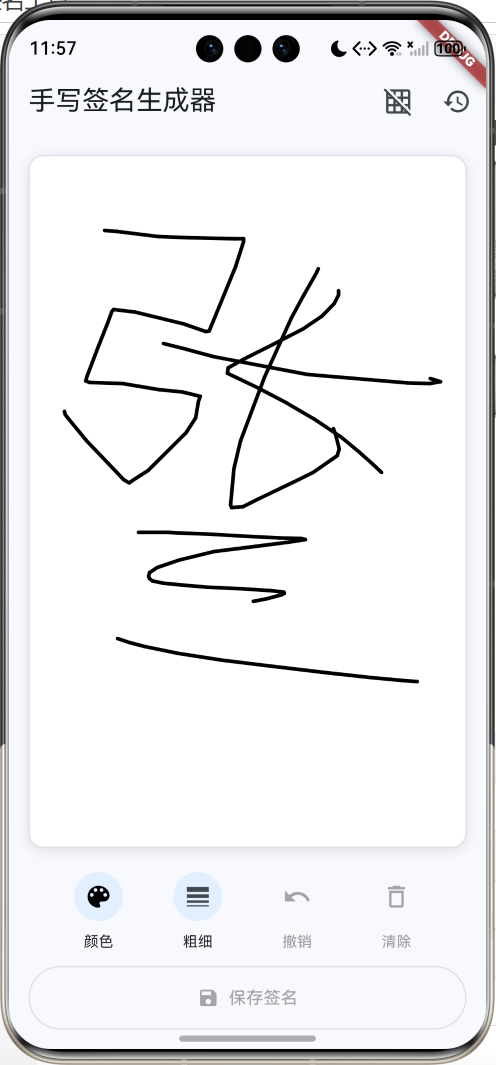

运行效果图

核心功能

• 手写绘制：流畅的手写签名体验
• 画笔设置：多种颜色和粗细选择
• 撤销功能：支持撤销上一笔
• 网格辅助：可选网格线辅助对齐
• 签名保存：保存为PNG图片
• 签名管理：查看和删除已保存签名

应用特色

特色	说明
流畅绘制	基于CustomPainter实现流畅手写
高清导出	3倍像素比例高清图片
多样化设置	8种颜色、10级粗细
网格辅助	可选网格线辅助书写
便捷管理	网格展示、快速查看

功能架构

核心功能详解

1. 手写绘制实现

使用CustomPainter实现流畅的手写效果。

绘制控制器：

class SignaturePainterController extends ChangeNotifier {
  final List<List<DrawPoint>> _strokes = [];
  final List<List<DrawPoint>> _undoneStrokes = [];

  bool get isEmpty => _strokes.isEmpty;
  bool get canUndo => _strokes.isNotEmpty;

  void addPoint(Offset point, Color color, double width) {
    if (_strokes.isEmpty || _strokes.last.isEmpty) {
      _strokes.add([]);
    }
    _strokes.last.add(DrawPoint(point, color, width));
    _undoneStrokes.clear();
    notifyListeners();
  }

  void endStroke() {
    if (_strokes.isNotEmpty && _strokes.last.isNotEmpty) {
      _strokes.add([]);
    }
  }

  void undo() {
    if (_strokes.isNotEmpty) {
      final lastStroke = _strokes.removeLast();
      if (lastStroke.isNotEmpty) {
        _undoneStrokes.add(lastStroke);
      }
      notifyListeners();
    }
  }

  void clear() {
    _strokes.clear();
    _undoneStrokes.clear();
    notifyListeners();
  }

  List<List<DrawPoint>> get strokes => _strokes;
}

数据结构：

• _strokes：所有笔画的列表
• 每个笔画是一个DrawPoint列表
• DrawPoint包含位置、颜色、粗细信息

手势处理：

GestureDetector(
  onPanStart: (details) {
    _controller.addPoint(
      details.localPosition,
      _penColor,
      _penWidth,
    );
  },
  onPanUpdate: (details) {
    _controller.addPoint(
      details.localPosition,
      _penColor,
      _penWidth,
    );
  },
  onPanEnd: (details) {
    _controller.endStroke();
  },
  child: CustomPaint(
    size: Size.infinite,
    painter: SignaturePainter(_controller),
  ),
)

2. 签名绘制

使用CustomPainter绘制签名路径。

绘制实现：

class SignaturePainter extends CustomPainter {
  final SignaturePainterController controller;

  SignaturePainter(this.controller) : super(repaint: controller);

  @override
  void paint(Canvas canvas, Size size) {
    for (final stroke in controller.strokes) {
      if (stroke.isEmpty) continue;

      // 绘制连续的线段
      for (int i = 0; i < stroke.length - 1; i++) {
        final p1 = stroke[i];
        final p2 = stroke[i + 1];

        final paint = Paint()
          ..color = p1.color
          ..strokeWidth = p1.width
          ..strokeCap = StrokeCap.round
          ..strokeJoin = StrokeJoin.round;

        canvas.drawLine(p1.offset, p2.offset, paint);
      }

      // 单点绘制为圆点
      if (stroke.length == 1) {
        final p = stroke[0];
        final paint = Paint()
          ..color = p.color
          ..strokeWidth = p.width
          ..strokeCap = StrokeCap.round;

        canvas.drawCircle(p.offset, p.width / 2, paint);
      }
    }
  }

  @override
  bool shouldRepaint(SignaturePainter oldDelegate) => true;
}

绘制特点：

• 使用drawLine连接相邻点
• 圆角端点和连接点
• 单点绘制为圆形
• 支持不同颜色和粗细

3. 画笔设置

支持颜色和粗细调节。

颜色选择器：

void _showColorPicker() {
  showDialog(
    context: context,
    builder: (context) => AlertDialog(
      title: const Text('选择画笔颜色'),
      content: Wrap(
        spacing: 12,
        runSpacing: 12,
        children: [
          Colors.black,
          Colors.blue,
          Colors.red,
          Colors.green,
          Colors.purple,
          Colors.orange,
          Colors.brown,
          Colors.pink,
        ].map((color) {
          return GestureDetector(
            onTap: () {
              setState(() => _penColor = color);
              Navigator.pop(context);
            },
            child: Container(
              width: 50,
              height: 50,
              decoration: BoxDecoration(
                color: color,
                shape: BoxShape.circle,
                border: Border.all(
                  color: _penColor == color
                    ? Colors.white
                    : Colors.grey,
                  width: _penColor == color ? 3 : 1,
                ),
              ),
            ),
          );
        }).toList(),
      ),
    ),
  );
}

粗细调节器：

void _showPenWidthDialog() {
  showDialog(
    context: context,
    builder: (context) => AlertDialog(
      title: const Text('画笔粗细'),
      content: StatefulBuilder(
        builder: (context, setState) => Column(
          mainAxisSize: MainAxisSize.min,
          children: [
            Text('${_penWidth.toStringAsFixed(1)} px'),
            Slider(
              value: _penWidth,
              min: 1.0,
              max: 10.0,
              divisions: 18,
              onChanged: (value) {
                setState(() => _penWidth = value);
                this.setState(() {});
              },
            ),
            const SizedBox(height: 16),
            CustomPaint(
              size: const Size(200, 50),
              painter: PreviewPainter(_penColor, _penWidth),
  okeCap.round;

    canvas.drawLine(
      Offset(0, size.height / 2),
      Offset(size.width, size.height / 2),
      paint,
    );
  }

  @override
  bool shouldRepaint(PreviewPainter oldDelegate) =>
      color != oldDelegate.color || width != oldDelegate.width;
}

4. 网格辅助

可选的网格线辅助对齐。

网格绘制：

class GridPainter extends CustomPainter {
  @override
  void paint(Canvas canvas, Size size) {
    final paint = Paint()
      ..color = Colors.grey.withValues(alpha: 0.2)
      ..strokeWidth = 1;

    const spacing = 30.0;

    // 绘制垂直线
    for (double x = 0; x < size.width; x += spacing) {
      canvas.drawLine(
        Offset(x, 0),
        Offset(x, size.height),
        paint
      );
    }

    // 绘制水平线
    for (double y = 0; y < size.height; y += spacing) {
      canvas.drawLine(
        Offset(0, y),
        Offset(size.width, y),
        paint
      );
    }
  }

  @override
  bool shouldRepaint(GridPainter oldDelegate) => false;
}

网格使用：

Stack(
  children: [
    if (_showGrid)
      CustomPaint(
        size: Size.infinite,
        painter: GridPainter(),
      ),
    GestureDetector(
      // 手写输入
      child: CustomPaint(
        size: Size.infinite,
        painter: SignaturePainter(_controller),
      ),
    ),
  ],
)

5. 签名保存

将签名转换为PNG图片保存。

截图实现：

Future<Uint8List?> _captureSignature() async {
  try {
    final boundary = _signatureKey.currentContext?.findRenderObject()
        as RenderRepaintBoundary?;
    if (boundary == null) return null;

    // 生成高清图片（3倍像素比例）
    final image = await boundary.toImage(pixelRatio: 3.0);
    final byteData = await image.toByteData(
      format: ui.ImageByteFormat.png
    );
    return byteData?.buffer.asUint8List();
  } catch (e) {
    return null;
  }
}

保存流程：

Future<void> _saveSignature() async {
  if (_controller.isEmpty) {
    if (mounted) {
      ScaffoldMessenger.of(context).showSnackBar(
        const SnackBar(content: Text('请先绘制签名')),
      );
    }
    return;
  }

  final imageData = await _captureSignature();
  if (imageData != null && mounted) {
    final name = await _showNameDialog();
    if (name != null && name.isNotEmpty && mounted) {
      setState(() {
        _savedSignatures.insert(
          0,
          SignatureData(
            name: name,
            imageData: imageData,
            createTime: DateTime.now(),
          ),
        );
      });
      if (mounted) {
        ScaffoldMessenger.of(context).showSnackBar(
          const SnackBar(content: Text('签名已保存')),
        );
      }
    }
  }
}

关键技术：

• RepaintBoundary：标记需要截图的区域
• RenderRepaintBoundary.toImage()：生成图片
• pixelRatio: 3.0：3倍像素比例，确保高清
• ImageByteFormat.png：PNG格式

6. 签名管理

网格展示和详情查看。

网格展示：

GridView.builder(
  padding: const EdgeInsets.all(16),
  gridDelegate: const SliverGridDelegateWithFixedCrossAxisCount(
    crossAxisCount: 2,
    crossAxisSpacing: 12,
    mainAxisSpacing: 12,
    childAspectRatio: 1.2,
  ),
  itemCount: signatures.length,
  itemBuilder: (context, index) {
    final signature = signatures[index];
    return Card(
      clipBehavior: Clip.antiAlias,
      child: InkWell(
        onTap: () {
          Navigator.push(
            context,
            MaterialPageRoute(
              builder: (_) => SignatureDetailPage(
                signature: signature,
                onDelete: () {
                  onDelete(index);
                  Navigator.pop(context);
                },
              ),
            ),
          );
        },
        child: Column(
          crossAxisAlignment: CrossAxisAlignment.stretch,
          children: [
            Expanded(
              child: Container(
                color: Colors.white,
                padding: const EdgeInsets.all(8),
                child: Image.memory(
                  signature.imageData,
                  fit: BoxFit.contain,
                ),
              ),
            ),
            Container(
              padding: const EdgeInsets.all(8),
              color: Colors.grey[100],
              child: Column(
                crossAxisAlignment: CrossAxisAlignment.start,
                children: [
                  Text(
                    signature.name,
                    style: const TextStyle(
                      fontWeight: FontWeight.bold,
                    ),
                    maxLines: 1,
                    overflow: TextOverflow.ellipsis,
                  ),
                  const SizedBox(height: 4),
                  Text(
                    _formatTime(signature.createTime),
                    style: TextStyle(
                      fontSize: 12,
                      color: Colors.grey[600],
                    ),
                  ),
                ],
              ),
            ),
          ],
        ),
      ),
    );
  },
)

界面设计要点

1. 绘制区域

白色背景、圆角边框、阴影效果：

Container(
  margin: const EdgeInsets.all(16),
  decoration: BoxDecoration(
    color: Colors.white,
    border: Border.all(color: Colors.grey[300]!),
    borderRadius: BorderRadius.circular(12),
    boxShadow: [
      BoxShadow(
        color: Colors.black.withValues(alpha: 0.1),
        blurRadius: 8,
        offset: const Offset(0, 2),
      ),
    ],
  ),
  child: ClipRRect(
    borderRadius: BorderRadius.circular(12),
    child: RepaintBoundary(
      key: _signatureKey,
      child: // 绘制内容
    ),
  ),
)

2. 工具按钮

图标+文字的垂直布局：

Widget _buildToolButton({
  required IconData icon,
  required String label,
  VoidCallback? onPressed,
  Color? color,
}) {
  return Column(
    mainAxisSize: MainAxisSize.min,
    children: [
      IconButton(
        icon: Icon(icon, color: color),
        onPressed: onPressed,
        style: IconButton.styleFrom(
          backgroundColor: onPressed == null
              ? Colors.grey[200]
              : Colors.blue.withValues(alpha: 0.1),
        ),
      ),
      const SizedBox(height: 4),
      Text(
        label,
        style: TextStyle(
          fontSize: 12,
          color: onPressed == null ? Colors.grey : Colors.black87,
        ),
      ),
    ],
  );
}

3. 颜色方案

用途	颜色	说明
主色调	Blue	清新、专业
背景	White	纯净、清晰
边框	Grey[300]	柔和分隔
禁用	Grey[200]	不可用状态
阴影	Black(0.1)	轻微立体感

数据模型设计

签名数据模型

class SignatureData {
  final String name;          // 签名名称
  final Uint8List imageData;  // PNG图片数据
  final DateTime createTime;  // 创建时间

  SignatureData({
    required this.name,
    required this.imageData,
    required this.createTime,
  });
}

绘制点模型

class DrawPoint {
  final Offset offset;  // 位置
  final Color color;    // 颜色
  final double width;   // 粗细

  DrawPoint(this.offset, this.color, this.width);
}

核心技术要点

1. RepaintBoundary

用于标记需要截图的区域：

RepaintBoundary(
  key: _signatureKey,
  child: // 需要截图的内容
)

2. CustomPainter

自定义绘制：

class SignaturePainter extends CustomPainter {
  final SignaturePainterController controller;

  SignaturePainter(this.controller) : super(repaint: controller);

  @override
  void paint(Canvas canvas, Size size) {
    // 绘制逻辑
  }

  @override
  bool shouldRepaint(SignaturePainter oldDelegate) => true;
}

3. ChangeNotifier

状态管理：

class SignaturePainterController extends ChangeNotifier {
  void addPoint(Offset point, Color color, double width) {
    // 添加点
    notifyListeners();  // 通知更新
  }
}

4. GestureDetector

手势识别：

GestureDetector(
  onPanStart: (details) {
    // 开始绘制
  },
  onPanUpdate: (details) {
    // 持续绘制
  },
  onPanEnd: (details) {
    // 结束绘制
  },
  child: // 绘制区域
)

功能扩展建议

1. 数据持久化

使用SharedPreferences保存签名：

import 'package:shared_preferences/shared_preferences.dart';
import 'dart:convert';

class SignatureStorage {
  Future<void> saveSignatures(List<SignatureData> signatures) async {
    final prefs = await SharedPreferences.getInstance();
    final jsonList = signatures.map((s) => {
      'name': s.name,
      'imageData': base64Encode(s.imageData),
      'createTime': s.createTime.toIso8601String(),
    }).toList();
    await prefs.setString('signatures', jsonEncode(jsonList));
  }

  Future<List<SignatureData>> loadSignatures() async {
    final prefs = await SharedPreferences.getInstance();
    final jsonStr = prefs.getString('signatures');
    if (jsonStr == null) return [];

    final jsonList = jsonDecode(jsonStr) as List;
    return jsonList.map((json) => SignatureData(
      name: json['name'],
      imageData: base64Decode(json['imageData']),
      createTime: DateTime.parse(json['createTime']),
    )).toList();
  }
}

2. 分享功能

使用share_plus分享签名：

import 'package:share_plus/share_plus.dart';
import 'dart:io';
import 'package:path_provider/path_provider.dart';

Future<void> shareSignature(SignatureData signature) async {
  final directory = await getTemporaryDirectory();
  final file = File('${directory.path}/${signature.name}.png');
  await file.writeAsBytes(signature.imageData);

  await Share.shareXFiles(
    [XFile(file.path)],
    text: '我的签名：${signature.name}',
  );
}

3. 导出PDF

使用pdf包生成PDF文档：

import 'package:pdf/pdf.dart';
import 'package:pdf/widgets.dart' as pw;
import 'package:printing/printing.dart';

Future<void> exportToPDF(SignatureData signature) async {
  final pdf = pw.Document();

  final image = pw.MemoryImage(signature.imageData);

  pdf.addPage(
    pw.Page(
      build: (context) => pw.Center(
        child: pw.Column(
          mainAxisAlignment: pw.MainAxisAlignment.center,
          children: [
            pw.Text(
              signature.name,
              style: pw.TextStyle(fontSize: 24),
            ),
            pw.SizedBox(height: 20),
            pw.Image(image, width: 300),
            pw.SizedBox(height: 20),
            pw.Text(
              '签署时间：${signature.createTime}',
              style: pw.TextStyle(fontSize: 12),
            ),
          ],
        ),
      ),
    ),
  );

  await Printing.layoutPdf(
    onLayout: (format) async => pdf.save(),
  );
}

4. 背景图片

支持在背景图片上签名：

class SignatureWithBackground extends StatefulWidget {
  final Uint8List? backgroundImage;

  @override
  Widget build(BuildContext context) {
    return Stack(
      children: [
        if (backgroundImage != null)
          Image.memory(
            backgroundImage,
            fit: BoxFit.cover,
            width: double.infinity,
            height: double.infinity,
          ),
        CustomPaint(
          size: Size.infinite,
          painter: SignaturePainter(_controller),
        ),
      ],
    );
  }
}

5. 签名模板

预设签名样式：

class SignatureTemplate {
  final String name;
  final TextStyle textStyle;
  final Color backgroundColor;

  SignatureTemplate({
    required this.name,
    required this.textStyle,
    required this.backgroundColor,
  });

  static final templates = [
    SignatureTemplate(
      name: '正式',
      textStyle: TextStyle(
        fontFamily: 'Serif',
        fontSize: 32,
        fontWeight: FontWeight.bold,
      ),
      backgroundColor: Colors.white,
    ),
    SignatureTemplate(
      name: '艺术',
      textStyle: TextStyle(
        fontFamily: 'Cursive',
        fontSize: 36,
        fontStyle: FontStyle.italic,
      ),
      backgroundColor: Colors.grey[100]!,
    ),
  ];
}

6. 签名识别

使用ML Kit识别手写文字：

import 'package:google_mlkit_text_recognition/google_mlkit_text_recognition.dart';

class SignatureRecognition {
  final textRecognizer = TextRecognizer();

  Future<String?> recognizeText(Uint8List imageData) async {
    final inputImage = InputImage.fromBytes(
      bytes: imageData,
      metadata: InputImageMetadata(
        size: Size(800, 600),
        rotation: InputImageRotation.rotation0deg,
        format: InputImageFormat.nv21,
        bytesPerRow: 800,
      ),
    );

    final recognizedText = await textRecognizer.processImage(inputImage);
    return recognizedText.text;
  }

  void dispose() {
    textRecognizer.close();
  }
}

7. 签名水印

添加时间戳水印：

class WatermarkPainter extends CustomPainter {
  final String text;

  WatermarkPainter(this.text);

  @override
  void paint(Canvas canvas, Size size) {
    final textPainter = TextPainter(
      text: TextSpan(
        text: text,
        style: TextStyle(
          color: Colors.grey.withValues(alpha: 0.3),
          fontSize: 12,
        ),
      ),
      textDirection: TextDirection.ltr,
    );

    textPainter.layout();
    textPainter.paint(
      canvas,
      Offset(
        size.width - textPainter.width - 10,
        size.height - textPainter.height - 10,
      ),
    );
  }

  @override
  bool shouldRepaint(WatermarkPainter oldDelegate) => false;
}

8. 签名加密

使用加密保护签名数据：

import 'package:encrypt/encrypt.dart';

class SignatureEncryption {
  final key = Key.fromLength(32);
  final iv = IV.fromLength(16);

  String encryptSignature(Uint8List imageData) {
    final encrypter = Encrypter(AES(key));
    final encrypted = encrypter.encryptBytes(
      imageData,
      iv: iv,
    );
    return encrypted.base64;
  }

  Uint8List decryptSignature(String encryptedData) {
    final encrypter = Encrypter(AES(key));
    final decrypted = encrypter.decryptBytes(
      Encrypted.fromBase64(encryptedData),
      iv: iv,
    );
    return Uint8List.fromList(decrypted);
  }
}

项目结构

lib/
├── main.dart                      # 应用入口
├── models/                        # 数据模型
│   ├── signature_data.dart       # 签名数据
│   ├── draw_point.dart           # 绘制点
│   └── signature_template.dart   # 签名模板
├── pages/                         # 页面
│   ├── signature_page.dart       # 主绘制页面
│   ├── saved_signatures_page.dart # 已保存签名
│   └── signature_detail_page.dart # 签名详情
├── widgets/                       # 组件
│   ├── signature_painter.dart    # 签名画笔
│   ├── grid_painter.dart         # 网格绘制
│   ├── preview_painter.dart      # 预览画笔
│   └── tool_button.dart          # 工具按钮
├── controllers/                   # 控制器
│   └── signature_controller.dart # 签名控制器
└── services/                      # 服务
    ├── signature_storage.dart    # 数据存储
    ├── signature_export.dart     # 导出服务
    └── signature_encryption.dart # 加密服务

使用指南

基本操作

1. 绘制签名

   • 在白色区域用手指绘制
   • 支持多笔画连续绘制

2. 调整画笔

   • 点击"颜色"选择画笔颜色
   • 点击"粗细"调节画笔粗细

3. 撤销操作

   • 点击"撤销"删除上一笔
   • 点击"清除"清空所有内容

4. 保存签名

   • 点击"保存签名"按钮
   • 输入签名名称
   • 确认保存

5. 查看签名

   • 点击右上角历史图标
   • 网格展示所有签名
   • 点击查看详情

高级技巧

1. 使用网格

   • 开启网格辅助对齐
   • 适合规整的签名

2. 多次尝试

   • 使用撤销功能修正
   • 清除后重新绘制

3. 选择合适粗细

   • 细笔适合详细签名
   • 粗笔适合简洁签名

常见问题

Q1: 如何提高签名清晰度？

签名以3倍像素比例保存，已经很清晰。如需更高清晰度：

final image = await boundary.toImage(pixelRatio: 5.0);

Q2: 如何导出签名图片？

使用share_plus或image_gallery_saver：

import 'package:image_gallery_saver/image_gallery_saver.dart';

Future<void> saveToGallery(Uint8List imageData) async {
  await ImageGallerySaver.saveImage(
    imageData,
    quality: 100,
    name: 'signature_${DateTime.now().millisecondsSinceEpoch}',
  );
}

Q3: 如何实现签名透明背景？

修改截图时的背景：

// 在RepaintBoundary内不设置背景色
Container(
  color: Colors.transparent,  // 透明背景
  child: CustomPaint(
    painter: SignaturePainter(_controller),
  ),
)

Q4: 如何优化绘制性能？

1. 使用RepaintBoundary

RepaintBoundary(
  child: CustomPaint(
    painter: SignaturePainter(_controller),
  ),
)

2. 减少重绘范围

@override
bool shouldRepaint(SignaturePainter oldDelegate) {
  return controller.strokes.length !=
    oldDelegate.controller.strokes.length;
}

3. 使用Path优化

final path = Path();
for (int i = 0; i < stroke.length - 1; i++) {
  if (i == 0) {
    path.moveTo(stroke[i].offset.dx, stroke[i].offset.dy);
  } else {
    path.lineTo(stroke[i].offset.dx, stroke[i].offset.dy);
  }
}
canvas.drawPath(path, paint);

Q5: 如何添加签名日期？

在保存时添加日期水印：

Future<Uint8List?> _captureWithDate() async {
  final boundary = _signatureKey.currentContext?.findRenderObject()
      as RenderRepaintBoundary?;
  if (boundary == null) return null;

  final image = await boundary.toImage(pixelRatio: 3.0);

  // 创建新的画布添加日期
  final recorder = ui.PictureRecorder();
  final canvas = Canvas(recorder);

  // 绘制原图
  canvas.drawImage(image, Offset.zero, Paint());

  // 绘制日期
  final textPainter = TextPainter(
    text: TextSpan(
      text: DateFormat('yyyy-MM-dd').format(DateTime.now()),
      style: TextStyle(color: Colors.grey, fontSize: 24),
    ),
    textDirection: TextDirection.ltr,
  );
  textPainter.layout();
  textPainter.paint(canvas, Offset(10, image.height - 40));

  final picture = recorder.endRecording();
  final finalImage = await picture.toImage(
    image.width.toInt(),
    image.height.toInt(),
  );

  final byteData = await finalImage.toByteData(
    format: ui.ImageByteFormat.png
  );
  return byteData?.buffer.asUint8List();
}

性能优化

1. 绘制优化

// 使用Path代替多个drawLine
final path = Path();
for (int i = 0; i < stroke.length; i++) {
  if (i == 0) {
    path.moveTo(stroke[i].offset.dx, stroke[i].offset.dy);
  } else {
    path.lineTo(stroke[i].offset.dx, stroke[i].offset.dy);
  }
}
canvas.drawPath(path, paint);

2. 内存优化

// 限制历史记录数量
if (_savedSignatures.length > 50) {
  _savedSignatures.removeLast();
}

// 及时释放资源
@override
void dispose() {
  _controller.dispose();
  super.dispose();
}

3. 截图优化

// 使用合适的像素比例
final image = await boundary.toImage(
  pixelRatio: MediaQuery.of(context).devicePixelRatio,
);

总结

手写签名生成器是一款实用的电子签名工具，具有以下特点：

核心优势

1. 流畅体验：基于CustomPainter实现流畅手写
2. 高清输出：3倍像素比例高清图片
3. 功能完善：颜色、粗细、撤销、网格
4. 便捷管理：保存、查看、删除

技术亮点

1. CustomPainter：自定义绘制实现
2. RepaintBoundary：高清截图技术
3. ChangeNotifier：状态管理
4. GestureDetector：手势识别

应用价值

• 电子文档签署
• 合同签名
• 快递签收
• 会议签到
• 艺术创作

通过扩展功能如数据持久化、PDF导出、签名识别等，这款应用可以成为专业的电子签名解决方案，满足各种商务和个人需求。

---

欢迎加入开源鸿蒙跨平台社区：https://openharmonycrossplatform.csdn.net
