一、Element的概念

Element是Widget Tree和RenderObject Tree之间的桥梁，它负责：

• 管理Widget的生命周期
• 维护Widget树的结构
• 连接Widget和RenderObject
• 处理Widget的更新和重建

Element的核心职责

职责	说明
持有Widget	Element持有一个Widget引用
管理子Element	维护子Element列表
关联RenderObject	创建和管理RenderObject
处理更新	响应Widget变化并更新RenderObject

二、Element Tree的创建

1. 从Widget到Element

当Widget Tree创建时，Flutter会为每个Widget创建对应的Element：

// Widget
class MyWidget extends StatelessWidget {
  @override
  Widget build(BuildContext context) {
    return Container(child: Text('Hello'));
  }
}

// 对应的Element（由框架自动创建）
// StatelessElement(MyWidget)
//   ├─ RenderObjectElement(Container)
//   │   └─ RenderObject (RenderPadding)
//   └─ Text (RenderObjectElement)
//       └─ RenderObject (RenderParagraph)

2. Element的类型

// StatelessElement - 对应StatelessWidget
class StatelessElement extends ComponentElement {
  final StatelessWidget widget;

  @override
  Widget build() => widget.build(this);
}

// StatefulElement - 对应StatefulWidget
class StatefulElement extends ComponentElement {
  State state;

  @override
  Widget build() => state.build(this);
}

三、Element的生命周期

完整生命周期

生命周期方法

class MyStatefulWidget extends StatefulWidget {
  @override
  _MyStatefulWidgetState createState() => _MyStatefulWidgetState();
}

class _MyStatefulWidgetState extends State<MyStatefulWidget> {
  @override
  void initState() {
    super.initState();
    // Element挂载完成后调用
    // 初始化状态、订阅事件等
    print('initState - Element已挂载');
  }

  @override
  void didChangeDependencies() {
    super.didChangeDependencies();
    // 依赖的InheritedWidget变化时调用
    // 可以访问Theme、MediaQuery等
    print('didChangeDependencies - 依赖变化');
  }

  @override
  void didUpdateWidget(MyStatefulWidget oldWidget) {
    super.didUpdateWidget(oldWidget);
    // 父Widget重建时调用
    // 可以比较新旧Widget决定是否需要更新
    print('didUpdateWidget - Widget更新');
  }

  @override
  void setState(VoidCallback fn) {
    super.setState(fn);
    // 调度重建
    print('setState - 调度重建');
  }

  @override
  void deactivate() {
    super.deactivate();
    // Element从树中移除时调用
    // 可能会被重新插入
    print('deactivate - Element从树中移除');
  }

  @override
  void dispose() {
    // Element永久销毁时调用
    // 清理资源、取消订阅等
    print('dispose - Element销毁');
    super.dispose();
  }

  @override
  Widget build(BuildContext context) {
    return Container(child: Text('Element Lifecycle Demo'));
  }
}

四、Element的更新机制

1. canUpdate检查

当Widget Tree更新时，Flutter会检查新旧Widget是否可以共用同一个Element：

// Element的canUpdate方法
static bool canUpdate(Widget oldWidget, Widget newWidget) {
  return oldWidget.runtimeType == newWidget.runtimeType &&
         oldWidget.key == newWidget.key;
}

2. 更新流程

3. Key的作用示例

// 没有Key - 状态混乱
class WithoutKeyExample extends StatefulWidget {
  @override
  _WithoutKeyExampleState createState() => _WithoutKeyExampleState();
}

class _WithoutKeyExampleState extends State<WithoutKeyExample> {
  final List<ColorTile> _tiles = [
    ColorTile(color: Colors.red, index: 1),
    ColorTile(color: Colors.green, index: 2),
    ColorTile(color: Colors.blue, index: 3),
  ];

  void _swapFirstTwo() {
    setState(() {
      final temp = _tiles[0];
      _tiles[0] = _tiles[1];
      _tiles[1] = temp;
    });
  }

  @override
  Widget build(BuildContext context) {
    return Column(
      children: [
        ElevatedButton(
          onPressed: _swapFirstTwo,
          child: Text('交换前两个'),
        ),
        ..._tiles,
      ],
    );
  }
}

class ColorTile extends StatefulWidget {
  final Color color;
  final int index;

  const ColorTile({required this.color, required this.index});

  @override
  _ColorTileState createState() => _ColorTileState();
}

class _ColorTileState extends State<ColorTile> {
  @override
  Widget build(BuildContext context) {
    return Container(
      color: widget.color,
      height: 50,
      child: Center(child: Text('Tile ${widget.index}')),
    );
  }
}

// 有Key - 状态正确
class WithKeyExample extends StatefulWidget {
  @override
  _WithKeyExampleState createState() => _WithKeyExampleState();
}

class _WithKeyExampleState extends State<WithKeyExample> {
  final List<ColorTile> _tiles = [
    ColorTile(key: ValueKey(1), color: Colors.red, index: 1),
    ColorTile(key: ValueKey(2), color: Colors.green, index: 2),
    ColorTile(key: ValueKey(3), color: Colors.blue, index: 3),
  ];

  void _swapFirstTwo() {
    setState(() {
      final temp = _tiles[0];
      _tiles[0] = _tiles[1];
      _tiles[1] = temp;
    });
  }

  @override
  Widget build(BuildContext context) {
    return Column(
      children: [
        ElevatedButton(
          onPressed: _swapFirstTwo,
          child: Text('交换前两个'),
        ),
        ..._tiles,
      ],
    );
  }
}

五、Element的调试

1. 打印Element树

void main() {
  runApp(MyApp());

  // 在运行时查看Element树
  debugDumpRenderTree();
}

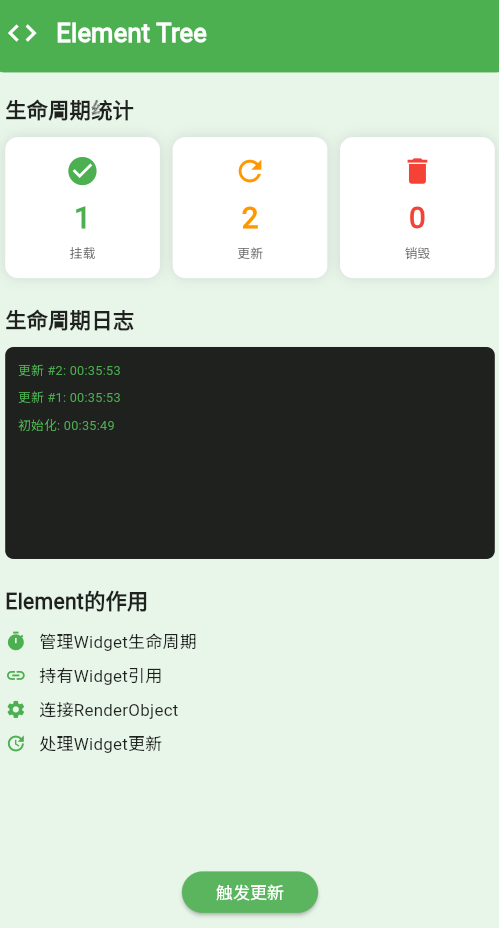

2. 监听Element生命周期

class LifecycleMonitor extends StatefulWidget {
  @override
  _LifecycleMonitorState createState() => _LifecycleMonitorState();
}

class _LifecycleMonitorState extends State<LifecycleMonitor> {
  int _mountCount = 0;
  int _updateCount = 0;
  int _disposeCount = 0;

  @override
  void initState() {
    super.initState();
    _mountCount++;
    print('Element #$hashCode mounted (Total: $_mountCount)');
  }

  @override
  void didUpdateWidget(LifecycleMonitor oldWidget) {
    super.didUpdateWidget(oldWidget);
    _updateCount++;
    print('Element #$hashCode updated (Total: $_updateCount)');
  }

  @override
  void dispose() {
    _disposeCount++;
    print('Element #$hashCode disposed (Total: $_disposeCount)');
    super.dispose();
  }

  @override
  Widget build(BuildContext context) {
    return Container(
      child: Column(
        children: [
          Text('Mounted: $_mountCount'),
          Text('Updated: $_updateCount'),
          Text('Disposed: $_disposeCount'),
          ElevatedButton(
            onPressed: () => setState(() {}),
            child: Text('Update'),
          ),
        ],
      ),
    );
  }
}

六、Element与RenderObject的关系

1. RenderObjectElement

// RenderObjectElement是连接Widget和RenderObject的桥梁
abstract class RenderObjectElement extends Element {
  RenderObject? renderObject;

  @override
  void mount(Element? parent, dynamic newSlot) {
    super.mount(parent, newSlot);
    // 创建RenderObject
    renderObject = widget.createRenderObject(this);
    // 附加RenderObject到渲染树
    attachRenderObject(newSlot);
  }

  @override
  void update(RenderObjectWidget newWidget) {
    super.update(newWidget);
    // 更新RenderObject属性
    widget.updateRenderObject(this, renderObject!);
  }

  @override
  void detachRenderObject() {
    // 从渲染树中移除RenderObject
    renderObject?.detach();
    super.detachRenderObject();
  }
}

2. 创建流程

// Widget创建时
@override
Widget build(BuildContext context) {
  return Container(
    child: Text('Hello'),
  );
}

// 对应的RenderObject创建流程
// 1. Container Widget创建 -> RenderObjectElement创建
// 2. RenderObjectElement.mount()调用
// 3. Container.createRenderObject()创建RenderPadding
// 4. RenderPadding附加到渲染树
// 5. 子Widget Text重复上述流程

七、Element的性能优化

1. 避免不必要的重建

// 不好 - 整个Column都会重建
class BadExample extends StatefulWidget {
  @override
  _BadExampleState createState() => _BadExampleState();
}

class _BadExampleState extends State<BadExample> {
  int counter = 0;

  @override
  Widget build(BuildContext context) {
    return Column(
      children: [
        Text('Counter: $counter'),  // 重建
        ElevatedButton(
          onPressed: () => setState(() => counter++),
          child: Text('Increment'),
        ),  // 重建
        ExpensiveWidget(),  // 重建（浪费）
      ],
    );
  }
}

// 好 - 只重建需要更新的部分
class GoodExample extends StatefulWidget {
  @override
  _GoodExampleState createState() => _GoodExampleState();
}

class _GoodExampleState extends State<GoodExample> {
  int counter = 0;

  @override
  Widget build(BuildContext context) {
    return Column(
      children: [
        CounterDisplay(counter: counter),  // const，不重建
        ElevatedButton(
          onPressed: () => setState(() => counter++),
          child: Text('Increment'),
        ),
        const ExpensiveWidget(),  // const，不重建
      ],
    );
  }
}

class CounterDisplay extends StatelessWidget {
  final int counter;

  const CounterDisplay({required this.counter});

  @override
  Widget build(BuildContext context) {
    return Text('Counter: $counter');
  }
}

2. 使用GlobalKey保持状态

class GlobalKeyExample extends StatefulWidget {
  @override
  _GlobalKeyExampleState createState() => _GlobalKeyExampleState();
}

class _GlobalKeyExampleState extends State<GlobalKeyExample> {
  final GlobalKey<_ChildWidgetState> childKey = GlobalKey();

  @override
  Widget build(BuildContext context) {
    return Column(
      children: [
        ChildWidget(key: childKey),
        ElevatedButton(
          onPressed: () {
            // 通过GlobalKey访问子Widget的State
            childKey.currentState?.increment();
          },
          child: Text('Increment from Parent'),
        ),
        ElevatedButton(
          onPressed: () {
            setState(() {
              // 即使Widget重建，State也会保持
            });
          },
          child: Text('Rebuild'),
        ),
      ],
    );
  }
}

class ChildWidget extends StatefulWidget {
  const ChildWidget({super.key});

  @override
  _ChildWidgetState createState() => _ChildWidgetState();
}

class _ChildWidgetState extends State<ChildWidget> {
  int count = 0;

  void increment() {
    setState(() => count++);
  }

  @override
  Widget build(BuildContext context) {
    return Text('Count: $count');
  }
}

八、Element在HarmonyOS上的特殊考虑

1. 生命周期适配

HarmonyOS可能有不同的生命周期行为，需要适配：

@override
void didChangeAppLifecycleState(AppLifecycleState state) {
  switch (state) {
    case AppLifecycleState.resumed:
      // 应用进入前台
      break;
    case AppLifecycleState.inactive:
      // 应用失去焦点
      break;
    case AppLifecycleState.paused:
      // 应用进入后台
      break;
    case AppLifecycleState.detached:
      // 应用即将退出
      break;
  }
}

2. 内存管理

@override
void dispose() {
  // 清理资源，避免内存泄漏
  _controller.dispose();
  _subscription.cancel();
  super.dispose();
}
