简介
最近需要开发桌面应用,需要有一个简单的界面,本来打算用QT,后面发现学习成本有点高,我的要求很简单,就是启动一个exe,然后能有一些数据的交互就可以了,经过筛选发现electron超级符合我的需求,主要是简单,其它的都不是事。

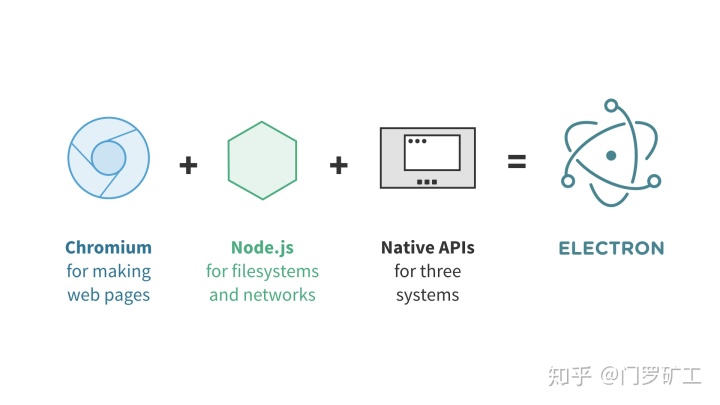

Electron 前称为atom shell,是从github开源项目Atom编辑器中抽离出来的,是一个能让你通过 JavaScript、HTML 和 CSS 构建桌面应用的库 。这些应用能打包到 Mac、Windows 和 Linux 电脑上运行。
它还有其它一些特性:
- 自动更新 —— 应用支持自动更新
- 原生菜单和通知 —— 可以创建原生应用菜单和上下文菜单
- 应用崩溃报告 —— 可以将崩溃报告提交到远程服务器
- 调试和分析 —— Chrominum 的内容模块可以发现性能瓶颈和缓慢的操作。你也可以在应用中使用自己喜欢的 Chrome 开发者工具。
- Windows installer —— 可以快速便捷地创建安装包。
使用手册
API英文版
https://github.com/electron/electron-api-demosgithub.com简易使用说明
electron/electron-quick-startgithub.com
API中文版
demopark/electron-api-demos-Zh_CNgithub.com
程序
electron/electrongithub.com

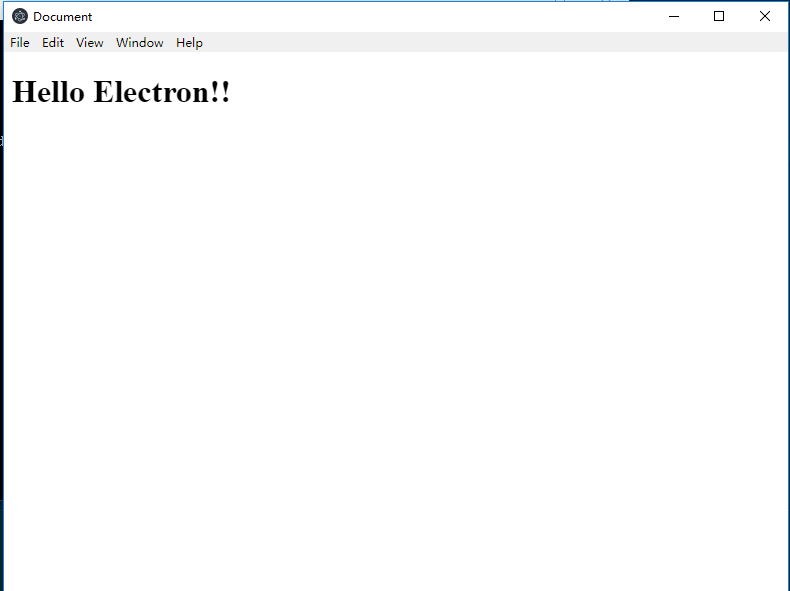

Hello world!
- 安装node.js
- 使用国内npm镜像地址:
npm config set registry https://mirrors.huaweicloud.com/repository/npm/
npm config set disturl Index of /mirrors_toolkit/nodejs/
npm config set electron_mirror Index of /mirrors_toolkit/electron/
npm config set registry https://registry.npm.taobao.org
npm config set disturl Node.js Mirror
npm config set electron_mirror electron Mirror
- 安装electron :
npm install electron -g
- 创建基本文件
index.html
Hello world!
package.json
{
"name" : "app-name",
"version" : "0.1.0",
"main" : "main.js"
}
main.js
const {app, BrowserWindow} = require('electron')
const path = require('path')
const url = require('url')
// Keep a global reference of the window object, if you don't, the window will
// be closed automatically when the JavaScript object is garbage collected.
let win
function createWindow () {
// Create the browser window.
win = new BrowserWindow({width: 800, height: 600})
// and load the index.html of the app.
win.loadURL(url.format({
pathname: path.join(__dirname, 'index.html'),
protocol: 'file:',
slashes: true
}))
// Open the DevTools.
// win.webContents.openDevTools()
// Emitted when the window is closed.
win.on('closed', () => {
// Dereference the window object, usually you would store windows
// in an array if your app supports multi windows, this is the time
// when you should delete the corresponding element.
win = null
})
}
// This method will be called when Electron has finished
// initialization and is ready to create browser windows.
// Some APIs can only be used after this event occurs.
app.on('ready', createWindow)
// Quit when all windows are closed.
app.on('window-all-closed', () => {
// On macOS it is common for applications and their menu bar
// to stay active until the user quits explicitly with Cmd + Q
if (process.platform !== 'darwin') {
app.quit()
}
})
app.on('activate', () => {
// On macOS it's common to re-create a window in the app when the
// dock icon is clicked and there are no other windows open.
if (win === null) {
createWindow()
}
})
// In this file you can include the rest of your app's specific main process
// code. You can also put them in separate files and require them here.
- 打开当前目录命令行
再全局安装 npm install electron-packager -g
- 打包
还在这个目录里直接执行 electron-packager .
打包慢,无反应
electron-packager在当前机器的首次打包前,会下载electron的预编译文件至当前用户,而electron-prebuilder的默认源在国外,在网络不好的情况下,即便有代理,速度非常慢。
本问题的最大坑点在于,下载预编译文件的进度不显示在命令行。
1. 修改npm镜像
首先,你可以更换阿里镜像源,全局执行如下npm脚本再重新打包
npm config set ELECTRON_MIRROR http://npm.taobao.org/mirrors/electron/
2. 修改系统环境变量
由于未知原因,electron-packger / electron-builder 在真实打包时并不识别npm的镜像地址,此时,你需要修改环境变量
变量名:
ELECTRON_MIRROR
变量值:
http://npm.taobao.org/mirrors/electron/
然后,再重启cmd,使环境变量生效,进行打包即可。
安装electron提示install.js error的问题
更换淘宝的镜像
npm install cnpm -g --registry=http://registry.npm.taobao.org
使用cnpm install更新后没有问题。
electron 打包后找不到模块
修改package.json的dependencies
例如:
{
参考资料
Electron调用命令行(cmd)方法总结_操作系统_王俊的博客-CSDN博客blog.csdn.net
