Android 中的 原生和 Flutter 通信：

1. 原生跳转 Flutter 的几种方式：
2. Flutter 调用 原生 & 原生 调用Flutter

原生跳转 Flutter 几种方式 （该方式 不适用相互调用）：

不适用于原生和Flutter的通信； 仅仅是原生 中打开Flutter

第一种方法：缓存的方式打开FlutterEngine ， 需要Application配合；缺点不能直接传参；优点二次打开很快；已经缓存过了；同一个实例

//缓存的方式 打开FlutterEngine缺点不能直接传参； 依赖 MyAppcation
startActivity(
        FlutterActivity
                .withCachedEngine(MyApplicaiton.CACHED_ENGINE_ID)
                .build(MainActivity.this)
);

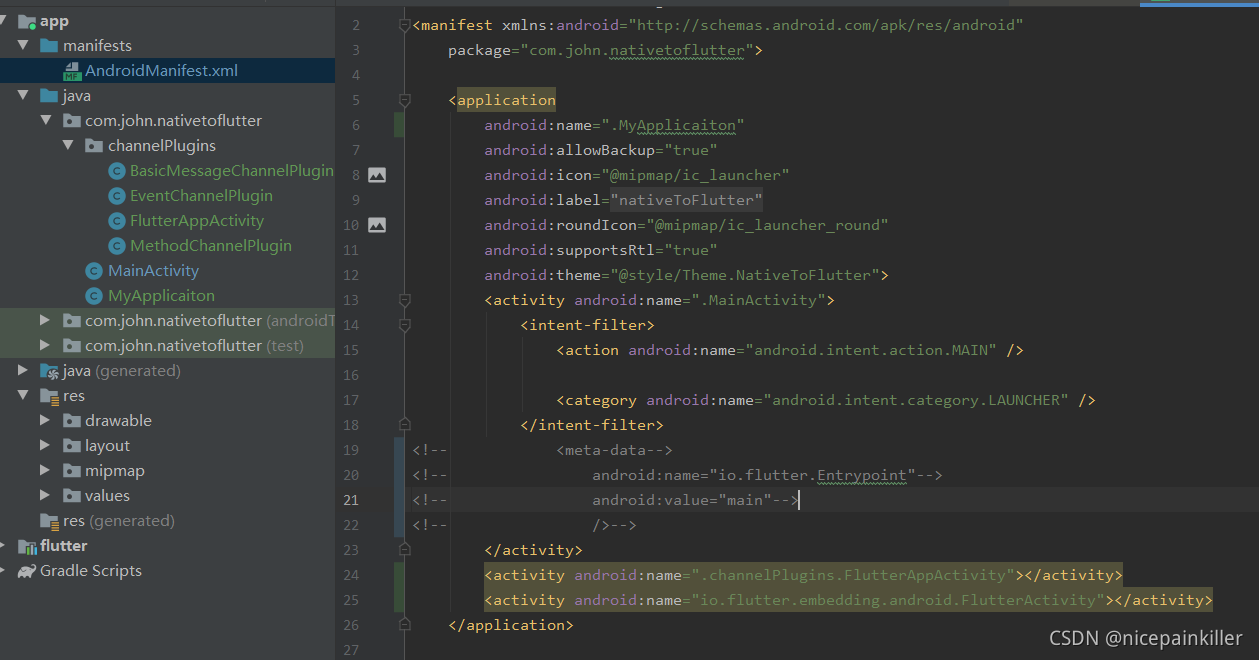

MyApplication：

package com.john.nativetoflutter;

import android.app.Application;

import io.flutter.embedding.engine.FlutterEngine;
import io.flutter.embedding.engine.FlutterEngineCache;
import io.flutter.embedding.engine.dart.DartExecutor;

public class MyApplicaiton extends Application {
    public static final String CACHED_ENGINE_ID = "MY_CACHED_ENGINE_ID";

    @Override
    public void onCreate() {
        super.onCreate();
        //在MyApplication中预先初始化Flutter引擎以提升Flutter页面打开速度
        FlutterEngine flutterEngine = new FlutterEngine(this);

        // Start executing Dart code to pre-warm the FlutterEngine.
        flutterEngine.getDartExecutor().executeDartEntrypoint(DartExecutor.DartEntrypoint.createDefault());
        // Cache the FlutterEngine to be used by FlutterActivity.
        FlutterEngineCache.getInstance().put(CACHED_ENGINE_ID, flutterEngine);
    }
}

第二种：不缓存直接打开 不依赖 Applicaiton；有点可以传参数，每次都是新的实例；缺点多次打开 慢；

//不不緩存 直接打開；每次都是新的 實例；有點可疑傳參
startActivity(
        FlutterActivity
                .withNewEngine()
                .initialRoute("{name:'devio',dataList:['aa','bb','bb']}")//传递的参数
                .build(MainActivity.this)
);

第三中:  和第二种类似：不缓存 不传参；不需要依赖 Applicaiton

startActivity( FlutterAppActivity.createDefaultIntent(MainActivity.this));

Flutter 原生的相互调用 ：

重写 FlutterActivity:  FlutterAppActivity;

package com.john.nativetoflutter.channelPlugins;

import android.content.Context;
import android.content.Intent;
import android.os.Bundle;
import android.util.Log;
import android.widget.Button;
import android.widget.LinearLayout;

import androidx.annotation.NonNull;
import io.flutter.embedding.android.FlutterActivity;

public class FlutterAppActivity extends FlutterActivity  {
    private static final String TAG = FlutterAppActivity.class.getSimpleName();

    public final static String INIT_PARAMS = "initParams";

    private BasicMessageChannelPlugin basicMessageChannelPlugin;
    private EventChannelPlugin eventChannelPlugin;
    private String initParams;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        if(getIntent().hasExtra(FlutterAppActivity.INIT_PARAMS)){
            initParams = getIntent().getStringExtra(INIT_PARAMS);
        }

        if (getFlutterEngine() != null) {
            //注册Flutter plugin
            eventChannelPlugin = EventChannelPlugin.registerWith(getFlutterEngine().getDartExecutor());
            MethodChannelPlugin.registerWith(getFlutterEngine().getDartExecutor(), this);
            basicMessageChannelPlugin = BasicMessageChannelPlugin.registerWith(getFlutterEngine().getDartExecutor(), this);

        } else {
            Log.e(TAG, "getFlutterEngine() is null register plugin fail");
        }

    }

    /**
     * 重载该方法来传递初始化参数
     *
     * @return
     */

    @NonNull
    @Override
    public String getInitialRoute() {
        return initParams == null ? super.getInitialRoute() : initParams;
    }

    //主動條用eventChannelPlugin
    void sendMessageEventChannel(String message){
        eventChannelPlugin.send(message);
    }
    //basicMessageChannel
    void sendMessageBasicMessageChannel(String message){//回調
        basicMessageChannelPlugin.send(message, this::onShowMessage);
    }

    private void onShowMessage(String s) {
        System.out.println("-----onShowMessage"+s);
    }

}

添加：

BasicMessageChannel   BasicMessageChannelPlugin.java

package com.john.nativetoflutter.channelPlugins;

import android.app.Activity;
import android.widget.Toast;

import androidx.annotation.Nullable;
import io.flutter.plugin.common.BasicMessageChannel;
import io.flutter.plugin.common.BinaryMessenger;
import io.flutter.plugin.common.StringCodec;

/**
 * BasicMessageChannel
 * 用于传递字符串和半结构化的信息，持续通信，如：Native将遍历到的文件信息陆续传递到Dart
 * ，在比如：Flutter将从服务端陆陆续获取到信息交个Native加工，Native处理完返回等
 */
public class BasicMessageChannelPlugin implements BasicMessageChannel.MessageHandler<String>, BasicMessageChannel.Reply<String> {
    private final Activity activity;
    private final BasicMessageChannel<String> messageChannel;

    static BasicMessageChannelPlugin registerWith(BinaryMessenger messenger, Activity activity) {
        return new BasicMessageChannelPlugin(messenger, activity);
    }

    private BasicMessageChannelPlugin(BinaryMessenger messenger, Activity activity) {
        this.activity = activity;
        this.messageChannel = new BasicMessageChannel<>(messenger, "BasicMessageChannelPlugin", StringCodec.INSTANCE);
        //设置消息处理器，处理来自Dart的消息
        messageChannel.setMessageHandler(this);
    }

    @Override
    public void onMessage(String str, BasicMessageChannel.Reply<String> reply) {//处理Dart发来的消息
        reply.reply("BasicMessageChannel收到：" + str);//可以通过reply进行回复
//        if (activity instanceof IShowMessage) {
//            ((IShowMessage) activity).onShowMessage(s);
//        }
        Toast.makeText(activity, str, Toast.LENGTH_SHORT).show();
    }

    /**
     * 向Dart发送消息，并接受Dart的反馈
     *
     * @param message  要给Dart发送的消息内容
     * @param callback 来自Dart的反馈
     */
    void send(String message, BasicMessageChannel.Reply<String> callback) {
        messageChannel.send(message, callback);
    }

    @Override
    public void reply(String s) {

    }
}

EventChannel          EventChannelPlugin.java

package com.john.nativetoflutter.channelPlugins;


import io.flutter.plugin.common.BinaryMessenger;
import io.flutter.plugin.common.EventChannel;

/**
 * EventChannelPlugin
 * 用于数据流（event streams）的通信，持续通信，通过长用于Native向Dart的通信，
 * 如：手机电量变化，网络连接变化，陀螺仪，传感器等；
 */

public class EventChannelPlugin implements EventChannel.StreamHandler {
    private EventChannel.EventSink eventSink;

    static EventChannelPlugin registerWith(BinaryMessenger messenger) {
        EventChannelPlugin plugin = new EventChannelPlugin();
        new EventChannel(messenger, "EventChannelPlugin").setStreamHandler(plugin);
        return plugin;
    }

    void send(Object params) {
        if (eventSink != null) {
            eventSink.success(params);
        }
    }

    @Override
    public void onListen(Object args, EventChannel.EventSink eventSink) {
        this.eventSink = eventSink;
    }

    @Override
    public void onCancel(Object o) {
        eventSink = null;
    }
}

MethodChannel         MethodChannelPlugin.java

package com.john.nativetoflutter.channelPlugins;

import android.app.Activity;
import android.widget.Toast;

import io.flutter.plugin.common.BinaryMessenger;
import io.flutter.plugin.common.MethodCall;
import io.flutter.plugin.common.MethodChannel;
import io.flutter.plugin.common.MethodChannel.MethodCallHandler;
import io.flutter.plugin.common.MethodChannel.Result;

/**
 * MethodChannelPlugin
 * 用于传递方法调用（method invocation），一次性通信，通常用于Dart调用Native的方法：如拍照；
 */
public class MethodChannelPlugin implements MethodCallHandler {
    private final Activity activity;

    /**
     * Plugin registration.
     */
    public static void registerWith(BinaryMessenger messenger, Activity activity) {
        MethodChannel channel = new MethodChannel(messenger, "MethodChannelPlugin");
        MethodChannelPlugin instance = new MethodChannelPlugin(activity);
        channel.setMethodCallHandler(instance);
    }

    private MethodChannelPlugin(Activity activity) {
        this.activity = activity;
    }

    @Override
    public void onMethodCall(MethodCall call, MethodChannel.Result result) {
        switch (call.method) {//处理来自Dart的方法调用
            case "send":
                showMessage(call.arguments());
                result.success("MethodChannelPlugin收到：" + call.arguments);//返回结果给Dart
                break;
            default:
                result.notImplemented();
        }
    }

    /**
     * 展示来自Dart的数据
     *
     * @param arguments
     */
    private void showMessage(String arguments) {
//        if (activity instanceof IShowMessage) {
//            ((IShowMessage) activity).onShowMessage(arguments);
//        }
        Toast.makeText(activity, arguments, Toast.LENGTH_SHORT).show();
    }
}

MainActivity.java

package com.john.nativetoflutter;

import androidx.appcompat.app.AppCompatActivity;
import androidx.fragment.app.FragmentTransaction;

import android.content.Intent;
import android.os.Bundle;
import android.view.View;
import android.widget.EditText;


import com.john.nativetoflutter.channelPlugins.BasicMessageChannelPlugin;
import com.john.nativetoflutter.channelPlugins.EventChannelPlugin;
import com.john.nativetoflutter.channelPlugins.FlutterAppActivity;

import java.security.DomainCombiner;

import io.flutter.embedding.android.FlutterActivity;
import io.flutter.embedding.android.FlutterFragment;
import io.flutter.embedding.engine.FlutterEngine;
import io.flutter.embedding.engine.FlutterEngineCache;
import io.flutter.embedding.engine.dart.DartExecutor;


public class MainActivity extends AppCompatActivity {

    private BasicMessageChannelPlugin basicMessageChannelPlugin;
    private EventChannelPlugin eventChannelPlugin;


    EditText editText;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);

        //basicMessageChannelPlugin = BasicMessageChannelPlugin.registerWith(getFlutterEngine().getDartExecutor(), this);


        setContentView(R.layout.activity_main);

        editText = findViewById(R.id.editTextTextPersonName);

        findViewById(R.id.test).setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                //没有指定路由 传值;只能调到 默认路由（开始界面）
                //        FragmentTransaction fragmentTransaction = getSupportFragmentManager().beginTransaction();
                //        fragmentTransaction.add(R.id.someContainer, FlutterFragment.createDefault());
                //        //fragmentTransaction.replace(R.id.someContainer, FlutterFragment.createDefault());
                //        fragmentTransaction.commit();

                //        System.out.println("------>"+editText.getText().toString());
                //指定路由并且传值
//            FlutterFragment flutterFragment = FlutterFragment.withNewEngine()
//    //                .initialRoute("{name:'devio',dataList:['aa','bb','bb']}")
//                    .initialRoute(editText.getText().toString())
//                    .build();
//            getSupportFragmentManager()
//                    .beginTransaction()
//                    .replace(R.id.someContainer, flutterFragment)
//                    .commit();

                Intent intent = new Intent(MainActivity.this, FlutterAppActivity.class);
                intent.putExtra(FlutterAppActivity.INIT_PARAMS, editText.getText().toString());
                startActivity(intent);

//                //第一种
//                //緩存的方式 打開FlutterEngine 缺點不能傳參 依赖 MyAppcation
//                startActivity(
//                        FlutterActivity
//                                .withCachedEngine(MyApplicaiton.CACHED_ENGINE_ID)
//                                .build(MainActivity.this)
//                );
//
//                //不不緩存 直接打開；每次都是新的 實例；有點可疑傳參
//                startActivity(
//                        FlutterActivity
//                                .withNewEngine()
//                                .initialRoute("{name:'devio',dataList:['aa','bb','bb']}")
//                                .build(MainActivity.this)
//                );
//
//                startActivity(FlutterAppActivity.createDefaultIntent(MainActivity.this));
            }
        });
    }
}

对应的 main.dart

import 'dart:async';
import 'package:flutter/material.dart';
import 'dart:ui' as ui;
import 'package:flutter/services.dart';

void main() => runApp(MyApp());

class MyApp extends StatelessWidget {
  // This widget is the root of your application.
  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      title: 'Flutter Demo',
      theme: ThemeData(
        primarySwatch: Colors.blue,
      ),
      home: MyHomePage(title: 'Flutter 混合开发'),
    );
  }
}

class MyHomePage extends StatefulWidget {
  MyHomePage({Key? key, required this.title}) : super(key: key);
  final String title;
  @override
  _MyHomePageState createState() => _MyHomePageState();
}

class _MyHomePageState extends State<MyHomePage> {
  final String initParams = ui.window.defaultRouteName;

  late StreamSubscription _streamSubscription;
  static const EventChannel _eventChannel = EventChannel("EventChannelPlugin");
  static const MethodChannel _methodChannel =
      MethodChannel('MethodChannelPlugin');
  static const BasicMessageChannel _basicMessageChannel =
      BasicMessageChannel<String>('BasicMessageChannelPlugin', StringCodec());

  String showMessage = '';
  String inputEventChannel = '';
  String inputMethodChannel = '';
  String inputBasicMessageChannel = '';
  @override
  void initState() {
    // TODO: implement initState
    super.initState();

    //EventChannel
    _streamSubscription = _eventChannel.receiveBroadcastStream('123').listen(
        _onEventChannel,
        onError: _onErrorEventChannel,
        onDone: _onDoneEventChannel);

    //使用 BasicMessageChannel 接收来自 native的消息，并向 native回复
    _basicMessageChannel.setMessageHandler((message) async {
      setState(() {
        showMessage = "BasicMessageChannel :" + message;
      });
      return "收到 Native消息： " + message; //返回给 原生的
    });
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(
        title: Text(widget.title),
      ),
      body: Center(
        child: Container(
          alignment: Alignment.topCenter,
          decoration: BoxDecoration(color: Colors.white),
          child: Column(
            children: [
              Row(
                children: [
                  Expanded(
                    child: TextField(
                      onChanged: (str) {
                        this.inputMethodChannel = str;
                      },
                      cursorRadius: Radius.circular(15),
                    ),
                  ),
                  OutlineButton(
                    onPressed: () async {
                      try {
                        String response = await _methodChannel.invokeMethod(
                            'send',
                            inputMethodChannel); //invokeMethod(方法名 ， 参数)

                        setState(() {
                          showMessage = response;
                        });
                      } catch (e) {
                        print('_methodChannel Error');
                        showMessage = '_methodChannel Error $e';
                      }
                    },
                    child: Text("methodChannel 主动发送到原生"),
                  )
                ],
              ),
              Row(
                children: [
                  Expanded(
                    child: TextField(
                      onChanged: (str) {
                        this.inputBasicMessageChannel = str;
                      },
                      cursorRadius: Radius.circular(15),
                    ),
                  ),
                  OutlineButton(
                    onPressed: () async {
                      try {
                        String response = await _basicMessageChannel
                            .send(inputBasicMessageChannel);
                        setState(() {
                          showMessage = response;
                        });
                      } catch (e) {
                        print('_basicMessageChannel Error');
                        setState(() {
                          showMessage = '_basicMessageChannel Error $e';
                        });
                      }
                    },
                    child: Text("BasicMessage 主动发送到原生"),
                  )
                ],
              ),
              Text('初始化参数 :$initParams'),
              Row(
                children: [
                  Padding(
                    padding: EdgeInsets.only(top: 20, right: 20),
                    child: Text(
                      '收到原生的数据：',
                      style: TextStyle(overflow: TextOverflow.visible),
                    ),
                  ),
                  Flexible(
                    child: Text(
                      showMessage,
                      overflow: TextOverflow.visible,
                    ),
                  )
                ],
              ),
            ],
          ),
        ),
      ),
      floatingActionButton: FloatingActionButton(
        onPressed: () {},
        tooltip: 'Increment',
        child: Icon(Icons.add),
      ), // This trailing comma makes auto-formatting nicer for build methods.
    );
  }

  void _onEventChannel(data) {
    setState(() {
      showMessage = "EventChannel :" + data;
    });
  }

  void _onErrorEventChannel(error) {}
  void _onDoneEventChannel() {}

  @override
  void dispose() {
    // TODO: implement dispose
    super.dispose();
    _streamSubscription.cancel();
    //_streamSubscription = null;
  }
}
